Makita

Makita Spare Parts for Router RP2300FC

SKU: Makita RP2300FC
€14.80
VAT included

Makita Spare Parts for Router RP2300FC

We have the original MAKITA Power Tools parts and tool repair help you need to get your tools running like new again.

Fix Your Router RP2300FC. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Router RP2300FC
  • Makita Spare Parts for Router RP2300FC
  • Makita Spare Parts Drawing for Router RP2300FC
Makita

Makita Spare Parts for Router RP2300FC

SKU: Makita RP2300FC Condition: New
€14.80
VAT included

Makita Spare Parts for Router RP2300FC

We have the original MAKITA Power Tools parts and tool repair help you need to get your tools running like new again.

Fix Your Router RP2300FC. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 79 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
79 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

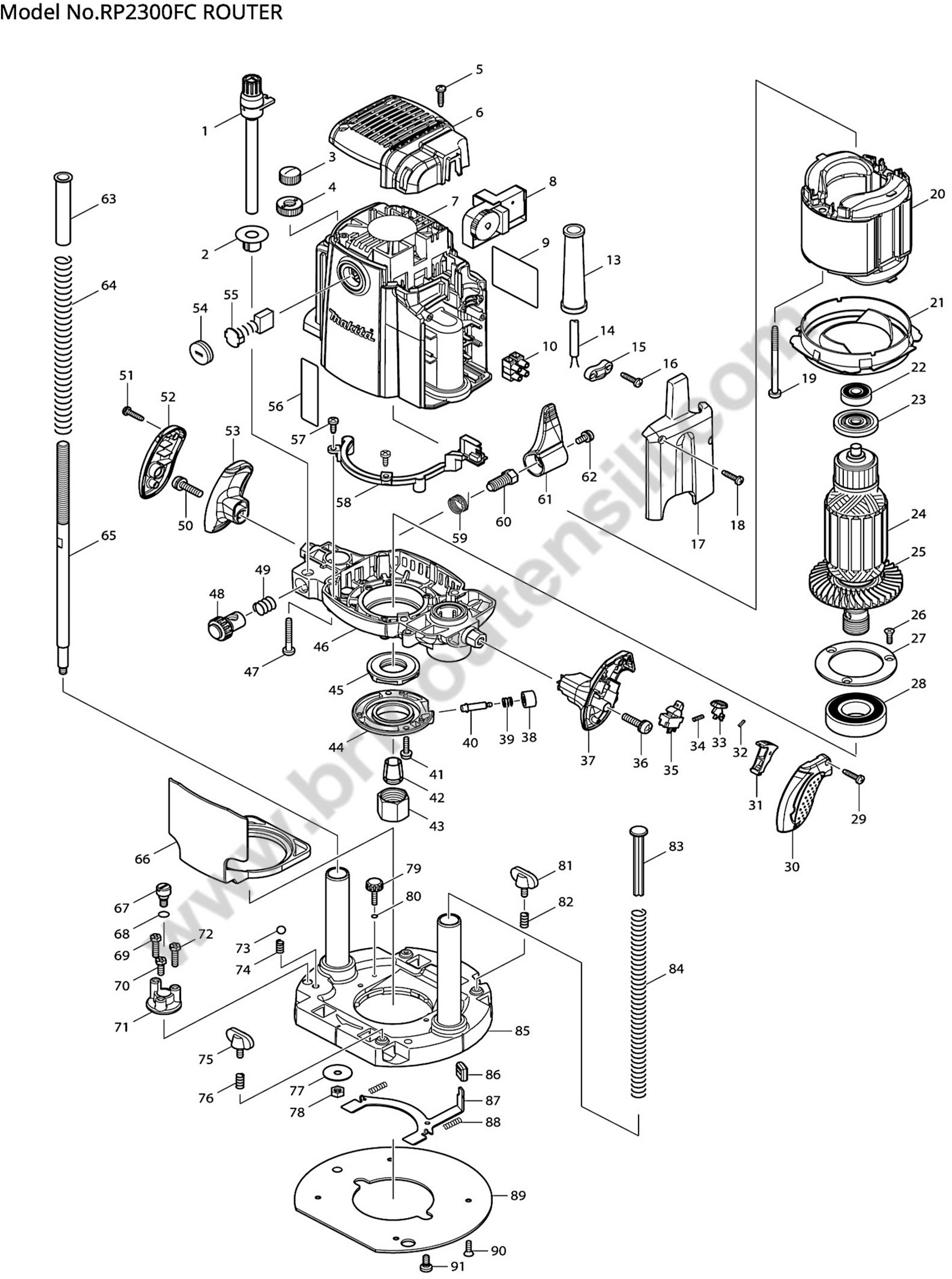

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Thumb Screw M10x125 for Router Makita RP1800F 125542-4 Thumb Screw M10x125 for Router Makita RP1800F €14.80
2
 CONTENTS DEPTH 'X RP1800 450946-4 CONTENTS DEPTH 'X RP1800 €1.36
3
 photo_cameraImage coming soon 252643-6 NUT M 10 X RP1100C €2.03
4
 photo_cameraImage coming soon 410129-8 NUT NYLON M10 €2.62
5
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
6
 photo_cameraImage coming soon 450947-2 COVER POST. FOR RP2300FC €9.57
7
 photo_cameraImage coming soon 158977-4 HOUSING MOT. X RP1800F €90.65
8
 photo_cameraImage coming soon 631859-0 REGULATOR FOR RP2300FC €60.56
9
 photo_cameraImage coming soon 866377-1 LABEL RP2300FC €1.26
10
 photo_cameraImage coming soon 654531-7 CLAMP X 420S €5.13
13
 Power Cord Guard 10/90 for for Makita Power Tools 682505-8 Power Cord Guard 10/90 for for Makita Power Tools €3.18
15
 photo_cameraImage coming soon 687053-2 CLAMP cable tie €2.21
16
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
17
 photo_cameraImage coming soon 450949-8 COVER LATER. RP1800F €5.76
18
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
19
 photo_cameraImage coming soon 266059-9 SCREW M5X75 X 9059SF €5.93
20
 photo_cameraImage coming soon 636344-8 STATOR FOR RP2300FC €49.30
21
 photo_cameraImage coming soon 450944-8 BAFFLE RP1800F €2.03
22
 Bearing 629DD FOR Angle Grinder Makita GA4530 211092-6 Bearing 629DD FOR Angle Grinder Makita GA4530 €9.01
23
 photo_cameraImage coming soon 681631-0 INSULATION X 3612C €23.81
24
 photo_cameraImage coming soon 517808-0 ARMATURE RP2300FC €137.73
25
 photo_cameraImage coming soon 240112-9 FAN 80 X RP1800F €9.61
26
 photo_cameraImage coming soon 251295-0 COUNTERSUNK HEAD SCREW M4x14 3 €1.37
27
 photo_cameraImage coming soon 285731-4 RETAINING CUSCINET.60 X RP1800F €3.04
28
 photo_cameraImage coming soon 211380-1 BEARING 6205DDW X RP1800F €10.75
29
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
30
 photo_cameraImage coming soon 450937-5 COVER SET. DX X RP1800F €6.44
31
 photo_cameraImage coming soon 450940-6 LEVER SWITCH. X RP1800F €2.03
32
 photo_cameraImage coming soon 233024-3 SPRING 4 X 6702DW €1.36
33
 photo_cameraImage coming soon 450941-4 KEY LOCK RP1800F €2.03
34
 photo_cameraImage coming soon 231372-4 SPRING 5 X 5014 / 16NB €1.36
35
 photo_cameraImage coming soon 651432-0 SWITCH RP1800F €10.75
36
 photo_cameraImage coming soon 911343-4 SCREW M6X25 X RP1800F €1.36
37
 photo_cameraImage coming soon 450936-7 HANDLE DX X RP1800F €8.25
38
 photo_cameraImage coming soon 450942-2 KEY FOR RP1800F €1.36
39
 photo_cameraImage coming soon 233072-2 COMPRESSION SPRING 8 X 9541 €1.40
40
 photo_cameraImage coming soon 268234-3 PLUG FOR 6 RP1800F €2.62
41
 photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
42
 Collect Clamp 12 mm for Routers Makita 3612-3612C-3612BR 763628-2 Collect Clamp 12 mm for Routers Makita 3612-3612C-3612BR €51.99
43
 Collect Clamp Nut for Routers Makita RP1800F-RP2300FC 763674-5 Collect Clamp Nut for Routers Makita RP1800F-RP2300FC €9.91
44
 photo_cameraImage coming soon 318382-9 COVER FOR RP1800F €10.75
45
 photo_cameraImage coming soon 285849-1 RETENTION FOR RP1800F €3.73
46
 photo_cameraImage coming soon 158972-4 MOTOR HOLDER X RP1800F €32.08
47
 Screw M5 X 35 for Angle Grinder Makita GA9050R 266012-5 Screw M5 X 35 for Angle Grinder Makita GA9050R €2.01
48
 Half Nut Complete for Router Makita RP1800F 153476-1 Half Nut Complete for Router Makita RP1800F €11.37
49
 photo_cameraImage coming soon 231231-2 SPRING 12 3600B / BR / 3612BR €1.36
50
 photo_cameraImage coming soon 911343-4 SCREW M6X25 X RP1800F €1.36
51
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
52
 photo_cameraImage coming soon 450939-1 COVER SET. SX X RP1800F €6.44
53
 photo_cameraImage coming soon 450938-3 HANDLE FOR SX RP1800F €9.61
54
 Brushes Holder Cap for Angle Grinders Makita GA7020-GA9020-9069 643710-2 Brushes Holder Cap for Angle Grinders Makita GA7020-GA9020-9069 €2.01
55
 Carbon Brushes CB-203 for Router Makita 3612C 191953-5 Carbon Brushes CB-203 for Router Makita 3612C €11.60
57
 photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
58
 photo_cameraImage coming soon 631862-1 CIRCUIT LIGHT RP1800F €8.25
59
 photo_cameraImage coming soon 233538-2 SPRING TWIST 15 X RP1800F €1.36
60
 photo_cameraImage coming soon 266015-9 BOLT M10 X 3612C €8.25
61
 photo_cameraImage coming soon 450950-3 LEVER LOCK X RP1800F €2.62
62
 photo_cameraImage coming soon 911213-7 SCREW M5X12 X 5143R €1.36
63
 photo_cameraImage coming soon 450943-0 SOCKET FOR RP1800F €2.03
64
 photo_cameraImage coming soon 234106-4 SPRING COMP. 13 X RP1800F €2.62
65
 photo_cameraImage coming soon 325652-9 SCREW M10 X RP1800F €7.36
66
 photo_cameraImage coming soon 450953-7 TIP DEFLECTOR €4.30
67
 photo_cameraImage coming soon 251467-7 SCREW M 6 X RP1100C €3.73
68
 photo_cameraImage coming soon 213030-4 RING 8 X RP1100C €1.42
69
 photo_cameraImage coming soon 265587-1 SCREW M5 X 20 RP1800F €1.36
70
 photo_cameraImage coming soon 265586-3 SCREW M5 X 14 RP1800F €1.36
71
 photo_cameraImage coming soon 315931-3 PLATE HOLDER X RP1100C €8.25
72
 photo_cameraImage coming soon 265587-1 SCREW M5 X 20 RP1800F €1.36
73
 photo_cameraImage coming soon 216009-4 BALL 7.1 €1.39
74
 photo_cameraImage coming soon 231419-4 SPRING 5 x3620 €2.03
75
 photo_cameraImage coming soon 265720-5 SCREW M5 X 14 HR2410 €3.04
76
 photo_cameraImage coming soon 231240-1 SPRING 7 €2.49
77
 photo_cameraImage coming soon 253783-3 FLAT WASHER 6 €3.18
78
 photo_cameraImage coming soon 931303-0 HEXAGONAL NUT M6 €1.36
79
 photo_cameraImage coming soon 265774-2 SCREW M4 X 19 X RP1800F €2.62
80
 photo_cameraImage coming soon 213022-3 SEAL 3 X5014 / 16NB €1.36
81
 photo_cameraImage coming soon 265720-5 SCREW M5 X 14 HR2410 €3.04
82
 photo_cameraImage coming soon 231240-1 SPRING 7 €2.49
83
 photo_cameraImage coming soon 417252-0 PIN X RP1100C €2.62
84
 photo_cameraImage coming soon 234105-6 SPRING COMP. 11 X RP1800F €2.62
86
 photo_cameraImage coming soon 424176-3 HOOD 14 X RP1800F €1.36
87
 photo_cameraImage coming soon 346032-6 PLATE RP1800F €4.30
88
 photo_cameraImage coming soon 233105-3 COMPRESSION SPRING 4 €1.29
89
 photo_cameraImage coming soon 450951-1 BASE PLATE X RP1800F €16.17
90
 photo_cameraImage coming soon 912112-6 SCREW M4X10 €1.39
91
 photo_cameraImage coming soon 266016-7 BOLT WITH RIM M5X10 €6.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Router RP2300FC

Fix Your Router RP2300FC. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Router and the respective parts of the code.
Makita RP2300FC

Router RP2300FC
# Part Num. Description
1 125542-4 THUMB SCREW M10 X 115 FOR RP1800
2 450946-4 DEPTH POINTER RP1800
3 252643-6 NUT M 10 X RP1100C
4 410129-8 NYLON NUT M10
5 265995-6 SCREW M4X18 X 6408 / 6221DW
6 450947-2 COVER POST. FOR RP2300FC
7 158977-4 HOUSING MOT. X RP1800F
8 631859-0 REGULATOR FOR RP2300FC
9 866377-1 LABEL RP2300FC
10 654531-7 CLAMP X 420S
13 682505-8 CABLE SLEEVE 10/90
15 687053-2 CLAMP cable tie
16 265995-6 SCREW M4X18 X 6408 / 6221DW
17 450949-8 COVER LATER. RP1800F
18 265995-6 SCREW M4X18 X 6408 / 6221DW
19 266059-9 SCREW M5X75 X 9059SF
20 636344-8 STATOR FOR RP2300FC
21 450944-8 BAFFLE RP1800F
22 211092-6 BALL BEARING 629DD
23 681631-0 INSULATION X 3612C
24 517808-0 ARMATURE RP2300FC
25 240112-9 FAN 80 X RP1800F
26 251295-0 COUNTERSUNK HEAD SCREW M4x14
27 285731-4 RETAINING CUSCINET.60 X RP1800F
28 211380-1 BEARING 6205DDW X RP1800F
29 265995-6 SCREW M4X18 X 6408 / 6221DW
30 450937-5 COVER SET. DX X RP1800F
31 450940-6 LEVER SWITCH. X RP1800F
32 233024-3 SPRING 4 X 6702DW
33 450941-4 KEY LOCK RP1800F
34 231372-4 SPRING 5 X 5014 / 16NB
35 651432-0 SWITCH RP1800F
36 911343-4 SCREW M6X25 X RP1800F
37 450936-7 HANDLE DX X RP1800F
38 450942-2 KEY FOR RP1800F
39 233072-2 SPRING COMPRESSION 8 X 9541
40 268234-3 PLUG FOR 6 RP1800F
41 911133-5 SCREW M4X18
42 763628-2 CLAMP 12MM X 3612BR
43 763674-5 NUT FOR RP1800F
44 318382-9 COVER FOR RP1800F
45 285849-1 RETENTION FOR RP1800F
46 158972-4 MOTOR HOLDER X RP1800F
47 266012-5 SCREW M5 X 35 HR160DW
48 153476-1 HALF NUT COMPL. X RP1800F
49 231231-2 SPRING 12 3600B / BR / 3612BR
50 911343-4 SCREW M6X25 X RP1800F
51 265995-6 SCREW M4X18 X 6408 / 6221DW
52 450939-1 COVER SET. SX X RP1800F
53 450938-3 HANDLE FOR SX RP1800F
54 643710-2 PLUG BRUSH XHM1500
55 191953-5 CARBON BRUSHES CB-203 X 3612C
56 816926-4 LABEL RP2300FC
57 266026-4 SCREW M4 X 12
58 631862-1 CIRCUIT LIGHT RP1800F
59 233538-2 SPRING TWIST 15 X RP1800F
60 266015-9 BOLT M10 X 3612C
61 450950-3 LEVER LOCK X RP1800F
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RP2300FC
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita RP2300FC Parts Drawing

Makita RP2300FC Parts Drawing

Download (476.81KB)

You might also like

Collect Clamp Nut for Routers Makita 3620-RP900
Makita SKU: 763615-1
Collect Clamp Nut for Routers Makita 3620-RP900
Collect Clamp Nut for Routers Makita 3620-RP900 Genuine Parts Makita, Collect Clamp Nut holder, for Vertical Routers 3620 - MT361 - RP0900 - Laminate trimmer RT070CX3. Parts for the following products: - ROUTER 8 MM - 3620...
Last items in stock €9.91
Details
Clamp 6 mm for Routers Makita 3620-RP900
Makita SKU: 763636-3
Clamp 6 mm for Routers Makita 3620-RP900
Clamp 6 mm for Routers Makita 3620-RP900 Genuine Parts Makita, Clamp 6 mm Milling holder, for Vertical Routers 3620 - MT361 - RP0900 - Laminate trimmer RT070CX3. Parts for the following products: - ROUTER 8 MM - 3620 - VERTICAL ROUTER...
Last items in stock €21.69
Details
Clamp 8 mm for Routers Makita 3620-RP900
Makita SKU: 763618-5
Clamp 8 mm for Routers Makita 3620-RP900
Clamp 8 mm for Routers Makita 3620-RP900 Genuine Parts Makita, Clamp 8 mm Milling holder, for Vertical Routers 3620 - MT361 - RP0900 - Laminate trimmer RT070CX3. Parts for the following products: - ROUTER 8 MM - 3620 - VERTICAL...
Last items in stock €9.91
Details
Switch for Router Makita RP0900-3620
Makita SKU: 651280-7
Switch for Router Makita RP0900-3620
Switch for Router Makita RP0900-3620 Original replacement part Makita, Switch SGE CDY-5 for Router RP 0900 - 3620 - Circular Saw HM SR 1600 - SR 1800 HM. Part for the following products: - Router 8 MM RP 0900 - Router 8 MM 3620...
AVAILABLE €12.90
Details
Base for Routers Makita RP1800F-RP2300FC
Makita SKU: 158973-2
Base for Routers Makita RP1800F-RP2300FC
Base for Routers Makita RP1800F-RP2300FC Original Spare Parts Makita, Base for Routers RP1800F - RP2300FC. Part for the following article : - Router RP1800F - Router RP2300FC - Code : 158973-2
AVAILABLE €60.00
Details
Carbon Brushes CB 106 for Percussion Drills Makita HP2010N
Makita SKU: 181410-1
Carbon Brushes CB 106 for Percussion Drills Makita HP2010N
Carbon Brushes CB 106 for Percussion Drills Makita HP2010N Genuine part Makita, Carbon Brushes CB 106 for Percussion Drills HP2010N Makita - Makita Drill corer 8406 - Planer Makita 1911B - Router Makita RP0900 - Router Maktec MT361.
AVAILABLE €10.18
Details
Collect Clamp 12 mm for Routers Makita 3612-3612C-3612BR
Makita SKU: 763628-2
Collect Clamp 12 mm for Routers Makita 3612-3612C-3612BR
Collect Clamp 12 mm for Routers Makita 3612-3612C-3612BR Genuine part Makita, Collect Clamp 12 mm, for Vertical Router 12MM 3612 - 3612BR - 3612C - M3600 - MAKTEC MT362 - RP1800F - RP2300FC. Part for the following products: - 3612 -...
AVAILABLE €51.99
Details
Collect Clamp Nut for Routers Makita RP1800F-RP2300FC
Makita SKU: 763674-5
Collect Clamp Nut for Routers Makita RP1800F-RP2300FC
Collect Clamp Nut for Routers Makita RP1800F-RP2300FC Genuine Parts Makita, Collect Clamp Nut Holder for Vertical Routers RP1800F - RP2300FC. Parts for the following products: - RP1800F - VERTICAL ROUTER 1800W 12MM WITH LED - RP2300FC...
AVAILABLE €9.91
Details
Bearing 629DD FOR Angle Grinder Makita GA4530
Makita SKU: 211092-6
Bearing 629DD FOR Angle Grinder Makita GA4530
Bearing 629DD FOR Angle Grinder Makita GA4530 Genuine part Makita, Ball Bearing 629DD for Angle Grinders GA4530 - GA4530R - GA4534 - GA5034 - GA9000 - 9541-9542. Parts for the following products: - GA4530 - ANGLE GRINDER 115MM -...
AVAILABLE €9.01
Details
Armature Washer for Demolition Hammers Makita HR4000C
Makita SKU: 681650-6
Armature Washer for Demolition Hammers Makita HR4000C
Armature Washer for Demolition Hammers Makita HR4000C Genuine spare part Makita, Armature Protection Washer for SDS-Max Rotary Hammers, HM0860C - HM0870C - HM1100C - HM1140C - HR3000C - HR3200C - HR3541FC - HR4000C. Part for the...
AVAILABLE €8.76
Details
Carbon Brushes CB-203 for Router Makita 3612C
Makita SKU: 191953-5
Carbon Brushes CB-203 for Router Makita 3612C
Carbon Brushes CB-203 for Router Makita 3612C Genuine Spare Parts Makita, Carbon Brushes CB-203 for Router 2414B - 2414EN - 2414NB - 3612 - 3612C - 5103R - 5104S - 5143R - 5903R - 5903RK - KP312S - LC1230 - LW1400 - M3600 - MT240 -...
AVAILABLE €11.60
Details
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C
Makita SKU: 643750-0
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C Genuine part MAKITA, Carbon Brush Holder Cap for Hammers HM1100 - HM1100C - Angle Grinder  GA6021C - GA6020 - Circular Saw 5703R. Parts for the following products: - 2107FK -...
AVAILABLE €2.51
Details
Ball Bearing 608DDW for Router Makita RP0900
Makita SKU: 210044-4
Ball Bearing 608DDW for Router Makita RP0900
Ball Bearing 608DDW for Router Makita RP0900 Genuine Parts Makita, Ball Bearing 608DDW for Vertical Router RP0900 - Concrete Planer PC5000C - PC5001C - Blower UB1103Z Parts for the following products: - M4301 - JIGSAW 450W - MT431 -...
AVAILABLE €4.63
Details
Half Nut Complete for Router Makita RP1800F
Makita SKU: 153476-1
Half Nut Complete for Router Makita RP1800F
Half Nut Complete for Router Makita RP1800F Genuine Accessory Makita, Half Nut Complete for Routers RP0910 - RP1110C - RP1800F - RP2300FC Parts for the following products: - 195563-0 - BASE ROUTER RT0700C - RP0910 - ROUTER 8MM 900W...
on 7/10 Business Days Approx €11.37
Details
Thumb Screw M10x125 for Router Makita RP1800F
Makita SKU: 125542-4
Thumb Screw M10x125 for Router Makita RP1800F
Thumb Screw M10x125 for Router Makita RP1800F Genuine part Makita, Thumb Screw M10x125 for Routers RP1110C - RP1800F - RP1801 - RP1803F - RP2300FC - RP2303FC.. Parts for the following products: -  RP1800F - ROUTER 12MM 1800W W/ LED -...
on 7/10 Business Days Approx. €14.80
Details
Comments (0)
