Makita

Makita Spare Parts for Chainsaw EA3500S40B

SKU: Makita EA3500S40B Condition: New
€3.35
VAT included

Makita Spare Parts for Chainsaw EA3500S40B

MAKITA service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Chainsaw EA3500S40B.

These are an authentic replacement parts sourced directly from the manufacturer.
settings 124 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
123 spare parts

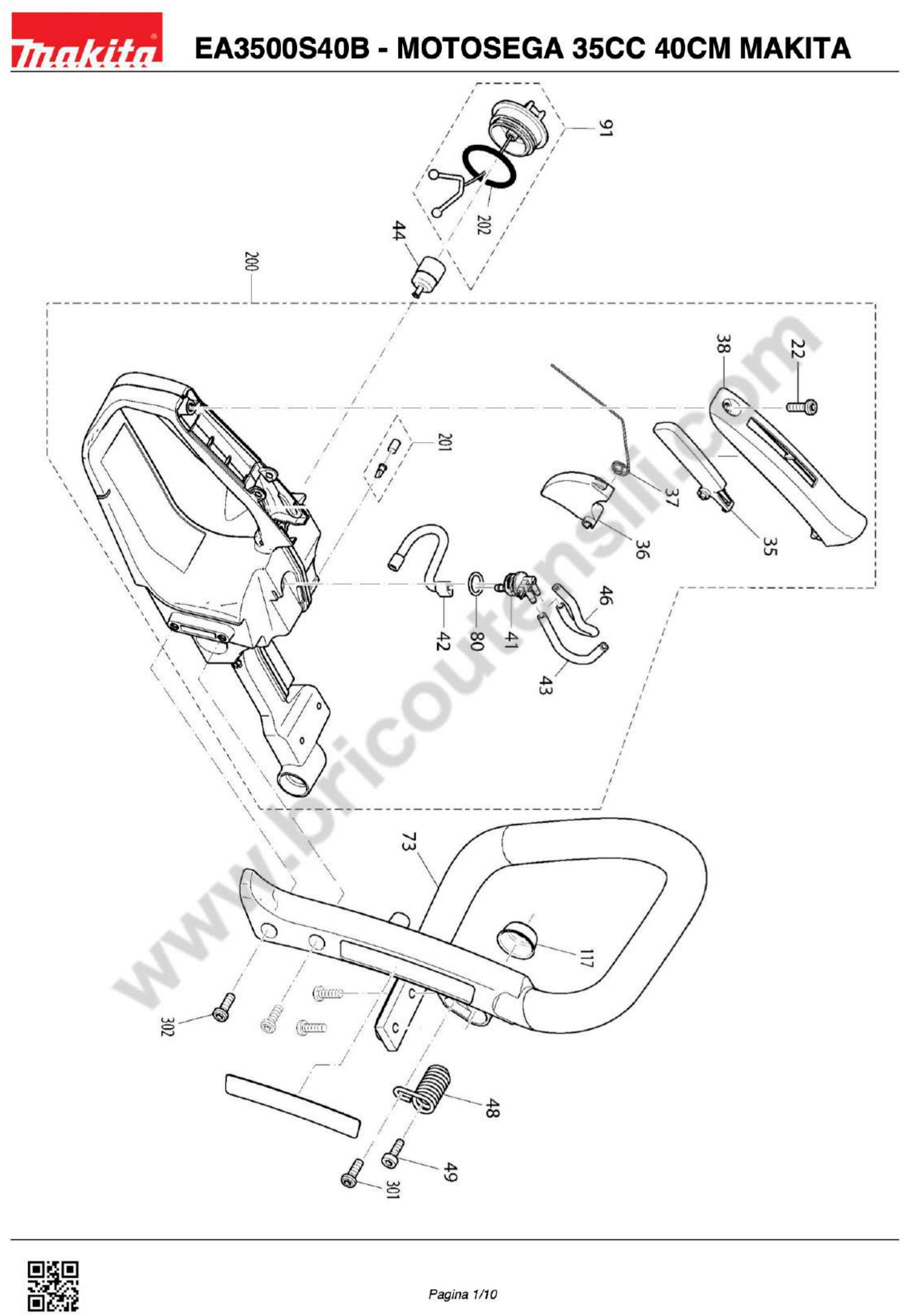

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
22
 photo_cameraImage coming soon 266478-9 SCREW 5,5X16 (TORX) €1.47
35
 photo_cameraImage coming soon 452020-4 RELEASE LEVER PS32CTLC €1.40
36
 photo_cameraImage coming soon 452019-9 ACCELERATOR LEVER PS32CTLC €1.40
37
 photo_cameraImage coming soon 231866-9 SPRING TORSION 10 PS32CTLC €1.43
38
 photo_cameraImage coming soon 452021-2 COVER HANDLE PS32CTLC €2.15
41
 photo_cameraImage coming soon 452018-1 FITTING CARCBURANTE PS32CTLC €1.43
42
 Fuel Hose for Chaisaws Makita EA3201S35A 424456-7 Fuel Hose for Chaisaws Makita EA3201S35A €16.31
43
 photo_cameraImage coming soon 965452660 TUBE €21.54
44
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
46
 photo_cameraImage coming soon 422065-6 PIPE 2,5X55 PS32CTLC €3.17
48
 Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
49
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
73
 photo_cameraImage coming soon 452036-9 FRONT HANDLE PS32CTLC €32.07
80
 photo_cameraImage coming soon 213586-7 RING 11.5 PS32CTLC €1.43
91
 photo_cameraImage coming soon 168823-3 TANK CAP PS32CTLC €2.73
117
 photo_cameraImage coming soon 346517-2 BELLEVILLE WASHER 6 PS32CTLC €1.40
200
 photo_cameraImage coming soon 195758-5 TANK CPL BLUE EA3201S35A €46.64
201
 photo_cameraImage coming soon 170175010 VENT VALVE KSET €7.58
202
 photo_cameraImage coming soon 213080-9 RING 29.5 PS32CTLC €5.43

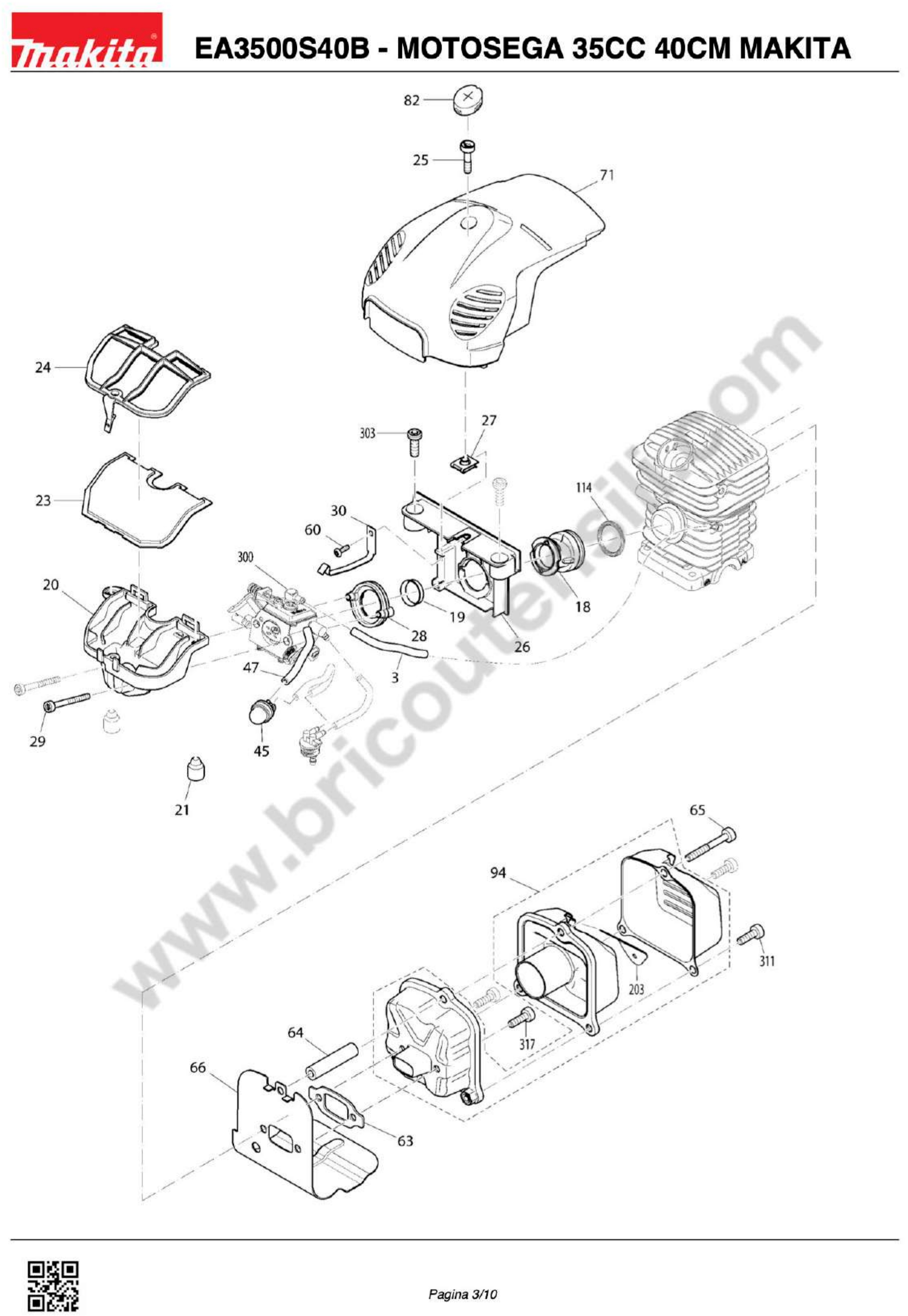

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
3
 photo_cameraImage coming soon 422066-4 PIPE 2,5X72 PS32CTLC €2.08
18
 photo_cameraImage coming soon 125131040 DUCT INTAKE €9.95
19
 photo_cameraImage coming soon 346413-4 SOCKET 17 PS32CTLC €1.47
20
 photo_cameraImage coming soon 452030-1 PS32CTLC FUND €3.35
21
 Damper for Chainsaw Dolmar PS32CTLC 424173-9 Damper for Chainsaw Dolmar PS32CTLC €2.18
23
 Air Cleaner for Chaisaw Makita EA3201S35A 423414-0 Air Cleaner for Chaisaw Makita EA3201S35A €3.87
24
 photo_cameraImage coming soon 452031-9 FILTER COVER PS32CTLC €1.40
25
 photo_cameraImage coming soon 266607-4 SCREW M5X20 PS32CTLC €1.43
26
 photo_cameraImage coming soon 125131052 FLANGE €2.88
27
 photo_cameraImage coming soon 264044-6 PLATE M5 PS32CTLC €1.40
28
 photo_cameraImage coming soon 318634-8 FLANGE PS32CTLC €2.15
29
 photo_cameraImage coming soon 908004406 SCREW €2.60
30
 photo_cameraImage coming soon 346290-4 PS32CTLC CONTACT €1.40
45
 Gasoline Primer Pump for Chainsaw Makita DCS230T 168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T €6.24
47
 photo_cameraImage coming soon 422067-2 PIPE 2,5X55 PS32CTLC €2.15
60
 photo_cameraImage coming soon 266421-8 SCREW 3PER10 HR2800 €1.40
63
 photo_cameraImage coming soon 346304-9 SEAL MUFFLER PS32CTLC €1.43
64
 photo_cameraImage coming soon 038174410 CONNECTING LINL L=39,5MM €3.20
65
 photo_cameraImage coming soon 266480-2 SCREW €1.47
66
 photo_cameraImage coming soon 346764-5 COOLING PLATE €1.43
71
 photo_cameraImage coming soon 125118010 FILTER COVER €18.12
82
 photo_cameraImage coming soon 424618-7 PLUG €1.43
94
 photo_cameraImage coming soon 125174100 MUFFLER €104.92
114
 photo_cameraImage coming soon 233971-8 CIRCLIP PS32CTLC €2.20
203
 photo_cameraImage coming soon 125174170 SPARK ARRESTER €1.92
300
 Carburetor for Chainsaw Makita EA3500S40B 168829-1 Carburetor for Chainsaw Makita EA3500S40B €67.90

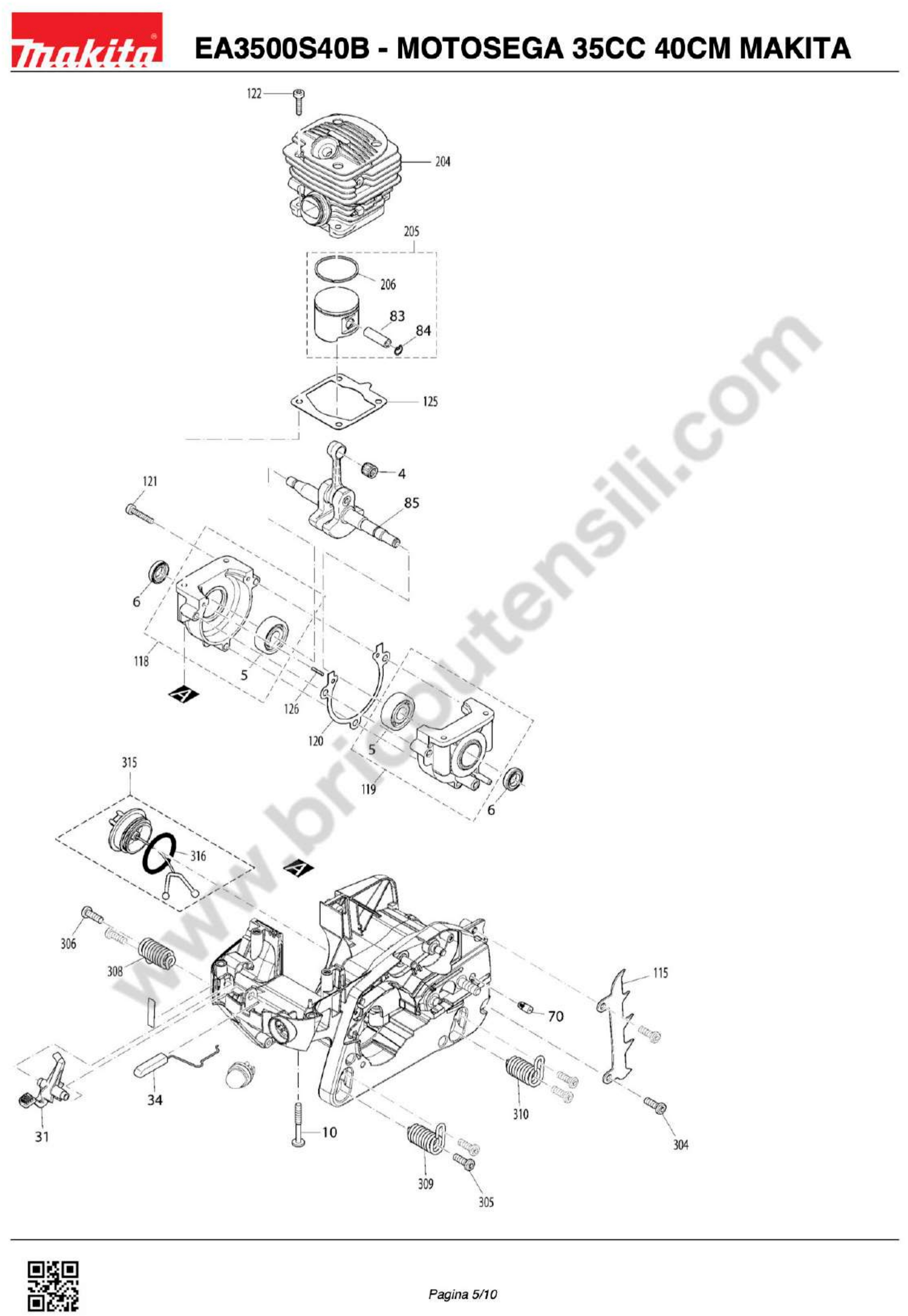

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
4
 photo_cameraImage coming soon 962210092 CAGE ROLLER €7.54
5
 photo_cameraImage coming soon 960102131 BALL BEARING 6201 €20.92
6
 photo_cameraImage coming soon 213141-5 SEAL €6.29
10
 photo_cameraImage coming soon 266608-2 SCREW 5x40 PS32CTLC €1.40
31
 photo_cameraImage coming soon 452025-4 LEVER AIR PS32CTLC €1.40
34
 photo_cameraImage coming soon 452022-0 LEVERAGE PS32CTLC €1.47
70
 Venting Valve for Chainsaw Dolmar PS32CTLC 168504-9 Venting Valve for Chainsaw Dolmar PS32CTLC €3.70
83
 photo_cameraImage coming soon 125132030 PISTON PIN €10.69
84
 Circlip for Chainsaw Dolmar PS33/35 232302-8 Circlip for Chainsaw Dolmar PS33/35 €1.41
85
 photo_cameraImage coming soon 125120100 CRANKSHAFT €286.43
115
 photo_cameraImage coming soon 346301-5 HARPOON PS32CTLC €2.12
118
 photo_cameraImage coming soon 125111070 CARTER SIDE FLYWHEEL €127.46
119
 photo_cameraImage coming soon 125111080 CARTER CLUTCH SIDE €127.46
120
 photo_cameraImage coming soon 125111090 SEAL €2.60
121
 photo_cameraImage coming soon 908405255 SCREW M5x25 (TORX) €2.12
122
 photo_cameraImage coming soon 266960-8 SCREW X DCS6401 €1.43
125
 photo_cameraImage coming soon 346760-3 CYLINDER GASKET €2.73
126
 photo_cameraImage coming soon 258038-1 CLAMPING PIN €1.47
204
 photo_cameraImage coming soon 143323-4 CYLINDER €77.36
205
 Piston Set for Chainsaw Makita EA3500S40B 197479-5 Piston Set for Chainsaw Makita EA3500S40B €22.63
206
 photo_cameraImage coming soon 257366-1 PISTON RING Ø 38 €4.51
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

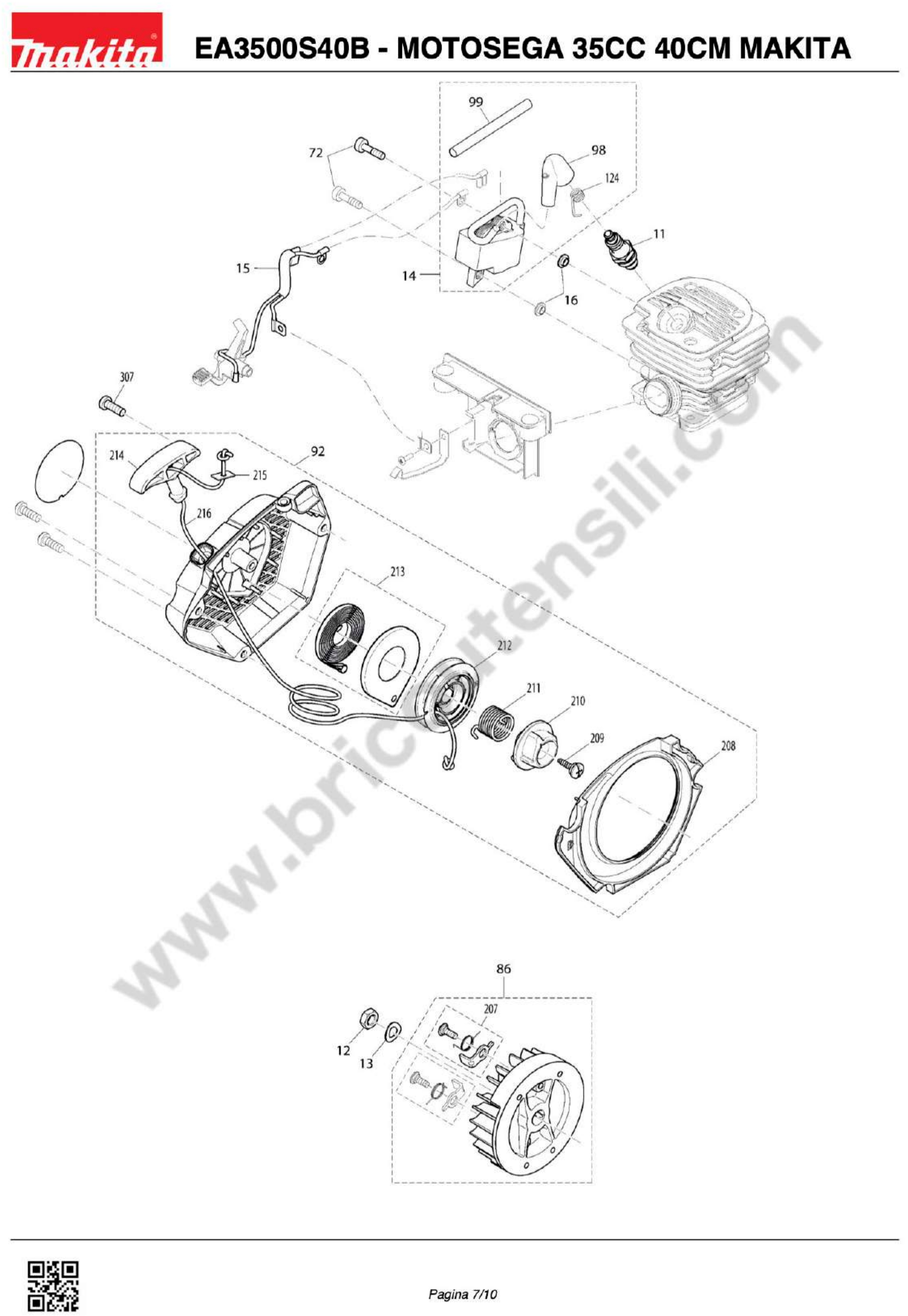

Esploso pagina 4
Pos. Item Price Buy
11
 photo_cameraImage coming soon 0650109950 SPARK PLUG CMR6A X MS251.A €12.34
12
 photo_cameraImage coming soon 264022-6 NUT €1.43
13
 photo_cameraImage coming soon 267822-3 WASHER 8 PS32CTLC €1.47
14
 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A 126270-4 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A €55.00
15
 photo_cameraImage coming soon 168601-1 CABLES PS32CTLC €3.92
16
 photo_cameraImage coming soon 452670-5 INSULATING WASHER PS32CTLC €1.40
72
 photo_cameraImage coming soon 266472-1 SCREW €2.20
86
 photo_cameraImage coming soon 140480-9 FLYWHEEL PS32CTLC €27.55
92
 photo_cameraImage coming soon 161328-2 STARTER ASS'Y BLUE EA3201S35A €39.02
98
 photo_cameraImage coming soon 424522-0 HOOD CANDLE €2.82
99
 photo_cameraImage coming soon 125143040 INSULATING €1.92
124
 photo_cameraImage coming soon 326210-4 SPRING €1.38
207
 Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A 195761-6 Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A €2.84
208
 photo_cameraImage coming soon 452026-2 BAFFLE PS32CTLC €3.35
209
 photo_cameraImage coming soon 266777-9 SCREW 5X1 PS32CTLC €1.40
210
 Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A 453786-9 Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A €4.63
211
 photo_cameraImage coming soon 234253-1 SPRING TORSION 20 PS32CTLC €2.69
212
 photo_cameraImage coming soon 455919-2 CABLE DRUM CPL. €6.06
213
 Makita Starter Spring for EA3200S35A 195955-3 Makita Starter Spring for EA3200S35A €11.07
214
 photo_cameraImage coming soon 453783-5 GRIP STARTING PS32CTLC €3.92
215
 photo_cameraImage coming soon 267847-7 WASHER QUADRA 4 PS32CTLC €1.40
216
 photo_cameraImage coming soon 444038-9 ROPE START PS32CTLC €2.08

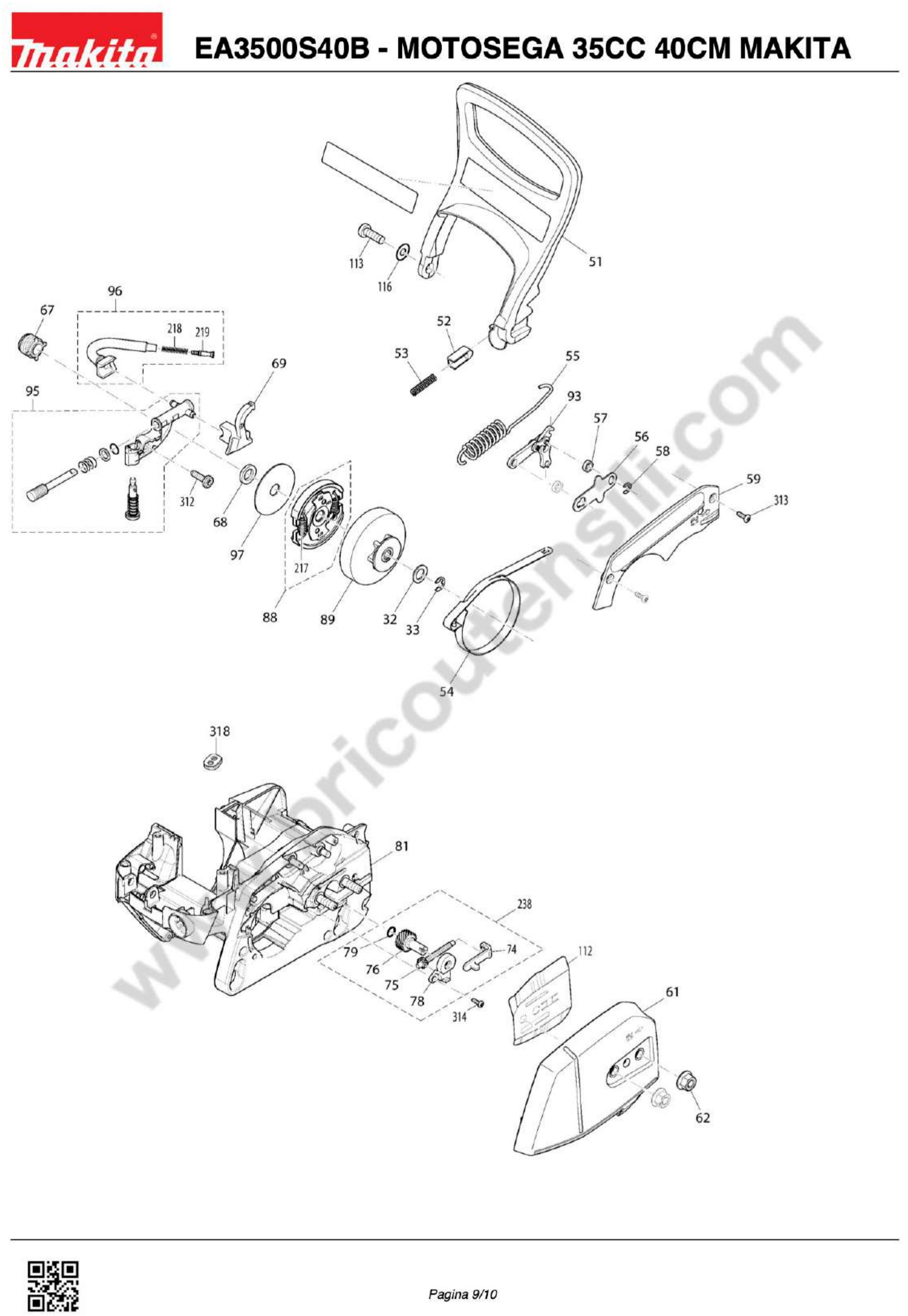

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 5
Pos. Item Price Buy
32
 photo_cameraImage coming soon 267833-8 WASHER 8 PS32CTLC €1.44
33
 photo_cameraImage coming soon 259033-4 LOCKWASHER X UC €1.47
51
 Hand Guard for Petrol Chainsaw Makita EA3200S35A 452032-7 Hand Guard for Petrol Chainsaw Makita EA3200S35A €6.26
52
 photo_cameraImage coming soon 313212-9 PS32CTLC GUIDE €1.47
53
 photo_cameraImage coming soon 234210-9 SPRING COMPRESSION 6 PS32CTLC €1.47
54
 photo_cameraImage coming soon 346298-8 SPRING BRAKE PS32CTLC €4.81
55
 photo_cameraImage coming soon 231868-5 SPRING TENSION 10 PS32CTLC €2.08
56
 photo_cameraImage coming soon 346299-6 SPACER PS32CTLC €1.40
57
 photo_cameraImage coming soon 325947-0 SOCKET 6 €1.40
58
 photo_cameraImage coming soon 257934-0 RETAINING RING E-4 X UH6580 €1.47
59
 photo_cameraImage coming soon 452033-5 PS32CTLC COVER €2.15
61
 photo_cameraImage coming soon 452044-0 CARTER PINION €8.40
62
 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48
67
 Worm Screw for Chainsaw Makita EA3201S35A 452035-1 Worm Screw for Chainsaw Makita EA3201S35A €5.30
68
 photo_cameraImage coming soon 267430-0 WASHER 10 PS32CTLC €1.40
69
 photo_cameraImage coming soon 424342-2 PIPE PS32CTLC €5.30
74
 photo_cameraImage coming soon 346300-7 SLEIGH €2.12
75
 photo_cameraImage coming soon 227743-1 GEAR 11 €22.84
76
 photo_cameraImage coming soon 227744-9 GEAR 18 €20.12
78
 photo_cameraImage coming soon 452667-4 COVER €9.01
79
 photo_cameraImage coming soon 213594-8 RING 7 €1.40
81
 photo_cameraImage coming soon 143549-8 ENGINE CASING ---> CT23-2 €39.02
88
 photo_cameraImage coming soon 168607-9 CLUTCH PS32C-EA3201S €8.50
89
 Clutch Drum Ass'y for Chainsaw Makita EA3200S 140M30-8 Clutch Drum Ass'y for Chainsaw Makita EA3200S €16.90
93
 photo_cameraImage coming soon 163500-2 LEVERAGE PS32CTLC €21.54
96
 photo_cameraImage coming soon 168645-1 SUCTION HOSE PS32CTLC €6.06
97
 photo_cameraImage coming soon 267431-8 WASHER 10 PS32CTLC €1.40
112
 Guide Plate for Chainsaw Dolmar PS32C/35 346518-0 Guide Plate for Chainsaw Dolmar PS32C/35 €6.23
113
 photo_cameraImage coming soon 913447134 SELF-CUTTING SCREW 4,7X13 DCS4 €1.40
116
 photo_cameraImage coming soon 925305000 WASHER ES-31A €1.43
217
 photo_cameraImage coming soon 231873-2 SPRING TENSION 5 PS32CTLC €1.40
218
 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A 234207-8 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A €1.48
219
 photo_cameraImage coming soon 452666-6 PLUG OIL PIPE PS32CTLC €1.47
238
 photo_cameraImage coming soon 183H51-7 CHAIN TENSIONER CPL. €18.92
318
 photo_cameraImage coming soon 424631-5 SOCKET RUBBER €1.43

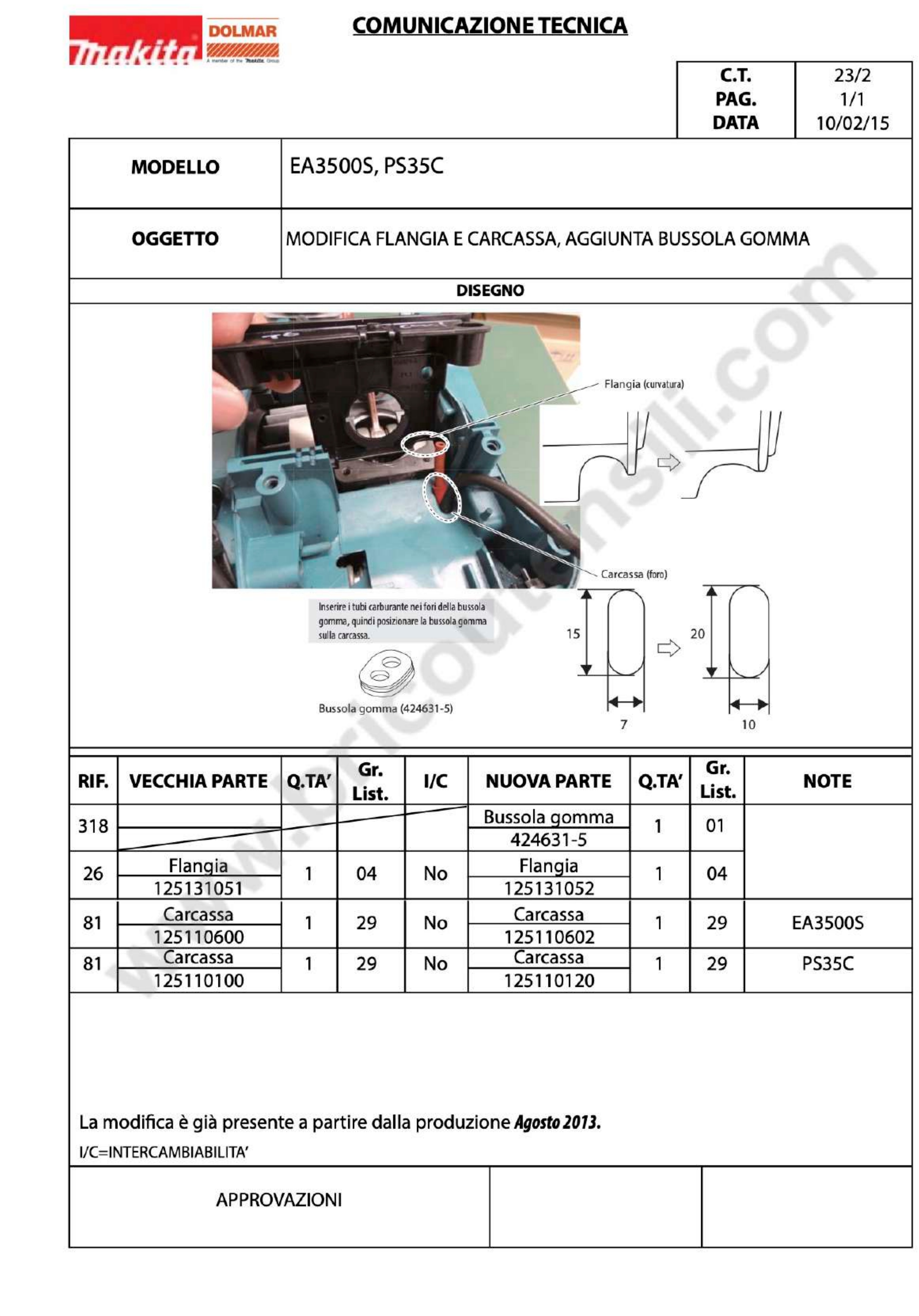

Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 6
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

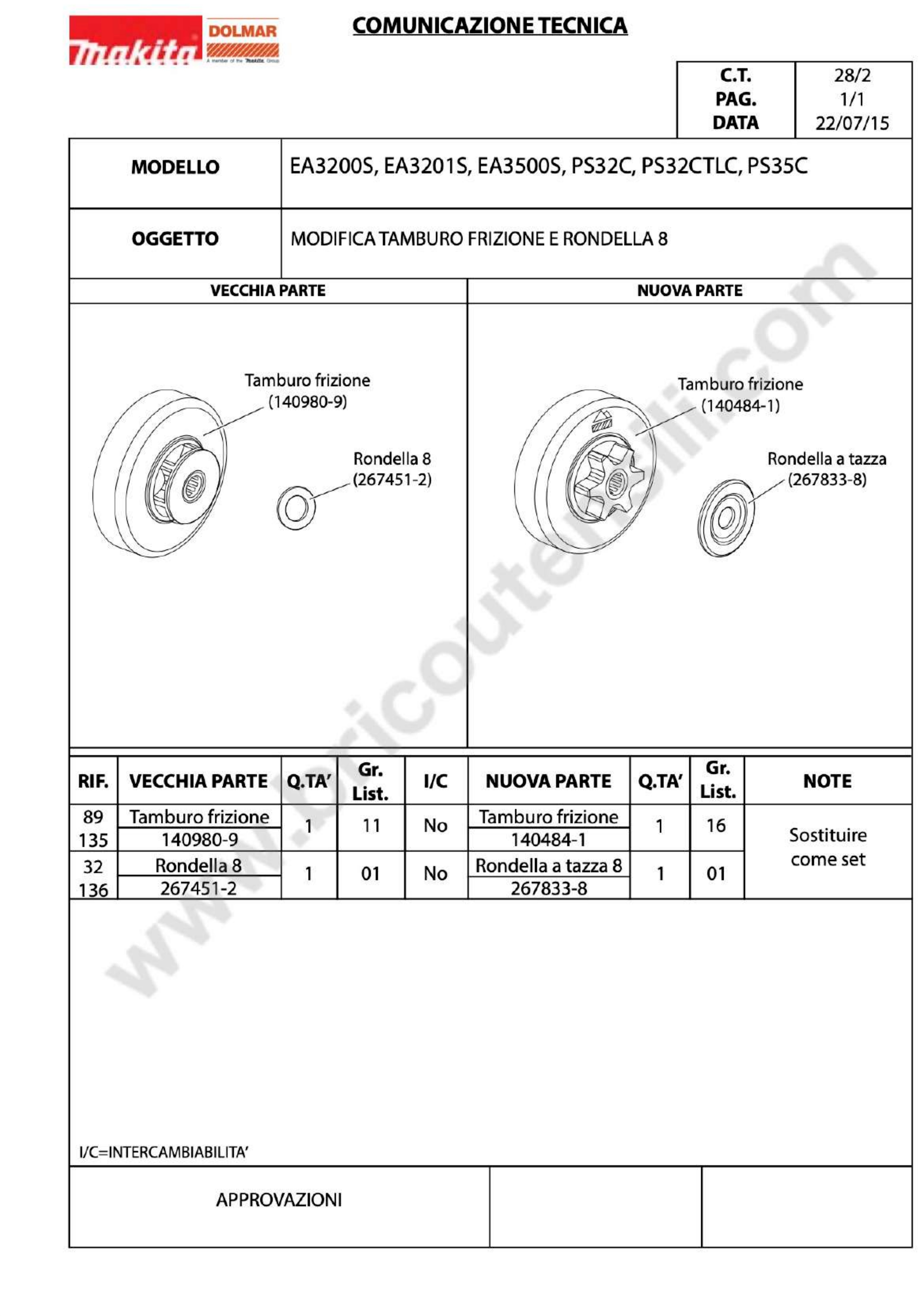

Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 7
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

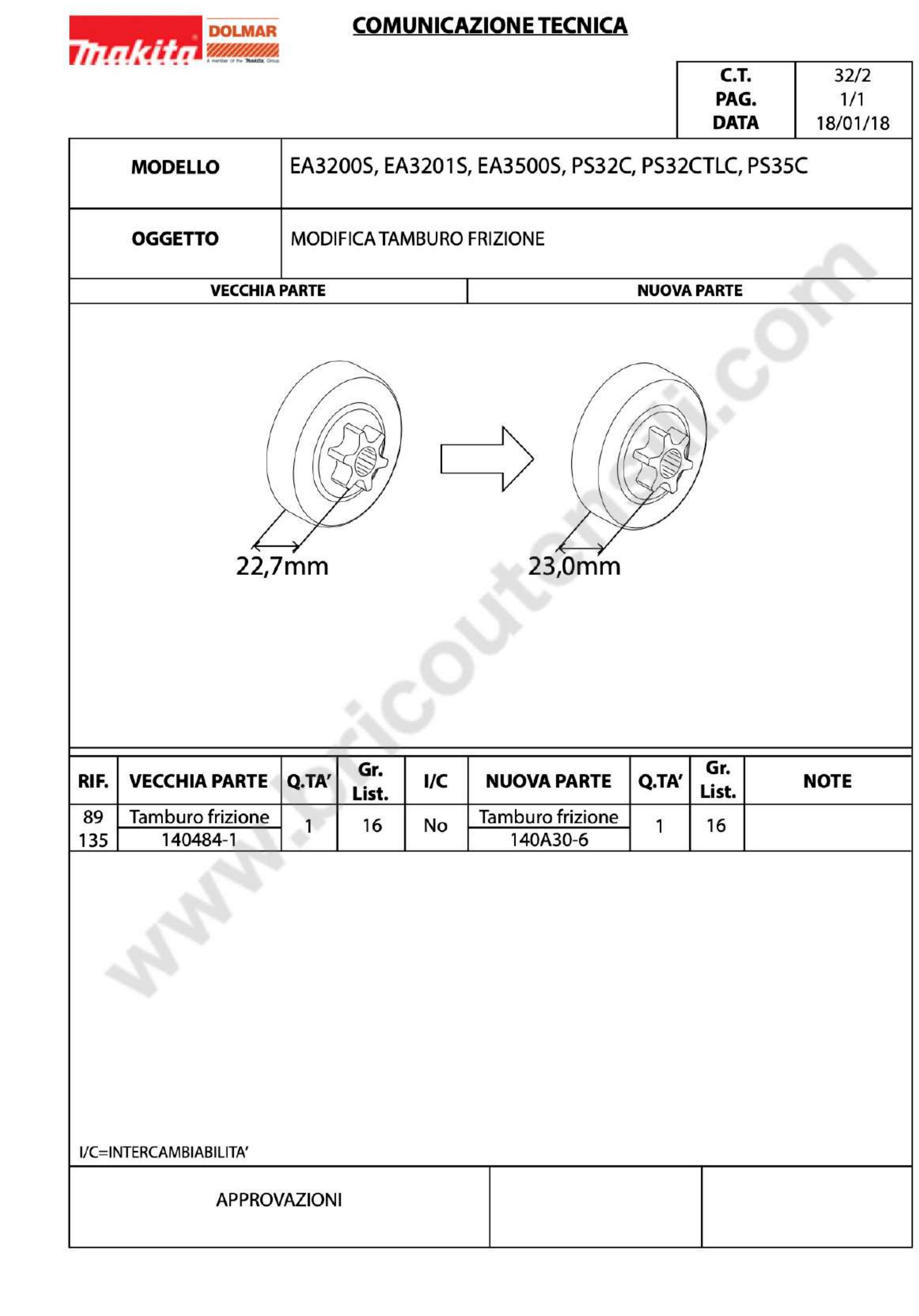

Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 8
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

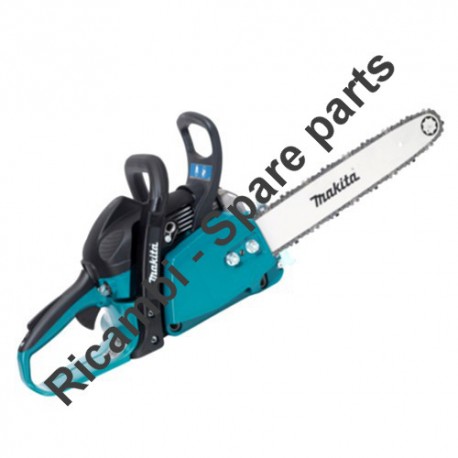

Makita Spare Parts for Chainsaw EA3500S40B

MAKITA service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Chainsaw EA3500S40B.

In the following table, look for the model of Chainsaw and the respective parts of the code.
Makita EA3500S40B

EA3500S40B - CHAINSAW 35CC 40CM MAKITA pag.1
# Part Num. Description
22 266478-9 SCREW 5,5X16 (TORX)
35 452020-4 CATCH LEVER PS32CTLC
36 452019-9 THROTTLE LEVER PS32CTLC
37 231866-9 TORSION SPRING 10 PS32CTLC
38 452021-2 GRIP SHELL PS32CTLC
41 452018-1 FUEL NIPPLE PS32CTLCP01
42 424456-7 SUCTIOON LINE PS32CTLC
43 965452660 TUBE 5,5X3 L = 93MM
44 163447-0 GASOLINE FILTER X DCS230T
46 422065-6 TUBE 2,5X55 PS32CTLC
48 234189-4 COMPRESSION SPRING 12 PS32CTLC P01
49 266605-8 SCREW M5X16 PS32CTLC
73 452036-9 TUBOLAR HANDLE PS32CTLCP20
80 213586-7 O-RING 11.5 PS32CTLC
91 168823-3 TANK CAP ASS'Y PS32CTLC
117 346517-2 CUP WASHER 6 PS32CTLC
200 195758-5 TANK ASSEMBLY A BLUE EA3201S35A
201 170175010 VENT VALVE SET
202 213080-9 O-RING 29.5 PS32CTLC
301 266478-9 SCREW 5,5X16 (TORX)
302 266478-9 SCREW 5,5X16 (TORX)
EA3500S40B - CHAINSAW 35CC 40CM MAKITA pag.2
3 422066-4 TUBE 2,5X72 PS32CTLC
18 125131040 INTAKE HOSE
19 346413-4 BUSH 17
20 452030-1 INTAKE MANIFOLD PS32CTLC
21 424173-9 DAMPING PLUG PS32CTLC
23 423414-0 AIR FILTER   PS32CTLC
24 452031-9 AIR FILTER COVER PS32CTLC
25 266607-4 SCREW M5X20 PS32CTLC
26 125131052 INTERMEDIATE FLANGE -> CT23-2
27 264044-6 SNAP NUT M5 PS32CTLC
28 318634-8 FLANGE RING PS32CTLC
29 908004406 H.L. SOCKET HEAD BOLT
30 346290-4 CONTACT SPRING PS32CTLC
45 168398-2 PRIMER PUMP X DCS230T
47 422067-2 TUBE 2,5X55 PS32CTLC
60 266421-8 SCREW 3X10 HR2800
63 346304-9 MUFFLER GASKET PS32CTLC
64 038174410 CONNECTING LINL L=39,5MM
65 266480-2 H.L. SOCKET HEAD BOLT M5X55
66 346764-5 COOLING PLATE
71 125118010 FILTER COVER
82 424618-7 PLUG
94 125174100 MUFFLER
114 233971-8 RING SPRING PS32CTLC
203 125174170 SPARK CATCHER
300 168829-1 CARBURETOR
303 266478-9 SCREW 5,5X16 (TORX)
311 266605-8 SCREW M5X16 PS32CTLC
317 266605-8 SCREW M5X16 PS32CTLC
EA3500S40B - CHAINSAW 35CC 40CM MAKITA pag.3
4 962210092 NEEDLE CAGE KV9x12x11,5S
5 960102131 BALL BEARING 6201
6 213141-5 OIL SEAL AS 12X20X4,5
10 266608-2 SCREW 5X40 PS32CTLC
31 452025-4 CHOKE LEVER PS32CTLC
34 452022-0 THROTTLE LINKAGE CPL. PS32CTLC
70 168504-9 VENT VALVE PS32CTLC
83 125132030 PISTON PIN
84 232302-8 PACKING RING
85 125120100 CRANKSHAFT
115 346301-5 SPIKE BAR PS32CTLC
118 125111070 CRANKCASE LEFT
119 125111080 CRANKCASE RIGHT
120 125111090 CRANK CASE GASKET
121 908405255 SCREW M5X25 (TORX)
122 266960-8 SCREW X DCS6401
125 346760-3 CYLINDER GASKET
126 258038-1 CLAMPING PIN
204 143323-4 CYLINDER
205 197479-5 PISTON
206 257366-1 PISTON RING Ø 38
304 266478-9 SCREW 5,5X16 (TORX)
305 266478-9 SCREW 5,5X16 (TORX)
306 266478-9 SCREW 5,5X16 (TORX)
308 234189-4 COMPRESSION SPRING 12 PS32CTLC
309 234189-4 COMPRESSION SPRING 12 PS32CTLC
310 234189-4 COMPRESSION SPRING 12 PS32CTLC
315 168823-3 TANK CAP PS32CTLC
316 213080-9 O-RING 29.5 PS32CTLC
EA3500S40B - CHAINSAW 35CC 40CM MAKITA pag.4
11 0650109950 SPARK PLUG CMR6A X MS251.A
12 264022-6 NUT
13 267822-3 SPRING WASHER 8 PS32CTLC
14 126270-4 IGNITION COIL PS32CTLC
15 168601-1 CABLE HARNESS PS32CTLC
16 452670-5 ISOLATING WASHER PS32CTLC
72 266472-1 SCREW
86 140480-9 FLYWHEEL PS32CTLC
92 161328-2 STARTER ASS'Y BLUE EA3201S35A
98 424522-0 SPARK PLUG CAP
99 125143040 ISOLATING HOSE
124 326210-4 SPRING
207 195761-6 STARTER RATCHET CPL. PS32CTLC
208 452026-2 AIR GUIDE PLATE PS32CTLC
209 266777-9 SCREW 5X1 PS32CTLC
210 453786-9 CAM PLATE PS32CTLC
211 234253-1 TORSION SPRING 20 PS32CTLC
212 455919-2 CABLE DRUM CPL.
213 195955-3 REWIND SPRING PS32CTLC
214 453783-5 STARTER GRIP PS32CTLC
215 267847-7 SQUARE WASHER 4 PS32CTLC
216 444038-9 STARTER ROPE PS32CTLC
307 266478-9 SCREW 5,5X16 (TORX)
EA3500S40B - CHAINSAW 35CC 40CM MAKITA pag.5
32 267833-8 CUP WASHER 8 PS32CTLC ---> CT28-2
33 259033-4 SAFETY WASHER X UC
51 452032-7 HAND GUARD PS32CTLC
52 313212-9 HAND GUARD GUIDE PS32CTLC
53 234210-9 COMPRESSION SPRING 6 PS32CTLC
54 346298-8 BRAKE BAND PS32CTLC
55 231868-5 TENSION SPRING 10 PS32CTLC
56 346299-6 SPACER SHEET METAL PS32CTLC
57 325947-0 BUSH 6
58 257934-0 STOP RING E-4 X UH6580
59 452033-5 BRAKE COVER PS32CTLC
61 452044-0 SPROCKET GUARD CPL.
62 264055-1 NUT M8
67 452035-1 PUMP DRIVE PS32CTLC
68 267430-0 WASHER 10 PS32CTLC
69 424342-2 OIL PRESSURE LINE PS32CTLC
74 346300-7 TENSION SLIDE
75 227743-1 HELICAL GEAR 11
76 227744-9 HELICAL GEAR 18
78 452667-4 GEAR COVER
79 213594-8 O-RING 7
81 143549-8 ENGINE CASING ---> CT23-2
88 168607-9 CLUTCH COMPLETE PS32C-EA3201S
89 140M30-8 CLUTCH DRUM COMPLETE ---> CT32-2
93 163500-2 LINK PLATE COMPLETE PS32CTLC
95 161346-0 OIL PUMP COMPLETE PS32C - EA3201S
96 168645-1 OIL SUCTION LINE COMPLETE PS32CTLC
97 267431-8 FLAT WASHER 10 PS32CTLC
112 346518-0 GUIDE PLATE PS32CTLC
113 913447134 SELF-CUTTING SCREW 4,7X13 DCS4
116 925305000 WASHER 5/12X0.5 ES-31A
217 231873-2 TENSION SPRING 5 PS32CTLC
218 234207-8 COMPRESSION SPRING 6 PS32CTLC
219 452666-6 NIPPLE PS32CTLC
238 183H51-7 CHAIN TENSIONER CPL.
312 266605-8 SCREW M5X16 PS32CTLC
313 266421-8 SCREW 3X10 HR2800
314 266421-8 SCREW 3X10 HR2800
318 424631-5 RUBBER SLEEVE ---> CT23-2
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EA3500S40B
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita EA3500S40B Drawing

Makita EA3500S40B Drawing

Download (766.03KB)

You might also like

Chainsaw Makita EA3500S40B -7% Sale
Makita SKU: EA3500S40B
Chainsaw Makita EA3500S40B
Chainsaw Bar 40 cm Makita EA3500S40B Features: - Chainsaw with primer for a quick and easy engine start. - Memory Power Ignition (MPI) system for easy engine restart. - Metal arpion. - Chain brake for an instantaneous chain stoppage in...
Last items in stock €348.72 €374.97
Details
Gasoline Primer Pump for Chainsaw Makita DCS230T
Makita SKU: 168398-2
Gasoline Primer Pump for Chainsaw Makita DCS230T
Gasoline Primer Pump for Chainsaw Makita DCS230T Genuine parts for Makita, Gasoline Primer Pump for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA...
AVAILABLE €6.24
Details
Venting Valve for Chainsaw Dolmar PS32CTLC
Makita SKU: 168504-9
Venting Valve for Chainsaw Dolmar PS32CTLC
Venting Valve for Chainsaw Dolmar PS32CTLC Genuine part Dolmar, Venting Valve for Chainsaws Dolmar PS32CTLC - PS32C/35 - PS3400TH - PS350C - PS420C - PS460 - PS4605...
on 7/10 Business Days Approx €3.70
Details
Worm Screw for Chainsaw Makita EA3201S35A
Makita SKU: 452035-1
Worm Screw for Chainsaw Makita EA3201S35A
Worm Screw for Chainsaw Makita EA3201S35A Genuine part Makita, Worm Screw for Chainsaws Makita EA3201S35A - EA3200S40B - EA3500S40B - Dollmar PS32C/35 - PS32CTLC - PS35C/40. Part for the following products: - EA3201S35A - CHAINSAW...
Usually Ships in: 7/10 Business Days Approx. €5.30
Details
Clutch Drum Ass'y for Chainsaw Makita EA3200S
Makita SKU: 140M30-8
Clutch Drum Ass'y for Chainsaw Makita EA3200S
Clutch Drum Ass'y for Chainsaw Makita EA3200S Genuine replacement part Makita, Clutch Drum Ass'y for Chainsaws EA3200S - EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35...
Last items in stock €16.90
Details
Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A
Makita SKU: 195761-6
Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A
Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A Genuine replacement part Makita, Starter Pawl PS32CTLC for Chainsaws Makita EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the following products: - EA3200S40B...
AVAILABLE €2.84
Details
Damper for Chainsaw Dolmar PS32CTLC
Makita SKU: 424173-9
Damper for Chainsaw Dolmar PS32CTLC
Damper for Chainsaw Dolmar PS32CTLC Genuine replacement part VALEX, Damper for Chainsaws PS32CTLC - PS32C/35 - PS35C/40. Part for the following products: - PS32C/35 - CHAINSAW 33CC 35CM-1,1MM...
on 7/10 Business Days Approx. €2.18
Details
Circlip for Chainsaw Dolmar PS33/35
Makita SKU: 232302-8
Circlip for Chainsaw Dolmar PS33/35
Circlip for Chainsaw Dolmar PS33/35 Original replacement part Dolmar, Piston Pin Circlip for Chainsaws PS33/35 - PS35C/40 - PS45/40 - EA3500S40B - DCS330S/30. Part for the following products: -  DCS330S/30 - CHAINSAW CM30 KW1,3 33CC...
AVAILABLE €1.41
Details
Piston Set for Chainsaw Makita EA3500S40B
Makita SKU: 197479-5
Piston Set for Chainsaw Makita EA3500S40B
Piston Set for Chainsaw Makita EA3500S40B Genuine parts for Makita, Piston Set for Chainsaws EA3500S40B - Dolmar PS35C/40. Part for the following products: -  EA3500S40B - CHAINSAW 35CC 40CM...
on 7/10 Business Days Approx. €22.63
Details
Hand Guard for Petrol Chainsaw Makita EA3200S35A
Makita SKU: 452032-7
Hand Guard for Petrol Chainsaw Makita EA3200S35A
Hand Guard for Petrol Chainsaw Makita EA3200S35A Genuine spare part Makita, Hand Guard for Petrol Chainsaw Makita EA3200S35A - EA3500S35B - EA3201S35A - Dolmar PS32C/40. Part for the following products: -  Chainsaw Makita EA3200S35A...
Last items in stock €6.26
Details
Carburetor for Chainsaw Makita EA3500S40B
Makita SKU: 168829-1
Carburetor for Chainsaw Makita EA3500S40B
Carburetor for Chainsaw Makita EA3500S40B Genuine parts for Makita, Carburetor for Chainsaws EA3500S40B - Dolmar PS35C/40. Part for the following products: -  EA3500S40B -...
Last items in stock €67.90
Details
Comments (0)
