Makita

Makita Spare Parts for Electric Chainsaws UC3551A

SKU: Makita UC3551A
€11.29
VAT included

Makita Spare Parts for Electric Chainsaws UC3551A

We have the original Spares MAKITA for Electric Chainsaws UC3551A the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Electric Chainsaws UC3551A. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
Makita Spare Parts for Electric Chainsaws UC3551A
  • Makita Spare Parts for Electric Chainsaws UC3551A
  • Makita Spare Parts for Electric Chainsaws UC3551A
Makita

Makita Spare Parts for Electric Chainsaws UC3551A

SKU: Makita UC3551A Condition: New
€11.29
VAT included

Makita Spare Parts for Electric Chainsaws UC3551A

We have the original Spares MAKITA for Electric Chainsaws UC3551A the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Electric Chainsaws UC3551A. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
settings 70 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
70 spare parts

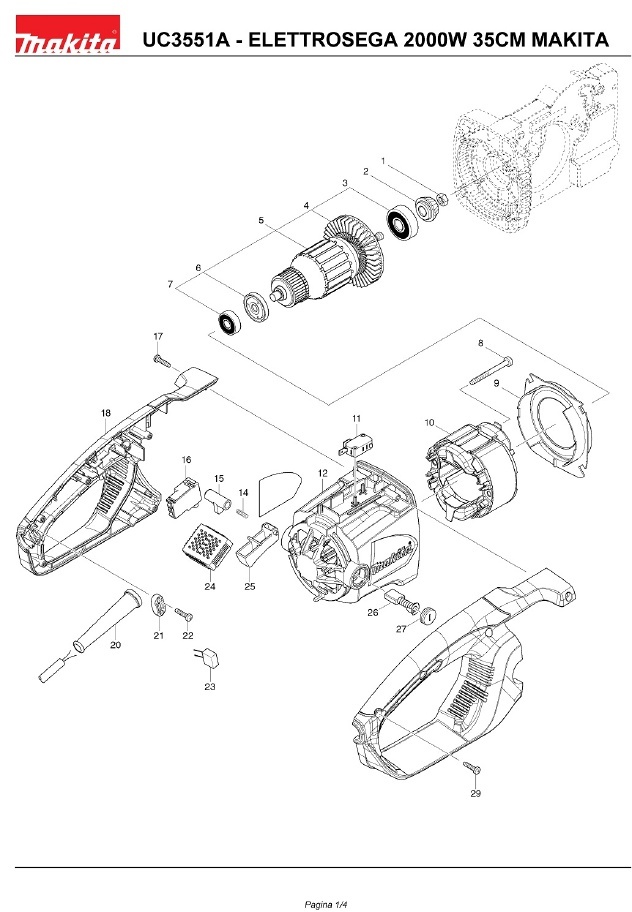

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 931403-6 HEX NUT M8 €1.40
2
 photo_cameraImage coming soon 227626-5 GEAR 12 €8.50
3
 photo_cameraImage coming soon 211111-8 BEARING 6301 X UC €5.67
4
 photo_cameraImage coming soon 240003-4 FAN X 2702 €5.13
5
 photo_cameraImage coming soon 517904-4 ARMATURE €56.02
6
 photo_cameraImage coming soon 681666-1 INSULATING WASHER UC3530A-4030 €1.47
7
 photo_cameraImage coming soon 210084-2 BEARING 629ZZ €4.85
8
 photo_cameraImage coming soon 266095-5 SCREW 5x55 HR5001C €1.47
9
 photo_cameraImage coming soon 419410-4 BAFFLE UC3530A-4030A €1.47
10
 photo_cameraImage coming soon 636394-3 STATOR €44.84
11
 Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A 650577-1 Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A €2.97
12
 photo_cameraImage coming soon 142348-5 HOUSING MOTOR €18.98
14
 photo_cameraImage coming soon 233173-6 SPRING FOR COMPR.4 UC3020A €1.47
15
 photo_cameraImage coming soon 416178-3 RESET BUTTON X UC3020A €1.47
16
 photo_cameraImage coming soon 650717-1 SWITCH TGC30B €11.07
17
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
18
 photo_cameraImage coming soon 187901-0 REAR HANDLE €16.65
20
 Cord Guard JN1601 for Angle Grinder Makita 9015B 682540-6 Cord Guard JN1601 for Angle Grinder Makita 9015B €2.72
21
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
23
 Noise Suppressor for Cut-Off Machine Makita 2412N 645006-7 Noise Suppressor for Cut-Off Machine Makita 2412N €2.14
24
 Controller 240V for Electric ChainsawS Makita UC3530A - UC4030A 631719-6 Controller 240V for Electric ChainsawS Makita UC3530A - UC4030A €54.59
25
 photo_cameraImage coming soon 419411-2 LEVER SWITCH UC3530A-4030 €1.47
26
 Carbon Brushes CB-153 for Miter Saws Makita LS1016-1040-1216F 181044-0 Carbon Brushes CB-153 for Miter Saws Makita LS1016-1040-1216F €9.91
27
 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A 643650-4 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A €2.43
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
30
 photo_cameraImage coming soon 142282-9 TANK CAP CPL €5.13
31
 photo_cameraImage coming soon 454822-4 COVER GEAR BOX €5.13
32
 Oil Tank Gasket for Electric Chainsaws Makita UC3530A - UC4030A 421959-2 Oil Tank Gasket for Electric Chainsaws Makita UC3530A - UC4030A €1.55
33
 photo_cameraImage coming soon 454826-6 OIL TANK €4.87
34
 photo_cameraImage coming soon 424611-1 DELIVERY PIPE €2.08
35
 photo_cameraImage coming soon 424610-3 HOSE €1.40
36
 photo_cameraImage coming soon 231975-4 SPRING TUBE OIL X DCS230T €1.47
37
 photo_cameraImage coming soon 416274-7 PLUG OIL PIPE X DCS230T €1.47
38
 photo_cameraImage coming soon 454825-8 AUCTION CHAIN ​​BRAKE €1.40
39
 photo_cameraImage coming soon 233174-4 SPRING LOCK. X UC €1.54
40
 photo_cameraImage coming soon 142341-9 HAND GUARD €8.50
41
 photo_cameraImage coming soon 158044-5 RETAINING SPRING BRAKE X UC €6.61
42
 photo_cameraImage coming soon 234005-0 SPRING UC3530A-4030A €1.47
43
 photo_cameraImage coming soon 213017-6 RING 6 AN621 €1.79
44
 photo_cameraImage coming soon 454821-6 GEAR BOX €15.36
45
 photo_cameraImage coming soon 266041-8 PT SCREW 5x25 €1.70
46
 photo_cameraImage coming soon 210028-2 BEARING 606ZZ €2.08
47
 photo_cameraImage coming soon 961006-2 RETAINING RING S10 €2.17
48
 photo_cameraImage coming soon 221427-3 WORM €7.00
49
 Oil Pump for Electric Chainsaw Makita UC3041A 142156-4 Oil Pump for Electric Chainsaw Makita UC3041A €23.90
50
 photo_cameraImage coming soon 424612-9 RUBBER €1.43
52
 photo_cameraImage coming soon 227627-3 GEAR 37 €11.07
53
 photo_cameraImage coming soon 326373-6 POST €6.63
54
 photo_cameraImage coming soon 210107-6 BEARING 6001ZZ MT690 €2.69
55
 photo_cameraImage coming soon 454823-2 THE HANDLE €8.73
57
 photo_cameraImage coming soon 345651-5 HOOK FOR UC3020A €2.30
59
 photo_cameraImage coming soon 319091-3 BEARING BOX €18.53
60
 photo_cameraImage coming soon 266044-2 SCREW PT.5X60 €6.04
61
 photo_cameraImage coming soon 267195-4 WASHER 4 X DCS230T €1.47
62
 photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
63
 photo_cameraImage coming soon 168426-3 BRAKE DRUM UC3530A-4030A €10.48
64
 photo_cameraImage coming soon 125331-7 DRUM CLUTCH 3/8 "UC3530A €26.45
65
 Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.41
66
 photo_cameraImage coming soon 259033-4 LOCKWASHER X UC €1.47
67
 photo_cameraImage coming soon 266427-6 SCREW 4X12 MT923 €1.46
68
 photo_cameraImage coming soon 454818-5 PROTECTION €1.40
69
 Tensioner Screw Gear for Chainsaw Makita UC3551A 227496-2 Tensioner Screw Gear for Chainsaw Makita UC3551A €7.99
70
 Tensioner Screw for Chainsaw Makita UC3551A 326372-8 Tensioner Screw for Chainsaw Makita UC3551A €2.39
71
 Tensioner Screw Pin for Chainsaw Makita UC3551A 326310-0 Tensioner Screw Pin for Chainsaw Makita UC3551A €2.39
73
 photo_cameraImage coming soon 142342-7 SPROCKET COVER CPL.,​ ES-​174TLC,​ UC3551A/​4051A €6.93
74
 photo_cameraImage coming soon 183B54-5 SPROCKET COVER SET,​ UC3551A/​4051A €26.90
75
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
76
 photo_cameraImage coming soon 142665-3 GEAR €5.13
77
 photo_cameraImage coming soon 454819-3 PROTECTION €1.40
78
 Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A 142235-8 Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A €15.38
81
 photo_cameraImage coming soon 324685-1 HOSE CLAMP UC3020A €2.08

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Electric Chainsaws UC3551A

We have the original Spares MAKITA for Electric Chainsaws UC3551A the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Electric Chainsaws UC3551A. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Electric Saws and the respective parts of the code.
.

Electric Chainsaw UC3551A
1 931403-6 HEX NUT M8
2 227626-5 GEAR 12
3 211111-8 BEARING 6301 X UC
4 240003-4 FAN X 2702
5 517904-4 ARMATURE
6 681666-1 INSULATING WASHER UC3530A-4030
7 210084-2 BEARING 629ZZ
8 266095-5 SCREW 5 X 55 HR5001C
9 419410-4 BAFFLE UC3530A-4030A
10 636394-3 STATORE
11 650577-1 SWITCH SD-006-AA-BB2AA
12 142348-5 HOUSING MOTOR
14 233173-6 SPRING FOR COMPR.4 UC3020A
15 416178-3 RESET BUTTON X UC3020A
16 650717-1 SWITCH TGC30B
17 265995-6 SCREW M4X18 X 6408 / 6221DW
18 187901-0 REAR HANDLE
20 682540-6 SLEEVE JN1601
21 687124-5 Cable tie CLAMP MT953
22 265995-6 SCREW M4X18 X 6408 / 6221DW
23 645006-7 CAPACITOR X LS1013
24 631719-6 REGULATOR
25 419411-2 LEVER SWITCH UC3530A-4030
26 181044-0 CARBON BRUSHES CB-153 (150/52/54)
27 643650-4 PLUG BRUSH
29 265995-6 SCREW M4X18 X 6408 / 6221DW
30 142282-9 TANK CAP CPL
31 454822-4 COVER GEAR BOX
32 421959-2 OIL TANK GASKET UC3530A-4030A
33 454826-6 OIL TANK
34 424611-1 DELIVERY PIPE
35 424610-3 HOSE
36 231975-4 SPRING TUBE OIL X DCS230T
37 416274-7 PLUG OIL PIPE X DCS230T
38 454825-8 AUCTION CHAIN ​​BRAKE
39 233174-4 SPRING LOCK. X UC
40 142341-9 HAND GUARD
41 158044-5 RETAINING SPRING BRAKE X UC
42 234005-0 SPRING UC3530A-4030A
43 213017-6 RING 6 X AN621
44 454821-6 GEAR BOX
45 266041-8 PT SCREW 5x25
46 210028-2 BEARING 606ZZ
47 961006-2 RETAINING RING S10
48 221427-3 ENDLESS LIVES
49 142156-4 OIL PUMP
50 424612-9 RUBBER
51 265995-6 SCREW M4X18 X 6408 / 6221DW
52 227627-3 GEAR 37
53 326373-6 POST
54 210107-6 BEARING 6001ZZ MT690
55 454823-2 THE HANDLE
56 266041-8 PT SCREW 5x25
57 345651-5 HOOK FOR UC3020A
58 266041-8 PT SCREW 5x25
59 319091-3 BEARING BOX
60 266044-2 SCREW PT.5X60
61 267195-4 WASHER 4 X DCS230T
62 266026-4 SCREW M4 X 12
63 168426-3 BRAKE DRUM UC3530A-4030A
64 125331-7 DRUM CLUTCH 3/8 "UC3530A
65 253215-0 ROND. FLAT 8 6510PBL / LVR
66 259033-4 LOCKWASHER X UC
67 266427-6 SCREW 4X12 MT923
68 454818-5 PROTECTION
69 227496-2 GEAR FOR 14 UC3020A
70 326372-8 SCREW Chain tightener
71 326310-0 PIN Chain tightener
72 266427-6 SCREW 4X12 MT923
73 142342-7 CARTER PIGNONE
74 183B54-5 CARTER PIGNONE
75 263002-9 PIN RUBBER 4
76 142665-3 GEAR
77 454819-3 PROTECTION
78 142235-8 NUT CPL
81 324685-1 HOSE CLAMP UC3020A

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita UC3551A
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita UC3551A

Diagram Makita UC3551A

Download (594.1KB)

You might also like

Oil Pump for Electric Chainsaw Makita UC3041A
Makita SKU: 142156-4
Oil Pump for Electric Chainsaw Makita UC3041A
Oil Pump for Electric Chainsaw Makita UC3041A Genuine parts Makita, Oil Pump for Electric Chainsaws UC3041A - UC3541A - UC3551A - UC4051A - ES2136TLC - ES2141TLC - DUC252Z - DUC353Z. Parts for the following products: - ES2136TLC -...
AVAILABLE €23.90
Details
Tensioner Screw for Chainsaw Makita UC3551A
Makita SKU: 326372-8
Tensioner Screw for Chainsaw Makita UC3551A
Tensioner Screw for Chainsaw Makita UC3551A Genuine parts Makita, Tensioner Screw for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3726 - Chain Saw 18VX2...
AVAILABLE €2.39
Details
Tensioner Screw Gear for Chainsaw Makita UC3551A
Makita SKU: 227496-2
Tensioner Screw Gear for Chainsaw Makita UC3551A
Makita UC3551A Spiral Bevel Gear Genuine parts Makita, Tensioner Screw Spiral Bevel Gear for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3625LGE - CHAINSAW 25CM...
Usually Ships in: 7/10 Business Days Approx. €7.99
Details
Tensioner Screw Pin for Chainsaw Makita UC3551A
Makita SKU: 326310-0
Tensioner Screw Pin for Chainsaw Makita UC3551A
Tensioner Screw Pin for Chainsaw Makita UC3551A Genuine parts Makita, Tensioner Screw Pin for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3726 - Chain Saw 18VX2 DOLMAR...
on 7/10 Business Days Approx €2.39
Details
Tension Slide for Electric Chainsaw Makita UC3041A
Makita SKU: 346859-4
Tension Slide for Electric Chainsaw Makita UC3041A
Tension Slide for Electric Chainsaw Makita UC3041A Genuine part Makita, Tensioner Screw Pin for Chainsaws UC3041A - UC3541A - UC4041A - Dolmar ES34TLC - ES39TLC. Part for the following products: -...
Usually Ships in: 7/10 Business Days Approx. €3.03
Details
Tensioner Screw for Chainsaw Makita UC3020A
Makita SKU: 324620-9
Tensioner Screw for Chainsaw Makita UC3020A
Makita UC3020A Adjust Screw Genuine part Makita, Adjust Screw for Chainsaws UC3020A - UC3030A - UC3041A - UC3520A - UC3541A - UC4020A - UC4030A - UC4041A....
Last items in stock €2.39
Details
Carbon Brushes Set for Electric Chainsaw Makita UC3041A
Makita SKU: 191906-4
Carbon Brushes Set for Electric Chainsaw Makita UC3041A
Carbon Brushes Set for Electric Chainsaw Makita UC3041A Genuine part Makita, Carbon Brushes Set for Electric Chainsaws UC3041A - UC3541A - UC3551A - UC3520A - UC4020A - UC4041A - DOLMAR ES33A - ES34TLC - ES38A Parts for the following...
AVAILABLE €9.16
Details
Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A
Makita SKU: 650577-1
Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A
Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A Genuine part Makita, Micro Switch SD-006-BB2AA-AA for Electric Chainsaws UC3030A - UC3530A - UC4030A - UC4051A. Part for the following products: - ES2135A - ELECTRIC...
AVAILABLE €2.97
Details
Comments (0)
