| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
12
|
photo_cameraImage coming soon | BB360270 PINION 1A REDUCTION X NEA MOD.1.5 | €85.45 | |
|
12
|
|
BB721420/NE Recoil Starter Assy for Auger Makita BBA520 | €52.09 |
No spare parts mapped to this page.
Check the other pages for available parts.
No spare parts mapped to this page.
Check the other pages for available parts.
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Auger BBA520.
In the following table, look for the model of Auger and the respective parts of the code.

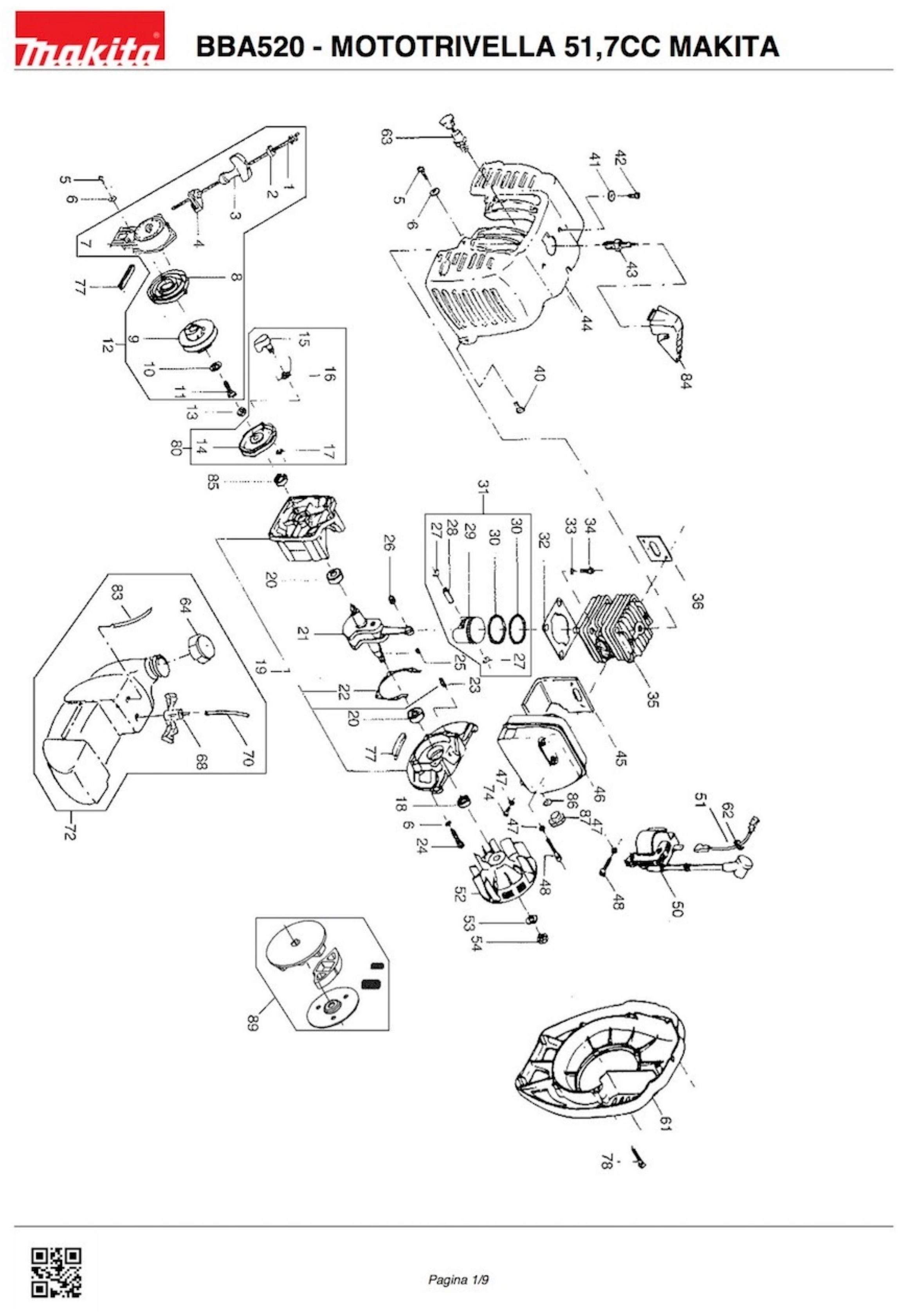

| Auger BBA520 | ||
| # | Part Num. | Description |
| 1 | BB630070 | STARTIN ROPE |
| 2 | BB510190 | PLATE STOP ROPE |
| 3 | BB540120 | STATER HANDLE |
| 4 | BB541310 | BUSH ROPE |
| 5 | BB030210 | SCREW TCB M 5 X 16 |
| 6 | BB090150 | WASHER GROWER 5.1 |
| 7 | BB480650 | CARTER STARTING |
| 8 | BB180240 | STARTING SPRING |
| 9 | BB541320 | PULLEY STARTING |
| 10 | BB090720 | FLAT WASHER D.4,3 X 16 |
| 11 | BB030140 | SCREW TCB M 4 X 10 |
| 12 | BB721420/NE | RECOIL STARTER ASSY N25 / 31EN |
| 13 | BB060370 | NUT M 9 X 25.1 |
| 14 | BB480900 | HOLDER PAWL |
| 15 | BB541330 | PAWL STARTER |
| 16 | BB180200 | SPRING PAWL |
| 17 | BB120160 | STOP RING D4 |
| 18 | BB240030 | SEAL RING 15X26X7 |
| 19 | BB721430 | HOUSIN MOTOR |
| 20 | BB270070 | BEARING 6202 |
| 21 | BB751600 | CRANK SHAFT |
| 22 | BB240260 | GASKET CARTER |
| 23 | BB420200 | PLUG CARTER |
| 24 | BB030620 | SCREW TCEI M 5 X 35 |
| 25 | BB420030 | AMERICAN LANGUAGE 10X3,7X3 |
| 26 | BB270050 | CAGE K10X14X13FKI PB-V1 |
| 27 | BB150040 | PIN LOCKING RING D.10 |
| 28 | BB420040 | PISTON PIN D.10X30 |
| 29 | BB480720 | PISTON DIAM.44 |
| 30 | BB150250 | PISTON RING D.44 |
| 31 | BB721360 | COMPLETE PISTON D.44 |
| 32 | BB240270 | SEAL CYLINDER |
| 33 | BB090620 | WASHER SCHNORR D.6,4 |
| 34 | BB030630 | SCREW TCEI M 6 X 25 |
| 35 | BB480640 | CYLINDER DIAMETER 44 |
| 36 | BB240290 | INTAKE GASKET |
| 40 | BB030800 | SCREW TCB M 4 X 10 |
| 41 | BB090840 | WAVER WASHER D. 4.3 |
| 42 | BB030610 | SCREW TCB M 4 X 16 |
| 43 | BB451060 | SPARK PLUG RCJ4 |
| 44 | BB480670/RO | CYLINDER PROTECTION |
| 45 | BB240430 | MUFFLER GASKET |
| 46 | BB750860 | MUFFLER N39 / 45/52 |
| 47 | BB090830 | SPRING WASHER D. 5,3 |
| 48 | BB030410 | SCREW TCEI M 5 X 18 |
| 50 | BB450930 | CAPACITIVE COIL FOR N39 / 57 |
| 51 | BB450340 | GROUND WIRE X COIL |
| 52 | BB450280 | FLY WHEEL FOR N39 / 57 |
| 53 | BB091000 | SPRING WASHER D.10,5 |
| 54 | BB060300 | NUT M 10 X 8 |
| 61 | BB480680/RO | FLY WHEEL COVER |
| 62 | BB541510 | GROUND WIRE GROMMET |
| 63 | BB752340 | DECOMPRESSOR X MOTORS N39 / 57E |
| 64 | BB723730 | FUEL TANK COMPL. |
| 68 | BB330820 | FUEL FILTER |
| 70 | BB542460 | FUEL HOSE |
| 72 | BB723340 | FUEL TANK ASS'Y 25/57 |
| 74 | BB030680 | SCREW TCEI M 5 X 14 |
| 77 | BB541340 | FUEL TANK GROMMET |
| 78 | BB030350 | SCREW TCEI M 5 X 25 |
| 80 | BB722460 | PAWLS SET |
| 83 | BB542520 | TUBE |
| 84 | BB542030/RO | SPARK COVER 25 / 31EN 39/52 |
| 85 | BB240370 | RING 15X26X7 |
| 86 | BB511000 | WASHER |
| 87 | BB091330 | MUFFLER NUT |
| 89 | BB721390 | COMPLETE CLUTCH |

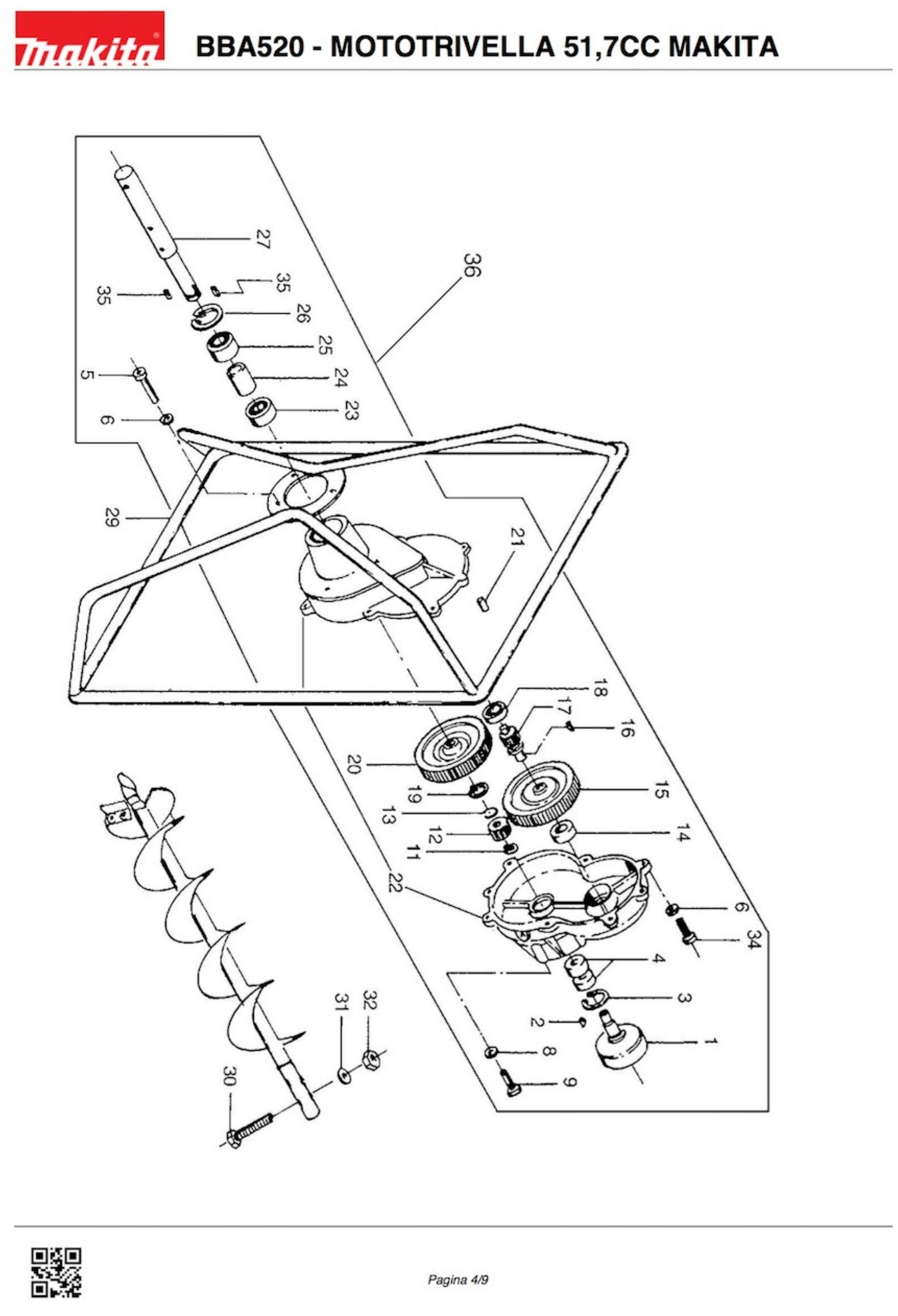

| 1 | BB750150 | CLUTCH DRUM |
| 2 | BB420030 | AMERICAN LANGUAGE 10X3,7X3 |
| 3 | BB120070 | RING 32I UNI 7437 |
| 4 | BB270060 | BEARING 6002-ZZ |
| 5 | BB030090 | SCREW TCEI M 6 X 20 |
| 6 | BB090010 | WASHER GROWER D. 6,1 |
| 8 | BB090830 | WASHER D. 5,3 |
| 9 | BB030350 | SREW TCEI M 5 X 25 |
| 11 | BB120050 | SEEGER 15E UNI 7435-75 |
| 12 | BB360270 | PINION 1A |
| 13 | BB120090 | SEEGER 10E UNI 7435-75 |
| 14 | BB270070 | BEARING 6202 |
| 15 | BB360280 | CROWN |
| 16 | BB420090 | LINGUETTA A DISCO 4X5X13 |
| 17 | BB360300 | PINION |
| 18 | BB270130 | BEARING 6200 |
| 19 | BB120260 | SEEGER 20E UNI 7435 |
| 20 | BB360290 | CROWN |
| 21 | BB420070 | PIN |
| 22 | BB726430 | CARTER COMPLETE FOR PD520 |
| 23 | BB270140 | BEARING 30204 |
| 24 | BB090100 | BEARING SPACER |
| 25 | BB270150 | BEARING 6204-Z |
| 27 | BB390110 | SHAFT |
| 29 | BB754140 | HANDLE |
| 30 | BB030270 | SCREW TE M 8 X 50 |
| 31 | BB090080 | WASHER D. 8,1 |
| 32 | BB060030 | NUT M 8 X 5 |
| 34 | BB030630 | SCREW TCEI M 6 X 25 |
| 35 | BB420210 | LANGUAGE B 5X5X14 H9 |
| 36 | BB721270 | COMPLETE REDUCER |

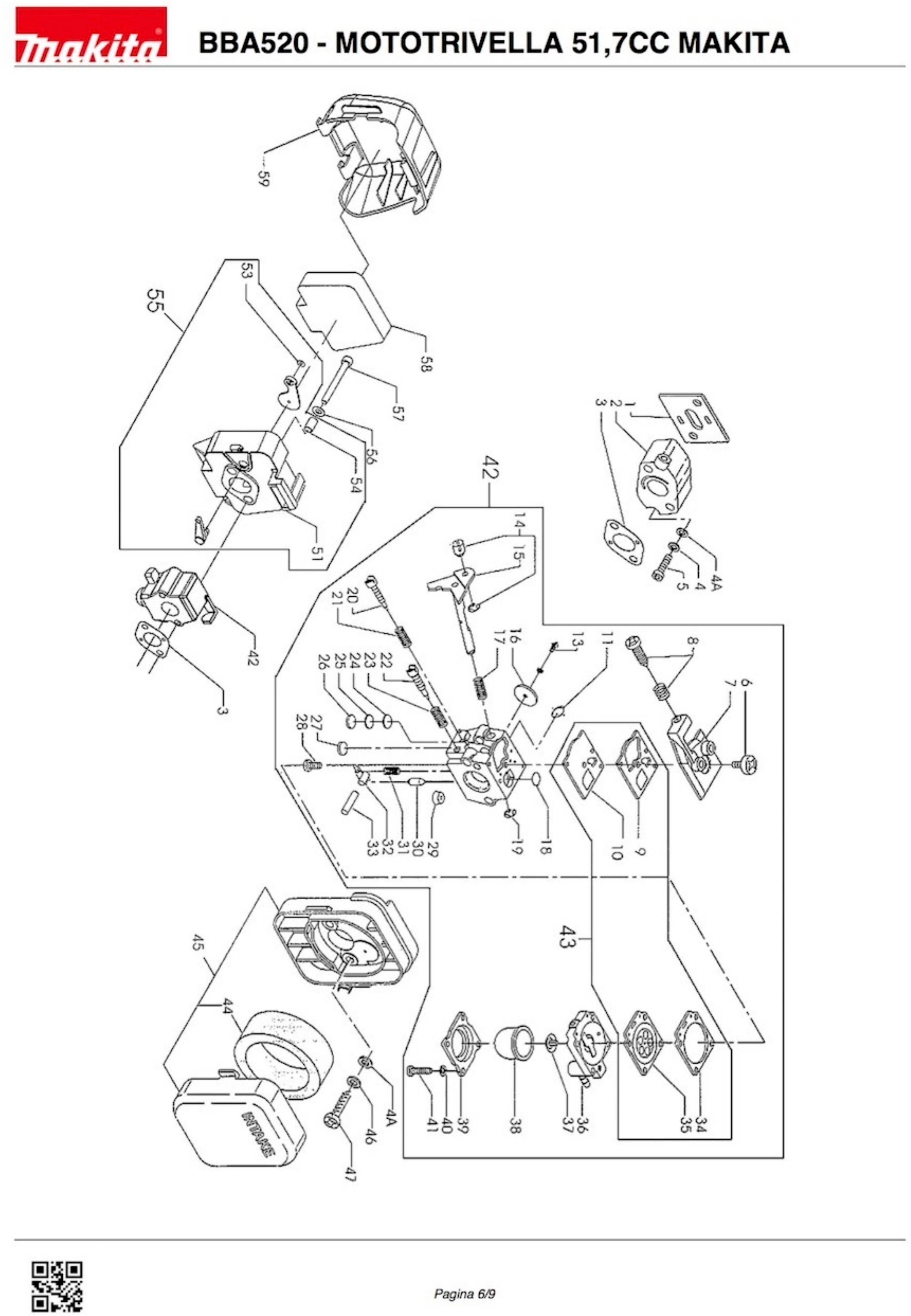

| 1 | BB240290 | MUFFLER GASKET |
| 2 | BB541270 | AIR INTAKE TUBE |
| 3 | BB240130 | CARBURETOR GASKET |
| 4 | BB090800 | WASHER D.5,3 |
| 4A | BB090780 | WASHER 5.3 X 10 X 1 |
| 5 | BB030070 | VITE TE M 5 X 30 |
| 6 | BB96-166 | SCREW |
| 7 | BB21-353 | PUMP COVER WT |
| 8 | BB96-647 | SCREW + SPRING |
| 9 | BB92-225 | GASKET PUMP |
| 10 | BB95-118 | PUMP MEMBRANE WT |
| 11 | BB88-131 | CAP |
| 13 | BB96-142 | SCREW |
| 14 | BB52-548 | BOLT WT101 |
| 15 | BB30-1140 | SHAFT |
| 16 | BB34-158 | THROTTLE |
| 17 | BB98-234 | SPRING VALVE |
| 18 | BB140-70 | FUEL FILTER |
| 19 | BB16-71 | SAFETY RING |
| 20 | BB102-330 | SCREW LOW |
| 21 | BB98-404 | SPRING |
| 22 | BB102-3066 | SCREW MAX |
| 23 | BB98-405 | SPRING MAX |
| 24 | BB140-69 | WASHER VALVE |
| 25 | BB16-42 | RING OF FLOW |
| 26 | BB88-119 | STOPPER |
| 27 | BB88-171 | CAP CIRCUIT LOW |
| 28 | BB96-156 | SCREW AXIS |
| 29 | BB84-613 | VALVE |
| 30 | BB82-75 | NEEDLE VALVE |
| 31 | BB98-387 | SPRING BALANCER |
| 32 | BB166-48 | BALANCER |
| 33 | BB144-77 | BALACER AXIS |
| 34 | BB92-251 | GASKET DIAPHRAGM |
| 35 | BB95-526 | DIAPHRAGM MEMBRANE |
| 36 | BB5-2694 | BODY AIR FILTER |
| 37 | BB176-64 | CONTROL VALVE |
| 38 | BB188-12 | GASKET |
| 39 | BB21-404 | PRIMER COVER |
| 40 | BB090190 | WASHER |
| 41 | BB96-578 | SCREW MEMBRANE COVER |
| 42 | BB331650A | CARBURATOR |
| 43 | BBD10-WAT | MEMBRANE KIT |
| 44 | BB332100 | AIR FILTER |
| 45 | BB331480 | KIT AIR FILTER |
| 46 | BB090830 | WASHER |
| 47 | BB030330 | SCREW M 5 X 50 |
| 51 | BB725350 | KIT AIR FILTER CPL |
| 53 | BB120270 | RING |
| 54 | BB091630 | SPACER BUSH |
| 55 | BB725350 | KIT AIR FILTER CPL |
| 56 | BB090830 | WASHER |
| 57 | BB031350 | HOLDER SCREW FILTER |
| 58 | BB332120 | CAP AIR FILTER |
| 59 | BB543910 | COVER AIR FILTER |

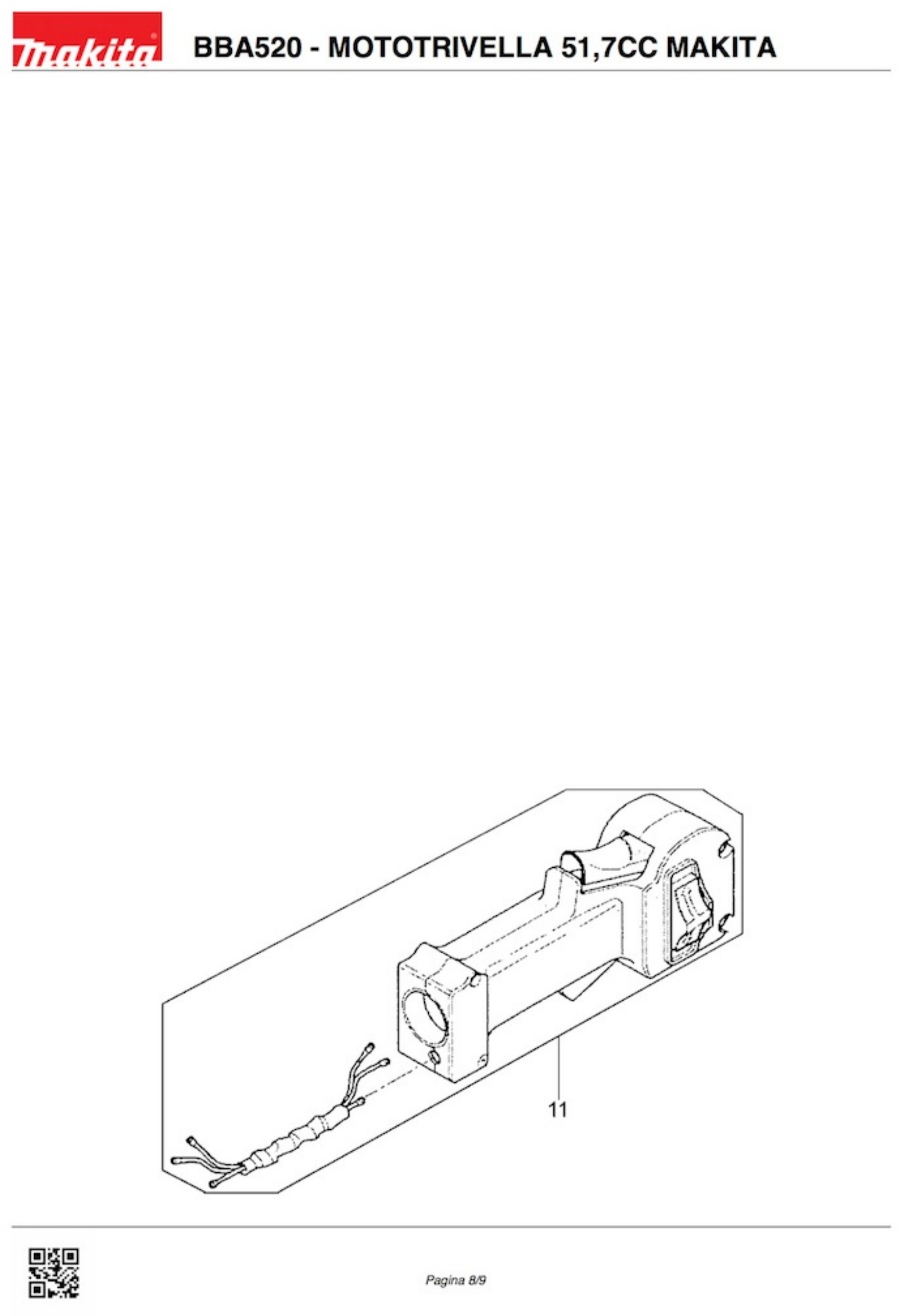

| 11 | BB727950 | KNOB CPL |
| 500 | BB600150 | KNIFE 100MM FOR BBA520-PD520 |
