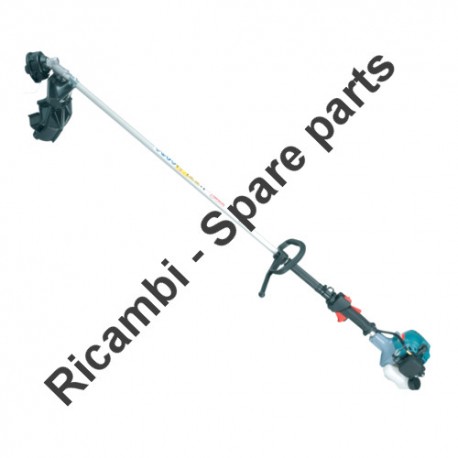

Makita Spare Parts for Brusch Cutter RBC2110

SKU: Makita RBC2110
€5.61
VAT included

Makita Spare Parts for Brusch Cutter RBC2110

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Brusch Cutter RBC2110.
Makita Spare Parts for Brusch Cutter RBC2110
  • Makita Spare Parts for Brusch Cutter RBC2110
  • Makita Spare Parts for Brusch Cutter RBC2110
  • Makita Spare Parts for Brusch Cutter RBC2110
  • Makita Spare Parts for Brusch Cutter RBC2110

Makita Spare Parts for Brusch Cutter RBC2110

SKU: Makita RBC2110 Condition: New
€5.61
VAT included

Makita Spare Parts for Brusch Cutter RBC2110

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Brusch Cutter RBC2110.
settings 131 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

111 spare parts

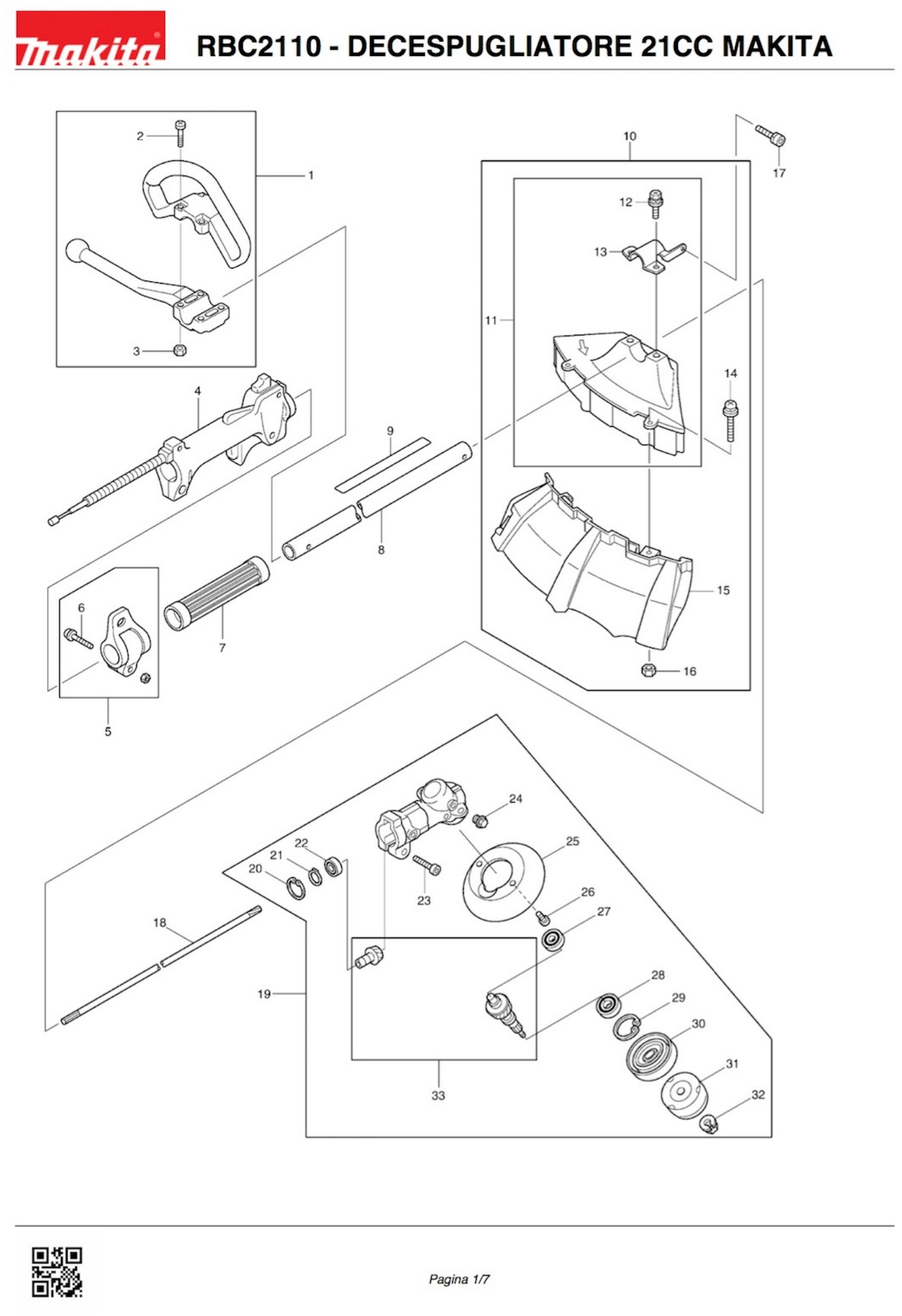

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 6214016000 HANDLE X MS20C €22.84
2
photo_cameraImage coming soon 6214016030 SCREW X MS20C €2.69
4
photo_cameraImage coming soon 6195021000 CONTROL LEVER X MS20C €58.12
5
photo_cameraImage coming soon 6197005001 HANGER ASS'Y X MS20C €11.92
6
photo_cameraImage coming soon 140059360 SCREW X-MS254C MS254U €1.29
7
photo_cameraImage coming soon 6271501501 SPACER RBC201 €7.11
8
photo_cameraImage coming soon 141986-0 SHAFT PIPE COMPLETE €42.02
9
photo_cameraImage coming soon 6199519800 CAUTION LABEL RBC2110 €5.15
10
photo_cameraImage coming soon 6198014001 PROTECTOR ASS'Y X RBC2110 €52.24
11
photo_cameraImage coming soon 6258061002 PROTECTOR ASS'Y €24.36
13
photo_cameraImage coming soon 6258508200 PROTECTOR CLAMP RBC2110 €2.59
15
photo_cameraImage coming soon 6198008001 PROTECTOR COMPLETE RBC2110 €0.00
18
photo_cameraImage coming soon 324893-4 SHAFT EBH252L €72.17
19
Gear Case Ass'y for Brushcutter Makita RBC2110 125476-1 Gear Case Ass'y for Brushcutter Makita RBC2110 €63.49
20
photo_cameraImage coming soon 31424000 INNER LOCK XRBC260-230-225- €1.71
21
photo_cameraImage coming soon 6193006120 SNAP RING RBC2110 €2.95
22
photo_cameraImage coming soon 6212500300 BALL BEARING 609ZZ RBC225- €19.63
24
photo_cameraImage coming soon 6253011012 OIL CAP M6 X 9 RBC201 €1.97
25
photo_cameraImage coming soon 450653-9 GUARD RBC2510 €1.97
27
photo_cameraImage coming soon DA00000158 BEARING 626ZZ €6.23
30
Lower Flange for Brushcutter Makita RBC2110 324917-6 Lower Flange for Brushcutter Makita RBC2110 €18.79
31
photo_cameraImage coming soon 168797-8 CLAMP WASHER €4.16
32
photo_cameraImage coming soon 264018-7 NUT M8 RBC2510 €1.44
33
photo_cameraImage coming soon 6243008002 CUTTER SHAFT SET €26.56
501
Nylon Cutting Head 4Y for Brushcutter Makita - Dolmar B-02945 Nylon Cutting Head 4Y for Brushcutter Makita - Dolmar €46.62

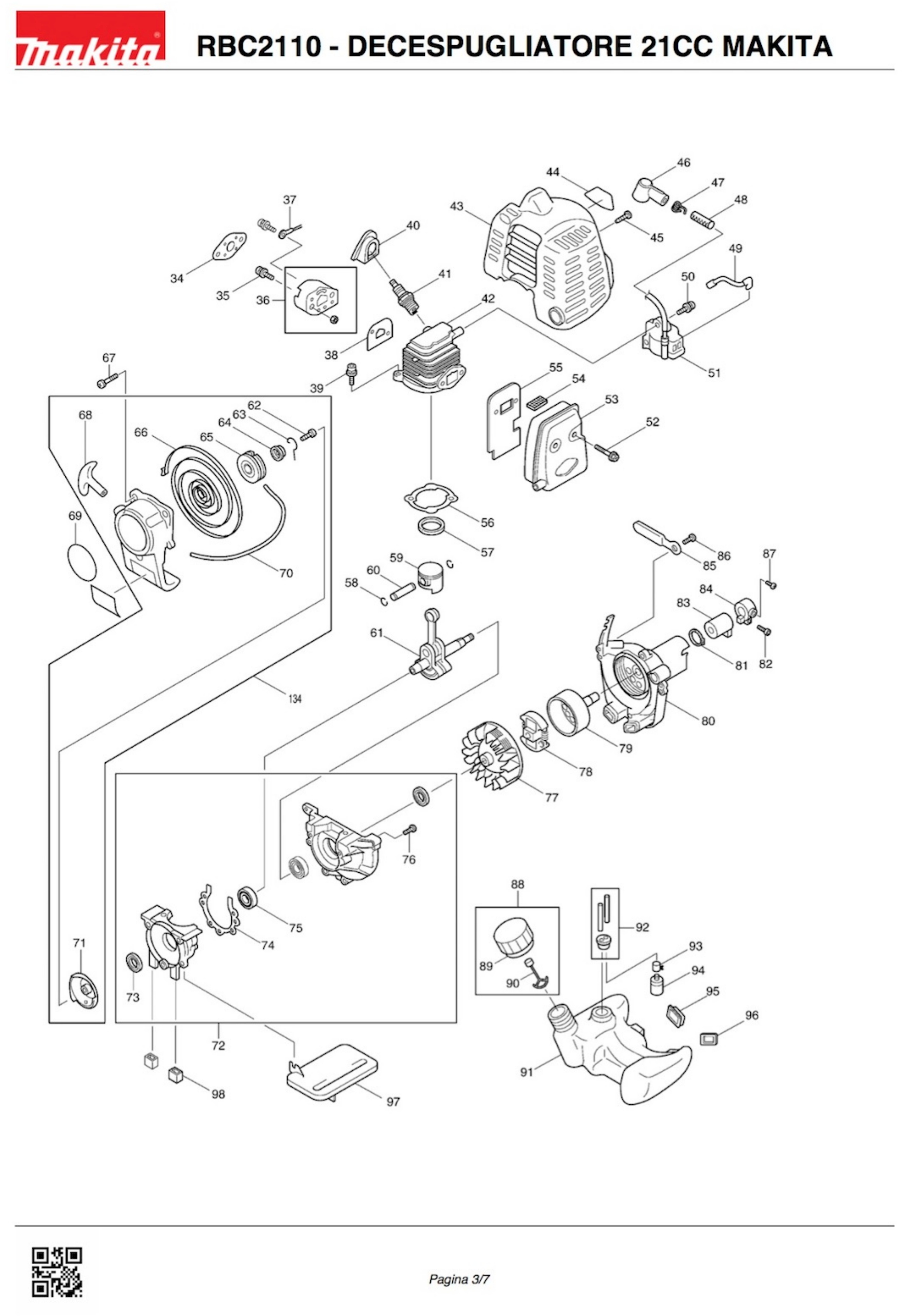

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
34
Carburator Gasket for Brushcutter Makita RBC310 442177-9 Carburator Gasket for Brushcutter Makita RBC310 €1.51
35
photo_cameraImage coming soon 140059500 SCREW M5x25 X RBC225-255 €1.29
36
photo_cameraImage coming soon 141056-5 INSULATOR COMPLETE €6.81
37
photo_cameraImage coming soon 6165500201 WIRE RBC201 €3.23
38
photo_cameraImage coming soon 442175-3 INSULATOR GASKET RBC201 €1.97
39
photo_cameraImage coming soon 119059730 BOLT X RBC 260/230/225/255 €1.91
40
photo_cameraImage coming soon 5197500100 COVER PLUG CAP RBC201 €3.13
42
photo_cameraImage coming soon 318785-7 CYLINDER €52.24
43
photo_cameraImage coming soon 455795-4 CYLINDER COVER X RBC2110 €10.14
44
photo_cameraImage coming soon 6279505700 MAKITA LABEL €1.33
46
photo_cameraImage coming soon 655009870 SPARK PLUG CAP MS254U X-C €5.15
47
photo_cameraImage coming soon 654009931 PIN X RBC415-225-255 €2.46
49
photo_cameraImage coming soon 5197018000 WIRE COMPL. RBC2110 €2.59
51
Dolmar MS22C Ignition Coil 168683-3 Dolmar MS22C Ignition Coil €30.48
53
photo_cameraImage coming soon 5193001002 MUFFLER RBC201 €52.83
54
photo_cameraImage coming soon 5193001050 SPARK ARRESTER RBC2110 €2.59
55
photo_cameraImage coming soon 168680-9 MUFFLER GASKET €1.99
56
photo_cameraImage coming soon 442173-7 CYLINDER GASKET RBC201 €2.97
57
photo_cameraImage coming soon 257320-5 PISTON RING €4.43
58
Piston Pin Circlip for Brushcutter Makita RBC310 233976-8 Piston Pin Circlip for Brushcutter Makita RBC310 €6.01
59
Piston for Brushcutter Dolmar MS22C 318831-6 Piston for Brushcutter Dolmar MS22C €21.83
60
photo_cameraImage coming soon 268277-5 PISTON PIN €2.97
61
photo_cameraImage coming soon 141047-6 CRANK SHAFT €71.53
62
photo_cameraImage coming soon 266585-8 SCREW 5X12 EBH252L €2.18
63
photo_cameraImage coming soon 5195002100 SWING ARM RBC201 €2.84
64
photo_cameraImage coming soon 451938-6 COLLAR EBH252L €1.46
65
photo_cameraImage coming soon 452972-9 REEL START €5.13
66
photo_cameraImage coming soon 234220-6 SPIRAL SPRING €5.94
68
photo_cameraImage coming soon 5225004020 STARTER KNOB HT2256D €13.66
69
photo_cameraImage coming soon 6199520100 LABEL RBC2110 €2.59
70
photo_cameraImage coming soon 5255016020 STARTER ROPE RBC201 €12.69
71
photo_cameraImage coming soon 5195500000 PULLEY RBC201 €5.28
72
photo_cameraImage coming soon 5191004001 CRANKCASE ASS'Y RBC2110 €96.05
74
photo_cameraImage coming soon 5191500400 CRANKCASE GASKET RBC201 €2.54
75
photo_cameraImage coming soon 0600109980 BALL BEARING 6000 €14.77
77
photo_cameraImage coming soon 5197017010 FLYWHEEL X RBC2110 €25.23
78
Clutch Ass'y for Brushcutter Dolmar MS22C 6192002003 Clutch Ass'y for Brushcutter Dolmar MS22C €22.54
79
photo_cameraImage coming soon 6192001001 CLUTCH DRUM RBC201 substituited by 161477-5 €20.51
80
photo_cameraImage coming soon 141058-1 CLUTCH CASE COMPLETE €20.12
81
photo_cameraImage coming soon 0031510000 OUTER SNAP RING 10 RBK 410 €1.41
83
photo_cameraImage coming soon 424461-4 PIPE DAMPER €3.63
84
photo_cameraImage coming soon 318792-0 PIPE BRACKET €6.26
85
photo_cameraImage coming soon 566059980 CLAMP X RBC525 €3.51
88
photo_cameraImage coming soon 168668-9 FUEL TANK CAP COMPLETE RBC2510 €9.90
89
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
90
Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31
91
photo_cameraImage coming soon 452989-2 FUEL TANK CPL €15.70
92
photo_cameraImage coming soon 162329-3 TUBE €5.15
94
Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
95
Tank Damper for Brushcutter Makita RBC2110 424102-2 Tank Damper for Brushcutter Makita RBC2110 €1.30
96
photo_cameraImage coming soon 424103-0 DAMPER EBH341U €1.44
97
photo_cameraImage coming soon 5193500101 PLATE RBC201 €7.15
98
photo_cameraImage coming soon 5216500200 DAMPER X RBC230-225-255 €1.40
134
photo_cameraImage coming soon 126037-0 REWIND STARTER X MS20C €22.96

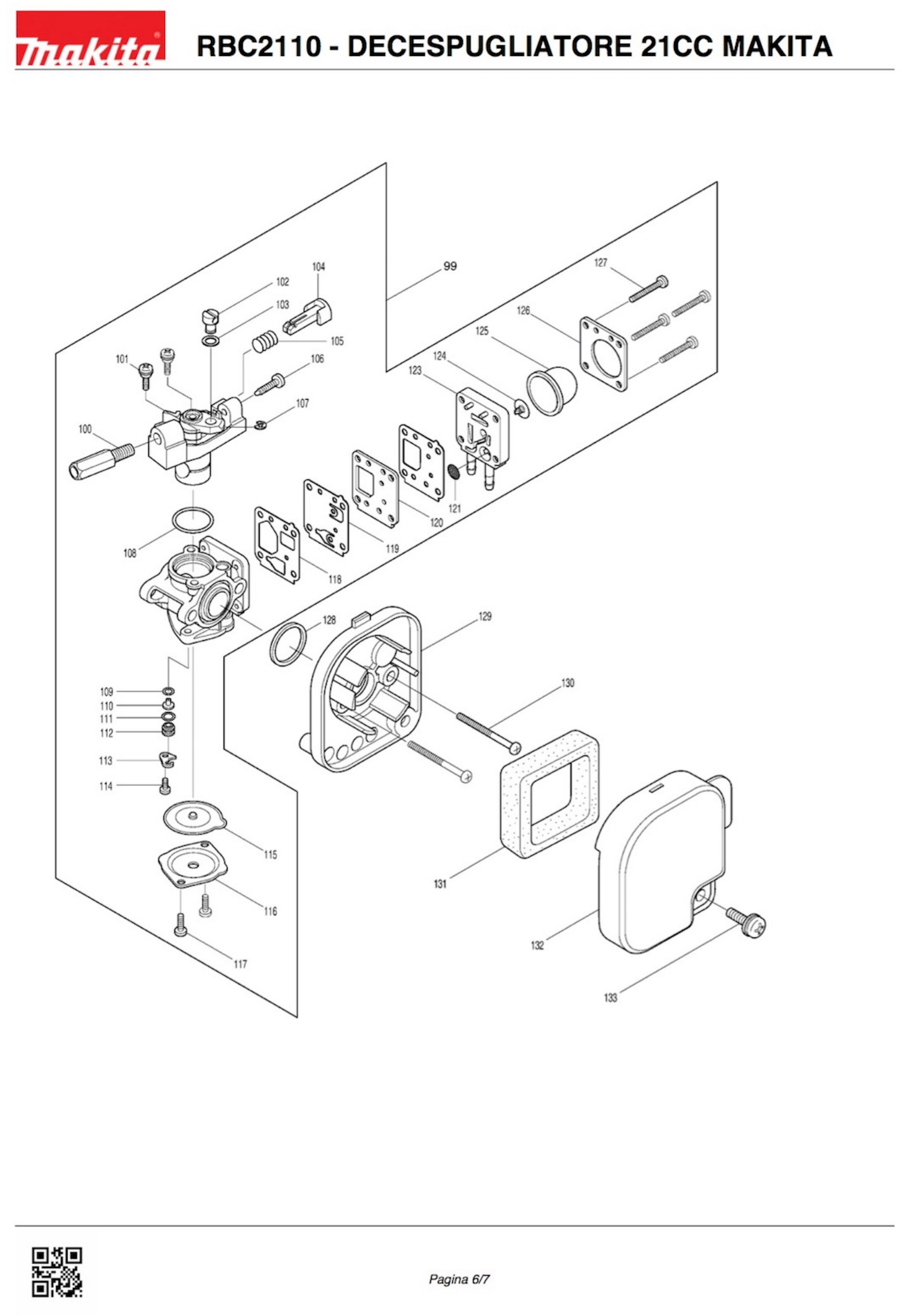

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
100
photo_cameraImage coming soon 5196019240 ADJUST SCREW MS20C €17.92
101
photo_cameraImage coming soon 5196019310 SCREW X MS20C €2.97
102
photo_cameraImage coming soon 5196019450 LEVER END MS20C €26.71
103
photo_cameraImage coming soon 5196019460 WASHER X MS20C €2.97
104
photo_cameraImage coming soon 452976-1 STARTER LEVER X MS20C €4.18
105
photo_cameraImage coming soon 234221-4 STARTER SPRING €1.97
106
photo_cameraImage coming soon 5196019250 SLOW STOP SCREW MS20C €6.26
107
photo_cameraImage coming soon 5196019510 E-RING X MS20C €1.33
108
photo_cameraImage coming soon 5196019220 O-RING X MS20C €7.15
109
photo_cameraImage coming soon 5196019150 O-RING X MS20C €4.85
110
photo_cameraImage coming soon 5196032010 MAIN JET X MS20C €30.88
111
photo_cameraImage coming soon 5196019410 O-RING X MS20C €4.85
112
photo_cameraImage coming soon 5196019360 CHECK VALVE ASSEMBLY MS20C €22.30
113
photo_cameraImage coming soon 5196019420 GUIDE PLATE X MS20C €9.34
114
photo_cameraImage coming soon 5196019430 SCREW X MS20C €1.33
115
photo_cameraImage coming soon 126038-8 DIAPHRAGM ASSEMBLY €15.76
116
photo_cameraImage coming soon 346513-0 DIAPHRAGM COVER €3.63
117
photo_cameraImage coming soon 5196019060 SCREW X MS20C €1.33
118
photo_cameraImage coming soon 442176-1 PUMP PACKING €2.97
119
photo_cameraImage coming soon 424460-6 DIAPHRAGM PUMP €6.26
121
photo_cameraImage coming soon 352018-0 FILTER €5.61
123
photo_cameraImage coming soon 452975-3 PUMP COVER €7.15
124
photo_cameraImage coming soon 5246009030 COMBINATION VALVE X MS20C €22.96
125
photo_cameraImage coming soon 424462-2 PRIMING PUMP MS20C €8.03
126
photo_cameraImage coming soon 5196019320 PRIMING PUMP PLATE X MS20C €17.92
127
photo_cameraImage coming soon 5196019140 SCREW X MS20C €1.33
128
photo_cameraImage coming soon 5193017040 O-RING X MS20C €3.81
129
photo_cameraImage coming soon 5193018010 AIR CLEANER ASSEMBLY PLATE MS20C €29.36
130
photo_cameraImage coming soon 43105600 SCREW M5x60 X RBC230 / RST250 €1.29
131
photo_cameraImage coming soon 443168-3 AIR CLEANER ELEMENT MS20C €4.18
132
photo_cameraImage coming soon 5193018020 FILTER COVER X MS20C €6.00
133
photo_cameraImage coming soon 266470-5 SCREW M5 X 14 X BHX2501 €1.25

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Brusch Cutter RBC2110

MAKITA Original spare parts

at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Brusch Cutter RBC2110.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
Makita RBC2110

Brusch Cutter RBC2110
# Part Num. Description
1 6214016000 HANDLE X MS20C
2 6214016030 SCREW X MS20C
3 22705000 NUT M5 X RBC230 / 310 / RBK410
4 6195021000 CONTROL LEVER X MS20C
5 6197005001 HANGER ASS'Y X MS20C
6 140059360 SCREW X-MS254C MS254U
7 6271501501 SPACER RBC201
8 141986-0 SHAFT PIPE COMPLETE
9 6199519800 CAUTION LABEL RBC2110
10 6198014001 PROTECTOR ASS'Y X RBC2110
11 6258061002 PROTECTOR ASS'Y
12 100069790 SCREW M6x30 X RBC2110
13 6258508200 PROTECTOR CLAMP RBC2110
14 140059380 SCREW X RBC2110
15 6198008001 PROTECTOR COMPLETE RBC2110
16 21805000 NUT X RBC201-221-251
17 119059490 SCREW X MS251.4
18 324893-4 SHAFT EBH252L
19 125476-1 GEAR CASE ASS'Y RBC2510
20 31424000 INNER LOCK XRBC260-230-225-
21 6193006120 SNAP RING RBC2110
22 6212500300 BALL BEARING 609ZZ RBC225-
23 119059890 BOLT AND WASHER M5x25 XRBC225-
24 6253011012 OIL CAP M6 X 9 RBC201
25 450653-9 GUARD RBC2510
26 140059390 SCREW X RBC2110
27 DA00000158 BALL BEARING 626ZZ
28 600109910 BALL BEARING X RBK250 / RBC225-255
29 31426000 SNAP RING X RBC260 / 230/225/2
30 324917-6 RECIEVE WASHER
31 168797-8 CLAMP WASHER
32 264018-7 NUT M8 RBC2510
33 6243008002 CUTTER SHAFT SET
34 442177-9 GASKET AIR CLEANER
35 140059500 SCREW M5x25 X RBC225-255
36 141056-5 INSULATOR COMPLETE
37 6165500201 WIRE RBC201
38 442175-3 INSULATOR GASKET RBC201
39 119059730 BOLT X RBC 260/230/225/255
40 5197500100 COVER PLUG CAP RBC201
41 650149661 SPARK PLUG X-RBC350 RBC420-PB500R
42 318785-7 CYLINDER
43 455795-4 CYLINDER COVER X RBC2110
44 6279505700 MAKITA LABEL
46 655009870 SPARK PLUG CAP MS254U X-C
47 654009931 PIN X RBC415-225-255
48 851089950 TUBE X RBC2110
49 5197018000 WIRE COMPL. RBC2110
50 140049770 SCREW M4x16 X MS20C
51 168683-3 IGNITION COIL RBC2110
52 119059520 SCREW M5 X 40 RBC201
53 5193001002 MUFFLER RBC201
54 5193001050 SPARK ARRESTER RBC2110
55 168680-9 MUFFLER GASKET
56 442173-7 CYLINDER GASKET RBC201
57 257320-5 PISTON RING
58 233976-8 CIRCLIP EBH252L
59 318831-6 PISTON RBC2110
60 268277-5 PISTON PIN
61 141047-6 CRANK SHAFT
62 266585-8 SCREW 5X12 EBH252L
63 5195002100 SWING ARM RBC201
64 451938-6 COLLAR EBH252L
65 452972-9 REEL START
66 234220-6 SPIRAL SPRING
67 140049770 SCREW M4x16 X MS20C
68 5225004020 STARTER KNOB HT2256D
69 6199520100 LABEL RBC2110
70 5255016020 STARTER ROPE RBC201
71 5195500000 PULLEY RBC201
72 5191004001 CRANKCASE ASS'Y RBC2110
73 440109980 OIL SEAL RBC201
74 5191500400 CRANKCASE GASKET RBC201
75 0600109980 BALL BEARING 6000
76 140059500 SCREW M5x25 X RBC225-255
77 5197017010 FLYWHEEL X RBC2110
78 6192002003 CLUTCH RBC201
79 6192001001 CLUTCH DRUM RBC201 substituited by 161477-5
80 141058-1 CLUTCH CASE COMPLETE
81 0031510000 OUTER SNAP RING 10 RBK 410
82 119059880 SOCKET HEAD BOLT M5X25 X RBC 310
83 424461-4 PIPE DAMPER
84 318792-0 PIPE BRACKET
85 566059980 CLAMP X RBC525
86 150059780 SCREW M5X20 X MS20C
87 119059850 SCREW M5 X 14 RBC201
88 168668-9 FUEL TANK CAP COMPLETE RBC2510
89 452920-8 FUEL TANK CAP
90 140436-2 STRAP UNIT EBH341U
91 452989-2 FUEL TANK CPL
92 162329-3 TUBE
93 561059990 HOSE CLAMP X RBC230-310 / 520
94 163447-0 GASOLINE FILTER X DCS230T
95 424102-2 PLATE EBH341U
96 424103-0 DAMPER EBH341U
97 5193500101 PLATE RBC201
98 5216500200 DAMPER X RBC230-225-255
134 126037-0 REWIND STARTER X MS20C
99 168682-5 CARBURETOR
100 5196019240 ADJUST SCREW MS20C
101 5196019310 SCREW X MS20C
102 5196019450 LEVER END MS20C
103 5196019460 WASHER X MS20C
104 452976-1 STARTER LEVER X MS20C
105 234221-4 STARTER SPRING
106 5196019250 SLOW STOP SCREW MS20C
107 5196019510 E-RING X MS20C
108 5196019220 O-RING X MS20C
109 5196019150 O-RING X MS20C
110 5196032010 MAIN JET X MS20C
111 5196019410 O-RING X MS20C
112 5196019360 CHECK VALVE ASSEMBLY MS20C
113 5196019420 GUIDE PLATE X MS20C
114 5196019430 SCREW X MS20C
115 126038-8 DIAPHRAGM ASSEMBLY
116 346513-0 DIAPHRAGM COVER
117 5196019060 SCREW X MS20C
118 442176-1 PUMP PACKING
119 424460-6 DIAPHRAGM PUMP
120 5196019350 PUMP PLATE MS20C
121 352018-0 FILTER
123 452975-3 PUMP COVER
124 5246009030 COMBINATION VALVE X MS20C
125 424462-2 PRIMING PUMP MS20C
126 5196019320 PRIMING PUMP PLATE X MS20C
127 5196019140 SCREW X MS20C
128 5193017040 O-RING X MS20C
129 5193018010 AIR CLEANER ASSEMBLY PLATE MS20C
130 43105600 SCREW M5x60 X RBC230 / RST250
131 443168-3 AIR CLEANER ELEMENT MS20C
132 5193018020 FILTER COVER X MS20C
133 266470-5 SCREW M5 X 14 X BHX2501
501 B-02945 NYLON CUTTING HEAD 4Y
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBC2110
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita RBC2110

Diagram Makita RBC2110

Download (617.66KB)

You might also like

Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following...
Last items in stock €4.49
Makita SKU: 233976-8
Piston Pin Circlip for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Pin Circlip for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...
AVAILABLE €6.01
Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Makita SKU: 324917-6
Lower Flange for Brushcutter Makita RBC2110 Genuine part Makita, Lower Flange for Brushcutters RBC2110 - RBC226 - RBC251 - RBC255 - RBC256 - Dolmar MS-26U. Part for the...
AVAILABLE €18.79
Makita SKU: 318831-6
Piston for Brushcutter Dolmar MS22C Genuine replacement part Dolmar, Piston for Brushcutters MS22C - Makita RBC2110. Part for the following products: -  MS22C - BRUSHCUTTER 21CC DOLMAR...
Last items in stock €21.83
Makita SKU: 161477-5
Clutch Drum Ass'y for Brushcutter Dolmar MS22C Genuine replacement part Dolmar, Clutch Drum Ass'y for Brushcutters MS22C - Makita RBC2110. Part for the following products: - MS20C - DECESPUGLIATORE 20CC...
Last items in stock €22.41
Makita SKU: 6192002003
Clutch Ass'y for Brushcutter Dolmar MS22C Genuine replacement part Dolmar, Clutch Ass'y for Brushcutters MS22C - Makita RBC201 - RBC2110. Part for the following products: - MS20C - DECESPUGLIATORE 20CC...
Usually Ships in: 7/10 Business Days Approx. €22.54
Makita SKU: 125476-1
Gear Case Ass'y for Brushcutter Makita RBC2110 Genuine part Makita, Gear Case Assembly for Brushcutters RBC2110 - RBC226 - RBC251 - RBC255 - RBC256 - Dolmar MS-26U....
Last items in stock €63.49
Makita SKU: B-02945
Nylon Cutting Head 4Y (L.H.) for Brushcutter Makita - Dolmar Genuine Accessory Makita, Nylon Cutting Head 4Y (L.H.) for Brushcutter Makita - Dolmar Parts for the following products: -  RBC2110 - BRUSHCUTTER MAKITA...
on 7/10 Business Days Approx €46.62
Makita SKU: 168683-3
Dolmar MS22C Ignition Coil Genuine replacement part Dolmar, Electronic Ignition Coil for Brushcutters MS22C - Makita RBC2110. Part for the following products: -  MS22C - BRUSHCUTTER 21CC DOLMAR - ...
Last items in stock €30.48
Comments (0)
