Makita

Makita Spare Parts for Chainsaw EA3200S35A

SKU: Makita EA3200S35A
€55.02
VAT included

Makita Spare Parts for Chainsaw EA3200S35A

MAKITA Original spare parts at attractive and competitive prices on the web, we are a service center with a repair service able to quickly solve the maintenance or repair any issues for Petrol Chainsaw EA3200S35A.
Makita Spare Parts for Chainsaw EA3200S35A
  • Makita Spare Parts for Chainsaw EA3200S35A
  • Makita Spare Parts for Chainsaw EA3200S35A
  • Makita Spare Parts for Chainsaw EA3200S35A
  • Makita Spare Parts for Chainsaw EA3200S35A
  • Makita Spare Parts for Chainsaw EA3200S35A
  • Makita Spare Parts for Chainsaw EA3200S35A
  • Makita Spare Parts for Chainsaw EA3200S35A
Makita

Makita Spare Parts for Chainsaw EA3200S35A

SKU: Makita EA3200S35A Condition: New
€55.02
VAT included

Makita Spare Parts for Chainsaw EA3200S35A

MAKITA Original spare parts at attractive and competitive prices on the web, we are a service center with a repair service able to quickly solve the maintenance or repair any issues for Petrol Chainsaw EA3200S35A.
settings 124 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
124 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

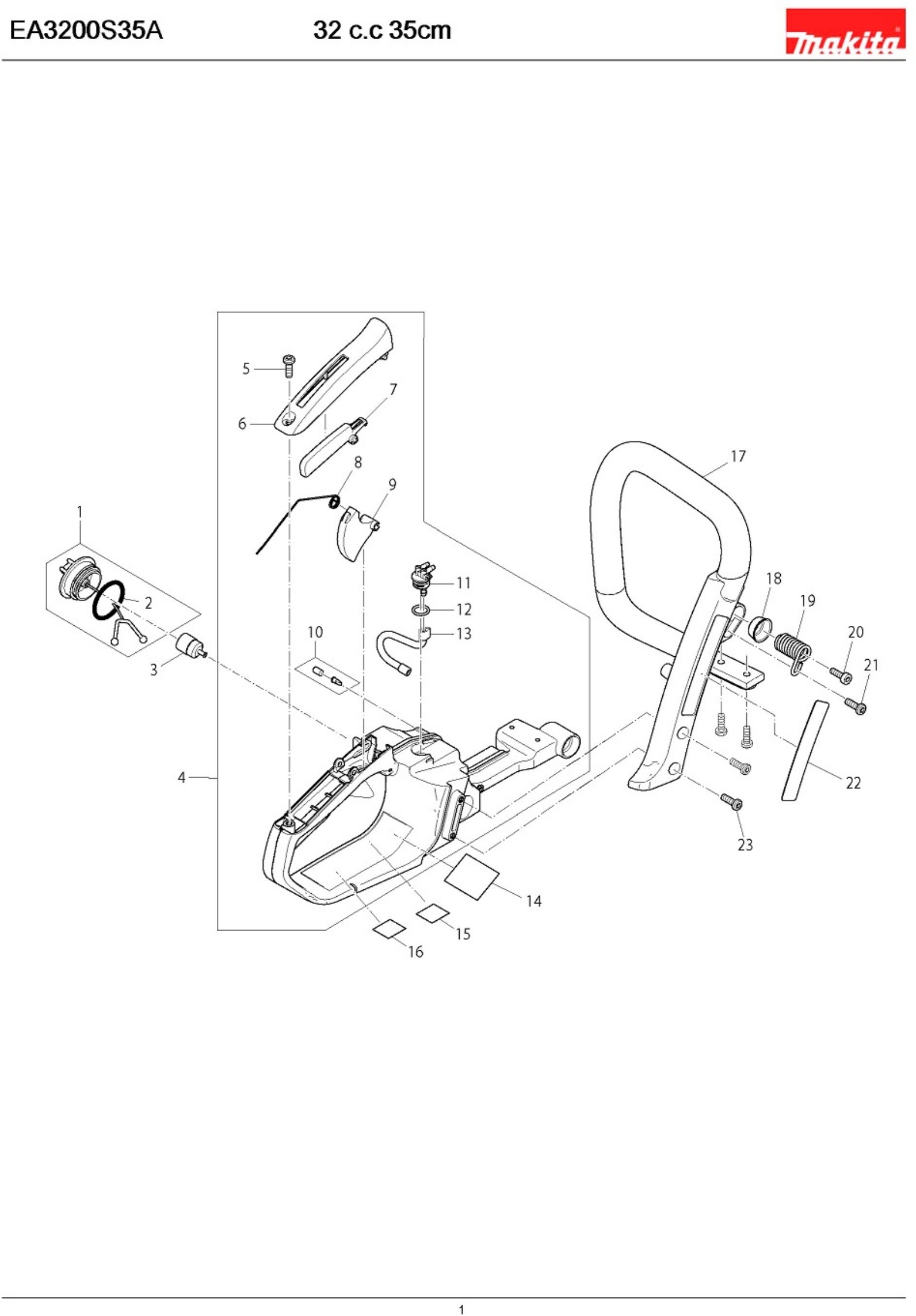

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 168823-3 TANK CAP PS32CTLC €2.73
2
 photo_cameraImage coming soon 213080-9 RING 29.5 PS32CTLC €5.43
3
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
4
 photo_cameraImage coming soon 195758-5 TANK CPL BLUE EA3201S35A €46.64
5
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
6
 photo_cameraImage coming soon 452021-2 COVER HANDLE PS32CTLC €2.15
7
 photo_cameraImage coming soon 452020-4 RELEASE LEVER PS32CTLC €1.40
8
 photo_cameraImage coming soon 231866-9 SPRING TORSION 10 PS32CTLC €1.43
9
 photo_cameraImage coming soon 452019-9 ACCELERATOR LEVER PS32CTLC €1.40
10
 photo_cameraImage coming soon 195762-4 BREATHER VALVE PS32CTLC €3.84
11
 photo_cameraImage coming soon 452018-1 FITTING CARCBURANTE PS32CTLC €1.43
12
 photo_cameraImage coming soon 213586-7 RING 11.5 PS32CTLC €1.43
13
 Fuel Hose for Chaisaws Makita EA3201S35A 424456-7 Fuel Hose for Chaisaws Makita EA3201S35A €16.31
17
 photo_cameraImage coming soon 452036-9 FRONT HANDLE PS32CTLC €32.07
18
 photo_cameraImage coming soon 346517-2 BELLEVILLE WASHER 6 PS32CTLC €1.40
19
 Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
20
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
21
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
23
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
24
 photo_cameraImage coming soon 452031-9 FILTER COVER PS32CTLC €1.40
25
 Air Cleaner for Chaisaw Makita EA3201S35A 423414-0 Air Cleaner for Chaisaw Makita EA3201S35A €3.87
26
 photo_cameraImage coming soon 452030-1 PS32CTLC FUND €3.35
27
 photo_cameraImage coming soon 266604-0 SCREW M4X40 PS32CTLC €1.40
28
 Damper for Chainsaw Dolmar PS32CTLC 424173-9 Damper for Chainsaw Dolmar PS32CTLC €2.18
29
 Gasoline Primer Pump for Chainsaw Makita DCS230T 168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T €6.24
30
 photo_cameraImage coming soon 422067-2 PIPE 2,5X55 PS32CTLC €2.15
31
 photo_cameraImage coming soon 422065-6 PIPE 2,5X55 PS32CTLC €3.17
32
 photo_cameraImage coming soon 422068-0 PIPE 3x70 PS32CTLC €1.40
33
 photo_cameraImage coming soon 422066-4 PIPE 2,5X72 PS32CTLC €2.08
34
 photo_cameraImage coming soon 318634-8 FLANGE PS32CTLC €2.15
35
 photo_cameraImage coming soon 346413-4 SOCKET 17 PS32CTLC €1.47
36
 photo_cameraImage coming soon 452024-6 INTERMEDIATE FLANGE PS32CTLC €3.13
37
 photo_cameraImage coming soon 424340-6 SUCTION SLEEVE PS32CTLC €7.70
38
 photo_cameraImage coming soon 233971-8 CIRCLIP PS32CTLC €2.20
39
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
40
 photo_cameraImage coming soon 264044-6 PLATE M5 PS32CTLC €1.40
42
 photo_cameraImage coming soon 266421-8 SCREW 3PER10 HR2800 €1.40
43
 photo_cameraImage coming soon 346290-4 PS32CTLC CONTACT €1.40
44
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
45
 photo_cameraImage coming soon 452023-8 PS32CTLC COVER €4.43
46
 photo_cameraImage coming soon 266607-4 SCREW M5X20 PS32CTLC €1.43
47
 photo_cameraImage coming soon 325938-1 FITTING THE PS32CTLC €2.08
48
 photo_cameraImage coming soon 346306-5 INSULATING PLATE PS32CTLC €1.40
49
 photo_cameraImage coming soon 325939-9 PS32CTLC SOCKET €1.40
50
 photo_cameraImage coming soon 346304-9 SEAL MUFFLER PS32CTLC €1.43
51
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
52
 photo_cameraImage coming soon 168604-5 MUFFLER PS32CTLC €79.01
53
 photo_cameraImage coming soon 346294-6 DISC GUARD PS32CTLC €1.40
54
 photo_cameraImage coming soon 266606-6 SCREW M5X40 PS32CTLC €1.40
55
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
56
 photo_cameraImage coming soon 196384-3 CYLINDER PISTON SET PS32 €92.13
57
 Piston Set for Chainsaw Makita EA3201S 195760-8 Piston Set for Chainsaw Makita EA3201S €24.68
58
 photo_cameraImage coming soon 325991-7 PISTON RING 38 PS32CTLC €3.84
59
 photo_cameraImage coming soon 325992-5 PISTON PIN PS32CTLC €2.08
60
 photo_cameraImage coming soon 233988-1 RING PIN PS220CTLC €1.40
61
 photo_cameraImage coming soon 213582-5 SEAL OIL 12 PS32CTLC €6.73
62
 photo_cameraImage coming soon 211341-1 BEARING 6201 PS32CTLC €3.92
63
 photo_cameraImage coming soon 212086-4 CAGE ROLLER 810 PS32CTLC €8.67
64
 photo_cameraImage coming soon 195956-1 CRANKSHAFT PS32CTLC €88.75
65
 photo_cameraImage coming soon 211341-1 BEARING 6201 PS32CTLC €3.92
66
 photo_cameraImage coming soon 213582-5 SEAL OIL 12 PS32CTLC €6.73
67
 photo_cameraImage coming soon 424339-1 SEAL PS32CTLC €5.15
68
 photo_cameraImage coming soon 318633-0 COVER LOWER PS32CTLC €3.84
69
 photo_cameraImage coming soon 168823-3 TANK CAP PS32CTLC €2.73
70
 photo_cameraImage coming soon 213080-9 RING 29.5 PS32CTLC €5.43
72
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
73
 Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
75
 photo_cameraImage coming soon 452025-4 LEVER AIR PS32CTLC €1.40
76
 photo_cameraImage coming soon 452022-0 LEVERAGE PS32CTLC €1.47
77
 photo_cameraImage coming soon 266608-2 SCREW 5x40 PS32CTLC €1.40
78
 photo_cameraImage coming soon 325946-2 SOCKET 6 PS32CTLC €1.40
79
 Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
80
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
81
 Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
82
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
83
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
84
 Venting Valve for Chainsaw Dolmar PS32CTLC 168504-9 Venting Valve for Chainsaw Dolmar PS32CTLC €3.70
85
 photo_cameraImage coming soon 346301-5 HARPOON PS32CTLC €2.12
86
 photo_cameraImage coming soon 346385-3 INSULATING PLATE PS32CTLC €3.84
87
 photo_cameraImage coming soon 444042-8 INSULATION TUBE PS32TCLC €1.43
88
 photo_cameraImage coming soon 424522-0 HOOD CANDLE €2.82
89
 photo_cameraImage coming soon 168401-9 SPARK PLUG BHX2501/PS32  - NGKBPMR8Y - BPMR7A €10.75
90
 photo_cameraImage coming soon 452670-5 INSULATING WASHER PS32CTLC €1.40
91
 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A 126270-4 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A €55.00
92
 photo_cameraImage coming soon 266631-7 SCREW M5X20 PS32CTLC €1.40
93
 photo_cameraImage coming soon 168601-1 CABLES PS32CTLC €3.92
94
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
96
 photo_cameraImage coming soon 168608-7 STARTING CPL BLUE EA3201S35A €40.59
97
 photo_cameraImage coming soon 453783-5 GRIP STARTING PS32CTLC €3.92
98
 photo_cameraImage coming soon 267847-7 WASHER QUADRA 4 PS32CTLC €1.40
99
 photo_cameraImage coming soon 444038-9 ROPE START PS32CTLC €2.08
101
 photo_cameraImage coming soon 453785-1 REEL START PS32CTLC €5.52
102
 photo_cameraImage coming soon 234253-1 SPRING TORSION 20 PS32CTLC €2.69
103
 Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A 453786-9 Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A €4.63
104
 photo_cameraImage coming soon 266777-9 SCREW 5X1 PS32CTLC €1.40
105
 photo_cameraImage coming soon 452026-2 BAFFLE PS32CTLC €3.35
106
 photo_cameraImage coming soon 264053-5 NUT M8X1 PS32CTLC €1.40
107
 photo_cameraImage coming soon 267822-3 WASHER 8 PS32CTLC €1.47
108
 photo_cameraImage coming soon 140480-9 FLYWHEEL PS32CTLC €27.55
109
 Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A 195761-6 Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A €2.84
110
 Hand Guard for Petrol Chainsaw Makita EA3200S35A 452032-7 Hand Guard for Petrol Chainsaw Makita EA3200S35A €6.26
111
 Makita Label for Chainsaw Makita DCS230T 810075-9 Makita Label for Chainsaw Makita DCS230T €2.84
112
 photo_cameraImage coming soon 266627-8 SCREW 4,7X16 PS32CTLC €1.40
113
 photo_cameraImage coming soon 267066-5 FLAT WASHER 5 X6811DW €1.40
114
 photo_cameraImage coming soon 313212-9 PS32CTLC GUIDE €1.47
115
 photo_cameraImage coming soon 234210-9 SPRING COMPRESSION 6 PS32CTLC €1.47
116
 photo_cameraImage coming soon 231868-5 SPRING TENSION 10 PS32CTLC €2.08
117
 photo_cameraImage coming soon 163500-2 LEVERAGE PS32CTLC €21.54
118
 photo_cameraImage coming soon 325947-0 SOCKET 6 €1.40
119
 photo_cameraImage coming soon 346299-6 SPACER PS32CTLC €1.40
120
 photo_cameraImage coming soon 961011-9 RETAINING RING E4 €1.44
121
 photo_cameraImage coming soon 452033-5 PS32CTLC COVER €2.15
122
 photo_cameraImage coming soon 266421-8 SCREW 3PER10 HR2800 €1.40
123
 Worm Screw for Chainsaw Makita EA3201S35A 452035-1 Worm Screw for Chainsaw Makita EA3201S35A €5.30
124
 photo_cameraImage coming soon 168645-1 SUCTION HOSE PS32CTLC €6.06
125
 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A 234207-8 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A €1.32
126
 photo_cameraImage coming soon 452666-6 PLUG OIL PIPE PS32CTLC €1.32
127
 photo_cameraImage coming soon 424342-2 PIPE PS32CTLC €5.30
130
 photo_cameraImage coming soon 266627-8 SCREW 4,7X16 PS32CTLC €1.40
131
 photo_cameraImage coming soon 267430-0 WASHER 10 PS32CTLC €1.40
132
 photo_cameraImage coming soon 267431-8 WASHER 10 PS32CTLC €1.40
133
 photo_cameraImage coming soon 168607-9 CLUTCH PS32C-EA3201S €8.50
134
 photo_cameraImage coming soon 231873-2 SPRING TENSION 5 PS32CTLC €1.40
135
 photo_cameraImage coming soon 140484-1 CLUTCH DRUM ASSY PS32C New Cod. 140A30-6 €19.38
136
 photo_cameraImage coming soon 267833-8 WASHER 8 PS32CTLC €1.44
137
 photo_cameraImage coming soon 259033-4 LOCKWASHER X UC €1.47
138
 photo_cameraImage coming soon 346298-8 SPRING BRAKE PS32CTLC €4.81
139
 photo_cameraImage coming soon 140477-8 CARTER CLUTCH SIDE EA3200S €29.07
140
 Chain Tensioner Set CPL EA3200S for Chainsaw Dolmar PS32C/35 195763-2 Chain Tensioner Set CPL EA3200S for Chainsaw Dolmar PS32C/35 €16.50
141
 photo_cameraImage coming soon 213594-8 RING 7 €1.40
142
 photo_cameraImage coming soon 227744-9 GEAR 18 €20.12
143
 photo_cameraImage coming soon 227743-1 GEAR 11 €22.84
144
 photo_cameraImage coming soon 452667-4 COVER €9.01
145
 photo_cameraImage coming soon 346300-7 SLEIGH €2.12
146
 photo_cameraImage coming soon 452668-2 TENSIONER PLATE EA3200S €1.43
147
 photo_cameraImage coming soon 266421-8 SCREW 3PER10 HR2800 €1.40
148
 Guide Plate for Chainsaw Dolmar PS32C/35 346518-0 Guide Plate for Chainsaw Dolmar PS32C/35 €6.23
149
 photo_cameraImage coming soon 452044-0 CARTER PINION €8.40
150
 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48
152
 Makita Starter Spring for EA3200S35A 195955-3 Makita Starter Spring for EA3200S35A €11.07
190
 photo_cameraImage coming soon WJ00088271 PIN PS32CTLC €2.69
501
 photo_cameraImage coming soon 442030611 CHAIN CM 30 - 1,1 3/8 €18.52
502
 photo_cameraImage coming soon 442035611 CHAIN CM 35 - 1,1 3/8 €27.92
503
 photo_cameraImage coming soon 511291746 CHAIN BAR 30 CM €18.30
504
 photo_cameraImage coming soon 511291752 CHAIN BAR 35 CM €32.12

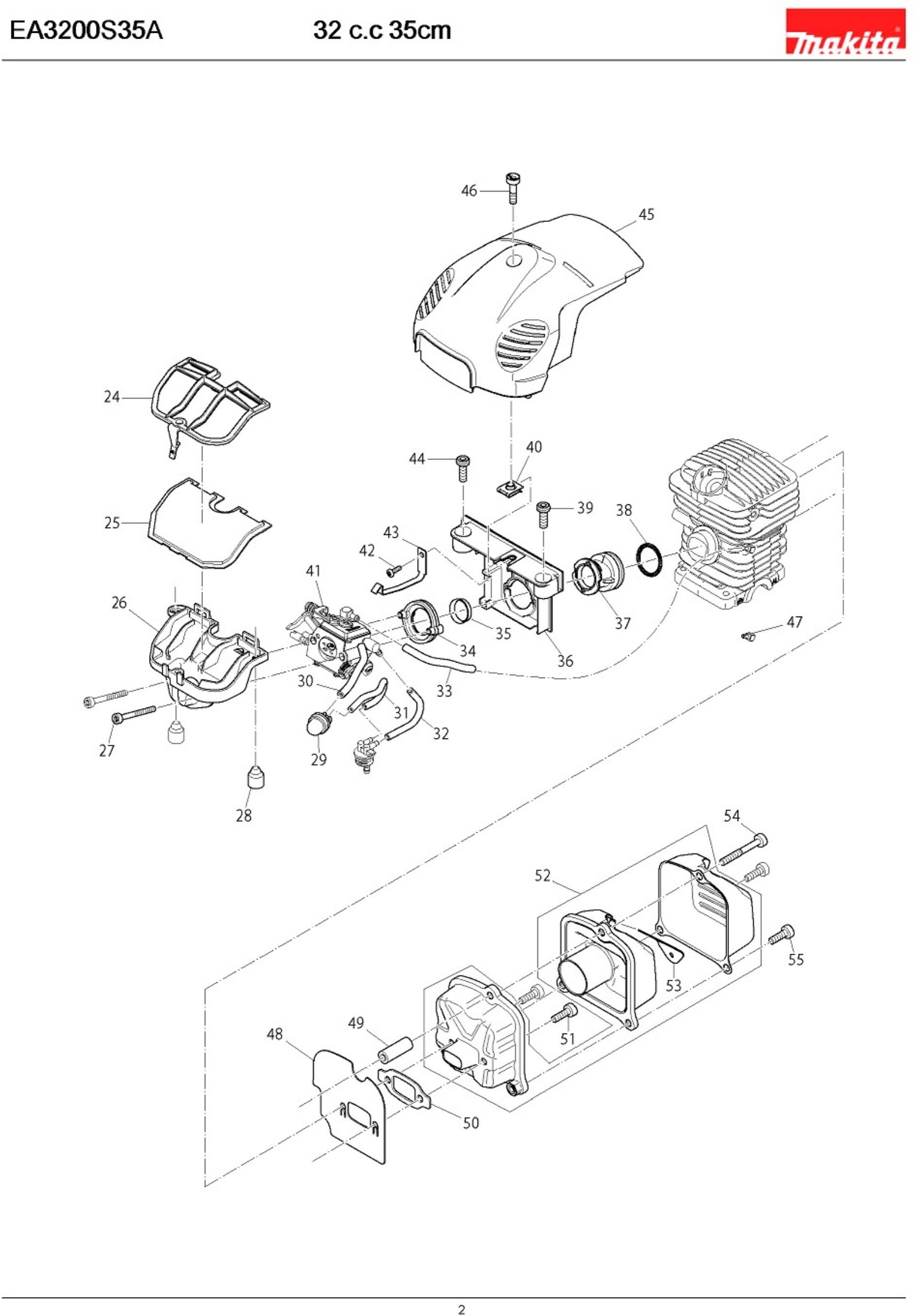

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
24
 photo_cameraImage coming soon 452031-9 FILTER COVER PS32CTLC €1.40
25
 Air Cleaner for Chaisaw Makita EA3201S35A 423414-0 Air Cleaner for Chaisaw Makita EA3201S35A €3.87
26
 photo_cameraImage coming soon 452030-1 PS32CTLC FUND €3.35
27
 photo_cameraImage coming soon 266604-0 SCREW M4X40 PS32CTLC €1.40
28
 Damper for Chainsaw Dolmar PS32CTLC 424173-9 Damper for Chainsaw Dolmar PS32CTLC €2.18
29
 Gasoline Primer Pump for Chainsaw Makita DCS230T 168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T €6.24
30
 photo_cameraImage coming soon 422067-2 PIPE 2,5X55 PS32CTLC €2.15
31
 photo_cameraImage coming soon 422065-6 PIPE 2,5X55 PS32CTLC €3.17
32
 photo_cameraImage coming soon 422068-0 PIPE 3x70 PS32CTLC €1.40
33
 photo_cameraImage coming soon 422066-4 PIPE 2,5X72 PS32CTLC €2.08
34
 photo_cameraImage coming soon 318634-8 FLANGE PS32CTLC €2.15
35
 photo_cameraImage coming soon 346413-4 SOCKET 17 PS32CTLC €1.47
36
 photo_cameraImage coming soon 452024-6 INTERMEDIATE FLANGE PS32CTLC €3.13
37
 photo_cameraImage coming soon 424340-6 SUCTION SLEEVE PS32CTLC €7.70
38
 photo_cameraImage coming soon 233971-8 CIRCLIP PS32CTLC €2.20
40
 photo_cameraImage coming soon 264044-6 PLATE M5 PS32CTLC €1.40
42
 photo_cameraImage coming soon 266421-8 SCREW 3PER10 HR2800 €1.40
43
 photo_cameraImage coming soon 346290-4 PS32CTLC CONTACT €1.40
45
 photo_cameraImage coming soon 452023-8 PS32CTLC COVER €4.43
46
 photo_cameraImage coming soon 266607-4 SCREW M5X20 PS32CTLC €1.43
47
 photo_cameraImage coming soon 325938-1 FITTING THE PS32CTLC €2.08
48
 photo_cameraImage coming soon 346306-5 INSULATING PLATE PS32CTLC €1.40
49
 photo_cameraImage coming soon 325939-9 PS32CTLC SOCKET €1.40
50
 photo_cameraImage coming soon 346304-9 SEAL MUFFLER PS32CTLC €1.43
52
 photo_cameraImage coming soon 168604-5 MUFFLER PS32CTLC €79.01
53
 photo_cameraImage coming soon 346294-6 DISC GUARD PS32CTLC €1.40
54
 photo_cameraImage coming soon 266606-6 SCREW M5X40 PS32CTLC €1.40

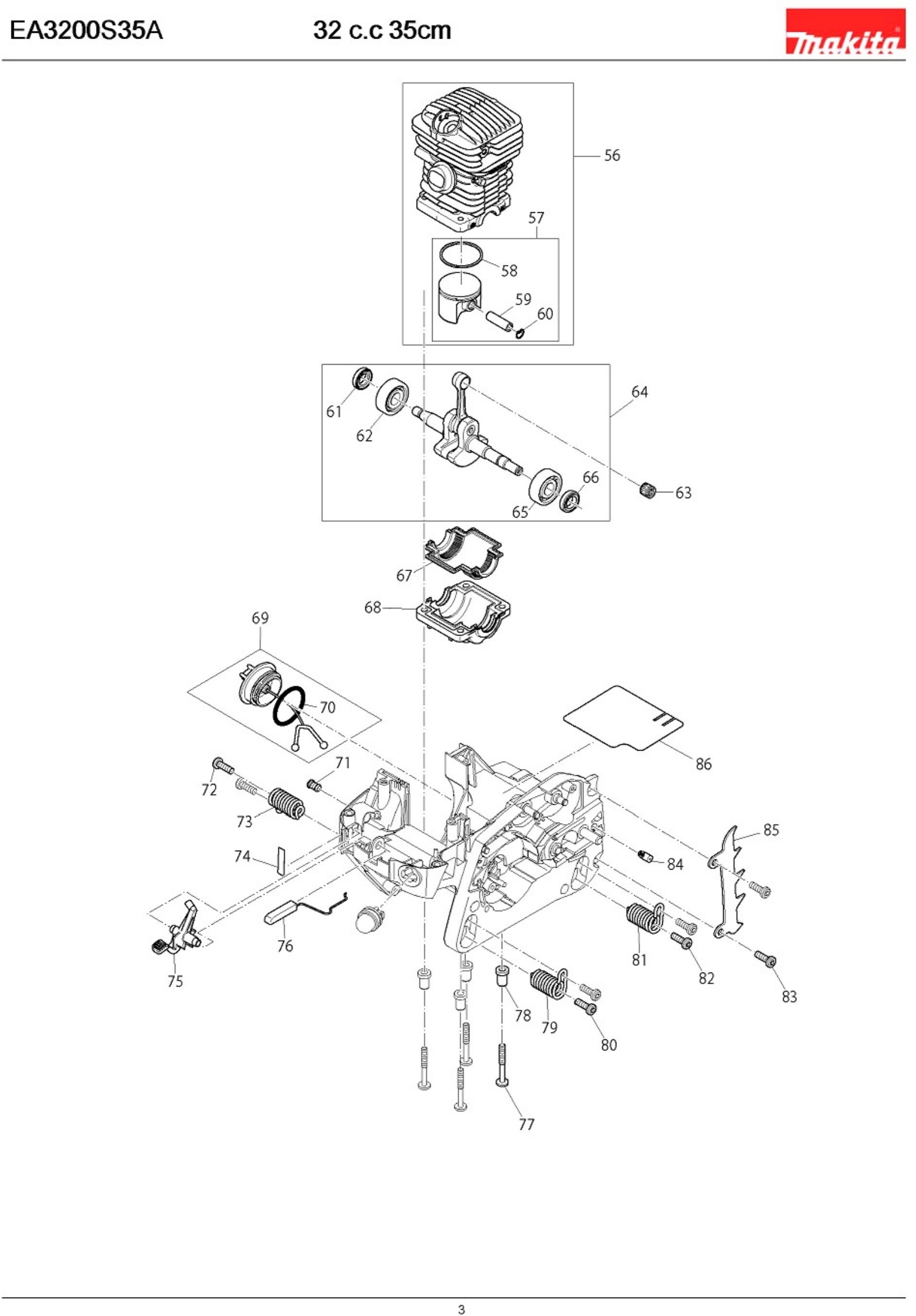

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
56
 photo_cameraImage coming soon 196384-3 CYLINDER PISTON SET PS32 €92.13
57
 Piston Set for Chainsaw Makita EA3201S 195760-8 Piston Set for Chainsaw Makita EA3201S €24.68
58
 photo_cameraImage coming soon 325991-7 PISTON RING 38 PS32CTLC €3.84
59
 photo_cameraImage coming soon 325992-5 PISTON PIN PS32CTLC €2.08
60
 photo_cameraImage coming soon 233988-1 RING PIN PS220CTLC €1.40
61
 photo_cameraImage coming soon 213582-5 SEAL OIL 12 PS32CTLC €6.73
62
 photo_cameraImage coming soon 211341-1 BEARING 6201 PS32CTLC €3.92
63
 photo_cameraImage coming soon 212086-4 CAGE ROLLER 810 PS32CTLC €8.67
64
 photo_cameraImage coming soon 195956-1 CRANKSHAFT PS32CTLC €88.75
67
 photo_cameraImage coming soon 424339-1 SEAL PS32CTLC €5.15
68
 photo_cameraImage coming soon 318633-0 COVER LOWER PS32CTLC €3.84
75
 photo_cameraImage coming soon 452025-4 LEVER AIR PS32CTLC €1.40
76
 photo_cameraImage coming soon 452022-0 LEVERAGE PS32CTLC €1.47
77
 photo_cameraImage coming soon 266608-2 SCREW 5x40 PS32CTLC €1.40
78
 photo_cameraImage coming soon 325946-2 SOCKET 6 PS32CTLC €1.40
84
 Venting Valve for Chainsaw Dolmar PS32CTLC 168504-9 Venting Valve for Chainsaw Dolmar PS32CTLC €3.70
85
 photo_cameraImage coming soon 346301-5 HARPOON PS32CTLC €2.12
86
 photo_cameraImage coming soon 346385-3 INSULATING PLATE PS32CTLC €3.84

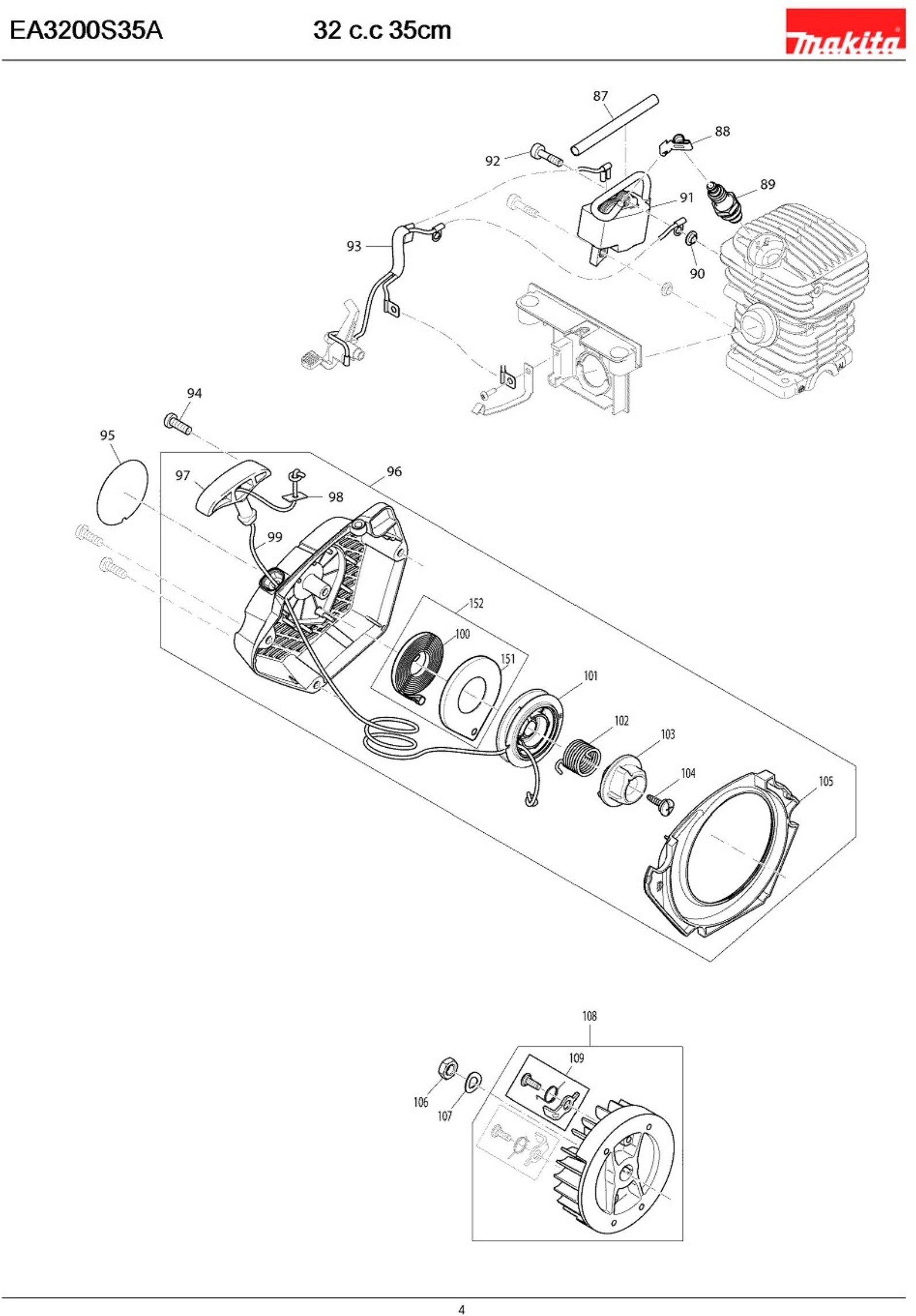

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
87
 photo_cameraImage coming soon 444042-8 INSULATION TUBE PS32TCLC €1.43
88
 photo_cameraImage coming soon 424522-0 HOOD CANDLE €2.82
89
 photo_cameraImage coming soon 168401-9 SPARK PLUG BHX2501/PS32  - NGKBPMR8Y - BPMR7A €10.75
90
 photo_cameraImage coming soon 452670-5 INSULATING WASHER PS32CTLC €1.40
91
 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A 126270-4 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A €55.00
92
 photo_cameraImage coming soon 266631-7 SCREW M5X20 PS32CTLC €1.40
93
 photo_cameraImage coming soon 168601-1 CABLES PS32CTLC €3.92
96
 photo_cameraImage coming soon 168608-7 STARTING CPL BLUE EA3201S35A €40.59
97
 photo_cameraImage coming soon 453783-5 GRIP STARTING PS32CTLC €3.92
98
 photo_cameraImage coming soon 267847-7 WASHER QUADRA 4 PS32CTLC €1.40
99
 photo_cameraImage coming soon 444038-9 ROPE START PS32CTLC €2.08
101
 photo_cameraImage coming soon 453785-1 REEL START PS32CTLC €5.52
102
 photo_cameraImage coming soon 234253-1 SPRING TORSION 20 PS32CTLC €2.69
103
 Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A 453786-9 Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A €4.63
104
 photo_cameraImage coming soon 266777-9 SCREW 5X1 PS32CTLC €1.40
105
 photo_cameraImage coming soon 452026-2 BAFFLE PS32CTLC €3.35
106
 photo_cameraImage coming soon 264053-5 NUT M8X1 PS32CTLC €1.40
107
 photo_cameraImage coming soon 267822-3 WASHER 8 PS32CTLC €1.47
108
 photo_cameraImage coming soon 140480-9 FLYWHEEL PS32CTLC €27.55
109
 Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A 195761-6 Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A €2.84
152
 Makita Starter Spring for EA3200S35A 195955-3 Makita Starter Spring for EA3200S35A €11.07

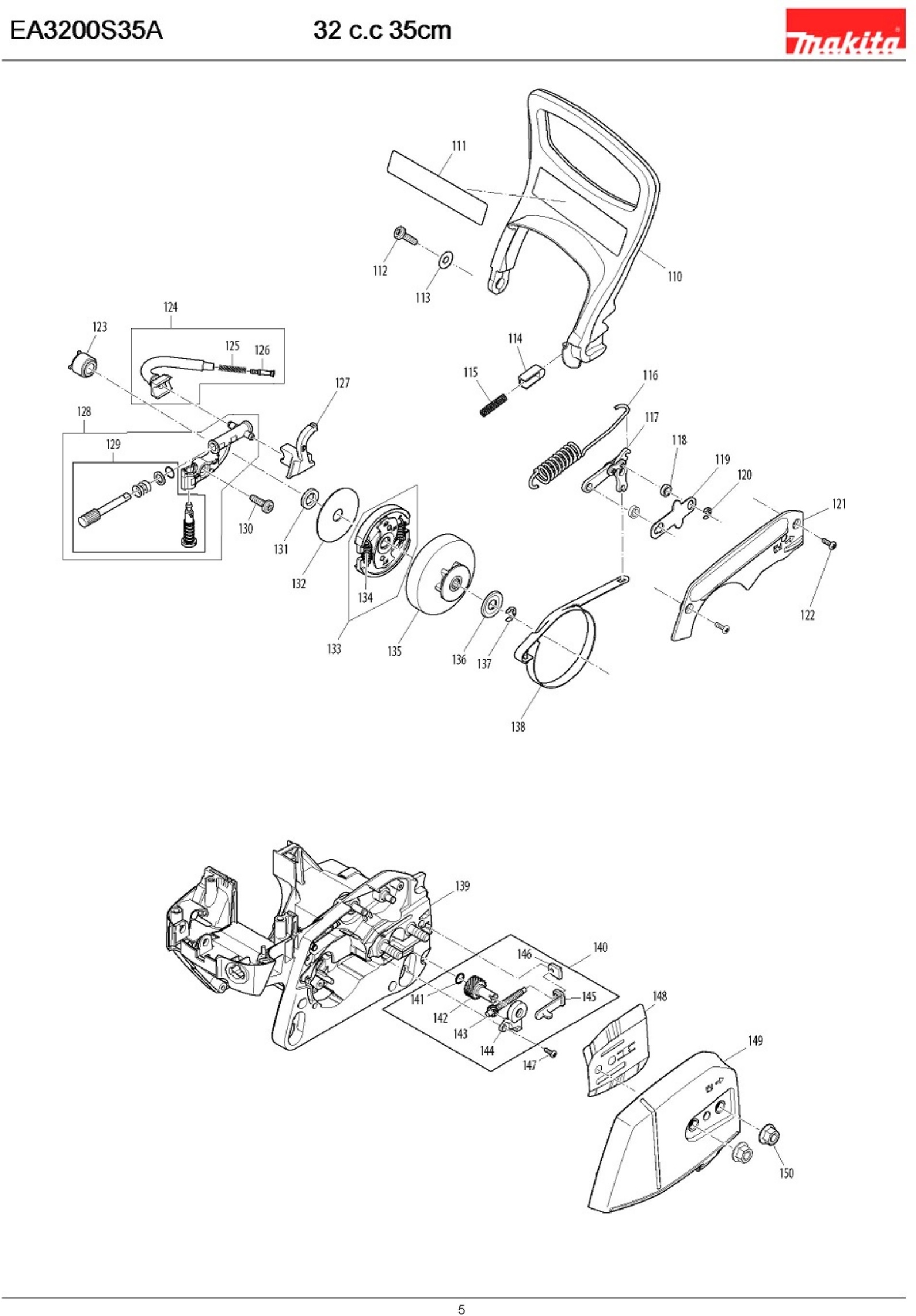

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
110
 Hand Guard for Petrol Chainsaw Makita EA3200S35A 452032-7 Hand Guard for Petrol Chainsaw Makita EA3200S35A €6.26
111
 Makita Label for Chainsaw Makita DCS230T 810075-9 Makita Label for Chainsaw Makita DCS230T €2.84
112
 photo_cameraImage coming soon 266627-8 SCREW 4,7X16 PS32CTLC €1.40
113
 photo_cameraImage coming soon 267066-5 FLAT WASHER 5 X6811DW €1.40
114
 photo_cameraImage coming soon 313212-9 PS32CTLC GUIDE €1.47
115
 photo_cameraImage coming soon 234210-9 SPRING COMPRESSION 6 PS32CTLC €1.47
116
 photo_cameraImage coming soon 231868-5 SPRING TENSION 10 PS32CTLC €2.08
117
 photo_cameraImage coming soon 163500-2 LEVERAGE PS32CTLC €21.54
118
 photo_cameraImage coming soon 325947-0 SOCKET 6 €1.40
119
 photo_cameraImage coming soon 346299-6 SPACER PS32CTLC €1.40
120
 photo_cameraImage coming soon 961011-9 RETAINING RING E4 €1.44
121
 photo_cameraImage coming soon 452033-5 PS32CTLC COVER €2.15
123
 Worm Screw for Chainsaw Makita EA3201S35A 452035-1 Worm Screw for Chainsaw Makita EA3201S35A €5.30
124
 photo_cameraImage coming soon 168645-1 SUCTION HOSE PS32CTLC €6.06
125
 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A 234207-8 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A €1.32
126
 photo_cameraImage coming soon 452666-6 PLUG OIL PIPE PS32CTLC €1.32
127
 photo_cameraImage coming soon 424342-2 PIPE PS32CTLC €5.30
131
 photo_cameraImage coming soon 267430-0 WASHER 10 PS32CTLC €1.40
132
 photo_cameraImage coming soon 267431-8 WASHER 10 PS32CTLC €1.40
133
 photo_cameraImage coming soon 168607-9 CLUTCH PS32C-EA3201S €8.50
134
 photo_cameraImage coming soon 231873-2 SPRING TENSION 5 PS32CTLC €1.40
135
 photo_cameraImage coming soon 140484-1 CLUTCH DRUM ASSY PS32C New Cod. 140A30-6 €19.38
136
 photo_cameraImage coming soon 267833-8 WASHER 8 PS32CTLC €1.44
137
 photo_cameraImage coming soon 259033-4 LOCKWASHER X UC €1.47
138
 photo_cameraImage coming soon 346298-8 SPRING BRAKE PS32CTLC €4.81
139
 photo_cameraImage coming soon 140477-8 CARTER CLUTCH SIDE EA3200S €29.07
140
 Chain Tensioner Set CPL EA3200S for Chainsaw Dolmar PS32C/35 195763-2 Chain Tensioner Set CPL EA3200S for Chainsaw Dolmar PS32C/35 €16.50
141
 photo_cameraImage coming soon 213594-8 RING 7 €1.40
142
 photo_cameraImage coming soon 227744-9 GEAR 18 €20.12
143
 photo_cameraImage coming soon 227743-1 GEAR 11 €22.84
144
 photo_cameraImage coming soon 452667-4 COVER €9.01
145
 photo_cameraImage coming soon 346300-7 SLEIGH €2.12
146
 photo_cameraImage coming soon 452668-2 TENSIONER PLATE EA3200S €1.43
148
 Guide Plate for Chainsaw Dolmar PS32C/35 346518-0 Guide Plate for Chainsaw Dolmar PS32C/35 €6.23
149
 photo_cameraImage coming soon 452044-0 CARTER PINION €8.40
150
 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48

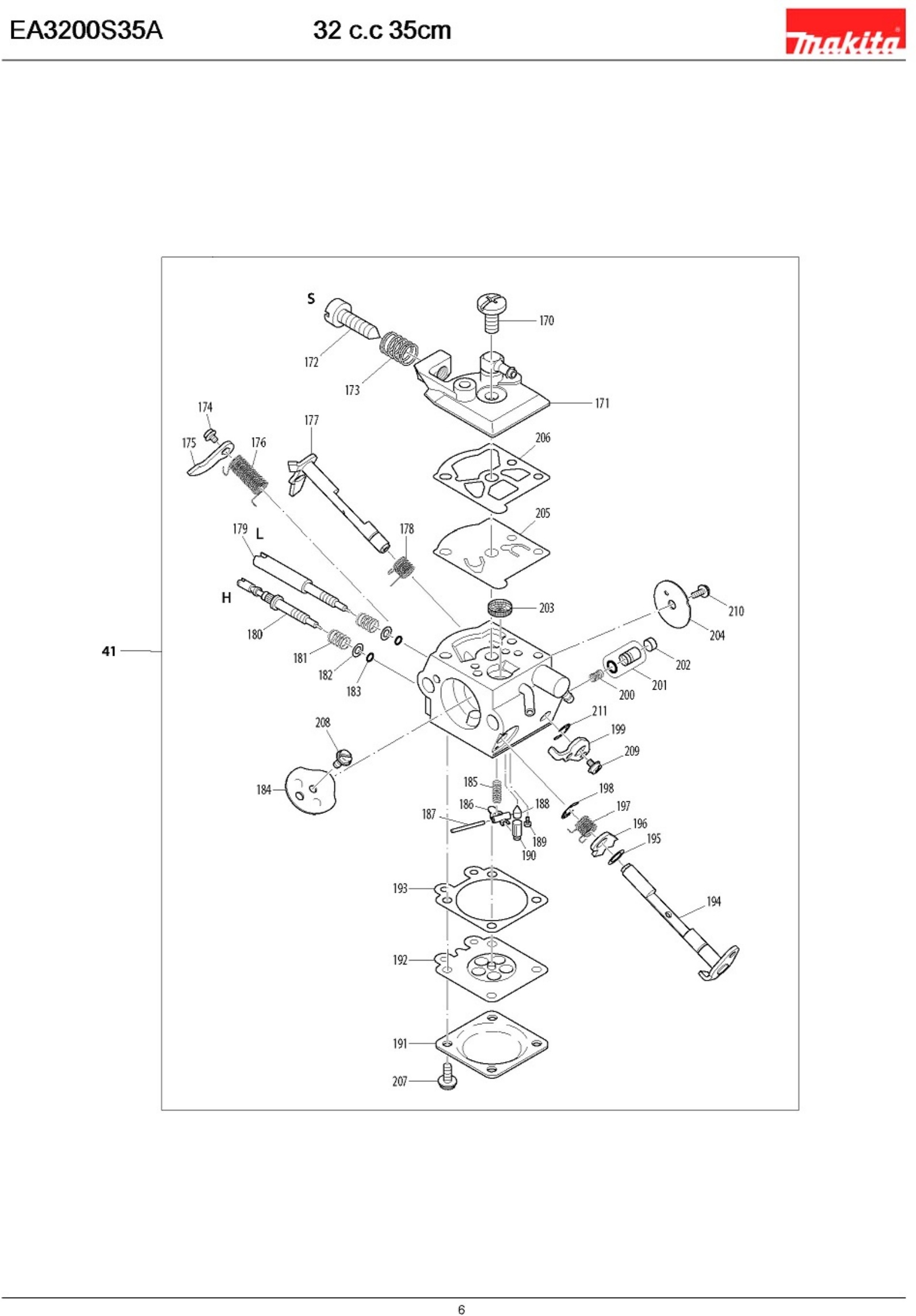

Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
190
 photo_cameraImage coming soon WJ00088271 PIN PS32CTLC €2.69

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Chainsaw EA3200S35A

MAKITA Original spare parts  at attractive and competitive prices on the web, we are a service center with a repair service able to quickly solve the maintenance or repair any issues for Petrol Chainsaw EA3200S35A.

In the following table, look for the model of Petrol Chainsaw and the respective parts of the code.
Makita EA3200S35A
Chainsaw EA3200S35A
# Part Num. Description
1 168823-3 TANK CAP PS32CTLC
2 213080-9 RING 29.5 PS32CTLC
3 163447-0 FUEL FILTER X DCS230T
4 195758-5 TANK CPL BLUE EA3201S35A
5 266651-1 SCREW 5,5X16 PS32CTLC
6 452021-2 COVER HANDLE PS32CTLC
7 452020-4 RELEASE LEVER PS32CTLC
8 231866-9 SPRING TORSION 10 PS32CTLC
9 452019-9 ACCELERATOR LEVER PS32CTLC
10 195762-4 BREATHER VALVE PS32CTLC
11 452018-1 FITTING CARCBURANTE PS32CTLC
12 213586-7 RING 11.5 PS32CTLC
13 424456-7 FUEL HOSE PS32CTLC
17 452036-9 FRONT HANDLE PS32CTLC
18 346517-2 BELLEVILLE WASHER 6 PS32CTLC
19 234189-4 SPRING COMPRESSION 12 PS32CTLC
20 266605-8 SCREW M5X16 PS32CTLC
21 266651-1 SCREW 5,5X16 PS32CTLC
23 266651-1 SCREW 5,5X16 PS32CTLC
24 452031-9 FILTER COVER PS32CTLC
25 423414-0 AIR CLEANER PS32CTLC
26 452030-1 PS32CTLC FUND
27 266604-0 SCREW M4X40 PS32CTLC
28 424173-9 CUSHIONING PS32CTLC
29 168398-2 PUMP PRIMING X DCS230T
30 422067-2 PIPE 2,5X55 PS32CTLC
31 422065-6 PIPE 2,5X55 PS32CTLC
32 422068-0 PIPE 3x70 PS32CTLC
33 422066-4 PIPE 2,5X72 PS32CTLC
34 318634-8 FLANGE PS32CTLC
35 346413-4 SOCKET 17 PS32CTLC
36 452024-6 INTERMEDIATE FLANGE PS32CTLC
37 424340-6 SUCTION SLEEVE PS32CTLC
38 233971-8 CIRCLIP PS32CTLC
39 266651-1 SCREW 5,5X16 PS32CTLC
40 264044-6 PLATE M5 PS32CTLC
42 266421-8 SCREW 3X10 HR2800
43 346290-4 PS32CTLC CONTACT
44 266651-1 SCREW 5,5X16 PS32CTLC
45 452023-8 PS32CTLC COVER
46 266607-4 SCREW M5X20 PS32CTLC
47 325938-1 FITTING THE PS32CTLC
48 346306-5 INSULATING PLATE PS32CTLC
49 325939-9 PS32CTLC SOCKET
50 346304-9 SEAL MUFFLER PS32CTLC
51 266605-8 SCREW M5X16 PS32CTLC
52 168604-5 MUFFLER PS32CTLC
53 346294-6 DISC GUARD PS32CTLC
54 266606-6 SCREW M5x40 PS32CTLC
55 266605-8 SCREW M5X16 PS32CTLC
56 196384-3 CYLINDER PISTON SET PS32
57 195760-8 PISTON SET PS32CTLC
58 325991-7 PISTON RING 38 PS32CTLC
59 325992-5 PISTON PIN PS32CTLC
60 233988-1 RING PIN PS220CTLC
61 213582-5 SEAL OIL 12 PS32CTLC
62 211341-1 BEARING 6201 PS32CTLC
63 212086-4 CAGE ROLLER 810 PS32CTLC
64 195956-1 CRANKSHAFT PS32CTLC
65 211341-1 BEARING 6201 PS32CTLC
66 213582-5 SEAL OIL 12 PS32CTLC
67 424339-1 SEAL PS32CTLC
68 318633-0 COVER LOWER PS32CTLC
69 168823-3 TANK CAP PS32CTLC
70 213080-9 RING 29.5 PS32CTLC
72 266651-1 SCREW 5,5X16 PS32CTLC
73 234189-4 SPRING COMPRESSION 12 PS32CTLC
75 452025-4 LEVER AIR PS32CTLC
76 452022-0 LEVERAGE PS32CTLC
77 266608-2 SCREW 5x40 PS32CTLC
78 325946-2 SOCKET 6 PS32CTLC
79 234189-4 SPRING COMPRESSION 12 PS32CTLC
80 266651-1 SCREW 5,5X16 PS32CTLC
81 234189-4 SPRING COMPRESSION 12 PS32CTLC
82 266651-1 SCREW 5,5X16 PS32CTLC
83 266651-1 SCREW 5,5X16 PS32CTLC
84 168504-9 BREATHER VALVE PS32CTLC
85 346301-5 HARPOON PS32CTLC
86 346385-3 INSULATING PLATE PS32CTLC
87 444042-8 INSULATION TUBE PS32TCLC
88 424522-0 HOOD CANDLE
89 168401-9 SPARK X BHX2501
90 452670-5 INSULATING WASHER PS32CTLC
91 126270-4 IGNITION COIL PS32CTLC
92 266631-7 SCREW M5X20 PS32CTLC
93 168601-1 CABLES PS32CTLC
94 266651-1 SCREW 5,5X16 PS32CTLC
96 168608-7 STARTING CPL BLUE EA3201S35A
97 453783-5 GRIP STARTING PS32CTLC
98 267847-7 WASHER QUADRA 4 PS32CTLC
99 444038-9 ROPE START PS32CTLC
101 453785-1 REEL START PS32CTLC
102 234253-1 SPRING TORSION 20 PS32CTLC
103 453786-9 CAM PS32CTLC
104 266777-9 SCREW 5X1 PS32CTLC
105 452026-2 BAFFLE PS32CTLC
106 264053-5 NUT M8X1 PS32CTLC
107 267822-3 WASHER 8 PS32CTLC
108 140480-9 FLYWHEEL PS32CTLC
109 195761-6 NOTTOLINO STARTING PS32CTLC
110 452032-7 HAND GUARD PS32CTLC
111 810075-9 SAFETY LABEL X DCS230T
112 266627-8 SCREW 4,7X16 PS32CTLC
113 267066-5 FLAT WASHER 5 X6811DW
114 313212-9 PS32CTLC GUIDE
115 234210-9 SPRING COMPRESSION 6 PS32CTLC
116 231868-5 SPRING TENSION 10 PS32CTLC
117 163500-2 LEVERAGE PS32CTLC
118 325947-0 SOCKET 6
119 346299-6 SPACER PS32CTLC
120 961011-9 RETAINING RING E4
121 452033-5 PS32CTLC COVER
122 266421-8 SCREW 3X10 HR2800
123 452035-1 WORM SCREW PS32CTLC
124 168645-1 SUCTION HOSE PS32CTLC
125 234207-8 SPRING COMPRESSION 6 PS32CTLC
126 452666-6 PLUG OIL PIPE PS32CTLC
127 424342-2 PIPE PS32CTLC
128 168503-1 OIL PUMP PS32C - EA3201S
130 266627-8 SCREW 4,7X16 PS32CTLC
131 267430-0 WASHER 10 PS32CTLC
132 267431-8 WASHER 10 PS32CTLC
133 168607-9 CLUTCH PS32C-EA3201S
134 231873-2 SPRING TENSION 5 PS32CTLC
135 140484-1 CLUTCH DRUM ASSY PS32C New Cod. 140A30-6
136 267833-8 WASHER 8 PS32CTLC
137 259033-4 LOCKWASHER X UC
138 346298-8 SPRING BRAKE PS32CTLC
139 140477-8 CARTER CLUTCH SIDE EA3200S
140 195763-2 CHAIN TENSIONER CPL EA3200S
141 213594-8 RING 7
142 227744-9 GEAR 18
143 227743-1 GEAR 11
144 452667-4 COVER
145 346300-7 SLEIGH
146 452668-2 TENSIONER PLATE EA3200S
147 266421-8 SCREW 3X10 HR2800
148 346518-0 PLATE GUIDE PS32CTLC
149 452044-0 CARTER PINION
150 264055-1 NUT M8
152 195955-3 SPRING REWIND PS32CTLC
190 WJ00088271 PIN PS32CTLC
501 442030611 CHAIN CM 30 - 1,1 3/8
502 442035611 CHAIN CM 35 - 1,1 3/8
503 511291746 CHAIN BAR 30 CM
504 511291752 CHAIN BAR 35 CM
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EA3200S35A
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita EA3200S35A

Diagram Makita EA3200S35A

Download (1.01MB)

You might also like

Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A
Makita SKU: 453786-9
Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A
Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A Genuine replacement part Makita, Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the...
on 7/10 Business Days Approx. €4.63
Details
Chain Tensioner Set CPL EA3200S for Chainsaw Dolmar PS32C/35
Makita SKU: 195763-2
Chain Tensioner Set CPL EA3200S for Chainsaw Dolmar PS32C/35
Chain Tensioner Set CPL EA3200S for Chainsaw Dolmar PS32C/35 Genuine parts Dolmar, Chain Tensioner Set for Chainsaw PS32C/35 - 33CC 35CM-1,1MM DOLMAR - EA3200S40B - 33CC 35CM MAKITA Part for the following products: -  PS32C/35 -...
Usually Ships in: 7/10 Business Days Approx. €16.50
Details
Guide Plate for Chainsaw Dolmar PS32C/35
Makita SKU: 346518-0
Guide Plate for Chainsaw Dolmar PS32C/35
Guide Plate for Chainsaw Dolmar PS32C/35 Genuine parts Dolmar, Guide Plate for Chainsaw PS32C/35 - Chainsaw 33CC 35CM-1,1MM - PS35C/40 - Chainsaw 35CC 40CM - Makita EA3200S40B - EA3201S35A -EA3500S40B Part for the following products:...
AVAILABLE €6.23
Details
Pin Chain Tensioner for Chainsaw Dolmar PS220TH
Makita SKU: 324464-7
Pin Chain Tensioner for Chainsaw Dolmar PS220TH
Pin Chain Tensioner for Chainsaw Dolmar PS220TH Genuine parts Dolmar, Pin Chain Tensioner for Chainsaws PS222TH - PS220THC - PS221TH - PS221THC - PS222TH - PS222THC Part for...
AVAILABLE €1.91
Details
Fuel Hose for Chaisaws Makita EA3201S35A
Makita SKU: 424456-7
Fuel Hose for Chaisaws Makita EA3201S35A
Fuel Hose for Chaisaws Makita EA3201S35A Genuine parts Makita, Fuel Hose for Chaisaws Makita EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC Parts for the following products: - EA3200S35A - CHAISAW 33CC 35CM MAKITA -...
AVAILABLE €16.31
Details
Air Cleaner for Chaisaw Makita EA3201S35A
Makita SKU: 423414-0
Air Cleaner for Chaisaw Makita EA3201S35A
Air Cleaner for Chaisaw Makita EA3201S35A Genuine parts Makita, Air Cleaner for Chaisaws Makita EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC Parts for the following products: - EA3200S35A - CHAISAW 33CC 35CM...
AVAILABLE €3.87
Details
Gasoline Primer Pump for Chainsaw Makita DCS230T
Makita SKU: 168398-2
Gasoline Primer Pump for Chainsaw Makita DCS230T
Gasoline Primer Pump for Chainsaw Makita DCS230T Genuine parts for Makita, Gasoline Primer Pump for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA...
AVAILABLE €6.24
Details
Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following...
Last items in stock €4.49
Details
Makita Label for Chainsaw Makita DCS230T
Makita SKU: 810075-9
Makita Label for Chainsaw Makita DCS230T
Makita Label for Chainsaw Makita DCS230T Genuine parts for Makita, Makita Label for Chainsaws DCS230T - EA3200S35A - EA3201S35A Part for the following products: - Chainsaw Makita DCS230T -...
AVAILABLE €2.84
Details
Venting Valve for Chainsaw Dolmar PS32CTLC
Makita SKU: 168504-9
Venting Valve for Chainsaw Dolmar PS32CTLC
Venting Valve for Chainsaw Dolmar PS32CTLC Genuine part Dolmar, Venting Valve for Chainsaws Dolmar PS32CTLC - PS32C/35 - PS3400TH - PS350C - PS420C - PS460 - PS4605...
on 7/10 Business Days Approx €3.70
Details
Worm Screw for Chainsaw Makita EA3201S35A
Makita SKU: 452035-1
Worm Screw for Chainsaw Makita EA3201S35A
Worm Screw for Chainsaw Makita EA3201S35A Genuine part Makita, Worm Screw for Chainsaws Makita EA3201S35A - EA3200S40B - EA3500S40B - Dollmar PS32C/35 - PS32CTLC - PS35C/40. Part for the following products: - EA3201S35A - CHAINSAW...
Usually Ships in: 7/10 Business Days Approx. €5.30
Details
Clutch Drum Ass'y for Chainsaw Makita EA3200S
Makita SKU: 140M30-8
Clutch Drum Ass'y for Chainsaw Makita EA3200S
Clutch Drum Ass'y for Chainsaw Makita EA3200S Genuine replacement part Makita, Clutch Drum Ass'y for Chainsaws EA3200S - EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35...
Usually Ships in: 7/10 Business Days Approx. €16.90
Details
Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A
Makita SKU: 195761-6
Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A
Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A Genuine replacement part Makita, Starter Pawl PS32CTLC for Chainsaws Makita EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the following products: - EA3200S40B...
AVAILABLE €2.84
Details
Damper for Chainsaw Dolmar PS32CTLC
Makita SKU: 424173-9
Damper for Chainsaw Dolmar PS32CTLC
Damper for Chainsaw Dolmar PS32CTLC Genuine replacement part VALEX, Damper for Chainsaws PS32CTLC - PS32C/35 - PS35C/40. Part for the following products: - PS32C/35 - CHAINSAW 33CC 35CM-1,1MM...
on 7/10 Business Days Approx. €2.18
Details
Piston Set for Chainsaw Makita EA3201S
Makita SKU: 195760-8
Piston Set for Chainsaw Makita EA3201S
Piston Set for Chainsaw Makita EA3201S Genuine replacement part Makita, Piston Set for Chainsaw Makita  EA3201S - EA3200S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the following...
Last items in stock €24.68
Details
Hand Guard for Petrol Chainsaw Makita EA3200S35A
Makita SKU: 452032-7
Hand Guard for Petrol Chainsaw Makita EA3200S35A
Hand Guard for Petrol Chainsaw Makita EA3200S35A Genuine spare part Makita, Hand Guard for Petrol Chainsaw Makita EA3200S35A - EA3500S35B - EA3201S35A - Dolmar PS32C/40. Part for the following products: -  Chainsaw Makita EA3200S35A...
Last items in stock €6.26
Details
Comments (0)
