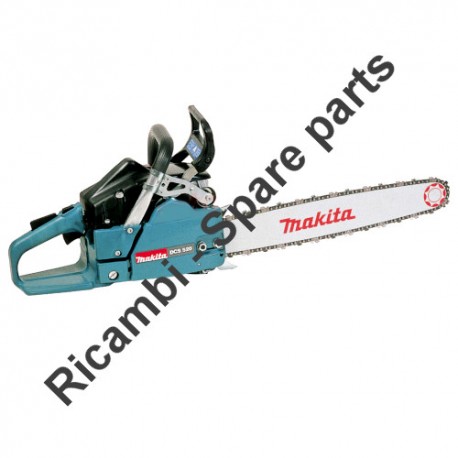

Makita Spare Parts for Chainsaw DCS50-45

SKU: Makita DCS50-45
€3.35
VAT included

Makita Spare Parts for Chainsaw DCS50-45

Makita original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Chainsaw DCS50-45.
Makita Spare Parts for Chainsaw DCS50-45
  • Makita Spare Parts for Chainsaw DCS50-45
  • Makita Spare Parts for Chainsaw DCS50-45
  • Makita Spare Parts for Chainsaw DCS50-45
  • Makita Spare Parts for Chainsaw DCS50-45
  • Makita Spare Parts for Chainsaw DCS50-45
  • Makita Spare Parts for Chainsaw DCS50-45
  • Makita Spare Parts for Chainsaw DCS50-45
  • Makita Spare Parts for Chainsaw DCS50-45
  • Makita Spare Parts for Chainsaw DCS50-45
  • Makita Spare Parts for Chainsaw DCS50-45
  • Makita Spare Parts for Chainsaw DCS50-45

Makita Spare Parts for Chainsaw DCS50-45

SKU: Makita DCS50-45 Condition: New
€3.35
VAT included

Makita Spare Parts for Chainsaw DCS50-45

Makita original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Chainsaw DCS50-45.
settings 152 spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

151 spare parts

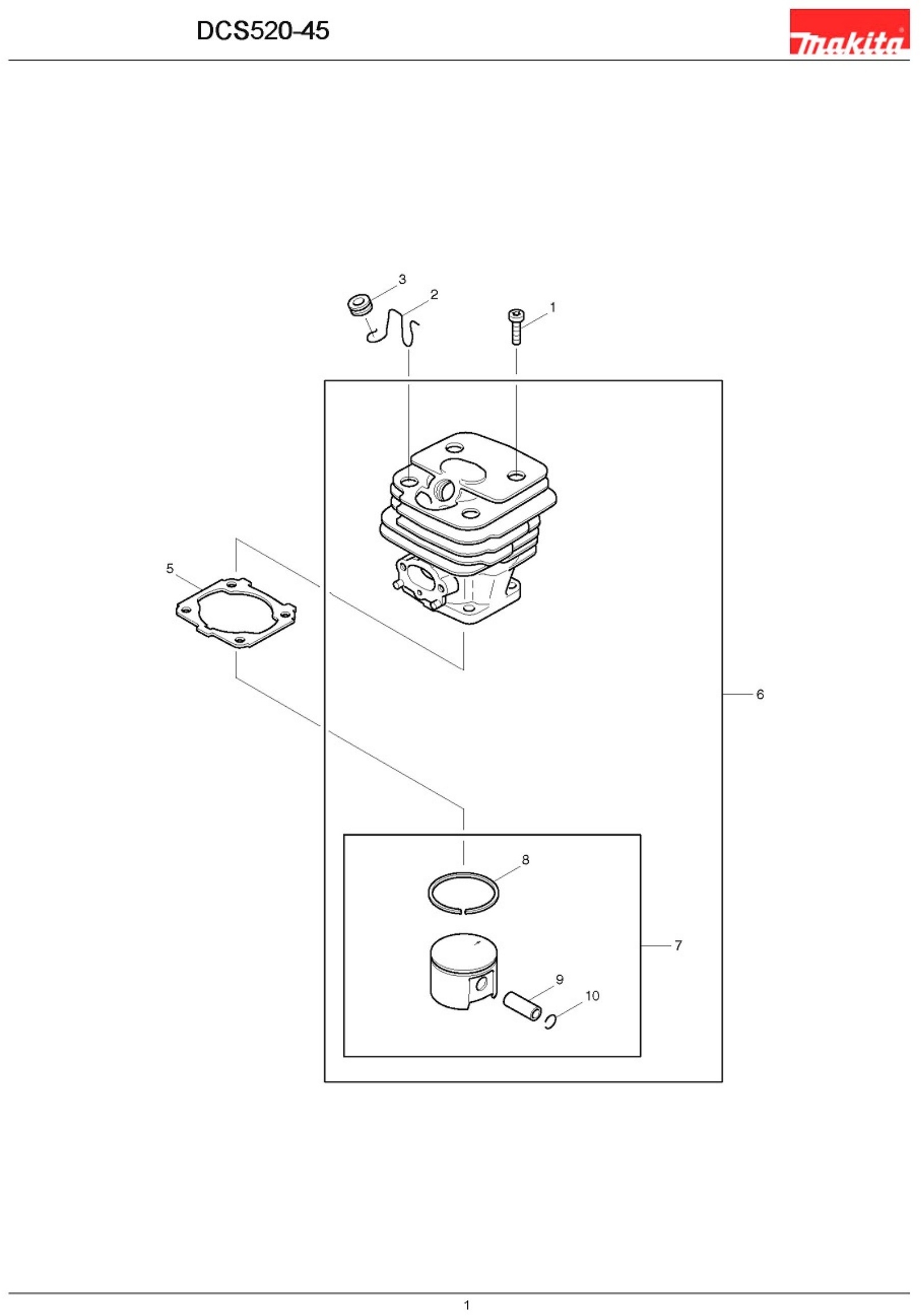

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 908005205 TORX HEAD SCREW M5X20 DCS4630/ €2.20
2
photo_cameraImage coming soon 001142012 CRAMP DCS430/520/4300I/5200I/ €2.69
3
photo_cameraImage coming soon 965401011 RUBBER BUSHING DCS330S/390/430 €2.69
5
photo_cameraImage coming soon 965525042 GASKET €3.13
8
photo_cameraImage coming soon 027132020 PISTON RING DCS5200I €21.54
9
photo_cameraImage coming soon 001132010 PISTON €24.35
10
photo_cameraImage coming soon 020132050 SPRING RING C10X0,8 430/4300I/ €1.40

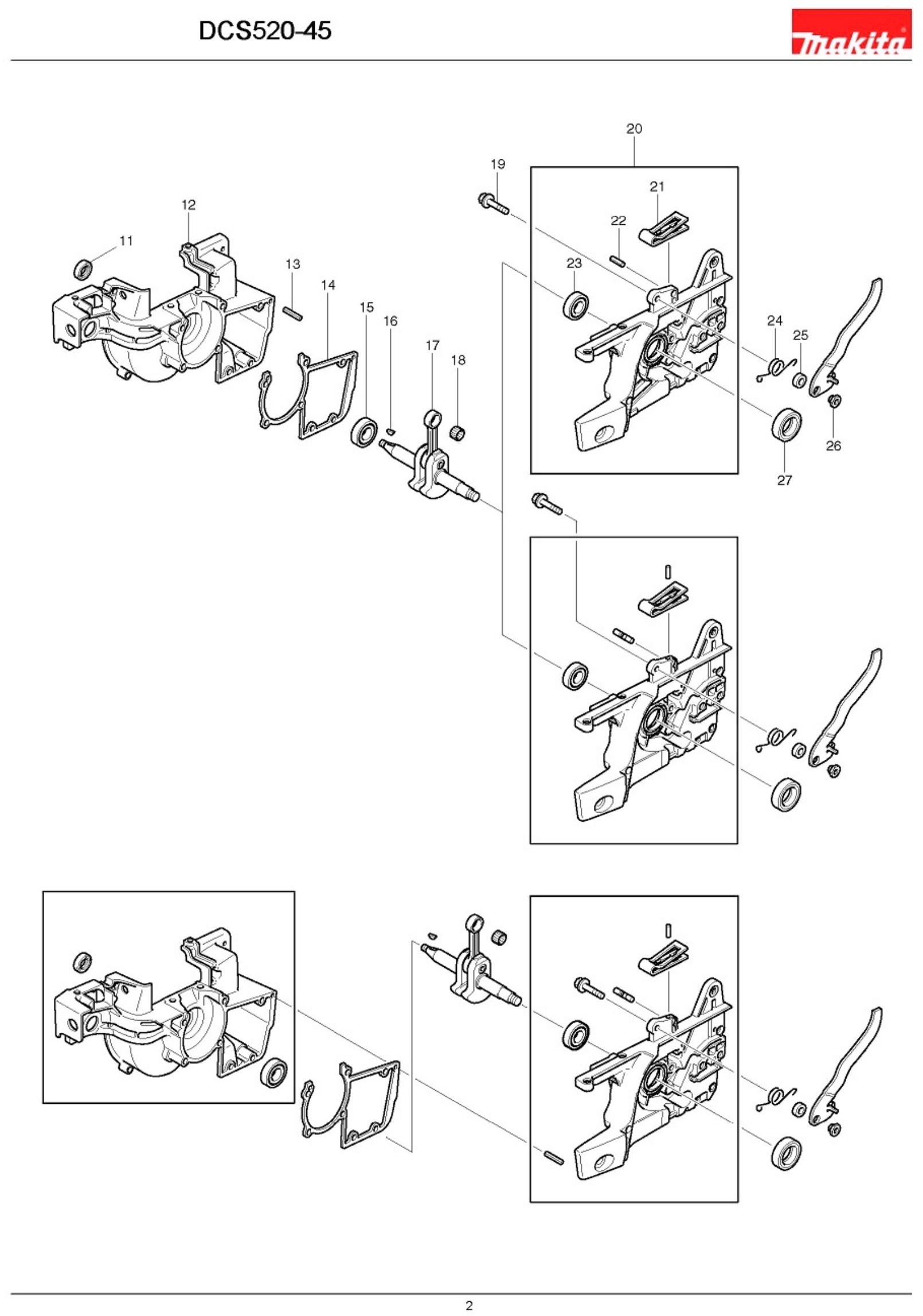

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
11
photo_cameraImage coming soon 962900050 RADIAL RING €6.93
12
photo_cameraImage coming soon 020111631 CRANKCASE(MAG.) €187.92
13
photo_cameraImage coming soon 936430160 PIN 3X16 PS350C-420C €2.20
14
photo_cameraImage coming soon 965525002 GASKET DCS430/520/4300I/5200I €5.12
15
photo_cameraImage coming soon 960102129 BALLBEARING 6201 €22.97
16
photo_cameraImage coming soon 939620371 KEY 2X3,7 430/520/4300I/5200I/ €1.40
17
photo_cameraImage coming soon 027120010 CRANKSHAFT DCS430/431/4300I/5 €349.55
18
photo_cameraImage coming soon 962211030 NEEDLE CAGE DCS430/520/4300I/5 €9.89
19
photo_cameraImage coming soon 027213520 HEX HEAD SCREW DCS430/520/4300 €1.40
21
photo_cameraImage coming soon 027213320 LEAF SPRING DCS430/520/4300I/5 €3.13
22
photo_cameraImage coming soon 934950160 CLAMPING SLEEVE €1.40
23
photo_cameraImage coming soon 960102159 BALL BEARING 6202 C3 DPC6430/7 €23.66
24
photo_cameraImage coming soon 027213270 SPRING DCS430/520/4300I/5200I €2.69
25
photo_cameraImage coming soon 027213510 RING DCS430/520/4300I/5200I €2.69
26
photo_cameraImage coming soon 027213500 SHOULDER NUT DCS430/520/4300I/ €4.43
27
photo_cameraImage coming soon 962900052 RADIAL SEAL 15 / 24X7 €9.20

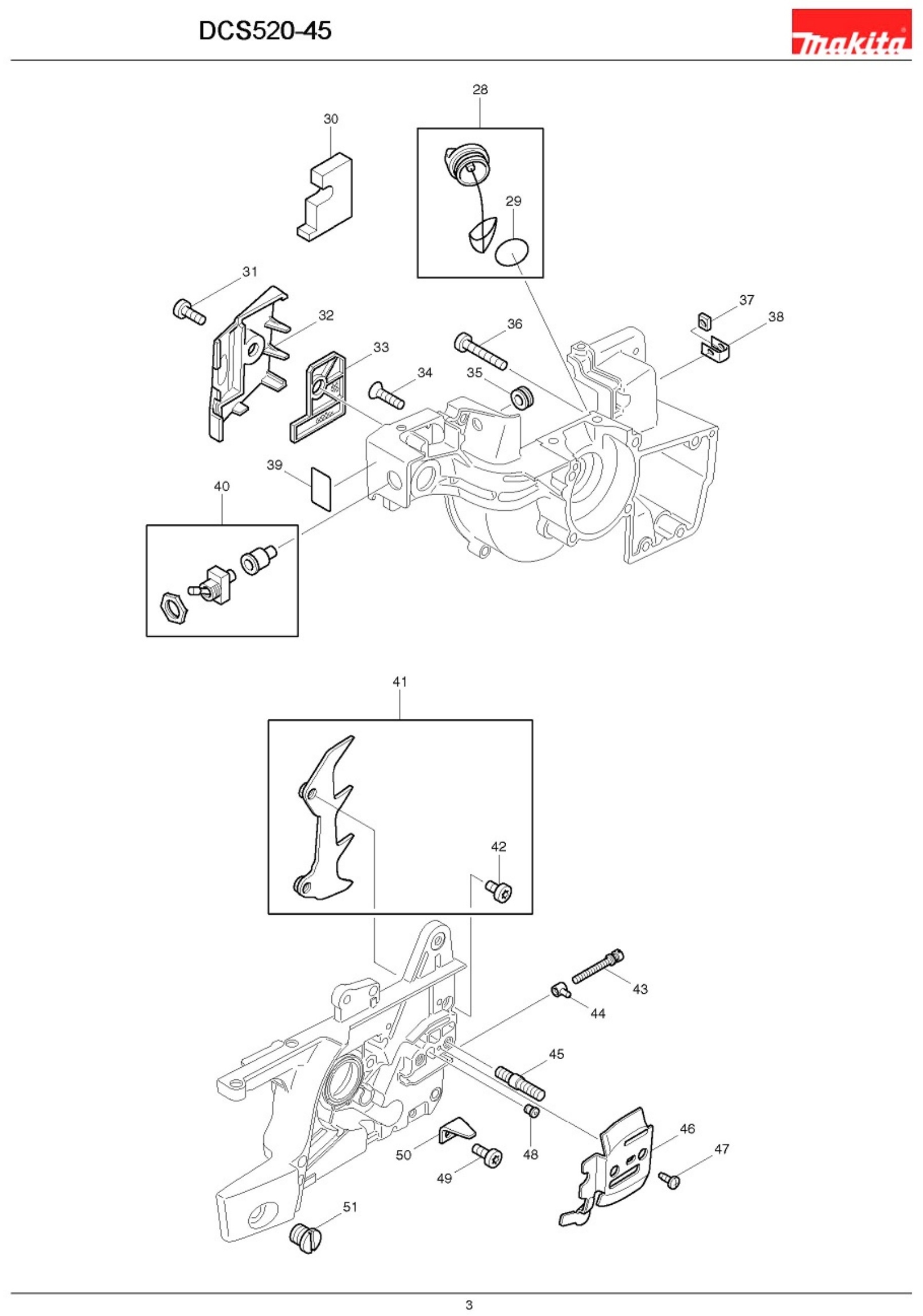

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
29
photo_cameraImage coming soon 963100051 GASKET DCS430/520/6000I/6800I €5.62
31
photo_cameraImage coming soon 908605145 SCREW TORX €135.74
32
photo_cameraImage coming soon 020173612 COVER FOR PREFILTER €3.02
33
photo_cameraImage coming soon 020173011 PREFILTER DCS430/520/4300I/520 €3.13
34
photo_cameraImage coming soon 908105204 COUNTERSUNK SCREW M5X20 €1.36
36
photo_cameraImage coming soon 908005305 SCREW M5x30 (TORX) €2.08
37
photo_cameraImage coming soon 923305000 SQUARE NUT €1.29
38
photo_cameraImage coming soon 020111070 CRAMP DCS430/520/4300I/5200I €2.69
39
photo_cameraImage coming soon 980113841 LABEL DCS430/520/4300I/5200I/6 €1.40
40
photo_cameraImage coming soon 957605112 SHORT CIRCUIT SWITCH ASSY 430/ €12.69
42
photo_cameraImage coming soon 908005095 FILLISTER HEAD SCREW (TORX) M5 €1.47
43
photo_cameraImage coming soon 389213080 TENSION SCREW 330S/390/430/5 €3.92
44
photo_cameraImage coming soon 001213020 NUT WITH PIVOT DCS430/520/4300 €3.13
45
photo_cameraImage coming soon 905808305 GUDGEON M8X30 430/520/4300I/52 €2.08
46
photo_cameraImage coming soon 020111172 GUIDE PLATE 430/520/4300I/5200 €3.84
48
photo_cameraImage coming soon 010245010 AIR VENT VALVE DCS6000I/9010 €9.89
49
photo_cameraImage coming soon 908005125 SCREW M5X12 (TORX) €1.40
50
photo_cameraImage coming soon 020111082 CHAIN CATCH 430/520/4300I/5200 €2.69
51
photo_cameraImage coming soon 001111011 SPECIAL SCREW M12X1 430/520/43 €3.17

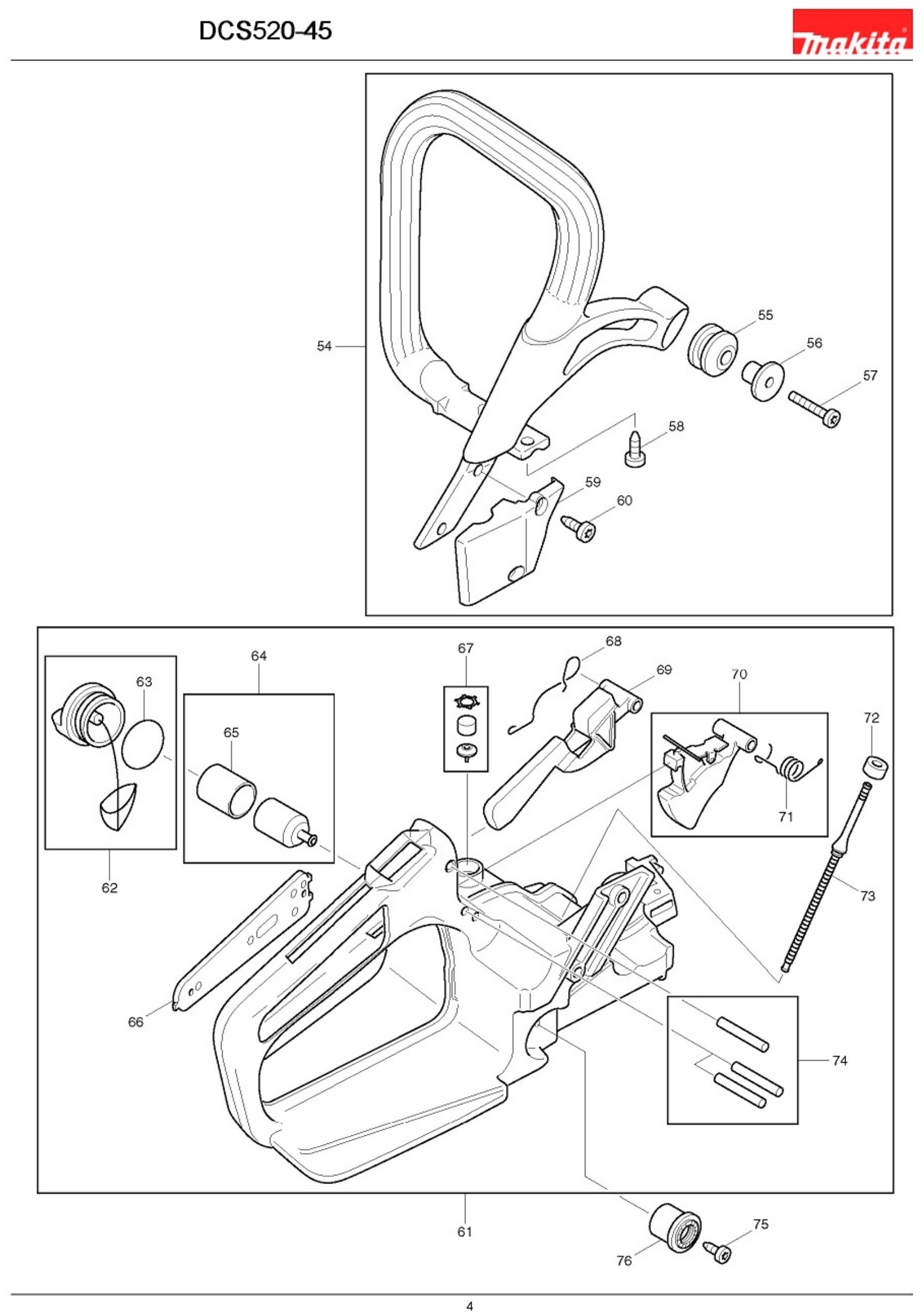

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
55
photo_cameraImage coming soon 965403490 RUBBER BUFFER €2.92
56
photo_cameraImage coming soon 021114051 FIXING BUSH DCS430/431/4300I/5 €2.08
58
photo_cameraImage coming soon 913455164 SELF-CUTTING SCREW 5,5X16 DCS4 €1.47
59
photo_cameraImage coming soon 020310600 COVER DCS430/520/4300I/5200I €3.02
63
photo_cameraImage coming soon 963232045 PACKING RING DCS430/520/4300I/ €2.09
65
photo_cameraImage coming soon 963601240 FELT €8.86
66
Throttle Catch Lever for Chainsaw Dolmar PS43/38 020117301 Throttle Catch Lever for Chainsaw Dolmar PS43/38 €3.20
67
photo_cameraImage coming soon 957114010 VENT VALVE DBC3300/4000/9010/4 €4.62
68
photo_cameraImage coming soon 020117160 BEND SPRING DCS430/520/4300I/5 €3.13
71
photo_cameraImage coming soon 020117273 SPRING DCS430/520/4300I/5200I €1.40
72
photo_cameraImage coming soon 965404520 GASKET DCS430/520/4300I/5200I €1.40
73
photo_cameraImage coming soon 965404460 FUEL LINE DCS430/520/4300I/520 €8.50
74
photo_cameraImage coming soon 935932320 CYLINDRICAL PIN DCS430/520/430 €2.08
75
photo_cameraImage coming soon 913447134 SELF-CUTTING SCREW 4,7X13 DCS4 €1.40
76
Makita DCS43/38 Rubber Buffer 965403282 Makita DCS43/38 Rubber Buffer €7.73

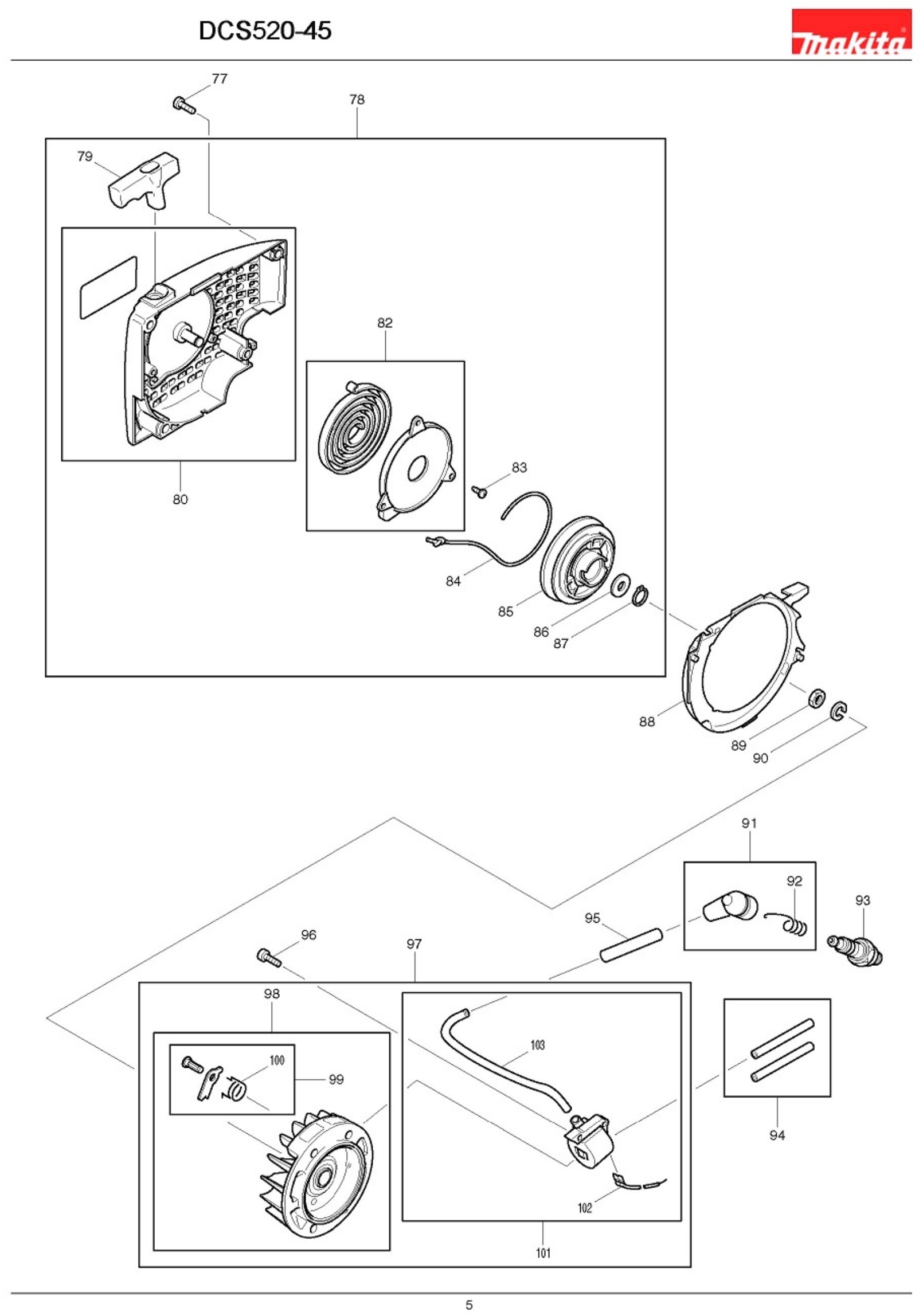

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
77
photo_cameraImage coming soon 908005165 FILLISTER SCREW(TORX) M5X16 33 €1.40
79
photo_cameraImage coming soon 965402262 STARTER GRIP DCS6000I/9010 €8.50
80
photo_cameraImage coming soon 020112630 FAN HOUSING CPL DCS430/520/430 €22.97
82
photo_cameraImage coming soon 020163031 REWIND SPRING IN HOU DCS430 €11.07
84
photo_cameraImage coming soon 985000155 STARTER ROPE 100M DCS4630/5030 €85.18
85
photo_cameraImage coming soon 027162070 CABLE DRUM €16.65
86
photo_cameraImage coming soon 924108400 DISC 8,4 DCS430/520/4300I/5200 €2.08
87
photo_cameraImage coming soon 929108080 SAFETY DISC 8X0,8 DCS430/520/4 €1.40
88
photo_cameraImage coming soon 020112010 AIR DUCT DCS430/520/4300I/5200 €5.13
89
photo_cameraImage coming soon 920308024 HEX NUT M8 DCS4630/5030/5031/1 €1.40
90
photo_cameraImage coming soon 928308001 SPRING WASHER 8/17 DCS330S/390 €1.40
92
photo_cameraImage coming soon 965604180 SPRING DCS330S/390/430/520/430 €2.20
94
Insulating Hose for Chainsaw Dolmar PS43/38 970502050 Insulating Hose for Chainsaw Dolmar PS43/38 €3.96
95
photo_cameraImage coming soon 970502110 INSULATING HOSE M DCS4630/5030 €6.76
96
photo_cameraImage coming soon 908605205 SCREW TORX €2.09
100
photo_cameraImage coming soon 122166020 SPRING 12,8 DCS430/520/4300I/5 €1.40
102
photo_cameraImage coming soon 001147000 SHORT CIRCUIT CABLE (DUCATI) 4 €9.89
103
photo_cameraImage coming soon 970310200 POWER CABLE 1m €7.58

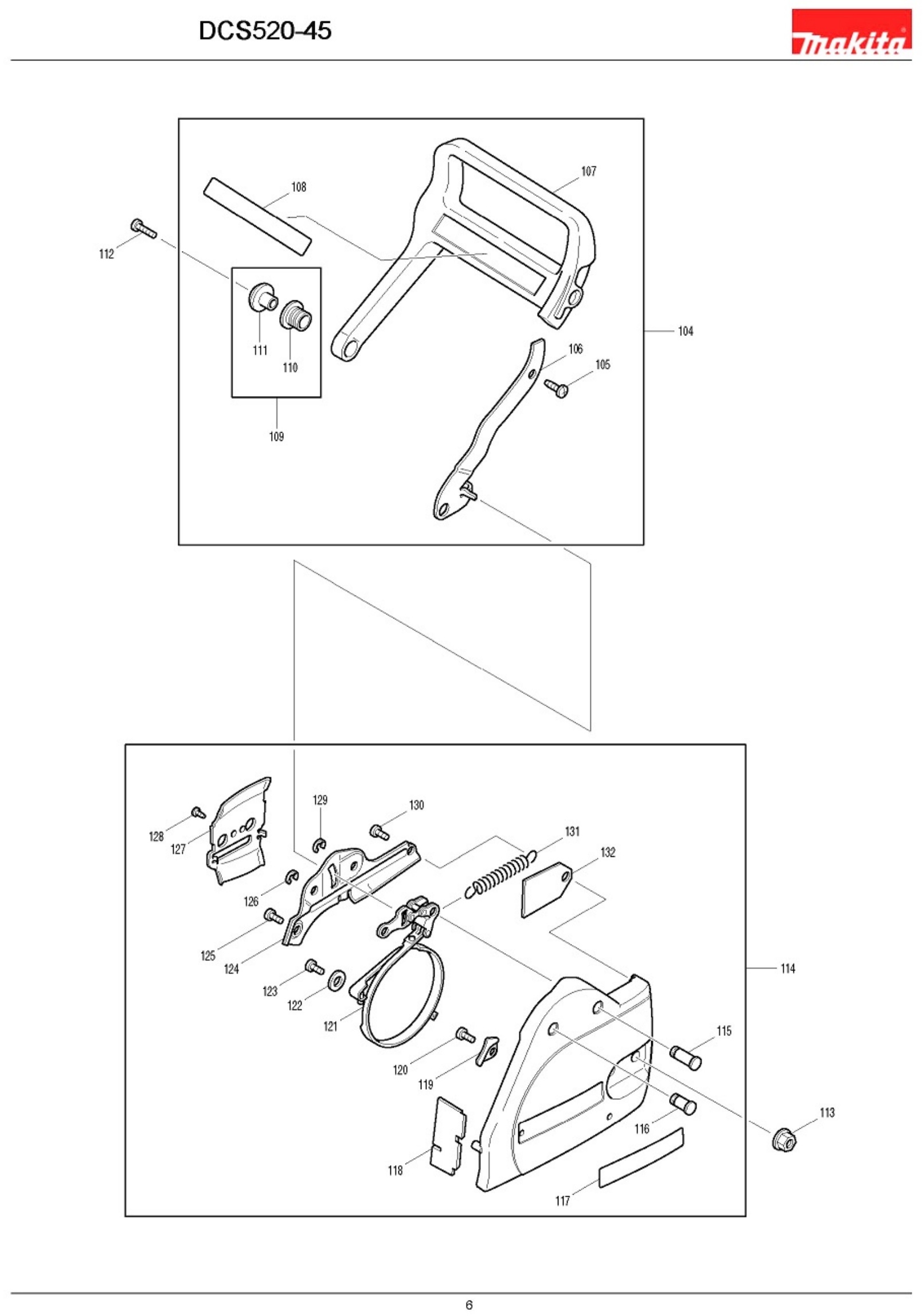

Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
105
photo_cameraImage coming soon 905005184 SELF-CUTTING SCREW 5,5X18 DCS €1.40
106
photo_cameraImage coming soon 027213221 SENGAGING LEVER DCS430/520/4 €11.07
107
photo_cameraImage coming soon 027213462 HAND GUARD DCS430/431/4300I/52 €32.73
108
photo_cameraImage coming soon 980114237 LABEL DCS4630/5030/5031/DCS350 €2.09
110
photo_cameraImage coming soon 027213150 RUBBER BUSH DCS430/520/4300I/5 €2.69
111
photo_cameraImage coming soon 027213161 BUSH €7.58
113
photo_cameraImage coming soon 923208004 NUT €2.20
115
photo_cameraImage coming soon 027213130 SHAFT FOR BRAKE LEVER DCS430/5 €2.69
116
photo_cameraImage coming soon 027213140 SHAFT FOR LEVER DCS430/520/430 €2.69
118
photo_cameraImage coming soon 027213280 PROTECTION COVER DCS430/520/43 €2.08
119
photo_cameraImage coming soon 027213350 BRAKE BAND HOLDER DCS430/520/4 €1.40
120
photo_cameraImage coming soon 913205125 TAPPING LENS SCREW M5X12 DCS43 €2.08
121
photo_cameraImage coming soon 027213050 BRAKE SPRING WITH LEVER CPL DC €28.31
122
photo_cameraImage coming soon 924500049 WASHER DCS430/520/4300I/5200I €1.40
124
photo_cameraImage coming soon 027213111 COVER PLATE DCS430/520/4300I/5 €5.13
126
photo_cameraImage coming soon 927304000 E'CLIP DCS4630/5030/5031/DCS46 €1.47
131
photo_cameraImage coming soon 027213120 SPRING DCS430/520/4300I/5200I €2.69
132
photo_cameraImage coming soon 027213560 RUBBER PLATE €1.40

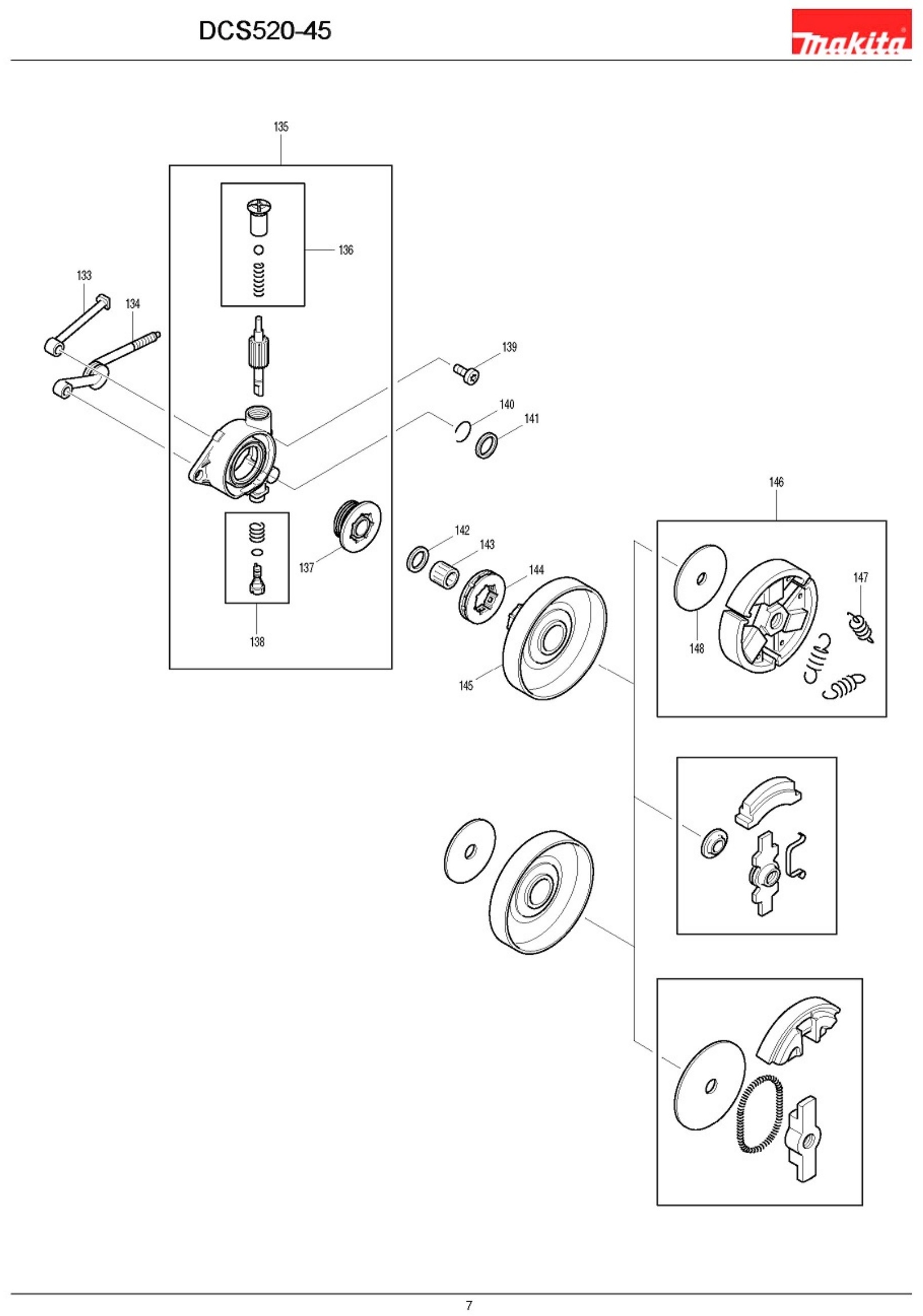

Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
133
Oil Pressure Line for Chainsaw Dolmar PS43/38 020245020 Oil Pressure Line for Chainsaw Dolmar PS43/38 €4.50
134
Oil Suction Line for Chainsaw Dolmar PS43/38 020245041 Oil Suction Line for Chainsaw Dolmar PS43/38 €10.07
136
Oil Pump Repair Kit for Chainsaw Dolmar PS43/38 030245070 Oil Pump Repair Kit for Chainsaw Dolmar PS43/38 €22.12
137
Worm Screw for Chainsaws Makita DCS43/38 027245010 Worm Screw for Chainsaws Makita DCS43/38 €16.31
140
photo_cameraImage coming soon 930916160 RETAINING RING 16X1 €1.40
141
photo_cameraImage coming soon 001245320 STOP RING €11.69
142
photo_cameraImage coming soon 027245021 STOP DISC DCS430/431/4300I/520 €3.02
143
photo_cameraImage coming soon 962210025 NEEDLE CAGE DCS430/520/4300I/5 €8.50
144
Rim Sprocket .325" for Chainsaw Dolmar PS43/38 020224070 Rim Sprocket .325" for Chainsaw Dolmar PS43/38 €10.10
145
photo_cameraImage coming soon 027223101 CLUTCH DRUM €28.31
147
photo_cameraImage coming soon 024184021 TENSION SPRING DPC6430/7331/81 €2.74
148
photo_cameraImage coming soon 001182060 GUIDE DISC €4.54

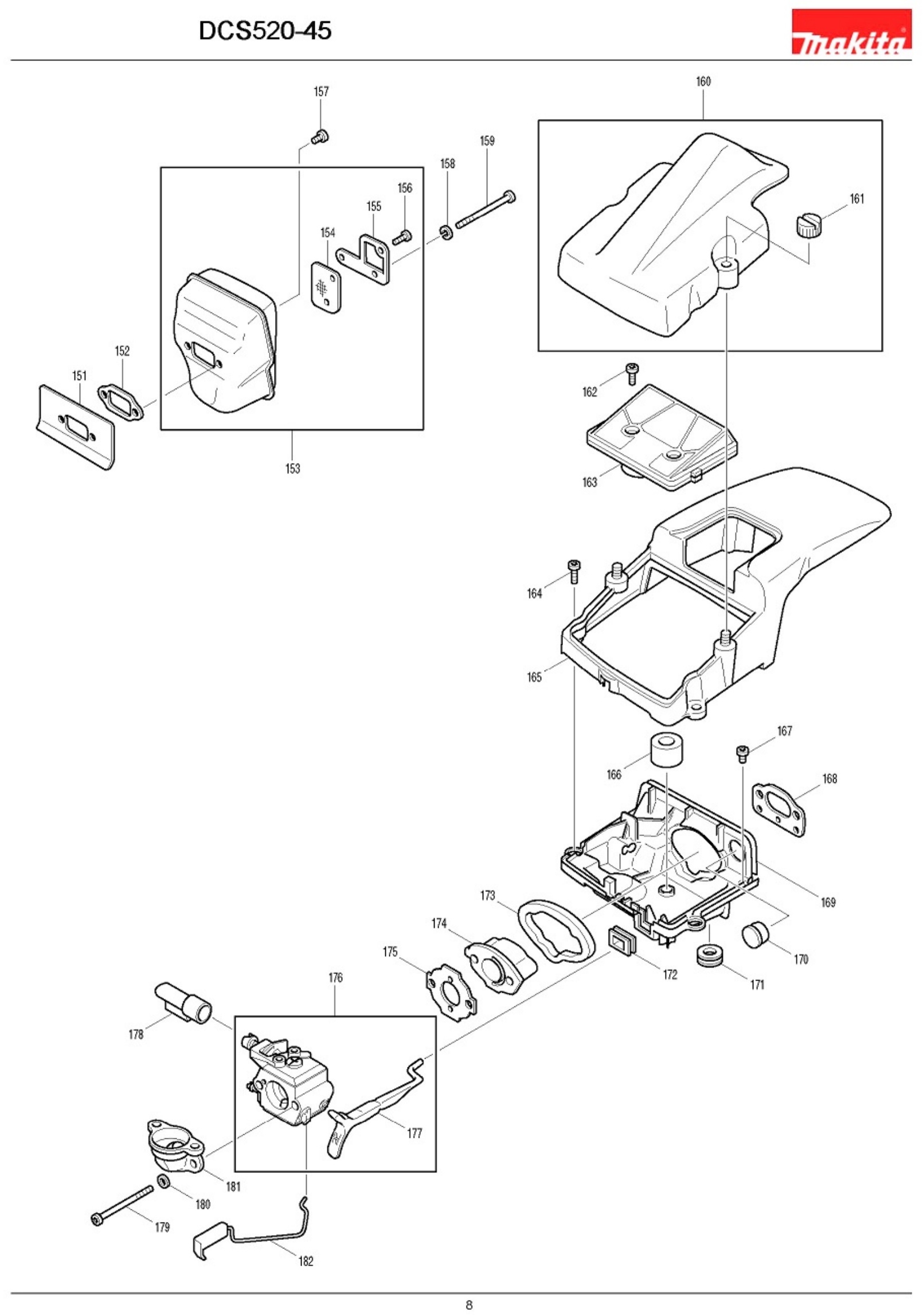

Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
151
photo_cameraImage coming soon 020174170 HEAT SHIELD €3.92
152
photo_cameraImage coming soon 965522033 GASKET DCS430/520/4300I/5200I €2.66
158
photo_cameraImage coming soon 928405000 SPRING WASHER €5.43
159
photo_cameraImage coming soon 908205625 FILLISTER HEAD SCREW M5X62 €2.08
161
photo_cameraImage coming soon 001118062 NUT €3.84
163
photo_cameraImage coming soon 020173202 AIR FILTER CPL (NYLON) DCS430/ €32.73
165
photo_cameraImage coming soon 027118154 HOOD CPL DCS430/520/4300I €43.28
166
photo_cameraImage coming soon 965404780 GASKETDCS430/431/4300I/520/52 €2.69
168
photo_cameraImage coming soon 965525032 GASKET DCS4320/520/4300I/5200I €3.13
169
photo_cameraImage coming soon 027118054 BOTTOM €15.20
170
photo_cameraImage coming soon 965404230 'PLUG (CARBURETOR HEATING) DCS €1.40
171
photo_cameraImage coming soon 965401024 RUBBER BUSH DCS430/520/4300I/5 €3.13
172
Rubber Bush for Chainsaw Dolmar PS43/38 965404410 Rubber Bush for Chainsaw Dolmar PS43/38 €2.33
173
photo_cameraImage coming soon 965404341 GASKET €1.40
174
photo_cameraImage coming soon 020131043 INTER MEDIATE FLANGE €6.35
175
photo_cameraImage coming soon 965524022 GASKET €3.92
177
photo_cameraImage coming soon 027150830 CHOKE LEVER DCS430/520 €4.54
178
photo_cameraImage coming soon 020118030 GUIDE PIECE €2.08
179
photo_cameraImage coming soon 908205658 'FILLISTER HEAD SCREW M5X65 €3.13
180
photo_cameraImage coming soon 924105300 'WASHER 5,3 DCS430/520/4300I/5 €1.40
181
photo_cameraImage coming soon 020171100 CONNECTING MUFF DCS430/520/430 €7.58
182
photo_cameraImage coming soon 020117281 THROTTLE LINKAGE CO DCS430/52 €7.58

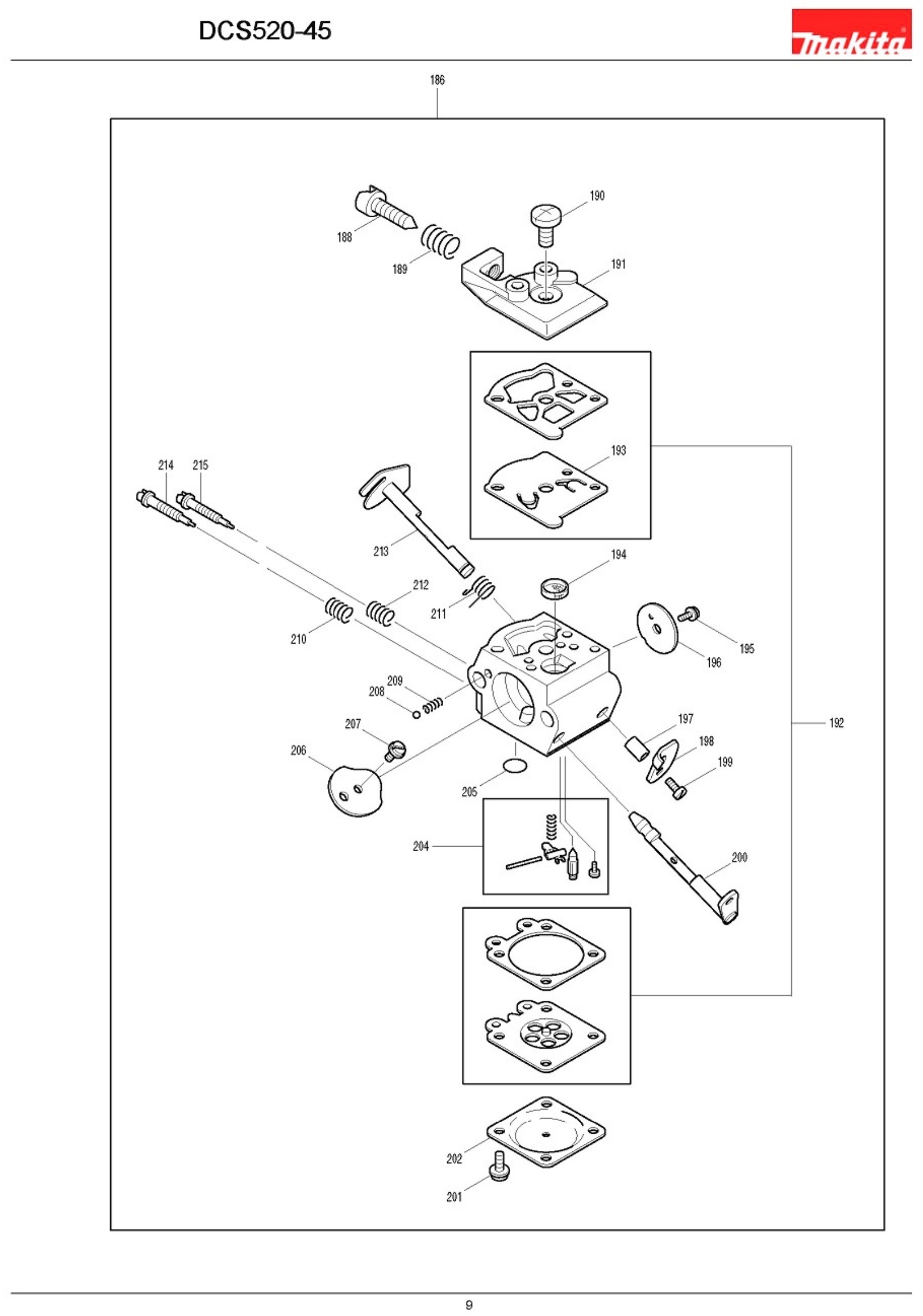

Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
188
photo_cameraImage coming soon 001151240 IDLE STOP SCREW (S)DCS430/520 €4.54
189
photo_cameraImage coming soon 021151230 PRESSURE SPRING (S) DCS330S/35 €3.44
190
photo_cameraImage coming soon 118151190 FLAT SCREW 103/105/108/DCS3501 €2.94
191
photo_cameraImage coming soon 001151165 PUMP COVER €11.69
193
photo_cameraImage coming soon 021151150 PUMP DIAPHR RUBBER DCS430/431/ €11.07
194
photo_cameraImage coming soon 021151180 SCREEN €3.85
195
photo_cameraImage coming soon 118151060 SCREW DCS330S/390/430/520/4510 €2.69
196
photo_cameraImage coming soon 021151320 THROTTLE SHUTTER DCS430/520 €3.92
197
photo_cameraImage coming soon 001151580 SLEEVE DCS430/520 €3.17
198
photo_cameraImage coming soon 001151590 LEVER DCS430/520 €4.54
200
photo_cameraImage coming soon 001151600 CHOKE SHAFT DCS430/520 €20.21
201
photo_cameraImage coming soon 118151020 SCREW DCS330S/390/430/520/DBC4 €2.69
202
photo_cameraImage coming soon 021151120 DIAPHRAGMCOVER DCS330S/390/43/ €12.13
204
photo_cameraImage coming soon 957150040 SET OF CONTROL PIECES 330S/390 €19.00
205
photo_cameraImage coming soon 144150030 COVER DISC DCS430/520 €2.69
206
photo_cameraImage coming soon 001151260 CHOKE SHUTTER DCS330S/390/430 €4.54
208
photo_cameraImage coming soon 118151170 FRICTION BALL DPC6430/7331/813 €2.69
209
photo_cameraImage coming soon 118151160 FRICTION SPRING DPC6430/7331/8 €3.17
210
photo_cameraImage coming soon 021151530 SPRING (H) DCS330S/390/430/520 €3.17
211
photo_cameraImage coming soon 001151310 SPRING DCS330S/390/430/520/DCS €2.69
212
photo_cameraImage coming soon 021151480 SPRING (L) DPC6430/7331/8132/ €3.14
213
photo_cameraImage coming soon 001151301 THROTTLE SHAFT DCS430/520 €17.71
214
photo_cameraImage coming soon 001151510 MAIN ADJUSTM. SCREW (H) DCS430 €11.69
215
photo_cameraImage coming soon 001151470 IDLING ADJUSTM.SCREW (L) 330S/ €9.89

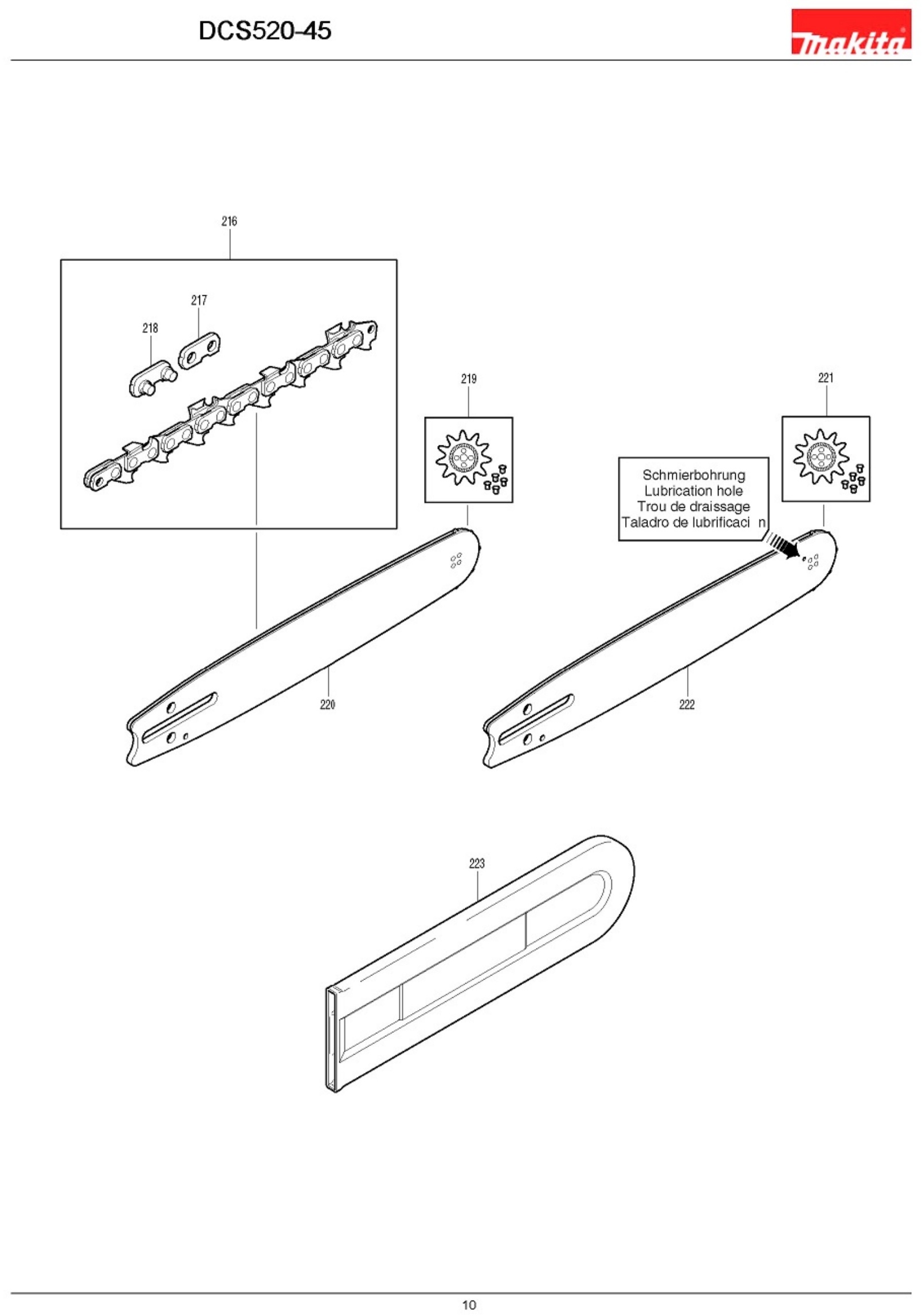

Page 10 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Chainsaw DCS50-45

Makita original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Chainsaw DCS50-45.

In the following table, look for the model of Chainsaw and the respective parts of the code.
Chainsaw DCS50-45

Chainsaw DCS50-45
# Part NUm. Description
1 908005205 TORX HEAD SCREW M5X20 DCS4630/
2 001142012 CRAMP DCS430/520/4300I/5200I/
3 965401011 RUBBER BUSHING DCS330S/390/430
5 965525042 GASKET
8 027132020 PISTON RING DCS5200I
9 001132010 PISTON
10 020132050 SPRING RING C10X0,8 430/4300I/
11 962900050 RADIAL RING
12 020111631 CRANKCASE(MAG.)
13 936430160 SPIRAL PIN 3X16 DPC6430/7331/8
14 965525002 GASKET DCS430/520/4300I/5200I
15 960102129 BALLBEARING 6201
16 939620371 KEY 2X3,7 430/520/4300I/5200I/
17 027120010 CRANKSHAFT DCS430/431/4300I/5
18 962211030 NEEDLE CAGE DCS430/520/4300I/5
19 027213520 HEX HEAD SCREW DCS430/520/4300
21 027213320 LEAF SPRING DCS430/520/4300I/5
22 934950160 CLAMPING SLEEVE
23 960102159 BALL BEARING 6202 C3 DPC6430/7
24 027213270 SPRING DCS430/520/4300I/5200I
25 027213510 RING DCS430/520/4300I/5200I
26 027213500 SHOULDER NUT DCS430/520/4300I/
27 962900052 RADIAL RING 15/24X7 DPC6430/73
29 963100051 GASKET DCS430/520/6000I/6800I
30 020173061 SNOW FILTER
31 908605145 FILLISTER HEAD SCREW DPC6430/7
32 020173612 COVER FOR PREFILTER
33 020173011 PREFILTER DCS430/520/4300I/520
34 908105204 COUNTERSUNK SCREW M5X20
35 965401011 RUBBER BUSHING DCS330S/390/430
36 908005305 FILLISTER (TORX) SCREW M5X30 D
37 923305000 SQUARE NUT
38 020111070 CRAMP DCS430/520/4300I/5200I
39 980113841 LABEL DCS430/520/4300I/5200I/6
40 957605112 SHORT CIRCUIT SWITCH ASSY 430/
42 908005095 FILLISTER HEAD SCREW (TORX) M5
43 389213080 TENSION SCREW 330S/390/430/5
44 001213020 NUT WITH PIVOT DCS430/520/4300
45 905808305 GUDGEON M8X30 430/520/4300I/52
46 020111172 GUIDE PLATE 430/520/4300I/5200
48 010245010 AIR VENT VALVE DCS6000I/9010
49 908005125 TORX HD SCREW M5X12 DPC6430/73
50 020111082 CHAIN CATCH 430/520/4300I/5200
51 001111011 SPECIAL SCREW M12X1 430/520/43
55 965403490 RUBBER BUFFER
56 021114051 FIXING BUSH DCS430/431/4300I/5
57 908005305 FILLISTER (TORX) SCREW M5X30 D
58 913455164 SELF-CUTTING SCREW 5,5X16 DCS4
59 020310600 COVER DCS430/520/4300I/5200I
60 913455164 SELF-CUTTING SCREW 5,5X16 DCS4
63 963232045 PACKING RING DCS430/520/4300I/
65 963601240 FELT DPC6430/7331/8132/6410/73
66 020117301 CATCH LEVER DCS430/520/4300I/5
67 957114010 VENT VALVE DBC3300/4000/9010/4
68 020117160 BEND SPRING DCS430/520/4300I/5
69 020117301 CATCH LEVER DCS430/520/4300I/5
71 020117273 SPRING DCS430/520/4300I/5200I
72 965404520 GASKET DCS430/520/4300I/5200I
73 965404460 FUEL LINE DCS430/520/4300I/520
74 935932320 CYLINDRICAL PIN DCS430/520/430
75 913447134 SELF-CUTTING SCREW 4,7X13 DCS4
76 965403282 RUBBER BUFFER 109/110/111/115
77 908005165 FILLISTER SCREW(TORX) M5X16 33
79 965402262 STARTER GRIP DCS6000I/9010
80 020112630 FAN HOUSING CPL DCS430/520/430
82 020163031 REWIND SPRING IN HOU DCS430
84 985000155 STARTER ROPE 100M DCS4630/5030
85 027162070 CABLE DRUM
86 924108400 DISC 8,4 DCS430/520/4300I/5200
87 929108080 SAFETY DISC 8X0,8 DCS430/520/4
88 020112010 AIR DUCT DCS430/520/4300I/5200
89 920308024 HEX NUT M8 DCS4630/5030/5031/1
90 928308001 SPRING WASHER 8/17 DCS330S/390
92 965604180 SPRING DCS330S/390/430/520/430
94 970502050 INSULATING HOSE M DPC6430/7331
95 970502110 INSULATING HOSE M DCS4630/5030
96 908605205 FILLISTER HEAD SCREW DPC6430/7
100 122166020 SPRING 12,8 DCS430/520/4300I/5
102 001147000 SHORT CIRCUIT CABLE (DUCATI) 4
103 970310200 IGNITION CABLE M DPC6430/7331/
105 905005184 SELF-CUTTING SCREW 5,5X18 DCS
106 027213221 SENGAGING LEVER DCS430/520/4
107 027213462 HAND GUARD DCS430/431/4300I/52
108 980114237 LABEL DCS4630/5030/5031/DCS350
110 027213150 RUBBER BUSH DCS430/520/4300I/5
111 027213161 BUSH
112 908005205 TORX HEAD SCREW M5X20 DCS4630/
113 923208004 HEX NUT M8 DPC6430/7331/8132/8
115 027213130 SHAFT FOR BRAKE LEVER DCS430/5
116 027213140 SHAFT FOR LEVER DCS430/520/430
118 027213280 PROTECTION COVER DCS430/520/43
119 027213350 BRAKE BAND HOLDER DCS430/520/4
120 913205125 TAPPING LENS SCREW M5X12 DCS43
121 027213050 BRAKE SPRING WITH LEVER CPL DC
122 924500049 WASHER DCS430/520/4300I/5200I
123 913205125 TAPPING LENS SCREW M5X12 DCS43
124 027213111 COVER PLATE DCS430/520/4300I/5
125 913205125 TAPPING LENS SCREW M5X12 DCS43
126 927304000 CLIP DCS4630/5030/5031/DCS46
127 001111011 GUIDE PLATE DCS430/520/4300I/5
129 927304000 CLIP DCS4630/5030/5031/DCS46
130 913205125 TAPPING LENS SCREW M5X12 DCS43
131 027213120 SPRING DCS430/520/4300I/5200I
132 027213560 RUBBER PLATE
133 020245020 PRESSURE LINE DCS430/520/4300I
134 020245041 PRESSURE LINE DCS430/520/4300I
136 030245070 REPAIR KIT CPL. DCS6000I/6800I
137 027245010 PUMP DRIVE DCS430/431/4300I/52
138 030245070 REPAIR KIT CPL. DCS6000I/6800I
139 908005125 TORX HD SCREW M5X12 DPC6430/73
140 930916160 SPRING RING DPC6430/7331/8132/
141 001245320 STOP RING
142 027245021 STOP DISC DCS430/431/4300I/520
143 962210025 NEEDLE CAGE DCS430/520/4300I/5
144 020224070 RIM SPROCKET .325",T=8 DCS430/
145 027223101 CLUTCH DRUM
147 024184021 TENSION SPRING DPC6430/7331/81
148 001182060 GUIDE DISC
151 020174170 HEAT SHIELD
152 965522033 GASKET DCS430/520/4300I/5200I
157 908005095 FILLISTER HEAD SCREW (TORX) M5
158 928405000 SPRING WASHER DPC6430/7331/813
159 908205625 FILLISTER HEAD SCREW M5X62
161 001118062 NUT
162 908605145 FILLISTER HEAD SCREW DPC6430/7
163 020173202 AIR FILTER CPL (NYLON) DCS430/
164 908005165 FILLISTER SCREW(TORX) M5X16 33
165 027118154 HOOD CPL DCS430/520/4300I
166 965404780 GASKETDCS430/431/4300I/520/52
167 908005095 FILLISTER HEAD SCREW (TORX) M5
168 965525032 GASKET DCS4320/520/4300I/5200I
169 027118054 BOTTOM
170 965404230 'PLUG (CARBURETOR HEATING) DCS
171 965401024 RUBBER BUSH DCS430/520/4300I/5
172 965404410 RUBBER BUSH DCS430/520/4300I/5
173 965404341 GASKET
174 020131043 INTER MEDIATE FLANGE
175 965524022 GASKET
177 027150830 CHOKE LEVER DCS430/520
178 020118030 GUIDE PIECE
179 908205658 'FILLISTER HEAD SCREW M5X65
180 924105300 'WASHER 5,3 DCS430/520/4300I/5
181 020171100 CONNECTING MUFF DCS430/520/430
182 020117281 THROTTLE LINKAGE CO DCS430/52
188 001151240 IDLE STOP SCREW (S)DCS430/520
189 021151230 PRESSURE SPRING (S) DCS330S/35
190 118151190 FLAT SCREW 103/105/108/DCS3501
191 001151165 PUMP COVER
193 021151150 PUMP DIAPHR RUBBER DCS430/431/
194 021151180 SCREEN DPC6430/7331/7132/7311/
195 118151060 SCREW DCS330S/390/430/520/4510
196 021151320 THROTTLE SHUTTER DCS430/520
197 001151580 SLEEVE DCS430/520
198 001151590 LEVER DCS430/520
199 118151060 SCREW DCS330S/390/430/520/4510
200 001151600 CHOKE SHAFT DCS430/520
201 118151020 SCREW DCS330S/390/430/520/DBC4
202 021151120 DIAPHRAGMCOVER DCS330S/390/43/
204 957150040 SET OF CONTROL PIECES 330S/390
205 144150030 COVER DISC DCS430/520
206 001151260 CHOKE SHUTTER DCS330S/390/430
207 118151060 SCREW DCS330S/390/430/520/4510
208 118151170 FRICTION BALL DPC6430/7331/813
209 118151160 FRICTION SPRING DPC6430/7331/8
210 021151530 SPRING (H) DCS330S/390/430/520
211 001151310 SPRING DCS330S/390/430/520/DCS
212 021151480 SPRING (L) DPC6430/7331/8132/
213 001151301 THROTTLE SHAFT DCS430/520
214 001151510 MAIN ADJUSTM. SCREW (H) DCS430
215 001151470 IDLING ADJUSTM.SCREW (L) 330S/
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita DCS50-45
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita DCS520-45

Diagram Makita DCS520-45

Download (1.43MB)

You might also like

Makita SKU: 027245010
Worm Screw for Chainsaws Makita DCS43/38 Genuine part Makita, Worm Screw for Chainsaws Dolmar 109/38 - 109/45 - 110I/38 - 110I/45 - 111/38 - 111/45 - 115I/38 - 115I/45 -...
Last items in stock €16.31
Makita SKU: 027245161
Oil Pump Assy for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Oil Pump Assy for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the following...
on 7/10 Business Days Approx €88.72
Makita SKU: 020245020
Oil Pressure Line for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Oil Pressure Line for Chainsaws PS43/38 - PS43/45 - 115I/38 - 115I/45 -  PS52/45 - DCS520/45. Part...
Last items in stock €4.50
Makita SKU: 020245041
Oil Suction Line for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Oil Suction Line for Chainsaws PS43/38 - PS43/45 - 115I/38 - 115I/45 -  PS52/45...
Last items in stock €10.07
Makita SKU: 020117301
Throttle Catch Lever for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Throttle Catch Lever for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the following products: - PS43/38 - CHAINSAW 43CC...
Last items in stock €3.20
Makita SKU: 970502050
Insulating Hose for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Insulating Hose Lenght 1 Mt, for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the following products: - PS43/38 - CHAINSAW...
Last items in stock €3.96
Makita SKU: 030245070
Oil Pump Repair Kit for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Oil Pump Repair Kit, for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for...
Usually Ships in: 7/10 Business Days Approx. €22.12
Makita SKU: 020224070
Rim Sprocket .325" for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Rim Sprocket .325" ,T 8 for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for...
Last items in stock €10.10
Makita SKU: 965404410
Rubber Bush for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Rubber Bush for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the following products: -  PS43/38 - CHAINSAW 43CC DOLMAR -...
on 7/10 Business Days Approx €2.33
Makita SKU: 965403282
Makita DCS43/38 Rubber Buffer Genuine part Makita, Rubber Buffer for Chainsaws Dolmar 109/38 - 109/45 - 110I/38 - 110I/45 - 111/38 - 111/45 - 115I/38 - 115I/45 -...
AVAILABLE €7.73
Comments (0)
