Makita Spare Parts for Electric Hedge Trimmer UH5261

SKU: UH5261
€7.34
VAT included

Makita Spare Parts for Electric Hedge Trimmer UH5261

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Hedge Trimmer UH5261.
Makita Spare Parts for Electric Hedge Trimmer UH5261
  • Makita Spare Parts for Electric Hedge Trimmer UH5261
  • Makita Spare Parts for Electric Hedge Trimmer UH5261

Makita Spare Parts for Electric Hedge Trimmer UH5261

SKU: UH5261 Condition: New
€7.34
VAT included

Makita Spare Parts for Electric Hedge Trimmer UH5261

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Hedge Trimmer UH5261.
settings 13 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

13 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 682516-3 CORD ARMOR 9.3-85 €2.69
3
Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
4
photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
5
photo_cameraImage coming soon 654531-7 CLAMP X 420S €5.13
6
Capacitor for Angle Grinder Makita GA4530 645200-1 Capacitor for Angle Grinder Makita GA4530 €2.65
7
photo_cameraImage coming soon 646056-5 Diode X BO6030 €3.72
10
photo_cameraImage coming soon 210030-5 BEARING 627ZZ X MT601 €2.03
13
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
14
photo_cameraImage coming soon 643923-5 CARBON BRUSH HOLDER  €4.09
19
photo_cameraImage coming soon 241850-6 FAN X HR2400 €3.84
29
photo_cameraImage coming soon 211062-5 BEARING 6000 X9524NB €7.81
32
photo_cameraImage coming soon 233156-6 SPRING COMP. 5 X UH5570 €1.38
34
photo_cameraImage coming soon 911243-8 SCREW M5x25 HR2010 €1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Electric Hedge Trimmer UH5261

We are MAKITA original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Hedge Trimmer UH5261.

In the following table, look for the model of the Trimmer and the respective parts of the code.
.

Electric Hedge Trimmer UH5261
2 682516-3 CABLE SLEEVE 9.3-85
3 266326-2 SCREW 4x18 X MT601
4 687124-5 Cable tie CLAMP MT953
5 654531-7 CLAMP X 420S
6 645200-1 CAPACITOR
7 646056-5 Diode X BO6030
8 646090-5 Diode X UH5261
9 650642-6 SWITCH X UH5261
10 210030-5 BEARING 627ZZ X MT601
11 187052-9 HOUSING MOT. X UH5261
12 621753-4 STATOR FOR UH5261
13 191962-4 CHARCOALS CB-419 (406.407) 6408
14 643923-5 SUPPORT CHARCOALS X 6408
15 515824-6 ARMATURE X UH5261
16 452677-1 LEVER SWITCH. A X UH5261
17 452680-2 LEVER SWITCH. C X UH5261
18 650642-6 SWITCH X UH5261
19 241850-6 FAN X HR2400
20 452681-0 ARM BREAK. X UH5261
21 326034-8 POST X UH5261
22 262570-9 COMPASS NYLON 5 X UH5261
23 140827-7 BLADE COMPLETE X UH5261
24 253777-8 WASHER 8 HP2040-2041-2042
25 214064-0 BEARING 8 X UH5261
26 227745-7 GEAR 67 X UH5261
27 140828-5 BOX BEARING X UH5261
28 423417-4 PARA POWDER X UH5261
29 211062-5 BEARING 6000 X9524NB
30 268136-3 PIN 4 X UH5261
31 452678-9 LEVER SWITCH. X UH5261
32 233156-6 SPRING COMP. 5 X UH5570
33 452682-8 GRIP. FRONT X UH5261
34 911243-8 HR2010 SCREW M5x25
35 140829-3 PROTECTION X UH5261
36 266326-2 SCREW 4x18 X MT601
37 266326-2 SCREW 4x18 X MT601
38 268136-3 PIN 4 X UH5261
39 253777-8 WASHER 8 HP2040-2041-2042
40 233156-6 SPRING COMP. 5 X UH5570
42 869270-8 LABEL X UH5261
43 892589-0 LABEL X MAKITA UH5261

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
UH5261
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS

Specific References

New

Download

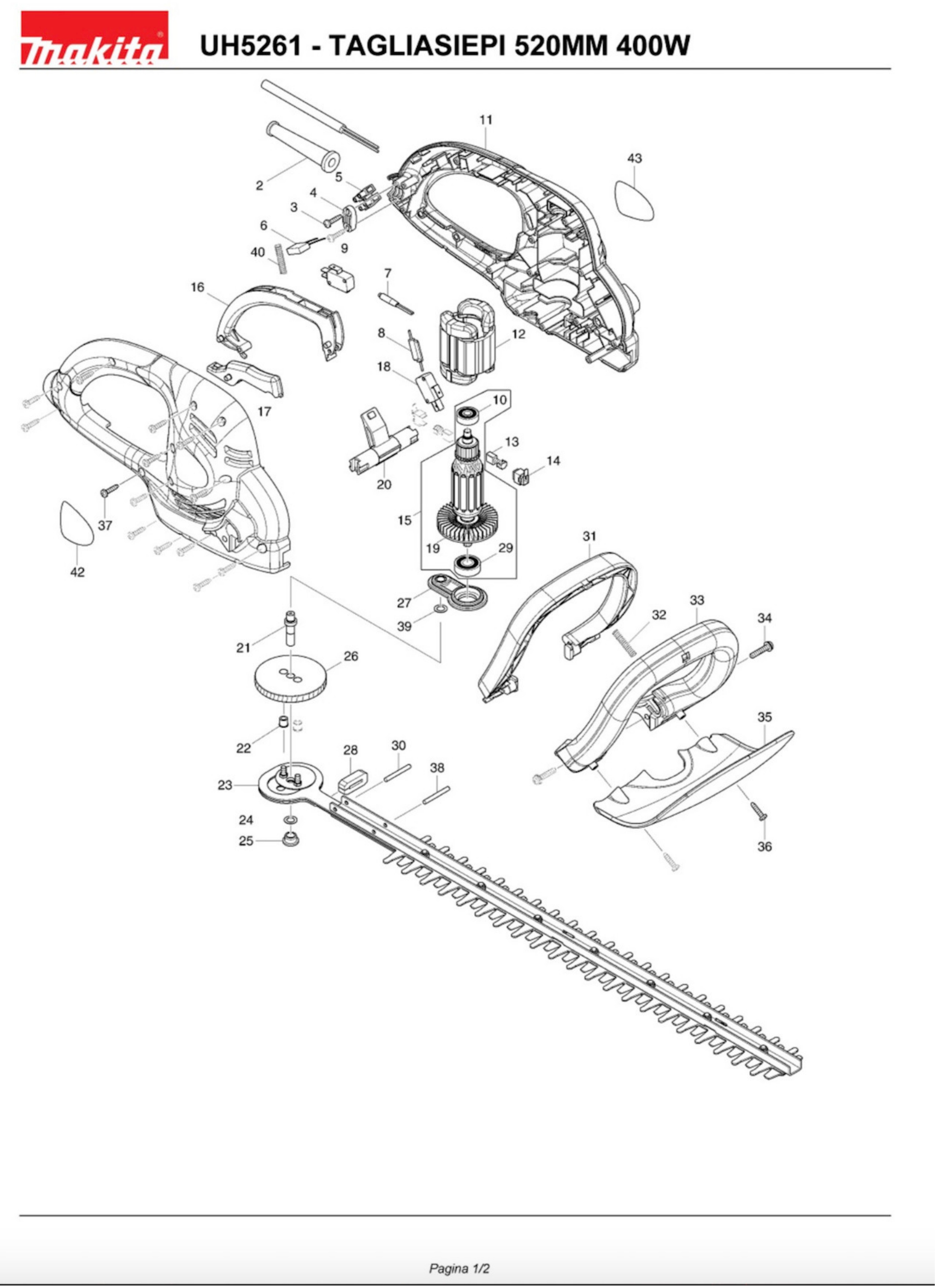

Diagram Makita UH5261

Diagram Makita UH5261

Download (235.47KB)
