Makita

Makita Spare Parts for Power Cutter DPC7331WS

SKU: Makita DPC7331WS
€2.52
VAT included

Makita Spare Parts for Power Cutter DPC7331WS

We have the original Spares MAKITA for Power Cutter DPC7331WS, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Power Cutter DPC7331WS. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
Makita Spare Parts for Power Cutters DPC7331WS
  • Makita Spare Parts for Power Cutters DPC7331WS
  • Makita Spare Parts for Power Cutters DPC7331WS
Makita

Makita Spare Parts for Power Cutter DPC7331WS

SKU: Makita DPC7331WS Condition: New
€2.52
VAT included

Makita Spare Parts for Power Cutter DPC7331WS

We have the original Spares MAKITA for Power Cutter DPC7331WS, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Power Cutter DPC7331WS. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 160 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
160 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

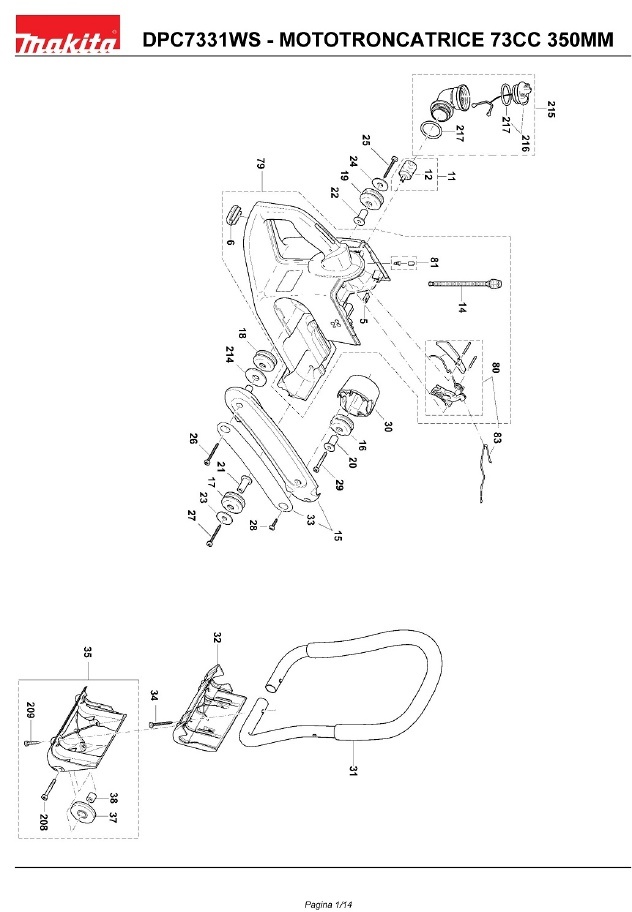

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
5
 photo_cameraImage coming soon 394114100 COVER CAP €1.74
6
 photo_cameraImage coming soon 394114070 SPACER €5.73
11
 photo_cameraImage coming soon 10114010 HEAD INLET €5.73
12
 photo_cameraImage coming soon 963601240 FELT €8.86
14
 photo_cameraImage coming soon 965404913 FUEL HOSE PC7314 €3.05
15
 photo_cameraImage coming soon 395310600 BRACKET BLACK DCP8132 €18.45
16
 photo_cameraImage coming soon 965403535 DAMPER €8.61
17
 photo_cameraImage coming soon 965403535 DAMPER €8.61
18
 photo_cameraImage coming soon 965403535 DAMPER €8.61
19
 photo_cameraImage coming soon 965403535 DAMPER €8.61
20
 photo_cameraImage coming soon 394114281 SHAFT €2.94
21
 photo_cameraImage coming soon 394114281 SHAFT €2.94
22
 photo_cameraImage coming soon 394114281 SHAFT €2.94
25
 photo_cameraImage coming soon 913455454 SCREW 5.5 X 45 €2.08
26
 photo_cameraImage coming soon 913455454 SCREW 5.5 X 45 €2.08
27
 photo_cameraImage coming soon 913455454 SCREW 5.5 X 45 €2.08
28
 Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S 913455204 Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S €2.15
29
 photo_cameraImage coming soon 908305405 SCREW M5X20X40 (TORX) €2.09
30
 photo_cameraImage coming soon 395310020 POT BLACK DPC8132 €6.45
31
 photo_cameraImage coming soon 394310100 HANDLE €77.44
32
 photo_cameraImage coming soon 394114190 HOLDER HANDLE DPC7311 €24.82
33
 photo_cameraImage coming soon 980115215 MAKITA LABEL DPC8112 €6.45
34
 photo_cameraImage coming soon 913455454 SCREW 5.5 X 45 €2.08
35
 photo_cameraImage coming soon 394114270 HANDLE WITH HOLDER/WHEEL DPC7311 €42.15
37
 photo_cameraImage coming soon 394114230 WHEEL X SUPPORT IMP DPC7311 €18.45
38
 photo_cameraImage coming soon 394114240 BUSHING DPC7311 €2.61
79
 photo_cameraImage coming soon 395114600 TANK BLUE CPL DPC8132 €150.11
80
 photo_cameraImage coming soon 957117040 THROTTLE MECHANISM DPC8132 €19.31
81
 photo_cameraImage coming soon 170175010 VENT VALVE KSET €7.58
83
 photo_cameraImage coming soon 395117010 WINGS JOINT  DPC8132 €2.06
208
 photo_cameraImage coming soon 908006355 SCREW M6X35 (TORX) €1.48
209
 photo_cameraImage coming soon 908905165 SCREW M5X16 FOR PS-460/500 €2.14
215
 photo_cameraImage coming soon 395114300 ANGULAR UNION ASSEMBLYDPC8132 €18.45
216
 photo_cameraImage coming soon 181114202 TANK CAP DCS4600S / 5000 €10.48
217
 photo_cameraImage coming soon 963229036 RING 29,3X3,6 DCS4600S / 5000 €3.13
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
39
 photo_cameraImage coming soon 395118121 COVER FILTER DPC8132 €27.61
41
 photo_cameraImage coming soon 395118010 FIXING DPC8132 €5.77
44
 photo_cameraImage coming soon 980115486 LABEL DPC8132 €5.73
45
 photo_cameraImage coming soon 395118050 COVER RUBBER DPC8132 €2.54
47
 photo_cameraImage coming soon 395173081 PRE FILTER - NEW 424700-2 €14.92
48
 photo_cameraImage coming soon 395118020 SEAL DPC8132 €2.06
49
 photo_cameraImage coming soon 395173011 AIR FILTER €9.72
50
 photo_cameraImage coming soon 395173020 INNER FILTER DPC8132 €6.45
51
 photo_cameraImage coming soon 395118092 AIR HOLDER DPC8132 €38.31
54
 photo_cameraImage coming soon 908605505 SCREW M5X50 DPC7311 €2.46
169
 photo_cameraImage coming soon 394341051 COVER PROTECTION €150.11
170
 photo_cameraImage coming soon 957342011 PROT. HOOD MOUNTING, CPL. €34.74
171
 photo_cameraImage coming soon 394342180 THICKNESS TEFLON DPC7311 €6.69
173
 photo_cameraImage coming soon 965404900 RUBBER RING EXT. DPC6401 €9.61
174
 photo_cameraImage coming soon 965404920 RUBBER RING INT. DPC6401 €9.61
175
 photo_cameraImage coming soon 394342160 PLATE IMPACT DPC73 €12.92
176
 photo_cameraImage coming soon 394342211 RING PRESSURE DPC7311 €38.31
177
 photo_cameraImage coming soon 394211740 CUTTING DEVICE DPC7311 €239.55
178
 photo_cameraImage coming soon 394342190 BOLT CPL. DPC7311 €9.61
179
 photo_cameraImage coming soon 394211091 SCREW PC8116 €4.31
180
 photo_cameraImage coming soon 394228101 AXLE DIAM 20 PC8116 €82.71
180B
 photo_cameraImage coming soon 394228111 SHAFT DIAM. 25.4 MM €58.28
180A
 photo_cameraImage coming soon 394228130 POST D 22,2mm DPC7311 €19.31
183
 photo_cameraImage coming soon 960102176 BEARING X DPC 6200 €9.72
185
 photo_cameraImage coming soon 326228020 DISC PRESSURE 300-400 €19.31
187
 photo_cameraImage coming soon 994290250 SCREW M8X25 €2.61
189
 photo_cameraImage coming soon 394228022 SPACER €3.74
193
 photo_cameraImage coming soon 929240180 SNAP RING DPC 6200 €2.61
197
 photo_cameraImage coming soon 394213032 TENSIONING SCREW PC8116 €2.03
198
 photo_cameraImage coming soon 394342120 PRESSURE SPRING €4.99
199
 photo_cameraImage coming soon 921906004 NUT €2.03
200
 photo_cameraImage coming soon 923208004 NUT €2.20
202
 photo_cameraImage coming soon 394213021 METAL SHEET DPC8132 €4.99
206
 photo_cameraImage coming soon 326341300 KNOB DPC7311 €7.49
207
 photo_cameraImage coming soon 908605165 SCREW M5X16 DPC7311 €2.03
218
 photo_cameraImage coming soon 395211640 COVER CPL DPC7311 GREY €63.07
219
 photo_cameraImage coming soon 395211620 COVER GREY DPC7311 €38.31
221
 photo_cameraImage coming soon 394221050 BELT X PULLEY €51.89
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
59
 photo_cameraImage coming soon 395171072 BLOCK CONNECTION DPC8132 €34.32
60
 photo_cameraImage coming soon 24131032 SEAL X PIPE ASP.X9000 €8.61
63
 photo_cameraImage coming soon 965518120 SEAL €1.74
64
 photo_cameraImage coming soon 908204555 SCREW M4X55 €2.68
65
 Insulating Hose for Chainsaw Dolmar PS43/38 970502050 Insulating Hose for Chainsaw Dolmar PS43/38 €3.96
67
 photo_cameraImage coming soon 394150042 CHOKE SHAFT €2.61
68
 photo_cameraImage coming soon 965452382 FUEL TUBE 1mt Diam. 3/5 €12.56
69
 photo_cameraImage coming soon 965401016 RUBBER SOCKET €2.69
70
 photo_cameraImage coming soon 394174401 MUFFLER X DPC7301 €95.81
72
 photo_cameraImage coming soon 965531131 SEAL €4.68
73
 photo_cameraImage coming soon 395174110 COVER PLATE €3.98
74
 photo_cameraImage coming soon 908405205 SCREW X DCS6401 €2.82
83
 photo_cameraImage coming soon 395117010 WINGS JOINT  DPC8132 €2.06
86
 photo_cameraImage coming soon 957395001 LEVER VALVE ARIADPC8132 €1.34
136
 photo_cameraImage coming soon 395131040 COVER BLACK DPC8132 €19.31
137
 photo_cameraImage coming soon 909005155 SCREW M5X15 DPC8132 €2.03
138
 photo_cameraImage coming soon 395130140 CYLINDER AND PISTON CPL €338.56
139
 photo_cameraImage coming soon 395132050 PISTON X DCS7301 €106.19
140
 photo_cameraImage coming soon 394132020 PISTON RING €27.89
141
 photo_cameraImage coming soon 119132060 CIRCLIP C12X1 €1.40
142
 photo_cameraImage coming soon 395118070 RELIEF VALVE DPC8132 €22.34
143
 photo_cameraImage coming soon 965531160 SEAL CYLINDER DPC7301 €1.74
144
 photo_cameraImage coming soon 908805235 SCREW M5X23 PS4605-5105-5105D €2.34
145
 photo_cameraImage coming soon 394120011 CRANKSHAFT CPL €239.55
146
 photo_cameraImage coming soon 962210121 BEARING ROLLER X DCS6401 €12.49
147
 photo_cameraImage coming soon 939630370 KEY 3X3,7 €1.34
148
 photo_cameraImage coming soon 962900052 RADIAL SEAL 15 / 24X7 €9.20
150
 photo_cameraImage coming soon 930916160 RETAINING RING 16X1 €1.40
151
 photo_cameraImage coming soon 394245010 RETAINING RING €11.07
152
 photo_cameraImage coming soon 394182020 DISC GUIDE €2.06
153
 photo_cameraImage coming soon 326111731 CARCASS SIDE MAGNET €150.11
154
 photo_cameraImage coming soon 326111740 CARTER SIDE CLUTCH BLACK PC8116 €168.74
155
 photo_cameraImage coming soon 965531111 BASE GASCKET DPC7301 €3.42
156
 photo_cameraImage coming soon 936430160 PIN 3X16 PS350C-420C €2.20
157
 photo_cameraImage coming soon 908005305 SCREW M5x30 (TORX) €2.08
158
 photo_cameraImage coming soon 960102152 BEARING 6202 €21.54
160
 photo_cameraImage coming soon 394223024 DRUM CLUTCH CPL €86.23
161
 photo_cameraImage coming soon 908605145 SCREW TORX €135.74
162
 photo_cameraImage coming soon 1182042 DISC GUIDE PS350C / 420C €3.51
163
 photo_cameraImage coming soon 10180024 CLUTCH CPL €58.28
164
 photo_cameraImage coming soon 24184021 SPRING DRIVING X DCS90 €1.74
165
 photo_cameraImage coming soon 395213670 COVER (BLUE) DPC8132 €12.92
166
 photo_cameraImage coming soon 965300470 BELT KEYSTONE €30.65
168
 photo_cameraImage coming soon 965402870 RUBBER PLATE DPC6401 €23.65
204
 photo_cameraImage coming soon 962300017 NEEDLE BUSH 309 €16.17
205
 photo_cameraImage coming soon 928405000 SPRING WASHER €5.43
213
 photo_cameraImage coming soon 908005125 SCREW M5X12 (TORX) €1.40
268
 photo_cameraImage coming soon 395171022 FUEL PIPE DPC8132 €2.54
269
 photo_cameraImage coming soon 38131070 PIPE X CLAMP €1.74
270
 photo_cameraImage coming soon 394131200 DUCT INTAKE €19.31
271
 photo_cameraImage coming soon 394131210 SUCTION LINE DPC8132 €31.80
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

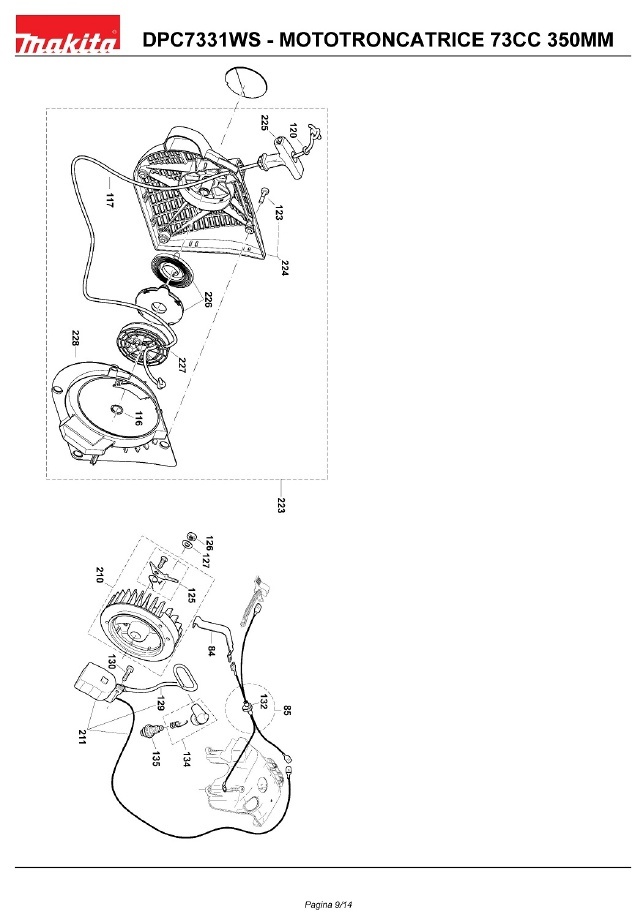

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
85
 photo_cameraImage coming soon 965605511 CABLE MASS DPC8132 €5.73
116
 photo_cameraImage coming soon 929314100 SNAP RING 14X1 €1.40
117
 Makita EK8100WS Starter Rope 122164010 Makita EK8100WS Starter Rope €3.19
123
 photo_cameraImage coming soon 908605205 SCREW TORX €2.09
125
 photo_cameraImage coming soon 31166010 STARTING PAWL ASSY €9.72
126
 photo_cameraImage coming soon 920208024 NUT X DCS6401 €2.08
127
 photo_cameraImage coming soon 926208001 SPRING WASHER 8 €1.47
129
 photo_cameraImage coming soon 970310200 POWER CABLE 1m €7.58
134
 photo_cameraImage coming soon 957604260 SPARK PLUG CAP CPL. €4.51
135
 photo_cameraImage coming soon 965603021 NGK SPARK PLUG BPMR7A €5.56
210
 photo_cameraImage coming soon 394141090 FLYWHEEL ASSY DPC8132 €268.28
211
 photo_cameraImage coming soon 394143030 COIL PC8116 €168.48
223
 photo_cameraImage coming soon 395160600 STARTER DEVICE BLU DPC8132 €86.23
224
 photo_cameraImage coming soon 395160630 HOUSING BLUE €82.71
225
 photo_cameraImage coming soon 181164010 KNOB STARTER €4.06
226
 photo_cameraImage coming soon 181163050 REWIND SPRING €12.33
227
 photo_cameraImage coming soon 395162020 REEL START DPC8132 €24.42
228
 photo_cameraImage coming soon 395118170 AIR GUIDE PLATE DPC8132 €2.61
232
 photo_cameraImage coming soon 394151160 PUMP COVER CPL. PC8116 €23.65
233
 photo_cameraImage coming soon 144150170 SCREW PC8116 €3.74
234
 photo_cameraImage coming soon 395151120 DIAPHRAGM COVER DPC8132 €31.80
235
 photo_cameraImage coming soon 378151220 SCREW PS3400TH €2.61
236
 photo_cameraImage coming soon 957151180 SET DIAPHRAGM / GASKETS PC8116 €34.74
237
 photo_cameraImage coming soon 394151150 PUMP DIAPHRAGM PC8116 €8.27
240
 photo_cameraImage coming soon 394151315 BUSHING PC8116 €4.99
241
 photo_cameraImage coming soon 394151315 BUSHING PC8116 €4.99
242
 photo_cameraImage coming soon 394151330 PACKING RING PC8116 €7.36
243
 photo_cameraImage coming soon 394151320 THROTTLE SHUTTER PC8116 €4.31
245
 photo_cameraImage coming soon 394151660 SCREW PC8116 €3.74
246
 photo_cameraImage coming soon 394151330 PACKING RING PC8116 €7.36
247
 photo_cameraImage coming soon 394151400 DISC PC8116 €3.74
250
 photo_cameraImage coming soon 394151260 AIR VALVE PC8116 €2.94
254
 photo_cameraImage coming soon 394151470 SCREW L PC8116 €19.31
255
 photo_cameraImage coming soon 21151480 SPRING (L) €2.82
256
 photo_cameraImage coming soon 957151191 CONTROL PARTS SET PC8116 €27.50
257
 photo_cameraImage coming soon 21151180 FUEL FILTER €3.46
258
 photo_cameraImage coming soon 394151040 COVER DISC PC8116 €3.05
259
 photo_cameraImage coming soon 394151510 LOCKING BALL PC8116 €3.74
260
 photo_cameraImage coming soon 1151450 SCREW H DPC8132 €24.42
261
 photo_cameraImage coming soon 21151480 SPRING (L) €2.82
267
 photo_cameraImage coming soon 378151220 SCREW PS3400TH €2.61
273
 Carburetor for Power Cutter Makita DPC7331WS 395151015 Carburetor for Power Cutter Makita DPC7331WS €222.30
274
 photo_cameraImage coming soon 395151130 THROTTLE SHAFT.DPC8132 €10.76
275
 photo_cameraImage coming soon 395151170 CHOKE SHAFT DPC8132 €10.76
276
 photo_cameraImage coming soon 395151110 FAST IDLE LEVER DPC8132 €3.74
277
 photo_cameraImage coming soon 395151190 TORSION SPRING DPC8132 €3.05
278
 photo_cameraImage coming soon 119151350 SHAFT CLIP €3.05
280
 photo_cameraImage coming soon 394151660 SCREW PC8116 €3.74
281
 photo_cameraImage coming soon 395151140 IDLE STOP SCREW DPC8132 €10.76
284
 photo_cameraImage coming soon 170151290 WASHER DPC8132 €2.03
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
85
 photo_cameraImage coming soon 965605511 CABLE MASS DPC8132 €5.73
116
 photo_cameraImage coming soon 929314100 SNAP RING 14X1 €1.40
117
 Makita EK8100WS Starter Rope 122164010 Makita EK8100WS Starter Rope €3.19
120
 photo_cameraImage coming soon 928405000 SPRING WASHER €5.43
123
 photo_cameraImage coming soon 908605205 SCREW TORX €2.09
125
 photo_cameraImage coming soon 31166010 STARTING PAWL ASSY €9.72
126
 photo_cameraImage coming soon 920208024 NUT X DCS6401 €2.08
127
 photo_cameraImage coming soon 926208001 SPRING WASHER 8 €1.47
129
 photo_cameraImage coming soon 970310200 POWER CABLE 1m €7.58
130
 photo_cameraImage coming soon 908605205 SCREW TORX €2.09
132
 photo_cameraImage coming soon 965401016 RUBBER SOCKET €2.69
134
 photo_cameraImage coming soon 957604260 SPARK PLUG CAP CPL. €4.51
135
 photo_cameraImage coming soon 965603021 NGK SPARK PLUG BPMR7A €5.56
210
 photo_cameraImage coming soon 394141090 FLYWHEEL ASSY DPC8132 €268.28
211
 photo_cameraImage coming soon 394143030 COIL PC8116 €168.48
223
 photo_cameraImage coming soon 395160600 STARTER DEVICE BLU DPC8132 €86.23
224
 photo_cameraImage coming soon 395160630 HOUSING BLUE €82.71
225
 photo_cameraImage coming soon 181164010 KNOB STARTER €4.06
226
 photo_cameraImage coming soon 181163050 REWIND SPRING €12.33
227
 photo_cameraImage coming soon 395162020 REEL START DPC8132 €24.42
228
 photo_cameraImage coming soon 395118170 AIR GUIDE PLATE DPC8132 €2.61
232
 photo_cameraImage coming soon 394151160 PUMP COVER CPL. PC8116 €23.65
233
 photo_cameraImage coming soon 144150170 SCREW PC8116 €3.74
234
 photo_cameraImage coming soon 395151120 DIAPHRAGM COVER DPC8132 €31.80
235
 photo_cameraImage coming soon 378151220 SCREW PS3400TH €2.61
236
 photo_cameraImage coming soon 957151180 SET DIAPHRAGM / GASKETS PC8116 €34.74
237
 photo_cameraImage coming soon 394151150 PUMP DIAPHRAGM PC8116 €8.27
240
 photo_cameraImage coming soon 394151315 BUSHING PC8116 €4.99
242
 photo_cameraImage coming soon 394151330 PACKING RING PC8116 €7.36
243
 photo_cameraImage coming soon 394151320 THROTTLE SHUTTER PC8116 €4.31
245
 photo_cameraImage coming soon 394151660 SCREW PC8116 €3.74
247
 photo_cameraImage coming soon 394151400 DISC PC8116 €3.74
250
 photo_cameraImage coming soon 394151260 AIR VALVE PC8116 €2.94
254
 photo_cameraImage coming soon 394151470 SCREW L PC8116 €19.31
255
 photo_cameraImage coming soon 21151480 SPRING (L) €2.82
256
 photo_cameraImage coming soon 957151191 CONTROL PARTS SET PC8116 €27.50
257
 photo_cameraImage coming soon 21151180 FUEL FILTER €3.46
258
 photo_cameraImage coming soon 394151040 COVER DISC PC8116 €3.05
259
 photo_cameraImage coming soon 394151510 LOCKING BALL PC8116 €3.74
260
 photo_cameraImage coming soon 1151450 SCREW H DPC8132 €24.42
273
 Carburetor for Power Cutter Makita DPC7331WS 395151015 Carburetor for Power Cutter Makita DPC7331WS €222.30
274
 photo_cameraImage coming soon 395151130 THROTTLE SHAFT.DPC8132 €10.76
275
 photo_cameraImage coming soon 395151170 CHOKE SHAFT DPC8132 €10.76
276
 photo_cameraImage coming soon 395151110 FAST IDLE LEVER DPC8132 €3.74
277
 photo_cameraImage coming soon 395151190 TORSION SPRING DPC8132 €3.05
278
 photo_cameraImage coming soon 119151350 SHAFT CLIP €3.05
281
 photo_cameraImage coming soon 395151140 IDLE STOP SCREW DPC8132 €10.76
284
 photo_cameraImage coming soon 170151290 WASHER DPC8132 €2.03
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

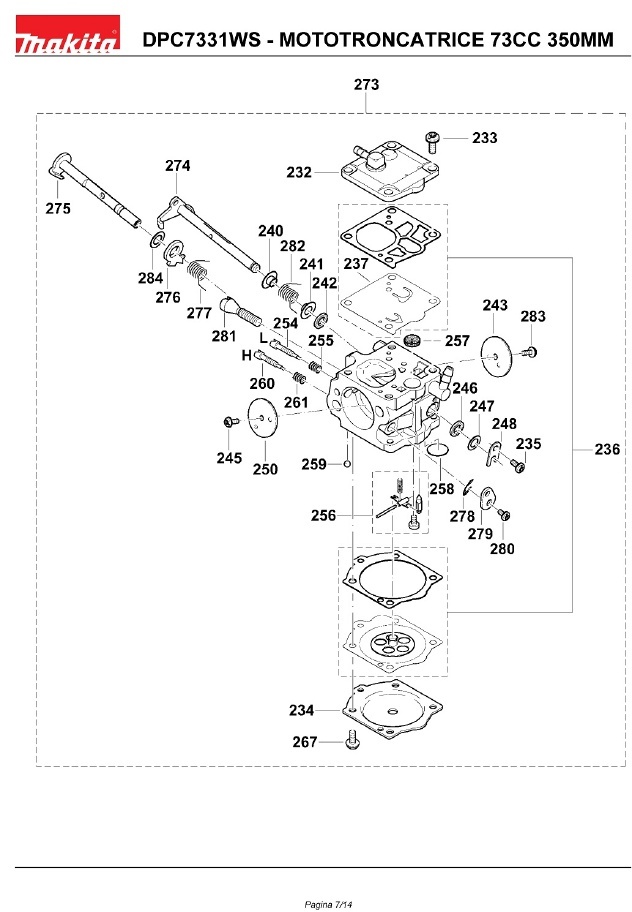

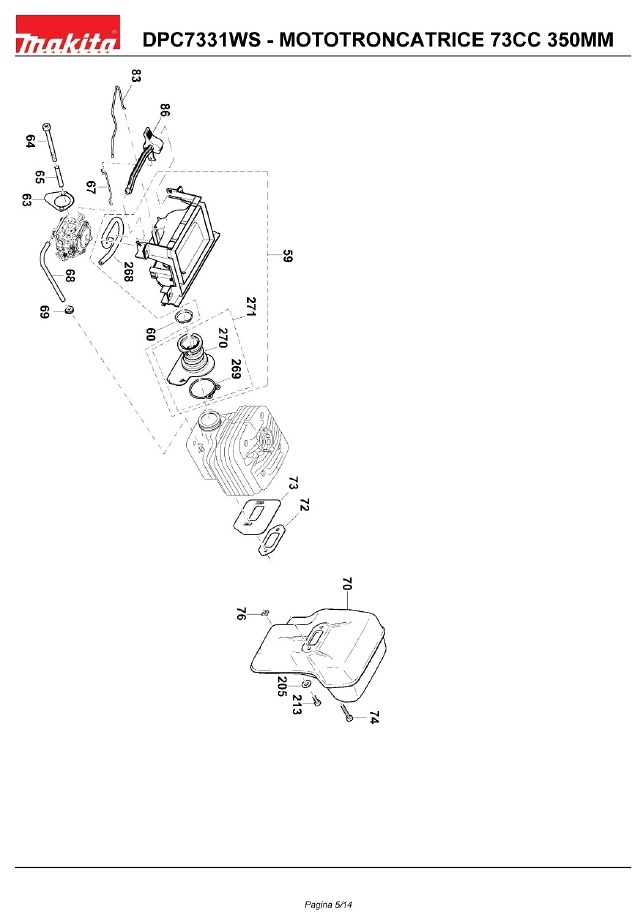

Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
59
 photo_cameraImage coming soon 395171072 BLOCK CONNECTION DPC8132 €34.32
60
 photo_cameraImage coming soon 24131032 SEAL X PIPE ASP.X9000 €8.61
63
 photo_cameraImage coming soon 965518120 SEAL €1.74
64
 photo_cameraImage coming soon 908204555 SCREW M4X55 €2.68
65
 Insulating Hose for Chainsaw Dolmar PS43/38 970502050 Insulating Hose for Chainsaw Dolmar PS43/38 €3.96
67
 photo_cameraImage coming soon 394150042 CHOKE SHAFT €2.61
68
 photo_cameraImage coming soon 965452382 FUEL TUBE 1mt Diam. 3/5 €12.56
69
 photo_cameraImage coming soon 965401016 RUBBER SOCKET €2.69
70
 photo_cameraImage coming soon 394174401 MUFFLER X DPC7301 €95.81
72
 photo_cameraImage coming soon 965531131 SEAL €4.68
73
 photo_cameraImage coming soon 395174110 COVER PLATE €3.98
74
 photo_cameraImage coming soon 908405205 SCREW X DCS6401 €2.82
86
 photo_cameraImage coming soon 957395001 LEVER VALVE ARIADPC8132 €1.34
136
 photo_cameraImage coming soon 395131040 COVER BLACK DPC8132 €19.31
137
 photo_cameraImage coming soon 909005155 SCREW M5X15 DPC8132 €2.03
138
 photo_cameraImage coming soon 395130140 CYLINDER AND PISTON CPL €338.56
139
 photo_cameraImage coming soon 395132050 PISTON X DCS7301 €106.19
140
 photo_cameraImage coming soon 394132020 PISTON RING €27.89
141
 photo_cameraImage coming soon 119132060 CIRCLIP C12X1 €1.40
142
 photo_cameraImage coming soon 395118070 RELIEF VALVE DPC8132 €22.34
143
 photo_cameraImage coming soon 965531160 SEAL CYLINDER DPC7301 €1.74
144
 photo_cameraImage coming soon 908805235 SCREW M5X23 PS4605-5105-5105D €2.34
145
 photo_cameraImage coming soon 394120011 CRANKSHAFT CPL €239.55
146
 photo_cameraImage coming soon 962210121 BEARING ROLLER X DCS6401 €12.49
147
 photo_cameraImage coming soon 939630370 KEY 3X3,7 €1.34
148
 photo_cameraImage coming soon 962900052 RADIAL SEAL 15 / 24X7 €9.20
149
 photo_cameraImage coming soon 962900052 RADIAL SEAL 15 / 24X7 €9.20
150
 photo_cameraImage coming soon 930916160 RETAINING RING 16X1 €1.40
151
 photo_cameraImage coming soon 394245010 RETAINING RING €11.07
152
 photo_cameraImage coming soon 394182020 DISC GUIDE €2.06
153
 photo_cameraImage coming soon 326111731 CARCASS SIDE MAGNET €150.11
154
 photo_cameraImage coming soon 326111740 CARTER SIDE CLUTCH BLACK PC8116 €168.74
155
 photo_cameraImage coming soon 965531111 BASE GASCKET DPC7301 €3.42
156
 photo_cameraImage coming soon 936430160 PIN 3X16 PS350C-420C €2.20
157
 photo_cameraImage coming soon 908005305 SCREW M5x30 (TORX) €2.08
158
 photo_cameraImage coming soon 960102152 BEARING 6202 €21.54
159
 photo_cameraImage coming soon 960102152 BEARING 6202 €21.54
160
 photo_cameraImage coming soon 394223024 DRUM CLUTCH CPL €86.23
161
 photo_cameraImage coming soon 908605145 SCREW TORX €135.74
162
 photo_cameraImage coming soon 1182042 DISC GUIDE PS350C / 420C €3.51
163
 photo_cameraImage coming soon 10180024 CLUTCH CPL €58.28
164
 photo_cameraImage coming soon 24184021 SPRING DRIVING X DCS90 €1.74
165
 photo_cameraImage coming soon 395213670 COVER (BLUE) DPC8132 €12.92
166
 photo_cameraImage coming soon 965300470 BELT KEYSTONE €30.65
168
 photo_cameraImage coming soon 965402870 RUBBER PLATE DPC6401 €23.65
204
 photo_cameraImage coming soon 962300017 NEEDLE BUSH 309 €16.17
205
 photo_cameraImage coming soon 928405000 SPRING WASHER €5.43
213
 photo_cameraImage coming soon 908005125 SCREW M5X12 (TORX) €1.40
268
 photo_cameraImage coming soon 395171022 FUEL PIPE DPC8132 €2.54
269
 photo_cameraImage coming soon 38131070 PIPE X CLAMP €1.74
270
 photo_cameraImage coming soon 394131200 DUCT INTAKE €19.31
271
 photo_cameraImage coming soon 394131210 SUCTION LINE DPC8132 €31.80
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

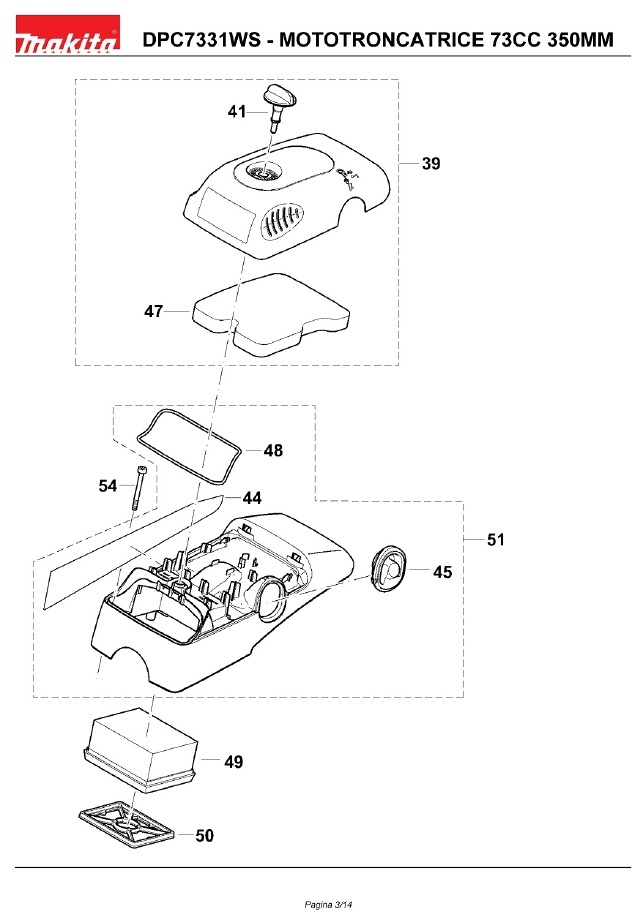

Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
39
 photo_cameraImage coming soon 395118121 COVER FILTER DPC8132 €27.61
41
 photo_cameraImage coming soon 395118010 FIXING DPC8132 €5.77
44
 photo_cameraImage coming soon 980115486 LABEL DPC8132 €5.73
45
 photo_cameraImage coming soon 395118050 COVER RUBBER DPC8132 €2.54
47
 photo_cameraImage coming soon 395173081 PRE FILTER - NEW 424700-2 €14.92
48
 photo_cameraImage coming soon 395118020 SEAL DPC8132 €2.06
49
 photo_cameraImage coming soon 395173011 AIR FILTER €9.72
50
 photo_cameraImage coming soon 395173020 INNER FILTER DPC8132 €6.45
51
 photo_cameraImage coming soon 395118092 AIR HOLDER DPC8132 €38.31
54
 photo_cameraImage coming soon 908605505 SCREW M5X50 DPC7311 €2.46
169
 photo_cameraImage coming soon 394341051 COVER PROTECTION €150.11
170
 photo_cameraImage coming soon 957342011 PROT. HOOD MOUNTING, CPL. €34.74
171
 photo_cameraImage coming soon 394342180 THICKNESS TEFLON DPC7311 €6.69
172
 photo_cameraImage coming soon 394342180 THICKNESS TEFLON DPC7311 €6.69
173
 photo_cameraImage coming soon 965404900 RUBBER RING EXT. DPC6401 €9.61
174
 photo_cameraImage coming soon 965404920 RUBBER RING INT. DPC6401 €9.61
175
 photo_cameraImage coming soon 394342160 PLATE IMPACT DPC73 €12.92
176
 photo_cameraImage coming soon 394342211 RING PRESSURE DPC7311 €38.31
177
 photo_cameraImage coming soon 394211740 CUTTING DEVICE DPC7311 €239.55
178
 photo_cameraImage coming soon 394342190 BOLT CPL. DPC7311 €9.61
179
 photo_cameraImage coming soon 394211091 SCREW PC8116 €4.31
180
 photo_cameraImage coming soon 394228101 AXLE DIAM 20 PC8116 €82.71
180B
 photo_cameraImage coming soon 394228111 SHAFT DIAM. 25.4 MM €58.28
180A
 photo_cameraImage coming soon 394228130 POST D 22,2mm DPC7311 €19.31
183
 photo_cameraImage coming soon 960102176 BEARING X DPC 6200 €9.72
184
 photo_cameraImage coming soon 960102176 BEARING X DPC 6200 €9.72
185
 photo_cameraImage coming soon 326228020 DISC PRESSURE 300-400 €19.31
186
 photo_cameraImage coming soon 326228020 DISC PRESSURE 300-400 €19.31
187
 photo_cameraImage coming soon 994290250 SCREW M8X25 €2.61
188
 photo_cameraImage coming soon 994290250 SCREW M8X25 €2.61
189
 photo_cameraImage coming soon 394228022 SPACER €3.74
190
 photo_cameraImage coming soon 394228022 SPACER €3.74
193
 photo_cameraImage coming soon 929240180 SNAP RING DPC 6200 €2.61
194
 photo_cameraImage coming soon 929240180 SNAP RING DPC 6200 €2.61
197
 photo_cameraImage coming soon 394213032 TENSIONING SCREW PC8116 €2.03
198
 photo_cameraImage coming soon 394342120 PRESSURE SPRING €4.99
199
 photo_cameraImage coming soon 921906004 NUT €2.03
200
 photo_cameraImage coming soon 923208004 NUT €2.20
202
 photo_cameraImage coming soon 394213021 METAL SHEET DPC8132 €4.99
206
 photo_cameraImage coming soon 326341300 KNOB DPC7311 €7.49
207
 photo_cameraImage coming soon 908605165 SCREW M5X16 DPC7311 €2.03
218
 photo_cameraImage coming soon 395211640 COVER CPL DPC7311 GREY €63.07
219
 photo_cameraImage coming soon 395211620 COVER GREY DPC7311 €38.31
221
 photo_cameraImage coming soon 394221050 BELT X PULLEY €51.89

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Power Cutter DPC7331WS

Fix Your Power Cutter DPC7331WS. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of Power Cutter and the respective parts of the code.
Makita DPC7331WS

Power Cutter  Makita DPC7331WS Pag.1
# Part Num. Description
5 394114100 COVER CAP
6 394114070 SPACER
11 10114010 HEAD INLET
12 963601240 FELT
14 965404913 FUEL PIPE PC7314
15 395310600 HOLDER BLACK DCP8132
16 965403535 DAMPER
17 965403535 DAMPER
18 965403535 DAMPER
19 965403535 DAMPER
20 394114281 SHAFT
21 394114281 SHAFT
22 394114281 SHAFT
23 900005078 WASHER DPC8132
24 900005078 WASHER DPC8132
25 913455454 SCREW 5.5 X 45
26 913455454 SCREW 5.5 X 45
27 913455454 SCREW 5.5 X 45
28 913455204 SCREW 5,5X20 (TORX)
29 908305405 SCREW M5X20X40 (TORX)
30 395310020 BLACK HOOD DPC8132
31 394310100 HANDLE
32 394114190 HOLDER HANDLE DPC7311
33 980115215 LABEL MAKITA DPC8112
34 913455454 SCREW 5.5 X 45
35 394114270 HANDLE WITH HOLDER/WHEEL DPC7311
37 394114230 WHEEL HOLDER X IMPDPC7311
38 394114240 SOCKET DPC7311
79 395114600 TANK BLUE CPL DPC8132
80 957117040 THROTTLE MECHANISM DPC8132
81 170175010 VALVE KIT FAN
83 395117010 WINGS JOINT  DPC8132
208 908006355 SCREW M6X35 (TORX)
209 908905165 SCREW M5X16 FOR PS-460/500
214 900005076 WASHER PC8116
215 395114300 FITTING ELBOW DPC8132
216 181114202 TANK CAP DCS4600S / 5000
217 963229036 RING 29,3X3,6 DCS4600S / 5000
Power Cutter  Makita DPC7331WS Pag.2
39 395118121 COVER FILTER DPC8132
41 395118010 JOINT DPC8132
44 980115486 LABEL DPC8132
45 395118050 COVER RUBBER DPC8132
47 395173081 PRE FILTER
48 395118020 SEAL DPC8132
49 395173011 AIR FILTER
50 395173020 INTERNAL FILTER DPC8132
51 395118092 AIR HOLDER DPC8132
54 908605505 SCREW M5x50 DPC7311
Power Cutter  Makita DPC7331WS Pag.3
59 395171072 BLOCK CONNECTION DPC8132
60 24131032 SEAL X PIPE ASP.X9000
63 965518120 SEAL
64 908204555 SCREW M4X55
65 970502050 PIPE INSULATION (M)
67 394150042 FITTING AIR VALVE
68 965452382 FUEL PIPE (M) 3 / 5.5
69 965401016 RUBBER SOCKET
70 394174401 MUFFLER X DPC7301
72 965531131 SEAL
73 395174110 COVER PLATE
74 908405205 SCREW X DCS6401
76 38111060 NUT PANEL X DCS6401
83 395117010 WINGS JOINT DPC8132
86 957395001 LEVER VALVE ARIADPC8132
205 928405000 SPRING WASHER
213 908005125 SCREW M5X12 (TORX)
268 395171022 FUEL PIPE DPC8132
269 38131070 PIPE X CLAMP
270 394131200 DUCT INTAKE
271 394131210 DUCT INTAKE DPC8132
Power Cutter  Makita DPC7331WS Pag.4
232 394151160 PUMP COVER PC8116
233 144150170 SCREW PC8116
234 395151120 COVER DIAPHRAGM DPC8132
235 378151220 SCREW PS3400TH
236 957151180 SET GASKET PC8116
237 394151150 DIAPHRAGM PUMP PC8116
240 394151315 SOCKET PC8116
241 394151315 SOCKET PC8116
242 394151330 RING PC8116
243 394151320 THROTTLE PC8116
245 394151660 SCREW PC8116
246 394151330 RING PC8116
247 394151400 RING PC8116
250 394151260 AIR VALVE PC8116
254 394151470 SCREW L PC8116
255 21151480 SPRING (L)
256 957151191 KIT PARTS CONTROL PC8116
257 21151180 FUEL FILTER
258 394151040 WASHER COVER PC8116
259 394151510 BALL STOP PC8116
260 1151450 SCREW H DPC8132
261 21151480 SPRING (L)
267 378151220 SCREW PS3400TH
273 395151015 CARBURETOR
274 395151130 THROTTLE VALVE SHAFT DPC8132
275 395151170 VALVE AIR SHAFT DPC8132
276 395151110 LEVER DPC8132
277 395151190 SPRING TWIST DPC8132
278 119151350 LOCKWASHER
280 394151660 SCREW PC8116
281 395151140 SCREW MINIMUM DPC8132
284 170151290 WASHER DPC8132
Power Cutter  Makita DPC7331WS Pag.5
84 395146010 SPRING CONTACT DPC8132
85 965605511 CABLE MASS DPC8132
116 929314100 SAFETY RING 14X1
117 122164010 STARTER ROPE DCS9000
120 928405000 SPRING WASHER
123 908605205 SCREW TORX
125 31166010 STARTING PAWL ASSY
126 920208024 NUT X DCS6401
127 926208001 SPRING WASHER 8
129 970310200 POWER CABLE 1m
130 908605205 SCREW TORX
132 965401016 RUBBER SOCKET
134 957604260 HAT FOR SPARK PLUG ASSY
135 965603021 NGK SPARK PLUG BPMR7A
210 394141090 FLYWHEEL DPC8132
211 394143030 COIL PC8116
223 395160600 STARTER DEVICE BLU DPC8132
224 395160630 STARTER COVER ASSY BLU
225 181164010 KNOB STARTER
226 181163050 RECOIL SPRING
227 395162020 REEL START DPC8132
228 395118170 BAFFLE DPC8132
Power Cutter  Makita DPC7331WS Pag.6
136 395131040 COVER BLACK DPC8132
137 909005155 SCREW M5X15 DPC8132
138 395130140 CYLINDER AND PISTON CPL
139 395132050 PISTON X DCS7301
140 394132020 PISTON RING
141 119132060 CIRCLIP C12X1
142 395118070 RELIEF VALVE DPC8132
143 965531160 SEAL CYLINDER DPC7301
144 908805235 SCREW M5X23 PS4605-5105-5105D
145 394120011 CRANKSHAFT CPL
146 962210121 BEARING ROLLER X DCS6401
147 939630370 KEY 3X3,7
148 962900052 RADIAL SEAL 15 / 24X7
149 962900052 RADIAL SEAL 15 / 24X7
150 930916160 RETAINING RING 16X1
151 394245010 RETAINING RING
152 394182020 DISC GUIDE
153 326111731 CARCASS SIDE MAGNET
154 326111740 CARTER SIDE CLUTCH BLACK PC8116
155 965531111 BASE GASCKET DPC7301
156 936430160 PIN 3X16 PS350C-420C
157 908005305 SCREW M5x30 (TORX)
158 960102152 BEARING 6202
159 960102152 BEARING 6202
160 394223024 DRUM CLUTCH CPL
161 908605145 SCREW TORX
162 1182042 DISC GUIDE PS350C / 420C
163 10180024 CLUTCH CPL
164 24184021 SPRING DRIVING X DCS90
165 395213670 COVER (BLUE) DPC8132
166 965300470 BELT KEYSTONE
168 965402870 RUBBER HOLDER DPC6401
204 962300017 ROLLER BEARING 309
Power Cutter  Makita DPC7331WS Pag.7
169 394341051 COVER PROTECTION
170 957342011 MOBILE HOLDER
171 394342180 THICKNESS TEFLON DPC7311
172 394342180 THICKNESS TEFLON DPC7311
173 965404900 RING RUBBER OUTSIDE DPC6401
174 965404920 RING RUBBER INTERNAL DPC6401
175 394342160 PLATE IMPACT DPC73
176 394342211 RING PRESSURE DPC7311
177 394211740 CUTTING DEVICE DPC7311
178 394342190 PIN DPC7311
179 394211091 SCREW PC8116
180 394228101 SHAFT DIAM 20 PC8116
180A 394228130 POST D 22,2mm DPC7311
180B 394228111 SHAFT DIAM. 25.4 MM
182 963209020 RING 9X2 DPC7311
183 960102176 BEARING X DPC 6200
184 960102176 BEARING X DPC 6200
185 326228020 DISC PRESSURE 300-400
186 326228020 DISC PRESSURE 300-400
187 994290250 SCREW M8X25
188 994290250 SCREW M8X25
189 394228022 Spacers
190 394228022 Spacers
193 929240180 RING SAFETY DPC 6200
194 929240180 RING SAFETY DPC 6200
197 394213032 ADJUSTING SCREW PC8116
198 394342120 SPRING PRESSURE
199 921906004 NUT
200 923208004 NUT
202 394213021 HOLDER DPC8132
206 326341300 KNOB DPC7311
207 908605165 SCREW M5X16 DPC7311
218 395211640 COVER CPL DPC7311 GREY
219 395211620 COVER GREY DPC7311
221 394221050 BELT X PULLEY
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita DPC7331WS
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita DPC7331WS

Diagram Makita DPC7331WS

Download (1.43MB)

You might also like

Insulating Hose for Chainsaw Dolmar PS43/38
Makita SKU: 970502050
Insulating Hose for Chainsaw Dolmar PS43/38
Insulating Hose for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Insulating Hose Lenght 1 Mt, for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the following products: - PS43/38 - CHAINSAW...
Last items in stock €3.96
Details
Carburetor for Power Cutter Makita DPC7331WS
Makita SKU: 395151015
Carburetor for Power Cutter Makita DPC7331WS
Carburetor for Power Cutter Makita DPC7331WS Genuine spare part Makita, Carburetor for Petrol Power Cutter DPC7331WS - DPC7331TR - DPC8132 - PC8116D. Part for the following products: - DPC7331TR - POWER CUTTER 73CC -  DPC7331WS -...
Last items in stock €222.30
Details
Makita EK8100WS Starter Rope
Makita SKU: 122164010
Makita EK8100WS Starter Rope
Starter Rope for Power Cutter Makita EK8100WS Genuine spare part Makita, Starter Rope (1Mt) for Petrol Power Cutter EK8100WS.. Part for the following products: - DPC7331WS - POWER CUTTER 73CC 350MM -  EK8100WS - POWER...
AVAILABLE €3.19
Details
Comments (0)
