Makita Spare Parts for Power Cutters EK8100WS

Name: Makita Spare Parts for Power Cutters EK8100WS
Brand: Makita
SKU: Makita EK8100WS
Availability: InStock

SKU: Makita EK8100WS

€2.76

VAT included

Makita Spare Parts for Power Cutter EK8100WS

We have the original Spares MAKITA for Power Cutter EK8100WS, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Power Cutter EK8100WS. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

158 spare parts

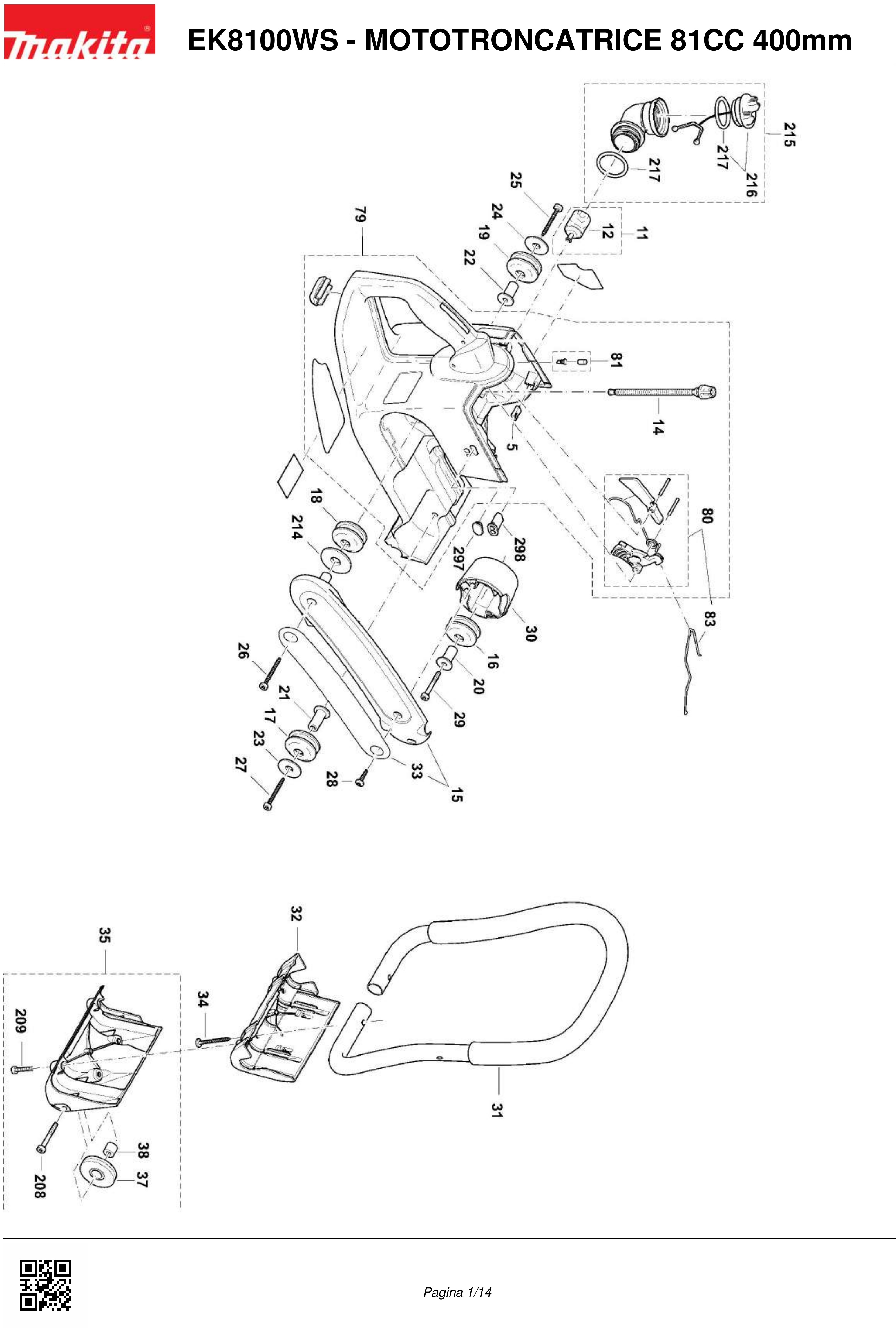

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
5	Image coming soon	394114101 SCREW PLUG	€2.61
11		163532-9 Makita EK8100WS Fuel Filter	€6.76
12		010114020 Makita EK8100WS Repair Kit Filter	€39.14
14	Image coming soon	965404913 FUEL HOSE PC7314	€3.05
15	Image coming soon	395310600 BRACKET BLACK DCP8132	€18.45
16	Image coming soon	424695-9 RUBBER BUFFER	€2.94
20	Image coming soon	319268-0 AXLE	€2.51
23	Image coming soon	346870-6 WASHER DPC8132	€1.38
25	Image coming soon	266687-0 SCREW 5,5X45	€1.39
28		913455204 Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S	€2.15
29	Image coming soon	266606-6 SCREW M5X40 PS32CTLC	€1.40
30	Image coming soon	395310020 POT BLACK DPC8132	€6.45
31	Image coming soon	143097-7 FRONT HANDLE	€30.57
32	Image coming soon	395250020 LOWER SUPPORT	€27.50
33	Image coming soon	980115215 MAKITA LABEL DPC8112	€6.45
35	Image coming soon	394114272 STAND WITH WHEELS	€109.79
37	Image coming soon	394114230 WHEEL X SUPPORT IMP DPC7311	€18.45
38	Image coming soon	394114240 BUSHING DPC7311	€2.61
79	Image coming soon	395114603 BLUE TANK	€212.84
80	Image coming soon	455820-1 THROTTLE LEVER X DCS9000	€7.58
81	Image coming soon	170175010 VENT VALVE KSET	€7.58
83	Image coming soon	395117011 THROTTLE LINKAGE	€3.74
208	Image coming soon	266660-0 SCREW M6X35	€1.41
209	Image coming soon	908905165 SCREW M5X16 FOR PS-460/500	€2.14
214	Image coming soon	346871-4 WASHER PC8116	€1.32
215	Image coming soon	395114300 ANGULAR UNION ASSEMBLYDPC8132	€18.45
216	Image coming soon	168823-3 TANK CAP PS32CTLC	€2.73
217	Image coming soon	213080-9 RING 29.5 PS32CTLC	€5.43
297	Image coming soon	395114040 PLUG	€2.03
298	Image coming soon	170118031 ADJUSTING GUIDE H / L PS3410TH	€3.74

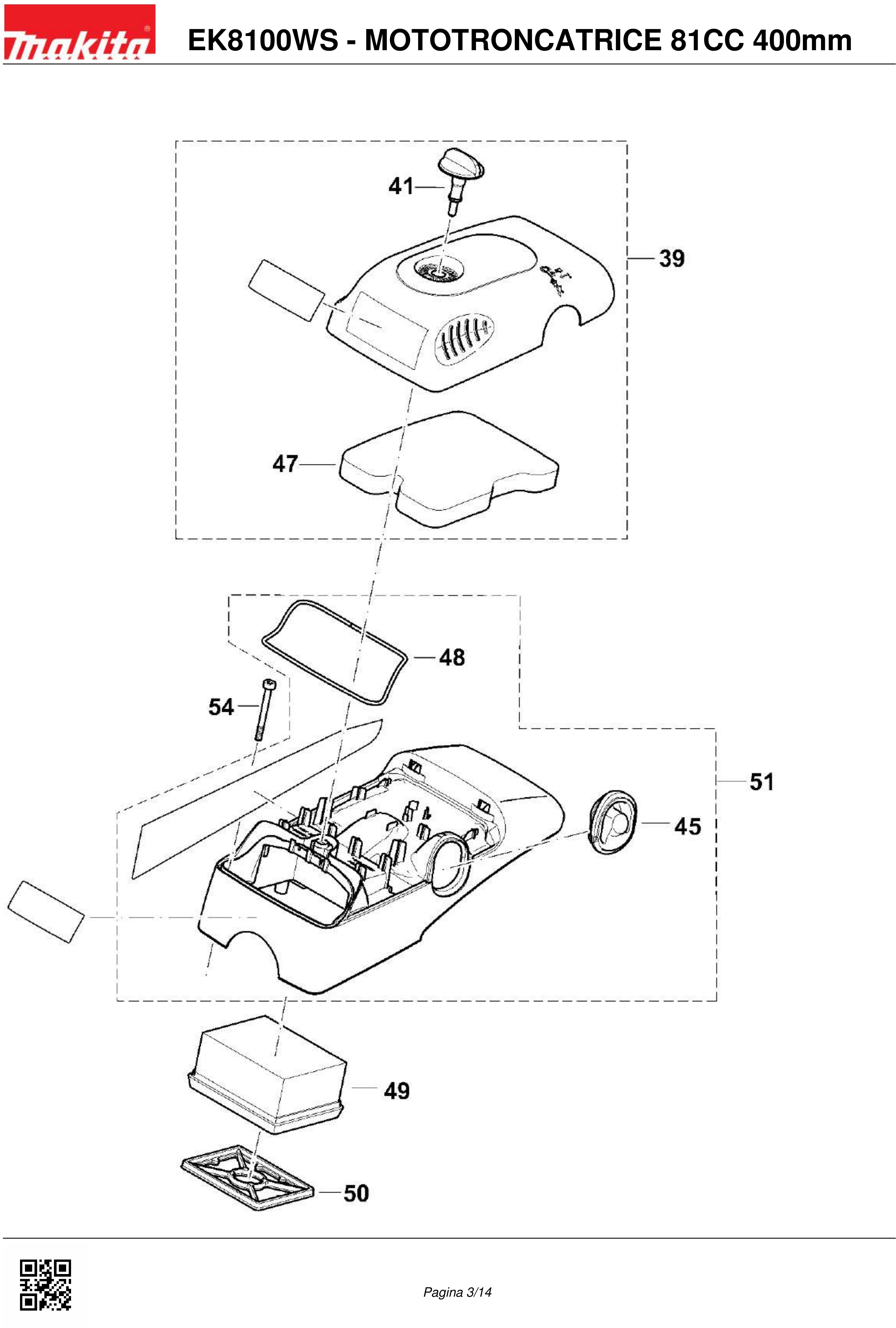

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
39	Image coming soon	395118122 FILTER COVER	€34.74
41	Image coming soon	395118010 FIXING DPC8132	€5.77
45	Image coming soon	424703-6 RUBBER COVER DPC8132	€3.60
47	Image coming soon	395173081 PRE FILTER - NEW 424700-2	€14.92
49		424701-0 Makita EK8100 Air Filter	€14.77
50	Image coming soon	395173020 INNER FILTER DPC8132	€6.45
51	Image coming soon	123308-6 HOOD CPL. BLACK	€73.67
54	Image coming soon	908605505 SCREW M5X50 DPC7311	€2.46

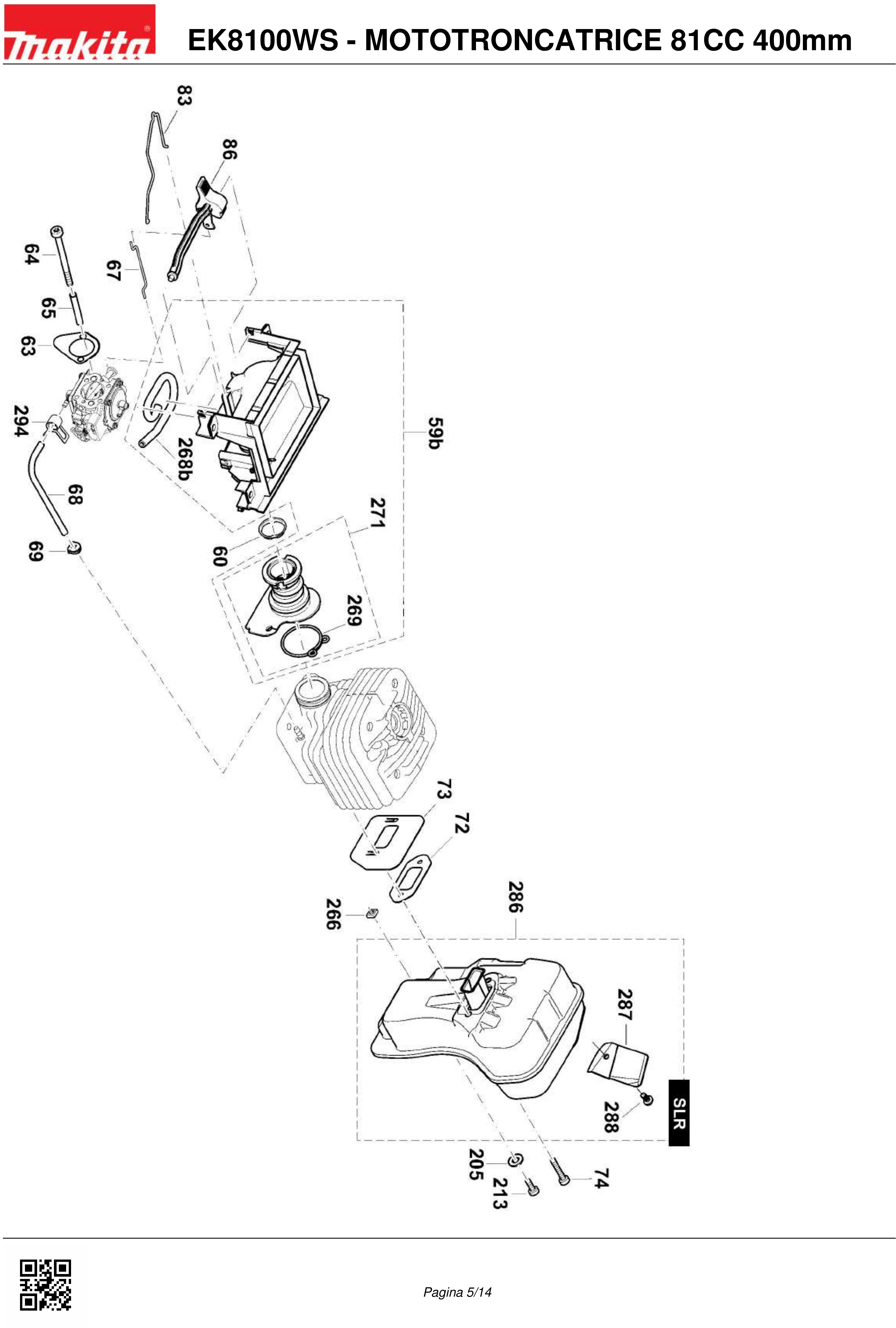

Page 3 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
59B	Image coming soon	123310-9 INTAKE MANIFOLD CPL. DPC8132	€30.57
60	Image coming soon	346867-5 GUIDE RING X 9000	€1.40
63	Image coming soon	346874-8 GASKET	€1.32
64	Image coming soon	908204555 SCREW M4X55	€2.68
65		970502050 Insulating Hose for Chainsaw Dolmar PS43/38	€3.96
67	Image coming soon	394150042 CHOKE SHAFT	€2.61
68	Image coming soon	965452382 FUEL TUBE 1mt Diam. 3/5	€12.56
69	Image coming soon	424696-7 RUBBER GROMMET	€2.69
72	Image coming soon	346876-4 GASKET X PS6100	€1.40
73	Image coming soon	346868-3 COOLING PLATE	€5.55
74	Image coming soon	266960-8 SCREW X DCS6401	€1.43
86	Image coming soon	455808-1 CHOKE SHAFT	€1.32
205	Image coming soon	267821-5 SPRING WASHER 5	€1.47
213	Image coming soon	266946-2 SCREW M5X12 (TORX)	€1.40
266	Image coming soon	264108-6 SQUARE NUT X DCS6401	€1.36
269	Image coming soon	038131070 SPRING CLAMP X TUBE	€2.68
271	Image coming soon	394131210 SUCTION LINE DPC8132	€31.80
286	Image coming soon	395174200 MUFFLER	€73.67
294	Image coming soon	324616-0 TIE X DCS230T - PS220TH	€3.95

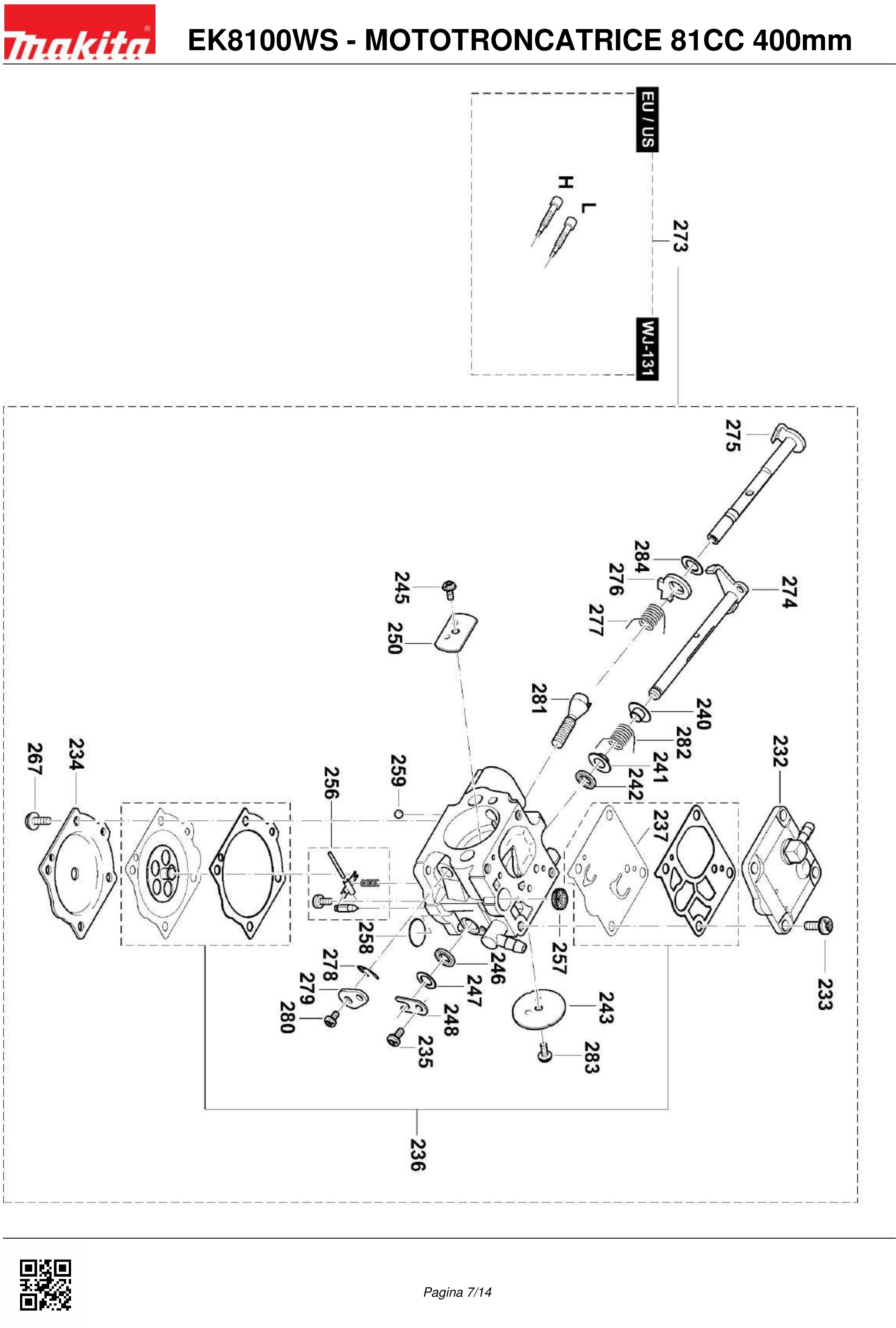

Page 4 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
232	Image coming soon	394151160 PUMP COVER CPL. PC8116	€23.65
233	Image coming soon	144150170 SCREW PC8116	€3.74
234	Image coming soon	395151120 DIAPHRAGM COVER DPC8132	€31.80
235	Image coming soon	378151220 SCREW PS3400TH	€2.61
236	Image coming soon	957151180 SET DIAPHRAGM / GASKETS PC8116	€34.74
237	Image coming soon	394151150 PUMP DIAPHRAGM PC8116	€8.27
240	Image coming soon	394151315 BUSHING PC8116	€4.99
242	Image coming soon	394151330 PACKING RING PC8116	€7.36
243	Image coming soon	394151320 THROTTLE SHUTTER PC8116	€4.31
245	Image coming soon	394151660 SCREW PC8116	€3.74
247	Image coming soon	394151400 DISC PC8116	€3.74
248	Image coming soon	108151350 SHAFT CLIP	€3.84
256	Image coming soon	957151191 CONTROL PARTS SET PC8116	€27.50
257	Image coming soon	021151180 SCREEN	€3.85
258	Image coming soon	394151040 COVER DISC PC8116	€3.05
259	Image coming soon	394151510 LOCKING BALL PC8116	€3.74
273	Image coming soon	161315-1 CARBURETOR	€82.71
274	Image coming soon	395151130 THROTTLE SHAFT.DPC8132	€10.76
275	Image coming soon	395151170 CHOKE SHAFT DPC8132	€10.76
276	Image coming soon	395151110 FAST IDLE LEVER DPC8132	€3.74
277	Image coming soon	395151190 TORSION SPRING DPC8132	€3.05
278	Image coming soon	119151350 SHAFT CLIP	€3.05
281	Image coming soon	395151140 IDLE STOP SCREW DPC8132	€10.76
284	Image coming soon	170151290 WASHER DPC8132	€2.03

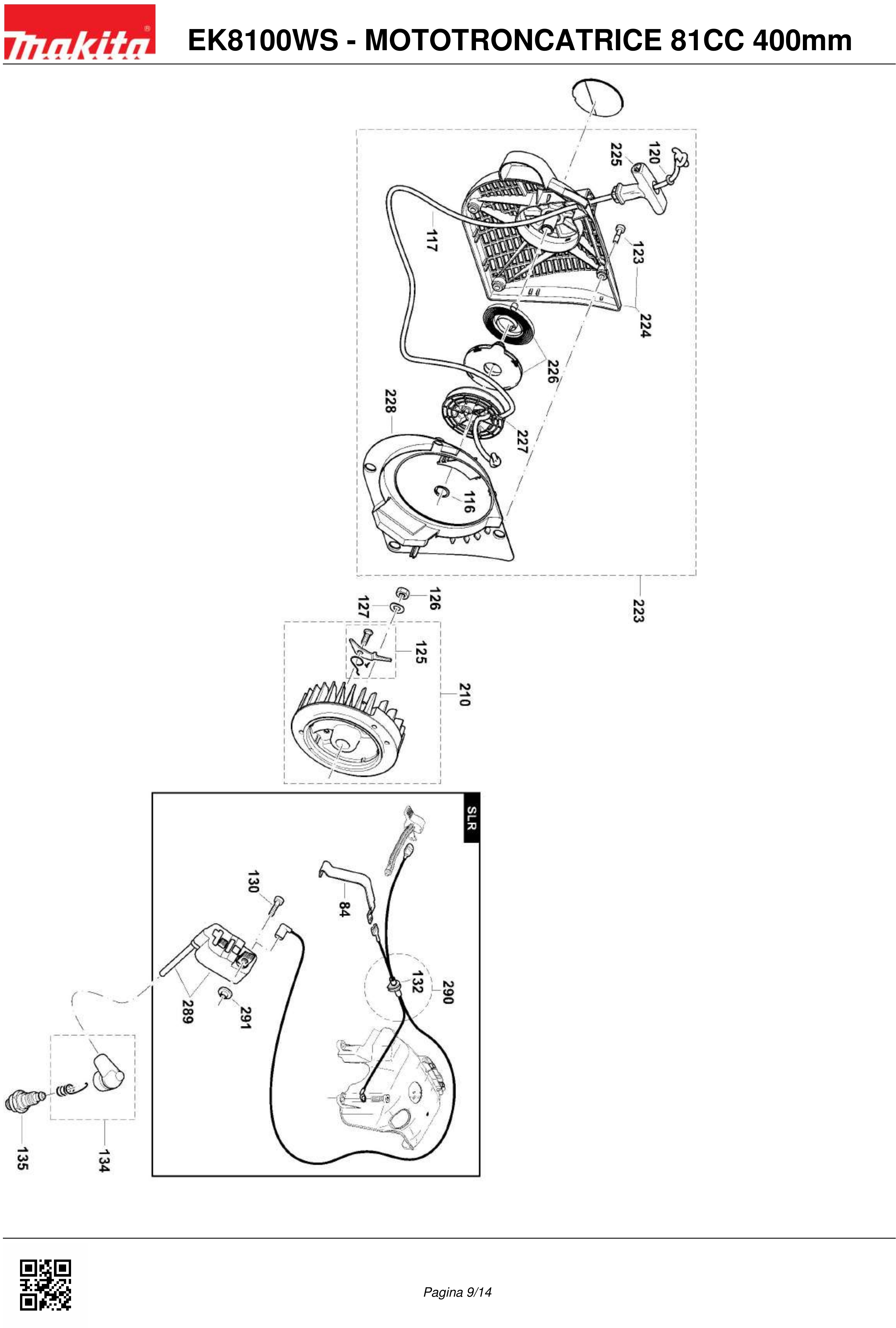

Page 5 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
84	Image coming soon	346869-1 CONTACT SPRING	€1.95
116	Image coming soon	929314100 SNAP RING 14X1	€1.40
117		122164010 Makita EK8100WS Starter Rope	€3.19
123	Image coming soon	266607-4 SCREW M5X20 PS32CTLC	€1.43
125	Image coming soon	031166010 STARTER RATCHET CPL.	€14.34
126	Image coming soon	920208024 NUT X DCS6401	€2.08
127	Image coming soon	926208001 SPRING WASHER 8	€1.47
134	Image coming soon	957604260 SPARK PLUG CAP CPL.	€4.51
135	Image coming soon	168648-5 SPARK PLUG X RBC350-RBC420-PB500R	€6.05
210	Image coming soon	394141090 FLYWHEEL ASSY DPC8132	€268.28
223	Image coming soon	123357-3 STARTER ASSY. BLUE DPC8132	€37.74
224	Image coming soon	395160630 HOUSING BLUE	€82.71
225		452458-3 Makita EK8100 Starter Grip	€5.20
226	Image coming soon	181163050 REWIND SPRING	€12.33
227	Image coming soon	143098-5 CABLE DRUM COMPLETE DPC8132	€22.74
228	Image coming soon	395118170 AIR GUIDE PLATE DPC8132	€2.61
289	Image coming soon	161310-1 IGNITION COIL	€70.81
290	Image coming soon	965605514 CABLE WITH PLUG	€8.27
291	Image coming soon	195143031 ISOLATING WASHER	€9.01

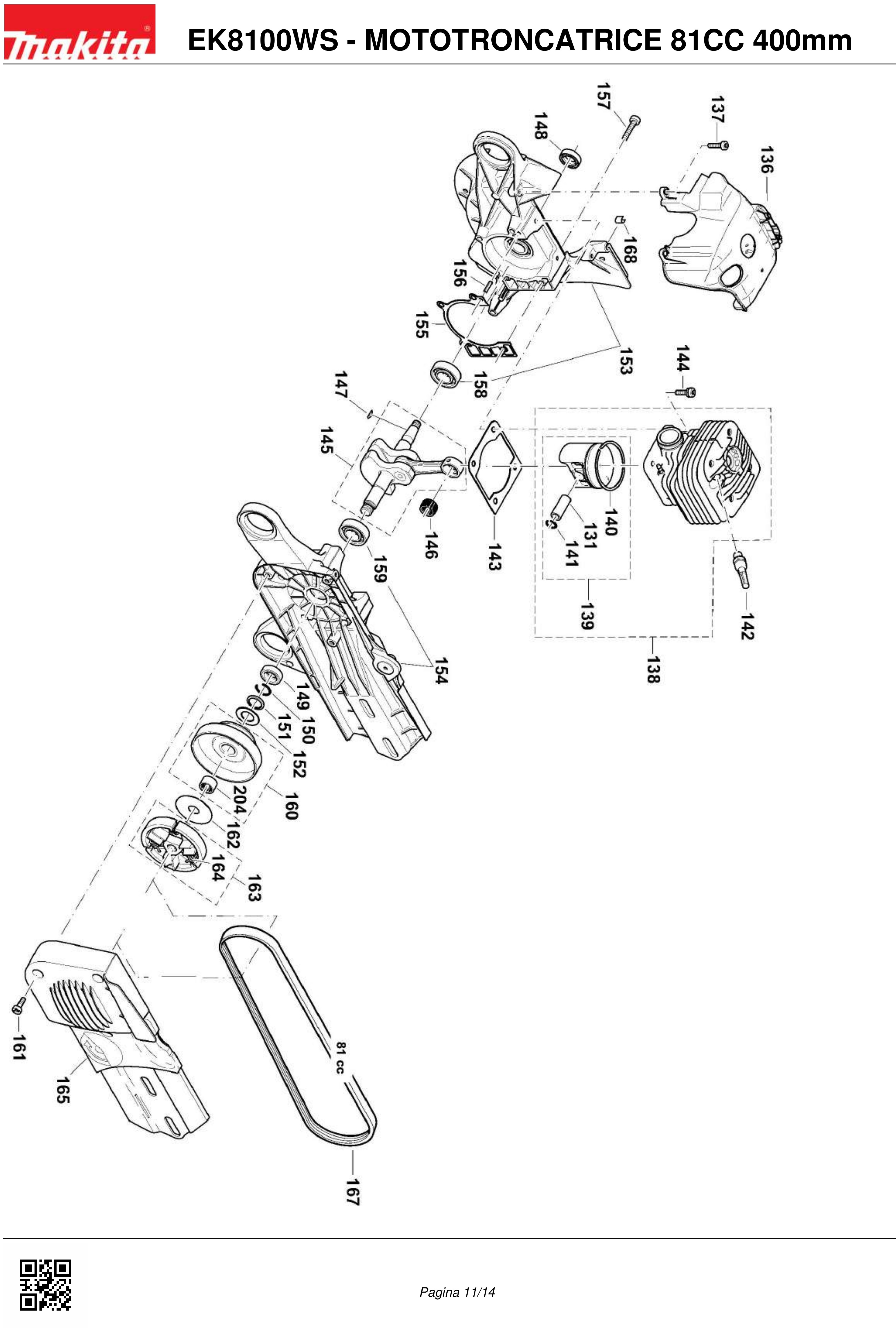

Page 6 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
131	Image coming soon	038132040 PISTON PIN X DCS6401	€28.32
137	Image coming soon	909005155 SCREW M5X15 DPC8132	€2.03
138		135794-9 Cylinder + Piston Cpl. for Power Cutter Makita EK8100	€199.00
139	Image coming soon	328132100 PISTON D52	€238.85
140	Image coming soon	038132020 PISTON RING X DCS6401	€21.55
141	Image coming soon	038132080 PISTON RING	€2.08
142	Image coming soon	455804-9 DECOMPRESSION VALVE DPC8132P16	€15.55
143		346873-0 Cylinder Gasket for Power Cutter Makita EK8100	€2.66
144	Image coming soon	266473-9 SCREW M5X23 PS4605-5105-5105D	€1.47
145	Image coming soon	143109-6 CRANKSHAFT	€57.54
146		212133-1 Piston Pin Bearing for Power Cutter Makita EK8100	€11.28
147	Image coming soon	254042-8 WOODRUFF-KEY 3X3,7	€5.93
148	Image coming soon	213814-0 RADIAL RING 15 / 24X7	€3.13
150	Image coming soon	234366-8 SNAP RING A 1616X1	€2.50
151	Image coming soon	346872-2 SNAP RING	€3.13
153	Image coming soon	395111110 CRANKC., MAG. SIDE	€122.33
154	Image coming soon	143225-4 CRANKCASE CS CPL	€229.58
155	Image coming soon	346877-2 CRANK CASE GASKET DPC7301 P02	€1.95
156	Image coming soon	258038-1 CLAMPING PIN	€1.47
157	Image coming soon	266945-4 SCREW M5X30 (TORX)	€1.40
158	Image coming soon	211154-0 BALL BEARING 6202	€6.29
160	Image coming soon	161318-5 CLUTCH DRUM PC8116	€30.57
161	Image coming soon	266947-0 H.L. SOCKET HEAD BOLT M5X14	€1.40
162	Image coming soon	267389-1 FLAT WASHER 12 PS350C / 4200	€4.06
163	Image coming soon	123305-2 CLUTCH CPL	€20.12
164	Image coming soon	181184020 TENSION SPRING	€2.69
165	Image coming soon	455832-4 CLUTCH COVER (BLUE) DPC8132	€17.96
167		424711-7 Poli-V Belt for Power Cutter Makita EK8100	€61.04
168	Image coming soon	965402870 RUBBER PLATE DPC6401	€23.65
204	Image coming soon	962300017 NEEDLE BUSH 309	€16.17

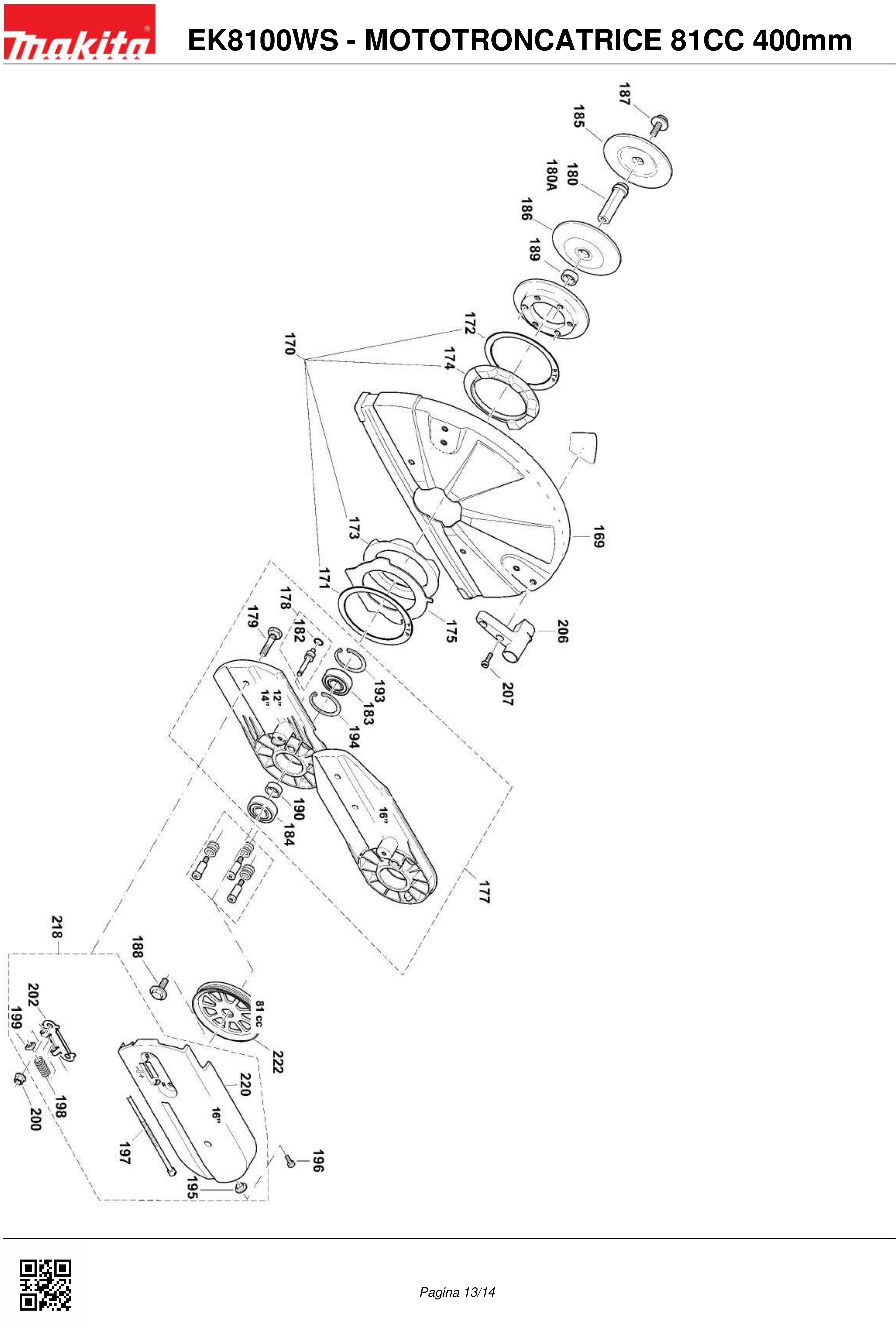

Page 7 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
169	Image coming soon	326341010 PROTECTION HOOD SILVER PC8116	€339.56
170	Image coming soon	957342011 PROT. HOOD MOUNTING, CPL.	€34.74
171	Image coming soon	442169-8 CLUTCH DISC	€3.05
173	Image coming soon	965404900 RUBBER RING EXT. DPC6401	€9.61
174	Image coming soon	965404920 RUBBER RING INT. DPC6401	€9.61
175	Image coming soon	346455-8 PLATE	€7.29
177	Image coming soon	326211740 CUTTING DEVICE ASSY. PC8116	€384.82
178	Image coming soon	394342190 BOLT CPL. DPC7311	€9.61
179	Image coming soon	394211091 SCREW PC8116	€4.31
180A	Image coming soon	326503-9 SHAFT DIAM. 25.4MM	€10.35
180	Image coming soon	394228101 AXLE DIAM 20 PC8116	€82.71
182	Image coming soon	213625-3 RING 9	€1.36
183		211490-4 Ball Bearing 6203LLU for Makita SG150-2	€10.49
185	Image coming soon	224443-4 FLANGE 102	€9.61
187	Image coming soon	994290250 SCREW M8X25	€2.61
189	Image coming soon	394228022 SPACER	€3.74
193	Image coming soon	929240180 SNAP RING DPC 6200	€2.61
195	Image coming soon	326211020 BUSHING PC8116	€2.61
196	Image coming soon	908905125 SCREW M5X12 PC8116-DPC8132	€2.03
197	Image coming soon	394213032 TENSIONING SCREW PC8116	€2.03
198	Image coming soon	394342120 PRESSURE SPRING	€4.99
199	Image coming soon	921906004 NUT	€2.03
200		264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45	€1.48
202	Image coming soon	394213021 METAL SHEET DPC8132	€4.99
206	Image coming soon	326341301 GRIP FOR PROTECTIVE HOOD	€10.76
207	Image coming soon	908605165 SCREW M5X16 DPC7311	€2.03
218	Image coming soon	455831-6 MAKITA BLUE COVER DPC8132	€10.76
222	Image coming soon	222185-4 BELT PULLEY DPC8132	€70.81

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Power Cutters EK8100WS

We have the original Spares MAKITA for Power Cutter EK8100WS, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of Power Cutter and the respective parts of the code.

EK8100WS - POWER CUTTER 81CC 400mm pag.1
#	Part Num.	Description
5	394114101	SCREW PLUG
11	163532-9	FILTER
12	010114020	REPAIR KIT FILTER HP-450
14	965404913	FUEL HOSE PC7314
15	395310600	BRACKET BLACK DCP8132
16	424695-9	RUBBER BUFFER
17	424695-9	RUBBER BUFFER
18	424695-9	RUBBER BUFFER
19	424695-9	RUBBER BUFFER
20	319268-0	AXLE
21	319268-0	AXLE
22	319268-0	AXLE
23	346870-6	WASHER DPC8132
24	346870-6	WASHER DPC8132
25	266687-0	SCREW 5,5X45
26	266687-0	SCREW 5,5X45
27	266687-0	SCREW 5,5X45
28	913455204	SCREW 5,5X20 (TORX)
29	266606-6	SCREW M5X40 PS32CTLC
30	395310020	POT BLACK DPC8132
31	143097-7	FRONT HANDLE
32	395250020	LOWER SUPPORT
33	980115215	MAKITA LABEL DPC8112
34	266687-0	SCREW 5,5X45
35	394114272	STAND WITH WHEELS
37	394114230	WHEEL X SUPPORT IMP DPC7311
38	394114240	BUSHING DPC7311
79	395114603	BLUE TANK
80	455820-1	THROTTLE LEVER X DCS9000
81	170175010	VENT VALVE KSET
83	395117011	THROTTLE LINKAGE
208	266660-0	SCREW M6X35
209	908905165	SCREW M5X16 FOR PS-460/500
214	346871-4	WASHER PC8116
215	395114300	ANGULAR UNION ASSEMBLYDPC8132
216	168823-3	TANK CAP PS32CTLC
217	213080-9	RING 29.5 PS32CTLC
297	395114040	PLUG
298	170118031	ADJUSTING GUIDE H / L PS3410TH
EK8100WS - POWER CUTTER 81CC 400mm pag.2
39	395118122	FILTER COVER
41	395118010	FIXING DPC8132
45	424703-6	RUBBER COVER DPC8132
47	395173081	PRE FILTER - NEW 424700-2
48	424697-5	PACKING RING
49	424701-0	AIR FILTER
50	395173020	INNER FILTER DPC8132
51	123308-6	HOOD CPL. BLACK
54	908605505	SCREW M5X50 DPC7311
EK8100WS - POWER CUTTER 81CC 400mm pag.3
59B	123310-9	INTAKE MANIFOLD CPL. DPC8132
60	346867-5	GUIDE RING X 9000
63	346874-8	GASKET
64	908204555	SCREW M4X55
65	970502050	INSULATING HOSE (M)
67	394150042	CHOKE SHAFT
68	965452382	FUEL TUBE 1mt Diam. 3/5
69	424696-7	RUBBER GROMMET
72	346876-4	GASKET X PS6100
73	346868-3	COOLING PLATE
74	266960-8	SCREW X DCS6401
83	395117011	CYLINDRICAL PIN
86	455808-1	CHOKE SHAFT
205	267821-5	SPRING WASHER 5
213	266946-2	SCREW M5X12 (TORX)
266	264108-6	SQUARE NUT X DCS6401
268B	395171025	FUEL HOSE
269	038131070	SPRING CLAMP X TUBE
271	394131210	SUCTION LINE DPC8132
286	395174200	MUFFLER
287	395174140	SPARK ARREST SCREEN
288	913242100	SCREW 4X9.7
294	324616-0	HOSE CLAMP X DCS230T - PS220TH
EK8100WS - POWER CUTTER 81CC 400mm pag.4
232	394151160	PUMP COVER CPL. PC8116
233	144150170	SCREW PC8116
234	395151120	DIAPHRAGM COVER DPC8132
235	378151220	SCREW PS3400TH
236	957151180	SET DIAPHRAGM / GASKETS PC8116
237	394151150	PUMP DIAPHRAGM PC8116
240	394151315	BUSHING PC8116
241	394151315	BUSHING PC8116
242	394151330	PACKING RING PC8116
243	394151320	THROTTLE SHUTTER PC8116
245	394151660	SCREW PC8116
246	394151330	PACKING RING PC8116
247	394151400	DISC PC8116
248	108151350	SHAFT CLIP
250	395151265	CHOKE SHUTTER
256	957151191	CONTROL PARTS SET PC8116
257	021151180	SCREEN
258	394151040	COVER DISC PC8116
259	394151510	LOCKING BALL PC8116
267	378151220	SCREW PS3400TH
273	161315-1	CARBURETOR
274	395151130	THROTTLE SHAFT.DPC8132
275	395151170	CHOKE SHAFT DPC8132
276	395151110	FAST IDLE LEVER DPC8132
277	395151190	TORSION SPRING DPC8132
278	119151350	SHAFT CLIP
279	395151180	CHOKE LEVER DPC8132
280	394151660	SCREW PC8116
281	395151140	IDLE STOP SCREW DPC8132
282	395151150	TORSION SPRING DPC8132
283	394151660	SCREW PC8116
284	170151290	WASHER DPC8132
EK8100WS - POWER CUTTER 81CC 400mm pag.5
84	346869-1	CONTACT SPRING
116	929314100	SNAP RING 14X1
117	122164010	STARTER ROPE X DCS9000
120	267821-5	SPRING WASHER
123	266607-4	SCREW M5X20 PS32CTLC
125	031166010	STARTER RATCHET CPL.
126	920208024	NUT X DCS6401
127	926208001	SPRING WASHER 8
130	266607-4	SCREW M5X20 PS32CTLC
132	424696-7	RUBBER GROMMET
134	957604260	SPARK PLUG CAP CPL.
135	168648-5	SPARK PLUG X RBC350-RBC420-PB500R
210	394141090	FLYWHEEL ASSY DPC8132
223	123357-3	STARTER ASSY. BLUE DPC8132
224	395160630	HOUSING BLUE
225	452458-3	STARTER GRIP
226	181163050	REWIND SPRING
227	143098-5	CABLE DRUM COMPLETE DPC8132
228	395118170	AIR GUIDE PLATE DPC8132
289	161310-1	IGNITION COIL
290	965605514	CABLE WITH PLUG
291	195143031	ISOLATING WASHER
EK8100WS - POWER CUTTER 81CC 400mm pag.6
131	038132040	PISTON PIN X DCS6401
136	395131041	COOLING HOOD
137	909005155	SCREW M5X15 DPC8132
138	135794-9	CYLINDER / PISTON CPL. D52
139	328132100	PISTON D52
140	038132020	PISTON RING X DCS6401
141	038132080	PISTON RING
142	455804-9	DECOMPRESSION VALVE DPC8132P16
143	346873-0	CYLINDER GASKET DPC7301
144	266473-9	SCREW M5X23 PS4605-5105-5105D
145	143109-6	CRANKSHAFT
146	212133-1	PISTON PIN BEARING 12X16X13 X DCS6401
147	254042-8	WOODRUFF-KEY 3X3,7
148	213814-0	RADIAL RING 15 / 24X7
149	213814-0	RADIAL RING 15 / 24X7
150	234366-8	SNAP RING A 1616X1
151	346872-2	SNAP RING
152	346866-7	GUIDE DISK
153	395111110	CRANKC., MAG. SIDE
154	143225-4	CRANKCASE CS CPL
155	346877-2	CRANK CASE GASKET DPC7301 P02
156	258038-1	CLAMPING PIN
157	266945-4	SCREW M5X30 (TORX)
158	211154-0	BALL BEARING 6202
159	211154-0	BALL BEARING 6202
160	161318-5	CLUTCH DRUM PC8116
161	266947-0	H.L. SOCKET HEAD BOLT M5X14
162	267389-1	FLAT WASHER 12 PS350C / 4200
163	123305-2	CLUTCH CPL
164	181184020	TENSION SPRING
165	455832-4	CLUTCH COVER (BLUE) DPC8132
167	424711-7	POLI-V BELT 400-80 PC8116
168	965402870	RUBBER PLATE DPC6401
204	962300017	NEEDLE BUSH 309
EK8100WS - POWER CUTTER 81CC 400mm pag.7
169	326341010	PROTECTION HOOD SILVER PC8116
170	957342011	PROT. HOOD MOUNTING, CPL.
171	442169-8	SLIDING DISC
172	442169-8	SLIDING DISC
173	965404900	RUBBER RING EXT. DPC6401
174	965404920	RUBBER RING INT. DPC6401
175	346455-8	IMPACT PLATE
177	326211740	CUTTING DEVICE ASSY. PC8116
178	394342190	BOLT CPL. DPC7311
179	394211091	SCREW PC8116
180	394228101	AXLE DIAM 20 PC8116
180A	326503-9	SHAFT DIAM. 25.4MM
182	213625-3	RING 9
183	211490-4	BALL BEARING 6203LLU X SG150-2
184	211490-4	BALL BEARING 6203LLU X SG150-2
185	224443-4	FLANGE 102
186	224443-4	FLANGE 102
187	994290250	SCREW M8X25
188	994290250	SCREW M8X25
189	394228022	SPACER
190	394228022	SPACER
193	929240180	SNAP RING DPC 6200
194	929240180	SNAP RING DPC 6200
195	326211020	BUSHING PC8116
196	908905125	SCREW M5X12 PC8116-DPC8132
197	394213032	TENSIONING SCREW PC8116
198	394342120	PRESSURE SPRING
199	921906004	NUT
200	264055-1	NUT M8
202	394213021	METAL SHEET DPC8132
206	326341301	GRIP FOR PROTECTIVE HOOD
207	908605165	SCREW M5X16 DPC7311
218	455831-6	MAKITA BLUE COVER DPC8132
220	455831-6	MAKITA BLUE COVER DPC8132
222	222185-4	BELT PULLEY DPC8132

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita EK8100WS

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Diagram Makita EK8100WS

Download (605.89KB)

Makita SKU: 211490-4

Ball Bearing 6203LLU for Makita SG150-2

Ball Bearing 6203LLU for Makita SG150-2 Genuine part Makita, Ball Bearing 6203LLU for SG150-2. Part for the following products: - Angle Grinder 9069 - Angle Grinder GA9030R - Angle Grinder GA9040R - Angle...

AVAILABLE €10.49

Details

Makita SKU: 970502050

Insulating Hose for Chainsaw Dolmar PS43/38

Insulating Hose for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Insulating Hose Lenght 1 Mt, for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the following products: - PS43/38 - CHAINSAW...

Last items in stock €3.96

Details

Makita SKU: 913455204

Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S

Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S Genuine part Dolmar, Screw 5,5X20 (TORX) for Chainsaws Dolmar PS4600S-5000 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45 Part for the following products: -...

AVAILABLE €2.15

Details

Makita SKU: 135794-9

Cylinder + Piston Cpl. for Power Cutter Makita EK8100

Cylinder + Piston Cpl. for Power Cutter Makita EK8100 Genuine spare part Makita, Cylinder + Piston Cpl. for Petrol Power Cutter EK8100 - EK8100WS. Part for the following products: - DPC8132 - POWER...

Last items in stock €199.00

Details

Makita SKU: 346873-0

Cylinder Gasket for Power Cutter Makita EK8100

Cylinder Gasket for Power Cutter Makita EK8100 Genuine spare part Makita, Cylinder Gasket for Petrol Power Cutter EK8100 - EK8100WS. Part for the following products: - DPC8132 - POWER CUTTER 81CC 400mm MAK - EK8100 - POWER CUTTER...

Last items in stock €2.66

Details

Needle Bearing for Power Cutter Makita EK8100

Makita SKU: 212133-1

Piston Pin Bearing for Power Cutter Makita EK8100

Piston Pin Bearing for Power Cutter Makita EK8100 Genuine spare part Makita, Piston Pin Bearing for Petrol Power Cutter EK8100 - EK8100WS. Part for the following products: - DPC8132 - POWER CUTTER 81CC 400mm MAK - EK8100 - POWER...

on 7/10 Business Days Approx. €11.28

Details

Makita SKU: 424711-7

Poli-V Belt for Power Cutter Makita EK8100

Poli-V Belt for Power Cutter Makita EK8100 Genuine spare part Makita, Poli-V Belt 965.300.481 for Petrol Power Cutter EK8100 - EK8100WS. Part for the following products: - DPC8132 - POWER CUTTER 81CC 400mm MAK - EK8100 - POWER CUTTER...

Last items in stock €61.04

Details

Makita SKU: 424700-2

Makita EK8100 Prefilter

Prefilter for Power Cutter Makita EK8100 Genuine spare part Makita, Prefilter for Petrol Power Cutter EK8100 - EK8100WS. Part for the following products: - DPC8132 - POWER CUTTER 81CC 400mm MAK - EK8100 - POWER...

Last items in stock €13.47

Details

Makita SKU: 424701-0

Makita EK8100 Air Filter

Air Filter for Power Cutter Makita EK8100 Genuine spare part Makita, Air Filter for Petrol Power Cutter EK8100 - EK8100WS. Part for the following products: - DPC8132 - POWER CUTTER 81CC 400mm MAK - EK8100 -...

Last items in stock €14.77

Details

Makita SKU: 010114020

Makita EK8100WS Repair Kit Filter

Repair Kit Filter for Power Cutter Makita EK8100WS Genuine spare part Makita, Repair Kit Filter for Petrol Power Cutter EK8100WS. Part for the following products: - EK8100WS - POWER CUTTER 81CC 400mm - 109.SB -...

Last items in stock €39.14

Details

Makita SKU: 163532-9

Makita EK8100WS Fuel Filter

Fuel Filter for Power Cutter Makita EK8100WS Genuine spare part Makita, Fuel Filter for Petrol Power Cutter EK8100WS. Part for the following products: - EK8100WS - POWER CUTTER 81CC 400mm - 109.SB - CHAINSAW DOLMAR -...

Last items in stock €6.76

Details

Makita SKU: 452458-3

Makita EK8100 Starter Grip

Starter Grip for Power Cutter Makita EK8100 Genuine spare part Makita, Starter Grip for Petrol Power Cutter EK8100 - EK8100WS. Part for the following products: - DPC8132 - POWER CUTTER 81CC 400mm MAK - ...

AVAILABLE €5.20

Details

Makita SKU: 122164010

Makita EK8100WS Starter Rope

Starter Rope for Power Cutter Makita EK8100WS Genuine spare part Makita, Starter Rope (1Mt) for Petrol Power Cutter EK8100WS.. Part for the following products: - DPC7331WS - POWER CUTTER 73CC 350MM - EK8100WS - POWER...

AVAILABLE €3.19

Details

Comments (0)

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Makita Spare Parts for Power Cutters EK8100WS

Makita Spare Parts for Power Cutter EK8100WS

Makita Spare Parts for Power Cutters EK8100WS

Makita Spare Parts for Power Cutter EK8100WS

Makita Spare Parts for Power Cutters EK8100WS

Data sheet

Specific References

Download

Diagram Makita EK8100WS

You might also like

Products

News

Notes

Our company
