Makita

Makita Spare Parts for Cordless Brushcutter DUR362LZ

SKU: DUR362LZ
€63.87
VAT included

Makita Battery Powered Grass Trimmer DUR362LZ Spare Parts

We have the original Spares MAKITA for Battery Powered Grass Trimmer DUR362LZ, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Battery Powered Grass Trimmer DUR362LZ. All Spares our Spares are Genuine Parts.
Makita Spare Parts for Cordless Brushcutter DUR362LZ
  • Makita Spare Parts for Cordless Brushcutter DUR362LZ
  • Makita Spare Parts for Cordless Brushcutter DUR362LZ
Makita

Makita Spare Parts for Cordless Brushcutter DUR362LZ

SKU: DUR362LZ Condition: New
€63.87
VAT included

Makita Battery Powered Grass Trimmer DUR362LZ Spare Parts

We have the original Spares MAKITA for Battery Powered Grass Trimmer DUR362LZ, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Battery Powered Grass Trimmer DUR362LZ. All Spares our Spares are Genuine Parts.
settings 36 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
36 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

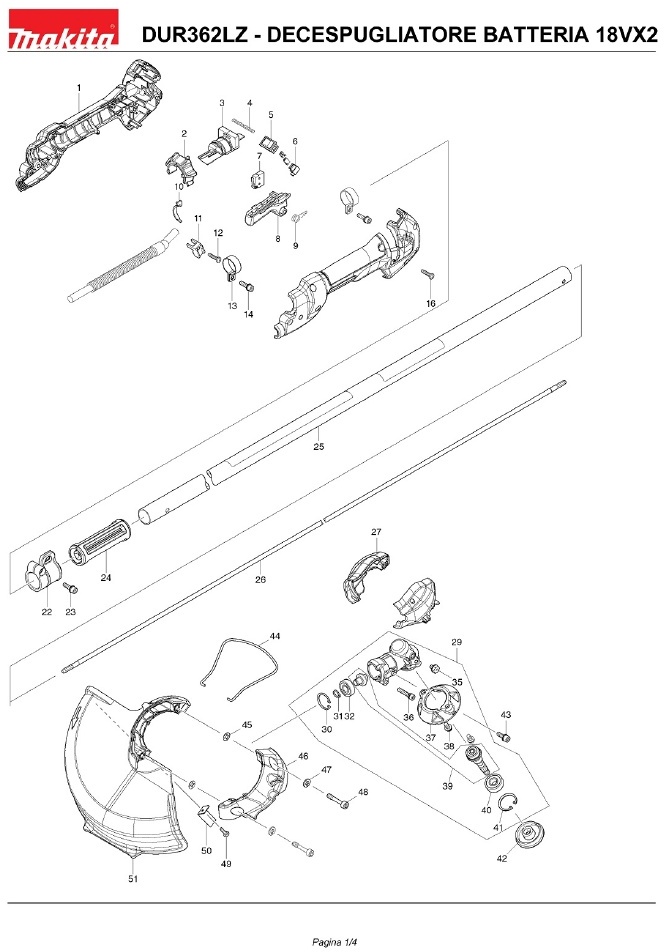

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 187698-1 HANDLE €41.35
2
 photo_cameraImage coming soon 454737-5 RELEASE LEVER €6.26
3
 photo_cameraImage coming soon 454738-3 BASE LEVER €6.88
5
 photo_cameraImage coming soon 651533-4 SWITCH SLE6A2-33 BBC231U €5.00
6
 photo_cameraImage coming soon 686015-7 TERMINAL €1.23
7
 photo_cameraImage coming soon 650704-0 SWITCH €12.52
8
 photo_cameraImage coming soon 454736-7 LEVER SWITCH €6.88
9
 photo_cameraImage coming soon 233612-6 SPRING TORSION 10 €2.50
10
 photo_cameraImage coming soon 451985-7 COVER CABLES X BBC300L €11.27
12
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
13
 photo_cameraImage coming soon 346248-3 CLAMP 24 EX2650LH €1.44
14
 photo_cameraImage coming soon 922228-9 SCREW M5X18 EBH341U €1.44
16
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
22
 photo_cameraImage coming soon 168478-4 HOOK BBC231U €5.28
23
 photo_cameraImage coming soon 922228-9 SCREW M5X18 EBH341U €1.44
24
 photo_cameraImage coming soon 451601-1 SPACER EBH252L €4.02
25
 photo_cameraImage coming soon 142646-7 AUCTION €56.27
26
 photo_cameraImage coming soon 324893-4 SHAFT EBH252L €72.17
27
 photo_cameraImage coming soon 187800-6 COVER HEAD €31.20
29
 photo_cameraImage coming soon 126439-0 GEAR BOX B €50.00
30
 photo_cameraImage coming soon 257987-9 RETAINING RING R24 RBC2510 €1.40
31
 photo_cameraImage coming soon 257986-1 RETAINING RING S9 RBC2510 €2.69
32
 photo_cameraImage coming soon 210049-4 BEARING 609ZZ EBH252L €6.29
37
 photo_cameraImage coming soon 455026-1 PROTECTION €5.00
38
 photo_cameraImage coming soon 265195-8 SCREW M5X12 RBC2510 €1.32
39
 photo_cameraImage coming soon 187920-6 GEAR €43.73
41
 photo_cameraImage coming soon 257988-7 RETAINING RING R26 RBC2510 €1.44
42
 Lower Flange for Brushcutter Makita RBC2110 324917-6 Lower Flange for Brushcutter Makita RBC2110 €18.79
43
 photo_cameraImage coming soon 922223-9 SCREW M5X16 EBH341U EX2650LH €1.46
44
 photo_cameraImage coming soon 326348-5 PROTECTION €15.03
45
 photo_cameraImage coming soon 413143-3 WASHER MS335.4C €1.44
46
 photo_cameraImage coming soon 454641-8 SUPPORT €17.54
47
 photo_cameraImage coming soon 942151-2 WASHER 6 €3.66
48
 photo_cameraImage coming soon 266579-3 SCREW M6X30 MS335.4C €1.57
49
 photo_cameraImage coming soon 266427-6 SCREW 4X12 MT923 €1.46
50
 photo_cameraImage coming soon 346725-5 BLADE €11.27
51
 photo_cameraImage coming soon 454640-0 HEAD PROTECTION €31.20

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Battery Powered Grass Trimmer DUR362LZ Spare Parts

We have the original Spares MAKITA for Battery Powered Grass Trimmer DUR362LZ, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Battery Powered Grass Trimmer DUR362LZ. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of the Cordless Brushcutter and the respective parts of the code.
Makita Battery Powered Grass Trimmer DUR362LZ Spare Parts

Cordless Brushcutter DUR362LZ
# Part Num. Description
1 187698-1 HANDLE
2 454737-5 RELEASE LEVER
3 454738-3 BASE LEVER
4 234079-1 SPRING COMP. 4 X BBC231U
5 651533-4 SWITCH SLE6A2-33 BBC231U
6 686015-7 TERMINAL
7 650704-0 SWITCH
8 454736-7 LEVER SWITCH
9 233612-6 SPRING TORSION 10
10 451985-7 COVER CABLES X BBC300L
11 687261-5 TERMINAL ties BBC300LR
12 265995-6 SCREW M4X18 X 6408 / 6221DW
13 346248-3 CLAMP 24 EX2650LH
14 922228-9 SCREW M5X18 EBH341U
16 265995-6 SCREW M4X18 X 6408 / 6221DW
22 168478-4 HOOK BBC231U
23 922228-9 SCREW M5X18 EBH341U
24 451601-1 DISTANZIALE EBH252L
25 142646-7 AUCTION
26 324893-4 SHAFT EBH252L
27 187800-6 COVER HEAD
29 126439-0 GEAR BOX B
30 257987-9 RETAINING RING R24 RBC2510
31 257986-1 RETAINING RING S9 RBC2510
32 210049-4 BEARING 609ZZ EBH252L
35 265578-2 SCREW M6x90 RBC2510
36 266805-0 SCREW M5X25 RBC2510
37 455026-1 PROTECTION
38 265195-8 SCREW M5X12 RBC2510
39 187920-6 GEAR
40 210082-6 BEARING 6000DDU RBC2510
41 257988-7 RETAINING RING R26 RBC2510
42 324917-6 FLANGE INT.
43 922223-9 SCREW M5X16 EBH341U EX2650LH
44 326348-5 PROTECTION
45 413143-3 WASHER MS335.4C
46 454641-8 SUPPORT
47 942151-2 WASHER 6 4101R
48 266579-3 SCREW M6X30 MS335.4C
49 266427-6 SCREW 4X12 MT923
50 346725-5 LAMETTA
51 454640-0 HEAD PROTECTION
