Makita Spare Parts for Cordless Chain Saw DUC252Z

SKU: Makita DUC252Z
€4.17
VAT included

Makita Spare Parts for Cordless Chain Saw DUC252Z

Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chain Saw DUC252Z.
Makita Spare Parts for Cordless Chain Saw DUC252Z
  • Makita Spare Parts for Cordless Chain Saw DUC252Z
  • Makita Spare Parts for Cordless Chain Saw DUC252Z

Makita Spare Parts for Cordless Chain Saw DUC252Z

SKU: Makita DUC252Z Condition: New
€4.17
VAT included

Makita Spare Parts for Cordless Chain Saw DUC252Z

Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chain Saw DUC252Z.
settings 65 spare parts

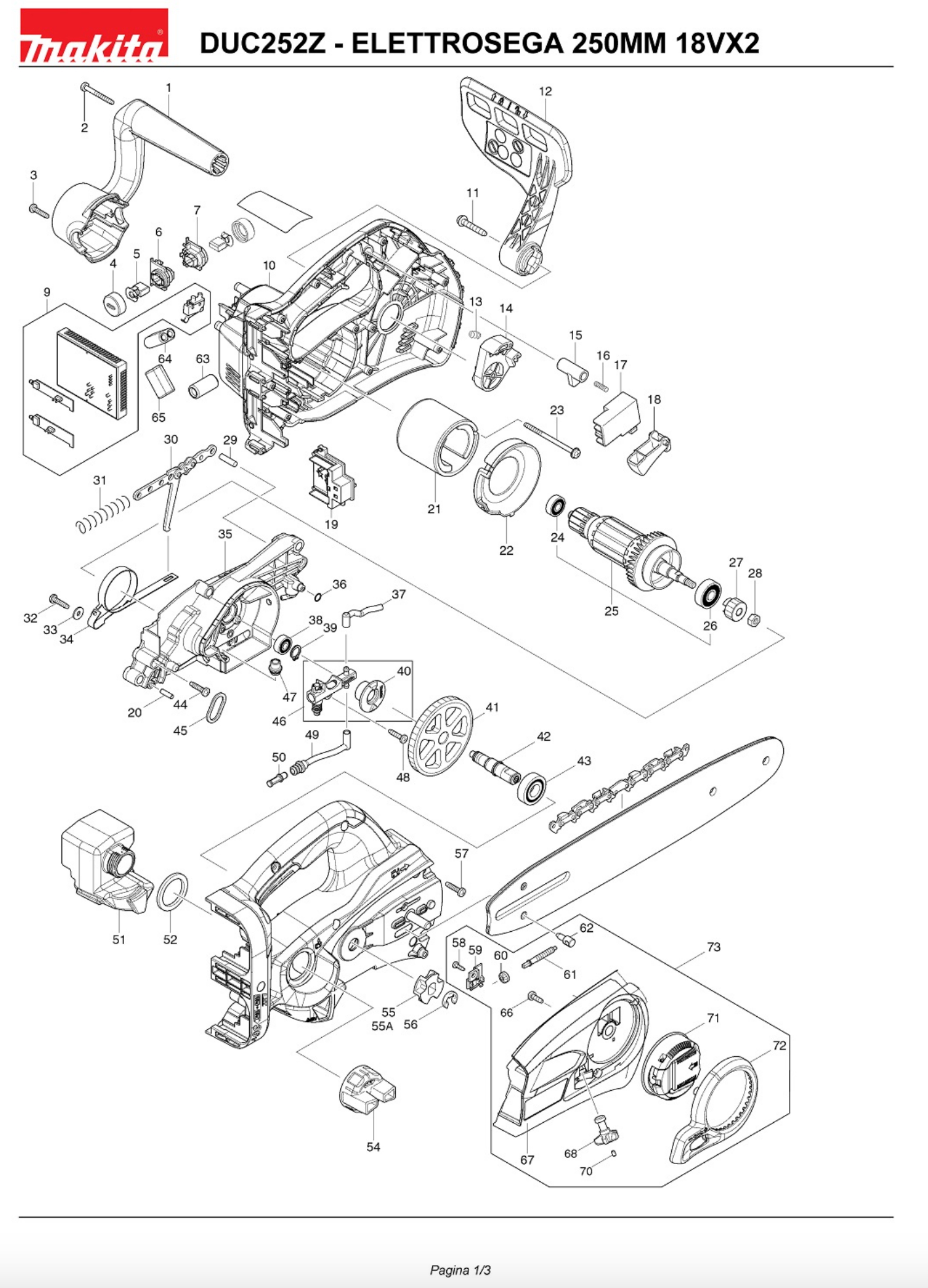

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

65 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 451972-6 FRONT HANDLE X BUC250 €18.98
2
photo_cameraImage coming soon 266048-4 VITE M 4 PER 40 PER 4334D €3.51
3
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
4
photo_cameraImage coming soon 643941-3 PLUG BRUSH X 5621RDW €4.43
5
photo_cameraImage coming soon 194928-3 CHARCOALS CB-442 €4.43
6
photo_cameraImage coming soon 644514-5 BRUSH HOLDER POST. €3.82
7
photo_cameraImage coming soon 644513-7 BRUSH HOLDER ANT. €3.82
9
photo_cameraImage coming soon 620275-1 REGULATOR €174.37
10
photo_cameraImage coming soon 187882-8 HOUSING MOTOR €131.93
11
photo_cameraImage coming soon 266173-1 SCREW PT 5X30 €1.47
12
photo_cameraImage coming soon 142836-2 SAFE HANDS €18.93
13
photo_cameraImage coming soon 231298-0 SPRING COMPRES.X HM 1500 €1.47
14
photo_cameraImage coming soon 451973-4 SUPPORT X PARAMANO BUC250 €8.50
15
photo_cameraImage coming soon 416178-3 RESET BUTTON X UC3020A €1.47
16
photo_cameraImage coming soon 233173-6 SPRING FOR COMPR.4 UC3020A €1.47
17
photo_cameraImage coming soon 650730-9 SWITCH TG72BD-6 €22.12
18
photo_cameraImage coming soon 450212-9 LEVER SWITCH. X BUC121R €3.13
19
photo_cameraImage coming soon 644808-8 X-TERMINAL BLS713 BHP451 €6.27
20
photo_cameraImage coming soon 256184-4 PIN 4 €1.40
21
photo_cameraImage coming soon 638571-3 STATOR MAGNET PERMAN.BSS61 €12.69
22
photo_cameraImage coming soon 451970-0 DEFLETTORE X BUC250 €5.13
23
photo_cameraImage coming soon 266292-3 SCREW 4 X 65 X BJR240 €2.08
24
Ball Bearing 607 ZZ for Impact Drill Maktek MT601 210062-2 Ball Bearing 607 ZZ for Impact Drill Maktek MT601 €4.41
25
photo_cameraImage coming soon 519268-2 ARMATURE 36V X BUC250 €68.84
26
Bearing 629DD FOR Angle Grinder Makita GA4530 211092-6 Bearing 629DD FOR Angle Grinder Makita GA4530 €9.01
27
photo_cameraImage coming soon 227252-0 GEAR 16 X BUC250 €18.98
28
Armature Nut M6 for Angle Grinder Makita 9554NB 252186-8 Armature Nut M6 for Angle Grinder Makita 9554NB €1.47
29
Piston Pin for Stonecutter Makita HK0500 256123-4 Piston Pin for Stonecutter Makita HK0500 €6.71
30
photo_cameraImage coming soon 158047-9 Linkage CHAIN ​​BRAKE €4.68
31
photo_cameraImage coming soon 233175-2 SPRING COMPRESSION 9 €2.20
33
photo_cameraImage coming soon 267195-4 WASHER 4 X DCS230T €1.47
34
photo_cameraImage coming soon 210213500 SPRING BRAKE ES-31A €11.29
35
photo_cameraImage coming soon 142573-8 Bearing housing €24.28
36
photo_cameraImage coming soon 213039-6 RING 6 X AN901 €1.47
37
photo_cameraImage coming soon 422058-3 OIL PIPE FITTING X BUC250 €2.69
38
photo_cameraImage coming soon 210028-2 BEARING 606ZZ €2.08
39
photo_cameraImage coming soon 961006-2 RETAINING RING S10 €2.17
40
photo_cameraImage coming soon 221427-3 WORM €7.00
41
photo_cameraImage coming soon 227251-2 GEAR 73 X BUC250 €11.07
42
photo_cameraImage coming soon 326417-2 POST €3.82
43
photo_cameraImage coming soon 210109-2 BEARING 6001DDW X BSS611R €2.69
45
photo_cameraImage coming soon 310593-2 HOOK €2.68
46
Oil Pump for Electric  Chainsaw Makita UC3041A 142156-4 Oil Pump for Electric Chainsaw Makita UC3041A €23.90
47
photo_cameraImage coming soon 424629-2 CABLE €2.68
49
photo_cameraImage coming soon 422057-5 OIL PIPE X BUC250 €3.13
50
photo_cameraImage coming soon 450437-5 FILTER X BUC250R €11.71
51
photo_cameraImage coming soon 455121-7 OIL TANK €16.61
52
photo_cameraImage coming soon 424326-0 SPONGE FOR BUC250 €1.40
54
Complete Oil Tank Cap for Cordless Chainsaws Makita DUC252Z-DUC122RFE 158810-0 Complete Oil Tank Cap for Cordless Chainsaws Makita DUC252Z-DUC122RFE €8.54
55
photo_cameraImage coming soon 221526-1 PINION 3/8 " €4.05
55A
photo_cameraImage coming soon 221528-7 PINION 1/4 "CARVING €24.89
56
photo_cameraImage coming soon 961014-3 RETAINING RING E-8 €1.46
58
photo_cameraImage coming soon 266020-6 SCREW M4 X 12 €1.46
59
photo_cameraImage coming soon 454818-5 PROTECTION €1.40
60
Tensioner Screw Gear for Chainsaw Makita UC3551A 227496-2 Tensioner Screw Gear for Chainsaw Makita UC3551A €7.99
61
Tensioner Screw for Chainsaw Makita UC3551A 326372-8 Tensioner Screw for Chainsaw Makita UC3551A €2.39
62
Tensioner Screw Pin for Chainsaw Makita UC3551A 326310-0 Tensioner Screw Pin for Chainsaw Makita UC3551A €2.39
63
photo_cameraImage coming soon 688161-2 FILTER LINE €1.40
65
photo_cameraImage coming soon 688172-7 FILTER LINE €1.40
67
photo_cameraImage coming soon 142571-2 COVER PINION €12.66
68
photo_cameraImage coming soon 142665-3 GEAR €5.13
70
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
71
Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A 142235-8 Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A €15.38
72
photo_cameraImage coming soon 454819-3 PROTECTION €1.40
73
photo_cameraImage coming soon 196779-0 COVER PINION €55.87

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Cordless Chain Saw DUC252Z

Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chain Saw DUC252Z.

In the following table, look for the model of the Cordless Chain Saw and the respective parts of the code.
Makita DUC252Z

Cordless Chain Saw DUC252Z
# Part Num. Description
1 451972-6 FRONT HANDLE X BUC250
2 266048-4 SCREW M 4 X 40 X 4334D
3 265995-6 SCREW M4X18 X 6408/6221DW
4 643941-3 PLUG BRUSH X 5621RDW
5 194928-3 CARBON BRUSHES CB-442
6 644514-5 BRUSH HOLDER POST.
7 644513-7 BRUSH HOLDER ANT.
9 620275-1 REGULATOR
10 187882-8 HOUSING MOTOR
11 266173-1 SCREW 5X30 PT
12 142836-2 SAFE HANDS
13 231298-0 SPRING COMPRES.X HM 1500
14 451973-4 SUPPORT X PARAMANO BUC250
15 416178-3 RESET BUTTON X UC3020A
16 233173-6 SPRING FOR COMPR.4 UC3020A
17 650730-9 SWITCH TG72BD-6
18 450212-9 LEVER SWITCH. X BUC121R
19 644808-8 X-TERMINAL BLS713 BHP451
20 256184-4 PIN 4
21 638571-3 STATOR MAGNET PERMAN.BSS61
22 451970-0 DEFLETTORE X BUC250
23 266292-3 SCREW 4 X 65 X BJR240
24 210062-2 BEARING 607ZZ X MT601
25 519268-2 ARMATURE 36V X BUC250
26 211092-6 BALL BEARING 629DD
27 227252-0 GEAR 16 X BUC250
28 252186-8 NUT M6 X 9554NB
29 256123-4 PIN 5
30 158047-9 Linkage CHAIN ​​BRAKE
31 233175-2 SPRING COMPRESSION 9
32 265995-6 SCREW M4X18 X 6408/6221DW
33 267195-4 WASHER 4 X DCS230T
34 210213500 SPRING BRAKE ES-31A
35 142573-8 Bearing housing
36 213039-6 RING 6 X AN901
37 422058-3 OIL PIPE FITTING X BUC250
38 210028-2 BEARING 606ZZ
39 961006-2 RETAINING RING S10
40 221427-3 WORM
41 227251-2 GEAR 73 X BUC250
42 326417-2 POST
43 210109-2 BEARING 6001DDW X BSS611R
44 265995-6 SCREW M4X18 X 6408/6221DW
45 310593-2 HOOK
46 142156-4 OIL PUMP
47 424629-2 CABLE
48 265995-6 SCREW M4X18 X 6408/6221DW
49 422057-5 OIL PIPE X BUC250
50 450437-5 FILTER X BUC250R
51 455121-7 OIL TANK
52 424326-0 SPONGE FOR BUC250
54 158810-0 FULL TANK CAP
55 221526-1 PINION 3/8 "
55A 221528-7 PINION 1/4 "CARVING
56 961014-3 RETAINING RING E-8
57 265995-6 SCREW M4X18 X 6408/6221DW
58 266020-6 SCREW M4 X 12
59 454818-5 PROTECTION
60 227496-2 GEAR FOR 14 UC3020A
61 326372-8 SCREW Chain tightener
62 326310-0 PIN Chain tightener
63 688161-2 FILTER LINE
64 FILTER LINE
65 688172-7 FILTER LINE
66 266020-6 SCREW M4 X 12
67 142571-2 COVER PINION
68 142665-3 GEAR
70 263002-9 RUBBER PLUG 4
71 142235-8 NUT CPL
72 454819-3 PROTECTION
73 196779-0 COVER PINION
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita DUC252Z
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita DUC252Z

Diagram Makita DUC252Z

Download (1.04MB)
