Makita HTR5600 Parts

SKU: Makita HTR5600
€5.28
VAT included

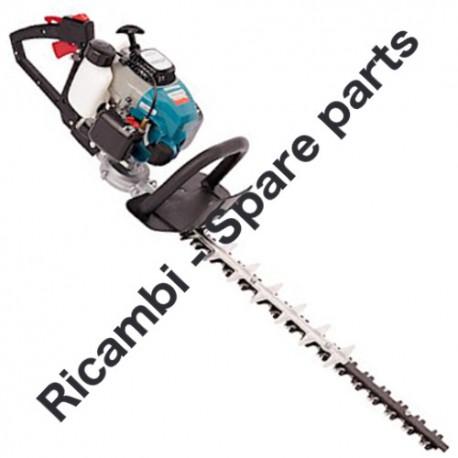

Makita Spare Parts for Hedge Trimmer HTR5600

Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Hedge Trimmer HTR5600.
Makita HTR5600 Parts
  • Makita HTR5600 Parts
  • Makita HTR5600 Parts Drawing
  • Makita HTR5600 Parts Drawing - 1
  • Makita HTR5600 Parts Drawing - 2
Makita

Makita HTR5600 Parts

SKU: Makita HTR5600 Condition: New
€5.28
VAT included

Makita Spare Parts for Hedge Trimmer HTR5600

Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Hedge Trimmer HTR5600.
settings 140 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
140 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

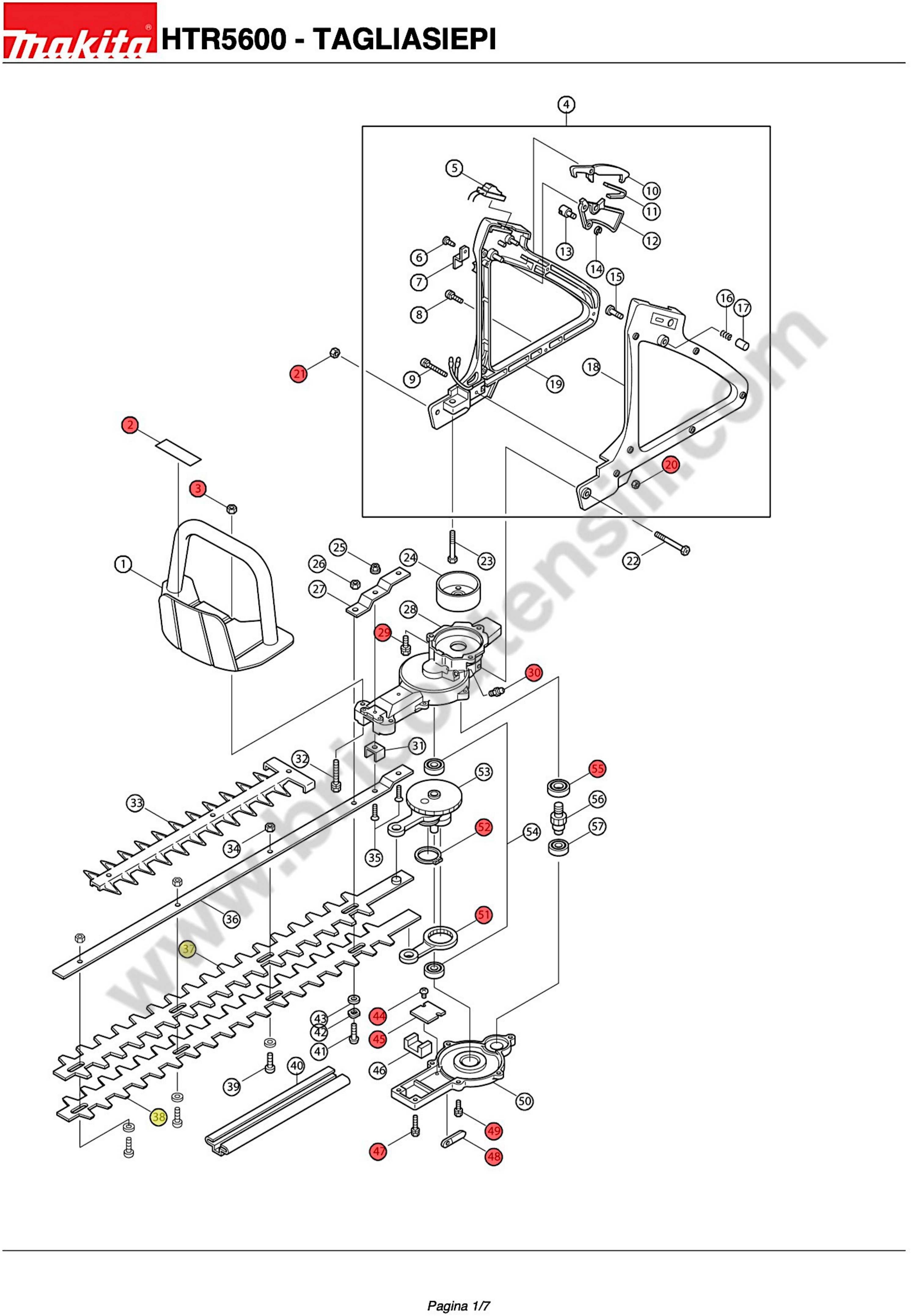

Esploso pagina 1

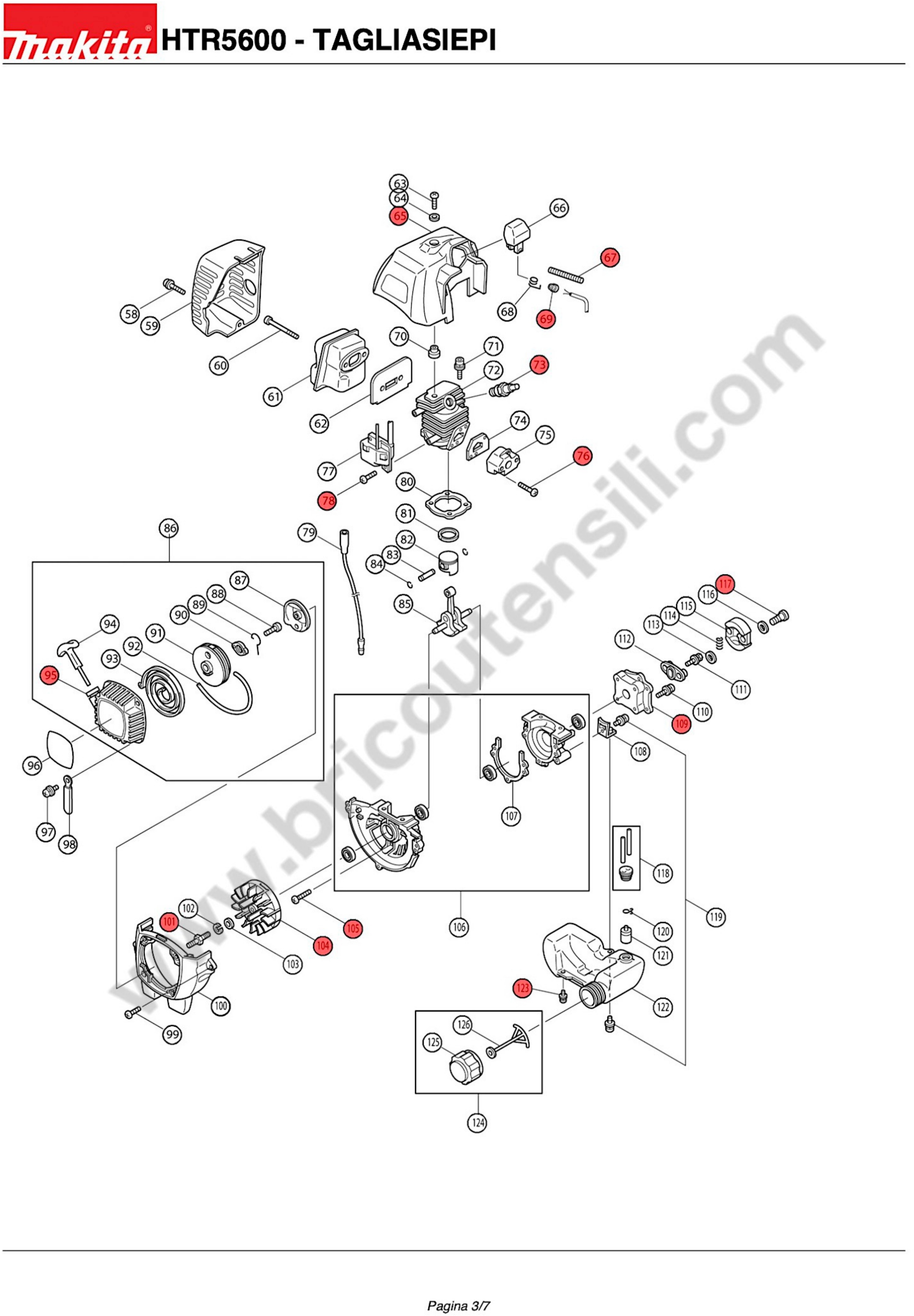

Esploso pagina 2

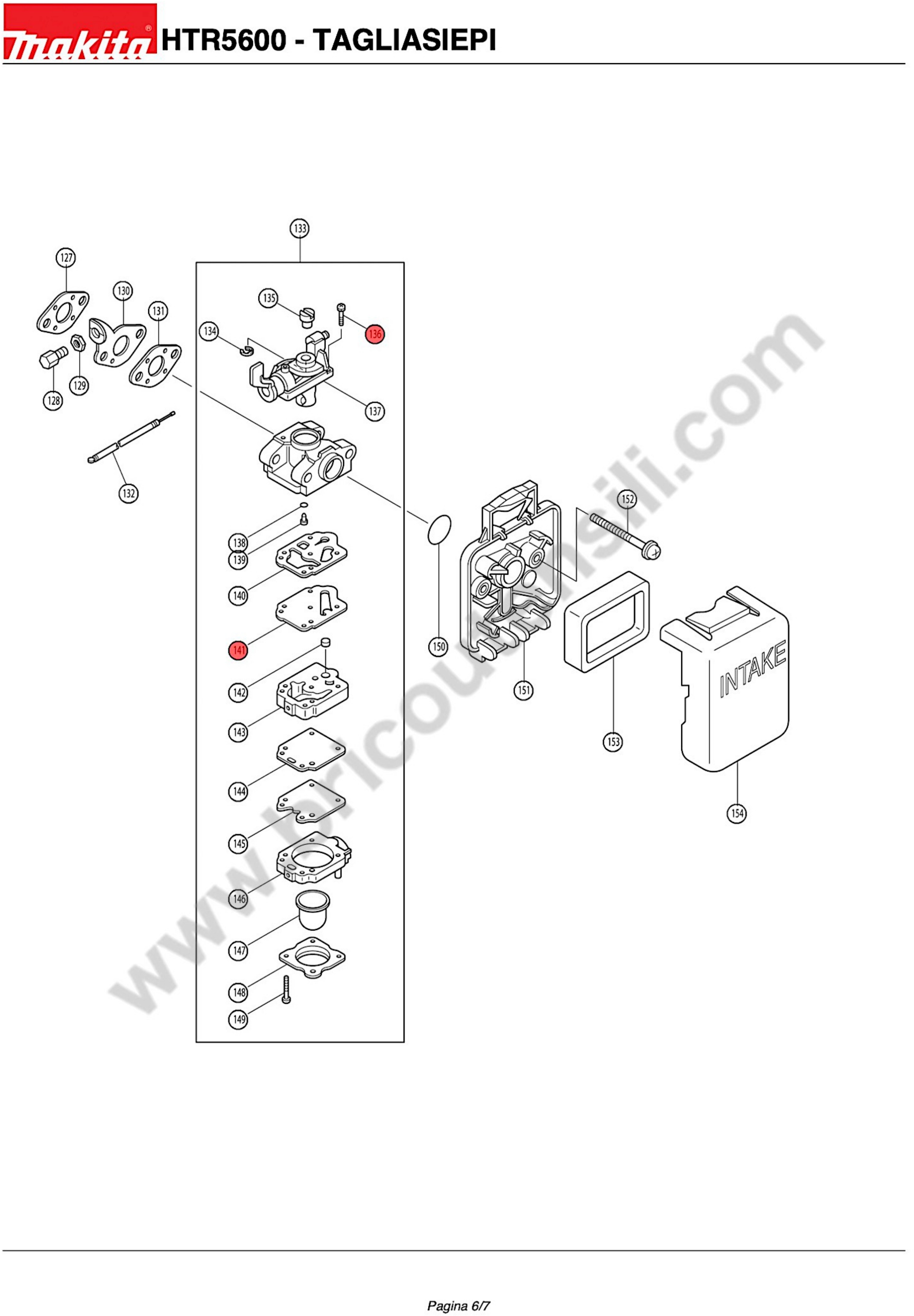

Esploso pagina 3
1 / 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon XOC0000032 LEVER €5.13
3
 photo_cameraImage coming soon 0151060000 NUT M6 HT2556D €2.08
4
 photo_cameraImage coming soon 126493-4 REAR HANDLE X EH561 €56.02
5
 photo_cameraImage coming soon 0005044004 SWITCH X HT2556D €21.54
6
 photo_cameraImage coming soon 0112040100 SCREW M4 X 10 X HT2556D €1.40
7
 photo_cameraImage coming soon 1181210000 CABLE HOLDER, EH561 HT2256D €2.69
8
 photo_cameraImage coming soon 0017040160 SCREW M4 X 16 X HT2556D €1.40
9
 photo_cameraImage coming soon 0017040300 SCREW M4 X 30 X HT2556D €2.08
10
 photo_cameraImage coming soon XOC0000033 SPRING €5.13
11
 photo_cameraImage coming soon 0003010004 SPRING X HT2556D €7.58
13
 photo_cameraImage coming soon 1181110000 PIN X HT2256D €14.34
14
 photo_cameraImage coming soon 0280002500 RETAINING RING HT2556D €1.40
15
 photo_cameraImage coming soon 1181120000 PIN LEVER X HT2256D €7.58
16
 photo_cameraImage coming soon 1181140000 SPRING X HT2256D €3.84
17
 photo_cameraImage coming soon 1181130000 PIN CAP, EH561 HT2256D €4.43
18
 photo_cameraImage coming soon 1181500000 LEFT REAR HANDLE (L), EH561 HT2256D €18.98
19
 photo_cameraImage coming soon 1181490000 RIGHT REAR HANDLE (R), EH561 HT2256D €24.35
20
 photo_cameraImage coming soon 0015004000 NUT M4 HT2556D €1.40
22
 photo_cameraImage coming soon 0055060500 SCREW M6X50 HT2556D €2.69
23
 photo_cameraImage coming soon 0055060400 SCREW M6X40 HT2556D €2.69
24
 photo_cameraImage coming soon 1361410000 DRUM CPL., EH561 HT2256D-HT2276E €25.05
25
 photo_cameraImage coming soon 162050000K NUT M5 X HT2256D-HT2276E €1.43
27
 photo_cameraImage coming soon 0325102004 PLATE FOR HTR5600 €12.69
28
 photo_cameraImage coming soon 0325100002 UPPER CASE HT2556D €85.14
29
 photo_cameraImage coming soon 0054060150 SCREW M6 X 15 X HT2556D €1.97
30
 photo_cameraImage coming soon 0055000100 GREASER M6 X A-89523 €2.97
31
 photo_cameraImage coming soon 0325103004 PLATE X HT2556D €8.50
32
 photo_cameraImage coming soon 0054060350 SCREW M6 X 35 X HT2556D €2.69
33
 photo_cameraImage coming soon XOC0000030 GUARD €18.98
34
 photo_cameraImage coming soon 164060000K HEX NUT M6 HT2256D €2.76
35
 photo_cameraImage coming soon 0011050205 SCREW M5 X 20 X HT2556D €2.08
36
 photo_cameraImage coming soon 1181260000 GUIDE BLADE X HT2256D €75.83
37
 photo_cameraImage coming soon 6018505400 UPPER BLADE FOR HT2256D €65.41
38
 photo_cameraImage coming soon 6018505500 LOWER BLADE HT2256D/EH561 €65.41
39
 photo_cameraImage coming soon 040002009A SCREW SLIDING BLADE L = 19 EH620 €4.43
40
 photo_cameraImage coming soon 0028002039 BLADE COVER X HT2556D €28.31
41
 photo_cameraImage coming soon 040003009A SCREW M6X22 €3.13
42
 photo_cameraImage coming soon 229060000K SPRING WASHER X HT2256D €2.14
43
 photo_cameraImage coming soon 0082500000 WASHER X BLADE SCREW HT2256D- €1.43
44
 photo_cameraImage coming soon 0010030050 SCREW M3 X 5 X HT2556D €2.08
45
 photo_cameraImage coming soon 0301100000 CONNECTING ROD HT2256D-HT2276E €10.18
46
 photo_cameraImage coming soon 0325104004 FELT €9.89
47
 photo_cameraImage coming soon 0054050160 BOLT M5X16 €1.40
48
 photo_cameraImage coming soon 0566079970 CLAMP X RBC520 €2.14
50
 photo_cameraImage coming soon 3251010020 LOWER CASE HTR5600 €44.84
51
 Conrod for Hedge Trimmer Dolmar HT2256D XOC0000018 Conrod for Hedge Trimmer Dolmar HT2256D €51.26
52
 photo_cameraImage coming soon 0283026000 SNAP RING €3.13
53
 photo_cameraImage coming soon 1360030000 CRANK GEAR, EH561 HT2256D - €225.46
54
 photo_cameraImage coming soon 0353006080 BALL BEARING 608 ZZ €16.65
55
 photo_cameraImage coming soon 0354060010 BALL BEARING 6001UU X HT2556D €24.35
56
 photo_cameraImage coming soon 1361420000 PINION GEAR HT2256D- €78.04
58
 photo_cameraImage coming soon 0140059290 SCREW X HT2556D €1.40
59
 photo_cameraImage coming soon 5253500500 MUFFLER COVER X HT2256D €14.76
60
 photo_cameraImage coming soon 0119059550 SCREW X DBC260U €2.15
61
 photo_cameraImage coming soon 5253071000 MUFFLER X HTR5600 €18.98
62
 photo_cameraImage coming soon 5253500102 MUFFLER GASKET X HT2256D €3.23
63
 photo_cameraImage coming soon 266874-1 SCREW M4X14 €1.51
64
 photo_cameraImage coming soon 0200070010 WASHER X HT2256D-HT2276E €2.14
65
 photo_cameraImage coming soon 5255500301 CYLINDER COVER EH561 €8.50
66
 photo_cameraImage coming soon 5237503301 SPARK PLUG CAP XRBC225-255 €25.05
67
 photo_cameraImage coming soon 0851049950 TUBE X EH561 €2.97
68
 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U 324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U €1.62
69
 photo_cameraImage coming soon 5257500300 RUBBER X HT2256D-HT2276E €2.76
70
 photo_cameraImage coming soon 5503503001 SPACER X-HT2256D HT2276E €3.95
71
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
72
 photo_cameraImage coming soon 318762-9 CYLINDER RBC2510 €85.14
73
 photo_cameraImage coming soon 0650149721 SPARK PLUG BMR7A RBK250 €19.05
74
 photo_cameraImage coming soon 5253500200 INSULATOR GASKET X HT2256D €2.14
75
 photo_cameraImage coming soon 141056-5 INSULATOR COMPLETE €6.81
77
 photo_cameraImage coming soon 5257001021 IGNITION COIL HTR5600 €40.40
78
 photo_cameraImage coming soon 0140049920 SCREW M4X20 X RBC225-255 €1.43
79
 photo_cameraImage coming soon 5607005000 COMPLETE CABLE X RBC350-RBC420-HT225 €6.11
80
 photo_cameraImage coming soon 442171-1 CYLINDER GASKET RBC2510 €2.76
81
 photo_cameraImage coming soon 257979-8 PISTON RING RBC2510 €4.43
82
 photo_cameraImage coming soon 5232501902 PISTON X RBC255 €14.67
83
 photo_cameraImage coming soon 257781-9 PISTON PIN EBH252L €1.46
84
 Piston Pin Circlip for Brushcutter Makita RBC310 233976-8 Piston Pin Circlip for Brushcutter Makita RBC310 €6.01
85
 photo_cameraImage coming soon 144403-9 ECCENTRIC SHAFT €44.84
86
 Dolmar Hedge Trimmer HT2556D Starter Assy 5255052000 Dolmar Hedge Trimmer HT2556D Starter Assy €19.57
87
 photo_cameraImage coming soon 5255505900 STARTER PULLEY X HT2556D €3.84
88
 photo_cameraImage coming soon 266585-8 SCREW 5X12 EBH252L €2.18
89
 photo_cameraImage coming soon 325923-4 SWING ARM EBH252L €1.46
90
 photo_cameraImage coming soon 451938-6 COLLAR EBH252L €1.46
91
 photo_cameraImage coming soon 452972-9 REEL START €5.13
92
 photo_cameraImage coming soon 5255016020 STARTER ROPE RBC201 €12.69
93
 photo_cameraImage coming soon 234220-6 SPIRAL SPRING €5.94
94
 photo_cameraImage coming soon 5225004020 STARTER KNOB HT2256D €13.66
97
 photo_cameraImage coming soon 0140049760 SCREW X HT2556D €1.40
98
 photo_cameraImage coming soon 0566059980 CLAMP X RBC525 €3.95
99
 photo_cameraImage coming soon 0140059350 SCREW M5 X 18 X MS254C-MS254U €1.40
100
 photo_cameraImage coming soon 5255505700 FLYWHEEL HOUSING FOR HTR5600 €8.50
101
 photo_cameraImage coming soon 5257501400 SCREW X HTR5600 €3.13
102
 photo_cameraImage coming soon 0032006000 ELASTIC WASHER X RBC / RBK410-G2400R €1.54
103
 photo_cameraImage coming soon 0031206000 WASHER G.24 / 35-RBC225-255 €1.43
104
 photo_cameraImage coming soon 5257041010 FLYWHEEL €20.32
106
 photo_cameraImage coming soon 5251003000 ENGINE CRANKCASE CPL X HT2256D €87.61
107
 photo_cameraImage coming soon 424447-8 HOUSING GASKET RBC2510 €2.14
108
 photo_cameraImage coming soon 5256002000 TANK PLATE CPL HT2256D €6.81
109
 photo_cameraImage coming soon 1181240000 SPACER X HT2256D-HT2276E €33.68
111
 photo_cameraImage coming soon 6202006000 BOLT FOR RBC310 €2.14
112
 photo_cameraImage coming soon 6202500000 HOLDER X HT2256D-HT2276E €19.53
113
 photo_cameraImage coming soon 267429-5 WASHER 6 €1.54
114
 photo_cameraImage coming soon 5238500500 CLUTCH SPRING X RBC225-255 €2.76
115
 photo_cameraImage coming soon 6252500801 CLUTCH GEAR X RBC225-255 €8.74
116
 photo_cameraImage coming soon 267817-6 WASHER 8 EBH252L €1.46
118
 photo_cameraImage coming soon 5256012001 TUBE CPL. HT2256D-HT2276E €6.81
120
 photo_cameraImage coming soon 345920-4 CLAMP EBH341U €1.44
121
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
122
 photo_cameraImage coming soon 5256025000 TANK CPL X HT2256D-HT2276 €15.00
123
 photo_cameraImage coming soon 0150059800 SCREW M 5 X 18 HT2556D €1.40
124
 photo_cameraImage coming soon 168668-9 FUEL TANK CAP COMPLETE RBC2510 €9.90
125
 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
126
 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31
127
 Carburator Gasket for Brushcutter Makita RBC310 442177-9 Carburator Gasket for Brushcutter Makita RBC310 €1.51
128
 photo_cameraImage coming soon 5316020020 SCREW FOR CABLE RBC321 €5.13
129
 photo_cameraImage coming soon 0022706000 NUT M6 X PB500R €1.43
130
 photo_cameraImage coming soon 5256501900 CABLE SUPPORT EH620 €3.13
132
 photo_cameraImage coming soon 0630029830 CONTROL CABLE X EH561 €6.63
133
 photo_cameraImage coming soon 5256085000 CARBURETOR X HTR5600 €85.14
134
 photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
135
 photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
136
 photo_cameraImage coming soon 266581-6 SCREW M3X8 EBH341U €2.18
137
 photo_cameraImage coming soon 5196002010 THROTTLE VALVE ASS'Y RBC201 €68.84
138
 photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €6.10
139
 photo_cameraImage coming soon 5026004010 NOZZLE X HT2256D-HT2276E €14.76
140
 photo_cameraImage coming soon 5246001030 PUMP GASKET RBC260-230-310- €6.11
141
 photo_cameraImage coming soon WJ00009599 PUMP DIAPHRAGM DCS230T €13.50
142
 photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28
143
 photo_cameraImage coming soon 5236046130 BODY PUMP CPL FOR RBC350-RBC42 €61.62
144
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
145
 photo_cameraImage coming soon 5316005250 DIAPHRAGM COMPLETE FOR RBC 260/230/310 €24.35
146
 photo_cameraImage coming soon 5236046060 CPL AIR FILTER BODY RBC350 €33.70
147
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
148
 photo_cameraImage coming soon 5236046050 PUMP COVER FOR RBC350-RBC42 €13.66
149
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
150
 photo_cameraImage coming soon 5236061000 O-RING RBC201 €2.69
151
 photo_cameraImage coming soon 5253003020 AIR CLEANER HOUSING RBC201 €10.18
152
 photo_cameraImage coming soon 0043305650 SCREW ASS'Y XHT2256D-HT2276E €2.76
153
 Air Filter Element for Brushcutter Makita RBC201 5203004010 Air Filter Element for Brushcutter Makita RBC201 €3.95
154
 photo_cameraImage coming soon 5253020010 AIR CLEANER COVER RBC201 €13.06

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Hedge Trimmer HTR5600

Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Hedge Trimmer HTR5600.

In the following table, look for the model of the Trimmer and the respective parts of the code.
Hedge Trimmer HTR5600

MAKITA HTR5600
# Part Num
 Description
1 XOC0000032 LEVER
2 0736359980 LABEL FOR HT2556D
3 0151060000 M6 NUT FOR HT2556D
4 126493-4 REAR HANDLE X EH561
5 0005044004 SWITCH X HT2556D
6 0112040100 M4 X 10 SCREW X HT2556D
7 1181210000 CABLE SUPPORT HT2256D
8 0017040160 M4 X 16 SCREW X HT2556D
9 0017040300 M4 X 30 SCREW X HT2556D
10 XOC0000033 SPRING
11 0003010004 SPRING X HT2556D
12 XOC0000032 LEVER
13 1181110000 PIN X HT2256D
14 0280002500 RETAINING RING HT2556D
15 1181120000 LEVER PIN X HT2256D
16 1181140000 SPRING X HT2256D
17 1181130000 LOCK BUTTON HT2256D
18 1181500000 REAR LEFT HANDLE HT2256D
19 1181490000 REAR RIGHT HANDLE HT2256D
20 0015004000 M4 NUT HT2556D
21 0151060000 M6 NUT HT2556D
22 0055060500 M6X50 SCREW HT2556D
23 0055060400 SCREW M6X40 HT2556D
24 1361410000 DRUM ASSEMBLY HT2256D-HT2276E
25 162050000K M5 NUT FOR HT2256D-HT2276E
26 162050000K M5 NUT FOR HT2256D-HT2276E
27 0325102004 PLATE FOR HTR5600
28 0325100002 UPPER CASING HT2556D
29 0054060150 M6 X 15 SCREW FOR HT2556D
30 0055000100 M6 GREASE NIPPLE FOR A-89523
31 0325103004 PLATE FOR HT2556D
32 0054060350 M6 X 35 SCREW FOR HT2556D
33 XOC0000030 GUARD
34 164060000K M6 HEX NUT FOR HT2256D
35 0011050205 M5 X 20 SCREW FOR HT2556D
36 1181260000 BLADE GUIDE FOR HT2256D
37 6018505400 UPPER BLADE FOR HT2256D
38 6018505500 LOWER BLADE HT2256D/EH561
39 040002009A SLIDING BLADE SCREW L=19 EH620
40 0028002039 BLADE COVER FOR HT2556D
41 040003009A SCREW M6X22
42 229060000K SPRING WASHER FOR HT2256D
43 0082500000 WASHER FOR BLADE SCREW HT2256D
44 0010030050 SCREW M3 X 5 FOR HT2556D
45 0301100000 CONNECTING ROD PLATE HT2256D-HT2276E
46 0325104004 FELT
47 0054050160 BOLT M5X16
48 0566079970 CLAMP FOR RBC520
49 0054050160 BOLT M5X16
50 3251010020 LOWER CASE HTR5600
51 XOC0000018 CONNECTING ROD FOR HT2256D-HT2276E
52 0283026000 SNAP RING
53 1360030000 CONNECTING ROD GEAR HT2256D
54 0353006080 BEARING 608 ZZ
55 0354060010 BEARING 6001UU FOR HT2556D
56 1361420000 PINION GEAR HT2256D
57 0353006080 BEARING 608 ZZ
58 0140059290 SCREW HT2556D
59 5253500500 MUFFLER COVER FOR HT2256D
60 0119059550 SCREW FOR DBC260U
61 5253071000 MUFFLER FOR HTR5600
62 5253500102 EXHAUST GASKET FOR HT2256D
63 266874-1 M4X14 SCREW
64 0200070010 WASHER FOR HT2256D-HT2276E
65 5255500301 CYLINDER COVER FOR EH561
66 5237503301 SPLUGGED SPARK PLUG CAP FOR RBC225-255
67 0851049950 TUBE FOR EH561
68 324891-8 SPLUGGED SPARK PLUG CAP SPRING FOR EBH341
69 5257500300 RUBBER FOR HT2256D-HT2276E
70 5503503001 SPACER FOR HT2256D-HT2276E
71 0119059730 BOLT FOR RBC 260/230/225/255
72 318762-9 CYLINDER FOR RBC2510
73 0650149721 SPLUGGED SPARK PLUG FOR RBK250
74 5253500200 INSULATING GASKET FOR HT2256D
75 141056-5 INSULATOR
76 266700-4 M5X25 SCREW RBC2510
77 5257001021 COIL HTR5600
78 0140049920 M4X20 SCREW FOR RBC225-255
79 5607005000 ASSEMBLY CABLE FOR RBC350-RBC420-HT225
80 442171-1 CYLINDER GASKET RBC2510
81 257979-8 PISTON RING RBC2510
82 5232501902 PISTON FOR RBC255
83 257781-9 PISTON PIN EBH252L
84 233976-8 PIN RING EBH252L
85 144403-9 ECCENTRIC SHAFT
86 5255052000 STARTER COMPLETE
87 5255505900 STARTER PULLEY For HT2556D
88 266585-8 5X12 SCREW EBH252L
89 325923-4 OSCILLATOR EBH252L
90 451938-6 FLANGE EBH252L
91 452972-9 STARTER SPOOL
92 5255016020 ROPE FOR RBC201 STARTER
93 234220-6 SPIRAL SPRING
94 5225004020 STARTER KNOB HT2256D
95 5255001040 SHOCK ABSORBER EH620
96 6019509000 (no description)
97 0140049760 SCREW FOR HT2556D
98 0566059980 BRACKET FOR RBC525
99 0140059350 M5 X 18 SCREW FOR MS254C-MS254U
100 5255505700 FLYWHEEL HOUSING FOR HTR5600
101 5257501400 SCREW FOR HTR5600
102 0032006000 ELASTIC WASHER FOR RBC/RBK410-G2400R
103 0031206000 WASHER G.24/35-RBC225-255
104 5257041010 FLYWHEEL
105 266700-4 M5X25 SCREW RBC2510
106 5251003000 ENGINE HOUSING ASSEMBLY FOR HT2256D
107 424447-8 CASE GASKET RBC2510
108 5256002000 TANK PLATE COMPLETE HT2256D
109 1181240000 SPACER FOR HT2256D-HT2276E
110 0140059350 SCREW M5 X 18 FOR MS254C-MS254U
111 6202006000 BOLT FOR RBC310
112 6202500000 SUPPORT FOR HT2256D-HT2276E
113 267429-5 WASHER 6
114 5238500500 CLUTCH SPRING FOR RBC225-255
115 6252500801 CLUTCH SHOE FOR RBC225-255
116 267817-6 WASHER 8 EBH252L
117 6252500400 CLUTCH NUT FOR RBC255-225
118 5256012001 TUBE COMPLETE HT2256D-HT2276E
119 0140059290 SCREW FOR HT2556D
120 345920-4 CLAMP EBH341U
121 163447-0 FUEL FILTER FOR DCS230T
122 5256025000 TANK ASSEMBLY FOR HT2256D-HT2276
123 0150059800 SCREW M 5 X 18 HT2556D
124 168668-9 TANK CAP ASSEMBLY RBC2510
125 452920-8 TANK CAP
126 140436-2 DIPSTICK EBH341U
127 442177-9 GASKET
128 5316020020 SCREW FOR CABLE RBC321
129 0022706000 NUT M6 FOR PB500R
130 5256501900 CABLE SUPPORT EH620
131 442177-9 GASKET
132 0630029830 THROTTLE CABLE FOR EH561
133 5256085000 CARBURETOR FOR HTR5600
134 5316005120 RING FOR RBC 260/230/310/225/2
135 5236018040 ACCELERATOR CABLE XRBC230-260-310-225-
136 266581-6 M3X8 SCREW EBH341U
137 5196002010 BUTTERFLY VALVE COMPLETE RBC201
138 5246001010 SEAL FOR RBC 260/230/310
139 5026004010 NOZZLE FOR HT2256D-HT2276E
140 5246001030 PUMP SEAL RBC260-230-310
141 WJ00009599 PUMP DIAPHRAGM FOR DCS230T
142 5016004010 FITTING FOR RBC 260/230/310/225
143 5236046130 PUMP BODY COMPLETE FOR RBC350-RBC42
144 442154-1 DIAPHRAGM SEAL EBH341U
145 5316005250 DIAPHRAGM COMPLETE FOR RBC 260/230/310
146 5236046060 AIR FILTER BODY COMPLETE RBC350
147 424314-7 PRIMING PUMP EBH341
148 5236046050 PUMP COVER FOR RBC350-RBC42
149 266582-4 SCREW 3X24 EBH341U
150 5236061000 RING RBC201
151 5253003020 FILTER HOUSING COMPLETE RBC201
152 0043305650 SCREW ASSEMBLY FOR HT2256D-HT2276E
153 5203004010 AIR FILTER FOR HT2256D
154 5253020010 FILTER COVER RBC201
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HTR5600
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita HTR5600 Parts Drawing

Makita HTR5600 Parts Drawing

Download (872.74KB)

You might also like

Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following...
AVAILABLE €4.49
Details
Piston Pin Circlip for Brushcutter Makita RBC310
Makita SKU: 233976-8
Piston Pin Circlip for Brushcutter Makita RBC310
Piston Pin Circlip for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Pin Circlip for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...
AVAILABLE €6.01
Details
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Details
Primer Bulb for Blower Makita BHX2501
Makita SKU: 424314-7
Primer Bulb for Blower Makita BHX2501
Primer Bulb for Blower Makita BHX2501 Genuine replacement part Makita, Primer Bulb for Brushcutters, Hedge Trimmers, Blowers, Engine Pump, Mist Blowers. Part for the following...
AVAILABLE €6.90
Details
Gear Case for Hedgetrimmer Makita EH5000W
Makita SKU: 141033-7
Gear Case for Hedgetrimmer Makita EH5000W
Gear Case for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Gear Case for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: -  EH5000W -...
on 7/10 Business Days Approx €65.20
Details
Connect Rod for Hedgetrimmer Makita EH5000W
Makita SKU: 346251-4
Connect Rod for Hedgetrimmer Makita EH5000W
Connect Rod for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Connect Rod for Hedgetrimmers EH5000W - EH6000W - EH7500W, EH7500S, EN4950H. Part for the following products: - 196256-2 - ACCEESORY HEDGETRIMMER 53.5CM 135...
Last items in stock €9.89
Details
Blade 60 cm for Hedgetrimmer Makita EH5000W
Makita SKU: 725169-6
Blade 60 cm for Hedgetrimmer Makita EH5000W
Blade 60 cm for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Blade 60 cm for Hedgetrimmers EH5000W - Dolmar HT2350D. Part for the following products: - EH5000W - HEDGETRIMMER 22,2CC 50CM MAKITA - HT2350D - HEDGETRIMMER...
on 7/10 Business Days Approx €84.48
Details
Gear 43 for Hedge Trimmer Makita EH5000W
Makita SKU: 227248-1
Gear 43 for Hedge Trimmer Makita EH5000W
Gear 43 for Hedge Trimmer Makita EH5000W Genuine replacement part Makita, Gear 43 for Hedge Trimmers EH5000W - EH6000W - Dolmar HT2350D - HT2360D. Part for the following products: - 126293-2 - HEDGE TRIMMER X MH246.4D - 196256-2 -...
AVAILABLE €28.89
Details
Air Filter Element for Brushcutter Makita RBC201
Makita SKU: 5203004010
Air Filter Element for Brushcutter Makita RBC201
Air Filter Element for Brushcutter Makita RBC201 Genuine spare part Makita, Air Filter Element for Brushcutters RBC201 - Hedge Trimmer HT2256D - HT2556D. Part for the following products: -  RBC201 - BRUSHCUTTER 20CC MAKITA -  HT2256D...
on 7/10 Business Days Approx €3.95
Details
Case Cover Gasket for Hedge Trimmer Makita HTR4900
Makita SKU: 303513000N
Case Cover Gasket for Hedge Trimmer Makita HTR4900
Case Cover Gasket for Hedge Trimmer Makita HTR4900 Genuine replacement part Makita, Case Cover Gasket for Hedge Trimmers EH490V - HTR4900 - Dolmar HT2049D - HT2149D. Part for the following products: - HT2049D - HEDGE TRIMMER 49CM...
on 7/10 Business Days Approx. €16.12
Details
Felt Gasket for Hedge Trimmer Makita HTR4900
Makita SKU: 303510400N
Felt Gasket for Hedge Trimmer Makita HTR4900
Felt Gasket for Hedge Trimmer Makita HTR4900 Genuine replacement part Makita, Felt Gasket for Hedge Trimmers EH490V - HTR4900 - Dolmar HT2049D - HT2149D. Part for the following products: - HT2049D - HEDGE TRIMMER 49CM DOLMAR 20CC -...
on 7/10 Business Days Approx. €4.56
Details
Conrod for Hedge Trimmer Dolmar HT2256D
Makita SKU: XOC0000018
Conrod for Hedge Trimmer Dolmar HT2256D
Conrod for Hedge Trimmer Dolmar HT2256D Genuine replacement part Dolmar, Conrod for Hedge Trimmers HT2256D - HT2556D - EH561. Part for the following products: -  HT2256D - HEDGE TRIMMER 56CM...
on 7/10 Business Days Approx. €51.26
Details
Dolmar Hedge Trimmer HT2556D Starter Assy
Makita SKU: 5255052000
Dolmar Hedge Trimmer HT2556D Starter Assy
Dolmar Hedge Trimmer HT2556D Starter Ass'y Genuine replacement part Dolmar, Starter Assembly for Hedge Trimmer HT2556D. Part for the following products: - HT2556D - HEDGE TRIMMER 24,5CC 56CM DOLMAR - HTR5600 - HEDGE TRIMMER...
on 7/10 Business Days Approx. €19.57
Details
Comments (0)
