Makita

Makita Brusch Cutter RBC415 Parts

SKU: Makita RBC415
€7.80
VAT included

Makita Spare Parts for BruschCutter RBC415

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Bruschcutter RBC415.

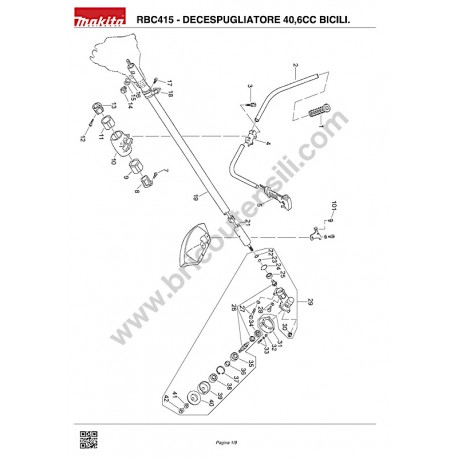

Makita Brusch Cutter RBC415 Parts Drawing
  • Makita Brusch Cutter RBC415 Parts Drawing
  • Makita Brusch Cutter RBC415 Parts Drawing - 1
  • Makita Brusch Cutter RBC415 Parts Drawing - 2
  • Makita Brusch Cutter RBC415 Parts Drawing - 3
Makita

Makita Brusch Cutter RBC415 Parts

SKU: Makita RBC415 Condition: New
€7.80
VAT included

Makita Spare Parts for BruschCutter RBC415

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Bruschcutter RBC415.
settings 136 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
136 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

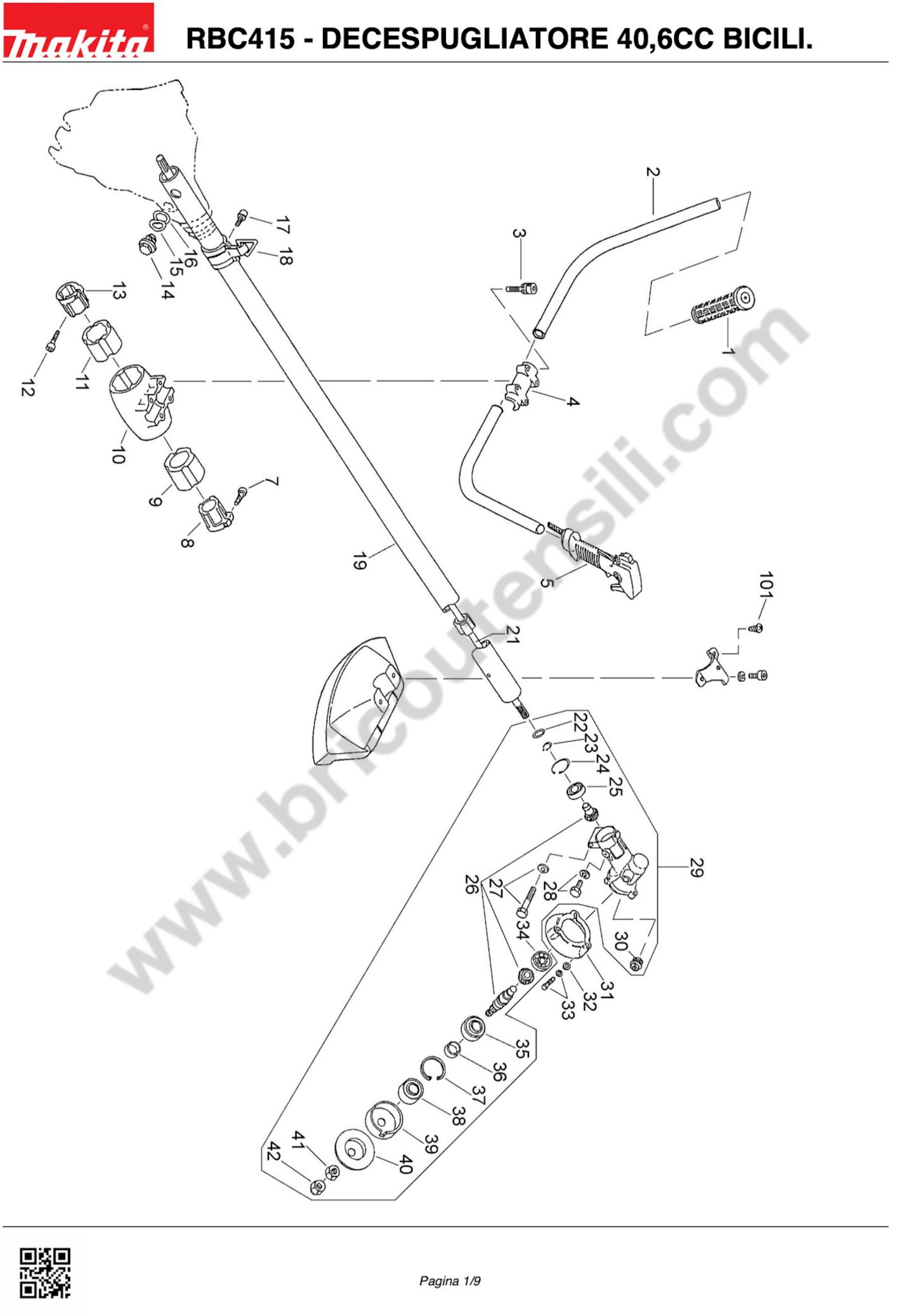

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6404502400 GRIP X RBC 410 €8.37
2
 Makita RBC310 Handlebar 6414500600 Makita RBC310 Handlebar €34.41
3
 photo_cameraImage coming soon 0119059840 SCREW M5X25 MOD RBC415 €2.69
4
 photo_cameraImage coming soon 318735-2 HANDLE SUPPORT FOR RBC415 P18 €21.54
5
 photo_cameraImage coming soon 6415014000 COMPLETE CONTROL LEVER FOR RBC415 P27 €61.62
7
 photo_cameraImage coming soon 0119069930 HEX. SOCKET HEAD BOLT M6X30 €2.14
8
 photo_cameraImage coming soon 6404506200 STOPPER RBC420E/MS4200E/RBC52 €53.38
9
 photo_cameraImage coming soon 6404504100 RING NUT FOR RBC415 P17 €18.98
10
 photo_cameraImage coming soon 6414503900 LOWER SYSTEM SUPPORT X RBC415 P31 €92.13
11
 photo_cameraImage coming soon 6404504100 RING NUT FOR RBC415 P17 €18.98
12
 photo_cameraImage coming soon 0119069930 HEX. SOCKET HEAD BOLT M6X30 €2.14
13
 photo_cameraImage coming soon 6404506200 STOPPER RBC420E/MS4200E/RBC52 €53.38
14
 photo_cameraImage coming soon 6211005000 BOLT X RBC230 P16 €16.65
15
 photo_cameraImage coming soon 0032214000 WAVE WASHER RBC230/260 €1.40
16
 photo_cameraImage coming soon 6219500400 WASHER X RBC260 / 230 €2.69
17
 photo_cameraImage coming soon 0043505180 M5X18 SCREW X RBC415 P01 €1.40
18
 photo_cameraImage coming soon 6417013000 SUPPORT X RBC415 P26 €56.02
22
 photo_cameraImage coming soon 0062610070 RING X RBC415 P03 €2.69
23
 Outer Snap Ring for Brushcutter Makita RBC221 0031512000 Outer Snap Ring for Brushcutter Makita RBC221 €2.00
24
 photo_cameraImage coming soon 0031428000 INNER SNAPRING X RBC410/520 €2.77
25
 photo_cameraImage coming soon 0600129980 BALL BEARING 6001ZZ €21.54
26
 photo_cameraImage coming soon 6413003000 SPINDLE X RBC410 €92.13
27
 photo_cameraImage coming soon 0011306320 BOLT WITH WASHER X RBC410 €2.08
28
 photo_cameraImage coming soon 0011306140 BOLT WITH WASHER X RBC410 €1.40
30
 photo_cameraImage coming soon 266671-5 OIL CAP €3.23
31
 photo_cameraImage coming soon 412099-7 PROTECTION X DECESP. €3.95
32
 photo_cameraImage coming soon 0031005000 WASHER X RBC230 / 410 / RBK410 €5.26
33
 photo_cameraImage coming soon 0119059900 BOLT M5X12 X RBC225-255 €2.08
34
 photo_cameraImage coming soon 0600079990 BEARING 627 X RBC415 €16.17
35
 photo_cameraImage coming soon 0600129970 BEARING 6201 X RBC415 €20.93
36
 photo_cameraImage coming soon 6413500500 SPACER X RBC410 €5.94
37
 photo_cameraImage coming soon 0031432000 INTERNAL LOCK X RBC260 / 310/410 €2.77
38
 photo_cameraImage coming soon 6413500400 OIL GASKET X RBC410 €3.84
39
 photo_cameraImage coming soon 326053-4 UPPER FLANGE X RBC410 €14.34
40
 photo_cameraImage coming soon 346441-9 EXTERNAL FLANGE €22.16
41
 photo_cameraImage coming soon 264058-5 NUT X RBC 410 / RBC520 €4.62
42
 photo_cameraImage coming soon 6308503300 NUT X RBC 410 / RBC520 €6.81
101
 photo_cameraImage coming soon 0150059940 SCREW X RBK250-RBC225-RBC255 €1.41
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

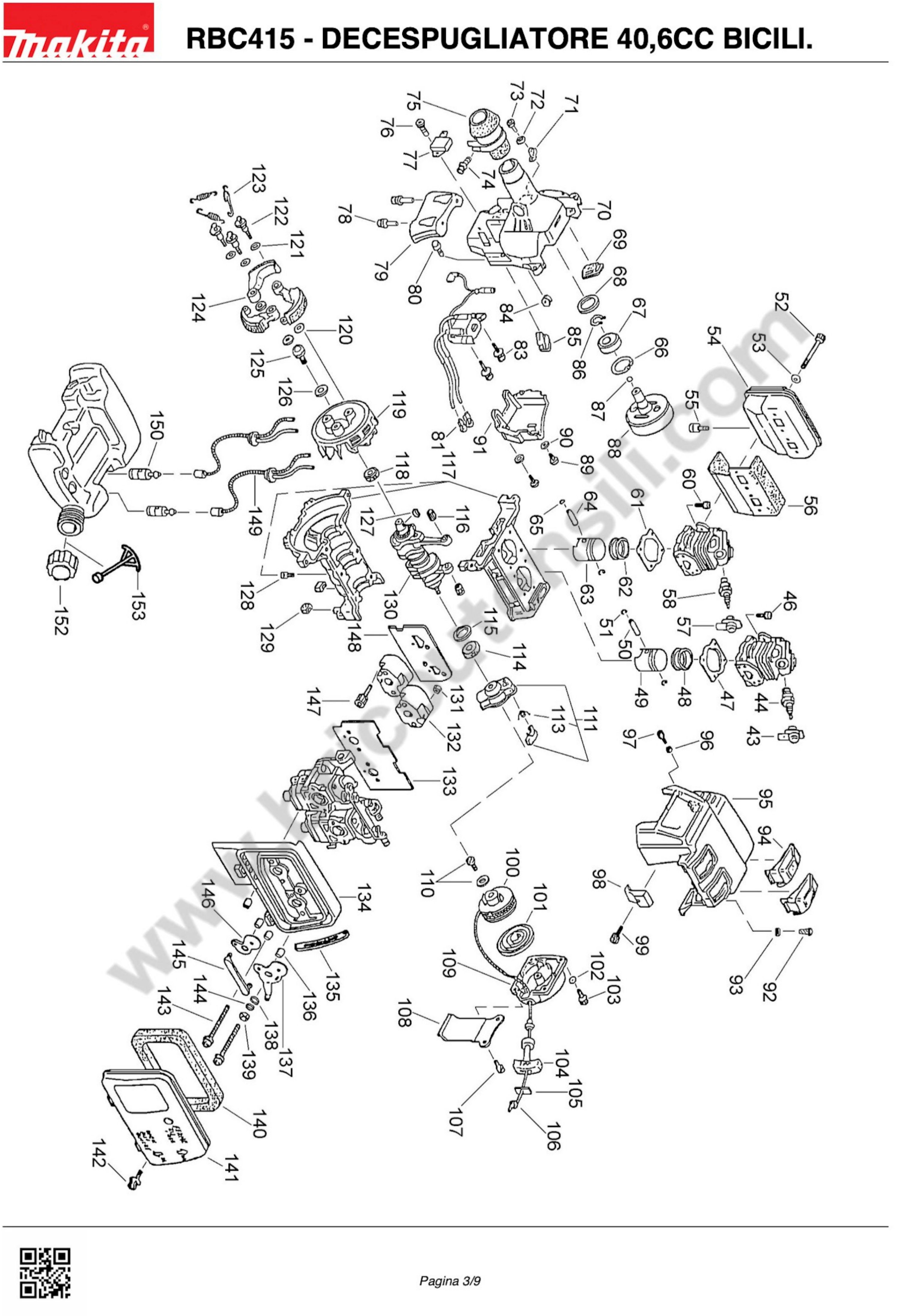

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
43
 photo_cameraImage coming soon 5427500002 SPARE PLUG CAP FOR RBC415 P13 €11.07
44
 photo_cameraImage coming soon 054001-10 SPARK PLUG NGK - BPM7A (10PZ) €54.43
46
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
47
 photo_cameraImage coming soon 5231501300 CYLINDER GASKET FOR RBC230 P02 €2.08
48
 photo_cameraImage coming soon 257320-5 PISTON RING €4.43
49
 photo_cameraImage coming soon 5212500600 PISTON FOR RBC415 P17 €18.98
50
 photo_cameraImage coming soon 5212500400 PIN FOR RBC415 P03 €2.69
51
 photo_cameraImage coming soon 233976-8-4 CIRCLIP EBH252L RING (4pcs) €6.01
52
 photo_cameraImage coming soon 0119059670 SCREW M5X55 X RBC415 €2.96
53
 photo_cameraImage coming soon 0031005000 WASHER X RBC230 / 410 / RBK410 €5.26
54
 photo_cameraImage coming soon 5423001000 MUFFLER FOR RBC415 P33 €113.10
55
 photo_cameraImage coming soon 0140059920 SCREW 5X8 X RBC 310 €1.44
56
 photo_cameraImage coming soon 5423500000 MUFFLER GASKET FOR RBC415 P20 €28.31
57
 photo_cameraImage coming soon 5427500002 SPARE PLUG CAP FOR RBC415 P13 €11.07
58
 photo_cameraImage coming soon 054001-10 SPARK PLUG NGK - BPM7A (10PZ) €54.43
60
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
61
 photo_cameraImage coming soon 5231501300 CYLINDER GASKET FOR RBC230 P02 €2.08
62
 photo_cameraImage coming soon 257320-5 PISTON RING €4.43
63
 photo_cameraImage coming soon 5212500600 PISTON FOR RBC415 P17 €18.98
64
 photo_cameraImage coming soon 5212500400 PIN FOR RBC415 P03 €2.69
65
 photo_cameraImage coming soon 233976-8-4 CIRCLIP EBH252L RING (4pcs) €6.01
66
 photo_cameraImage coming soon 0031435000 INTERNAL LOCK X RBC410 / 520 / RBK410 €3.23
67
 photo_cameraImage coming soon 0600179850 BALL BEARING 6003DD X RBC / K 410 €18.98
68
 photo_cameraImage coming soon 6301501600 WASHER X RBC520 €3.23
69
 photo_cameraImage coming soon 424103-0 DAMPER EBH341U €1.44
70
 photo_cameraImage coming soon 6411024000 COMPLETE CASING FOR RBC415 P39 €219.08
71
 photo_cameraImage coming soon 0566079970 CLAMP X RBC520 €2.14
72
 photo_cameraImage coming soon 0031205000 WASHER RBC415 / RBL250 €1.40
73
 photo_cameraImage coming soon 0119059950 BOLT M5X18 XRBC230 / 310/225 €2.30
74
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
75
 photo_cameraImage coming soon 6411021000 DAMPER FOR RBC415 P31 €92.13
76
 photo_cameraImage coming soon 0150049970 TAPPING SCREW, RBL500 RBC415 €1.40
77
 photo_cameraImage coming soon 5427001030 LOCK FOR RBC415 P31 €92.13
78
 photo_cameraImage coming soon 0119059870 BOLT X RBC230 €2.89
79
 photo_cameraImage coming soon 195144-0 EBH341U HOLDER €3.96
80
 photo_cameraImage coming soon 0119059950 BOLT M5X18 XRBC230 / 310/225 €2.30
81
 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U 324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U €1.62
83
 photo_cameraImage coming soon 0119059950 BOLT M5X18 XRBC230 / 310/225 €2.30
85
 Tank Damper for Brushcutter Makita RBC2110 424102-2 Tank Damper for Brushcutter Makita RBC2110 €1.30
86
 photo_cameraImage coming soon 0031517000 EXTERNAL LOCK X RBC 410 RBK410 €1.43
87
 photo_cameraImage coming soon 0062610070 RING X RBC415 P03 €2.69
89
 photo_cameraImage coming soon 0150049980 SCREW M4X8 X RBC225-255 €1.54
90
 photo_cameraImage coming soon 0031004000 WASHER FOR RBC415 P01 €1.40
91
 photo_cameraImage coming soon 5427500200 COIL COVER FOR RBC415 P12 €9.89
92
 photo_cameraImage coming soon 0119059680 SCREW M5X14 FOR RBC415 P03 €2.69
93
 photo_cameraImage coming soon 0031005003 FLAT WASHER X RBC415 €1.89
94
 photo_cameraImage coming soon 5425500201 SPIN COVER FOR RBC415 P07 €5.13
95
 photo_cameraImage coming soon 5425008000 CYLINDER COVER COMPLETE FOR RBC415 P25 €50.21
96
 photo_cameraImage coming soon 0031005003 FLAT WASHER X RBC415 €1.89
97
 photo_cameraImage coming soon 0119059680 SCREW M5X14 FOR RBC415 P03 €2.69
98
 photo_cameraImage coming soon 5425500100 DEFLECTOR PLATE FOR RBC415 P12 €9.89
99
 photo_cameraImage coming soon 0119059900 BOLT M5X12 X RBC225-255 €2.08
100
 photo_cameraImage coming soon 5215002020 STARTER SPOOL FOR RBC 230 P06 €4.43
101
 photo_cameraImage coming soon 232258-5 SPRING AVVIAMENTO EBH252L €10.36
102
 photo_cameraImage coming soon 0031005003 FLAT WASHER X RBC415 €1.89
103
 photo_cameraImage coming soon 0119059680 SCREW M5X14 FOR RBC415 P03 €2.69
104
 photo_cameraImage coming soon 5215002110 STARTER FOR RBC 230-225-255 €3.23
105
 photo_cameraImage coming soon 5315001030 STOP X RBC415 €5.28
106
 photo_cameraImage coming soon 5215002060 STARTER CABLE FOR RBC230 P11 €8.50
107
 photo_cameraImage coming soon 0119059680 SCREW M5X14 FOR RBC415 P03 €2.69
108
 photo_cameraImage coming soon 5036500100 PLATE FOR RBC415 P07 €5.13
109
 photo_cameraImage coming soon 5425001000 STARTER SPOOL FOR RBC415 P19 €24.35
110
 photo_cameraImage coming soon 5425003010 SCREW SET X RBC415-225-255 €3.95
111
 photo_cameraImage coming soon 5425004000 PULLEY FOR RBC415 P20 €28.31
113
 photo_cameraImage coming soon 5425004030 RETURN SPRING FOR RBC415 P04 €3.13
114
 photo_cameraImage coming soon 5421501100 OIL SEAL FOR RBC415 P22 €35.76
115
 photo_cameraImage coming soon 5421500500 CLIP X RBC415 €4.30
116
 Piston Pin Needle Bearing for Brushcutter Makita RBC310 0610089990 Piston Pin Needle Bearing for Brushcutter Makita RBC310 €7.60
117
 photo_cameraImage coming soon 5421002000 ENGINE CASE ASSEMBLY FOR RBC415 P42 €314.36
118
 photo_cameraImage coming soon 0440129991 OIL SEAL X RBC415 €3.79
119
 photo_cameraImage coming soon 5427001010 FLYWHEEL FOR RBC415 P30 €85.14
120
 photo_cameraImage coming soon 267429-5 WASHER 6 €1.54
121
 photo_cameraImage coming soon 267817-6 WASHER 8 EBH252L €1.46
122
 photo_cameraImage coming soon 6252500500 CLUTCH BOLT X RBC415 €7.58
123
 photo_cameraImage coming soon 6112500000 SPRING FOR RBC415 P04 €3.13
124
 photo_cameraImage coming soon 6412500601 CLUTCH SHOE FOR RBC415 P21 €32.73
125
 photo_cameraImage coming soon 0011306160 BOLT X RBC230 / 260/225/255 €1.43
126
 photo_cameraImage coming soon 0031206000 WASHER G.24 / 35-RBC225-255 €1.43
127
 photo_cameraImage coming soon 0053203101 WOODRUFF RBC / RBK 410 €2.15
128
 photo_cameraImage coming soon 0119059870 BOLT X RBC230 €2.89
129
 photo_cameraImage coming soon 5216500200 DAMPER X RBC230-225-255 €1.40
130
 photo_cameraImage coming soon 5422002000 ECCENTRIC SHAFT COMPLETE FOR RBC415 P47 €570.86
131
 photo_cameraImage coming soon 0021705000 NUT M5 X RBC415 €1.54
132
 photo_cameraImage coming soon 5423500901 INSULATOR FOR RBC415 P16 €16.65
133
 photo_cameraImage coming soon 5423500702 CARBURETOR GASKET FOR RBC415 P04 €3.13
134
 photo_cameraImage coming soon 5423500103 AIR FILTER COVER FOR RBC415 P19 €24.35
135
 photo_cameraImage coming soon 5423501000 CHOKE GASKET FOR RBC415 P15 €14.34
136
 photo_cameraImage coming soon 0230059920 SPACER FOR RBC415 P01 €1.40
137
 photo_cameraImage coming soon 5423502300 CHOKE LEVER (A) FOR RBC415 P06 €4.43
138
 photo_cameraImage coming soon 424523-8 WASHER X RBC415-RBC350 €3.84
139
 photo_cameraImage coming soon 0032005000 WASHER X RBC520 €1.43
140
 photo_cameraImage coming soon 5423501200 AIR FILTER ELEMENT FOR RBC415 P10 €7.58
141
 photo_cameraImage coming soon 5423501100 AIR FILTER COVER FOR RBC415 P08 €5.94
142
 photo_cameraImage coming soon 0119059870 BOLT X RBC230 €2.89
143
 photo_cameraImage coming soon 0140059830 SCREW M5X66 FOR RBC415 P02 €2.08
144
 photo_cameraImage coming soon 0031005000 WASHER X RBC230 / 410 / RBK410 €5.26
145
 photo_cameraImage coming soon 5423500500 CHOKE BAR FOR RBC415 P05 €3.84
146
 photo_cameraImage coming soon 5423502400 CHOKE LEVER (B) FOR RBC415 P05 €3.84
147
 photo_cameraImage coming soon 0119059640 BOLT M5X25 X RBC415 €3.13
148
 photo_cameraImage coming soon 5423500600 GASKET FOR RBC415 P03 €2.69
149
 photo_cameraImage coming soon 0851169970 FUEL PIPE FOR RBC415 P12 €9.89
150
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
152
 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
153
 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31

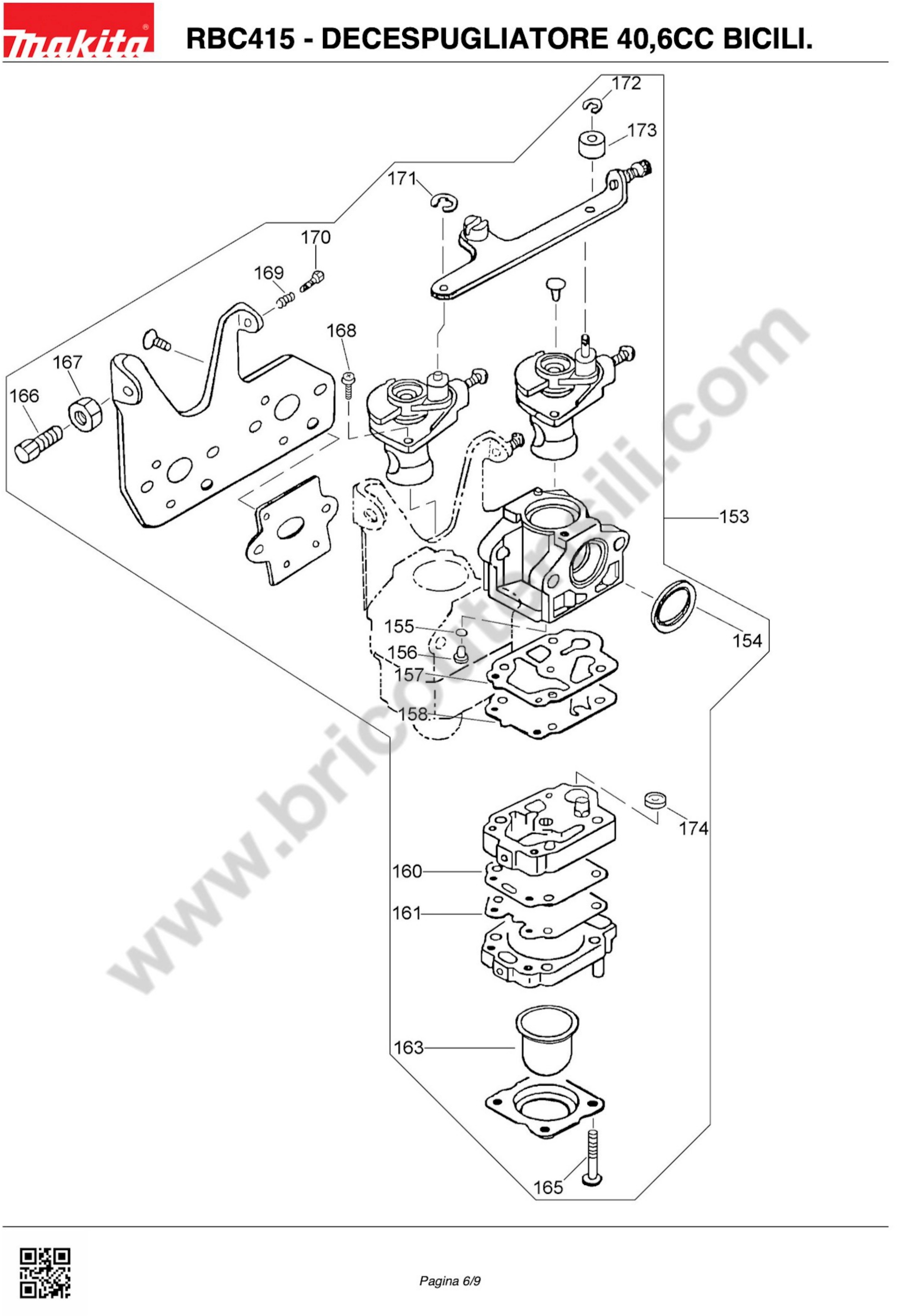

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
154
 photo_cameraImage coming soon 5236018020 GASKET FOR RBC 260/230 / 310 €5.43
155
 photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €6.10
156
 photo_cameraImage coming soon 5036002010 JET FOR RBC230 / 310/225/255 €11.07
157
 photo_cameraImage coming soon 5246001030 PUMP GASKET RBC260-230-310- €6.11
158
 photo_cameraImage coming soon WJ00009599 PUMP DIAPHRAGM DCS230T €13.50
160
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
161
 photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €27.72
163
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
165
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
166
 photo_cameraImage coming soon 5216008010 CABLE ADJUST SCREW X RBC260 310 €5.43
167
 photo_cameraImage coming soon 5316005450 NUT RBC260 / 310 €2.85
168
 photo_cameraImage coming soon 266581-6 SCREW M3X8 EBH341U €2.18
169
 photo_cameraImage coming soon 5316005360 SPRING FOR RBC415 P04 €3.13
170
 photo_cameraImage coming soon 5316005260 SCREW FOR RBC415 P07 €5.13
171
 photo_cameraImage coming soon 5426001020 RETAINING RING FOR RBC415 P09 €6.63
172
 photo_cameraImage coming soon 5426001030 RETAINING RING FOR RBC415 P09 €6.63
173
 photo_cameraImage coming soon 5426001250 STUD FOR RBC415 P16 €16.65
174
 photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28

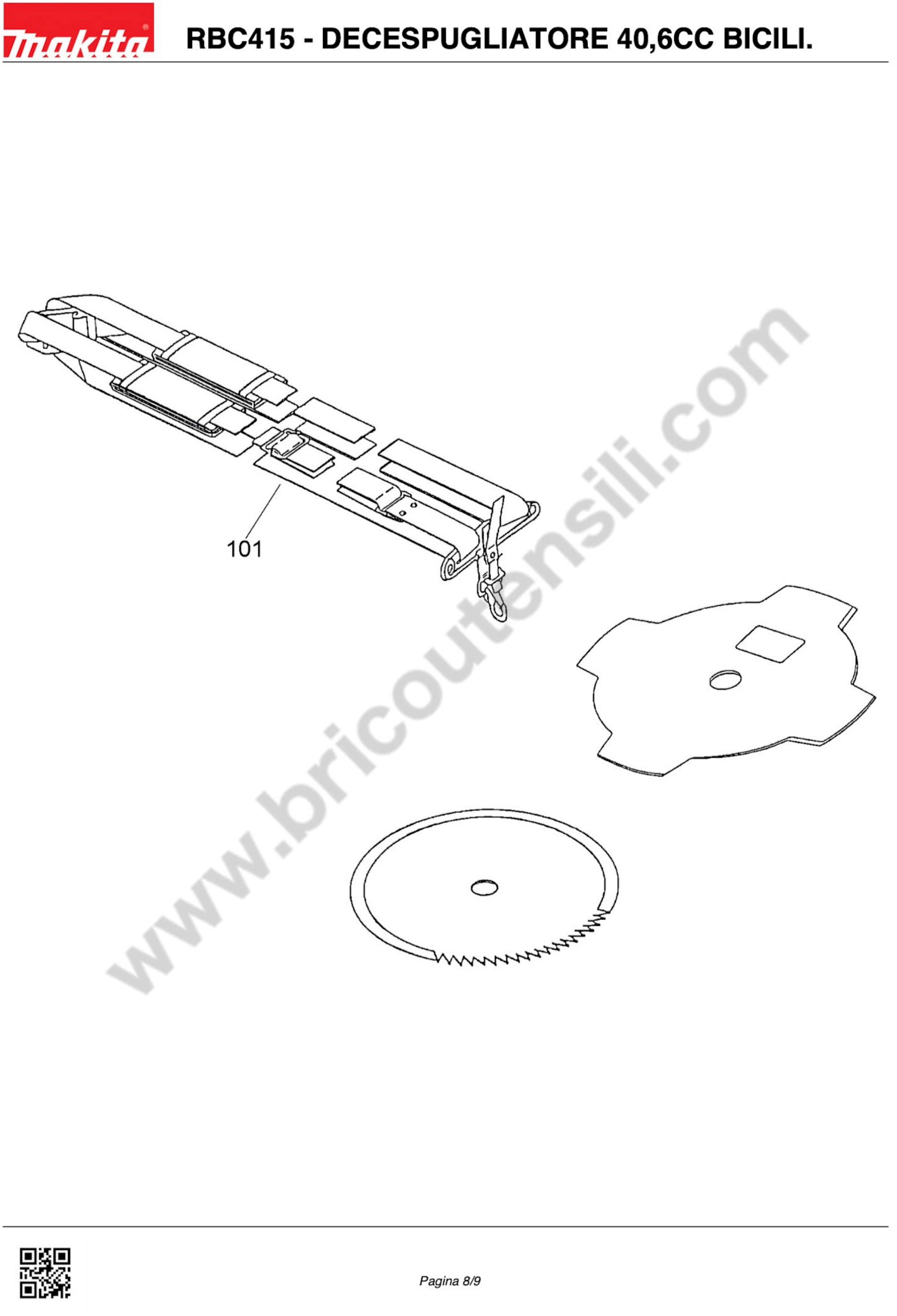

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
101
 photo_cameraImage coming soon 6407003003 BELT X RBC350-RBC420 €62.99

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for BruschCutter RBC415

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Bruschcutter RBC415.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
Makita RBC415
RBC415 - BRUSH CUTTER 40,6CC BICILI.
Pag.1
#
Part Number
Description
1 6404502400 KNOB FOR RBC 410 P10
2 6414500600 HANDLE 22 RBC 310
3 0119059840 M5X25 SCREW MOD. RBC415 P03
4 318735-2 HANDLE SUPPORT FOR RBC415 P18
5 6415014000 COMPLETE CONTROL LEVER FOR RBC415 P27
7 0119069930 M6X30 SCREW MOD. RBC415 P02
8 6404506200 LOCK FOR RBC415 P21
9 6404504100 RING NUT FOR RBC415 P17
10 6414503900 LOWER SYSTEM SUPPORT X RBC415 P31
11 6404504100 RING NUT X RBC415 P17
12 0119069930 M6X30 SCREW MOD RBC415 P02
13 6404506200 LOCK X RBC415 P21
14 6211005000 BOLT X RBC230 P16
15 0032214000 SPRING WASHER X RBC260/230 P01
16 6219500400 WASHER X RBC260/230 P03
17 0043505180 M5X18 SCREW X RBC415 P01
18 6417013000 SUPPORT X RBC415 P26
19 6411027000 ASSEMBLY SHAFT SUPPORT X RBC415 P44
21 6411502900 SHAFT X RBC415 P25
22 0062610070 RING X RBC415 P03
23 0031512000 EXTERNAL RING X RBC260/520RBK410 P02
24 0031428000 INNER RING X RBC410/520 P03
25 0600129980 BALL BEARING 6001ZZ P18
26 6413003000 SHAFT SET X RBC410 P31
27 0011306320 BOLT WITH WASHER X RBC410 P02
28 0011306140 BOLT WITH WASHER X RBC410 P01
29 6353003000 GEARBOX ASSEMBLY X RBC415 P45
30 266671-5 OIL CAP P04
31 412099-7 CUTTER PROTECTION P05
32 0031005000 WASHER FOR RBC230/410/RBK410 P01
33 0119059900 BOLT M5X12 FOR RBC225-255 P02
34 0600079990 BEARING 627 FOR RBC415 P09
35 0600129970 BEARING 6201 FOR RBC415 P12
36 6413500500 SPACER FOR RBC410 P08
37 0031432000 INTERNAL RETAINER FOR RBC260/310/410 P03
38 6413500400 OIL SEAL FOR RBC410 P05
39 326053-4 UPPER FLANGE FOR RBC410 P15
40 346441-9 EXTERNAL FLANGE P18
41 264058-5 NUT FOR RBC 410/RBC520 P05
42 6308503300 NUT FOR RBC 410/RBC520 P09
101 0150059940 SCREW FOR RBK250-RBC225-RBC255 P01
Pag.2
43 5427500002 SPARE PLUG CAP FOR RBC415 P13
44 054001-10 NGK SPARK PLUG - BPM7A (10 PCS) A39
46 0119059730 BOLT FOR RBC 260/230/225/255 P02
47 5231501300 CYLINDER GASKET FOR RBC230 P02
48 257320-5 PISTON RING P06
49 5212500600 PISTON FOR RBC415 P17
50 5212500400 PIN FOR RBC415 P03
51 233976-8-4 PIN FORK RING EBH252L (4 PCS) P07
52 0119059670 M5X55 SCREW FOR RBC415 P03
53 0031005000 WASHER FOR RBC230/410/RBK410 P01
54 5423001000 MUFFLER FOR RBC415 P33
55 0140059920 5X8 SCREW FOR RBC 310 P01
56 5423500000 MUFFLER GASKET FOR RBC415 P20
57 5427500002 SPIN SPARK PLUG CAP FOR RBC415 P13
58 054001-10 NGK SPARK PLUG - BPM7A (10 PCS) A39
60 0119059730 BOLT FOR RBC 260/230/225/255 P02
61 5231501300 CYLINDER SEAL FOR RBC230 P02
62 257320-5 PISTON RING P06
63 5212500600 PISTON FOR RBC415 P17
64 5212500400 PIN FOR RBC415 P03
65 233976-8-4 PIN FORK RING EBH252L (4 pcs) P07
66 0031435000 INTERNAL RETAINER FOR RBC410/520/RBK410 P04
67 0600179850 BEARINGS BALLS 6003DD FOR RBC/K 410 P17
68 6301501600 WASHER FOR RBC520 P04
69 424103-0 SHOCK ABSORBER EBH341U P01
70 6411024000 COMPLETE CASING FOR RBC415 P39
71 0566079970 CLAMP FOR RBC520 P02
72 0031205000 WASHER FOR RBC415/RBL250 P01
73 0119059950 BOLT M5X18 FOR RBC230/310/225/ P02
74 0119059730 BOLT FOR RBC 260/230/225/255 P02
75 6411021000 DAMPER FOR RBC415 P31
76 0150049970 SCREW FOR RBC415 P01
77 5427001030 LOCK FOR RBC415 P31
78 0119059870 BOLT FOR RBC230 P03
79 195144-0 SUPPORT EBH341U P05
80 0119059950 BOLT M5X18 FOR RBC230/310/225/ P02
81 324891-8 SPRING FOR SPARK PLUG CAP EBH341 P01
83 0119059950 BOLT M5X18 XRBC230/310/225/ P02
85 424102-2 SHOCK ABSORBER EBH341U P01
86 0031517000 EXTERNAL RETAINER FOR RBC 410 RBK410 P01
87 0062610070 RING FOR RBC415 P03
88 6412002001 CLUTCH BELL FOR RBC415 P27
89 0150049980 SCREW M4X8 FOR RBC225-255 P01
90 0031004000 WASHER FOR RBC415 P01
91 5427500200 COIL COVER FOR RBC415 P12
92 0119059680 SCREW M5X14 FOR RBC415 P03
93 0031005003 WASHER FOR RBC415 P01
94 5425500201 SPIN COVER FOR RBC415 P07
95 5425008000 CYLINDER COVER COMPLETE FOR RBC415 P25
96 0031005003 WASHER FOR RBC415 P01
97 0119059680 M5X14 SCREW FOR RBC415 P03
98 5425500100 DEFLECTOR PLATE FOR RBC415 P12
99 0119059900 M5X12 BOLT FOR RBC225-255 P02
100 5215002020 STARTER SPOOL FOR RBC 230 P06
101 232258-5 STARTER SPRING EBH252L P12
102 0031005003 WASHER FOR RBC415 P01
103 0119059680 M5X14 SCREW FOR RBC415 P03
104 5215002110 STARTER FOR RBC 230-225-255 P04
105 5315001030 LOCK FOR RBC415 P07
106 5215002060 STARTER CABLE FOR RBC230 P11
107 0119059680 M5X14 SCREW FOR RBC415 P03
108 5036500100 PLATE FOR RBC415 P07
109 5425001000 STARTER SPOOL FOR RBC415 P19
110 5425003010 SCREW SET FOR RBC415-225-255 P05
111 5425004000 PULLEY FOR RBC415 P20
113 5425004030 RETURN SPRING FOR RBC415 P04
114 5421501100 OIL SEAL FOR RBC415 P22
115 5421500500 CLIP FOR RBC415 P04
116 0610089990 ROLLER BEARINGS FOR RBC260/230/310/P08
117 5421002000 ENGINE CASE ASSEMBLY FOR RBC415 P42
118 0440129991 OIL SEAL FOR RBC415 P03
119 5427001010 FLYWHEEL FOR RBC415 P30
120 267429-5 WASHER 6 P01
121 267817-6 WASHER 8 EBH252L P01
122 6252500500 CLUTCH BOLT FOR RBC415 P10
123 6112500000 SPRING FOR RBC415 P04
124 6412500601 CLUTCH SHOE FOR RBC415 P21
125 0011306160 BOLT FOR RBC230/260/225/255 P01
126 0031206000 WASHER G.24/35 - RBC225-255 P01
127 0053203101 WRECKER RBC/RBK 410 P02
128 0119059870 BOLT FOR RBC230 P03
129 5216500200 RUBBER FOR RBC230-225-255 P01
130 5422002000 ECCENTRIC SHAFT COMPLETE FOR RBC415 P47
131 0021705000 NUT M5 FOR RBC415 P01
132 5423500901 INSULATOR FOR RBC415 P16
133 5423500702 CARBURETOR GASKET FOR RBC415 P04
134 5423500103 AIR FILTER COVER FOR RBC415 P19
135 5423501000 CHOKE GASKET FOR RBC415 P15
136 0230059920 SPACER FOR RBC415 P01
137 5423502300 CHOKE LEVER (A) FOR RBC415 P06
138 424523-8 WASHER FOR RBC415-RBC350 P05
139 0032005000 WASHER FOR RBC520 P01
140 5423501200 AIR FILTER ELEMENT FOR RBC415 P10
141 5423501100 AIR FILTER COVER FOR RBC415 P08
142 0119059870 BOLT FOR RBC230 P03
143 0140059830 SCREW M5X66 FOR RBC415 P02
144 0031005000 WASHER FOR RBC230/410/RBK410 P01
145 5423500500 CHOKE BAR FOR RBC415 P05
146 5423502400 CHOKE LEVER (B) FOR RBC415 P05
147 0119059640 BOLT M5X25 FOR RBC415 P04
148 5423500600 GASKET FOR RBC415 P03
149 0851169970 FUEL PIPE FOR RBC415 P12
150 163447-0 FUEL FILTER FOR DCS230T P05
152 452920-8 FUEL CAP P09
153 140436-2 DISK EBH341U P10
Pag.3
153 5426002001 CARBURETOR FOR RBC415 P39
154 5236018020 GASKET FOR RBC 260/230/310 P07
155 5246001010 GASKET FOR RBC 260/230/310/ P06
156 5036002010 JET FOR RBC230/310/225/255 P13
157 5246001030 PUMP SEAL RBC260-230-310- P08
158 WJ00009599 PUMP DIAPHRAGM FOR DCS230T P07
160 442154-1 DIAPHRAGM SEAL EBH341U P06
161 168574-8 DIAPHRAGM ASSEMBLY EBH341U P19
163 424314-7 PRIMING PUMP EBH341 P08
165 266582-4 SCREW 3X24 EBH341U P02
166 5216008010 SCREW CABLE ADJUSTMENT ACC. XRBC260 310 P07
167 5316005450 ADJUSTMENT STOP NUT RBC260/310 P03
168 266581-6 M3X8 SCREW EBH341U P02
169 5316005360 SPRING FOR RBC415 P04
170 5316005260 SCREW FOR RBC415 P07
171 5426001020 RETAINING RING FOR RBC415 P09
172 5426001030 RETAINING RING FOR RBC415 P09
173 5426001250 STUD FOR RBC415 P16
174 5016004010 CONNECTOR FOR RBC 260/230/310/225 P05
Pag.4
101 6407003003 BELT FOR RBC350-RBC420 A46
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBC415
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita RBC415 Parts Drawing

Makita RBC415 Parts Drawing

Download (1.14MB)

You might also like

Carburator Hose Grommet for Brushcutter Dolmar MS-27C
Makita SKU: DA00000118
Carburator Hose Grommet for Brushcutter Dolmar MS-27C
Carburator Hose Grommet for Brushcutter Dolmar MS-27C Genuine parts Dolmar, Carburator Hose Grommet for Brushcutter MS-27C - Makita EM2600L Part for the following products: -  MS-27C - BRUSHCUTTER 25,7CC DOLMAR -  EM2600L -...
AVAILABLE €2.37
Details
Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA 25CM -...
AVAILABLE €4.49
Details
3 Teeth Blade for Brushcutter Makita RBC310
Makita SKU: P-47385
3 Teeth Blade for Brushcutter Makita RBC310
3 Teeth Blade for Brushcutter Makita RBC310 Genuine spare part Makita, 3 Teeth Blade (255X1.4X25.4)MM for Brushcutters RBC2501 - RBC2511 - RBC3200 - RBC3210 - Dolmar MS254C - MS254U - MS3201C - MS3201U Part for the following products:...
AVAILABLE €14.78
Details
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Details
Fuel Hose for Brushcutter Makita RBC421
Makita SKU: 168766-9
Fuel Hose for Brushcutter Makita RBC421
Fuel Hose for Brushcutter Makita RBC421 Genuine replacement part Makita, Fuel Hose for Brushcutters RBC421 - RBC421L - MS3500 - MS3510 - MS4200 - MS4200E. Part for the following products: - MS3500 - BRUSHCUTTER 34,4CC DOLMAR - MS3510...
AVAILABLE €5.95
Details
Electronic Coil for Brushcutter Makita RBC421
Makita SKU: 168587-9
Electronic Coil for Brushcutter Makita RBC421
Electronic Coil for Brushcutter Makita RBC421 Genuine replacement part Makita, Electronic Coil for Brushcutters RBC350 - RBC351 - RBC410 - RBC420 - RBC421 - RBC421L - MS3500...
Last items in stock €24.50
Details
Piston for Brushcutter Makita RBC410 Sale
Makita SKU: 318631-4
Piston for Brushcutter Makita RBC410
Piston for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC - RBC420 -...
Out-of-Stock €28.32
Details
Cylinder for Brushcutter Makita RBC410
Makita SKU: 318630-6
Cylinder for Brushcutter Makita RBC410
Cylinder for Brushcutter Makita RBC410 Genuine replacement part Makita, Cylinder for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - DECESPUGLIATORE 40,2CC -...
Last items in stock €66.15
Details
Piston Ring for Brushcutter Makita RBC410 Sale
Makita SKU: 257309-3
Piston Ring for Brushcutter Makita RBC410
Piston Ring for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Ring for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC -...
Last items in stock €5.15
Details
Piston Pin for Brushcutter Makita RBC410 Sale
Makita SKU: 257797-4
Piston Pin for Brushcutter Makita RBC410
Piston Pin for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Pin for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC -...
AVAILABLE €3.65
Details
Piston Pin Circlip for Brushcutter Makita RBC410
Makita SKU: 233983-1
Piston Pin Circlip for Brushcutter Makita RBC410
Piston Pin Circlip for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Pin Circlip for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 -...
AVAILABLE €1.55
Details
Cylinder Gasket for Brushcutter Makita RBC410
Makita SKU: 442156-7
Cylinder Gasket for Brushcutter Makita RBC410
Cylinder Gasket for Brushcutter Makita RBC410 Genuine replacement part Makita, Cylinder Gasket for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 -...
Last items in stock €3.48
Details
Gasoline Tank for Brushcutter Makita RBC421
Makita SKU: 454558-5
Gasoline Tank for Brushcutter Makita RBC421
Gasoline Tank for Brushcutter Makita RBC421 Genuine part Makita, Gasoline Tank for Brushcutters RBC421 - RBC201 - RBC420E - RBC420 - RBC351 - RBC350. Part for the following products: - RBC350 - DECESPUGLIATORE 34,4CC MAKITA - RBC351...
Last items in stock €15.97
Details
Primer Bulb for Blower Makita BHX2501
Makita SKU: 424314-7
Primer Bulb for Blower Makita BHX2501
Primer Bulb for Blower Makita BHX2501 Genuine replacement part Makita, Primer Bulb for Brushcutters, Hedge Trimmers, Blowers, Engine Pump, Mist Blowers. Part for the following...
AVAILABLE €6.90
Details
Clutch Ass'y for Brushcutter Dolmar MS4210
Makita SKU: 140897-6
Clutch Ass'y for Brushcutter Dolmar MS4210
Clutch Ass'y for Brushcutter Dolmar MS4210 Genuine replacement part Dolmar, Clutch Ass'y for Brushcutters MS3500 - MS3510 - MS4200 - MS4210 - MS4211 - MS5250E. Part for the following products: -  MS4200 - BRUSHCUTTER 40,2CC DOLMAR -...
on 10 Business Days Approx €110.29
Details
Tank Damper for Brushcutter Makita RBC2110
Makita SKU: 424102-2
Tank Damper for Brushcutter Makita RBC2110
Tank Damper for Brushcutter Makita RBC2110 Genuine part Makita, Tank Damper for Brushcutters RBC2110 - RBC226 - RBC251 - RBC255 - RBC256 - Dolmar MS-34C.ar MS-26U. Part for the following products: - EBH252L - BRUSHCUTTER 24,5CC 4T...
Last items in stock €1.30
Details
Outer Snap Ring for Brushcutter Makita RBC221
Makita SKU: 0031512000
Outer Snap Ring for Brushcutter Makita RBC221
Outer Snap Ring for Brushcutter Makita RBC221 Genuine replacement part Makita, Outer Snap Ring for Brushcutters RBC221 - RBC226 - RBC2501 - RBC2511 - RBC256 - RBC311 - RBC3110. Part for the following products: - DBC260L - BRUSHCUTTER...
AVAILABLE €2.00
Details
Fuel Tank for Brushcutter Makita RBK350
Makita SKU: 5416501201
Fuel Tank for Brushcutter Makita RBK350
Fuel Tank for Brushcutter Makita RBK350 Genuine replacement part MAKITA, Fuel Tank  for Brushcutters RBC410 - RBK350 - RBK410 - RBK420. Part for the following products:...
Last items in stock €20.65
Details
Fuel Tube for Brushcutter Makita RBK350
Makita SKU: 422060-6
Fuel Tube for Brushcutter Makita RBK350
Fuel Tube for Brushcutter Makita RBK350 Genuine replacement part MAKITA, Fuel Tube for Brushcutters RBC410 - RBK350 - RBK410 - RBK420. Part for the following products: - ...
on 7/10 Business Days Approx. €6.44
Details
Makita RBC310 Handlebar
Makita SKU: 6414500600
Makita RBC310 Handlebar
Makita RBC310 Handlebar Genuine spare part Makita, Handlebar 22MM for Brushcutters RBC310 - RBC350 - RBC410 - RBC420 - MS4200. Part for the following products: - MS4200 - BRUSHCUTTER DOLMAR - RBC350 -...
Usually Ships in: 7/10 Business Days Approx. €34.41
Details
Comments (0)
