Makita DLM382 Lawn Mower Parts

SKU: Makita DLM382
€6.82
VAT included

Makita DLM382 Cordless Lawn Mower Spare Parts

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower DLM382.
Makita DLM382 Lawn Mower Parts
  • Makita DLM382 Lawn Mower Parts
  • Makita DLM382 Lawn Mower Parts Drawing
  • Makita DLM382 Lawn Mower Parts Drawing - 1
  • Makita DLM382 Lawn Mower Parts Drawing - 2
  • Makita DLM382 Lawn Mower Parts Drawing - 3
Makita

Makita DLM382 Lawn Mower Parts

SKU: Makita DLM382 Condition: New
€6.82
VAT included

Makita DLM382 Cordless Lawn Mower Spare Parts

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower DLM382.
settings 77 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
77 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

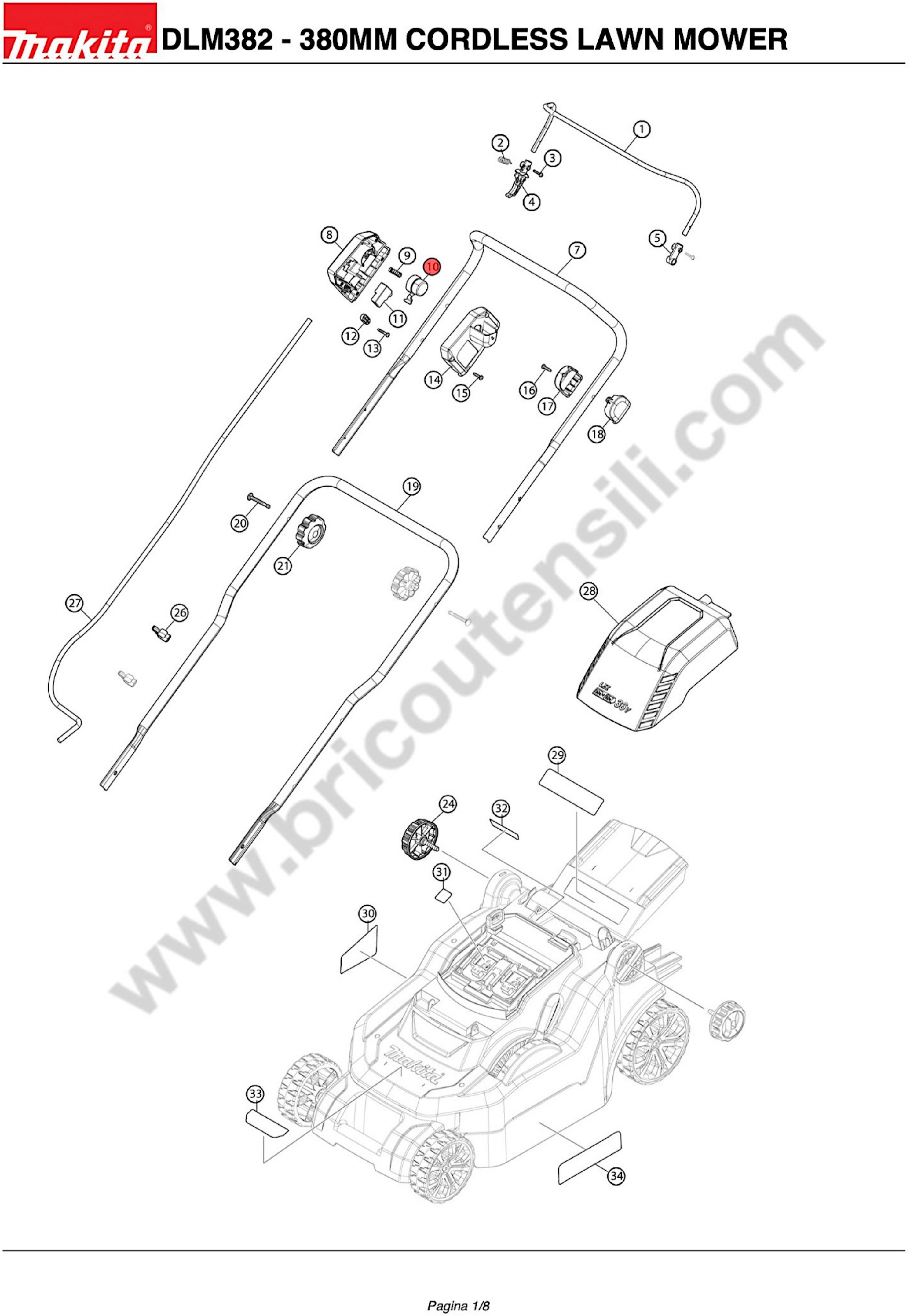

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 326636-0 SWITCH LEVER €6.82
2
 photo_cameraImage coming soon 231876-6 TENSION SPRING 9 €1.44
3
 photo_cameraImage coming soon 911536-3 SCREW M4X20 €2.86
4
 photo_cameraImage coming soon 455075-8 LEVER €1.44
5
 photo_cameraImage coming soon 455078-2 ARM €1.44
7
 photo_cameraImage coming soon 143510-5 UPPER PIPE COMPLETE €25.07
8
 photo_cameraImage coming soon 459804-1 SWITCH BOX €3.22
9
 photo_cameraImage coming soon 233068-3 COMPRESSION SPRING 6 €1.44
10
 photo_cameraImage coming soon 455074-0 SWITCH BUTTON €1.44
11
 photo_cameraImage coming soon 650730-9 SWITCH TG72BD-6 €22.12
12
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
13
 photo_cameraImage coming soon 265999-8 4X25 SCREW €1.47
14
 photo_cameraImage coming soon 140N15-0 SWITCH BOX COVER COMPLETE K €4.56
15
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
16
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
17
 photo_cameraImage coming soon 456352-1 SWITCH LEVER CASE COVER €2.77
18
 photo_cameraImage coming soon 456351-3 SWITCH LEVER CASE €2.77
19
 photo_cameraImage coming soon 327413-3 LOWER HANDLE €16.65
20
 photo_cameraImage coming soon 265A14-4 CUP H. SQUARE NECK BOLT M6X50 €1.44
21
 photo_cameraImage coming soon 264070-5 THUMB NUT M6 €2.77
24
 photo_cameraImage coming soon 266729-0 THUMB SCREW M8X35 €3.95
26
 photo_cameraImage coming soon 459809-1 HOLDER €1.44
27
 photo_cameraImage coming soon 660393-3 POWER SUPPLY CORD €5.28
28
 photo_cameraImage coming soon 140N21-5 BATTERY COVER COMPLETE E €17.15
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

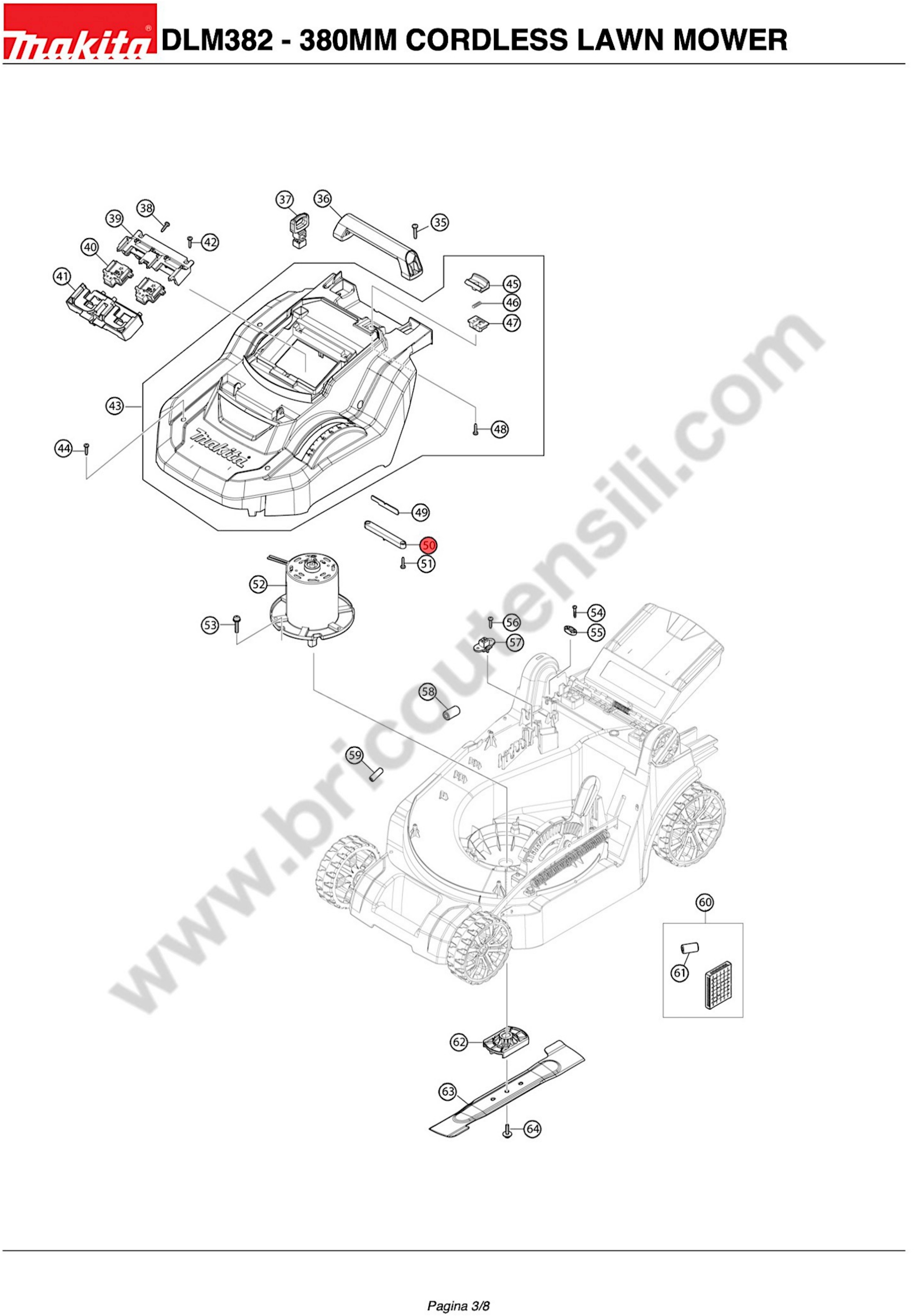

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
35
 photo_cameraImage coming soon 266459-3 SCREW 5x25 PC5000C €1.32
36
 photo_cameraImage coming soon 273675-0 GRIP A €6.11
37
 photo_cameraImage coming soon 643890-4 KEY €3.95
38
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
39
 photo_cameraImage coming soon 183N35-1 TERMINAL HOUSING SET €5.28
40
 photo_cameraImage coming soon 644809-6 TERMINAL X BLS713-BHP451 €6.00
41
 photo_cameraImage coming soon 183N35-1 TERMINAL HOUSING SET €5.28
42
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
43
 photo_cameraImage coming soon 127393-1 MOTOR COVER €21.54
44
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
45
 photo_cameraImage coming soon 453250-0 LOCK LEVER €2.15
46
 photo_cameraImage coming soon 233173-6 SPRING FOR COMPR.4 UC3020A €1.47
47
 photo_cameraImage coming soon 453251-8 LOCK LEVER SUPPORT €2.15
48
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
49
 photo_cameraImage coming soon 620B91-3 LED CIRCUIT €7.80
50
 photo_cameraImage coming soon 455070-8 LED COVER €1.44
51
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
52
 photo_cameraImage coming soon 629A17-6 DC MOTOR €139.89
53
 photo_cameraImage coming soon 265672-0 PAN HEAD SCREW M6X35 WITH WR + €1.44
54
 photo_cameraImage coming soon 265999-8 4X25 SCREW €1.47
55
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
56
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
57
 photo_cameraImage coming soon 638946-6 LEAD UNIT €5.28
58
 photo_cameraImage coming soon 688162-0 FILTER LINE €2.77
59
 photo_cameraImage coming soon 688165-4 FILTER LINE X AH3655 €1.44
60
 photo_cameraImage coming soon 632P17-7 REGULATOR €113.10
61
 photo_cameraImage coming soon 688162-0 FILTER LINE €2.77
62
 photo_cameraImage coming soon 459811-4 BLADE SUPPORT €3.84
63
 photo_cameraImage coming soon 191D41-2 BLADE 380MM €22.55
64
 photo_cameraImage coming soon 256933-9 M8X35 SCREW €1.40
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

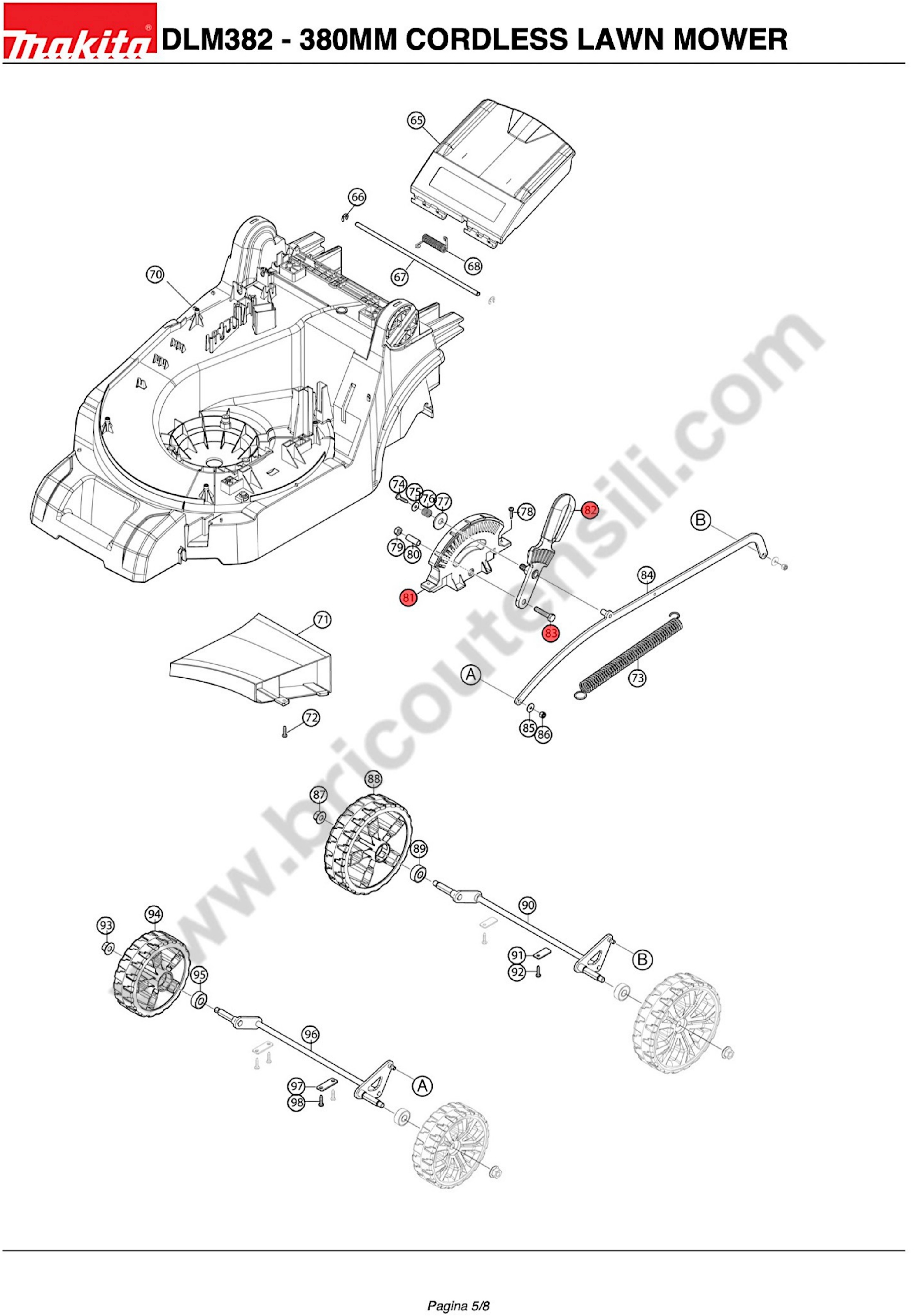

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
65
 photo_cameraImage coming soon 140S15-0 REAR FLAP COMPLETE €6.82
66
 photo_cameraImage coming soon LC961018-5 EXT E-RING JIS JE-5 €1.44
67
 photo_cameraImage coming soon 259068-5 ROD 6 €2.69
68
 photo_cameraImage coming soon LC233597-6 TORSION SPRING 8 €1.44
70
 photo_cameraImage coming soon 459777-8 FRAME €75.83
71
 photo_cameraImage coming soon 412272-9 UNDER COVER €4.56
72
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
73
 photo_cameraImage coming soon LC231875-8 TENSION SPRING 16 €2.15
74
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
75
 photo_cameraImage coming soon LC267102A7 FLAT WASHER 4 €1.44
76
 photo_cameraImage coming soon LC231297-2 COMPRESSION SPRING 9 €1.44
77
 photo_cameraImage coming soon LC253808A3 FLAT WASHER 9 €1.44
78
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
79
 photo_cameraImage coming soon 252273-3 HEX FULL NUT M6 LF1000/DST111 €2.13
80
 photo_cameraImage coming soon LC257670A8 SLEEVE 6 €1.44
81
 photo_cameraImage coming soon 453255-0 ADJUST PLATE €8.75
82
 photo_cameraImage coming soon 459099-6 CHANGE LEVER €5.52
83
 photo_cameraImage coming soon LC921352-5 HEX.BOLT M6X30 €1.44
84
 photo_cameraImage coming soon 347571-9 CONNECTION ROD €7.58
85
 photo_cameraImage coming soon 941101-4 FLAT WASHER 5 €1.47
86
 photo_cameraImage coming soon 252103-8 LOCKNUT X JR3020 €3.18
87
 photo_cameraImage coming soon LC252145-2 COLLARED HEX. NUT M8 €1.44
88
 photo_cameraImage coming soon 459101-5 REAR WHEEL €19.54
91
 photo_cameraImage coming soon 346545-7 BLM430 AM3643 PLATE €1.40
92
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
93
 photo_cameraImage coming soon LC252145-2 COLLARED HEX. NUT M8 €1.44
94
 photo_cameraImage coming soon 459100-7 FRONT WHEEL €19.54
97
 photo_cameraImage coming soon 341462-6 PLATE X JR3000 / V €1.40
98
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

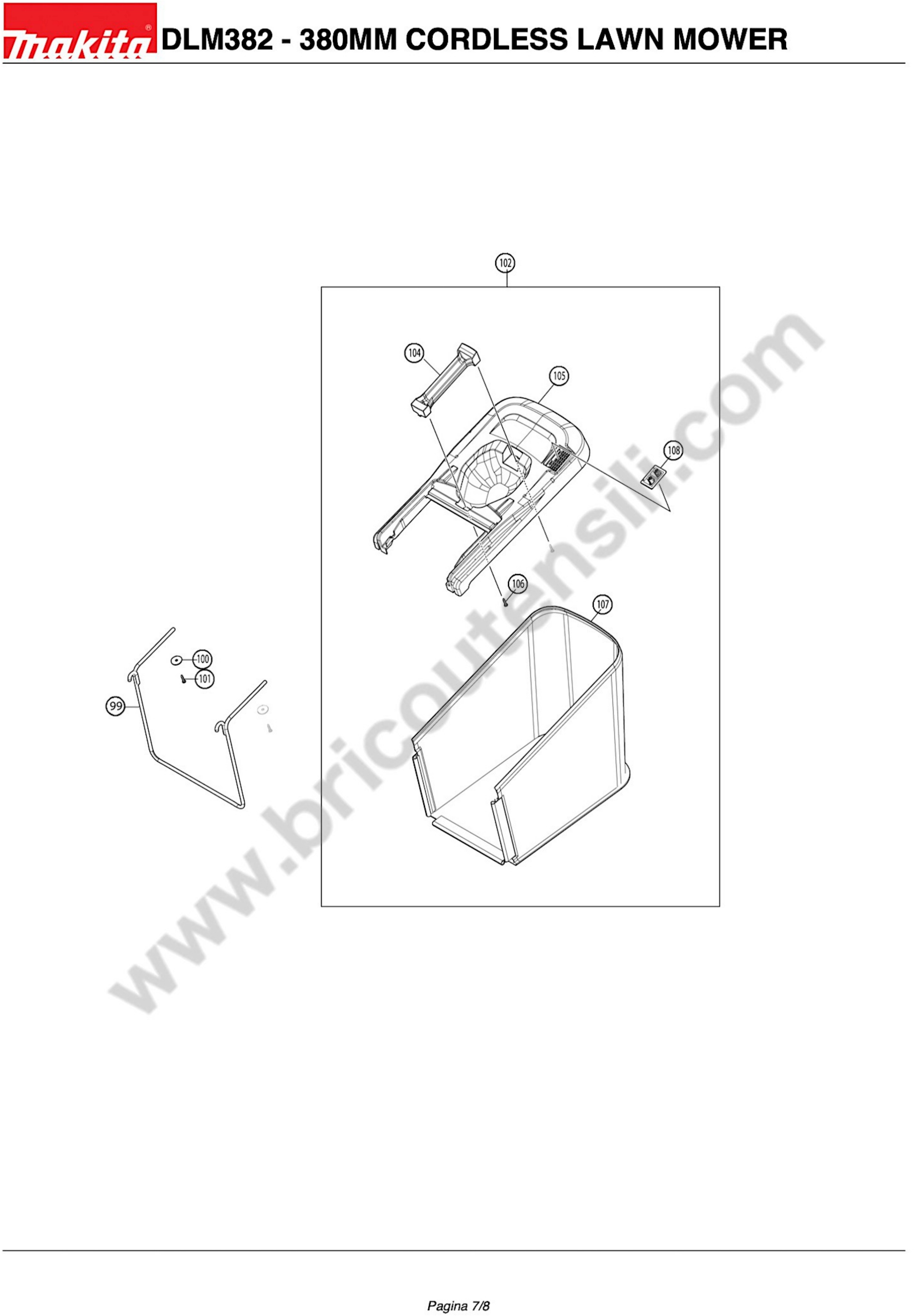

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
99
 photo_cameraImage coming soon 327411-7 FRAME €14.34
100
 photo_cameraImage coming soon 267438-4 FLAT WASHER 5 €1.44
101
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
102
 photo_cameraImage coming soon 127392-3 GRASS BAG M €44.84
104
 photo_cameraImage coming soon 273676-8 GRIP B €3.22
105
 photo_cameraImage coming soon 459812-2 REAR BAG COVER €11.07
106
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
107
 photo_cameraImage coming soon 162684-3 GRASS BAG €21.54
108
 photo_cameraImage coming soon 459806-7 INDICATOR M €1.44
Page 5 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
A03
 photo_cameraImage coming soon 197265-4 BATTERY BL1830B SET €230.24
A03C
 photo_cameraImage coming soon 197280-8 BATTERY BL1840B SET €251.58
A02
 photo_cameraImage coming soon DC18RD DC18RD TWO-PORT FAST CHARGER €292.28

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita DLM382 Cordless Lawn Mower Spare Parts

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower DLM382.

In the following table, look for the model of Lawn Mower and the respective parts of the code.
Makita DLM382

DLM382 - RASAERBA DLM382 - 380MM
Pag.1
# Part Num Description
1 326636-0 SWITCH LEVER
2 231876-6 TENSION SPRING 9 BLM430
3 911536-3 M4X20 SCREW
4 455075-8 LEVER
5 455078-2 JOINT
7 143510-5 UPPER HANDLE
8 459804-1 SWITCH BOX
9 233068-3 COMPRESSION SPRING 6 BLM430
10 455074-0 SWITCH BUTTON
11 650730-9 SWITCH TG72BD-6
12 687124-5 CABLE CLAMP MT953
13 265999-8 4X25 SCREW
14 140N15-0 SWITCH BOX COVER K COMPLETE
15 265995-6 M4X18 SCREW
16 265995-6 M4X18 SCREW
17 456352-1 SWITCH LEVER COVER
18 456351-3 SWITCH LEVER BOX
19 327413-3 LOWER HANDLE
20 265A14-4 M6X50 SCREW
21 264070-5 M6 NUT BLM430 AM3643
24 266729-0 M8X35 SCREW BLM430 AM3643
26 459809-1 SUPPORT
27 660393-3 POWER CABLE
28 140N21-5 BATTERY COVER COMPLETE
29 890375-3
30 856L30-9
31 856L35-9
32 8005W9-1
33 8005W7-5
34 8005W8-3
Pag.2
35 266459-3 5X25 SCREW PC5000C
36 273675-0 BLM430 HANDLE AM3643
37 643890-4 AK3622 WRENCH
38 265995-6 M4X18 SCREW
39 183N35-1 TERMINAL BOX
40 644809-6 TERMINAL
41 183N35-1 TERMINAL BOX
42 265995-6 M4X18 SCREW
43 127393-1 MOTOR COVER
44 265995-6 M4X18 SCREW
45 453250-0 BLM430 LOCKING LEVER AM3643
46 233173-6 COMPRESSION SPRING 4 FOR UC3020A
47 453251-8 BLM430 LOCKING LEVER SUPPORT
48 265995-6 M4X18 SCREW
49 620B91-3 LED CIRCUIT
50 455070-8 LED CIRCUIT COVER
51 265995-6 M4X18 SCREW
52 629A17-6 DC MOTOR
53 265672-0 M6X35 SCREW
54 265999-8 4X25 SCREW
55 687124-5 MT953 CABLE CLAMP
56 265995-6 M4X18 SCREW
57 638946-6 BLM430 CABLES - AM3643
58 688162-0 LINE FILTER
59 688165-4 LINE FILTER X AH3655
60 632P17-7 REGULATOR
61 688162-0 LINE FILTER
62 459811-4 BLADE SUPPORT
63 191D41-2 BLADE 380MM
64 256933-9 M8X35 SCREW
Pag.3
65 140S15-0 STONEGUARD
66 LC961018-5 STOP RING E-5
67 259068-5 ROD 6
68 LC233597-6 TORSION SPRING 8
70 459777-8 FRAME
71 412272-9 LOWER COVER
72 265995-6 M4X18 SCREW
73 LC231875-8 TENSION SPRING 16
74 265995-6 M4X18 SCREW
75 LC267102A7 WASHER 4
76 LC231297-2 COMPRESSION SPRING 9
77 LC253808A3 WASHER 9
78 265995-6 M4X18 SCREW
79 252273-3 M6 NUT
80 LC257670A8 SOCKET 6
81 453255-0 BLM430 ADJUSTMENT PLATE
82 459099-6 GEAR CHANGE LEVER
83 LC921352-5 M6X30 SCREW
84 347571-9 CONNECTION ROD
85 941101-4 FLAT WASHER 5
86 252103-8 LOCK NUT X JR3020
87 LC252145-2 M8 FLANGED NUT
88 459101-5 REAR WHEEL
89 LC210070-3 Unspecified
90 162C98-4 REAR AXLE
91 346545-7 BLM430 AM3643 PLATE
92 265995-6 M4X18 SCREW
93 LC252145-2 M8 FLANGED NUT
94 459100-7 FRONT WHEEL
95 LC210070-3 Unspecified
96 162C69-1 FRONT AXLE
97 341462-6 PLATE X JR3000/V
98 265995-6 M4X18 SCREW
Pag.4
99 327411-7 FRAME
100 267438-4 WASHER 5 BLM430
101 265995-6 M4X18 SCREW
102 127392-3 GRASS BAG M
104 273676-8 KNOB B
105 459812-2 REAR BAG COVER
106 265995-6 M4X18 SCREW
107 162684-3 GRASS BAG
108 459806-7 INDICATOR M
Accessories Pag.5
A01 782016-4 OFFSET WRENCH 13
A02 DC18RD DC18RD TWO-PORT FAST CHARGER
A02D DC18SH DC18SH TWO-PORT CHARGER
A03 197265-4 BL1840B BATTERY SET
A03C 197280-8 BL1850B BATTERY SET
E01 819M64-9 SOUND 91DB LABEL
E01-1 817C33-4 SOUND 92DB LABEL
E01-2 8018P2-7 SOUND 93DB LABEL
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita DLM382
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita DLM382 Parts Drawing

Makita DLM382 Parts Drawing

Download (1.05MB)

You might also like

Makita DLM432 Front Shaft
Makita SKU: 165668-0
Makita DLM432 Front Shaft
Makita Front Shaft for Battery Lawnmower DLM432 Original Makita spare part, Front Shaft for Electric Lawnmower DLM432. Spare part compatible with the following products: - Makita Battery Lawn Mower DLM432 - Part Number: 165668-0
Usually Ships in: 7/10 Business Days Approx. €20.13
Details
Comments (0)
