Makita Brusch Cutter EM4351UH Parts

Name: Makita Brusch Cutter EM4351UH Parts
Brand: Makita
SKU: Makita EM4351UH
Availability: InStock

SKU: Makita EM4351UH

€36.83

VAT included

Makita Spare Parts for Brusch Cutter EM4351UH

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Brusch Cutter EM4351UH.

229 spare parts

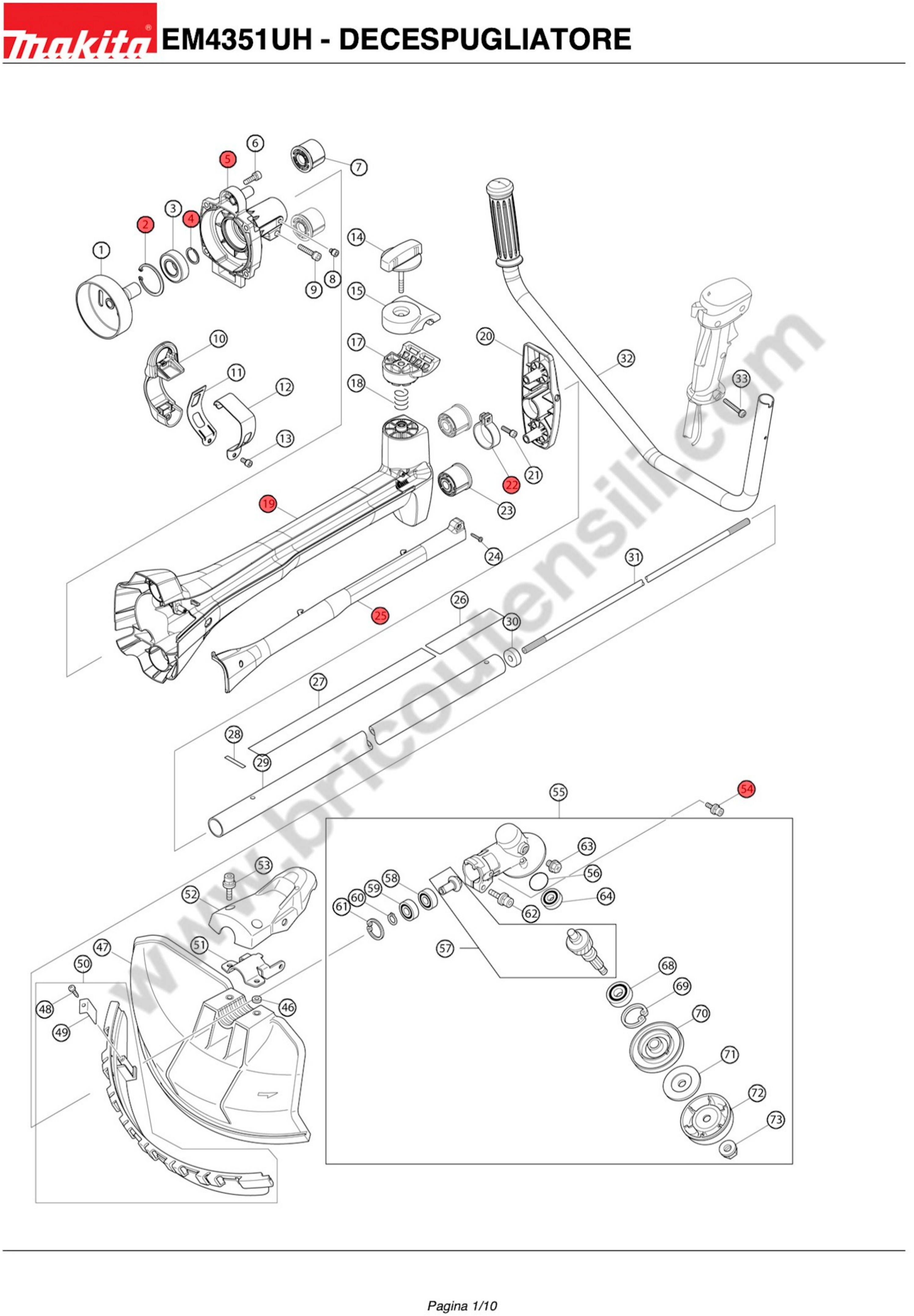

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	168712-2 CLUTCH DRUM	€36.83
2	Image coming soon	962201-7 RETAINING RING (INT) R-42	€2.14
3		211387-7 Ball Bearing 6004LLU for Bruschcutter Makita EM4351UH	€7.60
4	Image coming soon	961090-7 RETAINING RING (EXT) WR-20	€1.44
5	Image coming soon	318849-7 CLUTCH CASE	€36.83
6	Image coming soon	922331-6 BOLT ESAG. CUT. 6x20	€1.53
7	Image coming soon	424488-4 BUFFER RUBBER	€14.77
8	Image coming soon	922201-9 CAP HD SCREW M5X8 JR3020 5PK	€1.44
9	Image coming soon	922351-0 SCREW M6 X 30 X HM1100C	€1.70
10	Image coming soon	453525-7 HANGER	€7.81
11	Image coming soon	346572-4 HANGER HOLDER L	€2.77
12	Image coming soon	346571-6 HANGER HOLDER R	€3.22
13	Image coming soon	265991-4 CAP HD SCREW M5X12 4603D 4603	€1.44
14	Image coming soon	168796-0 KNOB 57 X EM4351UH	€7.48
15	Image coming soon	318425-7 HANDLE CLAMP EBH341U	€11.18
17	Image coming soon	318860-9 HANDLE HOLDER	€8.75
18	Image coming soon	233309-7 COMPRESSION SPRING 17	€2.77
20	Image coming soon	453528-1 HOUSING COVER EM4351UH	€7.58
21	Image coming soon	922226-3 SCREW M 5 X 18 X 4341FCT	€3.76
22	Image coming soon	346590-2 PIPE CLAMP 33	€2.77
24	Image coming soon	266130-9 SCREW 3X16 X 6203/13 / 6313DW	€1.46
26	Image coming soon	819312-8 MAKITA LOGO LABEL EBH253L/341U	€1.61
29	Image coming soon	141335-1 SHAFT PIPE COMPLETE	€57.69
30	Image coming soon	443146-3 FELT RING EBH341U	€1.44
31	Image coming soon	326153-0 SHAFT	€29.16
32	Image coming soon	141584-0 HANDLE COMPLETE	€51.71
33	Image coming soon	911256-9 SCREW M5x35	€1.44
46	Image coming soon	413143-3 WASHER MS335.4C	€1.44
47	Image coming soon	452259-9 PROTECTOR EBH341U	€17.14
48		265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C	€1.46
49	Image coming soon	347050-7 BLADE	€1.40
50	Image coming soon	135753-3 LOWER PROTECTION	€12.69
51	Image coming soon	346072-4 PROTECTOR CLAMP EBH341U	€2.77
52	Image coming soon	451090-0 PROTECTOR COVER EBH341U	€6.11
53	Image coming soon	266280-0 HEX SOCKET HEAD BOLT M6X30 /EM4350	€1.42
54	Image coming soon	266865-2 SCREW M5X14	€1.44
55		123835-3 Gear Case Ass'y for Brushcutter Dolmar MS335.4C	€79.05
56		213459-4 Gasket 32 for Hex Collar Power Scrapers Makita HK1800 - HK1810	€1.43
57		183K07-8 Makita Cutter Shaft Set 183K07-8	€96.59
58	Image coming soon	210059-1 BEARING 6000 HR2010	€12.89
59	Image coming soon	211062-5 BEARING 6000 X9524NB	€7.81
60	Image coming soon	961006-2 RETAINING RING S10	€2.17
61		962105-3 Retaining Ring R26 for Angle Grinder and Milling Machines Makita	€1.47
62	Image coming soon	922353-6 SCREW M6x30 HM1202C	€1.46
63	Image coming soon	265590-2 HEX BOLT M8x10 EBH253L/EBH341U	€1.44
64	Image coming soon	210081-8 BALL BEARING 629ZZ EBH341U	€4.56
68	Image coming soon	210116-5 BALL BEARING 6201LLU EBH341U	€8.75
69		962151-6 Retaining Ring R32 for Powertools Makita	€1.43
70		332114-0 Lower Flange for Brushcutter Dolmar MS-4300.4R	€10.70
71	Image coming soon	346355-2 CLAMP WASHER EBH253L/EBH341U	€13.89
72	Image coming soon	168526-9 CUP EBH253L/EBH341U/BBC231URD	€6.83
73	Image coming soon	264025-0 HEX NUT M10-17 EBH251U.BBC231	€3.22

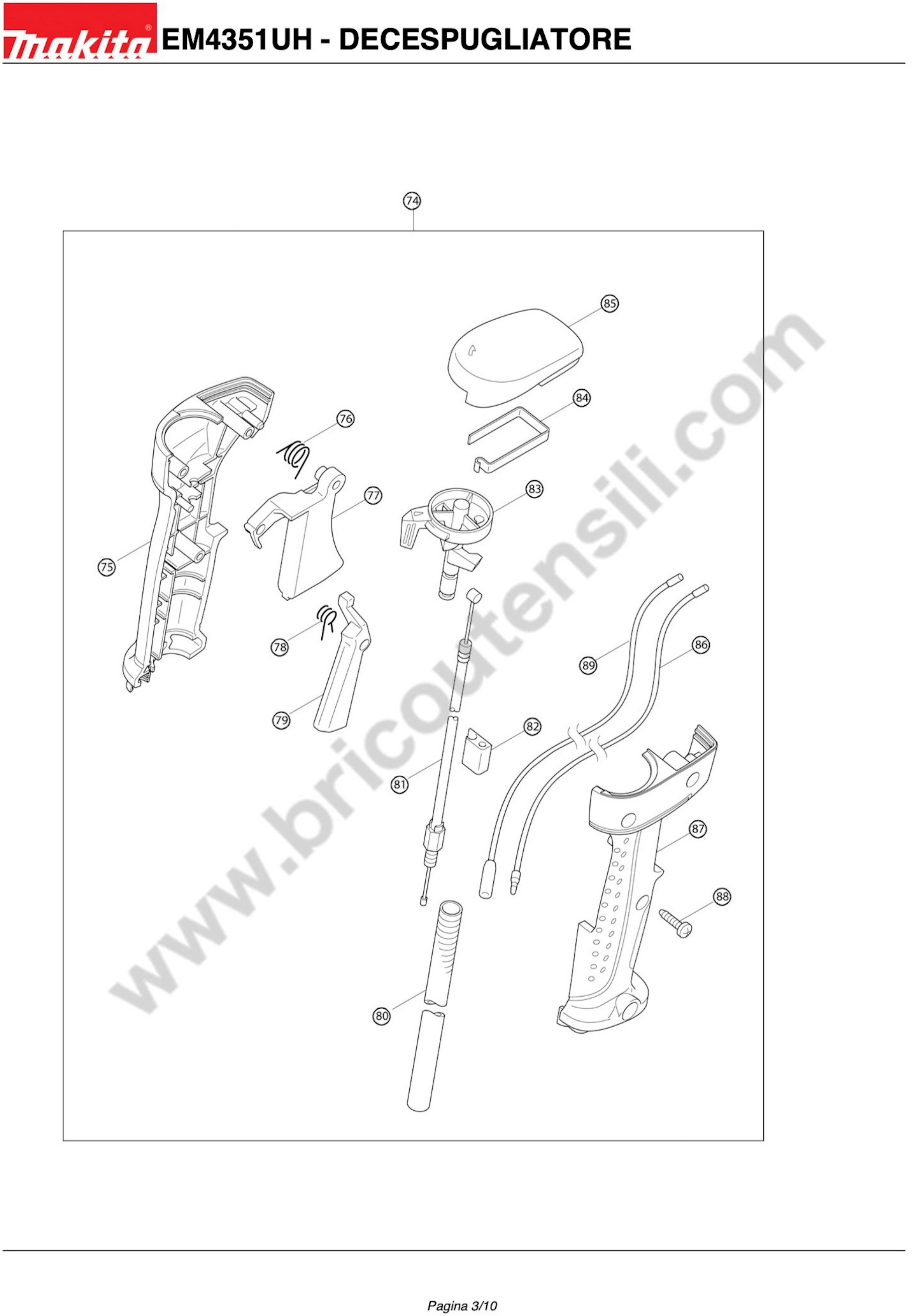

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.46
74	Image coming soon	126114-8 CONTROLL LEVER ASSEMBLY	€36.83
75	Image coming soon	183A09-4 EVER CASE EBH341U	€17.14
76	Image coming soon	233540-5 SPRING TWIST 11 EBH341U	€1.46
77	Image coming soon	451084-5 THROTTLE LEVER EBH341U/ELM2651	€2.34
78	Image coming soon	233541-3 TORSION SPRING 7 EBH341U	€2.18
79	Image coming soon	451083-7 LOCK OFF LEVER EBH341U/EM2561L	€2.34
80	Image coming soon	453524-9 CORRUGATE TUBE	€3.95
81	Image coming soon	168711-4 CONTROL CABLE	€8.75
82	Image coming soon	451081-1 CABLE HOLDER EBH341U	€1.57
83	Image coming soon	451500-7 SWITCH LEVER EM4351UH	€2.14
84	Image coming soon	232251-9 LEAF SPRING EBH341U/EM2651LH	€1.46
85	Image coming soon	455723-9 LEVER SUPPORT COVER COMPL. EM4351	€1.44
86	Image coming soon	638972-5 LEAD UNIT	€2.77
89	Image coming soon	638973-3 LEAD UNIT	€2.77

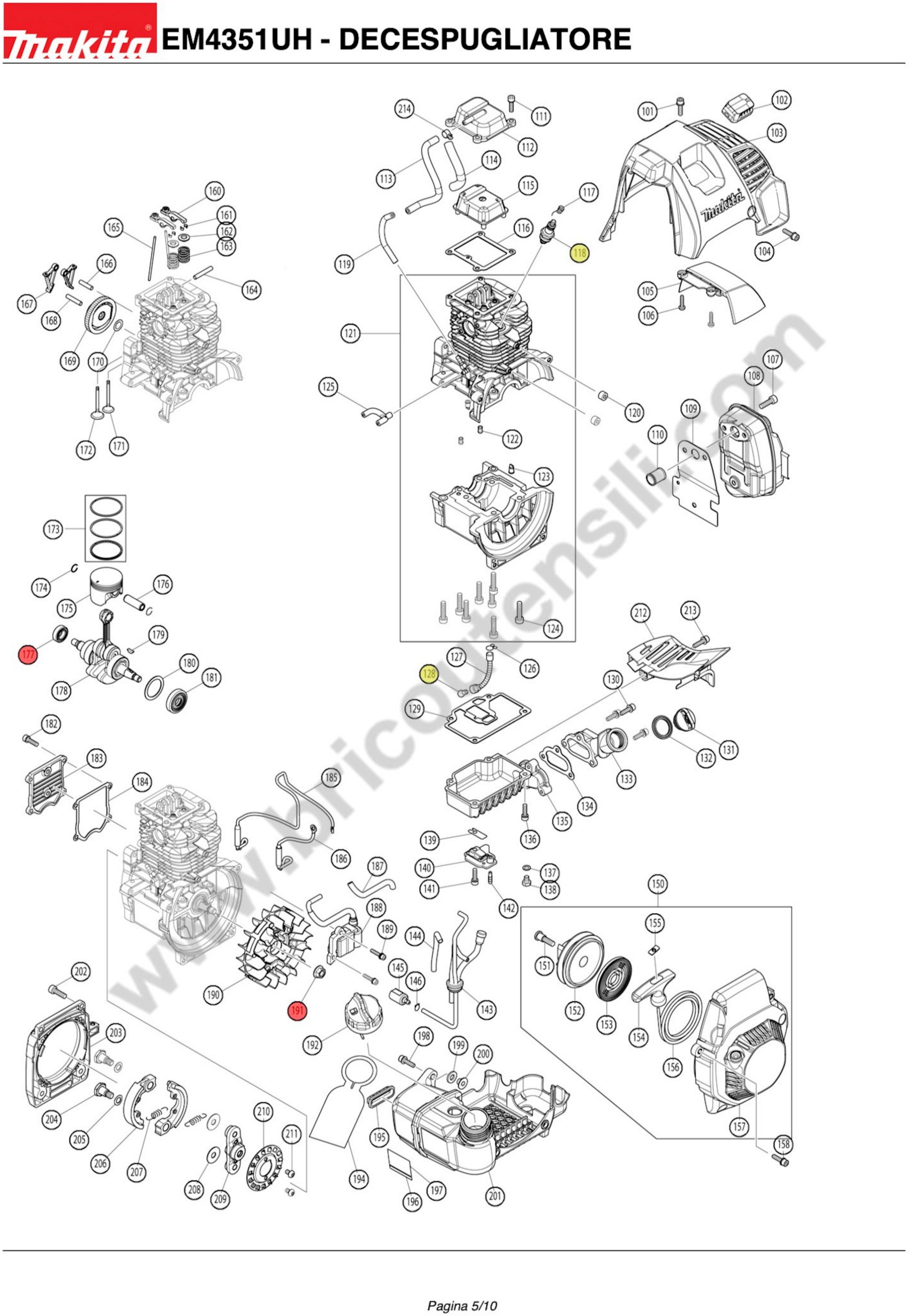

Page 3 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.46
	Image coming soon	922226-3 SCREW M 5 X 18 X 4341FCT	€3.76
101		922233-6 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T	€1.44
102	Image coming soon	424302-4 SPARK CAP EH7500S	€3.22
103	Image coming soon	453535-4 CYLINDER COVER EM4351UH	€28.31
105	Image coming soon	453536-2 MUFFLER COVER X EM4351UH	€6.11
107	Image coming soon	922332-4 SCREW M6X20 X SC161	€1.44
108	Image coming soon	168715-6 MUFFLER X EM4351UH	€17.14
109	Image coming soon	346574-0 GASKET FOR EXHAUST EM4351UH	€2.14
110	Image coming soon	331987-8 SPACER X EM4351UH	€2.14
112	Image coming soon	318850-2 HEAD COVER EM4351UH	€10.18
113	Image coming soon	422091-5 TUBE 5-160 EM4351UH	€2.77
114	Image coming soon	454424-6 HOSE X EM4351UH	€1.44
115	Image coming soon	453529-9 COVER INT. HEAD EM4351UH	€2.77
116	Image coming soon	162335-8 HEAD GASKET EM4351UH	€3.22
117		324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U	€1.62
118	Image coming soon	168401-9 SPARK PLUG BHX2501/PS32 - NGKBPMR8Y - BPMR7A	€10.75
119	Image coming soon	422090-7 TUBE 3-85 X EM4351UH	€2.14
120	Image coming soon	452049-0 SPACER EX2650LH	€1.44
121	Image coming soon	135659-5 CYLINDER X EM4351UH	€199.26
122	Image coming soon	424200-2 SPACKER EM2651LH/EBH251L/341U	€1.46
123	Image coming soon	424201-0 CONTROL VALVE EBH341U	€3.28
124	Image coming soon	922342-1 SCREW M6X25 EX2650LH	€1.44
125	Image coming soon	422099-9 BREATHER TUBE EX2650LH	€3.22
126	Image coming soon	282020-8 HOSE CLAMP EM2651LH/EBH251L/	€1.44
127	Image coming soon	424301-6 OIL TUBE EX2650LH	€4.56
128	Image coming soon	325666-8 OIL WEIGHT EM2651LH/EBH253L	€2.14
129		162337-4 Oil Case Gasket for Brushcutter Dolmar MS-4300.4R	€4.46
130	Image coming soon	266760-6 SCREW M5X18	€1.44
131	Image coming soon	452047-4 OIL TANK CAP BHX2501	€2.14
132	Image coming soon	424343-0 GASKET X BHX2501	€1.44
133	Image coming soon	453538-8 OIL TUBE X EM4351UH	€4.56
134	Image coming soon	162338-2 GASKET EM4351UH	€2.14
135	Image coming soon	318854-4 OIL CUP EM4351UH	€22.18
137	Image coming soon	346305-7 GASKET EX2650LH	€1.44
138	Image coming soon	266611-3 SCREW M6X8 EX2650LH	€1.44
139	Image coming soon	346398-4 PLATE X EM4351UH	€2.14
140	Image coming soon	318851-0 CHECK PLATE X EM4351UH	€4.56
142	Image coming soon	325665-0 FITTING EX2650LH	€1.44
143	Image coming soon	168724-5 COMPLETE TUBE EM4351UH	€29.16
144	Image coming soon	454426-2 TUBE 6-80 X EM4351UH	€1.44
145	Image coming soon	163518-3 FUEL FILTER EX2650LH	€5.28
150		126119-8 Starter Complete for Brushcutter Dolmar MS-430.4U	€34.30
151	Image coming soon	SG00000013 SCREW M6x20	€2.14
152	Image coming soon	452288-2 STARTER PULLEY EM4351UH	€11.89
153	Image coming soon	SG00000014 STARTER SPRING EM4351UH	€19.54
154	Image coming soon	424361-8 STARTER HANDLE EM4351UH	€5.28
155	Image coming soon	424360-0 STOP ROPE EM4351UH	€2.14
156	Image coming soon	444027-4 STARTER ROPE EM4351UH	€5.28
157	Image coming soon	453534-6 CARTER STARTER X EM4351UH	€33.33
160	Image coming soon	126116-4 ROCKER X EM4351UH	€5.28
161	Image coming soon	331990-9 CUP X EM4351UH	€1.44
162	Image coming soon	331991-7 LOCKING X EM4351UH	€2.14
163	Image coming soon	234238-7 COMPRESSION SPRING 11	€2.77
164	Image coming soon	256200-2 PIN 5 PER 2704	€1.46
165	Image coming soon	256866-8 ROD 2.5 EBH341U	€1.44
166	Image coming soon	268238-5 PIN 5 EBH341U	€1.44
167	Image coming soon	313236-5 CAM X EM4351UH ROCKER	€2.77
168	Image coming soon	256186-0 PIN 5 MS43 / EM43	€1.44
169	Image coming soon	126571-0 CAM GEAR	€33.70
170	Image coming soon	261127-3 TEFLON WASHER 10 X PW5000CH	€1.44
171	Image coming soon	326158-0 EXHAUST VALVE	€6.83
172	Image coming soon	326157-2 INTAKE VALVE EM4351UH	€6.11
173	Image coming soon	196667-1 PISTON RINGS	€33.70
174		233983-1 Piston Pin Circlip for Brushcutter Makita RBC410	€1.55
175		197455-9 Piston Set for Brushcutter Dolmar MS-4300.4R	€20.54
176	Image coming soon	268285-6 PISTON PIN EM4351UH	€3.22
177	Image coming soon	213685-5 OIL SEAL 12 X EM4351UH	€11.40
178		126121-1 Crankshaft Ass'y for Brushcutter Dolmar MS-4300.4R	€62.99
179	Image coming soon	254040-2 WOODRUFF KEY 3 EM2651LH/EBH341	€4.02
180		267425-3 Flat Washer 26 for Petrol Brushcutter Dolmar MS335.4C - MS-4300.4R	€1.60
181		213537-0 Oil Seal 12 for Brushcutter Dolmar MS335.4C	€5.29
182	Image coming soon	266086-6 SCREW M5X16 WITH BRAKES THREADS	€1.44
183	Image coming soon	318856-0 SIDE COVER EM4351UH	€3.22
184	Image coming soon	162334-0 COMPLETE GASKET. X EM4351UH	€2.14
185	Image coming soon	638974-1 WIRE EM4351UH	€2.14
186	Image coming soon	638975-9 WIRE X EM4351UH	€2.14
187	Image coming soon	444021-6 GROMMET EX2650LH	€1.44
188		168714-8 Makita EM4351UH Ignition Coil	€59.71
189	Image coming soon	266602-4 SCREW M4X20 EX2650LH	€1.44
190	Image coming soon	126122-9 FLYWHEEL X EM4351UH	€36.83
191	Image coming soon	264075-5 COLLERD HEX NUT M8	€1.44
192	Image coming soon	127112-5 FUEL TANK CAP	€19.54
194	Image coming soon	810455-9 CAUTION PLATE EM2651LH/EBH253L	€2.18
195	Image coming soon	424081-4 GROMMET X DBC260U	€1.44
199	Image coming soon	261152-4 WASHER 8	€1.44
200	Image coming soon	331988-6 SPACER X EM4351UH	€2.14
201		168875-4 Dolmar MS-430.4U Fuel Tank	€37.93
203	Image coming soon	318852-8 ENGINE BASE EM4350/4351 EM4351UH	€19.54
204	Image coming soon	266597-1 SCREW M8	€3.95
205	Image coming soon	267832-0 WAVY WASHER 10 EBH341U	€1.44
206	Image coming soon	313238-1 CLUTCH ARM X EM4351UH	€7.81
207	Image coming soon	232290-9 TENSION SPRING 5 X EM4351UH	€3.95
208	Image coming soon	267428-7 WASHER 8	€3.22
209	Image coming soon	313239-9 CLUTCH SPRING X EM4351UH	€11.40
210	Image coming soon	346576-6 FLYWHEEL PLATE X EM4351UH	€2.14
211	Image coming soon	266461-6 SCREW M5X8 X AT450H	€1.44
212	Image coming soon	453530-4 MUFFLER PROTECTION EM4351UH	€4.56
214	Image coming soon	345918-1 CLAMP EBH341U	€1.46

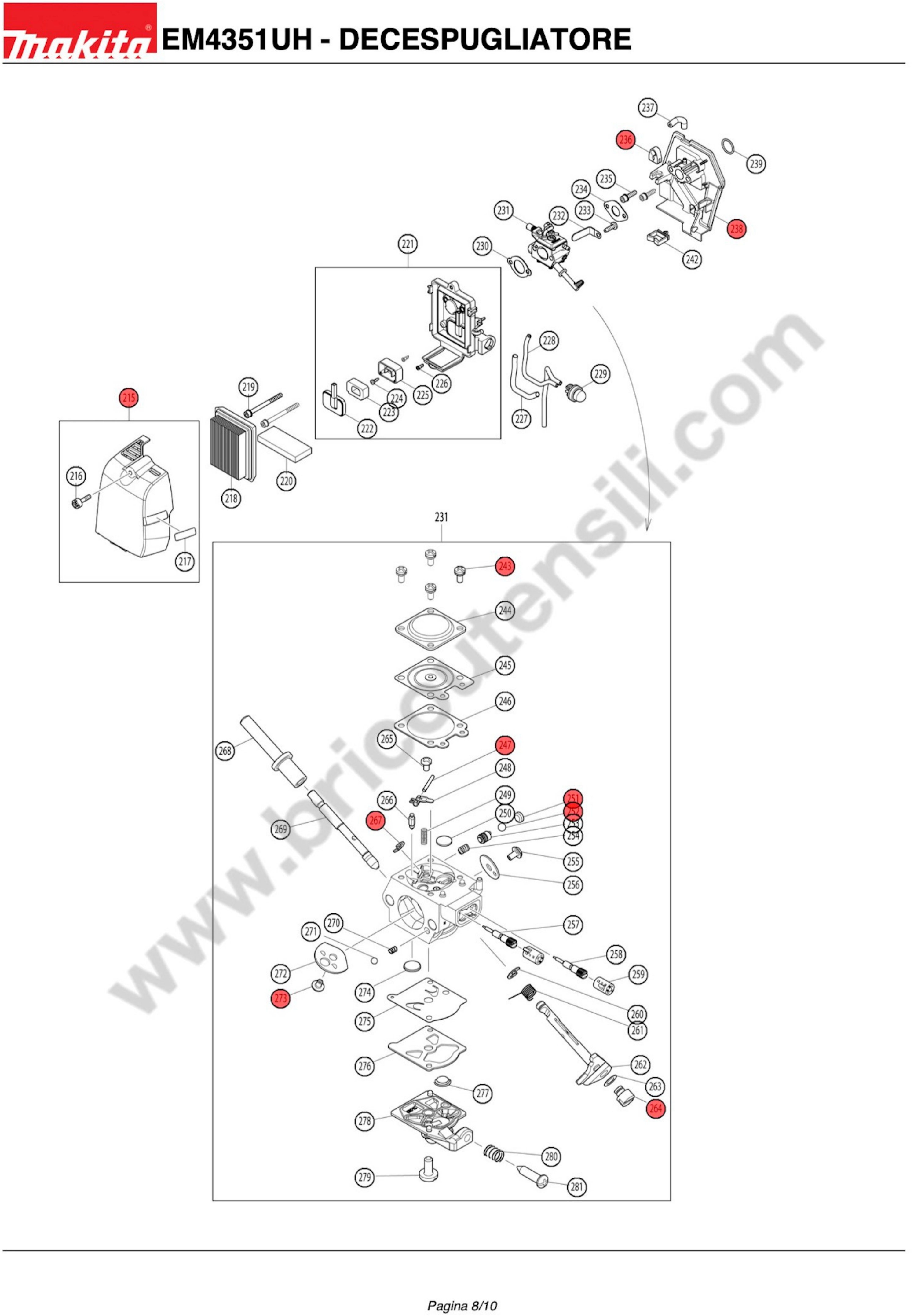

Page 4 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
		922233-6 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T	€1.44
216	Image coming soon	266743-6 SCREW M5X20	€2.14
218	Image coming soon	442181-8 AIR FILTER EM4351UH	€17.14
219	Image coming soon	266601-6 SCREW M5X60	€2.14
220	Image coming soon	443196-8 AIR FILTER X EM4350RH	€1.44
221	Image coming soon	123994-3 FILTER PLATE	€33.70
222	Image coming soon	162346-3 SEPARATOR EX2650LH	€11.40
223	Image coming soon	352020-3 SEPARATOR EX2650LH	€6.11
224		266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030	€2.07
225	Image coming soon	453865-3 SEPARATOR BOX EX2650LH	€3.95
226	Image coming soon	424316-3 VALVE EBH341U	€5.38
227	Image coming soon	454425-4 TUBE 6-100 X EM4351UH	€1.44
228	Image coming soon	422074-5 PIPE 3-120 X EM4351UH	€2.14
229		168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T	€6.24
230	Image coming soon	442196-5 CARBURETOR GASKET EM4351P01	€1.44
231		123301-0 Carburetor Walbro for Brushcutter Dolmar MS-430.4U	€111.50
232	Image coming soon	345963-6 CLAMP EBH253L/EBH341U	€1.44
233	Image coming soon	266388-0 SCREW 5X16 FOR UC3020A	€1.44
234	Image coming soon	442197-3 CARBURETOR GASKET EM4351P01	€1.44
236	Image coming soon	424489-2 RUBBER X EM4351UH	€1.44
237	Image coming soon	422080-0 PIPE 3-35 X EM4351UH	€1.44
238	Image coming soon	142128-9 INSULATOR COMPLETE	€17.14
239	Image coming soon	213642-3 RING 18 X EM4351UH	€1.44
242	Image coming soon	451825-9 CLAMP EX2650LH	€1.44
243	Image coming soon	WJ00096589 PS32CTLC SCREW	€2.77
244		WJ00021158 Cover-Metering Diaphragm for Chainsaw Makita DCS230T	€3.04
245		168620-7 Makita Diaphragm for EM2651UH	€23.70
246	Image coming soon	442183-4 GASKET X RBL250-RBC225-25	€5.28
247	Image coming soon	WJ00014477 PIN DCS230T	€2.77
248	Image coming soon	WJ00016648 LEVER DCS230T	€3.22
249	Image coming soon	WJ00983248 SPRING X EM4350RH	€1.44
250	Image coming soon	5416036160 FILTER X EM4350RH	€2.14
251	Image coming soon	WJ00088229 PS32CTLC CAP	€1.44
252	Image coming soon	5806084330 BALL X EM4350RH	€2.77
253	Image coming soon	WJ00160593 PISTON X EM4350RH	€13.07
254	Image coming soon	WJ00983305 SPRING AT EM4350RH	€2.14
255	Image coming soon	WJ00963240 SCREW	€1.44
256	Image coming soon	WJ00343562 THROTTLE VALVE EM4350RH	€5.28
257	Image coming soon	WJ01023345 SCREW H	€6.83
258	Image coming soon	WJ01023344 MINIMUM SCREW X EM4350RH	€6.83
259	Image coming soon	WJ00025162 HOOD X EM4350RH	€2.14
260	Image coming soon	257964-1 RETAINING RING E3 EBH341U	€4.02
261	Image coming soon	WJ00098494 SPRING - PS32	€2.77
262	Image coming soon	WJ00224392 AIR LEVER SHAFT X EM4350RH	€13.07
263	Image coming soon	413140-9 WASHER EBH341U	€2.18
264	Image coming soon	5246001210 SCREW ADJUSTMENT X DBC260U	€3.95
265	Image coming soon	5016004110 SCREW	€2.77
266	Image coming soon	WJ00008282 VALVE DCS230T	€10.18
267	Image coming soon	WJ00001673 RING RETAINING PS32CTLC	€1.44
268	Image coming soon	WJ00183585 AIR LEVER X EM4350RH	€5.28
269	Image coming soon	WJ00044456 AIR LEVER SHAFT X EM4350RH	€8.75
270	Image coming soon	5806122210 SPRING	€2.14
271	Image coming soon	5806122220 BALL X EM4350RH	€2.14
273	Image coming soon	WJ00096475 75 SCREW PS32CTLC	€1.44
274	Image coming soon	352010-6 EBH252L FILTER	€2.82
275		WJ00009589 Upper Carburator Diaphram Gasket for Chainsaw Dolmar PS32CTLC	€20.00
276	Image coming soon	WJ00092228 GASKET EM4350RH	€2.14
277	Image coming soon	234183-6 SPRING 65-9 EBH341U	€4.02
279	Image coming soon	WJ00096166 PS32CTLC SCREW	€2.77

Page 5 Usually Ships in: 7/10 BUSINESS DAYS

	Item	Price
Image coming soon	122882-1 TRIMMER HEAD ASSEMBLY 152-M10L	€72.75
Image coming soon	196129-9 BAND ASSEMBLY SET	€88.93
Image coming soon	199378-7 BAND ASSEMBLY SET	€78.54
Image coming soon	782238-6 HEX WRENCH 17	€2.54
Image coming soon	783223-2 WRENCH 4 RBC350-RBC420	€2.77
Image coming soon	783232-1 HEX. WRENCH RBC350-RBC420	€2.77
Image coming soon	831304-7 ACCESSORY BAG	€2.18

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Brusch Cutter EM4351UH

We are MAKITA original spare parts Worldwide Dealers

at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Brusch Cutter EM4351UH.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.

EM4351UH - DECESPUGLIATORE
Pag.1
#	Part Num	Description
1	168712-2	CLUTCH DRUM FOR EM4351UH
2	962201-7	RETAINING RING R-42 AK3622
3	211387-7	BEARING 6004LLU
4	961090-7	RING WR-20 FOR EM4351UH
5	318849-7	CLUTCH CASING EM4351UH
6	922331-6	HEXAGON BOLT 6X20
7	424488-4	RUBBER RING FOR EM4351UH
8	922201-9	HEXAGON HEAD SCREW M5X8
9	922351-0	M6 X 30 SCREW X HM1100C
10	453525-7	HOOK FOR EM4351UH
11	346572-4	LEFT SUPPORT FOR EM4351UH
12	346571-6	RIGHT SUPPORT FOR EM4351UH
13	265991-4	M5X12 SOCKET SCREW X 4603
14	168796-0	KNOB 57 FOR EM4351UH
15	318425-7	HANDLEBAR SUPPORT EBH341
17	318860-9	SYSTEM SUPPORT BASE EM4351UH
18	233309-7	COMP. SPRING 16 X HM1304
19	453526-5	HOUSING FOR ROD FOR EM4351UH
20	453528-1	HOUSING COVER EM4351UH
21	922226-3	SCREW M 5 X 18 X 4341FCT
22	346590-2	CLAMP 33 EM4351UH
23	424488-4	RUBBER RING FOR EM4351UH
24	266130-9	SCREW 3X16 X 6203/13/6313DW
25	453527-3	SIDE COVER EM4351UH
26	819312-8	MAKITA LABEL EBH341U
27	898809-0	Unspecified
28	801D20-9	Unspecified
29	141335-1	ROD FOR EM4351UH
30	443146-3	FELT RING 8 EBH341U
31	326153-0	DRIVE SHAFT EM4351UH
32	141584-0	U-HANDLE FOR EM4351UH
33	911256-9	SCREW M5X35
46	413143-3	WASHER MS335.4C
47	452259-9	GUARD EBH341U
48	265995-6	SCREW M4X18
49	347050-7	BLADE
50	135753-3	LOWER PROTECTION
51	346072-4	PROTECTION SUPPORT BASE EBH341U
52	451090-0	PROTECTION SUPPORT EBH341U
53	266280-0	M6X25 SCREW
54	266865-2	M5X14 SCREW
55	123835-3	Gear Case Assy Ebh341U
56	213459-4	SEAL 32 X HR3850B
57	183K07-8	Cutter Shaft set
58	210059-1	BEARING 6000DDW HR2010
59	211062-5	BEARING 6000ZZ X9524NB
60	961006-2	RETAINING RING S10
61	962105-3	RETAINING RING R26
62	922353-6	M6 X30 SCREW X HM1202C
63	265590-2	M8X10 SCREW EBH341U
64	210081-8	BEARING 629ZZ EBH341U
68	210116-5	BEARING 6201LLU EBH341U
69	962151-6	RETAINING RING R32
70	332114-0	Recieve Washer Ebh341U EM4350RH
71	346355-2	FLANGE OUTER
72	168526-9	EBH341U CUP
73	264025-0	EBH341U M10-17 NUT
Pag.2
74	126114-8	EM4351UH CONTROL LEVER
75	183A09-4	EBH341U LEVER CASE
76	233540-5	EBH341U TORSION SPRING 11
77	451084-5	EBH341U THROTTLE LEVER
78	233541-3	EBH341U TORSION SPRING 7
79	451083-7	EBH341U RELEASE LEVER
80	453524-9	EM4351UH TUBE
81	168711-4	EM4351UH CONTROL CABLES
82	451081-1	EBH341U CABLE SUPPORT
83	451500-7	EM4351UH SWITCH LEVER
84	232251-9	EBH341U PLATE SPRING
85	455723-9	EM4351UH CONTROL LEVER UPPER COVER EM4351
86	638972-5	WIRING CABLES EM4351UH
87	183A09-4	LEVER CASE EBH341U
88	265995-6	M4X18 SCREW
89	638973-3	WIRING CABLES EM4351UH
Pag.3
101	922233-6	M5 X 20 SCREW FOR DCS230T
102	424302-4	SPIRULAP CAP EH7500S
103	453535-4	CYLINDER COVER EM4351UH
104	922233-6	M5 X 20 SCREW FOR DCS230T
105	453536-2	MUFFLER COVER FOR EM4351UH
106	265995-6	M4X18 SCREW
107	922332-4	M6X20 SCREW FOR SC161
108	168715-6	MUFFLER FOR EM4351UH
109	346574-0	MUFFLER GASKET EM4351UH
110	331987-8	SPACER FOR EM4351UH
111	922226-3	M5 X 18 SCREW FOR 4341FCT
112	318850-2	HEAD COVER EM4351UH
113	422091-5	PIPE 5-160 EM4351UH
114	454424-6	TUBE FOR EM4351UH
115	453529-9	INT. COVER EM4351UH HEAD
116	162335-8	EM4351UH HEAD GASKET
117	324891-8	EBH341 SPARK PLUG CAP SPRING
118	168401-9	EBH341 SPARK PLUG
119	422090-7	3-85 TUBE
120	452049-0	EM4351UH SPACER
121	135659-5	EX2650LH SPACER
122	424200-2	EM4351UH SPACER
123	424201-0	EBH341U CHECK VALVE
124	922342-1	M6X25 SCREW
125	422099-9	EX2650LH BREATHER TUBE
126	282020-8	EBH341U CLAMP
127	424301-6	EX2650LH OIL TUBE
128	325666-8	EBH341U CONNECTOR
129	162337-4	EM4351U OIL PAN GASKET
130	266760-6	M5X18 SCREW
131	452047-4	BHX2501 OIL TANK CAP
132	424343-0	BHX2501 GASKET
133	453538-8	BHX2501 TUBE OIL FOR EM4351UH
134	162338-2	GASKET EM4351UH
135	318854-4	OIL PAN EM4351UH
136	922226-3	SCREW M 5 X 18 X 4341FCT
137	346305-7	GASKET EX2650LH
138	266611-3	SCREW M6X8 EX2650LH
139	346398-4	PLATE FOR EM4351UH
140	318851-0	RETAINING PLATE FOR EM4351UH
141	922226-3	SCREW M 5 X 18 X 4341FCT
142	325665-0	FITTING EX2650LH
143	168724-5	COMPLETE HOSE EM4351UH
144	454426-2	HOSE 6-80 X EM4351UH
145	163518-3	FUEL FILTER EX2650LH
146	282020-8	CLAMP EBH341U
150	126119-8	STARTER COMPLETE EM4351UH
151	SG00000013	M6x20 SCREW
152	452288-2	EM4351UH STARTER SPOOL
153	SG00000014	EM4351UH STARTER SPRING
154	424361-8	EM4351UH STARTER KNOB
155	424360-0	EM4351UH CABLE STOP
156	444027-4	EM4351UH STARTER CABLE
157	453534-6	EM4351UH STARTER COVER
158	922233-6	M5x20 SCREW FOR DCS230T
160	126116-4	EM4351UH ROCKER ARM
161	331990-9	EM4351UH CUP
162	331991-7	EM4351UH RETAINER
163	234238-7	EM4351UH COMPRESSION SPRING
164	256200-2	11 PIN
165	256866-8	EBH341U PIN 2.5 PIN
166	268238-5	EBH341U PIN 5
167	313236-5	EM4351UH CAM ROCKER ARM
168	256186-0	EM4351UH PIN 5 MS43/EM43
169	126571-0	CAM GEAR
170	261127-3	TEFLON WASHER 10 X PW5000CH
171	326158-0	EXHAUST VALVE FOR EM4351UH
172	326157-2	INTAKE VALVE FOR EM4351UH
173	196667-1	PISTON RINGS
174	233983-1	CIRCLIP EBH341
175	197455-9	PISTON SET
176	268285-6	PISTON PIN FOR EM4351UH
177	213685-5	OIL SEAL 12 X EM4351UH
178	126121-1	CRANKSHAFT X EM4351UH
179	254040-2	KEY 3 EBH341U
180	267425-3	WASHER 26 EBH341U
181	213537-0	SEAL 12 EBH341U
182	266086-6	BOLT M5X16 JR3020
183	318856-0	SIDE COVER EM4351UH
184	162334-0	GASKET COMPLETE X EM4351UH
185	638974-1	CABLE EM4351UH
186	638975-9	CABLE X EM4351UH
187	444021-6	TUBE EX2650LH
188	168714-8	IGNITION COIL EM4351UH
189	266602-4	M4X20 SCREW EX2650LH
190	126122-9	FLYWHEEL X EM4351UH
191	264075-5	M8 NUT
192	127112-5	FUEL TANK CAP
194	810455-9	COLLAR PLATE EBH341U
195	424081-4	RUBBER X DBC260U
196	897220-3
197	898842-2
198	922233-6	M5 X 20 SCREW FOR DCS230T
199	261152-4	WASHER 8
200	331988-6	SPACER X EM4351UH
201	168875-4	FUEL TANK EM4351UH
202	922332-4	M6X20 SCREW FOR SC161
203	318852-8	BASE X EM4351UH
204	266597-1	M8 SCREW
205	267832-0	WAVED WASHER 10 EBH341U
206	313238-1	CLUTCH SHOE X EM4351UH
207	232290-9	TENSION SPRING 5 X EM4351UH
208	267428-7	WASHER 8
209	313239-9	CLUTCH HUB X EM4351UH
210	346576-6	FLYWHEEL PLATE X EM4351UH
211	266461-6	M5X8 SCREW X AT450H
212	453530-4	MUFFLER GUARD EM4351UH
213	922233-6	M5 X 20 SCREW X DCS230T
214	345918-1	EBH341U CLAMP
Pag.4
215	126118-0	FILTER COVER X EM4351UH
216	266743-6	M5X20 SCREW
217	898844-8
218	442181-8	AIR FILTER EM4351UH
219	266601-6	M5X60 SCREW
220	443196-8	AIR FILTER X EM4350RH
221	123994-3	FILTER PLATE
222	162346-3	SEPARATOR EX2650LH
223	352020-3	SEPARATOR EX2650LH
224	266007-8	M3 X10 SCREW HP2030
225	453865-3	SEPARATOR BOX EX2650LH
226	424316-3	VALVE CHECK VALVE EBH341U
227	454425-4	TUBE 6-100 X EM4351UH
228	422074-5	TUBE 3-120 X EM4351UH
229	168398-2	PRIMER PUMP DCS230T/EA32/EA36 DCS230T
230	442196-5	CARBURETOR GASKET EM4351
231	123301-0	CARBURETOR X EM4351UH
232	345963-6	HOOK EBH341U
233	266388-0	SCREW 5X16 FOR UC3020A
234	442197-3	CARBURETOR GASKET EM4351
235	922233-6	SCREW M5 X 20 FOR DCS230T
236	424489-2	RUBBER FOR EM4351UH
237	422080-0	TUBE 3-35 X EM4351UH
238	142128-9	INSULATION PLATE FOR EM4351UH
239	213642-3	RING 18 X EM4351UH
242	451825-9	CLAMP EX2650LH
243	WJ00096589	SCREW PS32CTLC
244	WJ00021158	COVER FOR DCS230T
245	168620-7	DIAPHRAGM FOR BHX2501
246	442183-4	SEAL FOR RBL250-RBC225-25
247	WJ00014477	PIN FOR DCS230T
248	WJ00016648	LEVER FOR DCS230T
249	WJ00983248	SPRING FOR EM4350RH
250	5416036160	FILTER FOR EM4350RH
251	WJ00088229	PLUG FOR PS32CTLC
252	5806084330	BALL FOR EM4350RH
253	WJ00160593	PLUNGER FOR EM4350RH
254	WJ00983305	SPRING FOR EM4350RH
255	WJ00963240	SCREW
256	WJ00343562	THROTTLE VALVE FOR EM4350RH
257	WJ01023345	SCREW FOR HAND
258	WJ01023344	IDLE SCREW FOR EM4350RH
259	WJ00025162	CAP FOR EM4350RH
260	257964-1	RETAINING RING FOR E3 EBH341U
261	WJ00098494	SPRING FOR PS32CTLC
262	WJ00224392	CHOKE LEVER SHAFT FOR EM4350RH
263	413140-9	WASHER FOR EBH341U
264	5246001210	SCREW
265	5016004110	SCREW
266	WJ00008282	VALVE FOR DCS230T
267	WJ00001673	RETAINING RING FOR PS32CTLC
268	WJ00183585	AIR LEVER FOR EM4350RH
269	WJ00044456	AIR LEVER SHAFT FOR EM4350RH
270	5806122210	SPRING
271	5806122220	BALL FOR EM4350RH
272	WJ00006295
273	WJ00096475	SCREW FOR PS32CTLC
274	352010-6	FILTER FOR EBH252L
275	WJ00009589	DIAPHRAGM FOR PUMP FOR PS32CTLC
276	WJ00092228	SEAL FOR EM4350RH
277	234183-6	SPRING 65-9 FOR EBH341U
278	WJ00213807
279	WJ00096166	SCREW FOR PS32CTLC
280	WJ00098217
281	WJ00096368
Accessories Pag.5
A01	196129-9	BAND ASSEMBLY SET
C10	126126-1	BAND ASSEMBLY
A02	451252-0	TOOL COVER
A03	195501-2	OIL SET
A03-1	197008-4	OIL SET O
A03-2	191A19-7	OIL SET O
A03-3	197008-4	OIL SET O
A04	782233-6	BOX DRIVER 10-16
A05	783223-2	HEX. WRENCH 4
A06	783232-1	HEX. WRENCH 5
A06-1	783217-7	HEX. WRENCH 5 O
A07	782238-6	BOX WRENCH 17
A08	831304-7	ACCESSORY BAG
A09	122882-1	TRIMMER HEAD ASSEMBLY 152-M10L
F16	199378-7	BAND ASSEMBLY SET

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita EM4351UH

Available 6 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Makita EM4351UH Parts Drawing

Download (1.23MB)

Makita SKU: 168398-2

Gasoline Primer Pump for Chainsaw Makita DCS230T

Gasoline Primer Pump for Chainsaw Makita DCS230T Genuine parts for Makita, Gasoline Primer Pump for Chainsaws DCS230T - DCS230TC -DCS231T - DCS231TC - DCS232TC Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA...

AVAILABLE €6.24

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Makita Brusch Cutter EM4351UH Parts

Makita Spare Parts for Brusch Cutter EM4351UH

Makita Brusch Cutter EM4351UH Parts

Makita Spare Parts for Brusch Cutter EM4351UH

Makita Spare Parts for Brusch Cutter EM4351UH

Data sheet

Specific References

Download

Makita EM4351UH Parts Drawing

You might also like
