Makita

Makita DUM168 Parts

SKU: Makita DUM168
€1.47
VAT included

Makita DUM168 Spare Parts

Fix Your CORDLESS GRASS SHEAR DUM168. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita DUM168 Parts
  • Makita DUM168 Parts
  • Makita DUM168 Parts Drawing
Makita

Makita DUM168 Parts

SKU: Makita DUM168 Condition: New
€1.47
VAT included

Makita DUM168 Spare Parts

Fix Your CORDLESS GRASS SHEAR DUM168. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 21 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
21 spare parts

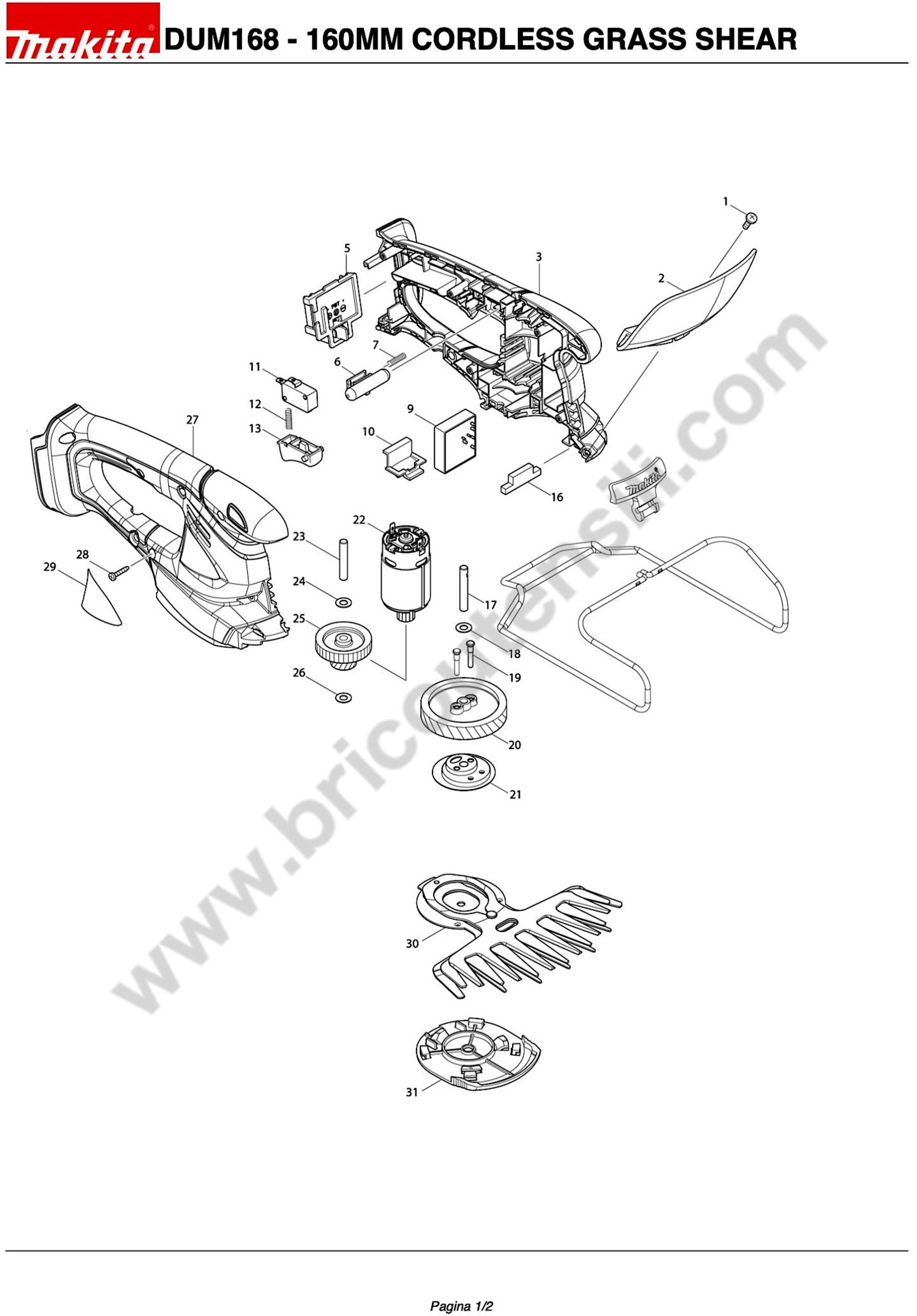

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 915116-7 SCREW M4X12 €1.43
2
 photo_cameraImage coming soon 140599-4 HANDLE GUARD X UM164D €3.95
3
 photo_cameraImage coming soon 187426-4 HOUSING SET BUM168 €33.68
5
 photo_cameraImage coming soon 643852-2 TERMINAL X BVC350Z €4.56
7
 photo_cameraImage coming soon 231473-8 SPRING COMPRESION 4 X 4604D €1.43
9
 photo_cameraImage coming soon 620119-5 REGULATOR BUM168 €51.67
10
 photo_cameraImage coming soon 451812-8 LOCKING LEVER X UM164D €1.43
11
 photo_cameraImage coming soon 651891-8 SWITCH V153A6 DUM166/168/DU €6.81
12
 photo_cameraImage coming soon 231473-8 SPRING COMPRESION 4 X 4604D €1.43
13
 photo_cameraImage coming soon 417564-1 STOP LEVER X UM164D €1.43
16
 photo_cameraImage coming soon 451814-4 POWDER PROTECTION X UM164D €1.43
17
 photo_cameraImage coming soon 268254-7 PIN 6 X UM164D €1.43
18
 photo_cameraImage coming soon 261122-3 WASHER 6 X UM164D €1.43
19
 photo_cameraImage coming soon 268256-3 PIN 4 X UM164D €1.43
20
 Gear 47 for Hedge Trimmers Makita AH1020 - AH1020LGEX 227728-7 Gear 47 for Hedge Trimmers Makita AH1020 - AH1020LGEX €6.90
21
 photo_cameraImage coming soon 165609-6 ECCENTRIC X UM164D €6.81
22
 photo_cameraImage coming soon 629945-9 DC MOTOR BUM168 €19.53
23
 photo_cameraImage coming soon 268076-5 PIN 6 UH200DWEX €1.43
24
 photo_cameraImage coming soon 261122-3 WASHER 6 X UM164D €1.43
25
 Gear 12-31 for Hedge Trimmers Makita AH1020 - AH1020LGEX 226831-1 Gear 12-31 for Hedge Trimmers Makita AH1020 - AH1020LGEX €4.07
26
 photo_cameraImage coming soon 261122-3 WASHER 6 X UM164D €1.43
27
 photo_cameraImage coming soon 187426-4 HOUSING SET BUM168 €33.68
28
 photo_cameraImage coming soon 266130-9 SCREW 3X16 X 6203/13 / 6313DW €1.46
30
 photo_cameraImage coming soon 195267-4 HEAR BLADE ASSY DUM166/DUM168 €59.64
31
 photo_cameraImage coming soon 140451-6 LOWER COVER X UM164D €3.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita DUM168 Spare Parts

Fix Your CORDLESS GRASS SHEAR DUM168. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Prining Scissor and the respective parts of the code.
Makita CORDLESS GRASS SHEAR DUM168
MAKITA DUM168 - 160MM CORDLESS GRASS SHEAR
# Part Num Description
1 915116-7 SCREW M4X12
2 140599-4 HANDGUARD FOR UM164D
3 187426-4 CASE BUM168
5 643852-2 TERMINAL FOR BVC350Z
6 413A16-6 RELEASE BUTTON
7 231473-8 COMPRESSION SPRING 4 X 4604D
9 620119-5 REGULATOR BUM168
10 451812-8 LOCK LEVER FOR UM164D
11 651891-8 SWITCH V-15-3A6
12 231473-8 COMPRESSION SPRING 4 X 4604D
13 417564-1 SWITCH LEVER X UM164D
16 451814-4 DUST PROTECTION X UM164D
17 268254-7 PIN 6 X UM164D
18 261122-3 WASHER 6 X UM164D
19 268256-3 PIN 4 X UM164D
20 227728-7 HELICAL GEAR 47 DUM166/168/UM
21 165609-6 ECCENTRIC X UM164D
22 629945-9 BUM168 MOTOR - AX1820
23 268076-5 PIN 6 UH200DWEX
24 261122-3 WASHER 6 X UM164D
25 226831-1 GEAR 1231 DUM166/168/UM164D
26 261122-3 WASHER 6 X UM164D
27 187426-4 CASE BUM168
28 266130-9 SCREW 3X16 X 6203/13/6313DW
29 815V20-1
30 195267-4 COMPLETE BLADE UM164D
31 140451-6 LOWER COVER X UM164D
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita DUM168
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita DUM168 Parts Drawing

Makita DUM168 Parts Drawing

Download (291.53KB)
