Makita

Makita Bruschcutter RBK420G Parts

SKU: Makita RBK420G
€292.73
VAT included

Makita Spare Parts for Backpack Bruschcutter RBK420G

Makita original spare parts for to replace broken parts for to fix Backpack Bruschcutter RBK420G.

Fix Your Backpack Bruschcutter RBK420G. All Spares can be supplied. Our Spares are Genuine Parts and Come with a Full Guarantee.

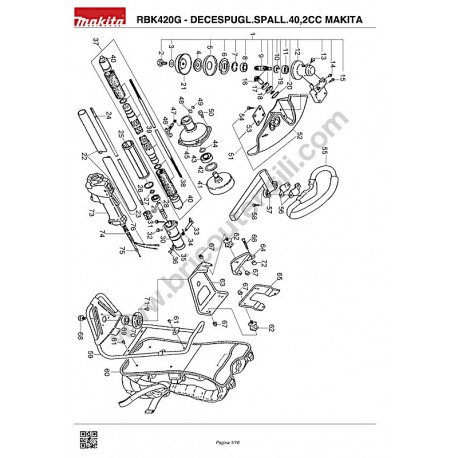

Makita Bruschcutter RBK420G Parts Diagram
  • Makita Bruschcutter RBK420G Parts Diagram
  • Makita Bruschcutter RBK420G Parts Diagram 1
  • Makita Bruschcutter RBK420G Parts Diagram 2
  • Makita Bruschcutter RBK420G Parts Diagram 3
Makita

Makita Bruschcutter RBK420G Parts

SKU: Makita RBK420G Condition: New
€292.73
VAT included

Makita Spare Parts for Backpack Bruschcutter RBK420G

Makita original spare parts for to replace broken parts for to fix Backpack Bruschcutter RBK420G.

Fix Your Backpack Bruschcutter RBK420G. All Spares can be supplied. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 180 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
180 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

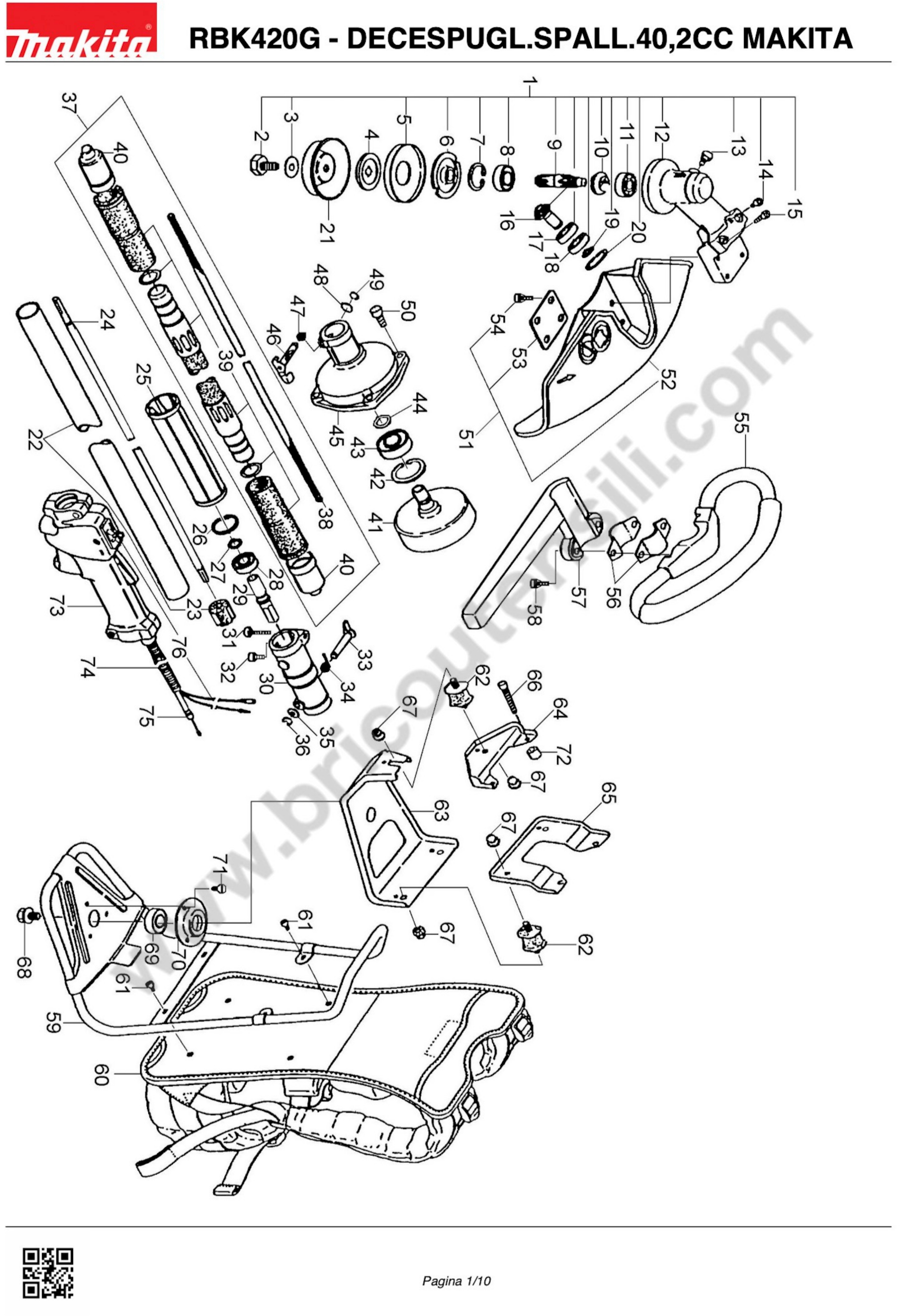

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 108230010N COMPLETE GEAR BOX X RBK350 €288.54
2
 photo_cameraImage coming soon 120030310N HEXAGONAL BOLT M8 RBK350 €6.93
3
 photo_cameraImage coming soon 120030400N WASHER X RBK350 €1.46
4
 photo_cameraImage coming soon 183631300N EXTERNAL FLANGE RBK350 €8.88
5
 photo_cameraImage coming soon 100531210N COVER X RBK350 €4.63
6
 photo_cameraImage coming soon XNR0000158 INTERNAL FLANGE RBK350 €14.96
7
 photo_cameraImage coming soon 045002800N LOCKING RING R-28 RBK350 €2.18
8
 photo_cameraImage coming soon 035600103N BALL BEARING 6001LL €22.50
9
 photo_cameraImage coming soon 100530300N GEAR SHAFT RBK350 €58.52
10
 photo_cameraImage coming soon 140030200N GEAR X RBK350 €22.50
11
 photo_cameraImage coming soon 035600000N BALL BEARING 6000 RBK350 €14.96
12
 photo_cameraImage coming soon 108230111N GEARBOX RBK350 €46.84
13
 photo_cameraImage coming soon 065060800N SCREW TORX M6X8 RBK350 €1.46
14
 photo_cameraImage coming soon 065051000N SCREW TORX M5X10 RBK350 €1.46
15
 photo_cameraImage coming soon XNR0000098 SCREW TORX M5X20 RBK350 €2.18
16
 photo_cameraImage coming soon 140030400N PINION X RBK350 €29.58
17
 photo_cameraImage coming soon 035600000N BALL BEARING 6000 RBK350 €14.96
18
 photo_cameraImage coming soon 035600001N BALL BEARING 6000Z X RBK €13.26
19
 photo_cameraImage coming soon 045001002N RING RETEGNO S-10 RBK350 €1.46
20
 photo_cameraImage coming soon 045002600N RING RETEGNO R-26 RBK350 €2.18
21
 photo_cameraImage coming soon 187031410N FLANGE X RBK420G €17.13
22
 photo_cameraImage coming soon 108320100N COMPLETE ROD X RBK350 €146.15
23
 photo_cameraImage coming soon 122091211N BUSHING COMPLETE X RBK350 €6.20
24
 photo_cameraImage coming soon 140220510N SHAFT X RBK350 €52.43
25
 photo_cameraImage coming soon 108024010N COLLAR X RBK350 €5.34
26
 photo_cameraImage coming soon 045002400N RETAINER RING R-24 RBK350 €1.46
27
 photo_cameraImage coming soon 045001203N RETAINER RING S-12 RBK350 €1.46
28
 photo_cameraImage coming soon 035690102N BALL BEARING 6901ZZ €25.42
29
 photo_cameraImage coming soon 119119200N JOINT X RBK350 €22.50
30
 photo_cameraImage coming soon 119119100N COVER X RBK350 €64.37
31
 photo_cameraImage coming soon 065062600N SCREW TORX M6X26 RBK350 €2.18
32
 photo_cameraImage coming soon 065051000N SCREW TORX M5X10 RBK350 €1.46
33
 photo_cameraImage coming soon 162219310N PIN COMPLETE COUPLING X RBK350 €19.84
34
 photo_cameraImage coming soon 162219600N PIN SPRING X RBK350 €3.28
35
 photo_cameraImage coming soon 031060000N FLAT WASHER 6 X RBK350 €1.46
36
 photo_cameraImage coming soon XNR0000065 RETAINER RING E-5 RBK350 €1.46
37
 photo_cameraImage coming soon 174718000N COMPLETE FLEXIBLE SHAFT RBK350 €365.19
38
 Flexible Drive Shaft for Backpack Brushcutter Makita EBH341R XNR0000326 Flexible Drive Shaft for Backpack Brushcutter Makita EBH341R €65.20
39
 photo_cameraImage coming soon 174718100N FLEXIBLE HOSE X RBK350 €288.54
40
 photo_cameraImage coming soon 182420300N TUBE COVER X RBK350 €4.01
41
 photo_cameraImage coming soon 160010210N CLUTCH DRUM X RBK350 €52.43
42
 photo_cameraImage coming soon XNR0000075 RETAINER RING R-35 RBK350 €1.46
43
 photo_cameraImage coming soon 035620202N BALL BEARING 6202ZZ €22.50
44
 photo_cameraImage coming soon XNR0000070 RETAINER RING S-15 X RBK350 €1.46
45
 photo_cameraImage coming soon 119110100N CLUTCH HOUSING RBK350 €71.92
46
 photo_cameraImage coming soon 162219310N PIN COMPLETE COUPLING X RBK350 €19.84
47
 photo_cameraImage coming soon 162219600N PIN SPRING X RBK350 €3.28
48
 photo_cameraImage coming soon 031060000N FLAT WASHER 6 X RBK350 €1.46
49
 photo_cameraImage coming soon XNR0000065 RETAINER RING E-5 RBK350 €1.46
50
 photo_cameraImage coming soon 065061800N SCREW TORX M6X18 RBK350 €2.18
51
 photo_cameraImage coming soon 6118002000 BRUSHCUTTER PROTECTION €56.12
52
 photo_cameraImage coming soon 6118002010 PROTECTION FOR RBK420G €46.15
53
 photo_cameraImage coming soon 6118002020 PLATE FOR RBK420G €2.76
54
 photo_cameraImage coming soon XNR0000098 SCREW TORX M5X20 RBK350 €2.18
55
 photo_cameraImage coming soon 163040100N SINGLE HANDLE RBK350 €29.58
56
 photo_cameraImage coming soon 186045200N PROTECTION SUPPORT RBK350 €4.63
57
 photo_cameraImage coming soon 173441700N BRACKET HANDLE RBK350 €22.50
58
 photo_cameraImage coming soon 065061800N SCREW TORX M6X18 RBK350 €2.18
59
 photo_cameraImage coming soon 104315900N FRAME FOR BRACES FOR RBK420G €199.10
60
 photo_cameraImage coming soon 104317010N BRACES CPL FOR RBK420G €323.53
61
 photo_cameraImage coming soon 065051000N SCREW TORX M5X10 RBK350 €1.46
62
 photo_cameraImage coming soon XNR0000234 DAMPER €11.55
63
 photo_cameraImage coming soon 164116520N ENGINE SUPPORT FOR RBK420G €70.85
64
 photo_cameraImage coming soon 173246600N FRONT SUPPORT RBK350 €7.90
65
 photo_cameraImage coming soon 173246500N REAR SUPPORT X RBK350 €6.93
66
 photo_cameraImage coming soon 026053500N SCREW M5X35 RBK350 €3.28
67
 photo_cameraImage coming soon 030061400N NUT M6 X RBK350 €1.46
68
 photo_cameraImage coming soon 014102000N BOLT M10X20 RBK350 €2.18
69
 photo_cameraImage coming soon 035620202N BALL BEARING 6202ZZ €22.50
70
 photo_cameraImage coming soon 119115810N BEARING RETAINER X RBK350 €7.90
71
 photo_cameraImage coming soon 065061000N SCREW TORX M6X10 RBK350 €1.46
72
 photo_cameraImage coming soon 173246700N FIXING COLLAR RBK350 €6.93
73
 Makita RBK420G Throttle Lever 099816200N Makita RBK420G Throttle Lever €90.24
74
 photo_cameraImage coming soon 099856800N THROTTLE TUBE X RBK350 €11.82
75
 photo_cameraImage coming soon 099860600N THROTTLE CABLE X RBK420G €41.57
76
 photo_cameraImage coming soon 099833000N CPL SWITCH X RBK420G €51.67
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

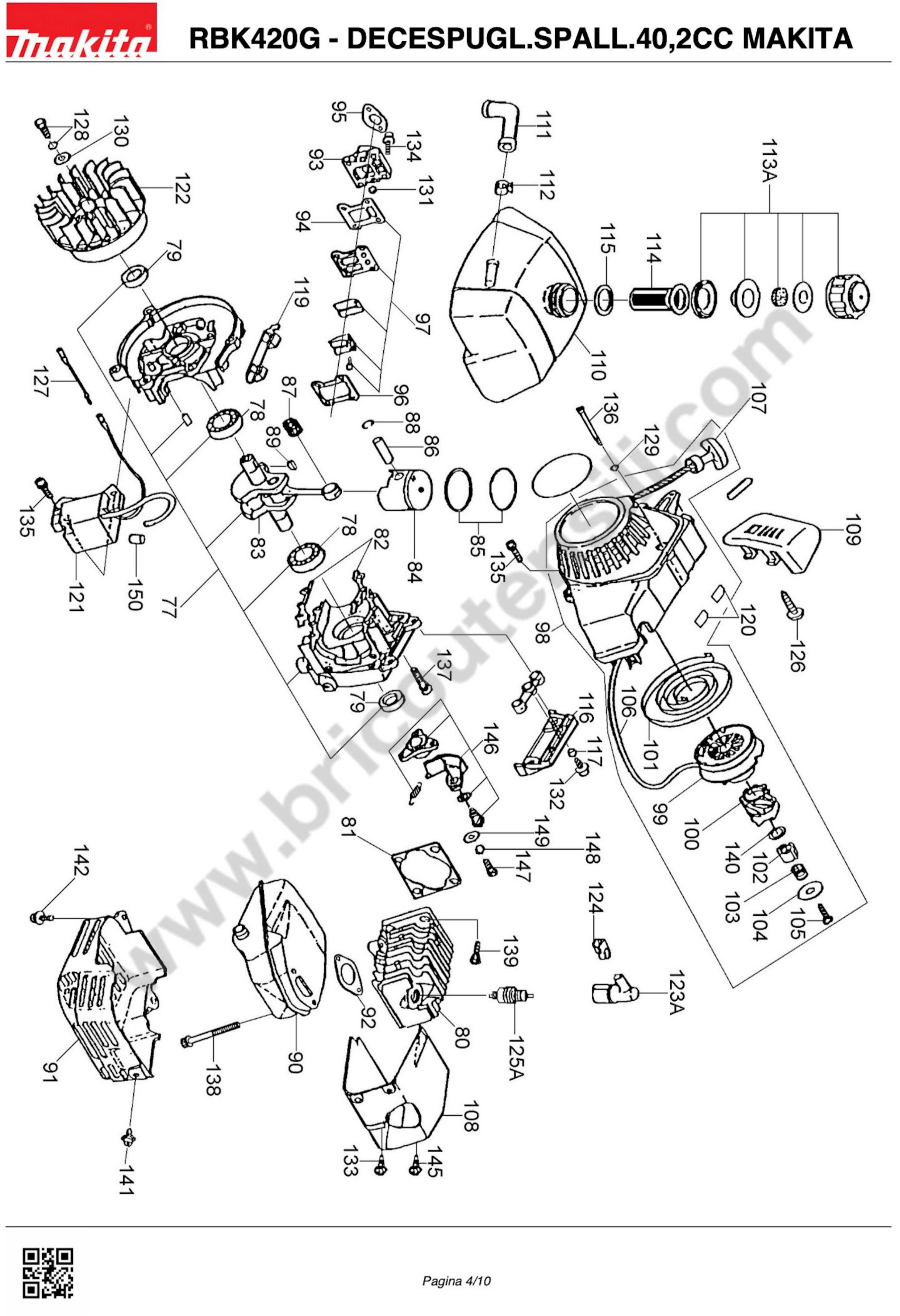

Esploso pagina 2
Pos. Item Price Buy
77
 photo_cameraImage coming soon 5411005001 CONROD CASE X RBC420E €225.46
78
 photo_cameraImage coming soon 0600159880 BALL BEARING 6202C3 X PB500R €8.74
79
 photo_cameraImage coming soon 213546-9 OIL SEAL X PB500R-RBC525 €5.90
80
 Cylinder for Brushcutter Makita RBC410 318630-6 Cylinder for Brushcutter Makita RBC410 €66.15
81
 Cylinder Gasket for Brushcutter Makita RBC410 442156-7 Cylinder Gasket for Brushcutter Makita RBC410 €3.48
82
 photo_cameraImage coming soon 5411501200 CRANK CASE GASKET X RBC410 / RBK 410 €3.23
83
 photo_cameraImage coming soon 5412001000 CRANK SHAFT ASSY X RBC / RBK 410 €225.46
84
 Piston for Brushcutter Makita RBC410 318631-4 Piston for Brushcutter Makita RBC410 €28.32 Not available for order
85
 Piston Ring for Brushcutter Makita RBC410 257309-3 Piston Ring for Brushcutter Makita RBC410 €5.15
86
 Piston Pin for Brushcutter Makita RBC410 257797-4 Piston Pin for Brushcutter Makita RBC410 €3.65
87
 photo_cameraImage coming soon 212085-6 ROLLER CAGE 1014 €6.81
88
 Piston Pin Circlip for Brushcutter Makita RBC410 233983-1 Piston Pin Circlip for Brushcutter Makita RBC410 €1.55
89
 photo_cameraImage coming soon 0323039990 KEY X RBC350-RBC420 €3.68
90
 photo_cameraImage coming soon 5323006000 MUFFLER X RBC350-RBC420 €63.40
91
 photo_cameraImage coming soon 5413500100 MUFFLER COVER X RBC350-420 €23.65
92
 photo_cameraImage coming soon 5323500200 MUFFLER GASKET X RBC RBK / 410 €5.28
93
 photo_cameraImage coming soon 5413501100 ISOLATOR X RBC 410 / RBK410 €10.35
94
 photo_cameraImage coming soon 5413501200 ISOLATOR GASKET X RBC410 / RBK410 €2.81
95
 photo_cameraImage coming soon 5416501300 GASKET X RBC410 / RBK 410 €1.46
96
 photo_cameraImage coming soon 442160-6 BRACKET GASKET €2.14
97
 photo_cameraImage coming soon 125796-3 COMPLETE VALVE X RBC410 / RBK410 €17.39
98
 photo_cameraImage coming soon 5415050000 STARTER/REWIND ASSY RBC420E X RBC420E €159.53
99
 photo_cameraImage coming soon 452766-2 RBC RBK RBK 410 €5.28
100
 photo_cameraImage coming soon 452767-0 STARTER BRACKET RBC / RBK 410 €3.23
101
 photo_cameraImage coming soon 233993-8 SPIRAL SPRING X RBC 410 / RBK410 €7.79
102
 photo_cameraImage coming soon 452768-8 STARTER GUIDE X RBC 410 / RBK41 €2.14
103
 photo_cameraImage coming soon 5415001050 RETURN SPRING X RBC / RBK 410 €1.43
104
 photo_cameraImage coming soon 5415001060 WASHER X RBC / RBK 410 €1.43
105
 photo_cameraImage coming soon 5245001010 SCREW X RBC RBK 410 €2.76
106
 photo_cameraImage coming soon 5415001140 STARTER CABLE X RBC 260/410 / RBK 410 €8.74
107
 photo_cameraImage coming soon 5305002110 STARTER KNOB X RBC260 / RBK41 €7.79
108
 photo_cameraImage coming soon 5415504600 CYLINDER CASE X RBC 410 / RBK €25.05
109
 photo_cameraImage coming soon 5415504500 STARTER HOUSING RBC350-420 €14.76
110
 Fuel Tank for Brushcutter Makita RBK350 5416501201 Fuel Tank for Brushcutter Makita RBK350 €20.65
111
 Fuel Tube for Brushcutter Makita RBK350 422060-6 Fuel Tube for Brushcutter Makita RBK350 €6.44
112
 photo_cameraImage coming soon 0561139982 HOSE CLAMP X RBC 410 / RBK 410 €2.32
113A
 photo_cameraImage coming soon 125937-1 COMPLETE TANK CAP RBK350 €5.34
114
 photo_cameraImage coming soon 0641279990 FILTER X RBC 410 / RBK 410 €2.99
115
 photo_cameraImage coming soon 5516500501 GASKET X RBK350 €2.18
116
 photo_cameraImage coming soon 5416057000 SHANK PROTECTION €3.95
117
 photo_cameraImage coming soon 0230059990 COMPASS X RBC260 / 410 / RBK 410 €1.43
119
 photo_cameraImage coming soon 5416503500 RUBBER X RBC350-RBC420 €7.79
120
 photo_cameraImage coming soon 5416505300 DAMPERX RBC420E €3.95
121
 Electronic Coil for Brushcutter Makita RBC421 168587-9 Electronic Coil for Brushcutter Makita RBC421 €24.50
122
 photo_cameraImage coming soon 5417001010 POLAR WHEEL X RBC / RBK 410 €179.92
123A
 photo_cameraImage coming soon 5417037001 SPARK PLUG CAP X MS5250E €25.05
124
 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U 324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U €1.62
125A
 photo_cameraImage coming soon 168648-5 SPARK PLUG X RBC350-RBC420-PB500R €6.05
126
 photo_cameraImage coming soon 6218501500 SCREW X RBC350-RBC420 €1.43
127
 photo_cameraImage coming soon 5607005000 COMPLETE CABLE X RBC350-RBC420-HT225 €6.11
128
 photo_cameraImage coming soon 0130069970 COMPLETE SCREW X RBK420G €1.74
129
 photo_cameraImage coming soon 0031005000 WASHER X RBC230 / 410 / RBK410 €5.26
130
 photo_cameraImage coming soon 0200069920 WASHER M6 X RBC310 / 410 / RBK410 €2.77
131
 photo_cameraImage coming soon 0021705000 NUT M5 X RBC415 €1.54
132
 photo_cameraImage coming soon 0043405140 PAN HEAD SCREW M5X14 RBC410 €1.54
133
 photo_cameraImage coming soon 0140059610 SCREW M5X14 X RBC350-RBC420 €1.43
134
 photo_cameraImage coming soon 0119059630 M5X20 X PB500R BOLT €2.99
135
 photo_cameraImage coming soon 0119059790 BOLT X RBC / RBK 410 M5X22 €2.14
136
 photo_cameraImage coming soon 0119059660 BOLT X RBC350-RBC420 €2.76
137
 photo_cameraImage coming soon 0119059940 BOLT X RBC 410 / RBK 410 €2.14
138
 photo_cameraImage coming soon 0119069780 BOLT M6X60 X RBC350-RBC420 €6.11
139
 photo_cameraImage coming soon 0119069990 BOLT X RBC 410 / RBK 410 €181.44
140
 photo_cameraImage coming soon 5415001220 WASHER ELASTASTICAX RBC RBK 410 €2.14
141
 photo_cameraImage coming soon 0140069910 SCREW M6X16 X RBC350-RBC420 €2.14
142
 photo_cameraImage coming soon 0140059550 SCREW M5X14 X RBC350-RBC420 €2.14
145
 photo_cameraImage coming soon 0140059560 SCREW M5X14 X RBC350-RBC420 €2.14
146
 photo_cameraImage coming soon 6412001001 COMPLETE CLUTCH RBK350 €65.24
147
 photo_cameraImage coming soon 6202500400 BOLT X RBC 410 / RBK410 €8.37
148
 photo_cameraImage coming soon 0032006000 ELASTIC WASHER X RBC / RBK410-G2400R €1.54
149
 photo_cameraImage coming soon 267429-5 WASHER 6 €1.54
150
 photo_cameraImage coming soon 5417500300 TUBE X RBC350-RBC420 €3.23

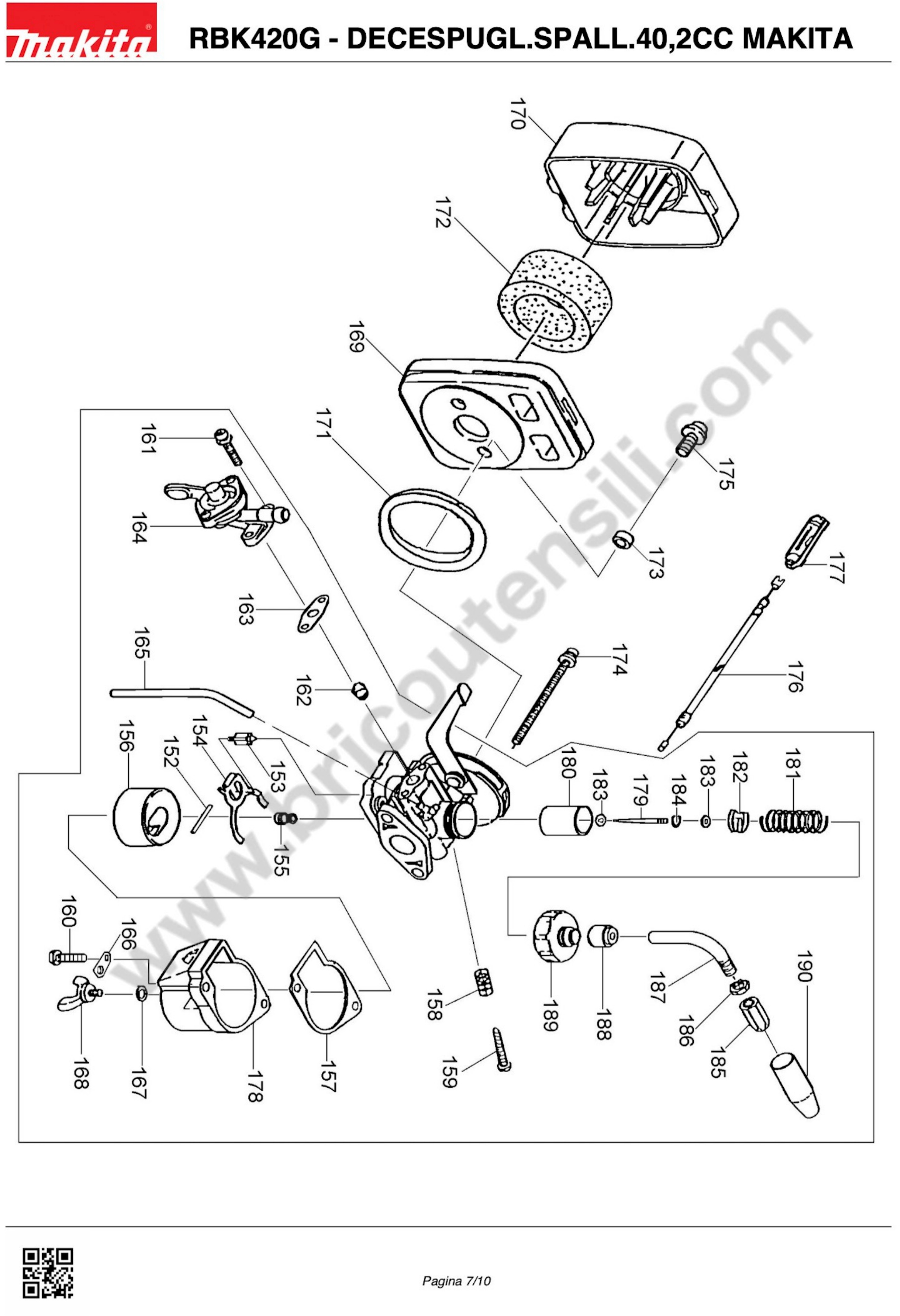

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
152
 photo_cameraImage coming soon 5306009160 PIN WITH FLOATING SUPPORT X RBC / RBK 410 €2.18
153
 photo_cameraImage coming soon 163519-1 COMPLETE PIN X RBC RBK 410 €9.56
154
 photo_cameraImage coming soon 346350-2 FLOATING SUPPORT €11.55
155
 photo_cameraImage coming soon 5306018020 MAIN JET X RBC RBK 410 €13.26
156
 photo_cameraImage coming soon 5306009020 FLOAT X RBC 410 / RBK 410 €22.50
157
 photo_cameraImage coming soon 442162-2 GASKET X RBC RBK 410 €5.34
158
 photo_cameraImage coming soon 5416001110 SPRING X RBC RBK 410 €6.20
159
 photo_cameraImage coming soon 5416001060 ADJUSTING SCREW X RBC RBK 410 €5.34
160
 photo_cameraImage coming soon 5306009510 SCREW X RBC RBK 410 €2.18
161
 photo_cameraImage coming soon 8046001530 SCREW X RBC RBK 410 €2.18
162
 photo_cameraImage coming soon 5416001130 FILTER X RBK350 €13.26
163
 photo_cameraImage coming soon 442163-0 GASKET €4.01
164
 photo_cameraImage coming soon 140633-0 TAP X RBC RBK 410 €25.05
165
 photo_cameraImage coming soon 5416016040 HOSE X RBC RBK 410 €4.01
166
 photo_cameraImage coming soon 5416016030 PLATE X RBC 410 €6.20
167
 photo_cameraImage coming soon 5306002410 GASKET X RBC RBK 410 €2.81
168
 photo_cameraImage coming soon 5306002240 SCREW X RBC RBK 410 €10.35
169
 photo_cameraImage coming soon 5413503900 FILTER HOUSING X RBC 410 / RBK 410 €3.28
170
 photo_cameraImage coming soon 5413503502 FILTER COVER X RBC410 / RBK410 €8.88
171
 photo_cameraImage coming soon 5413503100 GASKET X RBC RBK 410 €3.28
172
 photo_cameraImage coming soon 5413500900 FILTER ELEMENT X RBC RBK 410 €3.95
173
 photo_cameraImage coming soon 0230059990 COMPASS X RBC260 / 410 / RBK 410 €1.43
174
 photo_cameraImage coming soon 0043605580 PAN HEAD SCREW M5X58 RBC RBK 410 €2.32
175
 photo_cameraImage coming soon 0043405140 PAN HEAD SCREW M5X14 RBC410 €1.54
176
 photo_cameraImage coming soon 0630019871 CONNECTION CABLE RBK350 €9.92
177
 photo_cameraImage coming soon 6115503701 THROTTLE PROTECTION €3.28
178
 photo_cameraImage coming soon 5306008010 FLOAT HOUSING RBK420G €51.67
179
 photo_cameraImage coming soon 5416019010 JET NEEDLE X RBK420G €19.53
180
 photo_cameraImage coming soon 5416008021 VALVE RBK420G €78.04
181
 photo_cameraImage coming soon 5306009240 SPRING X RBK420G €13.06
182
 photo_cameraImage coming soon 5306009120 PLATE X CHAIN ​​BRAKE SPRING €8.74
183
 photo_cameraImage coming soon 5416001040 GASKET X RBK420G €3.95
184
 photo_cameraImage coming soon 5306009450 RING X RBK420G €2.76
185
 photo_cameraImage coming soon 5306009310 REGULATOR X RBK420G €7.79
186
 photo_cameraImage coming soon 5306009460 NUT X RBK420G €2.76
187
 photo_cameraImage coming soon 5416001030 CABLE GUIDE X RBK420G €25.05
188
 photo_cameraImage coming soon 5306009250 PLUG X RBK420G €10.18
189
 photo_cameraImage coming soon 5306009260 MIXING CAP RBK420G €29.13
190
 photo_cameraImage coming soon 5416001010 CAPE X RBK420G €5.28

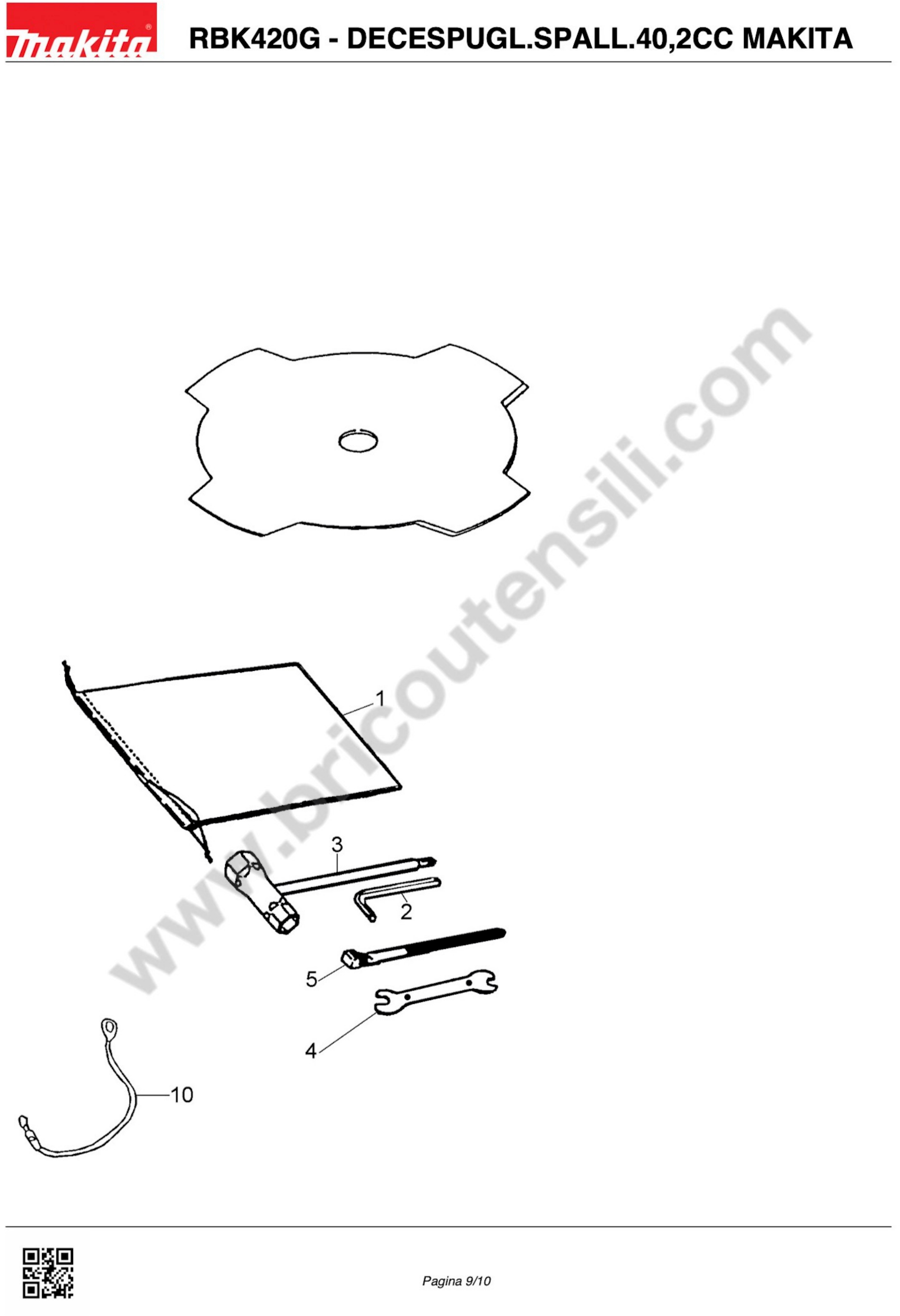

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 060000019N TOOL CASE MS4200K €10.35
2
 photo_cameraImage coming soon 060040000N KEY 4MM MS4200K €2.18
3
 photo_cameraImage coming soon 060000015N PIPE KEY X RBK350 €21.37
4
 photo_cameraImage coming soon 302040600N KEY 8X10 MS4200K €5.34
5
 photo_cameraImage coming soon 099806500N KEY X RBK350 €1.46
10
 photo_cameraImage coming soon 6115501800 CABLE X RBK350 €4.01

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Backpack Bruschcutter RBK420G

Fix Your Backpack Bruschcutter RBK420G. All Spares can be supplied. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
Backpack Bruschcutter RBK420G

RBK420G - DECESPUGL.SPALL.40,2CC MAKITA
Pag.1
# Part Num Description
1 108230010N GEARBOX COMPLETE RBK350
2 120030310N HEX BOLT M8 RBK350
3 120030400N WASHER X RBK350
4 183631300N EXTERNAL FLANGE RBK350
5 100531210N COVER X RBK350
6 XNR0000158 INTERNAL FLANGE RBK350
7 045002800N RETAINING RING R-28 RBK350
8 035600103N BALL BEARING 6001LL
9 100530300N GEAR SHAFT RBK350
10 140030200N GEAR X RBK350
11 035600000N BALL BEARING 6000 RBK350
12 108230111N GEARBOX RBK350
13 065060800N TORX SCREW M6X8 RBK350
14 065051000N TORX SCREW M5X10 RBK350
15 XNR0000098 TORX SCREW M5X20 RBK350
16 140030400N PINION X RBK350
17 035600000N BALL BEARING 6000 RBK350
18 035600001N BALL BEARING 6000Z X RBK
19 045001002N RETAINING RING S-10 RBK350
20 045002600N RETAINING RING R-26 RBK350
21 187031410N FLANGE X RBK420G
22 108320100N COMPLETE ROD X RBK350
23 122091211N COMPASS CPL X RBK350
24 140220510N SHAFT X RBK350
25 108024010N COLLAR X RBK350
26 045002400N RETAINING RING R-24 RBK350
27 045001203N RETAINING RING S-12 RBK350
28 035690102N BALL BEARING 6901ZZ
29 119119200N JOINT X RBK350
30 119119100N JOINT COVER X RBK350
31 065062600N TORX SCREW M6X26 RBK350
32 065051000N TORX SCREW M5X10 RBK350
33 162219310N JOINT PIN CPL X RBK350
34 162219600N SPRING PIN X RBK350
35 031060000N FLAT WASHER 6 X RBK350
36 XNR0000065 RETAINING RING E-5 RBK350
37 174718000N FLEXIBLE SHAFT CPL RBK350
38 XNR0000326 FLEXIBLE SHAFT BHK3500
39 174718100N FLEXIBLE PIPE RBK350
40 182420300N PIPE COVER X RBK350
41 160010210N DRUM CLUTCH RBK350
42 XNR0000075 RETAINING RING R-35 RBK350
43 035620202N BALL BEARING 6202ZZ
44 XNR0000070 RETAINING RING S-15 X RBK350
45 119110100N CLUTCH CASING RBK350
46 162219310N JOINT PIN CPL X RBK350
47 162219600N PIN SPRING X RBK350
48 031060000N FLAT WASHER 6 X RBK350
49 XNR0000065 RETAINING RING E-5 RBK350
50 065061800N TORX SCREW M6X18 RBK350
51 6118002000 BRUSHCUTTER PROTECTION
52 6118002010 PROTECTION FOR RBK420G
53 6118002020 PLATE FOR RBK420G
54 XNR0000098 TORX SCREW M5X20 RBK350
55 163040100N SINGLE HANDLE RBK350
56 186045200N PROTECTION SUPPORT RBK350
57 173441700N BRACKET HANDLE RBK350
58 065061800N TORX SCREW M6X18 RBK350
59 104315900N FRAME FOR BRACES FOR RBK420G
60 104317010N BRACES CPL FOR RBK420G
61 065051000N TORX SCREW M5X10 RBK350
62 XNR0000234 ANTI-VIBRATION
63 164116520N ENGINE SUPPORT FOR RBK420G
64 173246600N FRONT SUPPORT RBK350
65 173246500N REAR SUPPORT FOR RBK350
66 026053500N M5X35 SCREW RBK350
67 030061400N M6 NUT FOR RBK350
68 014102000N BOLT M10X20 RBK350
69 035620202N BALL BEARING 6202ZZ
70 119115810N BEARING STOP X RBK350
71 065061000N TORX SCREW M6X10 RBK350
72 173246700N RETAINER COLLAR RBK350
73 099816200N CONTROL LEVER X RBK420G
74 099856800N THROTTLE TUBE X RBK350
75 099860600N THROTTLE CABLE X RBK420G
76 099833000N CPL SWITCH X RBK420G
Pag.2
77 5411005001 CONNECTING ROD CASE X RBC420E
78 0600159880 BEARING 6202C3 X PB500R
79 213546-9 OIL SEAL X PB500R-RBC525
80 318630-6 CYLINDER X RBC 410/RBK 410
81 442156-7 CYLINDER GASKET X RBC420E
82 5411501200 CASE GASKETS X RBC410/RBK 410
83 5412001000 CRANKSHAFT COMPLETE FOR RBC/RBK 410
84 318631-4 PISTON X RBC410/RBK410
85 257309-3 ELASTIC RING RBC410/RBK4
86 257797-4 PIN FOR PISTON
87 212085-6 ROLLER CAGE 1014
88 233983-1 PISTON PIN RING EBH341
89 0323039990 KEY FOR RBC350-RBC420
90 5323006000 MUFFLER X RBC350-RBC420
91 5413500100 MUFFLER CAP X RBC350-420
92 5323500200 EXHAUST GASKET FOR RBC RBK/410
93 5413501100 INSULATOR X RBC 410/RBK410
94 5413501200 ISOLATED GASKET X RBC410/RBK410
95 5416501300 GASKET X RBC410/RBK 410
96 442160-6 LEAD VALVE GASKET
97 125796-3 VALVE COMPL. X RBC410/RBK410
98 5415050000 COMPLETE STARTER FOR RBC420E
99 452766-2 STARTER SPOOL RBC/RBK 410
100 452767-0 STARTER CONNECTOR RBC/RBK 410
101 233993-8 SPIRAL SPRING X RBC 410/RBK410
102 452768-8 STARTER GUIDE X RBC 410/RBK41
103 5415001050 RETURN SPRING X RBC/RBK 410
104 5415001060 WASHER X RBC /RBK 410
105 5245001010 SCREW X RBC RBK 410
106 5415001140 STARTER CABLE X RBC 260/410/RBK 410
107 5305002110 STARTER KNOB X RBC260/RBK41
108 5415504600 CYLINDER CASE X RBC 410/RBK
109 5415504500 STARTER HOUSING RBC350-420
110 5416501201 FUEL TANK X RBK420G
111 422060-6 TUBE X RBC 410/RBK410
112 0561139982 TIGHTEN NUT X RBC 410/RBK 410
113A 125937-1 TANK CAP COMPL. RBK350
114 0641279990 FILTER X RBC 410/RBK 410
115 5516500501 GASKET X RBK350
116 5416057000 SRB PROTECTION
117 0230059990 BUSH X RBC260/410/RBK 410
119 5416503500 RUBBER X RBC350-RBC420
120 5416505300 SHOCK ABSORBER X RBC420E
121 168587-9 COIL
122 5417001010 POLE WHEEL X RBC/RBK 410
123A 5417037001 SPRING PLUG CAP X MS5250E
124 324891-8 SPRING PLUG CAP EBH341
125A 168648-5 SPRING X RBC350-RBC420-PB500R
126 6218501500 SCREW X RBC350-RBC420
127 5607005000 CABLE COMPLETE X RBC350-RBC420-HT225
128 0130069970 SCREW COMPLETE X RBK420G
129 0031005000 WASHER X RBC230/410/RBK410
130 0200069920 WASHER M6 X RBC310/410/RBK410
131 0021705000 NUT M5 X RBC415
132 0043405140 SCREW X RBC 410 /RBK 410
133 0140059610 SCREW M5X14 X RBC350-RBC420
134 0119059630 BOLT M5X20 X PB500R
135 0119059790 BOLT X RBC/RBK 410 M5X22
136 0119059660 BOLT X RBC350-RBC420 -
137 0119059940 BOLT X RBC 410/RBK 410
138 0119069780 BOLT M6X60 X RBC350-RBC420
139 0119069990 BOLT X RBC 410/RBK 410
140 5415001220 ELASTIC WASHER X RBC RBK 410
141 0140069910 SCREW M6X16 X RBC350-RBC420
142 0140059550 SCREW M5X14 X RBC350-RBC420
145 0140059560 SCREW M5X14 X RBC350-RBC420
146 6412001001 CLUTCH COMPLETE RBK350
147 6202500400 BOLT X RBC 410/RBK410
148 0032006000 WASHER ELASTIC X RBC/RBK410-G2400R
149 267429-5 WASHER 6
150 5417500300 TUBE X RBC350-RBC420
Pag.3
152 5306009160 PIN SUPPORT GALL X RBC/RBK 410
153 163519-1 NEEDLE COMPLETE X RBC RBK 410
154 346350-2 FLOAT SUPPORT
155 5306018020 MAIN JET X RBC RBK 410
156 5306009020 FLOAT X RBC RBK 410/RBK 410
157 442162-2 GASKET X RBC RBK 410
158 5416001110 SPRING X RBC RBK 410
159 5416001060 ADJUSTMENT SCREW X RBC RBK 410
160 5306009510 SCREW X RBC RBK 410
161 8046001530 SCREW X RBC RBK 410
162 5416001130 FILTER X RBK350
163 442163-0 GASKET
164 140633-0 TAP X RBC RBK 410
165 5416016040 TUBE X RBC RBK 410
166 5416016030 PLATE X RBC RBK 410
167 5306002410 SEAL X RBC RBK 410
168 5306002240 SCREW X RBC RBK 410
169 5413503900 FILTER HOUSING X RBC 410/RBK 410
170 5413503502 FILTER COVER X RBC410/RBK410
171 5413503100 SEAL X RBC RBK 410
172 5413500900 FILTER ELEMENT X RBC RBK 410
173 0230059990 BUSH X RBC260/410/RBK 410
174 0043605580 SCREW M5X58 X RBC RBK 410
175 0043405140 SCREWS FOR RBC 410 /RBK 410
176 0630019871 CONNECTION CABLE RBK350
177 6115503701 PROTECTION ACCELERATOR
178 5306008010 FLOAT HOUSING RBK420G
179 5416019010 JET NEEDLE X RBK420G
180 5416008021 VALVE RBK420G
181 5306009240 SPRING X RBK420G
182 5306009120 PLATE X CHAIN ​​BRAKE SPRING
183 5416001040 GASKET X RBK420G
184 5306009450 RING X RBK420G
185 5306009310 REGULATOR X RBK420G
186 5306009460 NUT X RBK420G
187 5416001030 CABLE GUIDE X RBK420G
188 5306009250 PLUG X RBK420G
189 5306009260 MIXING CAP RBK420G
190 5416001010 CAPE X RBK420G
Pag.4
1 060000019N TOOL CASE MS4200K
2 060040000N Allen Wrench 4MM MS4200K
3 060000015N SOCKET WRENCH X RBK350
4 302040600N WRENCH 8X10 MS4200K
5 099806500N WRENCH X RBK350
10 6115501800 CABLE FOR RBK350
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBK420G
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita RBK420G Parts Diagram

Makita RBK420G Parts Diagram

Download (1.39MB)

You might also like

Muffler Gasket for Brushcutter Makita BBC5700
Makita SKU: BB240500
Muffler Gasket for Brushcutter Makita BBC5700
Muffler Gasket for Brushcutter Makita BBC5700 Genuine replacement part Makita, Muffler Gasket for Brushcutters BBC4510 - BBC5700 - BBC5710 - BBK4500 - Dolmar MS4520B - MS4520C. Parts...
AVAILABLE €6.69
Details
Muffler for Brushcutter Makita BBC5700
Makita SKU: BB752350
Muffler for Brushcutter Makita BBC5700
Muffler for Brushcutter Makita BBC5700 Genuine spare part Makita, Muffler for Brushcutters BBC4510 - BBC5700 - BBC5710 - BBK4500 - BBK5700. Part for the following products:...
Out-of-Stock €44.98
Details
Cylinder Gasket for Brushcutter Dolmar MS4520B
Makita SKU: BB240270
Cylinder Gasket for Brushcutter Dolmar MS4520B
Cylinder Gasket for Brushcutter Dolmar MS4520B Genuine replacement part Dolmar, Cylinder Gasket Diameter mm 41 for Brushcutters N45E - MS4520B - MS4520C - MS4520U - Makita BBC4510...
Last items in stock €2.20
Details
Clutch Arm for Brushcutter Dolmar MS4520B
Makita SKU: BB780060
Clutch Arm for Brushcutter Dolmar MS4520B
Clutch Arm for Brushcutter Dolmar MS4520B Genuine replacement part Dolmar, Clutch Arm for Brushcutters MS4520B - MS5700B - Makita BBK4500 - BBK5700. Part for the following products: - BBK4500 - BACKPACK BRUSHCUTTER 45CC MAKITA -...
AVAILABLE €10.06
Details
Receive Washer for Brushcutter Makita RBC310
Makita SKU: 327195-7
Receive Washer for Brushcutter Makita RBC310
Receive Washer for Brushcutter Makita RBC310 Genuine spare part Makita, Receive Washer for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321. Part for the following products:...
on 7/10 Business Days Approx €34.41
Details
Clamp Washer for Brushcutter Makita RBC310
Makita SKU: 6258500001
Clamp Washer for Brushcutter Makita RBC310
Clamp Washer for Brushcutter Makita RBC310 Genuine spare part Makita, Clamp Washer for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321. Part for the following products:...
on 7/10 Business Days Approx €25.23
Details
Nylon Cutting Head 4Y for Brushcutter Makita - Dolmar
Makita SKU: B-02945
Nylon Cutting Head 4Y for Brushcutter Makita - Dolmar
Nylon Cutting Head 4Y (L.H.) for Brushcutter Makita - Dolmar Genuine Accessory Makita, Nylon Cutting Head 4Y (L.H.) for Brushcutter Makita - Dolmar Parts for the following products: -  RBC2110 - BRUSHCUTTER MAKITA -  RBC201 -...
on 7/10 Business Days Approx €32.50
Details
Fuel Tank for Brushcutter Makita RBK350
Makita SKU: 5416501201
Fuel Tank for Brushcutter Makita RBK350
Fuel Tank for Brushcutter Makita RBK350 Genuine replacement part MAKITA, Fuel Tank  for Brushcutters RBC410 - RBK350 - RBK410 - RBK420. Part for the following products:...
Last items in stock €20.65
Details
Fuel Tube for Brushcutter Makita RBK350
Makita SKU: 422060-6
Fuel Tube for Brushcutter Makita RBK350
Fuel Tube for Brushcutter Makita RBK350 Genuine replacement part MAKITA, Fuel Tube for Brushcutters RBC410 - RBK350 - RBK410 - RBK420. Part for the following products: - ...
on 7/10 Business Days Approx. €6.44
Details
Makita RBK420G Throttle Lever
Makita SKU: 099816200N
Makita RBK420G Throttle Lever
Makita Brushcutter RBK420G Throttle Lever Genuine replacement part Makita, Throttle Control Lever for Backpack Bruschcutter RBK420G. Part for the following products: -  Backpack Bruschcutter RBK420G -...
Last items in stock €90.24
Details
Comments (0)
