Makita

Makita Bruschcutter RBC520 Parts

SKU: Makita RBC520
€119.88
VAT included

Makita Spare Parts for Engine Bruschcutter RBC520

Makita original spare parts for to replace broken parts for to fix Engine Bruschcutter RBC520.

Fix Your Bruschcutter. All Spares can be supplied at low and discounted price. Our Spares are Genuine Parts and Come with a Full Guarantee.

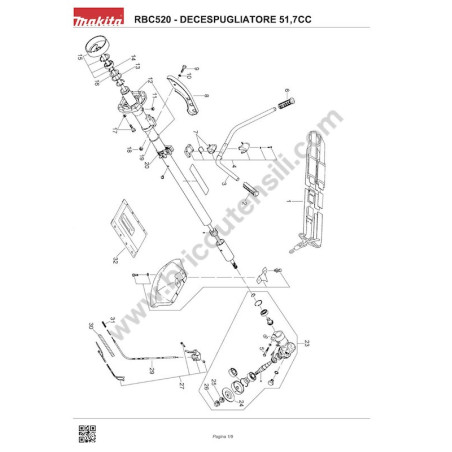

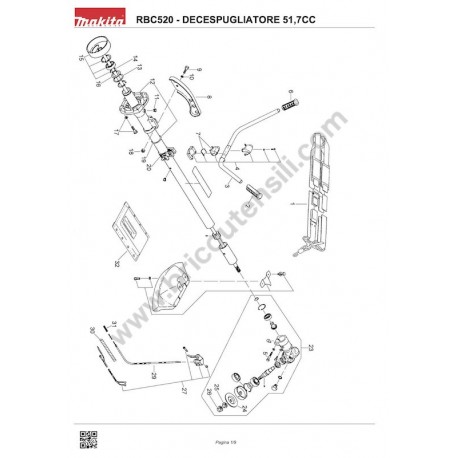

Makita Bruschcutter RBC520 Parts Diagram
  • Makita Bruschcutter RBC520 Parts Diagram
  • Makita Bruschcutter RBC520 Parts Diagram - 1
  • Makita Bruschcutter RBC520 Parts Diagram - 2
  • Makita Bruschcutter RBC520 Parts Diagram - 3
Makita

Makita Bruschcutter RBC520 Parts

SKU: Makita RBC520 Condition: New
€119.88
VAT included

Makita Spare Parts for Engine Bruschcutter RBC520

Makita original spare parts for to replace broken parts for to fix Engine Bruschcutter RBC520.

Fix Your Bruschcutter. All Spares can be supplied at low and discounted price. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 133 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
133 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

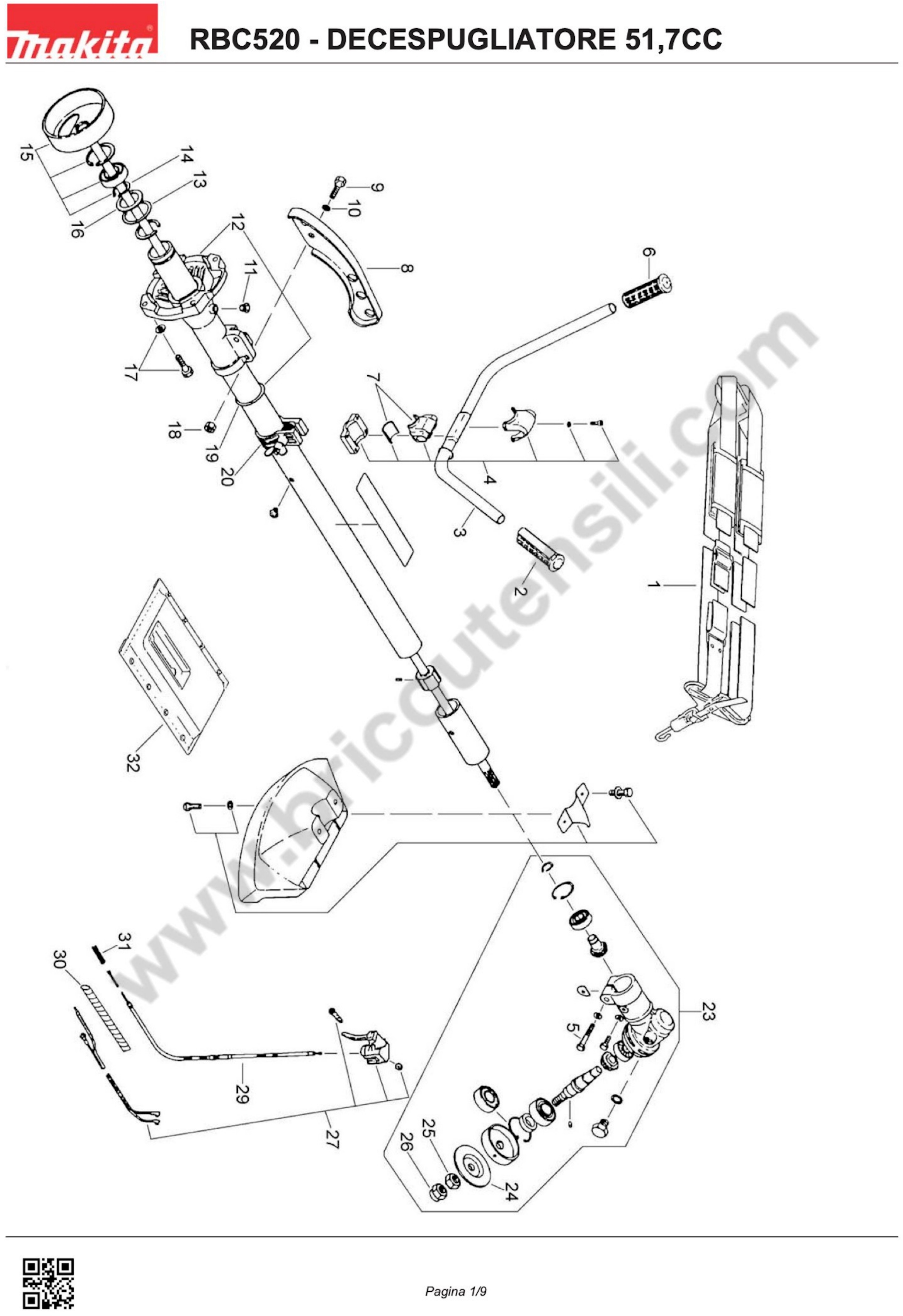

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6457001003 SUPPORT STRAP FOR RBC520 €116.39
2
 photo_cameraImage coming soon 6164500000 RIGHT HANDLE FOR RBC520 €17.13
3
 photo_cameraImage coming soon 6404501000 GRIP FOR RBC 520 €78.04
4
 photo_cameraImage coming soon 6404024000 BLOCKING CLAMP FOR RBC520 €70.85
5
 photo_cameraImage coming soon 0016706350 SCREW FOR RBC520 €1.43
6
 photo_cameraImage coming soon 6414501400 LEFT GRIP RBC520 €7.79
7
 photo_cameraImage coming soon 6404018000 DAMPER ASSY RBC520 €33.68
8
 photo_cameraImage coming soon 6307500300 HOOK X RBC 520 €10.18
9
 photo_cameraImage coming soon 0016606200 SCREW M6X20 X RBC520 €1.43
10
 photo_cameraImage coming soon 0032006000 ELASTIC WASHER X RBC / RBK410-G2400R €1.54
11
 photo_cameraImage coming soon 6301501300 PLUG X RBC 520 €3.95
12
 photo_cameraImage coming soon 6301009000 CLUTCH BOX COMPLETE X RBC520 €179.92
13
 photo_cameraImage coming soon 6301501600 WASHER X RBC520 €3.23
14
 photo_cameraImage coming soon 0031517000 EXTERNAL LOCK X RBC 410 RBK410 €1.32
15
 photo_cameraImage coming soon 6401028001 COMPLETE SHAFT NEW RBC520 €225.46
16
 photo_cameraImage coming soon 0230259980 SPACER X RBC 520 €2.76
17
 photo_cameraImage coming soon 0016606250 SCREW 6X25 X RBC 520 €1.43
18
 photo_cameraImage coming soon 0021806000 NUT M6 X RBC 410 / RBC520 €1.43
19
 photo_cameraImage coming soon 0062630280 STOP RING X RBC 520 €3.23
20
 photo_cameraImage coming soon 140629-1 STOPPER COMPLETE RBC410 RBC520 €3.95
23
 photo_cameraImage coming soon 6453008000 GEARBOX X RBC520 €407.67
24
 photo_cameraImage coming soon 346441-9 EXTERNAL FLANGE €22.16
25
 photo_cameraImage coming soon 264058-5 NUT X RBC 410 / RBC520 €4.62
26
 photo_cameraImage coming soon 6308503300 NUT X RBC 410 / RBC520 €6.81
27
 photo_cameraImage coming soon 6455001000 LEVEL GAUGE X RBC520 €51.67
29
 photo_cameraImage coming soon 6455002000 CONTROL WIRE X RBC520 €25.05
30
 photo_cameraImage coming soon 0091912600 SPRING X RBC 520 €10.18
31
 photo_cameraImage coming soon 6255500900 SPRING X RBC520 €2.76
32
 photo_cameraImage coming soon 6407500000 GUARD X RBC 520 €36.80
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

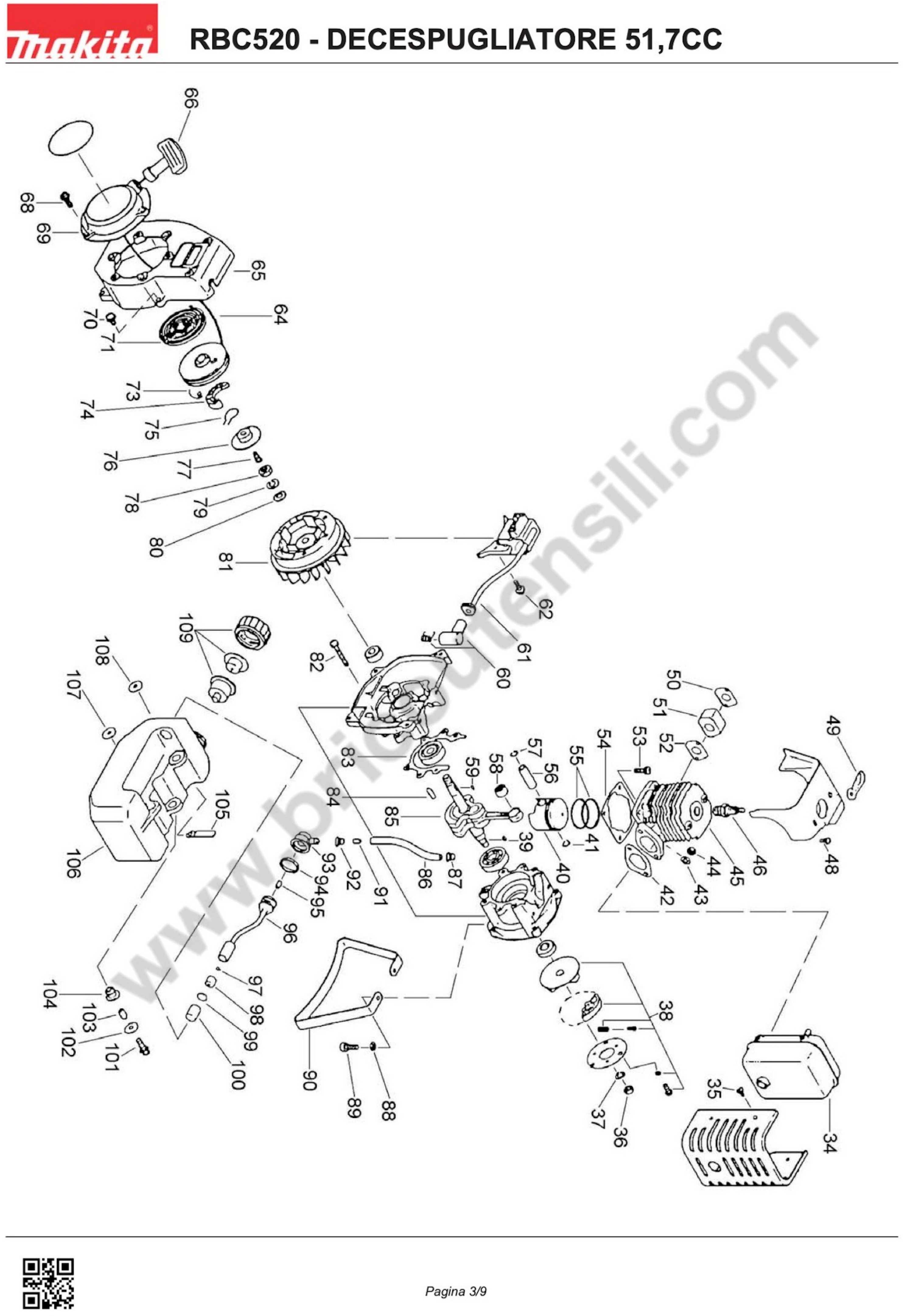

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
34
 photo_cameraImage coming soon 5503001000 VALVE SILENCER X RBC520 €78.04
35
 photo_cameraImage coming soon 0043505080 SCREW M5X8 X RBC520 €1.43
36
 photo_cameraImage coming soon 0022808000 NUT M8 X RBC520 €1.43
37
 photo_cameraImage coming soon 0032008000 WASHER X RBC520 - G.2400R-G.3500 €1.43
38
 photo_cameraImage coming soon 6302002000 CLUTCH X RBC520 €57.65
39
 photo_cameraImage coming soon 0053203101 WOODRUFF RBC / RBK 410 €2.15
40
 photo_cameraImage coming soon 5502500400 PISTON X RBC520 €29.13
41
 photo_cameraImage coming soon 233995-4 RING PISTON PIN €1.43
42
 photo_cameraImage coming soon 5503500100 GASKET X RBC520 €6.11
43
 photo_cameraImage coming soon 0032006000 ELASTIC WASHER X RBC / RBK410-G2400R €1.54
44
 photo_cameraImage coming soon 0170069960 NUT €2.14
45
 photo_cameraImage coming soon 5501500300 CYLINDER X RBC520 €225.46
46
 photo_cameraImage coming soon 054002-10 SPARK PLUG NGK - BM7A (10PZ) €46.29
48
 photo_cameraImage coming soon 0043706140 SCREW 5X14 X RBC520 €1.43
49
 photo_cameraImage coming soon 0566079970 CLAMP X RBC520 €2.14
50
 photo_cameraImage coming soon 5503500501 GASKET MS5250 €1.43
51
 photo_cameraImage coming soon 5506500100 INSULATOR X RBC520 €7.79
52
 photo_cameraImage coming soon 5503500501 GASKET MS5250 €1.43
53
 photo_cameraImage coming soon 0043506200 SCREW & WASHERASSY G5500/5501 RBC520-G5500R €1.43
54
 photo_cameraImage coming soon 5501500400 GASKET X RBC520 €2.14
55
 photo_cameraImage coming soon 5602500900 PISTON RING X RBC520 €3.95
56
 photo_cameraImage coming soon 5602501100 PISTON PIN RBC520 €7.69
57
 photo_cameraImage coming soon 233995-4 RING PISTON PIN €1.43
58
 photo_cameraImage coming soon 0610129961 NEEDLE ROLLER BEARING X RBC520 €11.39
59
 photo_cameraImage coming soon 0053204201 PIN X RBC520 €2.14
60
 photo_cameraImage coming soon 0655009940 PLUG CAP X RBC410 / RBK410RBC520 €3.23
61
 photo_cameraImage coming soon 0241059960 CABLE €1.43 Not available for order
62
 photo_cameraImage coming soon 0043605180 COMPLETE SCREW X RBC230 / RBC520 €1.32
64
 photo_cameraImage coming soon 5505001050 STARTER ROPE RBC 520 €10.18
65
 photo_cameraImage coming soon 5505500000 BLOWER WINDING RBC520 €46.15
66
 photo_cameraImage coming soon 5305002110 STARTER KNOB X RBC260 / RBK41 €7.79
68
 photo_cameraImage coming soon 0043706140 SCREW 5X14 X RBC520 €1.43
69
 photo_cameraImage coming soon 5505001000 REWIND STARTER RBC520 €33.68
70
 photo_cameraImage coming soon 0043506200 SCREW & WASHERASSY G5500/5501 RBC520-G5500R €1.43
71
 photo_cameraImage coming soon 5505001020 SPIRAL SPRING X RBC520 €19.53
73
 photo_cameraImage coming soon 5105015060 RETURN SPRING X RBC310 / RBC520 €3.23
74
 photo_cameraImage coming soon 5105015020 RATCHET RBC 310 / RBC520 €8.74
75
 photo_cameraImage coming soon 5105015050 CLUTCH SPRING X RBC 310/520 €7.79
76
 photo_cameraImage coming soon 5505001030 FRICTION PLATE €7.79
77
 photo_cameraImage coming soon 5105015110 SCREW X RBC260 / 230/520 €2.76
78
 photo_cameraImage coming soon 0022810000 NUT M10 XRBC520 €1.43
79
 photo_cameraImage coming soon 0032010000 SPRINGWASHER M10 G5501R/ RBC520 / G.5500R €1.43
80
 photo_cameraImage coming soon 0031010000 WASHER X RBC520 / G.5500R €1.43
81
 photo_cameraImage coming soon 5507001010 FLYWHEEL RBC525 €199.10
82
 photo_cameraImage coming soon 0043506400 SCREW ASSY M6X40 XRBC520 €1.43
83
 photo_cameraImage coming soon 5501500200 GASKET X RBC 520 €2.76
84
 photo_cameraImage coming soon 5501003000 COMPLETE BOX X RBC 520 €323.53
85
 photo_cameraImage coming soon 5502001000 ECCENTRIC SHAFT COMPLETE XRBC520 €284.21
86
 photo_cameraImage coming soon 0851199980 TUBE X RBC520 €1.43
87
 photo_cameraImage coming soon 0561059990 HOSE CLAMP XRBC230-310 / 520 €1.32
88
 photo_cameraImage coming soon 0032006000 ELASTIC WASHER X RBC / RBK410-G2400R €1.54
89
 photo_cameraImage coming soon 0119069970 HEX SOCKET HEAD BOLT M6x12 RB RBC520 €1.43
90
 photo_cameraImage coming soon 6455500100 STAND RBC520 €17.13
91
 photo_cameraImage coming soon 0230039980 SPACER X RBC520 €1.43
92
 photo_cameraImage coming soon 0561080010 HOSE STOP X RBC 260 / RBC520 €1.32
93
 photo_cameraImage coming soon 5106503001 FUEL PUMP X RBC520 €6.11 Not available for order
94
 photo_cameraImage coming soon 0230259980 SPACER X RBC 520 €2.76
95
 photo_cameraImage coming soon 0230039980 SPACER X RBC520 €1.43
96
 photo_cameraImage coming soon 5106501200 TUBE X RBC520 €4.56
97
 photo_cameraImage coming soon 216039-5 BALL X RBC 520 €1.43
98
 photo_cameraImage coming soon 5106502500 ELEMENT X RBC520 €6.11
99
 photo_cameraImage coming soon 5106503300 ELEMENT X RBC520 €1.43
100
 photo_cameraImage coming soon 5106502400 ELEMENT X RBC520 €2.76
101
 photo_cameraImage coming soon 0043506250 SCREW AND WASHER ASSY RBC520-G5500 €1.43
102
 photo_cameraImage coming soon 0031206000 WASHER G.24 / 35-RBC225-255 €1.32
103
 photo_cameraImage coming soon 0230069910 BUSH X RBC 520 €1.43
104
 photo_cameraImage coming soon 5506500200 DAMPER RBC520 €2.14
105
 photo_cameraImage coming soon 0566079970 CLAMP X RBC520 €2.14
106
 photo_cameraImage coming soon 5506500000 TANK X RBC520 €36.80
107
 photo_cameraImage coming soon 0031206000 WASHER G.24 / 35-RBC225-255 €1.32
108
 photo_cameraImage coming soon 0031206000 WASHER G.24 / 35-RBC225-255 €1.32
109
 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

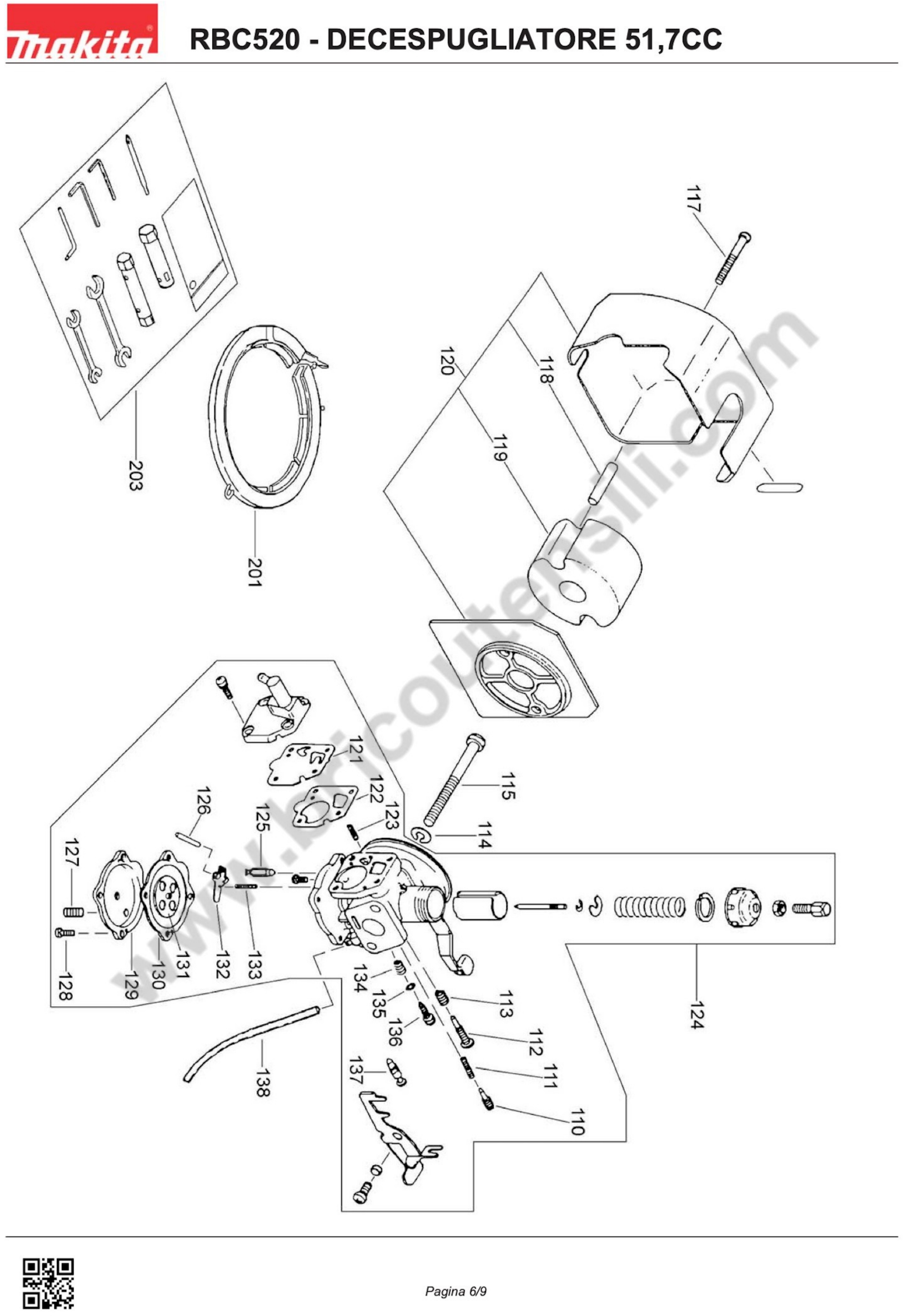

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
110
 photo_cameraImage coming soon 5106043020 AIR REGULATION SCREW X RBC520 €6.81
111
 photo_cameraImage coming soon 5106043030 AIR REGULATION SPRING X RBC520 €3.23
112
 photo_cameraImage coming soon 5106048230 STOP SCREW X RBC520 €10.18
113
 photo_cameraImage coming soon 5106048240 ADJUST SCREW SPRING RBC525 RBC520 €2.14
114
 photo_cameraImage coming soon 0032005000 WASHER X RBC520 €1.43
115
 photo_cameraImage coming soon 0043105550 SCREW M5X55 XRBC520 €1.43
117
 photo_cameraImage coming soon 0043104300 SCREW M4X30 X RBC520 €1.43
118
 photo_cameraImage coming soon 0230049980 SPACER RBC525 RBC 520 €1.43
119
 photo_cameraImage coming soon 5103502700 SPONGE ELEMENT X RBC520 €5.28
120
 photo_cameraImage coming soon 5503005000 AIR FILTER X RBC520 €19.53
121
 photo_cameraImage coming soon 5106042320 DIAPHRAGM X RBC520 €19.53
122
 photo_cameraImage coming soon 5106042310 PUMP PACKING RBC525 RBC520 €2.76
123
 photo_cameraImage coming soon 5106041320 SPRING X RBC 520 €2.76
124
 photo_cameraImage coming soon 5506001000 CARBURETOR X RBC 520 €159.53
125
 photo_cameraImage coming soon 5106041340 NEEDLE VALVE X RBC520 €19.53
126
 photo_cameraImage coming soon 5106043130 HINGE PIN RBC525 RBC520 €2.14
127
 photo_cameraImage coming soon 5506001250 SPRING X RBC520 €2.14
128
 photo_cameraImage coming soon 0043503080 SCREW M3X8 X RBC520 €1.43
129
 photo_cameraImage coming soon 5506001120 DIAPHRAGM COVER RBC525 RBC 520 €5.28
130
 photo_cameraImage coming soon 5506001040 DIAPHRAGM PACKING RBC525 RBC520 €3.23
131
 photo_cameraImage coming soon 5506001030 PLATE X RBC520 €13.06
132
 photo_cameraImage coming soon 5106043150 CONTROL LEVER X RBC520 €3.95
133
 photo_cameraImage coming soon 5106043120 CONTROL LEVER SPRING RBC520 €3.23
134
 photo_cameraImage coming soon 5106042120 ADJUST SPRING RBC520 €2.14
135
 photo_cameraImage coming soon 5106042060 O RING RBC525 RBC520 €1.43
136
 photo_cameraImage coming soon 5506001110 MAIN ADJUSTMENT SCREW FOR RBC520 €19.53
137
 photo_cameraImage coming soon 5106042160 AUT.MAIN ADJUSTMENT FOR RBC520 €11.39
138
 photo_cameraImage coming soon 0851159990 PIPE FOR RBC230/520 €1.43
203
 photo_cameraImage coming soon 6459020000 KEY KIT FOR RBC520 €46.15

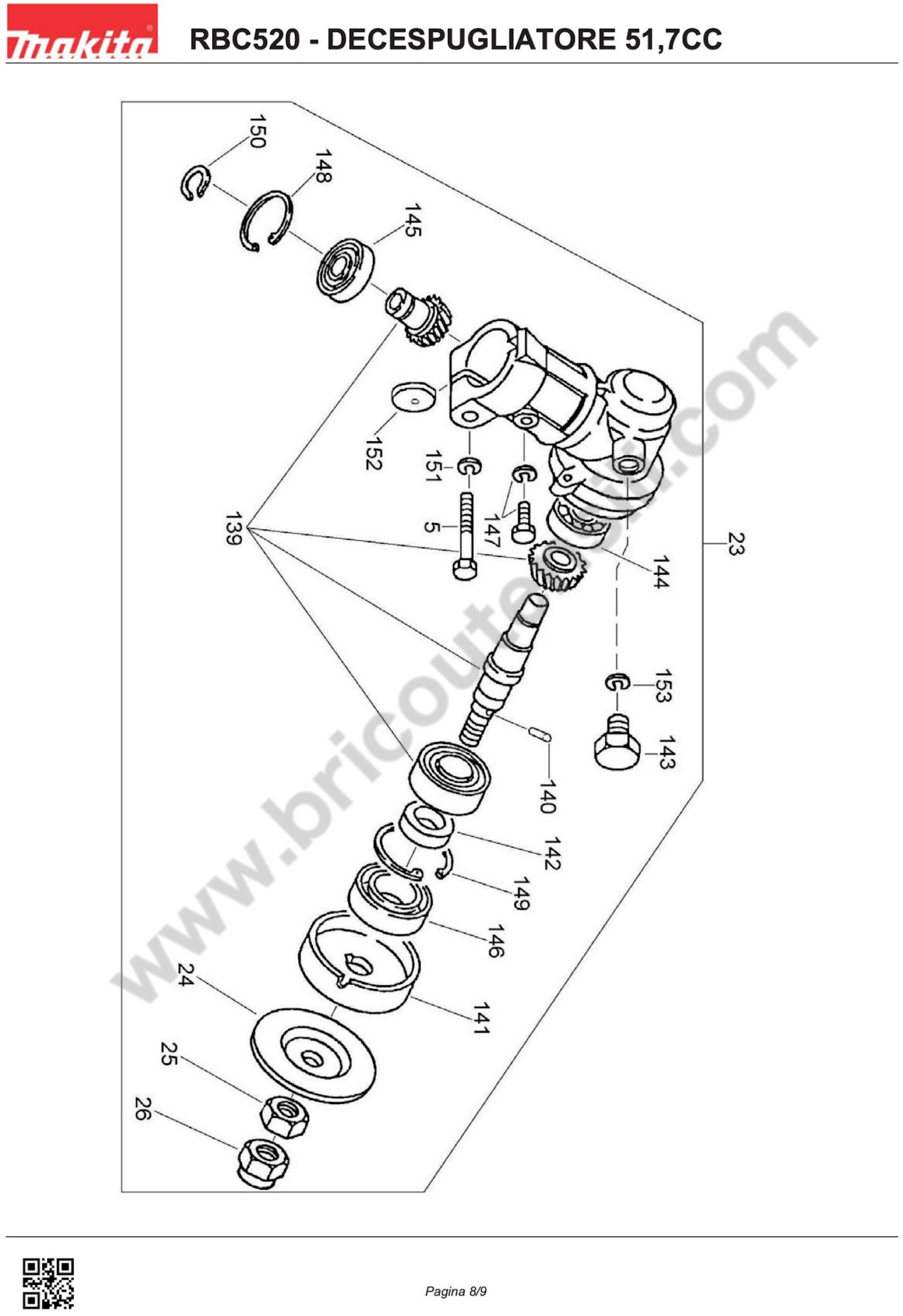

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
5
 photo_cameraImage coming soon 0016706350 SCREW FOR RBC520 €1.43
23
 photo_cameraImage coming soon 6453008000 GEARBOX X RBC520 €407.67
24
 photo_cameraImage coming soon 346441-9 EXTERNAL FLANGE €22.16
25
 photo_cameraImage coming soon 264058-5 NUT X RBC 410 / RBC520 €4.62
26
 photo_cameraImage coming soon 6308503300 NUT X RBC 410 / RBC520 €6.81
139
 photo_cameraImage coming soon 6453006000 SHAFT SET FOR RBC520 €179.92
140
 photo_cameraImage coming soon 0310049990 PIN X RBC520 €3.23
141
 photo_cameraImage coming soon 6308503000 BEARING BOX X RBC520 €36.80
142
 photo_cameraImage coming soon 6453500600 SPACER X RBC520 €17.13
143
 photo_cameraImage coming soon 266671-5 OIL CAP €3.23
144
 photo_cameraImage coming soon 0600109980 BALL BEARING 6000 €14.77
145
 photo_cameraImage coming soon 0600129940 BALL BEARING X DCS520 €22.16
146
 photo_cameraImage coming soon 6453500500 OIL SEAL X RBC520 €7.79
147
 photo_cameraImage coming soon 0011306120 M6X12 X RBC310 / 520 BOLT €1.44
148
 photo_cameraImage coming soon 0031428000 INNER SNAPRING X RBC410/520 €2.77
149
 photo_cameraImage coming soon 0031435000 INTERNAL LOCK X RBC410 / 520 / RBK410 €3.11
150
 Outer Snap Ring for Brushcutter Makita RBC221 0031512000 Outer Snap Ring for Brushcutter Makita RBC221 €2.00
151
 photo_cameraImage coming soon 0032006000 ELASTIC WASHER X RBC / RBK410-G2400R €1.54
152
 photo_cameraImage coming soon 0037108000 GASKET X RBC520 €1.43
153
 photo_cameraImage coming soon 0037110000 SEAL X RBC520 €1.43

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Engine Bruschcutter RBC520

Fix Your Engine Bruschcutter RBC520. All Spares can be supplied at low and discounted price. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
Engine Bruschcutter RBC520
RBC520 Petrol String Brush Cutter Spare Parts
Pag.1
# Part Num Description
1 6457001003 SUPPORT STRAP FOR RBC520
2 6164500000 RIGHT HANDLE FOR RBC520
3 6404501000 GRIP FOR RBC 520
4 6404024000 BLOCKING CLAMP FOR RBC520
5 0016706350 SCREW FOR RBC520
6 6414501400 LEFT HANDLE X RBC520
7 6404018000 ADJUSTABLE CLAMP X RBC520
8 6307500300 HOOK X RBC 520
9 0016606200 SCREW M6X20 X RBC520
10 0032006000 ELASTIC WASHER X RBC/RBK410-G2400R
11 6301501300 PLUG X RBC 520
12 6301009000 CLUTCH BOX COMPLETE X RBC520
13 6301501600 WASHER X RBC520
14 0031517000 EXTERNAL STOP X RBC 410 RBK410
15 6401028001 COMPLETE SHAFT NEW RBC520
16 0230259980 SPACER X RBC 520
17 0016606250 SCREW 6X25 X RBC 520
18 0021806000 NUT X RBC 410/RBC520
19 0062630280 STOP RING X RBC 520
20 140629-1 COMPL. CONNECTOR X RBC410 RBC520
23 6453008000 GEARBOX X RBC520
24 346441-9 EXT FLANGE
25 264058-5 NUT X RBC 410/RBC520
26 6308503300 NUT X RBC 410/RBC520
27 6455001000 LEVEL GAUGE X RBC520
29 6455002000 CONTROL WIRE X RBC520
30 0091912600 SPRING X RBC 520
31 6255500900 SPRING X RBC520
32 6407500000 GUARD X RBC 520
Pag.2
34 5503001000 VALVE SILENCER X RBC520
35 0043505080 SCREW M5X8 X RBC520
36 0022808000 NUT M8 X RBC520
37 0032008000 WASHER X RBC520 - G.2400R-G.3500
38 6302002000 CLUTCH X RBC520
39 0053203101 KEY RBC/RBK 410
40 5502500400 PISTON X RBC520
41 233995-4 PISTON PIN RING
42 5503500100 GASKET X RBC520
43 0032006000 ELASTIC WASHER X RBC/RBK410-G2400R
44 0170069960 NUT X RBC520
45 5501500300 CYLINDER X RBC520
46 054002-10 SPRING NGK - BM7A (10PCS)
48 0043706140 SCREW 5X14 X RBC520
49 0566079970 CLAMP X RBC520
50 5503500501 GASKET MS5250
51 5506500100 INSULATOR X RBC520
52 5503500501 GASKET MS5250
53 0043506200 SCREW AND WASHER X RBC520-G5500R
54 5501500400 GASKET X RBC520
55 5602500900 PISTON RING X RBC520
56 5602501100 PISTON PIN X RBC520
57 233995-4 PISTON PIN RING
58 0610129961 ROLLER BEARING X RBC520
59 0053204201 PIN X RBC520
60 0655009940 CAND. CAP X RBC410/RBK410RBC520
61 0241059960 CABLE
62 0043605180 SCREW COMP. X RBC230/RBC520
64 5505001050 STARTER CABLE X RBC 520
65 5505500000 BLOWER WINDING RBC520
66 5305002110 STARTER KNOB X RBC260/RBK41
68 0043706140 SCREW 5X14 X RBC520
69 5505001000 STARTER REWINDING RBC520
70 0043506200 SCREW AND WASHER X RBC520-G5500R
71 5505001020 SPIRAL SPRING X RBC520
73 5105015060 RETURN SPRING X RBC310/RBC520
74 5105015020 WING PAWL X RBC 310/RBC520
75 5105015050 CLUTCH SPRING X RBC 310/520
76 5505001030 CLUTCH PLATE X RBC 310/RBC520
77 5105015110 SCREW X RBC260/230/520
78 0022810000 NUT M10 XRBC520
79 0032010000 WASHER X RBC520/G.5500R
80 0031010000 WASHER X RBC520/G.5500R
81 5507001010 FAN X RBC520
82 0043506400 SCREW M6X40 XRBC520
83 5501500200 GASKET X RBC 520
84 5501003000 COMPLETE BOX X RBC 520
85 5502001000 ECCENTRIC SHAFT COMPLETE XRBC520
86 0851199980 TUBE X RBC520
87 0561059990 FILTER STOPPER BAND X RBC230-310/520
88 0032006000 ELASTIC WASHER X RBC/RBK410-G2400R
89 0119069970 SCREW X RBC520
90 6455500100 SUPPORT X RBC520
91 0230039980 SPACER X RBC520
92 0561080010 TUBE STOPPER X RBC 260/RBC520
93 5106503001 FUEL PUMP X RBC520
94 0230259980 SPACER X RBC 520
95 0230039980 SPACER X RBC520
96 5106501200 TUBE X RBC520
97 216039-5 BALL X RBC 520
98 5106502500 ELEMENT X RBC520
99 5106503300 ELEMENT X RBC520
100 5106502400 ELEMENT X RBC520
101 0043506250 SCREW AND WASHER X RBC520-G5500
102 0031206000 WASHER G.24/35-RBC225-255
103 0230069910 BUSH X RBC 520
104 5506500200 VALVE DRAFT X RBC520
105 0566079970 CLAMP X RBC520
106 5506500000 TANK X RBC520
107 0031206000 WASHER G.24/35-RBC225-255
108 0031206000 WASHER G.24/35-RBC225-255
109 452920-8 TANK CAP
Pag.3
110 5106043020 AIR REGULATION SCREW X RBC520
111 5106043030 AIR REGULATION SPRING X RBC520
112 5106048230 LOCKING SCREW FOR RBC520
113 5106048240 SPRING ADJUSTMENT SCREW X RBC520
114 0032005000 WASHER X RBC520
115 0043105550 SCREW M5X55 XRBC520
117 0043104300 SCREW M4X30 X RBC520
118 0230049980 SPACER X RBC 520
119 5103502700 SPONGE ELEMENT X RBC520
120 5503005000 AIR FILTER X RBC520
121 5106042320 DIAPHRAGM X RBC520
122 5106042310 GASKET X RBC520
123 5106041320 SPRING X RBC 520
124 5506001000 CARBURETOR X RBC 520
125 5106041340 NEEDLE VALVE X RBC520
126 5106043130 PIN X RBC520
127 5506001250 SPRING X RBC520
128 0043503080 SCREW M3X8 X RBC520
129 5506001120 COVER X RBC 520
130 5506001040 GASKET X RBC520
131 5506001030 PLATE X RBC520
132 5106043150 CONTROL LEVER X RBC520
133 5106043120 CONTROL LEVER SPRING RBC520
134 5106042120 ADJUSTMENT SPRING RBC520
135 5106042060 LOCKING RING FOR RBC520
136 5506001110 MAIN ADJUSTMENT SCREW FOR RBC520
137 5106042160 AUT.MAIN ADJUSTMENT FOR RBC520
138 0851159990 PIPE FOR RBC230/520
203 6459020000 KEY KIT FOR RBC520
Pag.4
5 0016706350 SCREW FOR RBC520
23 6453008000 GEARBOX FOR RBC520
24 346441-9 EXT FLANGE
25 264058-5 NUT FOR RBC 410/RBC520
26 6308503300 NUT FOR RBC 410/RBC520
139 6453006000 SHAFT SET FOR RBC520
140 0310049990 PIN X RBC520
141 6308503000 BEARING BOX X RBC520
142 6453500600 SPACER X RBC520
143 266671-5 OIL CAP
144 0600109980 BALL BEARING 6000
145 0600129940 BALL BEARING X DCS520
146 6453500500 OIL SEAL X RBC520
147 0011306120 BOLT M6X12 X RBC310/520
148 0031428000 INNER RING X RBC410/520
149 0031435000 INTERNAL STOP X RBC410/520/RBK410
150 0031512000 EXTERNAL RING X RBC260/520RBK410
151 0032006000 ELASTIC WASHER X RBC/RBK410-G2400R
152 0037108000 SEAL X RBC520
153 0037110000 SEAL X RBC520
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBC520
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Dolmar RBC520 Parts Diagram

Dolmar RBC520 Parts Diagram

Download (1.15MB)

You might also like

Carburator Hose Grommet for Brushcutter Dolmar MS-27C
Makita SKU: DA00000118
Carburator Hose Grommet for Brushcutter Dolmar MS-27C
Carburator Hose Grommet for Brushcutter Dolmar MS-27C Genuine parts Dolmar, Carburator Hose Grommet for Brushcutter MS-27C - Makita EM2600L Part for the following products: -  MS-27C - BRUSHCUTTER 25,7CC DOLMAR -  EM2600L -...
AVAILABLE €2.37
Details
3 Teeth Blade for Brushcutter Makita RBC310
Makita SKU: P-47385
3 Teeth Blade for Brushcutter Makita RBC310
3 Teeth Blade for Brushcutter Makita RBC310 Genuine spare part Makita, 3 Teeth Blade (255X1.4X25.4)MM for Brushcutters RBC2501 - RBC2511 - RBC3200 - RBC3210 - Dolmar MS254C - MS254U - MS3201C - MS3201U Part for the following products:...
AVAILABLE €14.78
Details
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Details
Fuel Hose for Brushcutter Makita RBC421
Makita SKU: 168766-9
Fuel Hose for Brushcutter Makita RBC421
Fuel Hose for Brushcutter Makita RBC421 Genuine replacement part Makita, Fuel Hose for Brushcutters RBC421 - RBC421L - MS3500 - MS3510 - MS4200 - MS4200E. Part for the following products: - MS3500 - BRUSHCUTTER 34,4CC DOLMAR - MS3510...
AVAILABLE €5.95
Details
Electronic Coil for Brushcutter Makita RBC421
Makita SKU: 168587-9
Electronic Coil for Brushcutter Makita RBC421
Electronic Coil for Brushcutter Makita RBC421 Genuine replacement part Makita, Electronic Coil for Brushcutters RBC350 - RBC351 - RBC410 - RBC420 - RBC421 - RBC421L - MS3500 - MS3510 - MS4200 - MS4200E. Part for the following...
on 7/10 Business Days Approx. €24.50
Details
Piston for Brushcutter Makita RBC410 Sale
Makita SKU: 318631-4
Piston for Brushcutter Makita RBC410
Piston for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC - RBC420 -...
Out-of-Stock €28.32
Details
Cylinder for Brushcutter Makita RBC410
Makita SKU: 318630-6
Cylinder for Brushcutter Makita RBC410
Cylinder for Brushcutter Makita RBC410 Genuine replacement part Makita, Cylinder for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - DECESPUGLIATORE 40,2CC -...
Last items in stock €66.15
Details
Piston Ring for Brushcutter Makita RBC410 Sale
Makita SKU: 257309-3
Piston Ring for Brushcutter Makita RBC410
Piston Ring for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Ring for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC -...
Last items in stock €5.15
Details
Piston Pin for Brushcutter Makita RBC410 Sale
Makita SKU: 257797-4
Piston Pin for Brushcutter Makita RBC410
Piston Pin for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Pin for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC -...
AVAILABLE €3.65
Details
Piston Pin Circlip for Brushcutter Makita RBC410
Makita SKU: 233983-1
Piston Pin Circlip for Brushcutter Makita RBC410
Piston Pin Circlip for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Pin Circlip for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 -...
AVAILABLE €1.32
Details
Cylinder Gasket for Brushcutter Makita RBC410
Makita SKU: 442156-7
Cylinder Gasket for Brushcutter Makita RBC410
Cylinder Gasket for Brushcutter Makita RBC410 Genuine replacement part Makita, Cylinder Gasket for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 -...
Last items in stock €3.48
Details
Clutch Ass'y for Brushcutter Dolmar MS4210
Makita SKU: 140897-6
Clutch Ass'y for Brushcutter Dolmar MS4210
Clutch Ass'y for Brushcutter Dolmar MS4210 Genuine replacement part Dolmar, Clutch Ass'y for Brushcutters MS3500 - MS3510 - MS4200 - MS4210 - MS4211 - MS5250E. Part for the following products: -  MS4200 - BRUSHCUTTER 40,2CC DOLMAR -...
on 10 Business Days Approx €110.29
Details
Outer Snap Ring for Brushcutter Makita RBC221
Makita SKU: 0031512000
Outer Snap Ring for Brushcutter Makita RBC221
Outer Snap Ring for Brushcutter Makita RBC221 Genuine replacement part Makita, Outer Snap Ring for Brushcutters RBC221 - RBC226 - RBC2501 - RBC2511 - RBC256 - RBC311 - RBC3110. Part for the following products: - DBC260L - BRUSHCUTTER...
AVAILABLE €2.00
Details
Screw Ass'y M5x40 for Brushcutter Dolmar MS22C
Makita SKU: 0140059380
Screw Ass'y M5x40 for Brushcutter Dolmar MS22C
Screw Ass'y M5x40 for Brushcutter Dolmar MS22C Genuine replacement part Dolmar, Screw Ass'y M5x40 for Brushcutters MS22C - Makita RBC2110 - DBC260L Part for the following products: -  MS22C -...
Usually Ships in: 7/10 Business Days Approx. €1.46
Details
Comments (0)
