Makita

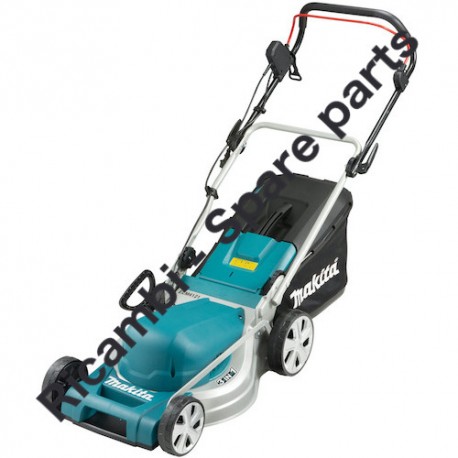

Makita Lawn Mower ELM4621 Parts

SKU: Makita ELM4621
€14.77
VAT included

Makita Spare Parts for Lawn Mower ELM4621

Makita genuine spare parts or replacement parts for to fix Lawn Mower ELM4621.
Makita Lawn Mower ELM4621 Parts
  • Makita Lawn Mower ELM4621 Parts
  • Makita Lawn Mower ELM4621 Parts Diagram
  • Makita Lawn Mower ELM4621 Parts Diagram - 1
  • Makita Lawn Mower ELM4621 Parts Diagram - 2
Makita

Makita Lawn Mower ELM4621 Parts

SKU: Makita ELM4621 Condition: New
€14.77
VAT included

Makita Spare Parts for Lawn Mower ELM4621

Makita genuine spare parts or replacement parts for to fix Lawn Mower ELM4621.
settings 135 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
135 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

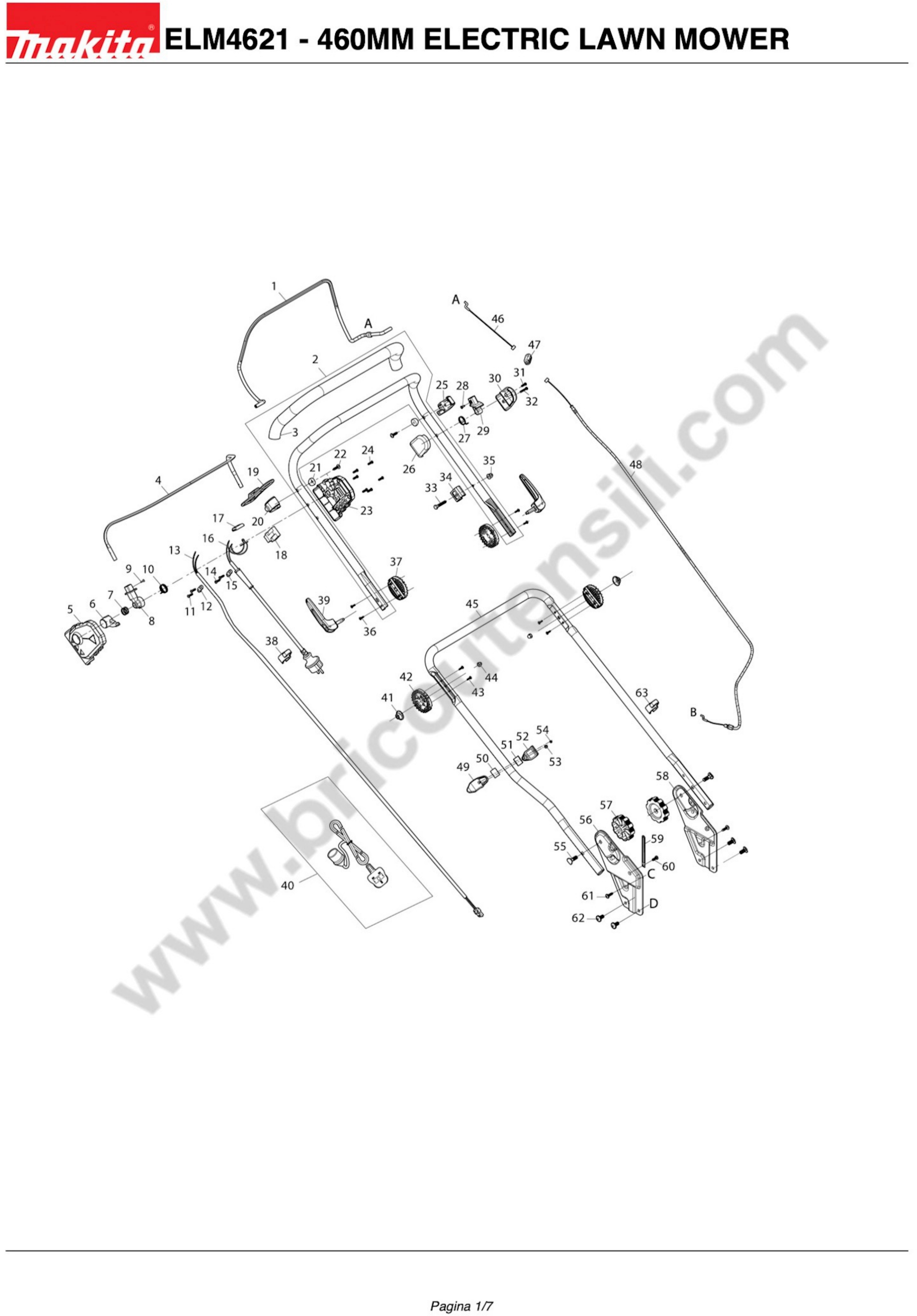

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon YA00001108 CONTROL LEVER €14.34
2
 photo_cameraImage coming soon YA00001159 UPPER HANDLE CPL €44.84
3
 photo_cameraImage coming soon YA00001185 GRIP COVER €8.50
4
 photo_cameraImage coming soon YA00001160 SWITCH LEVER €9.89
5
 photo_cameraImage coming soon YA00000765 SWITCH BOX RIGHT €2.69
6
 photo_cameraImage coming soon YA00000766 SWITCH LINK BUTTON €1.40
7
 photo_cameraImage coming soon YA00000767 COMPRESSION SPRING 16.8 €1.40
8
 photo_cameraImage coming soon YA00000768 SWITCH LEVER END CAP RIGHT €2.09
9
 photo_cameraImage coming soon 652024721 SELF DRILLING SCREW 3.5X10 €1.40
10
 photo_cameraImage coming soon YA00000769 SWITCH TORSION SPRING 21 €1.40
11
 photo_cameraImage coming soon YA00000778 SELF TAPPING SCREW ST4X16 €1.40
12
 photo_cameraImage coming soon YA00000780 CORD CLAMP €1.40
13
 photo_cameraImage coming soon YA00001038 POWER CABLE €6.63
14
 photo_cameraImage coming soon YA00000778 SELF TAPPING SCREW ST4X16 €1.40
15
 photo_cameraImage coming soon YA00000780 CORD CLAMP €1.40
16
 photo_cameraImage coming soon YA00000773 POWER SUPPLY CORD ASSY (EURO) €18.98
17
 photo_cameraImage coming soon YA00000781 INDICATOR LENZ €1.40
18
 photo_cameraImage coming soon YA00000772 SWITCH €4.43
20
 photo_cameraImage coming soon YA00001105 RIGHT LEVER €2.08
21
 photo_cameraImage coming soon YA00001106 PLASTIC WASHER 5 €1.40
22
 photo_cameraImage coming soon YA00000820 SELF TAPPING SCREW ST5X16 €1.40
23
 photo_cameraImage coming soon YA00000782 SWITCH BOX LEFT €2.69
24
 photo_cameraImage coming soon YA00000778 SELF TAPPING SCREW ST4X16 €1.40
25
 photo_cameraImage coming soon YA00001107 LEFT LEVER €2.08
26
 photo_cameraImage coming soon 652023795 SPRING BOX RIGHT €3.13
27
 photo_cameraImage coming soon YA00000737 TORSION SPRING €2.09
28
 photo_cameraImage coming soon 652024721 SELF DRILLING SCREW 3.5X10 €1.40
29
 photo_cameraImage coming soon 652023794 SWITCH LEVER END LEFT €1.40
30
 photo_cameraImage coming soon 652023793 SPRING BOX LEFT €3.13
31
 photo_cameraImage coming soon YA00000778 SELF TAPPING SCREW ST4X16 €1.40
32
 photo_cameraImage coming soon YA00000785 SELF TAPPING SCREW ST4X25 €1.40
33
 photo_cameraImage coming soon YA00001109 SCREW M6X35 €1.40
34
 photo_cameraImage coming soon YA00001110 EXTERNAL STOP €1.40
35
 photo_cameraImage coming soon YA00000802 HEX.FRANGE CAP NUT M6 €1.40
36
 photo_cameraImage coming soon YA00000960 SELF TAPPING SCREW ST3X12 €1.40
37
 photo_cameraImage coming soon YA00000961 ANGLE ADJUSTMENT JOINT UPPER €2.09
38
 photo_cameraImage coming soon YA00000921 CABLE CLIP €1.40
39
 photo_cameraImage coming soon YA00000975 TENSION LEVER ASSY €9.89
40
 photo_cameraImage coming soon YA00000858 EXTENSION LINE €56.02
41
 photo_cameraImage coming soon YA00000976 CONICAL SPRING €1.40
42
 photo_cameraImage coming soon YA00000977 ANGLE ADJUSTMENT JOINT LOWER €2.09
43
 photo_cameraImage coming soon YA00000960 SELF TAPPING SCREW ST3X12 €1.40
44
 photo_cameraImage coming soon YA00000802 HEX.FRANGE CAP NUT M6 €1.40
45
 photo_cameraImage coming soon YA00001046 LOWER HANDLE €28.31
46
 photo_cameraImage coming soon YA00001143 SHORT CONTROL CABLE €2.08
47
 photo_cameraImage coming soon YA00001142 CABLE JOINT €1.40
48
 photo_cameraImage coming soon YA00001161 LONG CONTROL CABLE €7.58
49
 photo_cameraImage coming soon YA00000970 CABLE GUIDE RING €1.40
50
 photo_cameraImage coming soon YA00000971 RUBBER SHEET €1.40
51
 photo_cameraImage coming soon YA00000971 RUBBER SHEET €1.40
52
 photo_cameraImage coming soon YA00000972 CABLE GUIDE CLAMP €1.40
53
 photo_cameraImage coming soon YA00000873 SELF TAPPING SCREW ST4X12 €1.40
54
 photo_cameraImage coming soon YA00000973 SELF TAPPING SCREW ST3X16 €1.40
55
 photo_cameraImage coming soon YA00000983 SQUARE NECKED BOLT M8X40 €1.40
56
 photo_cameraImage coming soon YA00001060 RIGHT SUPPORT €16.65
57
 photo_cameraImage coming soon YA00000803 M8 KNOB €2.09
58
 photo_cameraImage coming soon YA00001063 LEFT SUPPORT €16.65
59
 photo_cameraImage coming soon YA00000997 CABLE CLAMP €1.40
60
 photo_cameraImage coming soon YA00000998 PAN HEAD SCREW M6X8 €1.40
61
 photo_cameraImage coming soon YA00000778 SELF TAPPING SCREW ST4X16 €1.40
62
 photo_cameraImage coming soon YA00000995 H.S.TRUSS HEAD SCREW M8X16 €1.40
63
 photo_cameraImage coming soon YA00000921 CABLE CLIP €1.40
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

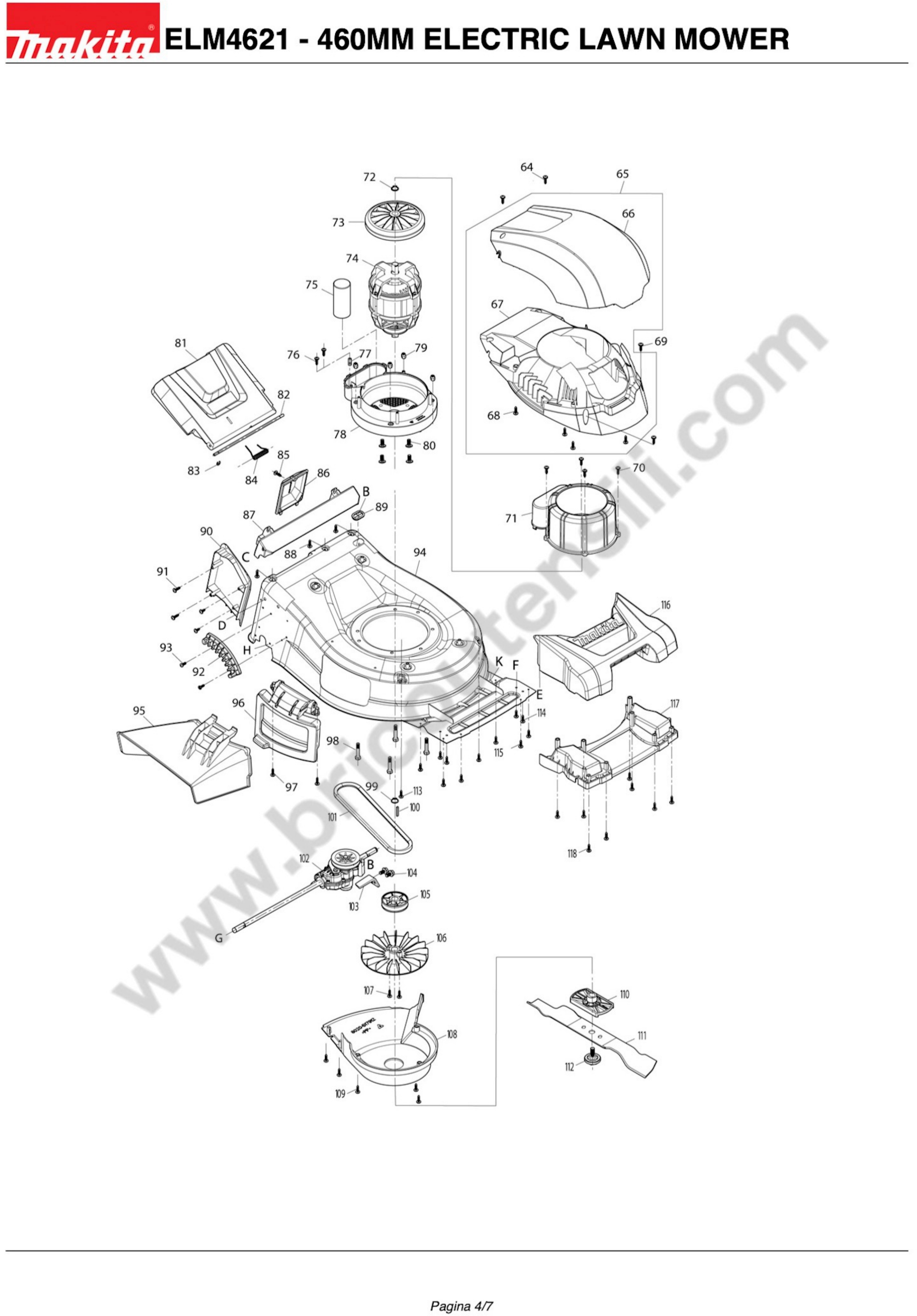

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
64
 photo_cameraImage coming soon 652023758 M5X16 SCREW €1.40
65
 photo_cameraImage coming soon YA00001125 BLUE MOTOR COVER €32.73
66
 photo_cameraImage coming soon YA00001070 BLUE UPPER MOTOR COVER €14.34
67
 photo_cameraImage coming soon YA00001126 LOWER MOTOR COVER €14.34
68
 photo_cameraImage coming soon YA00000820 SELF TAPPING SCREW ST5X16 €1.40
69
 photo_cameraImage coming soon 652023758 M5X16 SCREW €1.40
70
 photo_cameraImage coming soon YA00000778 SELF TAPPING SCREW ST4X16 €1.40
71
 photo_cameraImage coming soon YA00001140 UPPER MOTOR CASING €9.89
72
 photo_cameraImage coming soon YA00001096 RETAINING RING S-17 €1.40
73
 photo_cameraImage coming soon YA00001097 FAN €5.94
74
 photo_cameraImage coming soon YA00001074 230V 50HZ MOTOR €447.39
75
 photo_cameraImage coming soon YA00001099 25 MICRO F 500V CAPACITOR €11.07
76
 photo_cameraImage coming soon YA00000778 SELF TAPPING SCREW ST4X16 €1.40
77
 photo_cameraImage coming soon 652023752 CABLE PRESSBOARD €1.40
78
 photo_cameraImage coming soon YA00001075 LOWER MOTOR CASING €21.54 Not available for order
79
 photo_cameraImage coming soon 652023843 NYLON INSERT HEX. LOCK NUT M8 €1.40
80
 photo_cameraImage coming soon YA00000995 H.S.TRUSS HEAD SCREW M8X16 €1.40
81
 photo_cameraImage coming soon YA00001058 STONE GUARD €11.07
82
 photo_cameraImage coming soon YA00001122 STONE GUARD PIN €2.08
83
 photo_cameraImage coming soon YA00000990 STOP RING E-5 €1.40
84
 photo_cameraImage coming soon YA00000994 REAR FLAP TORSION SPRING 7.7 €1.40
85
 photo_cameraImage coming soon 652023758 M5X16 SCREW €1.40
86
 photo_cameraImage coming soon YA00001134 DRIVE UNIT PROTECTION €2.08
87
 photo_cameraImage coming soon YA00001061 BLUE BASE €6.63
88
 photo_cameraImage coming soon YA00000778 SELF TAPPING SCREW ST4X16 €1.40
89
 photo_cameraImage coming soon YA00001135 RUBBER €1.40
90
 photo_cameraImage coming soon YA00001089 EXTERNAL PROTECTION €3.13
91
 photo_cameraImage coming soon YA00000778 SELF TAPPING SCREW ST4X16 €1.40
92
 photo_cameraImage coming soon YA00001064 HEIGHT ADJUSTMENT STOP PLATE €3.13
93
 photo_cameraImage coming soon 652023758 M5X16 SCREW €1.40
94
 photo_cameraImage coming soon YA00001123 FRAME €219.08
95
 Makita ELM4621 Side Discharge YA00001090 Makita ELM4621 Side Discharge €7.81
96
 photo_cameraImage coming soon YA00001092 SIDE EXHAUST PROTECTION €14.34
97
 photo_cameraImage coming soon YA00001091 5X12 SCREW €1.40
98
 photo_cameraImage coming soon YA00001076 M8X35 SCREW €1.40
99
 photo_cameraImage coming soon YA00001096 RETAINING RING S-17 €1.40
100
 photo_cameraImage coming soon YA00001141 KEY €1.40
101
 Makita Belt for Lawnmower ELM4621 YA00001138 Makita Belt for Lawnmower ELM4621 €8.74
102
 photo_cameraImage coming soon YA00001121 DRIVE GROUP €85.14
103
 photo_cameraImage coming soon YA00001137 DRIVE GROUP STABILIZER €1.40
104
 photo_cameraImage coming soon YA00001136 M6X16 SCREW €1.40
105
 photo_cameraImage coming soon YA00001139 PULLEY €3.13
106
 photo_cameraImage coming soon YA00001094 BLADE FAN €5.94
107
 photo_cameraImage coming soon YA00001024 5X20 SCREW €1.40
108
 Makita ELM4621 Under Cover YA00001095 Makita ELM4621 Under Cover €7.81
109
 photo_cameraImage coming soon YA00000778 SELF TAPPING SCREW ST4X16 €1.40
110
 photo_cameraImage coming soon YA00001066 BLADE SUPPORT €5.13
111
 Makita Blade for Lawnmower ELM4621 YA00000742 Makita Blade for Lawnmower ELM4621 €20.50
112
 photo_cameraImage coming soon YA00001067 M10X30 SCREW €3.84
113
 photo_cameraImage coming soon YA00001031 4X10 SCREW €1.40
114
 photo_cameraImage coming soon YA00001024 5X20 SCREW €1.40
115
 photo_cameraImage coming soon YA00000820 SELF TAPPING SCREW ST5X16 €1.40
116
 photo_cameraImage coming soon YA00001079 BLUE FRONT PANEL €11.07
117
 photo_cameraImage coming soon YA00001080 FAILING €7.58
118
 photo_cameraImage coming soon YA00000778 SELF TAPPING SCREW ST4X16 €1.40
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

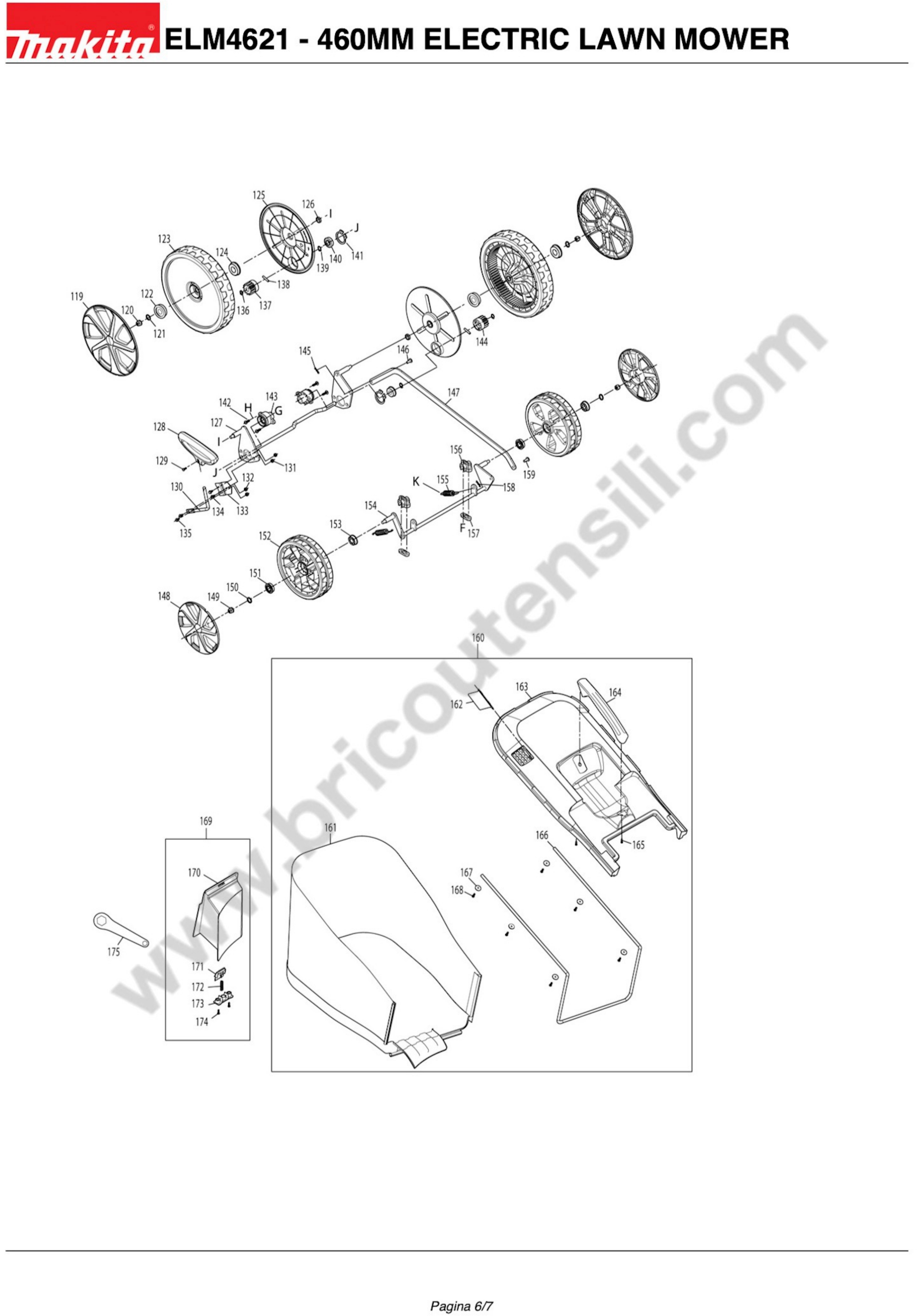

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
119
 photo_cameraImage coming soon YA00001049 HUB COVER 241 €6.63
120
 photo_cameraImage coming soon 652023843 NYLON INSERT HEX. LOCK NUT M8 €1.40
121
 photo_cameraImage coming soon YA00000420 WASHER €1.40
122
 photo_cameraImage coming soon YA00001186 BEARING €2.69
123
 photo_cameraImage coming soon YA00001050 WHEEL 280 €28.31
124
 photo_cameraImage coming soon YA00001186 BEARING €2.69
125
 photo_cameraImage coming soon YA00001132 INTERIOR WHEEL COVER €4.43
126
 photo_cameraImage coming soon YA00001088 INTERIOR WHEEL COVER €1.40
127
 photo_cameraImage coming soon YA00001052 REAR AXLE €28.31
128
 photo_cameraImage coming soon YA00000989 HEIGHT ADJUST GRIP €4.43
129
 photo_cameraImage coming soon YA00000988 PAN HEAD SCREW M4X12 €1.40
130
 photo_cameraImage coming soon YA00001053 HEIGHT ADJUSTMENT LEVER €5.13
131
 photo_cameraImage coming soon YA00000393 NUT M5 €1.40
132
 photo_cameraImage coming soon YA00000393 NUT M5 €1.40
133
 photo_cameraImage coming soon YA00000986 HEIGHT ADJUST SPRING €2.69
134
 photo_cameraImage coming soon YA00000407 5X12 SCREW €4.43
135
 photo_cameraImage coming soon YA00000407 5X12 SCREW €4.43
136
 photo_cameraImage coming soon YA00001117 RETAINING RING S-12 €1.40
137
 photo_cameraImage coming soon YA00001130 GEAR 13 RH €7.58
138
 photo_cameraImage coming soon YA00001131 PIN 5X25 €1.40
139
 photo_cameraImage coming soon YA00001117 RETAINING RING S-12 €1.40
140
 photo_cameraImage coming soon YA00001118 BEARING €2.08
141
 photo_cameraImage coming soon YA00001119 RETAINING RING S-34 €1.40
142
 photo_cameraImage coming soon 652023758 M5X16 SCREW €1.40
143
 photo_cameraImage coming soon YA00001120 REAR AXLE SUPPORT €2.08
144
 photo_cameraImage coming soon YA00001133 GEAR 13 LH €7.58
145
 photo_cameraImage coming soon YA00000851 RPIN7 €1.40
146
 photo_cameraImage coming soon YA00001018 PIN 7 €1.40
147
 photo_cameraImage coming soon YA00001127 CONNECTING ROD €11.07
148
 photo_cameraImage coming soon YA00001081 HUB COVER 180 €5.13
149
 photo_cameraImage coming soon 652023843 NYLON INSERT HEX. LOCK NUT M8 €1.40
150
 photo_cameraImage coming soon YA00000420 WASHER €1.40
151
 photo_cameraImage coming soon YA00001100 NYLON SOCKET €1.40
152
 photo_cameraImage coming soon YA00001082 WHEEL 205 €24.35
153
 photo_cameraImage coming soon YA00001100 NYLON SOCKET €1.40
154
 photo_cameraImage coming soon YA00001085 FRONT AXLE €21.54
155
 photo_cameraImage coming soon YA00001084 SPRING €2.08
156
 photo_cameraImage coming soon YA00001083 UPPER SUPPORT FRONT AXLE €1.40
157
 photo_cameraImage coming soon YA00001025 FRONT AXLE MOUNT LOWER €1.40
158
 photo_cameraImage coming soon YA00000851 RPIN7 €1.40
159
 photo_cameraImage coming soon YA00001018 PIN 7 €1.40
160
 photo_cameraImage coming soon YA00001039 GRASS COLLECTOR BASKET (MAKITA) €68.84
161
 photo_cameraImage coming soon YA00001041 GRASS COLLECTOR BAG MAKITA €50.21
162
 photo_cameraImage coming soon YA00000791 GRASS CATCHER INDICATOR BLUE €1.40
163
 photo_cameraImage coming soon YA00001043 BASKET COVER €21.54
164
 photo_cameraImage coming soon YA00000795 GRIP €2.09
165
 photo_cameraImage coming soon YA00000778 SELF TAPPING SCREW ST4X16 €1.40
166
 photo_cameraImage coming soon YA00001111 FRAME €11.07
167
 photo_cameraImage coming soon YA00000796 WASHER 4 €1.40
168
 photo_cameraImage coming soon YA00000778 SELF TAPPING SCREW ST4X16 €1.40
169
 photo_cameraImage coming soon YA00001047 MULCHING CAP CPL €8.50
170
 photo_cameraImage coming soon YA00001048 MULCHING CAP €7.58
171
 photo_cameraImage coming soon YA00000980 LATCH HANDLE €1.40
172
 photo_cameraImage coming soon YA00001112 COMPRESSION SPRING €1.40
173
 photo_cameraImage coming soon YA00000982 SPRING RETAINER €1.40
174
 photo_cameraImage coming soon YA00000778 SELF TAPPING SCREW ST4X16 €1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Lawn Mower ELM4621

Makita genuine spare parts or replacement parts for to fix Lawn Mower ELM4621.

In the following table, look for the model of Lawn Mower and the respective parts of the code.
Makita ELM4621
Lawn Mower ELM4621
Pag.1
# Part Num. Description
1 YA00001108 CONTROL LEVER
2 YA00001159 UPPER HANDLE CPL
3 YA00001185 GRIP COVER
4 YA00001160 SWITCH LEVER
5 YA00000765 RIGHT SWITCH BOX
6 YA00000766 SWITCH BUTTON
7 YA00000767 COMPRESSION SPRING 16.8
8 YA00000768 RIGHT COVER SWITCH LEVER
9 652024721 SCREW 3.5X10
10 YA00000769 TORSION SPRING 21
11 YA00000778 SCREW 4X16
12 YA00000780 CABLE FIX
13 YA00001038 POWER CABLE
14 YA00000778 SCREW 4X16
15 YA00000780 CABLE FIX
16 YA00000773 POWER CABLE 220V
17 YA00000781 DISPLAY
18 YA00000772 SWITCH
19 652023811 SUPPORT
20 YA00001105 RIGHT LEVER
21 YA00001106 PLASTIC WASHER 5
22 YA00000820 SCREW 5X16
23 YA00000782 LEFT SWITCH BOX
24 YA00000778 SCREW 4X16
25 YA00001107 LEFT LEVER
26 652023795 RIGHT SUPPORT
27 YA00000737 TORSION SPRING
28 652024721 SCREW 3.5X10
29 652023794 LEFT CONNECTOR
30 652023793 LEFT SUPPORT
31 YA00000778 SCREW 4X16
32 YA00000785 SCREW 4X25
33 YA00001109 SCREW M6X35
34 YA00001110 EXTERNAL STOP
35 YA00000802 M6 FLANGED NUT
36 YA00000960 3X12 SCREW
37 YA00000961 UPPER TILT ADJUSTMENT JOINT
38 YA00000921 CABLE SUPPORT
39 YA00000975 TENSION LEVER
40 YA00000858 EXTENSION LINE
41 YA00000976 TAPERED SPRING
42 YA00000977 LOWER TILT ADJUSTMENT JOINT
43 YA00000960 3X12 SCREW
44 YA00000802 M6 FLANGED NUT
45 YA00001046 LOWER HANDLE
46 YA00001143 SHORT CONTROL CABLE
47 YA00001142 CABLE JOINT
48 YA00001161 LONG CONTROL CABLE
49 YA00000970 RING
50 YA00000971 RUBBER SHEET
51 YA00000971 RUBBER SHEET
52 YA00000972 CABLE SUPPORT
53 YA00000873 4X12 SCREW
54 YA00000973 3X16 SCREW
55 YA00000983 M8X40 SCREW
56 YA00001060 RIGHT SUPPORT
57 YA00000803 M8 KNOB
58 YA00001063 LEFT SUPPORT
59 YA00000997 CABLE SUPPORT
60 YA00000998 M6X8 SCREW
61 YA00000778 4X16 SCREW
62 YA00000995 M8X16 SCREW 1.04
63 YA00000921 CABLE SUPPORT 1.04
Pag.2
64 652023758 M5X16 SCREW
65 YA00001125 BLUE MOTOR COVER
66 YA00001070 BLUE UPPER MOTOR COVER
67 YA00001126 LOWER MOTOR COVER
68 YA00000820 5X16 SCREW
69 652023758 M5X16 SCREW
70 YA00000778 4X16 SCREW
71 YA00001140 UPPER MOTOR CASING
72 YA00001096 RETAINING RING S-17
73 YA00001097 FAN
74 YA00001074 230V 50HZ MOTOR
75 YA00001099 25 MICRO F 500V CAPACITOR
76 YA00000778 4X16 SCREW
77 652023752 CABLE CLAMP
78 YA00001075 LOWER MOTOR CASING
79 652023843 M8 SELF-LOCKING NUT
80 YA00000995 M8X16 SCREW
81 YA00001058 STONE GUARD
82 YA00001122 STONE GUARD PIN
83 YA00000990 E-5 RETAINING RING
84 YA00000994 7.7 TORSION SPRING
85 652023758 M5X16 SCREW
86 YA00001134 DRIVE UNIT PROTECTION
87 YA00001061 BLUE BASE
88 YA00000778 4X16 SCREW
89 YA00001135 RUBBER
90 YA00001089 EXTERNAL PROTECTION
91 YA00000778 SCREW 4X16
92 YA00001064 HEIGHT ADJUSTMENT STOP PLATE
93 652023758 M5X16 SCREW
94 YA00001123 FRAME
95 YA00001090 SIDE DISCHARGE
96 YA00001092 SIDE EXHAUST PROTECTION
97 YA00001091 5X12 SCREW
98 YA00001076 M8X35 SCREW
99 YA00001096 S-17 RETAINING RING
100 YA00001141 KEY
101 YA00001138 XPZ 772 BELT
102 YA00001121 DRIVE GROUP
103 YA00001137 DRIVE GROUP STABILIZER
104 YA00001136 M6X16 SCREW
105 YA00001139 PULLEY
106 YA00001094 BLADE FAN
107 YA00001024 5X20 SCREW
108 YA00001095 UNDER COVER
109 YA00000778 4X16 SCREW
110 YA00001066 BLADE SUPPORT
111 YA00000742 46 BLADE
112 YA00001067 M10X30 SCREW
113 YA00001031 4X10 SCREW
114 YA00001024 5X20 SCREW
115 YA00000820 5X16 SCREW
116 YA00001079 BLUE FRONT PANEL
117 YA00001080 FAILING
118 YA00000778 4X16 SCREW
Pag.3
119 YA00001049 HUB COVER 241
120 652023843 SELF-LOCKING NUT M8
121 YA00000420 WASHER
122 YA00001186 BEARING
123 YA00001050 WHEEL 280
124 YA00001186 BEARING
125 YA00001132 INTERIOR WHEEL COVER
126 YA00001088 INTERIOR WHEEL COVER
127 YA00001052 REAR AXLE
128 YA00000989 HEIGHT ADJUSTMENT HANDLE
129 YA00000988 SCREW M4X12
130 YA00001053 HEIGHT ADJUSTMENT LEVER
131 YA00000393 NUT M5
132 YA00000393 NUT M5
133 YA00000986 SPRING
134 YA00000407 SCREW 5X12
135 YA00000407 SCREW 5X12
136 YA00001117 RETAINING RING S-12
137 YA00001130 GEAR 13 RH
138 YA00001131 PIN 5X25
139 YA00001117 RETAINING RING S-12
140 YA00001118 BEARING
141 YA00001119 RETAINING RING S-34
142 652023758 SCREW M5X16
143 YA00001120 REAR AXLE SUPPORT
144 YA00001133 GEAR 13 LH
145 YA00000851 PIN 7
146 YA00001018 PIN 7
147 YA00001127 CONNECTING ROD
148 YA00001081 HUB COVER 180
149 652023843 NUT SELF-LOCKING M8
150 YA00000420 WASHER
151 YA00001100 NYLON SOCKET
152 YA00001082 WHEEL 205
153 YA00001100 NYLON SOCKET
154 YA00001085 FRONT AXLE
155 YA00001084 SPRING
156 YA00001083 UPPER SUPPORT FRONT AXLE
157 YA00001025 LOWER SUPPORT FRONT AXLE
158 YA00000851 PIN 7
159 YA00001018 PIN 7
160 YA00001039 GRASS COLLECTOR BASKET (MAKITA)
161 YA00001041 GRASS COLLECTOR BAG MAKITA
162 YA00000791 BLUE INDICATOR
163 YA00001043 BASKET COVER
164 YA00000795 HANDLE
165 YA00000778 SCREW 4X16
166 YA00001111 FRAME
167 YA00000796 WASHER 4
168 YA00000778 SCREW 4X16
169 YA00001047 MULCHING CAP CPL
170 YA00001048 MULCHING CAP
171 YA00000980 HOOK
172 YA00001112 COMPRESSION SPRING
173 YA00000982 CIRCULAR RING
174 YA00000778 SCREW 4X16
175 YA00001045 WRENCH 10-27
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita ELM4621
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita ELM4621 Parts Diagram

Makita ELM4621 Parts Diagram

Download (753.1KB)

You might also like

Einhell EM1650 -20% Sale
Einhell Italia s.r.l. SKU: EM1650
Electric Lawn Mower 1600 Watts Einhell EM1650
Electric Lawn Mower 1600 Watts Einhell EM1650 Powerful electric lawn, ergonomic and space saving with adjustable cutting height. Technical Data: - Voltage: 230 ~ 50 Hz - Power: 1600 W - Cutting height adjustment: 10-positions from 25...
Last items in stock €197.63 €247.03
Details
Electric Lawn Mower Makita 1400W ELM3800 -10% Sale
Makita SKU: ELM3800
Electric Lawn Mower Makita 1400W ELM3800
Electric Lawn Mower Makita 1400W ELM3800 Features: - Innovative Makita Design. - Polypropylene shell with UV and weather resistance. - Easy drainage of the picking basket provided already assembled. - Integrated transport handle. -...
Out-of-Stock €172.32 €191.47
Details
Makita ELM4621 Under Cover
Makita SKU: YA00001095
Makita ELM4621 Under Cover
Makita Under Cover for Lawnmower ELM4621 Genuine Makita replacement part, Under Cover for Electric Lawnmower ELM4621. Spare part compatible with the following products: Makita Lawnmower ELM4621 Part Number: YA00001095
AVAILABLE €7.81
Details
Makita ELM4621 Side Discharge
Makita SKU: YA00001090
Makita ELM4621 Side Discharge
Makita Side Discharge for Lawnmower ELM4621 Genuine Makita replacement part, Side Discharge for Electric Lawnmower ELM4621. Spare part compatible with the following products: Makita Lawnmower ELM4621 Part Number: YA00001090
Last items in stock €7.81
Details
Makita Blade for Lawnmower ELM4621
Makita SKU: YA00000742
Makita Blade for Lawnmower ELM4621
Makita Blade for Lawnmower ELM4621 Genuine Makita replacement part, Blade 46 cm for Electric Lawnmower ELM4621. Spare part compatible with the following products: Makita Lawnmower ELM4621 Part Number: YA00000742
Last items in stock €20.50
Details
Makita Belt for Lawnmower ELM4621
Makita SKU: YA00001138
Makita Belt for Lawnmower ELM4621
Makita Belt for Lawnmower ELM4621 Genuine Makita replacement part, Belt XPZ 772 for Electric Lawnmower ELM4621. Spare part compatible with the following products: Makita Lawnmower ELM4621 Part Number: YA00001138
Last items in stock €8.74
Details
Comments (0)
