Makita

Makita Lawn Mower PLM4628N Parts

SKU: Makita PLM4628N
€2.84
VAT included

Makita Spare Parts for Lawn Mower PLM4628N

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower PLM4628N.
Makita Lawn Mower PLM4628N Parts
  • Makita Lawn Mower PLM4628N Parts
  • Makita Lawn Mower PLM4628N Parts Diagram
  • Makita Lawn Mower PLM4628N Parts Diagram - 1
Makita

Makita Lawn Mower PLM4628N Parts

SKU: Makita PLM4628N Condition: New
€2.84
VAT included

Makita Spare Parts for Lawn Mower PLM4628N

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower PLM4628N.
settings 108 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
108 spare parts

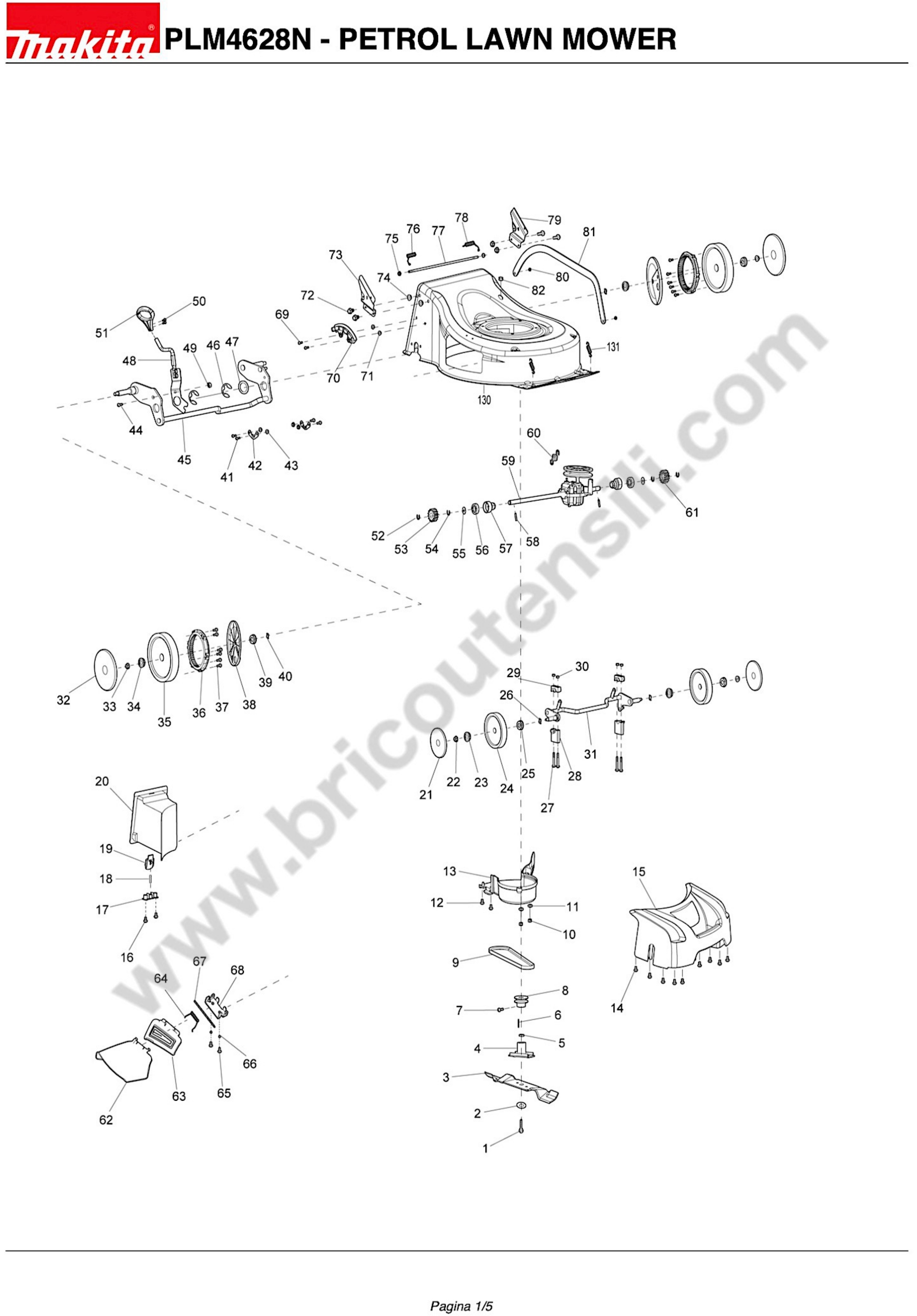

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon DA00000528 BLADE SCREW €2.77
2
 photo_cameraImage coming soon 671010730 WASHER D.44,5 / 10,2X2,5 €3.22
3
 photo_cameraImage coming soon 671001451 BLADE €26.97
4
 Blade Boss for Lawnmower Dolmar PM-46SBC 671002448 Blade Boss for Lawnmower Dolmar PM-46SBC €21.91
5
 photo_cameraImage coming soon 671002092 BUSH €3.22
6
 photo_cameraImage coming soon 671090077 FLAT KEY €1.44
7
 photo_cameraImage coming soon DA00000598 SCREW €1.44
8
 photo_cameraImage coming soon 671004002 PULLEY PLM4110-4610-4611 €22.18
9
 photo_cameraImage coming soon 671012720 BELT 762MM €12.90
10
 photo_cameraImage coming soon 671005008 NUT M8 PLM4110-4610-4611 €2.21
11
 photo_cameraImage coming soon 671007007 WASHERELM €1.47
12
 photo_cameraImage coming soon 671001037 SCREW 5X16 €1.44
13
 photo_cameraImage coming soon 671558001 BELT PROTECTION COVER €14.77
14
 photo_cameraImage coming soon 671001037 SCREW 5X16 €1.44
15
 photo_cameraImage coming soon 671536001 FRONT COVER €36.83
16
 photo_cameraImage coming soon 671107301 SCREW 4X16 €1.44
17
 photo_cameraImage coming soon 671317001 PLATE PLM4110-4610-4611 €2.21
18
 photo_cameraImage coming soon 671011005 SCREW PLM4110-4610-4611 €1.47
19
 photo_cameraImage coming soon 671316004 UTTON PLM4110-4610- €2.21
20
 photo_cameraImage coming soon 671326001 MULCHING KIT €29.16
21
 photo_cameraImage coming soon 671105103 200MM WHEEL COVER €5.28
22
 photo_cameraImage coming soon DA00000537 FLANGE €1.44
23
 photo_cameraImage coming soon 671040160 BEARING €3.95
24
 photo_cameraImage coming soon 671204301 200MM WHEEL €25.07
25
 photo_cameraImage coming soon 671040160 BEARING €3.95
26
 photo_cameraImage coming soon 671007062 WASHER €1.44
27
 photo_cameraImage coming soon 671006119 SCREW M6X60 €2.14
30
 photo_cameraImage coming soon DA00000549 NUT €1.44
31
 photo_cameraImage coming soon 671001374 FRONT AXLE €36.83
32
 photo_cameraImage coming soon 671010530 280MM WHEEL COVER €10.18
33
 photo_cameraImage coming soon DA00000537 FLANGE €1.44
34
 photo_cameraImage coming soon 671040160 BEARING €3.95
35
 photo_cameraImage coming soon 671020440 280MM WHEEL €29.16
36
 photo_cameraImage coming soon 671295001 GEAR €17.14
37
 photo_cameraImage coming soon 671107301 SCREW 4X16 €1.44
38
 photo_cameraImage coming soon 671087001 DUST COVER €7.81
39
 photo_cameraImage coming soon 671040160 BEARING €3.95
40
 photo_cameraImage coming soon 671007062 WASHER €1.44
41
 photo_cameraImage coming soon 671002019 TRIGGER BOLTPLM €2.21
42
 photo_cameraImage coming soon DA00000542 SUPPORT €1.64
43
 photo_cameraImage coming soon DA00000543 NUT €1.64
44
 photo_cameraImage coming soon 671002030 SCREW PM5100S3 €2.14
45
 photo_cameraImage coming soon 671001372 REAR AXLE €41.61
46
 photo_cameraImage coming soon DA00000612 RING €1.64
47
 photo_cameraImage coming soon 671001076 WASHER D35 €1.44
48
 photo_cameraImage coming soon DA00000904 HANDLE €6.11
49
 photo_cameraImage coming soon DA00000549 NUT €1.44
50
 photo_cameraImage coming soon 671003033 SCREW M5X8 €1.44
51
 photo_cameraImage coming soon 671010590 HANDLE €8.75
52
 photo_cameraImage coming soon DA00000604 RETAINING RING €1.64
53
 photo_cameraImage coming soon DA00001091 PINION DX PLM4611 €12.63
54
 photo_cameraImage coming soon DA00000604 RETAINING RING €1.64
55
 photo_cameraImage coming soon DA00000608 WASHER €1.44
56
 photo_cameraImage coming soon DA00000609 BEARING €3.22
57
 photo_cameraImage coming soon 671002031 BEARING BOX €6.83
58
 photo_cameraImage coming soon DA00000597 PIN €1.44
59
 photo_cameraImage coming soon 671501028 TRACTION GROUP €144.08
60
 photo_cameraImage coming soon 671011174 TRACTION GROUP SPRING €2.77
61
 photo_cameraImage coming soon DA00001090 PINION SX PLM4110-4610-4611 €12.63
62
 photo_cameraImage coming soon 671381001 PROTECTION PM46-SB €23.70
63
 photo_cameraImage coming soon 671380001 LATERAL COVER €19.54
64
 photo_cameraImage coming soon 671111300 TORSION SPRING €3.23
65
 photo_cameraImage coming soon 671201501 SCREW PM5100S3 €2.20
66
 photo_cameraImage coming soon 671080040 ELASTIC WASHER €1.44
67
 photo_cameraImage coming soon 671001019 ROOD PM5100S3 €5.28
68
 photo_cameraImage coming soon 671021830 FIXING PLATE €2.77
69
 photo_cameraImage coming soon 671002019 TRIGGER BOLTPLM €2.21
70
 photo_cameraImage coming soon DA00000898 ADJUSTMENT PLATE €2.55
71
 photo_cameraImage coming soon DA00000543 NUT €1.64
72
 photo_cameraImage coming soon DA00000562 FLANGE NUT €1.64
73
 photo_cameraImage coming soon 671001751 RIGHT SUPPORT €8.75
74
 photo_cameraImage coming soon DA00000537 FLANGE €1.44
75
 photo_cameraImage coming soon DA00000543 NUT €1.64
76
 photo_cameraImage coming soon 671011113 SPRING TORSION DX €2.14
77
 photo_cameraImage coming soon 671001366 SUPPORT ROD €4.56
78
 photo_cameraImage coming soon 671011114 LH TORSION SPRING €2.14
79
 photo_cameraImage coming soon 671001750 LEFT SUPPORT €8.75
80
 photo_cameraImage coming soon DA00000549 NUT €1.44
81
 photo_cameraImage coming soon 671001377 JUNCTION €11.40
82
 photo_cameraImage coming soon 671800104 CORD PROTECTING X PLM5600 €1.44
130
 photo_cameraImage coming soon 671010054 BLUE FRAME PLM4628 €225.65
131
 photo_cameraImage coming soon DA00000897 SPRING €2.14

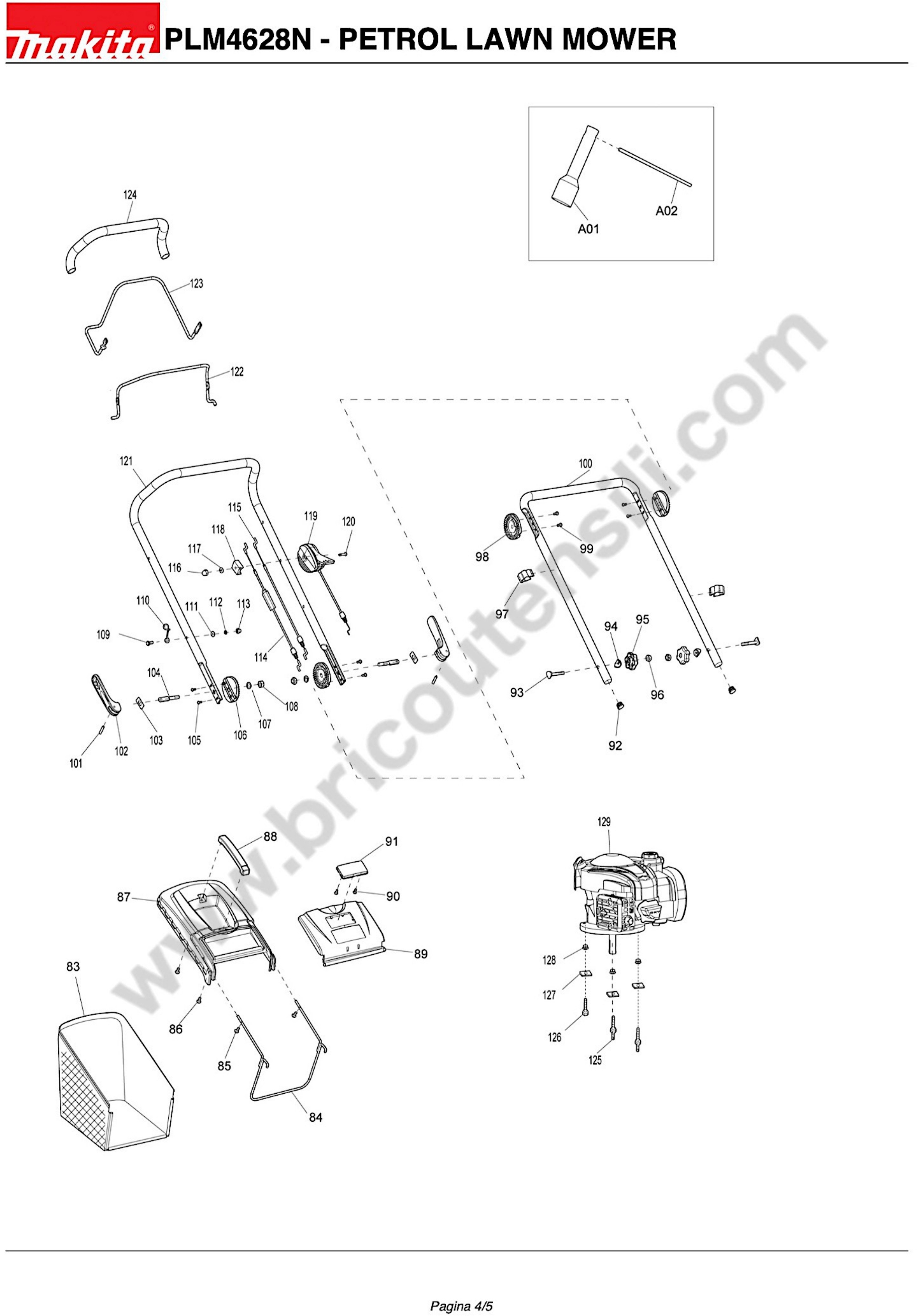

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
83
 photo_cameraImage coming soon 671013783 GRASS COLLECTOR BAG €57.69
84
 photo_cameraImage coming soon 671001381 BASKET FRAME €36.83
85
 photo_cameraImage coming soon 671001032 SCREW 4,2X18 €1.44
86
 photo_cameraImage coming soon DA00000614 SCREW 4,8X19 €1.44
87
 photo_cameraImage coming soon 671382001 BASKET COVER €41.61
88
 photo_cameraImage coming soon 671384001 BASKET CONTAINER BASKET €6.11
89
 photo_cameraImage coming soon 671004272 REAR COVER €19.54
90
 photo_cameraImage coming soon 671010710 SCREW 4X12 €1.44
91
 photo_cameraImage coming soon 671385001 TRASPARENT WINDOW €4.56
92
 photo_cameraImage coming soon DA00000900 PLUG €2.14
93
 photo_cameraImage coming soon 671006004 FLAT HEAD BOLTPLM €2.77
94
 photo_cameraImage coming soon DA00000565 WASHER €1.44
95
 photo_cameraImage coming soon 671365005 KNOB €2.14
96
 photo_cameraImage coming soon DA00000563 HEX NUT €1.64
97
 photo_cameraImage coming soon 671611001 CABLE SUPPORT €2.14
98
 photo_cameraImage coming soon 671055001 ADJUSTMENT RING €3.95
99
 photo_cameraImage coming soon DA00000860 SCREW 3X10 €1.44
100
 photo_cameraImage coming soon 671001804 LOWER HANDLE €36.83
101
 photo_cameraImage coming soon 671090048 PIN €1.44
102
 photo_cameraImage coming soon 671364005 LOCKING LEVER €5.28
103
 photo_cameraImage coming soon 671001119 PLATE €1.44
104
 photo_cameraImage coming soon 671001301 SCREW M8X69 €2.77
105
 photo_cameraImage coming soon DA00000860 SCREW 3X10 €1.44
106
 photo_cameraImage coming soon 671054001 UPPER ADJUSTING TOOTH RING €3.95
107
 photo_cameraImage coming soon 671011890 WASHER 16 €2.14
108
 photo_cameraImage coming soon 671005008 NUT M8 PLM4110-4610-4611 €2.21
109
 photo_cameraImage coming soon DA00000577 SCREW €1.64
110
 photo_cameraImage coming soon DA00000579 HOOK €3.95
111
 photo_cameraImage coming soon DA00000574 WASHER €1.64
112
 photo_cameraImage coming soon DA00000576 ELASTIC WASHER €1.44
113
 photo_cameraImage coming soon DA00000575 NUT M6 €1.64
114
 Dolmar PM-46SBC Control Cable 671001258 Dolmar PM-46SBC Control Cable €37.93
115
 photo_cameraImage coming soon 671001222 CABLE TRACTION PM-46SB PLM4628 €41.61
116
 photo_cameraImage coming soon DA00000575 NUT M6 €1.64
117
 photo_cameraImage coming soon DA00000574 WASHER €1.64
118
 photo_cameraImage coming soon DA00000573 PLATE €2.14
119
 photo_cameraImage coming soon 671013260 THROTTLE HANDLE ASS'Y €51.71
120
 photo_cameraImage coming soon DA00000572 SCREW €1.44
121
 photo_cameraImage coming soon 671017970 UPPER HANDLE €51.71
122
 photo_cameraImage coming soon 671017580 ENGINE BRAKE LEVER €17.14
124
 photo_cameraImage coming soon 671001029 HANDLE €7.84
125
 photo_cameraImage coming soon DA00000617 SCREW €2.46
126
 photo_cameraImage coming soon DA00000586 SCREW €1.64
127
 photo_cameraImage coming soon DA00000582 SQUARE WASHER €1.44
128
 photo_cameraImage coming soon DA00000537 FLANGE €1.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Lawn Mower PLM4628N

MAKITA Original spare parts at the most competitive prices on the web

, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower PLM4628N.

In the following table, look for the model of Lawn Mower and the respective parts of the code.
Makita PLM4628N

MAKITA PLM4628N - PETROL LAWN MOWER
Pag.1
# Part Num Description
1 DA00000528 BLADE SCREW
2 671010730 WASHER D.44.5/10.2X2.5
3 671001451 BLADE 460MM PLM4610-4611
4 671002448 BLADE HUB
5 671002092 COMPASS
6 671090077 KEY
7 DA00000598 SCREW
8 671004002 PULLEY PLM4110-4610-4611
9 671012720 BELT 762MM
10 671005008 NUT M8 PLM4110-4610-4611
11 671007007 WASHER 8 ELM3310-3710
12 671001037 SCREW 5X16
13 671558001 PROTECTION COVER
14 671001037 SCREW 5X16
15 671536001 FRONT COVER
16 671107301 SCREW 4X16
17 671317001 PLATE PLM4110-4610-4611
18 671011005 SPRING PLM4110-4610-4611
19 671316004 LOCK BUTTON PLM4110-4610-
20 671326001 MULCHING KIT
21 671105103 HUB CAP 200MM
22 DA00000537 FLANGE NUT
23 671040160 BEARING
24 671204301 WHEEL 200MM
25 671040160 BEARING
26 671007062 WASHER
27 671006119 SCREW M6X60
28 671376001 LOWER SUPPORT
29 671376002 UPPER SUPPORT
30 DA00000549 NUT
31 671001374 FRONT AXLE
32 671010530 HUB CAP 280MM
33 DA00000537 FLANGE NUT
34 671040160 BEARING
35 671020440 WHEEL 280MM
36 671295001 GEAR WHEEL
37 671107301 SCREW 4X16
38 671087001 DUST COVER DISC
39 671040160 BEARING
40 671007062 WASHER
41 671002019 SCREW M6X12 ELM4110
42 DA00000542 SUPPORT
43 DA00000543 NUT
44 671002030 SCREW PM5100S3
45 671001372 REAR AXLE
46 DA00000612 STOP RING
47 671001076 WASHER D35
48 DA00000904 GRIP
49 DA00000549 NUT
50 671003033 SCREW M5X8
51 671010590 GRIP
52 DA00000604 RETAINING RING
53 DA00001091 RH PINION PLM4611
54 DA00000604 RETAINING RING
55 DA00000608 WASHER
56 DA00000609 BEARING
57 671002031 BOX BEARING
58 DA00000597 PIECE
59 671501028 DRIVE GROUP
60 671011174 DRIVE GROUP SPRING
61 DA00001090 LEFT PINION PLM4110-4610-4611
62 671381001 PROTECTION PM46-SB
63 671380001 SIDE COVER
64 671111300 TORSION SPRING
65 671201501 PM5100S3 SCREW
66 671080040 SPRING WASHER
67 671001019 PM5100S3 ROD
68 671021830 FIXING PLATE
69 671002019 M6X12 SCREW ELM4110
70 DA00000898 HEIGHT ADJUSTMENT PLATE
71 DA00000543 NUT
72 DA00000562 FLANGED NUT
73 671001751 RIGHT SUPPORT
74 DA00000537 FLANGED NUT
75 DA00000543 NUT
76 671011113 RIGHT TORSION SPRING
77 671001366 SUPPORT ROD
78 671011114 LEFT TORSION SPRING
79 671001750 LEFT SUPPORT
80 DA00000549 NUT
81 671001377 JOINT
82 671800104 CABLE GROUP FOR PLM5600
130 671010054 BLUE FRAME PLM4628
131 DA00000897 SPRING
Pag.2
83 671013783 GRASS COLLECTOR BAG
84 671001381 BASKET FRAME
85 671001032 SCREW 4.2X18
86 DA00000614 SCREW 4.8X19
87 671382001 BASKET COVER
88 671384001 GRASS COLLECTOR BASKET HANDLE
89 671004272 REAR COVER
90 671010710 SCREW 4X12
91 671385001 WINDOW
92 DA00000900 PLUG
93 671006004 SCREW M8X52
94 DA00000565 WASHER
95 671365005 KNOB
96 DA00000563 HEXAGONAL NUT
97 671611001 CABLE SUPPORT
98 671055001 ADJUSTMENT RING
99 DA00000860 SCREW 3X10
100 671001804 LOWER HANDLE
101 671090048 PIN
102 671364005 LOCKING LEVER
103 671001119 PLATE
104 671001301 SCREW M8X69
105 DA00000860 SCREW 3X10
106 671054001 ADJUSTMENT RING
107 671011890 WASHER 16
108 671005008 NUT M8 PLM4110-4610-4611
109 DA00000577 SCREW
110 DA00000579 HOOK
111 DA00000574 WASHER
112 DA00000576 SPRING WASHER
113 DA00000575 NUT M6
114 671001258 MOTOR BRAKE CABLE
115 671001222 TRACTION CABLE
116 DA00000575 NUT M6
117 DA00000574 WASHER
118 DA00000573 PLATE
119 671013260 THROTTLE LEVER
120 DA00000572 SCREW
121 671017970 UPPER HANDLE
122 671017580 ENGINE BRAKE LEVER
123 671001732 TRACTION LEVER
124 671001029 GRIP
125 DA00000617 SCREW
126 DA00000586 SCREW
127 DA00000582 SQUARE WASHER
128 DA00000537 FLANGED NUT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita PLM4628N
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita PLM4628N Parts Diagram

Makita PLM4628N Parts Diagram

Download (493.14KB)

You might also like

Control Cable Wheel Drive for Lawnmower Makita PLM5600
Makita SKU: 671001242
Control Cable Wheel Drive for Lawnmower Makita PLM5600
Control Cable Wheel Drive for Lawnmower Makita PLM5600 Original replacement part Makita, Control Cable Wheel Drive for Lawnmowers PLM5600 - Dolmar PM5600S3. Part for the following products: -...
Usually Ships in: 7/10 Business Days Approx. €46.40
Details
Blade Hub for Lawnmover Makita PLM5113
Makita SKU: 671015252
Blade Hub for Lawnmover Makita PLM5113
Blade Hub for Lawnmover Makita PLM5113 Genuine replacement part Makita, Blade Hub for Lawnmovers PLM5113 - PLM5600 - PLM5113N2 - Dolmar PM411 - PM460. Part for the...
on 7/10 Business Days Approx €27.21
Details
Gear for Lawnmover Makita PLM5113
Makita SKU: 671200010
Gear for Lawnmover Makita PLM5113
Gear for Lawnmover Makita PLM5113 Genuine replacement part Makita, Gear for Lawnmovers PLM5113 - PLM5600 - PLM5113N2 - Dolmar PM411 - PM460. Part for the following products: - PLM4110 - LAWNMOVER MAKITA 41CM 2,8HP - PLM4120N -...
AVAILABLE €22.41
Details
Dolmar PM-46SBC Control Cable
Makita SKU: 671001258
Dolmar PM-46SBC Control Cable
Dolmar Throttle cable - engine start / stop for PM-46SBC Genuine replacement part Dolmar, Control Cable for Lawnmowers PLM4628N - PM-46SBC Parts for the following products: - PLM4628N - LAWNMOWER 140CC 46CM...
Last items in stock €37.93
Details
Comments (0)
