Makita

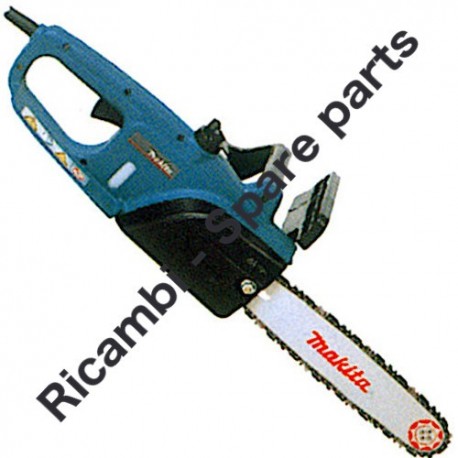

Makita Chain Saw UC3510A Parts

SKU: Makita UC3510A
€47.56
VAT included

Makita Spare Parts for Electric Chainsaw UC3510A

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Chainsaw UC3510A.
Makita Chain Saw UC3510A Parts
  • Makita Chain Saw UC3510A Parts
  • Makita Chain Saw UC3510A Parts
  • Makita Chain Saw UC3510A Parts Diagram
Makita

Makita Chain Saw UC3510A Parts

SKU: Makita UC3510A Condition: New
€47.56
VAT included

Makita Spare Parts for Electric Chainsaw UC3510A

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Chainsaw UC3510A.
settings 53 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
53 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

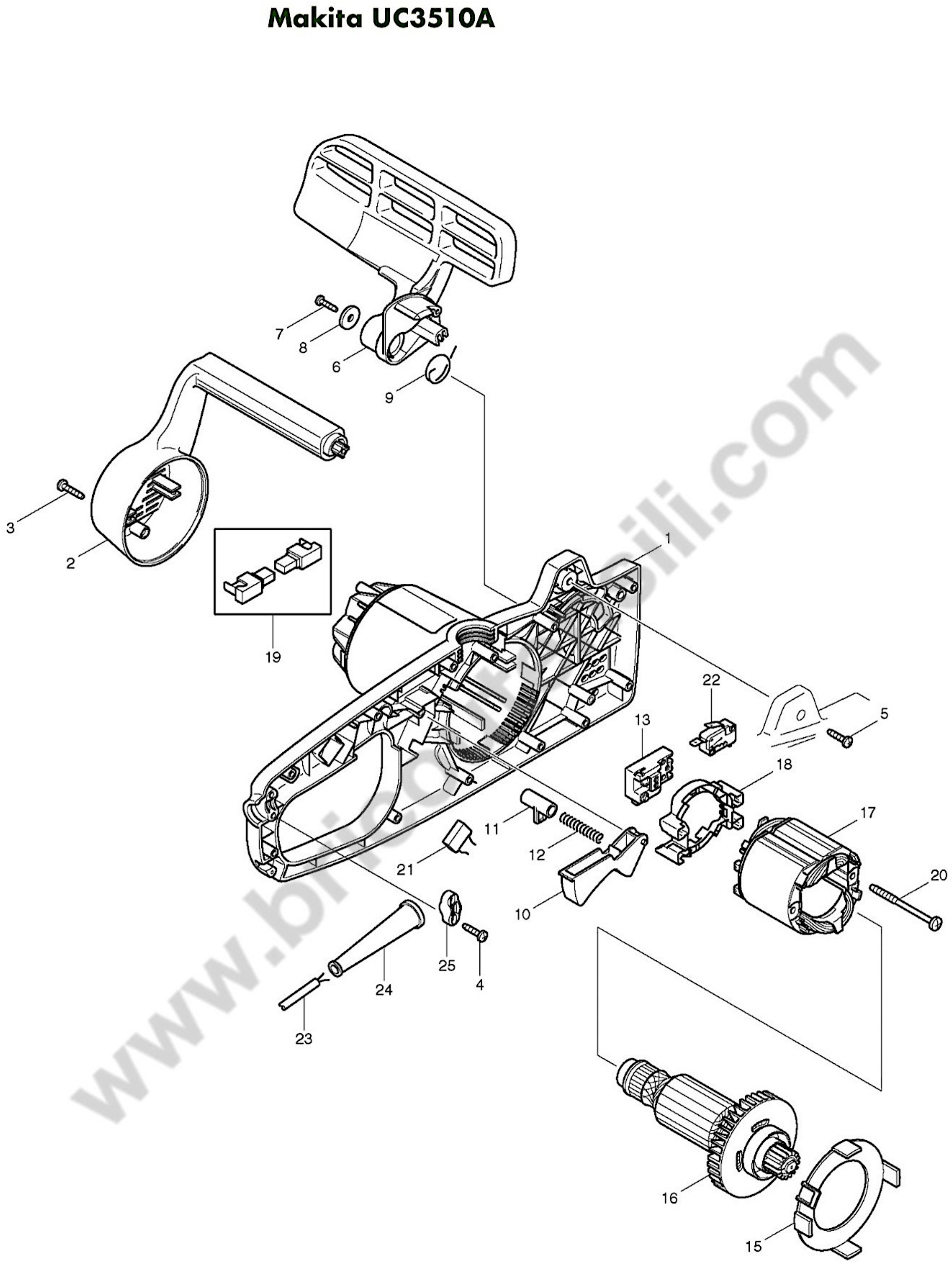

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A02
 photo_cameraImage coming soon 941713001 UNIVERSAL KEY X DES380 €4.23
A01
 photo_cameraImage coming soon 952100633 CHAIN PROT.COVER 12"-16" €6.00
1
 photo_cameraImage coming soon 210111610 Housing, left UC3010A-UC401 €44.84
2
 photo_cameraImage coming soon 210310010 Cover with handle UC30* €16.65
3
 photo_cameraImage coming soon 913540185 SCREW 4X18 UC3000-3500-4000A €1.42
4
 photo_cameraImage coming soon 913540185 SCREW 4X18 UC3000-3500-4000A €1.42
5
 photo_cameraImage coming soon 913540185 SCREW 4X18 UC3000-3500-4000A €1.42
6
 photo_cameraImage coming soon 210213040 Hand guard UC3010A-UC4010A €18.98
7
 photo_cameraImage coming soon 913550165 Drill M5x16 UC3010A-UC40 €1.40
8
 photo_cameraImage coming soon 924605510 WASHER 5.5/18X1.6 €13.46
9
 photo_cameraImage coming soon 210213030 SPRING FOR HAND GUARD UC3010A ES-31A €1.40
10
 photo_cameraImage coming soon 210144010 Switch handle UC3010A-UC401 €2.69
11
 photo_cameraImage coming soon 225144010 Lock button €1.40
12
 photo_cameraImage coming soon 225145010 Spring €1.40
13
 photo_cameraImage coming soon 975001200 PUSH BUTTON ES-31A €16.65
14
 photo_cameraImage coming soon 210114020 Oil tank UC3010A-UC4010A €8.50
15
 photo_cameraImage coming soon 210118010 Air deflector UC3010A-UC4010A €2.69
17
 photo_cameraImage coming soon 970803230 Stator, complete UC3010A-UC4 €28.31
18
 photo_cameraImage coming soon 970803280 Connection plate complete UC30 €12.69
19
 photo_cameraImage coming soon 957823410 Carbon brush (2 pieces), old - see: €16.65
20
 photo_cameraImage coming soon 913550655 Screw (Z+/-) M5x65 UC3010A- €1.40
21
 photo_cameraImage coming soon 970109820 CAPACITOR 160MM UC3010A ES-31A €2.69
22
 Micro Switch for Electric Chainsaws Makita UC3000A - UC3500A 970001200 Micro Switch for Electric Chainsaws Makita UC3000A - UC3500A €5.18 Not available for order
23
 photo_cameraImage coming soon 970102310 Cable with plug UC30 €16.65
24
 photo_cameraImage coming soon 225152010 Anti-fracture €2.69
25
 photo_cameraImage coming soon 225152050 Anti-tear, yellow €1.40
26
 photo_cameraImage coming soon 210211100 GEAR PLATE CPL. X ES €32.73
27
 photo_cameraImage coming soon 210221100 GEAR CPL UC3010A ES-31A €61.62
28
 photo_cameraImage coming soon 205114202 Tank cap, complete INC29 €5.13
29
 photo_cameraImage coming soon 963100081 Tank seal, new* €2.08
30
 photo_cameraImage coming soon 021245003 OIL PUMP CPL. €14.34
31
 photo_cameraImage coming soon 203245001 Oil pump bracket €3.13
32
 photo_cameraImage coming soon 915735100 SCREW X DCS3400TH €3.13
33
 photo_cameraImage coming soon 965451210 CONNECTION FOR OIL PUMP ES-31A €5.94
34
 photo_cameraImage coming soon 021245060 SPRING €2.08
35
 photo_cameraImage coming soon 021245100 Cap €1.40
36
 photo_cameraImage coming soon 965452380 Hose 5.5x3, 1 meter* €12.69
37
 photo_cameraImage coming soon 963203010 O-RING 3,5X1 ES-31A €1.40
38
 photo_cameraImage coming soon 925305000 WASHER ES-31A €1.43
39
 photo_cameraImage coming soon 210221030 Gear oil pump Z=3 €5.13
40
 photo_cameraImage coming soon 210213300 BRAKE SPRING HOLDER CPL. ES-31A €18.98
41
 photo_cameraImage coming soon 210213500 SPRING BRAKE ES-31A €11.29
42
 photo_cameraImage coming soon 210213020 BRAKE RING X ES-31A €2.08
43
 photo_cameraImage coming soon 210213050 SPRING ES-31A €6.63
44
 photo_cameraImage coming soon 028213521 SPRING X UC3000-3500-4000A €1.40
45
 photo_cameraImage coming soon 924204320 Washer 4.3x12x1.2 UC3010A-40 €1.40
46
 photo_cameraImage coming soon 210271080 SWITCH ROD UC3010A ES-31A €2.69
47
 photo_cameraImage coming soon 210110620 CASE RIGHT CPL UC3010A ES-31A €68.84
48
 photo_cameraImage coming soon 980114181 ES-31A LABEL €3.84
50
 photo_cameraImage coming soon 913540185 SCREW 4X18 UC3000-3500-4000A €1.42
51
 photo_cameraImage coming soon 001213042 PIN TENSIONER X PS 34 €5.13
52
 photo_cameraImage coming soon 901505354 SCREW M5X35 X UC €1.40
55
 photo_cameraImage coming soon 930108100 WASHER ES-31A SAFETY €1.43
57
 photo_cameraImage coming soon 923208004 NUT €2.20
58
 photo_cameraImage coming soon 442035661 CHAIN BAR 35CM SP.1,3MM €24.18
59
 photo_cameraImage coming soon 528092652 SAW CHAIN 14" €23.91
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

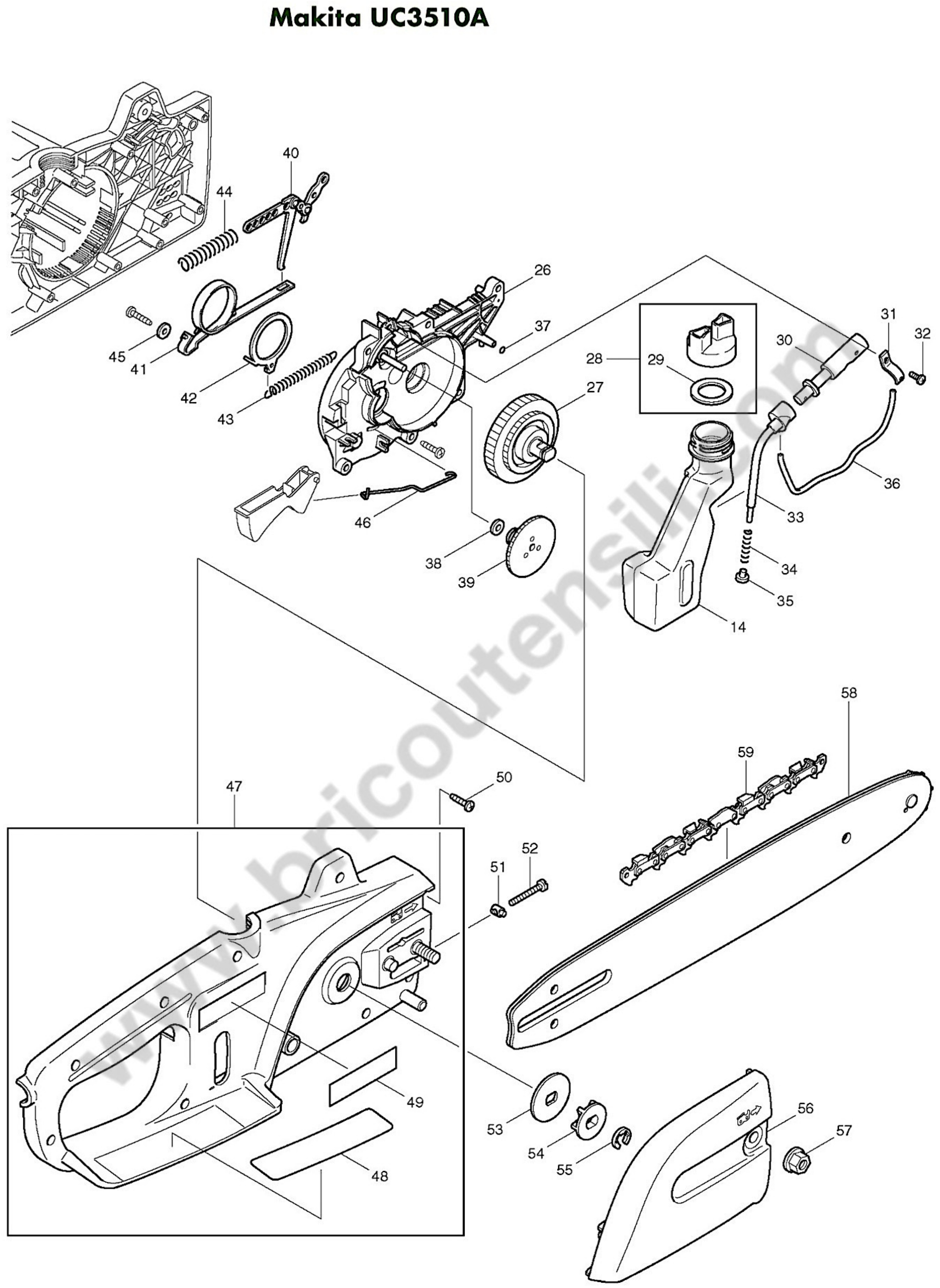

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
14
 photo_cameraImage coming soon 210114020 Oil tank UC3010A-UC4010A €8.50
26
 photo_cameraImage coming soon 210211100 GEAR PLATE CPL. X ES €32.73
27
 photo_cameraImage coming soon 210221100 GEAR CPL UC3010A ES-31A €61.62
28
 photo_cameraImage coming soon 205114202 Tank cap, complete INC29 €5.13
29
 photo_cameraImage coming soon 963100081 Tank seal, new* €2.08
30
 photo_cameraImage coming soon 021245003 OIL PUMP CPL. €14.34
31
 photo_cameraImage coming soon 203245001 Oil pump bracket €3.13
32
 photo_cameraImage coming soon 915735100 SCREW X DCS3400TH €3.13
33
 photo_cameraImage coming soon 965451210 CONNECTION FOR OIL PUMP ES-31A €5.94
34
 photo_cameraImage coming soon 021245060 SPRING €2.08
35
 photo_cameraImage coming soon 021245100 Cap €1.40
36
 photo_cameraImage coming soon 965452380 Hose 5.5x3, 1 meter* €12.69
37
 photo_cameraImage coming soon 963203010 O-RING 3,5X1 ES-31A €1.40
38
 photo_cameraImage coming soon 925305000 WASHER ES-31A €1.43
39
 photo_cameraImage coming soon 210221030 Gear oil pump Z=3 €5.13
40
 photo_cameraImage coming soon 210213300 BRAKE SPRING HOLDER CPL. ES-31A €18.98
41
 photo_cameraImage coming soon 210213500 SPRING BRAKE ES-31A €11.29
42
 photo_cameraImage coming soon 210213020 BRAKE RING X ES-31A €2.08
43
 photo_cameraImage coming soon 210213050 SPRING ES-31A €6.63
44
 photo_cameraImage coming soon 028213521 SPRING X UC3000-3500-4000A €1.40
45
 photo_cameraImage coming soon 924204320 Washer 4.3x12x1.2 UC3010A-40 €1.40
46
 photo_cameraImage coming soon 210271080 SWITCH ROD UC3010A ES-31A €2.69
47
 photo_cameraImage coming soon 210110620 CASE RIGHT CPL UC3010A ES-31A €68.84
48
 photo_cameraImage coming soon 980114181 ES-31A LABEL €3.84
51
 photo_cameraImage coming soon 001213042 PIN TENSIONER X PS 34 €5.13
52
 photo_cameraImage coming soon 901505354 SCREW M5X35 X UC €1.40
55
 photo_cameraImage coming soon 930108100 WASHER ES-31A SAFETY €1.43
57
 photo_cameraImage coming soon 923208004 NUT €2.20
58
 photo_cameraImage coming soon 442035661 CHAIN BAR 35CM SP.1,3MM €24.18
59
 photo_cameraImage coming soon 528092652 SAW CHAIN 14" €23.91

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Electric Chainsaw UC3510A

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Chainsaw UC3510A.

In the following table, look for the model of the Electric Saws and the respective parts of the code.
Makita UC3510A
Electric Chainsaw UC3510A
# Part Num. Description
1 210111610 Housing, left UC3010A-UC401
2 210310010 Cover with handle UC30*
3 913540185 Screw M4x18
4 913540185 Screw M4x18
5 913540185 Screw M4x18
6 210213040 Hand guard UC3010A-UC4010A
7 913550165 Drill M5x16 UC3010A-UC40
8 924605510 Washer 5.5x18x1.6 DIN 52
9 210213030 Spring for hand guard UC3010A-
10 210144010 Switch handle UC3010A-UC401
11 225144010 Lock button
12 225145010 Spring
13 975001200 Push button UC3010A-U
14 210114020 Oil tank UC3010A-UC4010A
15 210118010 Air deflector UC3010A-UC4010A
16 970803332 Armature 22O-240V
17 970803230 Stator, complete UC3010A-UC4
18 970803280 Connection plate complete UC30
19 957823410 Carbon brush (2 pieces), old - see:
20 913550655 Screw (Z+/-) M5x65 UC3010A-
21 970109820 Capacitor 0.1 uF/160 mm UC30
22 970001200 Microswitch
23 970102310 Cable with plug UC30
24 225152010 Anti-fracture
25 225152050 Anti-tear, yellow
26 210211100 Transmission plate, complete UC3010
27 210221100 Reduction gear complete UC3010A-UC40
28 205114202 Tank cap, complete INC29
29 963100081 Tank seal, new*
30 021245003 Oil pump, complete, new*
31 203245001 Oil pump bracket
32 915735100 Screw M3.5x9.5
33 965451210 Oil pump connector UC301
34 021245060 Compression spring
35 021245100 Cap
36 965452380 Hose 5.5x3, 1 meter*
37 963203010 Seal 3.5x1 UC3010A-UC4010
38 925305000 Washer 5x12x0.5 UC3010A-UC40
39 210221030 Gear oil pump Z=3
40 210213300 Brake band holder, complete UC30
41 210213500 Brake band UC3010A-UC4010A
42 210213020 Brake ring UC3010A-UC4010A
43 210213050 Retractor spring UC3010A-UC4010A
44 028213521 Spring DCS34
45 924204320 Washer 4.3x12x1.2 UC3010A-40
46 210271080 Connecting rod UC3010A-UC4010
47 210110620 Housing, right UC3010A-UC40*
48 980114181 Self-adhesive safety label
49 980114348 cMAKITAc label
50 913540185 Screw M4x18
51 001213042 Swivel nut, new*
52 901505354 Screw M5x35*
53 210224050 Drive pulley 40x1.0 UC3010A-
54 210224010 Star wheel 3/8c UC3010A-UC4*
55 930108100 Spring washer 8x1 UC3010A*
56 210213100 Protection cover sprocket, complete
57 923208004 M8 hex nut, new*
58 442035661 14" BAR new
59 528092652 092H/52 SAW CHAIN
A01 952100633 CHAIN ​​PROTECTION COVER new
A02 941713001 UNIVERSAL WRENCH
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita UC3510A
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita UC3510A Parts Diagram

Makita UC3510A Parts Diagram

Download (650.67KB)
