Makita Chainsaw UC3030A Parts

Name: Makita Chainsaw UC3030A Parts
Brand: Makita
SKU: Makita UC3030A
Availability: InStock

SKU: Makita UC3030A

€4.70

VAT included

Makita Spare Parts for Electric Chainsaw UC3030A

We supply original Makita spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Chainsaw for Wood UC3030A.

78 spare parts

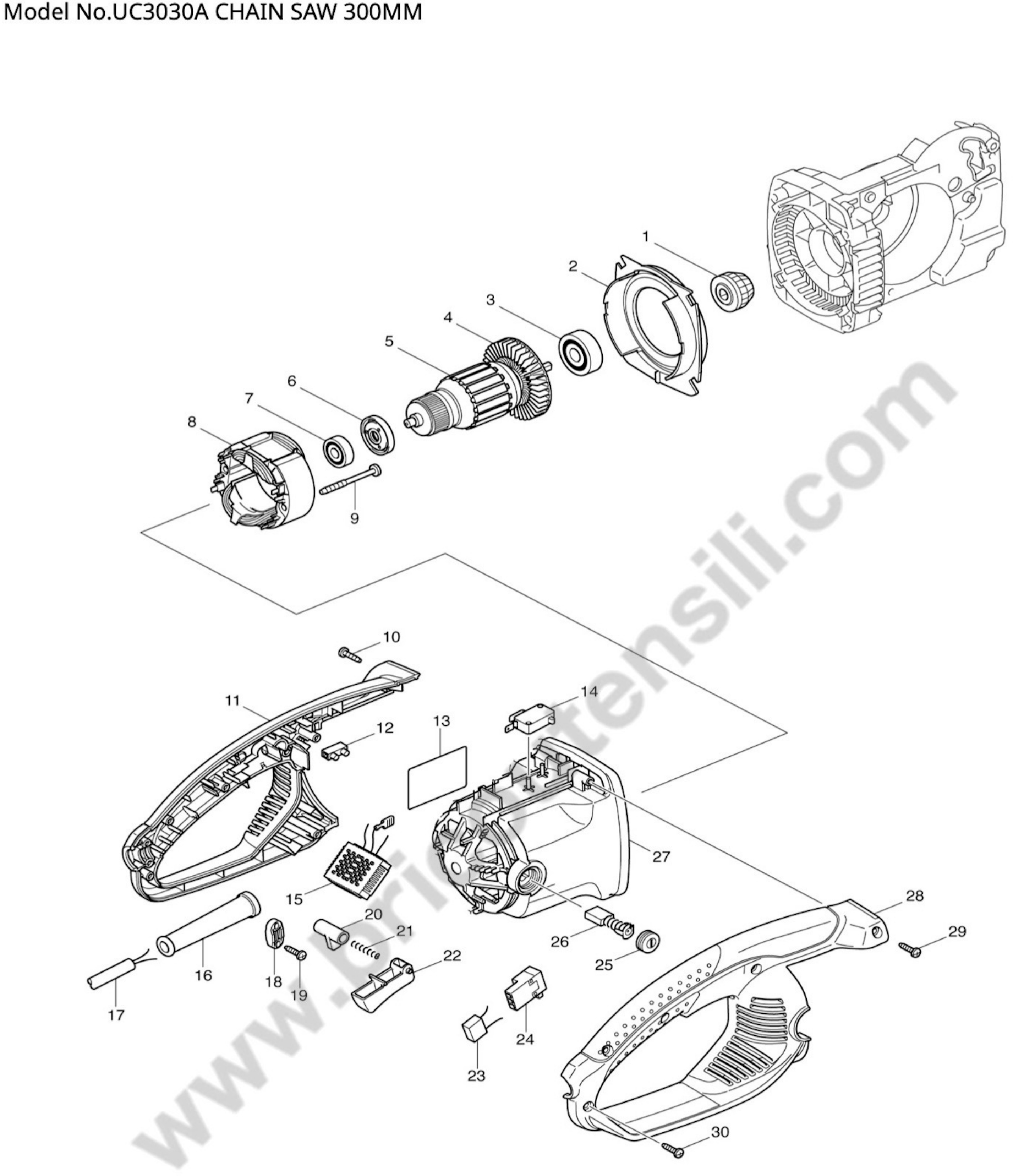

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	226743-8 PINION UC3000-3500-4000A	€4.89
2	Image coming soon	419410-4 BAFFLE UC3530A-4030A	€1.47
3	Image coming soon	211111-8 BEARING 6301 X UC	€5.67
4	Image coming soon	240001-8 FAN 80 X LS1013	€5.43
5	Image coming soon	616969-4 ARMATURE UC3530A - UC4030A	€42.85
6	Image coming soon	681666-1 INSULATING WASHER UC3530A-4030	€1.47
7	Image coming soon	211057-8 BEARING 629 X UC	€4.89
8	Image coming soon	639530-0 STATOR UC3530A-4030A	€30.02
9	Image coming soon	266418-7 SCREW 5X55 HR4002	€1.70
10		265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C	€1.46
11	Image coming soon	188818-0 BLUE REAR HANDLE UC3530A	€26.56
12	Image coming soon	654532-5 TERMINAL BLOCK 6E / 1DS	€3.76
14		650577-1 Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A	€2.97
15		631719-6 Controller 240V for Electric ChainsawS Makita UC3530A - UC4030A	€54.59
16	Image coming soon	682574-9 CABLE SLEEVE 10-90 PC5000C	€1.47
18	Image coming soon	687124-5 CORD CLAMP MT953	€1.47
19		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.46
20	Image coming soon	416178-3 RESET BUTTON X UC3020A	€1.47
21	Image coming soon	233173-6 SPRING FOR COMPR.4 UC3020A	€1.47
22	Image coming soon	419411-2 LEVER SWITCH UC3530A-4030	€1.47
23	Image coming soon	645239-4 CAPACITOR 4326	€2.44
24		651923-1 Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A	€14.89
25		643650-4 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A	€2.43
27	Image coming soon	154867-9 MOTOR HOUSING COMP UC3530A/403	€37.93
28	Image coming soon	188818-0 BLUE REAR HANDLE UC3530A	€26.56
29		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.46
30		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.46

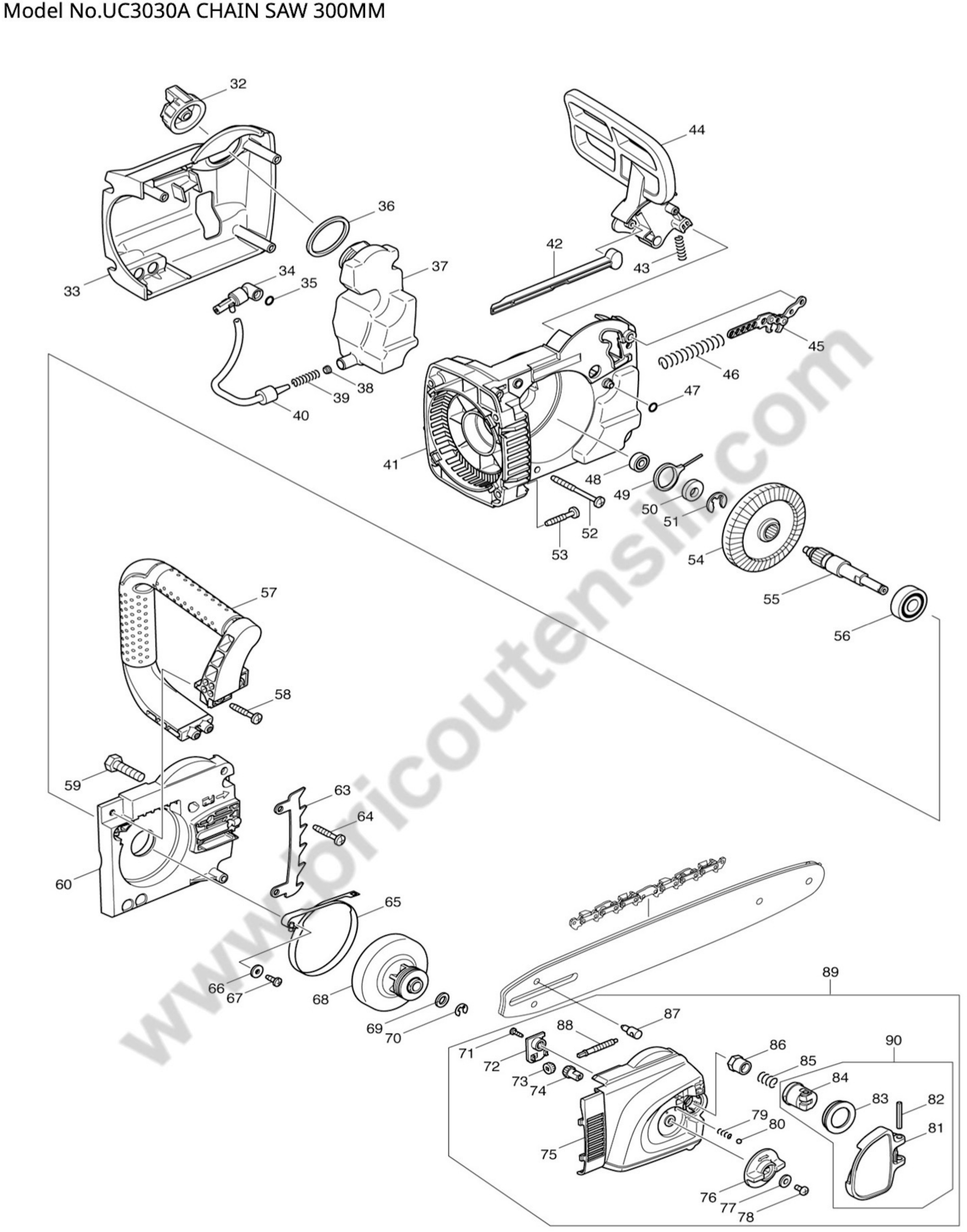

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
A02	Image coming soon	158024-1 CABLE CLAMP UH3000	€3.43
A03	Image coming soon	165200-0 CHAIN BAR 30CM SP.1,3MM	€21.12
32		154870-0 Oil Tank Cap for Electric Chainsaws Makita UC3530A - UC4030A	€2.97
33	Image coming soon	419412-0 BOX COVER	€20.12
34		187573-1 Oil Pump for Electric Chainsaw Dolmar ES2140A	€5.48
35	Image coming soon	213039-6 RING 6 X AN901	€1.47
36		421959-2 Oil Tank Gasket for Electric Chainsaws Makita UC3530A - UC4030A	€1.55
37	Image coming soon	419407-3 OIL TANK UC3530A-4030A	€5.43
38	Image coming soon	416274-7 PLUG OIL PIPE X DCS230T	€1.47
39	Image coming soon	231975-4 SPRING TUBE OIL X DCS230T	€1.47
40	Image coming soon	421958-4 SUCTION LINE UC3530A-4030	€2.20
41	Image coming soon	419408-1 GEAR BOX SX UC3530A	€14.60
42	Image coming soon	419413-8 SWITCH LEVER UC3530A-4030	€1.47
43	Image coming soon	233174-4 SPRING LOCK. X UC	€1.54
44	Image coming soon	451130-4 FRONT HAND GUARD	€6.29
45	Image coming soon	158044-5 RETAINING SPRING BRAKE X UC	€6.61
46	Image coming soon	234005-0 SPRING UC3530A-4030A	€1.47
47	Image coming soon	213039-6 RING 6 X AN901	€1.47
48		211012-0 Bearing for Angle Grinder Makita 9524NB	€8.23
49	Image coming soon	450230-7 ECCENTRIC FOR UC3020A	€1.47
50	Image coming soon	417405-1 CAM FOR UC3020A	€1.47
51	Image coming soon	259034-2 SAFETY WASHER X UC	€1.54
52	Image coming soon	266418-7 SCREW 5X55 HR4002	€1.70
53	Image coming soon	266173-1 SCREW PT 5X30	€1.47
54	Image coming soon	226741-2 CPL GEARGE UC	€4.24
55	Image coming soon	324662-3 SPINDLE UC3530A-4030A	€15.20
56	Image coming soon	211107-9 BEARING 6201	€9.40
57	Image coming soon	455487-5 FRONT GRIP	€13.46
58	Image coming soon	266173-1 SCREW PT 5X30	€1.47
59	Image coming soon	921452-1 BOLT 8X30	€1.58
60	Image coming soon	318013-0 GEAR BOX	€17.65
63	Image coming soon	345651-5 HOOK FOR UC3020A	€2.30
64	Image coming soon	266173-1 SCREW PT 5X30	€1.47
65	Image coming soon	168426-3 BRAKE DRUM UC3530A-4030A	€10.48
66	Image coming soon	267195-4 WASHER 4 X DCS230T	€1.47
67	Image coming soon	266026-4 SCREW M4 X 12	€2.74
68		123886-6 Clutch Drum for Electric Chainsaw Dolmar ES2140A	€28.06
69		253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C	€1.41
70	Image coming soon	259033-4 LOCKWASHER X UC	€1.47
71		266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030	€2.07
72		419241-1 Tensioner Screw Pin Cover for Electric Chainsaw Makita UC3020A	€1.63
73		227496-2 Tensioner Screw Gear for Chainsaw Makita UC3551A	€7.99
74		227495-4 Gear 14 for Electric Chainsaw Makita UC3020A	€7.71
75		154869-5 Sprocket Cover for Electric Chainsaw Dolmar ES2140A	€9.79
76	Image coming soon	419233-0 DIAL 40 UC4020A/3520/3530A/403	€1.47
77	Image coming soon	253874-0 FLAT WASHER 4	€2.74
78	Image coming soon	915106-0 BINDING HD SCREW M4 UC4020A	€1.47
79	Image coming soon	233033-2 COMPRESSION SPRING 4 UC4020A	€1.47
80	Image coming soon	216008-6 BALL 4	€1.47
81	Image coming soon	154763-1 LEVER ADJUSTMENT FOR UC3020A	€2.20
82	Image coming soon	951122-8 PIN EL. 4-28 FOR UC3020A	€1.47
83	Image coming soon	453061-3 WASHER 20 X UC3020A	€1.47
84	Image coming soon	317977-5 LEVER HOLDER FOR UC3020A	€2.20
85	Image coming soon	231025-5 COMPRESION SPRING 8 X 8411DW	€1.50
86	Image coming soon	252168-0 NUT M8-13 FOR UC3020A	€4.06
87		324621-7 Tensioner Screw Pin for Electric Chainsaw Makita UC3020A	€1.96
88		324620-9 Tensioner Screw for Chainsaw Makita UC3020A	€2.39
90	Image coming soon	187089-6 COMPLETE LEVER UC3530A-4030A	€4.06

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Electric Chainsaw UC3030A

MAKITA UC3030A Parts
Pag.1
#	Part Num.	Description
1	226743-8	STRAIGHT BEVEL GEAR UC3000-3500-4000A
2	419410-4	DEFLECTOR UC3530A-4030A
3	211111-8	BEARING 6301 X UC
4	240001-8	FAN 80 X LS1013
5	616969-4	ARMATURE UC3530A - UC4030A
6	681666-1	INSULATING WASHER UC3530A-4030
7	211057-8	BEARING 629 X UC
8	639530-0	FIELD UC3530A-4030A
9	266418-7	SCREW 5X55 HR4002
10	265995-6	SCREW M4X18
11	188818-0	REAR HANDLE BLUE UC3530A
12	654532-5	TERMINAL 1P
13	867103-1
14	650577-1	SWITCH SD-006-BB2AA-AA
15	631719-6	REGULATOR
16	682574-9	CABLE SLEEVE 10-90 PC5000C
17	665883-1
18	687124-5	CABLE CLAMP MT953
19	265995-6	SCREW M4X18
20	416178-3	BUTTON RELEASE FOR UC3020A
21	233173-6	SPRING COMPR.4 FOR UC3020A
22	419411-2	SWITCH LEVER UC3530A-4030
23	645239-4	CAPACITATOR 4326
24	651923-1	SWITCH TG70B FOR 5903R
25	643650-4	BRUSH HOLDER CAP
26	194985-1	CARBON BRUSHES CB-153 (150/52/54)
27	154867-9	MOTOR CASE
28	188818-0	REAR HANDLE BLUE UC3530A
29	265995-6	SCREW M4X18
30	265995-6	SCREW M4X18
Pag.2
32	154870-0	OIL TANK CAP UC3530A
33	419412-0	BOX COVER
34	187573-1	OIL PUMP
35	213039-6	RING 6 X AN901
36	421959-2	GASKET UC3530A-4030A
37	419407-3	OIL TANK UC3530A-4030A
38	416274-7	OIL PIPE CAP X DCS230T
39	231975-4	OIL PIPE SPRING X DCS230T
40	421958-4	SUCTION LINE UC3530A-4030
41	419408-1	LEFT GEARBOX UC3530A
42	419413-8	SWITCH LEVER UC3530A-4030
43	233174-4	PROTECTION SPRING X UC
44	451130-4	HAND PROTECTION
45	158044-5	BRAKE SPRING RETAINER X UC
46	234005-0	SPRING UC3530A-4030A
47	213039-6	RING 6 X AN901
48	211012-0	BALL BEARING 606ZZ
49	450230-7	ECCENTRIC FOR UC3020A
50	417405-1	CAM FOR UC3020A
51	259034-2	SAFETY WASHER X UC
52	266418-7	SCREW 5X55 HR4002
53	266173-1	SCREW PT 5X30
54	226741-2	GEAR CPL X UC
55	324662-3	SHAFT UC3530A-4030A
56	211107-9	BEARING 6201 X 9524NB
57	455487-5	FRONT HANDLE
58	266173-1	SCREW PT 5X30
59	921452-1	HEXAGONAL BOLT 8X30
60	318013-0	GEAR BOX
63	345651-5	HATCH FOR UC3020A
64	266173-1	SCREW PT 5X30
65	168426-3	BRAKE BAND UC3530A-4030A
66	267195-4	WASHER 4 X DCS230T
67	266026-4	SCREW M4 X 12
68	123886-6	CLUTCH DRUM 3/8" UC3530A
69	253215-0	FLAT WASHER 8 6510PBL/LVR
70	259033-4	SAFETY WASHER X UC
71	266007-8	SCREW M3 X10 HP2030
72	419241-1	COVER FOR UC3020A
73	227496-2	GEAR 14 FOR UC3020A
74	227495-4	GEAR 14 FOR UC3020A
75	154869-5	CASE UC3530A-UC4030A
76	419233-0	KNOB 40 FOR UC3020A
77	253874-0	FLAT WASHER 4
78	915106-0	SCREW M4X8 FOR UC3020A
79	233033-2	COMPRESSION SPRING 4 FOR UC3020A
80	216008-6	BALL 4
81	154763-1	ADJUSTMENT LEVER FOR UC3020A
82	951122-8	ELECTRIC PIN 4-28 FOR UC3020A
83	453061-3	CUP WASHER 20 X UC3020A
84	317977-5	LEVER SUPPORT FOR UC3020A
85	231025-5	COMPRESSION SPRING 8 X 8411DW
86	252168-0	NUT M8-13 FOR UC3020A
87	324621-7	ADJUSTMENT PIN
88	324620-9	ADJUSTMENT SCREW FOR UC3020A
89	187088-8	CHAIN COVER COMPLETE UC3530A
90	187089-6	LEVER COMPLETE UC3530A-4030A
A01	419559-0	CHAIN PROTECTOR COVER
A02	158024-1	HOOK COMPLETE
A03	165200-0	GUIDE BAR 12
A04	837010-2	OIL ABSORBENT SHEET
A05	528092646	SAW CHAIN 12"
A06	196211-4	SAW CHAIN 12 SET
A07	196206-7	SAW CHAIN SET
A08	196442-5	SAW CHAIN SET

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita UC3030A

Available 6 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Makita UC3030A Parts Diagram

Download (584.02KB)
