Makita

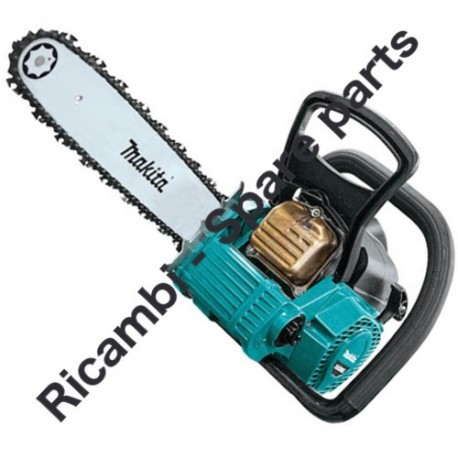

Makita Chainsaw EA3200S Parts

SKU: Makita EA3200S Condition: New
€2.84
VAT included

Makita Spare Parts for Chainsaw EA3100T

Makita genuine spare parts or replacement parts for to repair Chainsaw EA3200S.

Fix Your Chainsaw EA3200S. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 162 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
162 spare parts

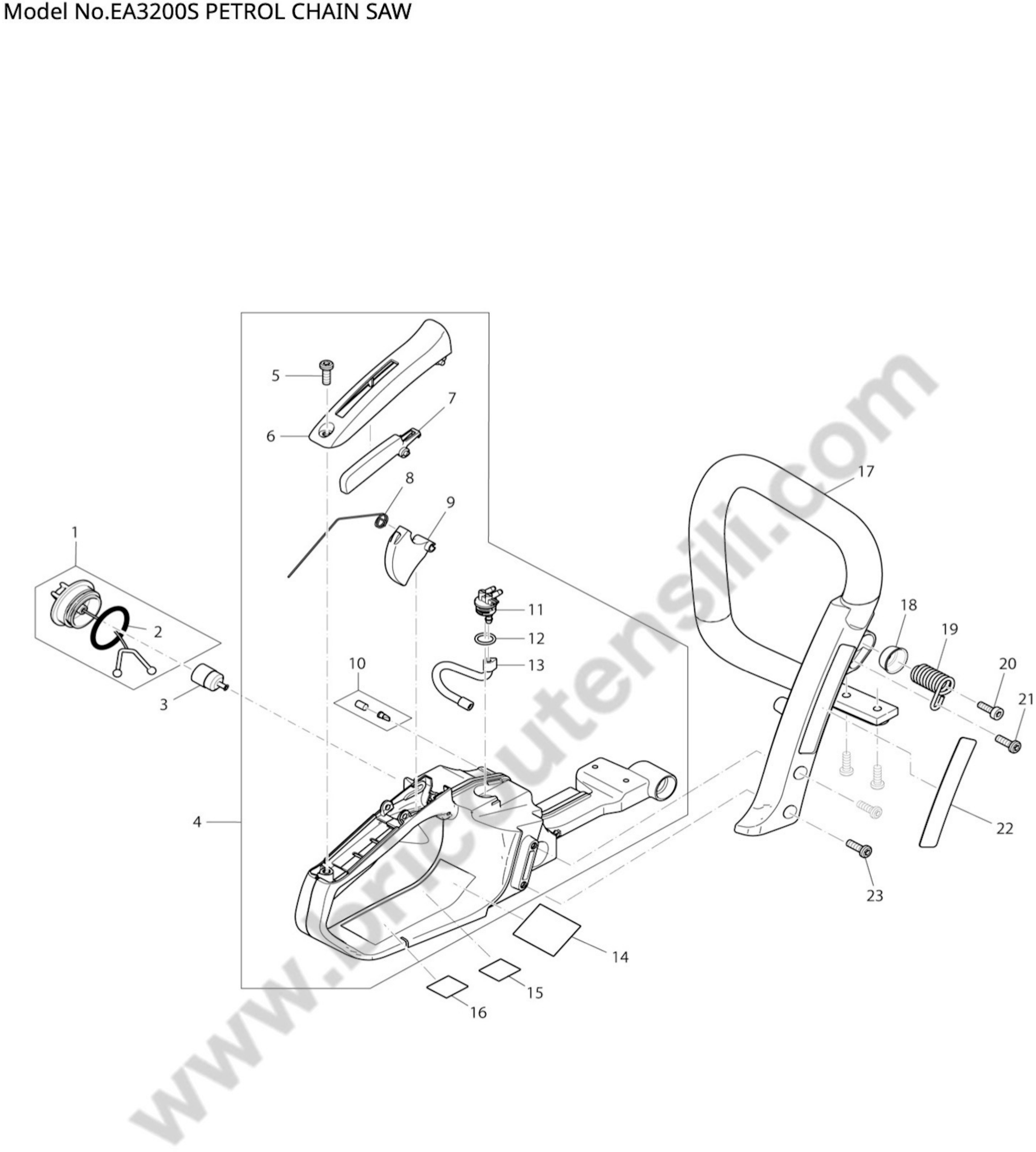

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 168823-3 TANK CAP PS32CTLC €2.73
2
 photo_cameraImage coming soon 213080-9 RING 29.5 PS32CTLC €5.43
3
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
4
 photo_cameraImage coming soon 195758-5 TANK CPL BLUE EA3201S35A €46.64
5
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
6
 photo_cameraImage coming soon 452021-2 COVER HANDLE PS32CTLC €2.15
7
 photo_cameraImage coming soon 452020-4 RELEASE LEVER PS32CTLC €1.40
8
 photo_cameraImage coming soon 231866-9 SPRING TORSION 10 PS32CTLC €1.43
9
 photo_cameraImage coming soon 452019-9 ACCELERATOR LEVER PS32CTLC €1.40
10
 photo_cameraImage coming soon 195762-4 BREATHER VALVE PS32CTLC €3.84
11
 photo_cameraImage coming soon 452018-1 FITTING CARCBURANTE PS32CTLC €1.43
12
 photo_cameraImage coming soon 213586-7 RING 11.5 PS32CTLC €1.43
13
 Fuel Hose for Chaisaws Makita EA3201S35A 424456-7 Fuel Hose for Chaisaws Makita EA3201S35A €16.31
17
 photo_cameraImage coming soon 452036-9 FRONT HANDLE PS32CTLC €32.07
18
 photo_cameraImage coming soon 346517-2 BELLEVILLE WASHER 6 PS32CTLC €1.40
19
 Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
20
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
21
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
23
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40

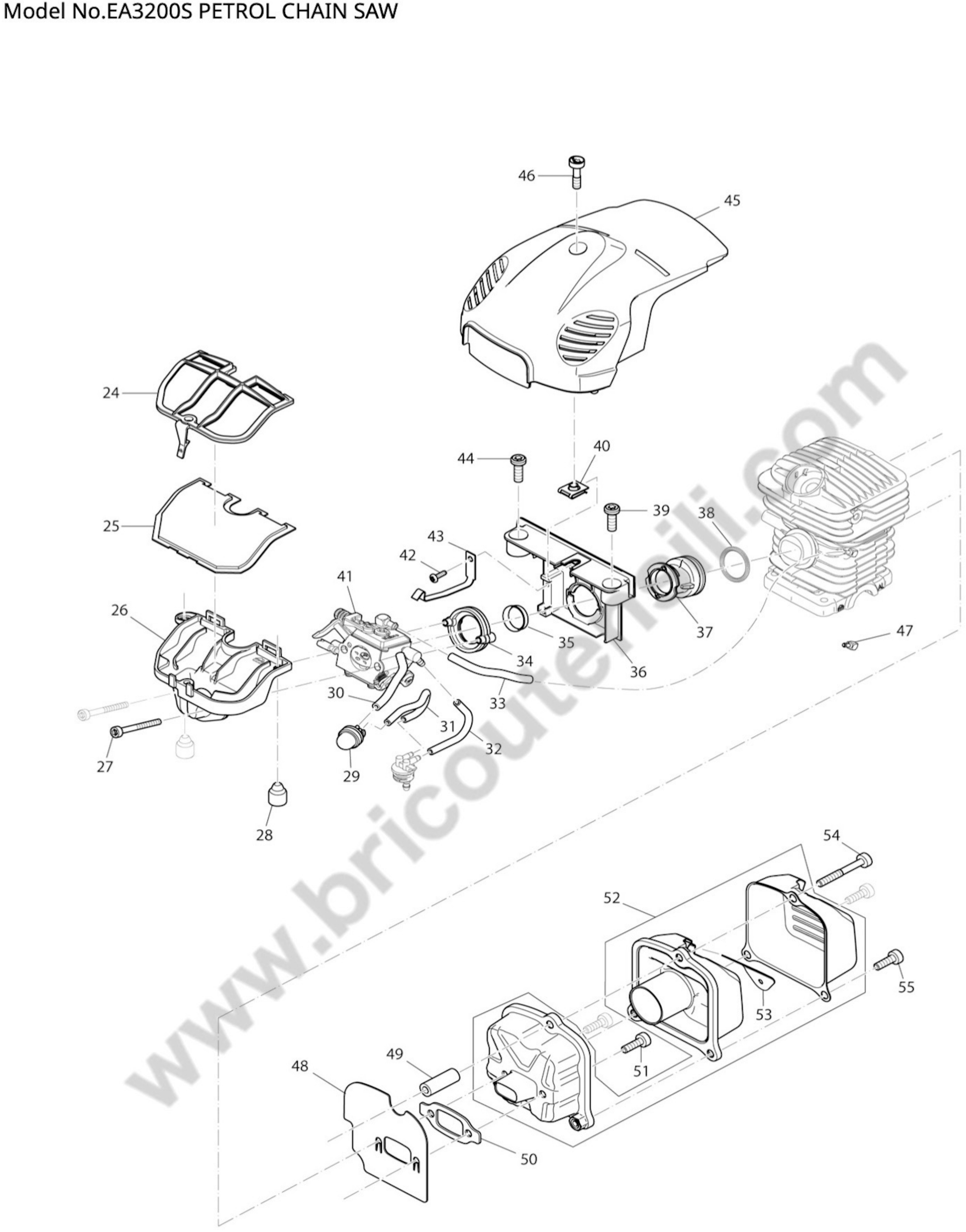

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
24
 photo_cameraImage coming soon 452031-9 FILTER COVER PS32CTLC €1.40
25
 Air Cleaner for Chaisaw Makita EA3201S35A 423414-0 Air Cleaner for Chaisaw Makita EA3201S35A €3.87
26
 photo_cameraImage coming soon 452030-1 PS32CTLC FUND €3.35
27
 photo_cameraImage coming soon 266604-0 SCREW M4X40 PS32CTLC €1.40
28
 Damper for Chainsaw Dolmar PS32CTLC 424173-9 Damper for Chainsaw Dolmar PS32CTLC €2.18
29
 Gasoline Primer Pump for Chainsaw Makita DCS230T 168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T €6.24
30
 photo_cameraImage coming soon 422067-2 PIPE 2,5X55 PS32CTLC €2.15
31
 photo_cameraImage coming soon 422065-6 PIPE 2,5X55 PS32CTLC €3.17
32
 photo_cameraImage coming soon 422068-0 PIPE 3x70 PS32CTLC €1.40
33
 photo_cameraImage coming soon 422066-4 PIPE 2,5X72 PS32CTLC €2.08
34
 photo_cameraImage coming soon 318634-8 FLANGE PS32CTLC €2.15
35
 photo_cameraImage coming soon 346413-4 SOCKET 17 PS32CTLC €1.47
36
 photo_cameraImage coming soon 452024-6 INTERMEDIATE FLANGE PS32CTLC €3.13
37
 photo_cameraImage coming soon 424340-6 SUCTION SLEEVE PS32CTLC €7.70
38
 photo_cameraImage coming soon 233971-8 CIRCLIP PS32CTLC €2.20
39
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
40
 photo_cameraImage coming soon 264044-6 PLATE M5 PS32CTLC €1.40
41
 photo_cameraImage coming soon 168849-5 CARBURETOR PS32CTLC €74.02
42
 photo_cameraImage coming soon 266421-8 SCREW 3PER10 HR2800 €1.40
43
 photo_cameraImage coming soon 346290-4 PS32CTLC CONTACT €1.40
44
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
45
 photo_cameraImage coming soon 452023-8 PS32CTLC COVER €4.43
46
 photo_cameraImage coming soon 266607-4 SCREW M5X20 PS32CTLC €1.43
47
 photo_cameraImage coming soon 325938-1 FITTING THE PS32CTLC €2.08
48
 photo_cameraImage coming soon 346306-5 INSULATING PLATE PS32CTLC €1.40
49
 photo_cameraImage coming soon 325939-9 PS32CTLC SOCKET €1.40
50
 photo_cameraImage coming soon 346304-9 SEAL MUFFLER PS32CTLC €1.43
51
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
52
 photo_cameraImage coming soon 168604-5 MUFFLER PS32CTLC €79.01
53
 photo_cameraImage coming soon 346294-6 DISC GUARD PS32CTLC €1.40
54
 photo_cameraImage coming soon 266606-6 SCREW M5X40 PS32CTLC €1.40
55
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43

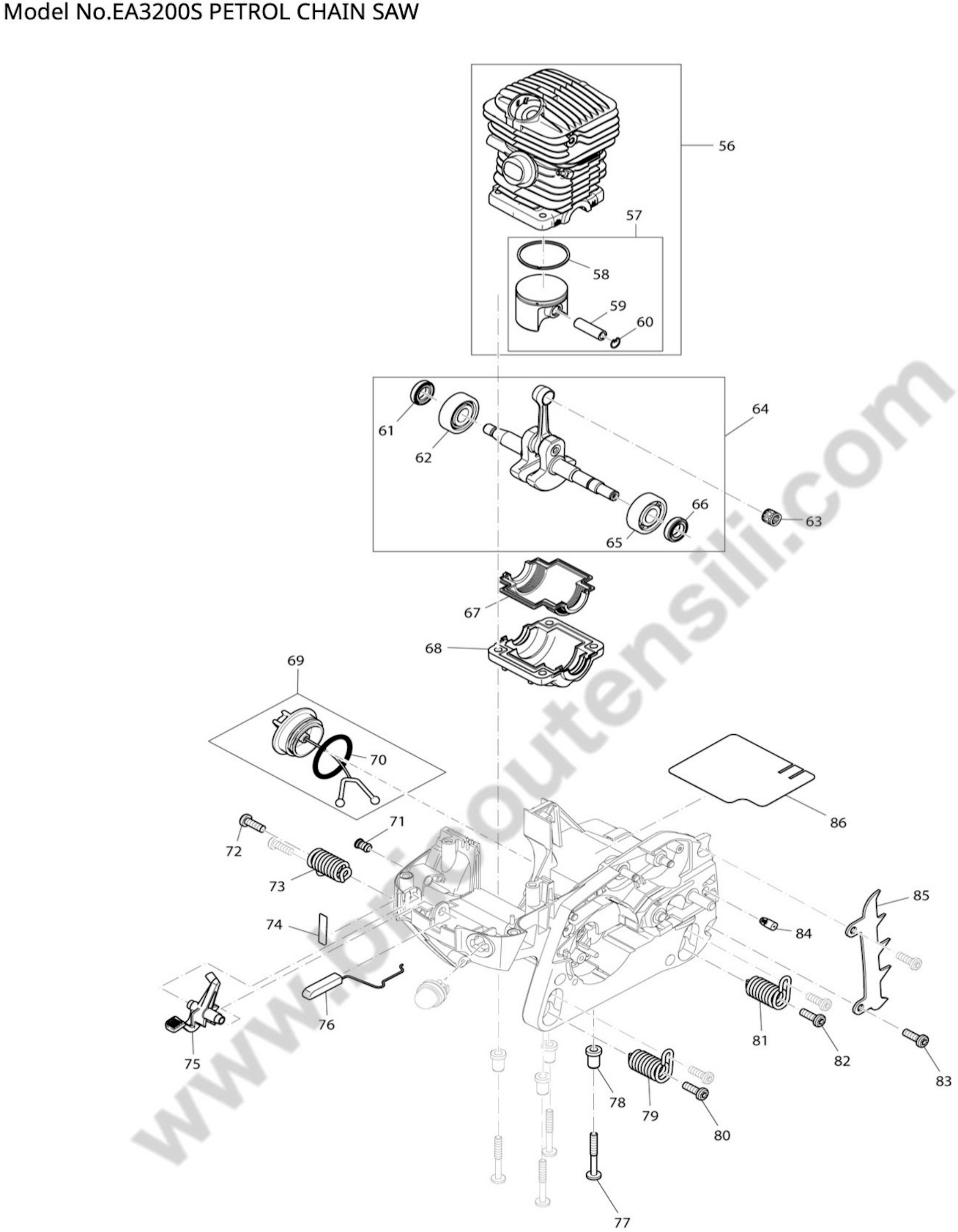

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
56
 photo_cameraImage coming soon 196384-3 CYLINDER PISTON SET PS32 €92.13
57
 Piston Set for Chainsaw Makita EA3201S 195760-8 Piston Set for Chainsaw Makita EA3201S €24.68
58
 photo_cameraImage coming soon 325991-7 PISTON RING 38 PS32CTLC €3.84
59
 photo_cameraImage coming soon 325992-5 PISTON PIN PS32CTLC €2.08
60
 photo_cameraImage coming soon 233988-1 RING PIN PS220CTLC €1.40
61
 photo_cameraImage coming soon 213084-1 OIL SEAL 12 PS32CTLC €2.08
62
 photo_cameraImage coming soon 211341-1 BEARING 6201 PS32CTLC €3.92
63
 photo_cameraImage coming soon 212086-4 CAGE ROLLER 810 PS32CTLC €8.67
64
 photo_cameraImage coming soon 197539-3 CRANKSHAFT PS32CTLC €61.62
65
 photo_cameraImage coming soon 211341-1 BEARING 6201 PS32CTLC €3.92
66
 photo_cameraImage coming soon 213084-1 OIL SEAL 12 PS32CTLC €2.08
67
 photo_cameraImage coming soon 424872-3 GASKET PS32CTLC €5.13
68
 photo_cameraImage coming soon 318633-0 COVER LOWER PS32CTLC €3.84
69
 photo_cameraImage coming soon 168823-3 TANK CAP PS32CTLC €2.73
70
 photo_cameraImage coming soon 213080-9 RING 29.5 PS32CTLC €5.43
71
 photo_cameraImage coming soon 452629-2 PS32CTLC VALVE €1.40
72
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
73
 Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
75
 photo_cameraImage coming soon 452025-4 LEVER AIR PS32CTLC €1.40
76
 photo_cameraImage coming soon 452022-0 LEVERAGE PS32CTLC €1.47
77
 photo_cameraImage coming soon 266608-2 SCREW 5x40 PS32CTLC €1.40
78
 photo_cameraImage coming soon 325946-2 SOCKET 6 PS32CTLC €1.40
79
 Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
80
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
81
 Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
82
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
83
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
84
 Venting Valve for Chainsaw Dolmar PS32CTLC 168504-9 Venting Valve for Chainsaw Dolmar PS32CTLC €3.70
85
 photo_cameraImage coming soon 346301-5 HARPOON PS32CTLC €2.12
86
 photo_cameraImage coming soon 346385-3 INSULATING PLATE PS32CTLC €3.84

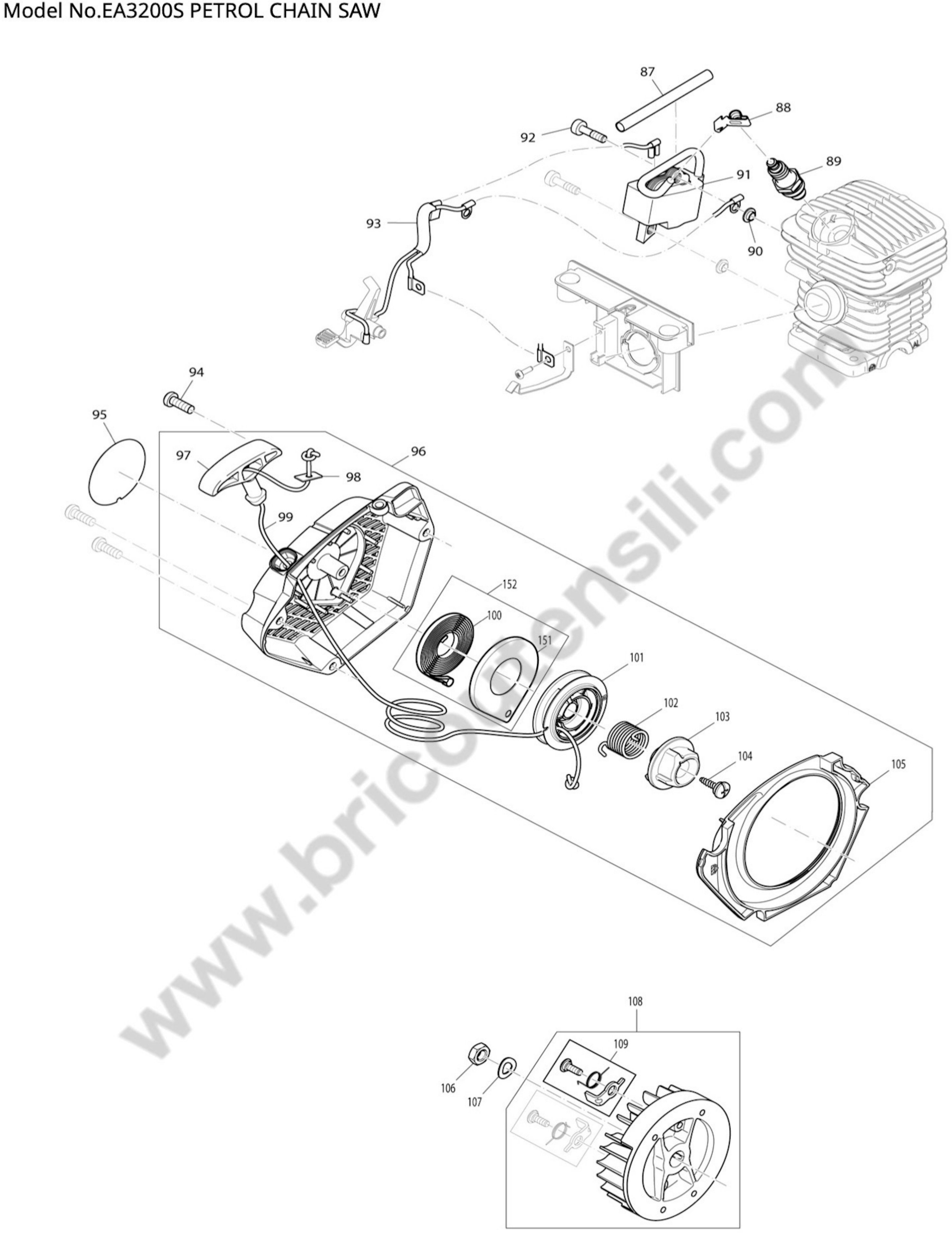

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
87
 photo_cameraImage coming soon 444029-0 ISOLATING TUBE 6-95 PS32 €1.40
88
 photo_cameraImage coming soon 346445-1 SPARK PLUG CONNECTOR PS32 €2.08
89
 photo_cameraImage coming soon 168599-2 SPARK PLUG NGK CMR7A-5 €9.89
90
 photo_cameraImage coming soon 452670-5 INSULATING WASHER PS32CTLC €1.40
91
 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A 126270-4 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A €55.00
92
 photo_cameraImage coming soon 266631-7 SCREW M5X20 PS32CTLC €1.40
93
 photo_cameraImage coming soon 168601-1 CABLES PS32CTLC €3.92
94
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
96
 photo_cameraImage coming soon 161328-2 STARTER ASS'Y BLUE EA3201S35A €39.02
97
 photo_cameraImage coming soon 453783-5 GRIP STARTING PS32CTLC €3.92
98
 photo_cameraImage coming soon 267847-7 WASHER QUADRA 4 PS32CTLC €1.40
99
 photo_cameraImage coming soon 444038-9 ROPE START PS32CTLC €2.08
100
 Makita Starter Spring for EA3200S35A 195955-3 Makita Starter Spring for EA3200S35A €11.07
101
 photo_cameraImage coming soon 455919-2 CABLE DRUM CPL. €6.06
102
 photo_cameraImage coming soon 234253-1 SPRING TORSION 20 PS32CTLC €2.69
103
 Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A 453786-9 Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A €4.63
104
 photo_cameraImage coming soon 266777-9 SCREW 5X1 PS32CTLC €1.40
105
 photo_cameraImage coming soon 452026-2 BAFFLE PS32CTLC €3.35
106
 photo_cameraImage coming soon 264053-5 NUT M8X1 PS32CTLC €1.40
107
 photo_cameraImage coming soon 267822-3 WASHER 8 PS32CTLC €1.47
108
 photo_cameraImage coming soon 140480-9 FLYWHEEL PS32CTLC €27.55
109
 Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A 195761-6 Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A €2.84
152
 Makita Starter Spring for EA3200S35A 195955-3 Makita Starter Spring for EA3200S35A €11.07

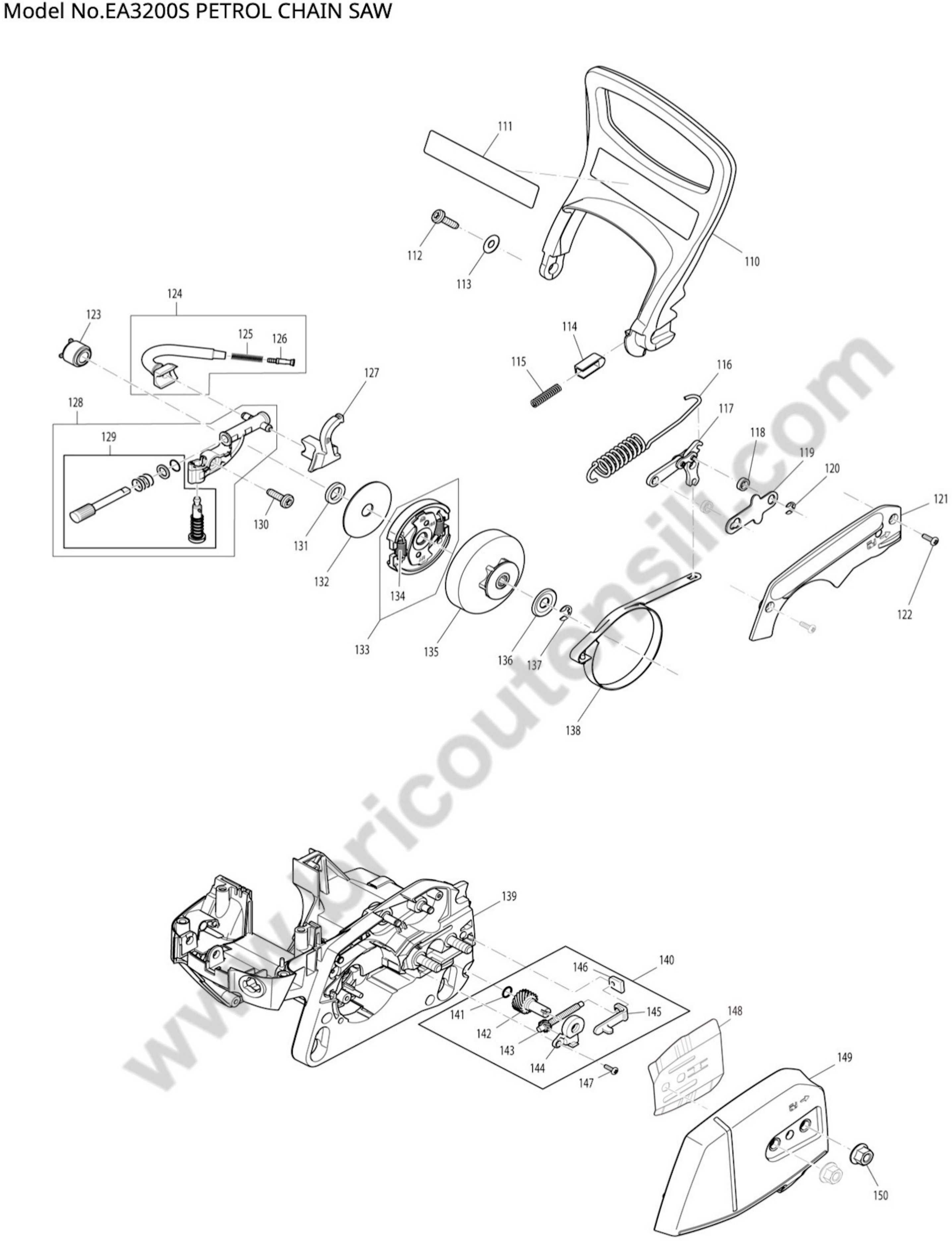

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
110
 Hand Guard for Petrol Chainsaw Makita EA3200S35A 452032-7 Hand Guard for Petrol Chainsaw Makita EA3200S35A €6.26
111
 Makita Label for Chainsaw Makita DCS230T 810075-9 Makita Label for Chainsaw Makita DCS230T €2.84
112
 photo_cameraImage coming soon 266627-8 SCREW 4,7X16 PS32CTLC €1.40
113
 photo_cameraImage coming soon 267066-5 FLAT WASHER 5 X6811DW €1.40
114
 photo_cameraImage coming soon 313212-9 PS32CTLC GUIDE €1.47
115
 photo_cameraImage coming soon 234210-9 SPRING COMPRESSION 6 PS32CTLC €1.47
116
 photo_cameraImage coming soon 231868-5 SPRING TENSION 10 PS32CTLC €2.08
117
 photo_cameraImage coming soon 163500-2 LEVERAGE PS32CTLC €21.54
118
 photo_cameraImage coming soon 325947-0 SOCKET 6 €1.40
119
 photo_cameraImage coming soon 346299-6 SPACER PS32CTLC €1.40
120
 photo_cameraImage coming soon 961011-9 RETAINING RING E4 €1.44
121
 photo_cameraImage coming soon 452033-5 PS32CTLC COVER €2.15
122
 photo_cameraImage coming soon 266421-8 SCREW 3PER10 HR2800 €1.40
123
 Worm Screw for Chainsaw Makita EA3201S35A 452035-1 Worm Screw for Chainsaw Makita EA3201S35A €5.30
124
 photo_cameraImage coming soon 168645-1 SUCTION HOSE PS32CTLC €6.06
125
 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A 234207-8 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A €1.32
126
 photo_cameraImage coming soon 452666-6 PLUG OIL PIPE PS32CTLC €1.32
127
 photo_cameraImage coming soon 424342-2 PIPE PS32CTLC €5.30
130
 photo_cameraImage coming soon 266627-8 SCREW 4,7X16 PS32CTLC €1.40
131
 photo_cameraImage coming soon 267430-0 WASHER 10 PS32CTLC €1.40
132
 photo_cameraImage coming soon 267431-8 WASHER 10 PS32CTLC €1.40
133
 photo_cameraImage coming soon 168607-9 CLUTCH PS32C-EA3201S €8.50
134
 photo_cameraImage coming soon 231873-2 SPRING TENSION 5 PS32CTLC €1.40
135
 photo_cameraImage coming soon 140980-9 CLUTCH DRUM ASSY PS32C - New Cod. 140A30-6 €18.84
136
 photo_cameraImage coming soon 267451-2 WASHER 8 PS32CTLC €1.40
137
 photo_cameraImage coming soon 259033-4 LOCKWASHER X UC €1.47
138
 photo_cameraImage coming soon 347363-6 BRAKE BAND €3.84
139
 photo_cameraImage coming soon 140A07-1 CLUTCH SIDE CASE EA3200S €32.73
140
 photo_cameraImage coming soon 199032-3 CHAIN ​​TENSIONER CPL €16.65
141
 photo_cameraImage coming soon 213594-8 RING 7 €1.40
142
 photo_cameraImage coming soon 227744-9 GEAR 18 €20.12
143
 photo_cameraImage coming soon 227743-1 GEAR 11 €22.84
144
 photo_cameraImage coming soon 452667-4 COVER €9.01
145
 photo_cameraImage coming soon 346300-7 SLEIGH €2.12
146
 photo_cameraImage coming soon 452668-2 TENSIONER PLATE EA3200S €1.43
147
 photo_cameraImage coming soon 266421-8 SCREW 3PER10 HR2800 €1.40
148
 Guide Plate for Chainsaw Dolmar PS32C/35 346518-0 Guide Plate for Chainsaw Dolmar PS32C/35 €6.23
149
 photo_cameraImage coming soon 452044-0 CARTER PINION €8.40
150
 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48

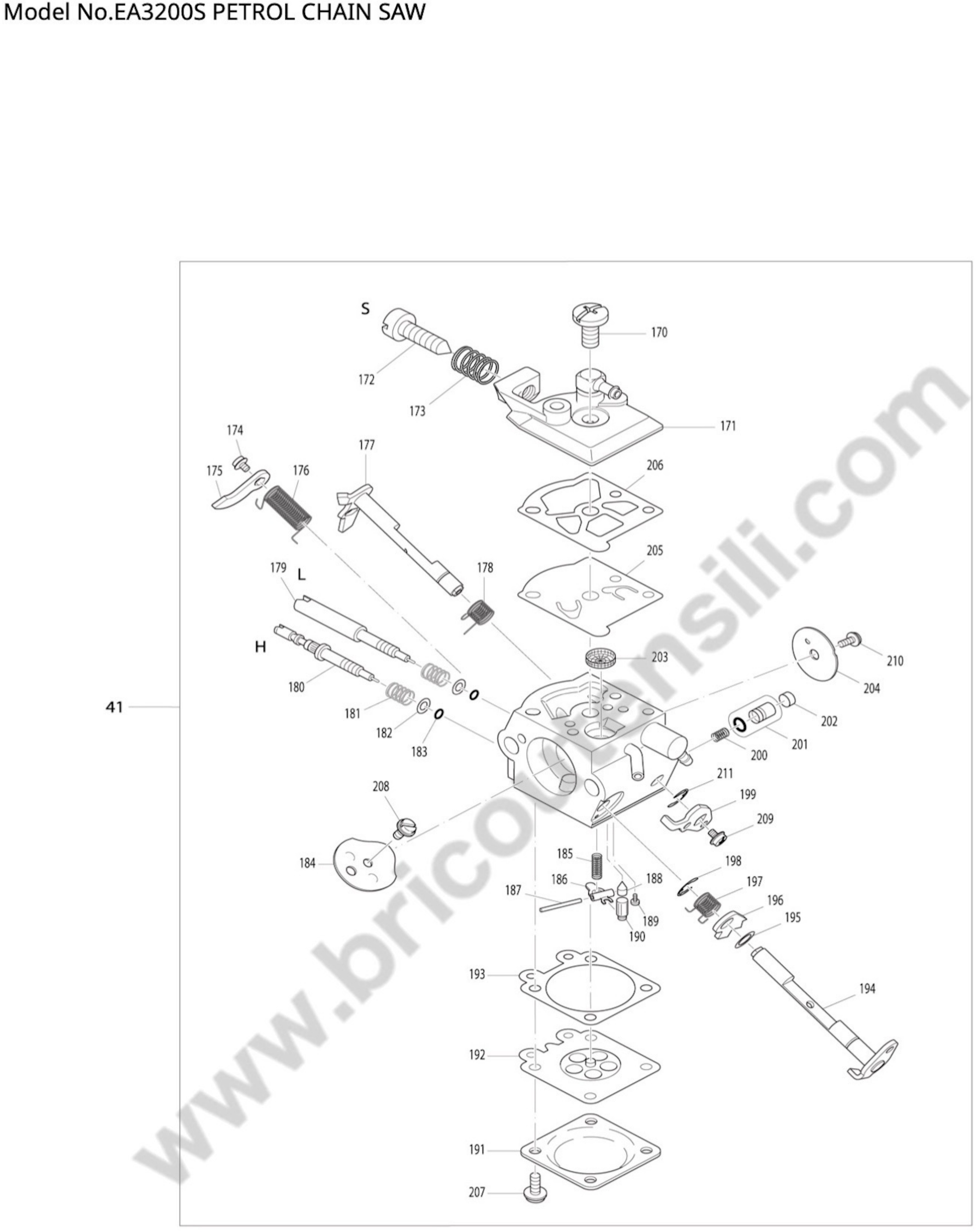

Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
170
 photo_cameraImage coming soon WJ00096166 PS32CTLC SCREW €2.77
171
 photo_cameraImage coming soon WJ00213750 PS32CTLC COVER €12.69
172
 photo_cameraImage coming soon WJ00096369 SCREW MINIMUM PS32CTLC €2.69
173
 photo_cameraImage coming soon WJ00098356 56 SPRING PS32CTLC €1.40
174
 photo_cameraImage coming soon WJ00096475 75 SCREW PS32CTLC €1.44
175
 photo_cameraImage coming soon WJ00183519 LEVER ACCELERATOR PS32CTLC €3.13
176
 photo_cameraImage coming soon WJ00983585 SPRING - PS32 €2.69
177
 photo_cameraImage coming soon WJ00223556 SHAFT ASSEMBLY THROTTLE PS32 €11.35
178
 photo_cameraImage coming soon WJ00098494 SPRING - PS32 €2.77
179
 photo_cameraImage coming soon WJ01023908 SCREW L PS32CTLC €11.07
180
 photo_cameraImage coming soon WJ01024001 SCREW H PS32CTLC €5.13
181
 photo_cameraImage coming soon WJ00098404 PS32CRLC SPRING €2.69
182
 photo_cameraImage coming soon WJ00136152 WASHER PS32CTLC €2.08
183
 photo_cameraImage coming soon WJ00016105 PS32CTLC RING €2.08
184
 photo_cameraImage coming soon WJ00062150 AIR VALVE PS32CTLC €3.84
185
 photo_cameraImage coming soon WJ00983270 PS32CTLC SPRING €2.08
186
 photo_cameraImage coming soon WJ00166114 PS32CTLC LEVER €2.69
187
 photo_cameraImage coming soon WJ00014477 PIN DCS230T €2.77
188
 photo_cameraImage coming soon WJ00008282 VALVE DCS230T €10.18
189
 photo_cameraImage coming soon WJ00963226 PS32CTLC SCREW €2.22
190
 photo_cameraImage coming soon WJ00088271 PIN PS32CTLC €2.69
191
 Cover-Metering Diaphragm for Chainsaw Makita DCS230T WJ00021158 Cover-Metering Diaphragm for Chainsaw Makita DCS230T €3.04
192
 photo_cameraImage coming soon ZJ00000013 DIAPHRAGM ASS'Y,METERING €12.69
193
 photo_cameraImage coming soon 442183-4 GASKET X RBL250-RBC225-25 €5.28
194
 photo_cameraImage coming soon WJ00223784 SHAFT THROTTLE PS32CTLC €16.65
195
 photo_cameraImage coming soon WJ00013690 WASHER PS32CTLC €1.40
196
 photo_cameraImage coming soon WJ00016682 PS32CTLC LEVER €3.13
197
 photo_cameraImage coming soon WJ00983584 PS32CTLC SPRING €3.13
198
 photo_cameraImage coming soon WJ00001673 RING RETAINING PS32CTLC €1.44
199
 photo_cameraImage coming soon WJ00183366 LEVER-THROTTLE - PS32 €4.43
200
 photo_cameraImage coming soon WJ00983164 PS32CRLC SPRING €2.69
201
 photo_cameraImage coming soon ZJ00000005 PLUNGER KIT €9.89
202
 photo_cameraImage coming soon WJ00088229 PS32CTLC CAP €1.44
203
 photo_cameraImage coming soon WJ00014070 INLET SCREEN DCS230T €2.97
204
 photo_cameraImage coming soon WJ00343439 PS32CTLC VALVE €3.84
205
 Upper Carburator Diaphram Gasket for Chainsaw Dolmar PS32CTLC WJ00009589 Upper Carburator Diaphram Gasket for Chainsaw Dolmar PS32CTLC €20.00
206
 Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC WJ00092225 Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC €3.87
207
 photo_cameraImage coming soon WJ00096589 PS32CTLC SCREW €2.77
208
 photo_cameraImage coming soon WJ00096475 75 SCREW PS32CTLC €1.44
209
 photo_cameraImage coming soon WJ00096475 75 SCREW PS32CTLC €1.44
210
 photo_cameraImage coming soon WJ00096475 75 SCREW PS32CTLC €1.44
211
 photo_cameraImage coming soon WJ00001673 RING RETAINING PS32CTLC €1.44
Page 7 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
A01
 Sprocket Bar 14” 35cm 043” for Electric Chainsaws Makita 165246-6 Sprocket Bar 14” 35cm 043” for Electric Chainsaws Makita €29.60
A03
 photo_cameraImage coming soon 511291752 CHAIN BAR 35 CM €32.12
A05
 photo_cameraImage coming soon 782026-1 UNIVERSAL WRENCH €5.16

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Chain Saw EA3200S

Fix Your Chainsaw EA3200S. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
Makita EA3200S

MAKITA EA3200S PETROL CHAIN SAW Spare Parts List
Pag.1
# Part Num Description
1 168823-3 TANK CAP PS32CTLC
2 213080-9 RING 29.5 PS32CTLC
3 163447-0 FUEL FILTER FOR DCS230T
4 195758-5 TANK CPL BLUE EA3201S35A
5 266651-1 SCREW 5.5X16 PS32CTLC
6 452021-2 GRIP COVER PS32CTLC
7 452020-4 RELEASE LEVER PS32CTLC
8 231866-9 TORSION SPRING 10 PS32CTLC
9 452019-9 ACCELERATOR LEVER PS32CTLC
10 195762-4 BREATHER VALVE PS32CTLC
11 452018-1 FUEL CONNECTOR PS32CTLC
12 213586-7 RING 11.5 PS32CTLC
13 424456-7 FUEL PIPE PS32CTLC
14 869077-2
17 452036-9 FRONT HANDLE PS32CTLC
18 346517-2 CUP WASHER 6 PS32CTLC
19 234189-4 COMPRESSION SPRING 12 PS32CTLC
20 266605-8 SCREW M5X16 PS32CTLC
21 266651-1 SCREW 5.5X16 PS32CTLC
22 891898-4
23 266651-1 SCREW 5.5X16 PS32CTLC
Pag.2
24 452031-9 FILTER COVER PS32CTLC
25 423414-0 AIR FILTER PS32CTLC
26 452030-1 BOTTOM PS32CTLC
27 266604-0 SCREW M4X40 PS32CTLC
28 424173-9 SHOCK ABSORBER PS32CTLC
29 168398-2 PRIMING PUMP FOR DCS230T
30 422067-2 PIPE 2.5X55 PS32CTLC
31 422065-6 PIPE 2.5X55 PS32CTLC
32 422068-0 PIPE 3X70 PS32CTLC
33 422066-4 PIPE 2.5X72 PS32CTLC
34 318634-8 FLANGE PS32CTLC
35 346413-4 BUSH 17 PS32CTLC
36 452024-6 INTERMEDIATE FLANGE PS32CTLC
37 424340-6 INTAKE SLEEVE PS32CTLC
38 233971-8 CIRCUIT RING PS32CTLC
39 266651-1 SCREW 5.5X16 PS32CTLC
40 264044-6 PLATE M5 PS32CTLC
41 168849-5 CARBURETOR PS32CTLC
42 266421-8 SCREW 3X10 HR2800
43 346290-4 CONTACT PS32CTLC
44 266651-1 SCREW 5.5X16 PS32CTLC
45 452023-8 COVER PS32CTLC
46 266607-4 SCREW M5X20 PS32CTLC
47 325938-1 CONNECTOR L PS32CTLC
48 346306-5 INSULATION PLATE PS32CTLC
49 325939-9 BUSH PS32CTLC
50 346304-9 MUFFLER GASKET PS32CTLC
51 266605-8 SCREW M5X16 PS32CTLC
52 168604-5 MUFFLER PS32CTLC
53 346294-6 SPARK GUARD PS32CTLC
54 266606-6 SCREW M5X40 PS32CTLC
55 266605-8 SCREW M5X16 PS32CTLC
Pag.3
56 196384-3 CYLINDER AND PISTON PS32CTLC
57 195760-8 PISTON CPL PS32CTLC
58 325991-7 PISTON RING 38 PS32CTLC
59 325992-5 PISTON PIN PS32CTLC
60 233988-1 PIN RING PS220CTLC
61 213084-1 OIL SEAL 12 PS32CTLC
62 211341-1 BEARING 6201 PS32CTLC
63 212086-4 ROLLER CAGE 810 PS32CTLC
64 197539-3 CRANKSHAFT PS32CTLC
65 211341-1 BEARING 6201 PS32CTLC
66 213084-1 OIL SEAL 12 PS32CTLC
67 424872-3 GASKET PS32CTLC
68 318633-0 LOWER COVER PS32CTLC
69 168823-3 TANK CAP PS32CTLC
70 213080-9 RING 29.5 PS32CTLC
71 452629-2 VALVE PS32CTLC
72 266651-1 SCREW 5.5X16 PS32CTLC
73 234189-4 COMPRESSION SPRING 12 PS32CTLC
74 816917-5
75 452025-4 AIR LEVER PS32CTLC
76 452022-0 LEVERAGE PS32CTLC
77 266608-2 SCREW 5X40 PS32CTLC
78 325946-2 SOCKET 6 PS32CTLC
79 234189-4 COMPRESSION SPRING 12 PS32CTLC
80 266651-1 SCREW 5.5X16 PS32CTLC
81 234189-4 COMPRESSION SPRING 12 PS32CTLC
82 266651-1 SCREW 5.5X16 PS32CTLC
83 266651-1 SCREW 5.5X16 PS32CTLC
84 168504-9 VENT VALVE PS32CTLC
85 346301-5 HORN PS32CTLC
86 346385-3 INSULATION PLATE PS32CTLC
Pag.4
87 444029-0 INSULATING TUBE
88 346445-1 SPARK PLUG CONTACT
89 168599-2 CMR7A-5 SPARK PLUG
90 452670-5 INSULATING WASHER
91 126270-4 COIL
92 266631-7 M5X20 SCREW
93 168601-1 CABLES
94 266651-1 5.5X16 SCREW
95 891900-3
96 161328-2 EA3201S35A BLUE CPL STARTER
97 453783-5 STARTER KNOBS
98 267847-7 SQUARE WASHER 4
99 444038-9 STARTER ROPE
100 195955-3 REWIND SPRING
101 455919-2 STARTER SPOOL
102 234253-1 TORSION SPRING 20
103 453786-9 CAM
104 266777-9 5X12 SCREW
105 452026-2 DEFLECTOR
106 264053-5 M8X1 NUT
107 267822-3 SPRING WASHER 8 PS32CTLC
108 140480-9 FLYWHEEL PS32CTLC
109 195761-6 STARTER PAWL PS32CTLC
151 453784-3 SPRING COVER PS32CTLC
152 195955-3 REWIND SPRING PS32CTLC
Pag.5
110 452032-7 HAND PROTECTION PS32CTLC
111 810075-9 SAFETY LABEL FOR DCS230T
112 266627-8 SCREW 4.7X16 PS32CTLC
113 267066-5 FLAT WASHER 5 X6811DW
114 313212-9 GUIDE PS32CTLC
115 234210-9 COMPRESSION SPRING 6 PS32CTLC
116 231868-5 TENSION SPRING 10 PS32CTLC
117 163500-2 LEVER PS32CTLC
118 325947-0 BUSH 6
119 346299-6 SPACER PS32CTLC
120 961011-9 RETAINING RING E4
121 452033-5 COVER PS32CTLC
122 266421-8 SCREW 3X10 HR2800
123 452035-1 WORM SCREW PS32CTLC
124 168645-1 SUCTION PIPE PS32CTLC
125 234207-8 COMPRESSION SPRING 6 PS32CTLC
126 452666-6 OIL PIPE CAP PS32CTLC
127 424342-2 DElivery PIPE PS32CTLC
128 161346-0 OIL PUMP PS32C - EA3201S
129 161346-0 OIL PUMP PS32C - EA3201S
130 266627-8 SCREW 4.7X16 PS32CTLC
131 267430-0 WASHER 10 PS32CTLC
132 267431-8 WASHER 10 PS32CTLC
133 168607-9 CLUTCH PS32C-EA3201S
134 231873-2 TENSION SPRING 5 PS32CTLC
135 140980-9 CLUTCH DRUM ASSY PS32C
136 267451-2 WASHER 8 PS32CTLC
137 259033-4 SAFETY WASHER X UC
138 347363-6 BRAKE SPRING
139 140A07-1 CLUTCH SIDE CASE EA3200S
140 199032-3 CHAIN ​​TENSIONER CPL
141 213594-8 RING 7
142 227744-9 GEAR 18
143 227743-1 SCREW FOR CHAIN ​​TENSIONER 11
144 452667-4 COVER
145 346300-7 SLIDE
146 452668-2 CHAIN ​​TENSIONER PLATE EA3200S
147 266421-8 SCREW 3X10 HR2800
148 346518-0 GUIDE PLATE PS32CTLC
149 452044-0 PINION CASE
150 264055-1 NUT M8
Pag.6
170 WJ00096166 SCREW PS32CTLC
171 WJ00213750 COVER PS32CTLC
172 WJ00096369 IDLE SCREW PS32CTLC
173 WJ00098356 SPRING PS32CTLC
174 WJ00096475 SCREW PS32CTLC
175 WJ00183519 THROTTLE LEVER PS32CTLC
176 WJ00983585 SPRING PS32CTLC
177 WJ00223556 THROTTLE VALVE PS32CTLC
178 WJ00098494 SPRING PS32CTLC
179 WJ01023908 SCREW L PS32CTLC
180 WJ01024001 SCREW H PS32CTLC
181 WJ00098404 SPRING PS32CRLC
182 WJ00136152 WASHER PS32CTLC
183 WJ00016105 RING PS32CTLC
184 WJ00062150 CHOKE VALVE PS32CTLC
185 WJ00983270 SPRING PS32CTLC
186 WJ00166114 LEVER PS32CTLC
187 WJ00014477 PIN FOR DCS230T
188 WJ00008282 VALVE FOR DCS230T
189 WJ00963226 SCREW PS32CTLC
190 WJ00088271 PIVOT PS32CTLC
191 WJ00021158 COVER FOR DCS230T
192 ZJ00000013 DIAPHRAGM
193 442183-4 SEAL FOR RBL250-RBC225-25
194 WJ00223784 THROTTLE SHAFT PS32CTLC
195 WJ00013690 WASHER PS32CTLC
196 WJ00016682 LEVER PS32CTLC
197 WJ00983584 SPRING PS32CTLC
198 WJ00001673 RETAINING RING PS32CTLC
199 WJ00183366 LEVER PS32CTLC
200 WJ00983164 SPRING PS32CRLC
201 ZJ00000005 CARBURETOR PUMP
202 WJ00088229 PLUG PS32CTLC
203 WJ00014070 CARBURETOR FILTER FOR DCS230T
204 WJ00343439 VALVE PS32CTLC
205 WJ00009589 PUMP DIAPHRAGM PS32CTLC
206 WJ00092225 GASKET PS32CTLC
207 WJ00096589 SCREW PS32CTLC
208 WJ00096475 SCREW PS32CTLC
209 WJ00096475 SCREW PS32CTLC
210 WJ00096475 SCREW PS32CTLC
211 WJ00001673 RETAINING RING PS32CTLC
Pag.7
A01 165246-6 GUIDE BAR 14
A02 419559-0 CHAIN PROTECTION COVER 330
A03 511291752 SAW CHAIN 3/8LP 0.43" L52 CC D
A04 196741-5 SAW CHAIN SET
A05 782026-1 UNIVERSAL WRENCH 13/16
A06 783012-5 SCREWDRIVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EA3200S
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita EA3200S Parts Diagram

Makita EA3200S Parts Diagram

Download (1.32MB)

You might also like

Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A
Makita SKU: 453786-9
Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A
Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A Genuine replacement part Makita, Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the...
on 7/10 Business Days Approx. €4.63
Details
Guide Plate for Chainsaw Dolmar PS32C/35
Makita SKU: 346518-0
Guide Plate for Chainsaw Dolmar PS32C/35
Guide Plate for Chainsaw Dolmar PS32C/35 Genuine parts Dolmar, Guide Plate for Chainsaw PS32C/35 - Chainsaw 33CC 35CM-1,1MM - PS35C/40 - Chainsaw 35CC 40CM - Makita EA3200S40B - EA3201S35A -EA3500S40B Part for the following products:...
AVAILABLE €6.23
Details
Fuel Hose for Chaisaws Makita EA3201S35A
Makita SKU: 424456-7
Fuel Hose for Chaisaws Makita EA3201S35A
Fuel Hose for Chaisaws Makita EA3201S35A Genuine parts Makita, Fuel Hose for Chaisaws Makita EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC Parts for the following products: - EA3200S35A - CHAISAW 33CC 35CM MAKITA -...
AVAILABLE €16.31
Details
Air Cleaner for Chaisaw Makita EA3201S35A
Makita SKU: 423414-0
Air Cleaner for Chaisaw Makita EA3201S35A
Air Cleaner for Chaisaw Makita EA3201S35A Genuine parts Makita, Air Cleaner for Chaisaws Makita EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC Parts for the following products: - EA3200S35A - CHAISAW 33CC 35CM...
AVAILABLE €3.87
Details
Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Makita SKU: WJ00092225
Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC Genuine part Dolmar, Upper Carburator Cover Gasket for Chainsaws Dolmar PS32CTLC - PS32C/35 - Makita  EA3200S40B - EA3201S35A Part for the following products: - PS32C/35 -...
AVAILABLE €3.87
Details
Gasoline Primer Pump for Chainsaw Makita DCS230T
Makita SKU: 168398-2
Gasoline Primer Pump for Chainsaw Makita DCS230T
Gasoline Primer Pump for Chainsaw Makita DCS230T Genuine parts for Makita, Gasoline Primer Pump for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA...
AVAILABLE €6.24
Details
Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following...
Last items in stock €4.49
Details
Makita Label for Chainsaw Makita DCS230T
Makita SKU: 810075-9
Makita Label for Chainsaw Makita DCS230T
Makita Label for Chainsaw Makita DCS230T Genuine parts for Makita, Makita Label for Chainsaws DCS230T - EA3200S35A - EA3201S35A Part for the following products: - Chainsaw Makita DCS230T -...
AVAILABLE €2.84
Details
Piston for Brushcutter Makita RBC310
Makita SKU: 5312500601
Piston for Brushcutter Makita RBC310
Piston for Brushcutter Makita RBC310 Genuine spare part Makita, Piston for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C - RBC3200 Part for...
AVAILABLE €56.71
Details
Piston Pin for Brushcutter Makita RBC310
Makita SKU: 5312500400
Piston Pin for Brushcutter Makita RBC310
Piston Pin for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Pin for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C - RBC3200 Part...
AVAILABLE €3.08
Details
Piston Ring for Brushcutter Makita RBC310
Makita SKU: 5982500200
Piston Ring for Brushcutter Makita RBC310
Piston Ring for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Ring for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...
AVAILABLE €6.19
Details
Piston Pin Circlip for Brushcutter Makita RBC310
Makita SKU: 233976-8
Piston Pin Circlip for Brushcutter Makita RBC310
Piston Pin Circlip for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Pin Circlip for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...
AVAILABLE €6.01
Details
Cylinder Gasket for Brushcutter Makita RBC310
Makita SKU: 5311500301
Cylinder Gasket for Brushcutter Makita RBC310
Cylinder Gasket for Brushcutter Makita RBC310 Genuine spare part Makita, Cylinder Gasket for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...
Last items in stock €3.08
Details
Insulator Gasket for Brushcutter Makita RBC310
Makita SKU: 5313502300
Insulator Gasket for Brushcutter Makita RBC310
Insulator Gasket for Brushcutter Makita RBC310 Genuine spare part Makita, Insulator Gasket for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 -...
Last items in stock €3.86
Details
Muffler Gasket for Brushcutter Makita RBC310
Makita SKU: 5313500600
Muffler Gasket for Brushcutter Makita RBC310
Muffler Gasket for Brushcutter Makita RBC310 Genuine spare part Makita, Muffler Gasket for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 -...
AVAILABLE €3.08
Details
Venting Valve for Chainsaw Dolmar PS32CTLC
Makita SKU: 168504-9
Venting Valve for Chainsaw Dolmar PS32CTLC
Venting Valve for Chainsaw Dolmar PS32CTLC Genuine part Dolmar, Venting Valve for Chainsaws Dolmar PS32CTLC - PS32C/35 - PS3400TH - PS350C - PS420C - PS460 - PS4605...
on 7/10 Business Days Approx €3.70
Details
Worm Screw for Chainsaw Makita EA3201S35A
Makita SKU: 452035-1
Worm Screw for Chainsaw Makita EA3201S35A
Worm Screw for Chainsaw Makita EA3201S35A Genuine part Makita, Worm Screw for Chainsaws Makita EA3201S35A - EA3200S40B - EA3500S40B - Dollmar PS32C/35 - PS32CTLC - PS35C/40. Part for the following products: - EA3201S35A - CHAINSAW...
Usually Ships in: 7/10 Business Days Approx. €5.30
Details
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Details
Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A
Makita SKU: 195761-6
Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A
Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A Genuine replacement part Makita, Starter Pawl PS32CTLC for Chainsaws Makita EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the following products: - EA3200S40B...
AVAILABLE €2.84
Details
Fuel Tank for Brushcutter Makita RBC3110
Makita SKU: 5316503700
Fuel Tank for Brushcutter Makita RBC3110
Fuel Tank for Brushcutter Makita RBC3110 Genuine replacement part Makita, Fuel Tank for Backpack Brushcutters RBC3110 - Dolmar MS3212. Part for the following products: -  RBC3110 -...
Last items in stock €21.00
Details
Carburator Walbro for Brushcutter Dolmar MS3201C
Makita SKU: 5316021000
Carburator Walbro for Brushcutter Dolmar MS3201C
Carburator Walbro for Brushcutter Dolmar MS3201C Genuine part Dolmar, Carburator Walbro for Brushcutter MS3201C - MS3210 - MS3212 - Makita RBC3110 - RBC3210 - RBC320. Part for the following products: - MS2810 - BRUSHCUTTER 27,2CC...
Last items in stock €77.43
Details
Cylinder for Brushcutter Makita RBC310
Makita SKU: 319255-9
Cylinder for Brushcutter Makita RBC310
Cylinder for Brushcutter Makita RBC310 Genuine spare part Makita, Cylinder for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C - RBC3200 Part for the following products: -  RBC321 - BRUSHCUTTER...
on 7/10 Business Days Approx €124.30
Details
Air Cleaner Element for Brushcutter Makita RBC2510
Makita SKU: 443167-5
Air Cleaner Element for Brushcutter Makita RBC2510
Air Cleaner Element for Brushcutter Makita RBC2510 Genuine part Makita, Air Cleaner Sponge Element for Brushcutters RBC2510 - RBC225-255 - MS2501 - MS2810. Part for the following products: - MS254C...
AVAILABLE €3.03
Details
Clamp Washer for Brushcutter Makita RBC310
Makita SKU: 6258500001
Clamp Washer for Brushcutter Makita RBC310
Clamp Washer for Brushcutter Makita RBC310 Genuine spare part Makita, Clamp Washer for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321. Part for the following products:...
on 7/10 Business Days Approx €25.23
Details
Insulator Ass'y for Brushcutter Makita RBC3110
Makita SKU: 5313021002
Insulator Ass'y for Brushcutter Makita RBC3110
Insulator Ass'y for Brushcutter Makita RBC3110 Genuine spare part Makita, Insulator Ass'y for Brushcutters RBC3110 - RBC3212. Part for the following products: -  RBC3110 - BRUSHCUTTER 30,5CC MAKITA...
Last items in stock €7.51
Details
Cutter Shaft Set for Brushcutter Makita RBC3110
Makita SKU: 6273013000
Cutter Shaft Set for Brushcutter Makita RBC3110
Cutter Shaft Set for Brushcutter Makita RBC3110 Genuine spare part Makita, Cutter Shaft Gear Set for Brushcutters RBC3110 - RBC3212. Part for the following products: -  RBC3110 - BRUSHCUTTER 30,5CC MAKITA -  MS3212 - BRUSHCUTTER...
on 7/10 Business Days Approx €45.74
Details
Piston Set for Chainsaw Makita EA3201S
Makita SKU: 195760-8
Piston Set for Chainsaw Makita EA3201S
Piston Set for Chainsaw Makita EA3201S Genuine replacement part Makita, Piston Set for Chainsaw Makita  EA3201S - EA3200S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the following...
Last items in stock €24.68
Details
Cover-Metering Diaphragm for Chainsaw Makita DCS230T
Makita SKU: WJ00021158
Cover-Metering Diaphragm for Chainsaw Makita DCS230T
Cover-Metering Diaphragm for Chainsaw Makita DCS230T Genuine part Makita, Cover-Metering Diaphragm for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: -  DCS231T - CHAINSAW...
on 7/10 Business Days Approx €3.04
Details
Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45
Makita SKU: 264055-1
Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45
Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 Genuine replacement part Dolmar, Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 - PS350C/40 - PS7310/50 - Makita EA7900P50E - EA3500S40B. Part for the...
on 7/10 Business Days Approx €1.48
Details
Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A
Makita SKU: 234207-8
Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A
Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A Genuine spare part Makita, Compression Spring 6 for oil suction line for Petrol Chainsaw Makita EA3200S35A - EA3500S35B - EA3201S35A - Dolmar PS32C/40. Part for the following...
AVAILABLE €1.32
Details
Hand Guard for Petrol Chainsaw Makita EA3200S35A
Makita SKU: 452032-7
Hand Guard for Petrol Chainsaw Makita EA3200S35A
Hand Guard for Petrol Chainsaw Makita EA3200S35A Genuine spare part Makita, Hand Guard for Petrol Chainsaw Makita EA3200S35A - EA3500S35B - EA3201S35A - Dolmar PS32C/40. Part for the following products: -  Chainsaw Makita EA3200S35A...
Last items in stock €6.26
Details
Carburetor Ass'y for Chainsaw Makita EA3100T
Makita SKU: MR00285643
Carburetor Ass'y for Chainsaw Makita EA3100T
Carburetor Ass'y for Chainsaw Makita EA3100T Genuine part Makita, Carburetor Ass'y Walbro - Maruyama, for Chainsaws EA3100T - EA3110T25B - Dolmar PS311TH Part for the following products: - ...
on 7/10 Business Days Approx €140.09
Details
Worm Screw for Chainsaw Makita EA3100T
Makita SKU: MR00286303
Worm Screw for Chainsaw Makita EA3100T
Worm Screw for Chainsaw Makita EA3100T Genuine part Makita, Oil Pump Maruyama Worm Screw, for Chainsaws EA3100T - EA3110T25B - Dolmar PS311TH Part for the following products: -  EA3110T25B -...
Usually Ships in: 7/10 Business Days Approx. €56.65
Details
Makita EA3100T Fuel Cap Ass'y
Makita SKU: MR00286051
Makita EA3100T Fuel Cap Ass'y
Makita EA3100T Fuel Cap Ass'y Genuine part Makita, Fuel Cap Ass'y for Chainsaws EA3100T - EA3110T25B - Dolmar PS311TH Part for the following products: -  EA3110T25B - CHAINSAW 30,1CC...
on 7/10 Business Days Approx €10.19
Details
Makita EA3100T Recoil Starter Assy
Makita SKU: MR00288396
Makita EA3100T Recoil Starter Assy
Makita EA3100T Recoil Starter Ass'y Genuine part Makita, Recoil Starter Ass'y for Chainsaws EA3100T - EA3110T25B. Part for the following products: -  EA3110T25B - CHAINSAW 30,1CC 25CM MAKITA -  EA3100T...
Usually Ships in: 7/10 Business Days Approx. €94.94
Details
Comments (0)
