Makita Spare Parts for Chainsaw DCS4630

We are MAKITA original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Chainsaw DCS4630.

214 spare parts

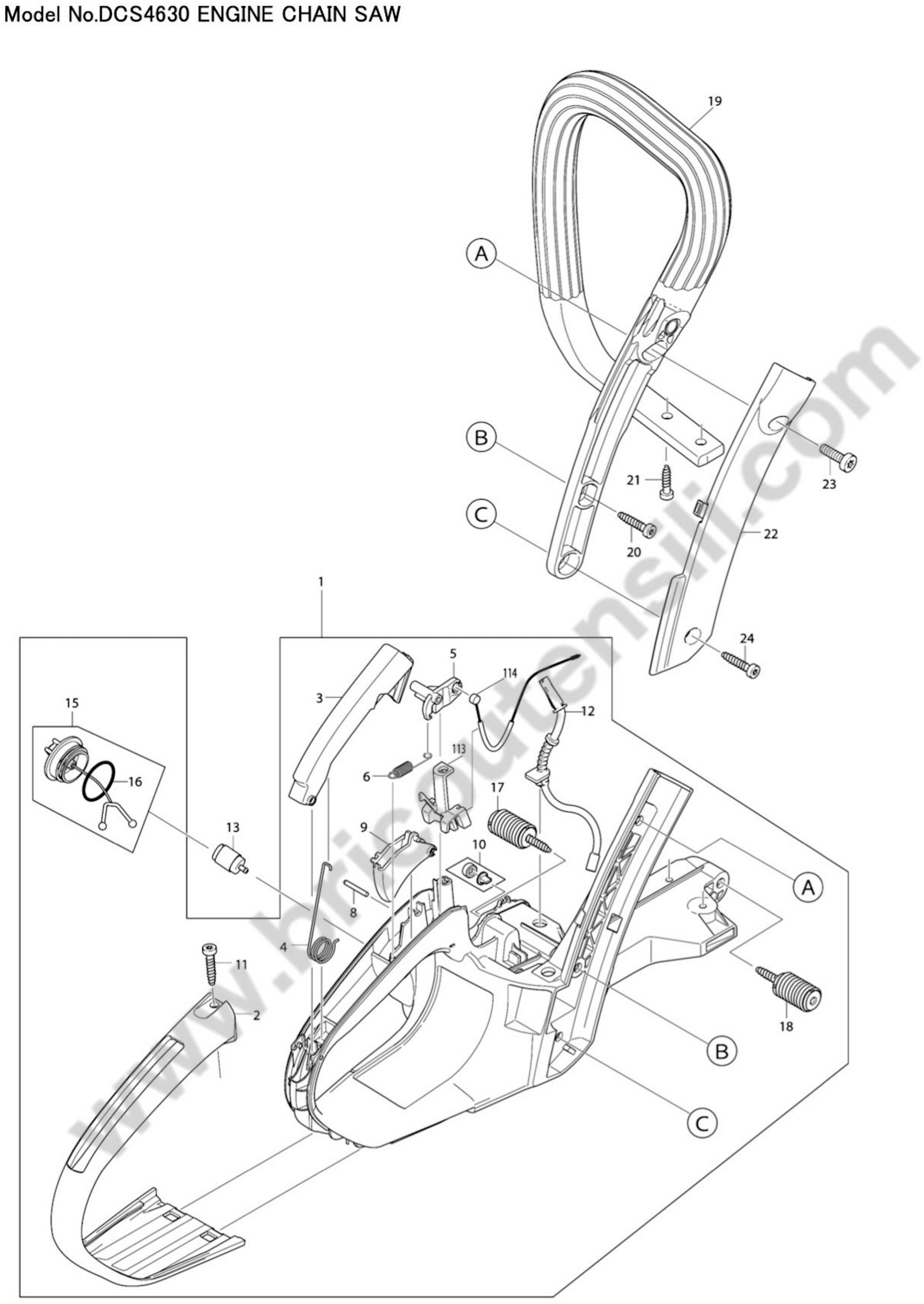

Page 1 View exploded Usually Ships in 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
C10		010114020 Makita EK8100WS Repair Kit Filter	€39.14
1	Image coming soon	181114605 BLUE TANK	€193.46
2	Image coming soon	181117050 REAR HANDLE DCS4600S / 5000	€17.65
2-1	Image coming soon	450851-5 GRIP OUTER SHELL	€0.12	Not available for order
3	Image coming soon	181117132 CATCH LEVER PS4605-5105	€6.29
4	Image coming soon	181117031 SPRING FOR PS-460/500	€3.31
5	Image coming soon	181117081 X JOINT LEVER FOR PS-460/500	€6.29
6	Image coming soon	181117111 SPRING X PLATE	€1.47
8-1	Image coming soon	268233-5 PIN 3	€2.84
8	Image coming soon	935930240 CYLINDRICAL PIN 3X24 DCS4630/5	€2.84
9	Image coming soon	181117121 THROTTLE LEVER	€6.29
10	Image coming soon	957114061 VALVE KIT X DCS6401	€9.01
11-1	Image coming soon	266475-5 SCREW 5,5X20	€1.47
11		913455204 Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S	€2.15
12	Image coming soon	181114065 FUEL LINE DCS4600S / 5000	€17.65
13-1	Image coming soon	010114200 FILTER	€18.00
13	Image coming soon	163499-1 SUCTION HEAD	€11.74
15-1	Image coming soon	168507-3 TANK CAP COMPLETE	€2.86
16	Image coming soon	213080-9 RING 29.5 PS32CTLC	€5.43
17	Image coming soon	181114301 DAMPER PS4605 / 5105	€20.12
18	Image coming soon	181114301 DAMPER PS4605 / 5105	€20.12
19	Image coming soon	181310200 HANDLE TUBE DCS4600S	€77.36
20-1	Image coming soon	266475-5 SCREW 5,5X20	€1.47
20		913455204 Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S	€2.15
21-1	Image coming soon	266478-9 SCREW 5,5X16 (TORX)	€1.47
22	Image coming soon	181114652 HANDLE COVER MAKITA BLUE	€0.12	Not available for order
23-1	Image coming soon	266479-7 H.L. SOCKET HEAD BOLT M6X20	€0.00	Not available for order
23	Image coming soon	908006205 M6X20 SCREW	€2.20
24-1	Image coming soon	266475-5 SCREW 5,5X20	€1.47
24		913455204 Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S	€2.15

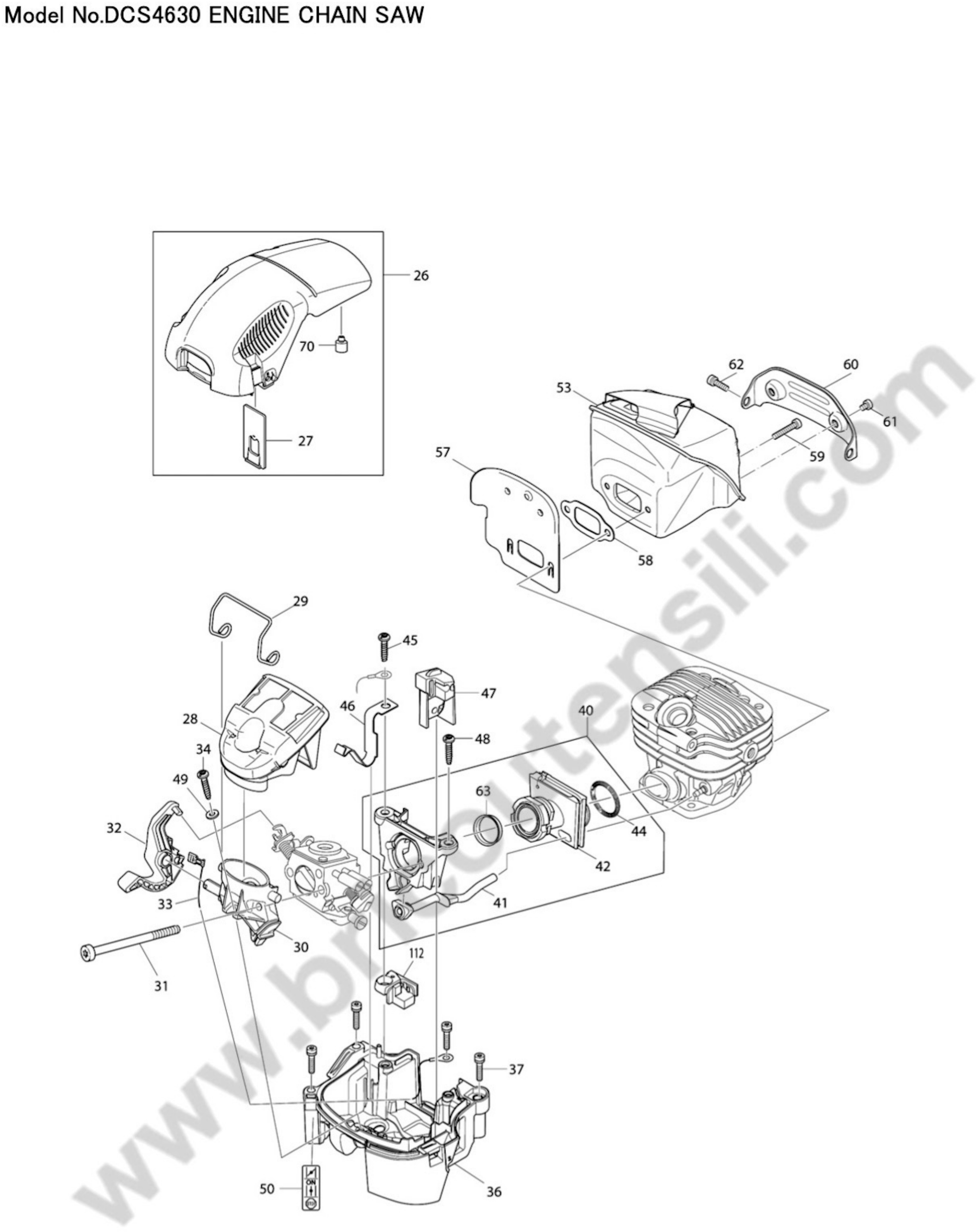

Page 2 View exploded Usually Ships in 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
26	Image coming soon	181118240 HOOD CPL. BLACK PS500C	€57.14
26-1	Image coming soon	181118241 AIR FILTER ELEMENT COVER	€59.42
26-2	Image coming soon	181118242 AIR FILTER ELEMENT COVER	€59.42
27	Image coming soon	181118060 PLATE LOCKING DCS4600S	€4.06
28	Image coming soon	181173090 AIR FILTER NYLON PS5000 / 5105	€30.02
28B_		181173190 AIR DCS4600S / 5000	€30.02
28A_	Image coming soon	181173240 AIR FILTER NYLON END	€30.02
29	Image coming soon	325593-9 CAPACITOR CLIP	€0.12	Not available for order
31-1	Image coming soon	266480-2 SCREW	€1.47
32	Image coming soon	181155020 STARTER DCS4600S / 5000	€5.43
33	Image coming soon	970311550 CABLE MASS DCS4600S-5000	€7.02
34-1	Image coming soon	266478-9 SCREW 5,5X16 (TORX)	€1.47
36	Image coming soon	181131680 CARBURETOR HOUSING ASSY BLUE	€50.21
37-1	Image coming soon	266472-1 SCREW	€2.20
40	Image coming soon	181171160 FLANGE KPL. PS4605-5105	€65.36
41	Image coming soon	181131090 PIPE DCS4600S-5000	€17.65
42		181131040 Intake Manifold for Chainsaw Dolmar PS4600S	€41.64
42-1	Image coming soon	181131041 INTAKE HOSE	€42.85
44	Image coming soon	181131070 RING DCS4600S-5000	€4.06
44-1	Image coming soon	233971-8 CIRCLIP PS32CTLC	€2.20
45-1	Image coming soon	266478-9 SCREW 5,5X16 (TORX)	€1.47
46	Image coming soon	181155060 CONTACT SPRING PS4605	€6.76
47	Image coming soon	181155030 GUIDE DCS4600S-5000	€5.43
48-1	Image coming soon	266478-9 SCREW 5,5X16 (TORX)	€1.47
49-1	Image coming soon	267821-5 SPRING WASHER 5	€1.47
49	Image coming soon	928405000 SPRING WASHER	€5.43
50-1	Image coming soon	816917-5 INDICATION LABEL	€0.12	Not available for order
50	Image coming soon	980115961 LABEL	€4.06
53	Image coming soon	181174102 MUFFLER PS-460/500	€73.02
57	Image coming soon	181174062 COOLING PLATE PS4605-5105	€2.84
58		181174050 Muffler Gasket for Chainsaws Dolmar PS4600S-5000	€3.99
59-1	Image coming soon	266476-3 SCREW M5X20 (TORX)	€1.47
60	Image coming soon	181174091 MUFFLER HOLDER	€9.01
61-1	Image coming soon	266612-1 H.L. SOCKET HEAD BOLT M5X10	€1.43
62-1	Image coming soon	266472-1 SCREW	€2.20
63	Image coming soon	346413-4 SOCKET 17 PS32CTLC	€1.47
70	Image coming soon	181118070 DAMPER PAD DCS4600S	€5.43
112	Image coming soon	181131140 RUBBER BUSH PS4605-5105	€2.73

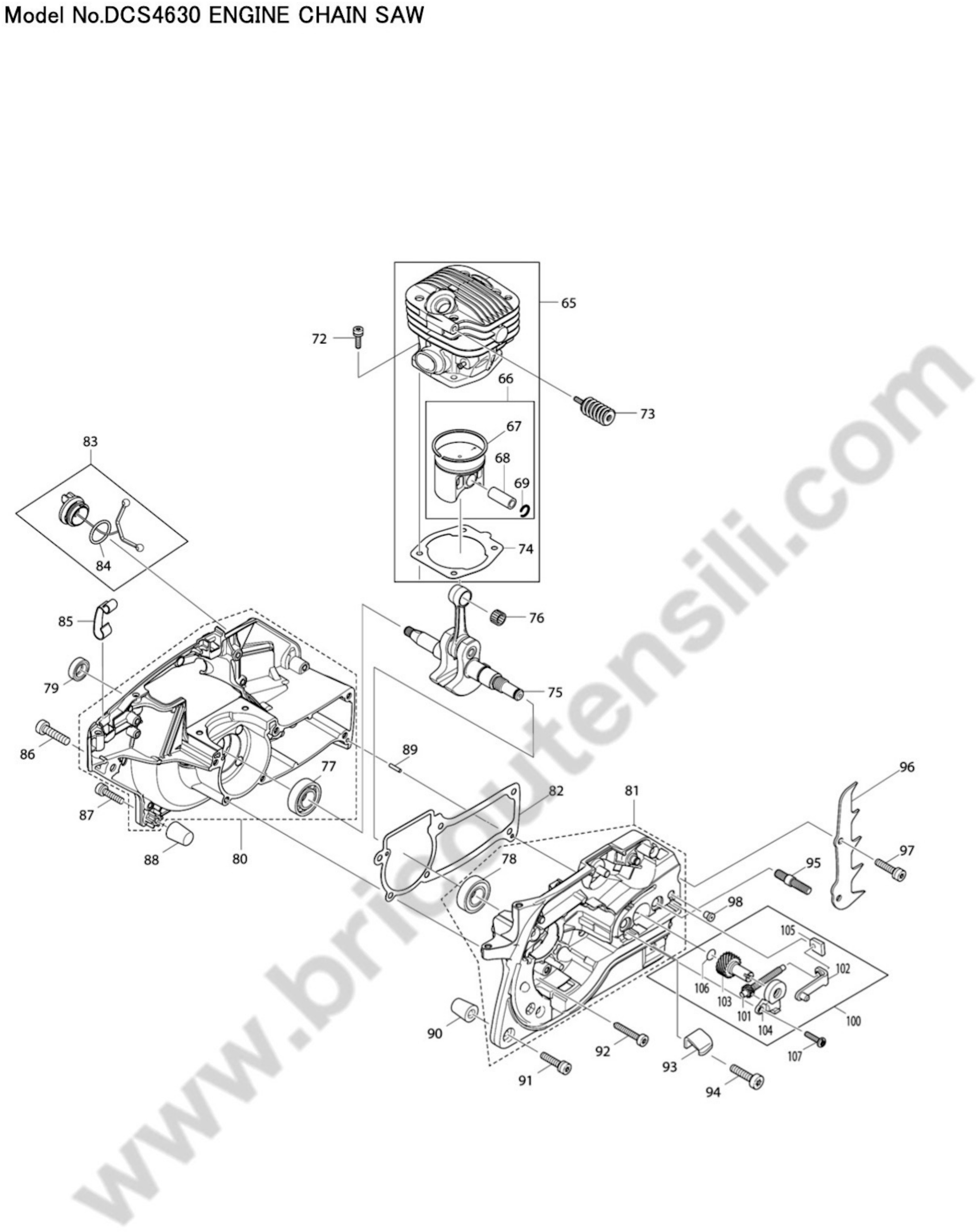

Page 3 View exploded Usually Ships in 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
65	Image coming soon	178130215 CYLINDER - PISTON CPL. D43	€218.00
66	Image coming soon	180132063 PISTON,PISTON RING & PIN SET	€125.91
67	Image coming soon	180132080 PISTON RING DIAM 43	€24.70
68	Image coming soon	181132090 PISTON PIN PS4605-5105	€30.02
69	Image coming soon	181132050 RING PIN 12X1	€2.20
69-1	Image coming soon	181132050 RING PIN 12X1	€2.20
70-1		424173-9 Damper for Chainsaw Dolmar PS32CTLC	€2.18
72-1	Image coming soon	266473-9 SCREW M5X23 PS4605-5105-5105D	€1.47
72	Image coming soon	908805235 SCREW M5X23 PS4605-5105-5105D	€2.34
73		181114401 DAMPER PS4605-5105	€20.12
74		181131133 Cylinder Gasket for Chainsaw Dolmar PS500C/45	€3.67
74-1	Image coming soon	181131134 GASKET	€3.31
75-2	Image coming soon	143395-9 CRANKSHAFT CPL.	€0.12	Not available for order
75	Image coming soon	181120100 CRANKSHAFT DCS4600S / 5000	€370.83
75-1	Image coming soon	185120200 CRANKSHAFT CPL. DCS4600S / 5000	€370.83
76		962210103 Conrod Needle Bearing for Chainsaw Dolmar PS500C/45	€6.56
77	Image coming soon	211154-0 BALL BEARING 6202	€6.29
78-1	Image coming soon	211250-4 BALL BEARING 1514	€0.12	Not available for order
78		960123159 Ball Bearing 6203 C3 for Chainsaws Dolmar PS-460/500	€36.47
79-1	Image coming soon	213141-5 SEAL	€6.29
80	Image coming soon	181111655 CRANKCASE ASSY LEFT BLUE	€219.08
81	Image coming soon	181111642 CRANKCASE ASSY RIGHT BLUE	€219.08
82		181111061 Crankcase Gasket for Chainsaws Dolmar PS-460/500	€5.24
83-1	Image coming soon	168508-1 TANK CAP A3600F	€3.83
83	Image coming soon	170114100 TANK CAP COMPLETE PS4605-5105	€10.48
84-1	Image coming soon	213355-6 O-RING 25 EA3601F/DUC353	€1.50
84	Image coming soon	963225030 RING X PS3400 / 3400TH	€2.84
85	Image coming soon	181118050 PLATE FIXING DCS4600S	€4.06
86-1	Image coming soon	266479-7 H.L. SOCKET HEAD BOLT M6X20	€0.00	Not available for order
86	Image coming soon	908006205 M6X20 SCREW	€2.20
87-1	Image coming soon	266472-1 SCREW	€2.20
89-1	Image coming soon	258038-1 CLAMPING PIN	€1.47
89	Image coming soon	936430160 PIN 3X16 PS350C-420C	€2.20
91-1	Image coming soon	266472-1 SCREW	€2.20
92-1	Image coming soon	266476-3 SCREW M5X20 (TORX)	€1.47
93		181111050 Chain Catch for Chainsaws Dolmar PS4600S/38-45	€7.19
93-1	Image coming soon	181111051 CHAIN CATCH	€0.12	Not available for order
94-1	Image coming soon	266479-7 H.L. SOCKET HEAD BOLT M6X20	€0.00	Not available for order
94	Image coming soon	908006205 M6X20 SCREW	€2.20
95	Image coming soon	905808210 PRISONER M8X21 PS-460/500	€6.29
96	Image coming soon	181250011 HOOK FOR PS-460/500	€20.12
97-1	Image coming soon	266472-1 SCREW	€2.20
98-1		168504-9 Venting Valve for Chainsaw Dolmar PS32CTLC	€3.70
100	Image coming soon	181213300 CHAIN TENSIONER DCS4600S-5000	€42.85
101-1	Image coming soon	227743-1 GEAR 11	€22.84
102	Image coming soon	181213240 SLED DCS4600S-5000	€11.29
102-1	Image coming soon	181213241 TENSION SLIDE	€11.74	Not available for order
103-1	Image coming soon	227744-9 GEAR 18	€20.12
104	Image coming soon	452667-4 COVER	€9.01
105	Image coming soon	181213260 NUT DCS4600S-5000	€2.69
106	Image coming soon	963207020 SEAL 7	€2.84
107-1	Image coming soon	266484-4 H.L SOCKET HEAD BOLT M5X12	€1.47
107	Image coming soon	908705125 SCREW M5X12	€1.47

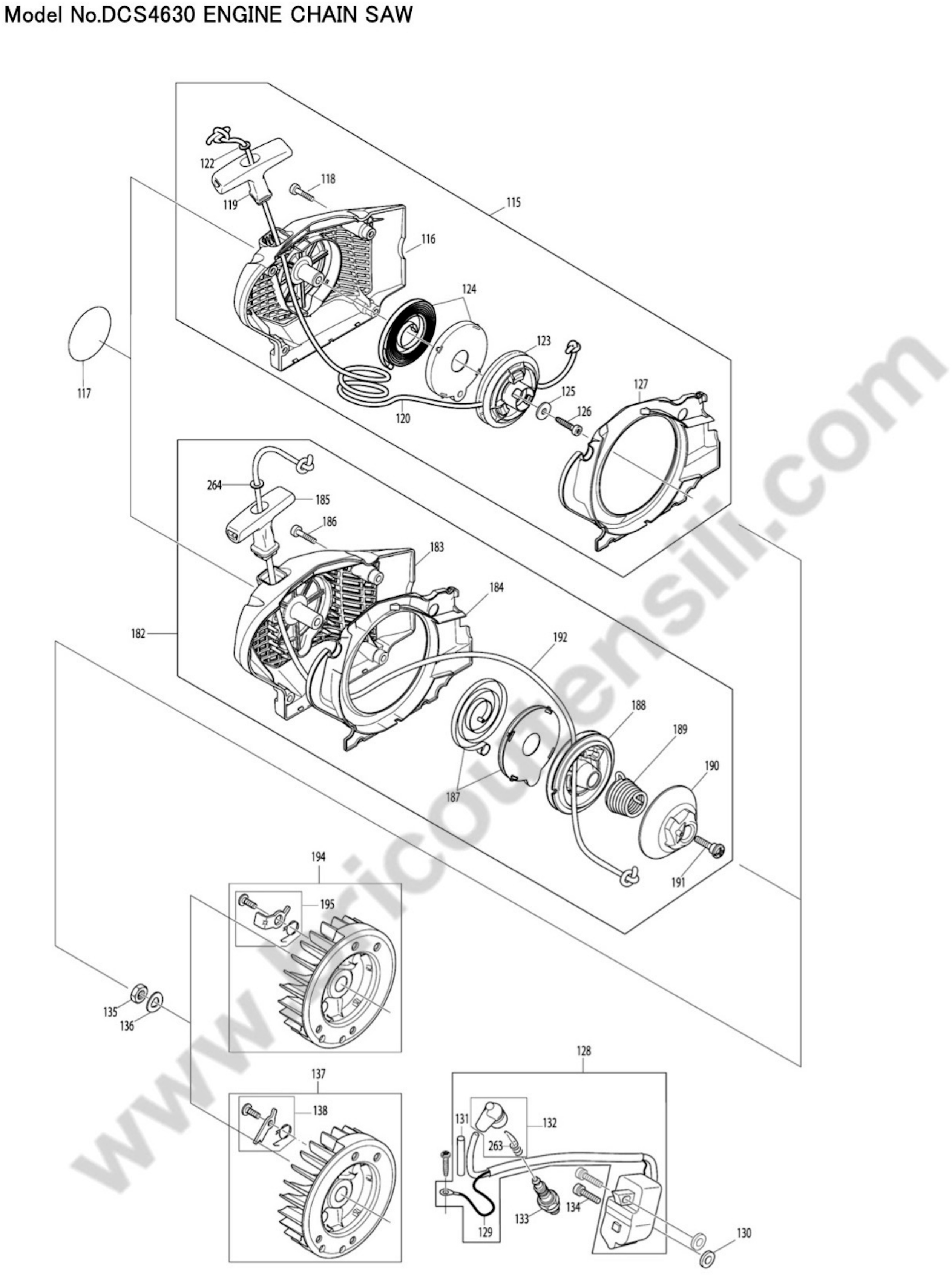

Page 4 View exploded Usually Ships in 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
115	Image coming soon	181160660 STARTER ASSY BLUE	€0.12	Not available for order
116	Image coming soon	181112621 STARTER HOUSING BLUE	€0.12	Not available for order
117	Image coming soon	980115500 LABEL DCS4630	€0.12	Not available for order
119	Image coming soon	001161020 STARTER WHEEL DPC7311	€7.80
120	Image coming soon	108164020 STARTER ROPE 38-1/2"	€8.03
122	Image coming soon	928405000 SPRING WASHER	€5.43
123	Image coming soon	181162150 REEL FOR ROPE DCS4600S	€22.19
124	Image coming soon	181163020 REWINDING SPRING DCS4600S	€22.84
125	Image coming soon	924605510 WASHER 5.5/18X1.6	€13.46
126		913455204 Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S	€2.15
127	Image coming soon	181118120 AIR GUIDE PLATE	€4.58
128	Image coming soon	181143210 IGNITION COIL COMPLETE	€139.89
128-1		181143212 Electronic Coil Assy for Chainsaws Dolmar PS4605 - PS5105	€140.45	Not available for order
128-2	Image coming soon	181143213 IGNITION COIL, CPL., BLACK PS4605-5105	€152.55
128-3	Image coming soon	181143214 IGNITION COIL COMPLETE	€148.40
129		181147050 CABLE REEL DCS4600S / 5000	€8.40
130	Image coming soon	195143031 ISOLATING WASHER	€9.01
130-1	Image coming soon	451462-9 INSULATING WASHER	€2.84
131	Image coming soon	970502110 INSULATING HOSE M DCS4630/5030	€6.76
131-1	Image coming soon	970502120 INSULATING TUBE	€7.02
132	Image coming soon	957604260 SPARK PLUG CAP CPL.	€4.51
133	Image coming soon	168648-5 SPARK PLUG X RBC350-RBC420-PB500R	€6.05
134-1	Image coming soon	266472-1 SCREW	€2.20
135-1	Image coming soon	264107-8 HEXAGONAL NUT M8	€2.20
135	Image coming soon	920208024 NUT X DCS6401	€2.08
136-1	Image coming soon	267822-3 WASHER 8 PS32CTLC	€1.47
136	Image coming soon	926208001 SPRING WASHER 8	€1.47
137	Image coming soon	181141104 FLYWHEEL DCS4600S-5000	€193.46
138	Image coming soon	181166050 NOTTOLINO STARTING COMPL.	€205.23
182-1	Image coming soon	123562-2 STARTING DEVICE BLUE CPL.	€68.84
182	Image coming soon	181160670 STARTER ASSY. BLUE	€102.85
183	Image coming soon	181112660 BLUE STARTER CASING	€50.21
184	Image coming soon	181118120 AIR GUIDE PLATE	€4.58
184-1	Image coming soon	456685-4 AIR GUIDE PLATE	€0.00	Not available for order
185-1		452458-3 Makita EK8100 Starter Grip	€5.20
186	Image coming soon	266942-0 H.L. SOCKET HEAD BOLT M5X20	€0.12	Not available for order
187	Image coming soon	140587-1 REWIND SPRING COMPLETE	€13.46
188		181162020 REEL FOR ROPE	€22.84
188-1	Image coming soon	452224-8 CABLE DRUM	€5.43
189	Image coming soon	234193-3 SPRING EASY-START	€13.46
190	Image coming soon	181163090 GUIDE FOR EASY START	€4.06
190-1	Image coming soon	452227-2 DRIVER EASY START	€4.06
191-1	Image coming soon	266616-3 SCREW X EASY START	€1.85
192	Image coming soon	108164020 STARTER ROPE 38-1/2"	€8.03
194	Image coming soon	143331-5 FLYWHEEL COMPLETE	€30.02
194-1	Image coming soon	158867-1 FLYWHEEL COMPLETE	€0.12	Not available for order
195	Image coming soon	181166100 STARTER PAWL CPL	€30.02
264-1	Image coming soon	267821-5 SPRING WASHER 5	€1.47
264	Image coming soon	928405000 SPRING WASHER	€5.43

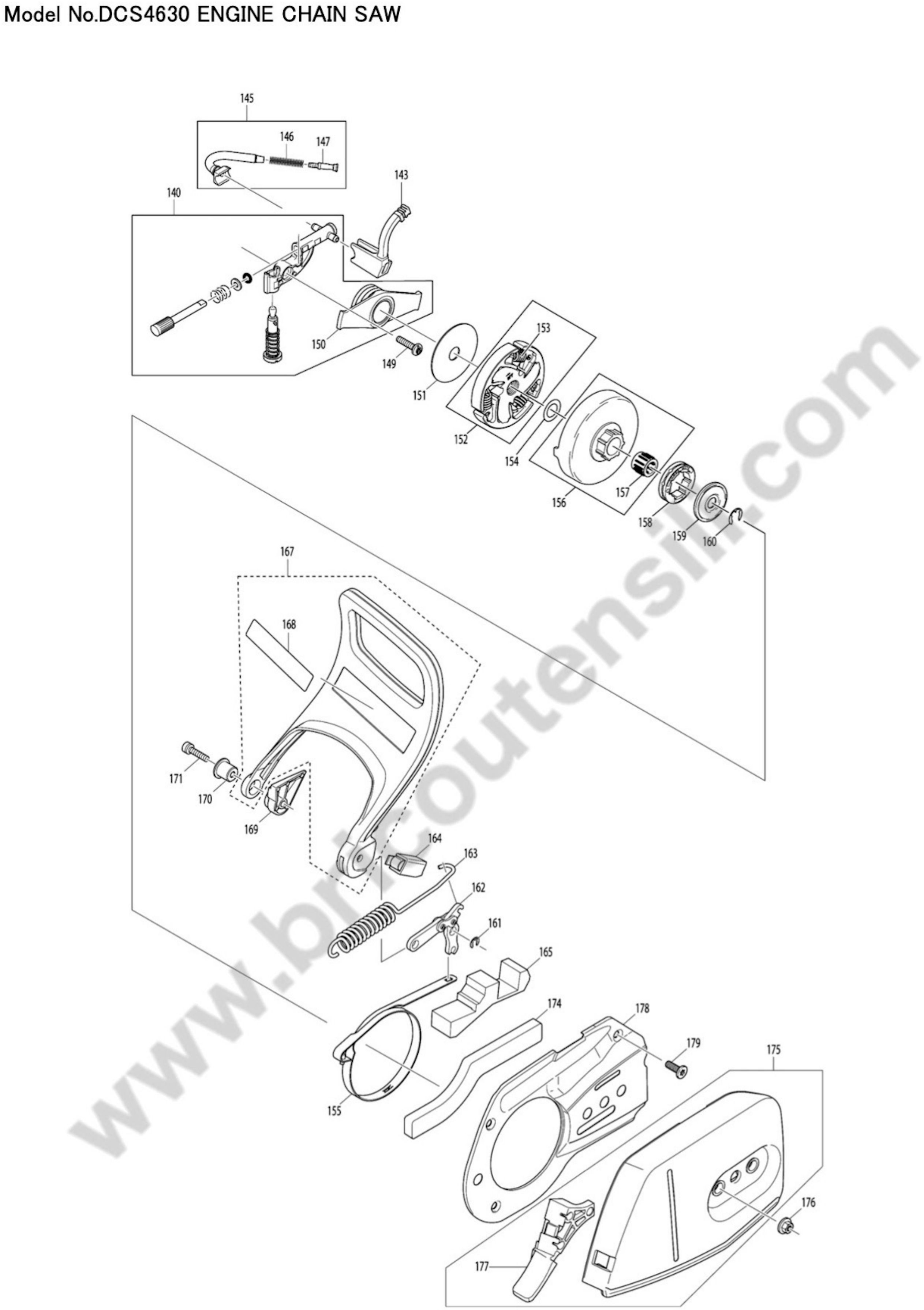

Page 5 View exploded Usually Ships in 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
140	Image coming soon	181245251 OIL PUMP DCS4600S-5000	€104.92
143-1		424178-9 PRESSURE LINE DCS4600S	€20.12
145		144274-4 TUBE COMPLETE	€12.92
146	Image coming soon	231975-4 SPRING TUBE OIL X DCS230T	€1.47
147-1		452666-6 PLUG OIL PIPE PS32CTLC	€1.32
147		452666-6 PLUG OIL PIPE PS32CTLC	€1.32
149-1	Image coming soon	266484-4 H.L SOCKET HEAD BOLT M5X12	€1.47
149	Image coming soon	908705125 SCREW M5X12	€1.47
150-1		450956-1 Worm Screw for Chainsaw Dolmar PS4600S-5000	€18.99
151	Image coming soon	267389-1 FLAT WASHER 12 PS350C / 4200	€4.06
152-1	Image coming soon	127443-2 CLUTCH ASSEMBLY	€25.82
152	Image coming soon	181180300 CLUTCH ASSY.	€47.56
153	Image coming soon	232352-3 TENSION SPRING	€2.84
153-1	Image coming soon	232352-3 TENSION SPRING	€2.84
154	Image coming soon	181224090 SHIM PS4605-5105-5105D	€1.47
155-1	Image coming soon	346029-5 BRAKE BAND SPRING	€20.12
156-1	Image coming soon	144765-5 CLUTCH DRUM CPL.	€32.73
156		181223200 Clutch Drum for Chainsaws Dolmar PS4600S - PS5000	€33.73
157-1	Image coming soon	212082-2 NEEDLE BEARING 1012	€11.74
157	Image coming soon	962300009 ROLLER BEARING DCS4600S	€11.29
158B	Image coming soon	026224010 PINION 3/8 "	€10.09
158A	Image coming soon	181224040 RIM SPROCKET 325", Z=7, SM DCS4600S-5000	€16.98
159-1		267820-7 Washer 29 for Chainsaw Dolmar PS6100/45	€14.00	Not available for order
160-1	Image coming soon	259045-7 DISC X DCS6401	€1.47
161-1	Image coming soon	257934-0 RETAINING RING E-4 X UH6580	€1.47
161	Image coming soon	927304000 E'CLIP DCS4630/5030/5031/DCS46	€1.47
162	Image coming soon	185213100 LINK PLATE COMPLETE 185213100	€9.01
163	Image coming soon	181213023 SPRING TENSION X PS6100	€2.20
163-1	Image coming soon	231870-8 TENSION SPRING 10	€1.47
164	Image coming soon	181213170 X PROTECTION GUIDE DCS4600S	€20.12
164-1	Image coming soon	450926-0 STOPPER CASE	€20.12
165		181213371 Foam Sponge for Chainsaws Dolmar PS-460/500	€7.83
167	Image coming soon	181213161 HAND PROTECTION DCS4600S-5000	€42.85
167-1		181213162 HAND GUARD CPL. DCS4600S-5000	€42.85
167-2	Image coming soon	181213163 HAND GUARD CPL.	€0.12	Not available for order
168	Image coming soon	810449-4 LABEL	€1.47
169	Image coming soon	181213310 SPACER DCS4600S-5000	€4.06
170-1	Image coming soon	325604-0 BUSHING DCS4600S-5000	€18.98
171-1	Image coming soon	266472-1 SCREW	€2.20
174		181213400 Foam Sponge Insert for Chainsaws Dolmar PS-460/500	€6.23
175	Image coming soon	957213600 CRANKCASE (BLUE)	€28.31
176-1		252145-2 Hex Nut M 8 Collared for Chainsaw Makita DCS230T	€1.32
177		957213220 Splinterguard for Chainsaw Dolmar PS-460/500	€10.40
178		181213191 Sprocket Cover for Chainsaws Dolmar PS4600S-5000	€14.24
179-1		266477-1 Torx C.S. Head Screw M5X12 for Chainsaw Makita DCS4301/38	€2.12
179	Image coming soon	908105126 SCREW M.5X12 X UH4520-5520-7020	€2.20

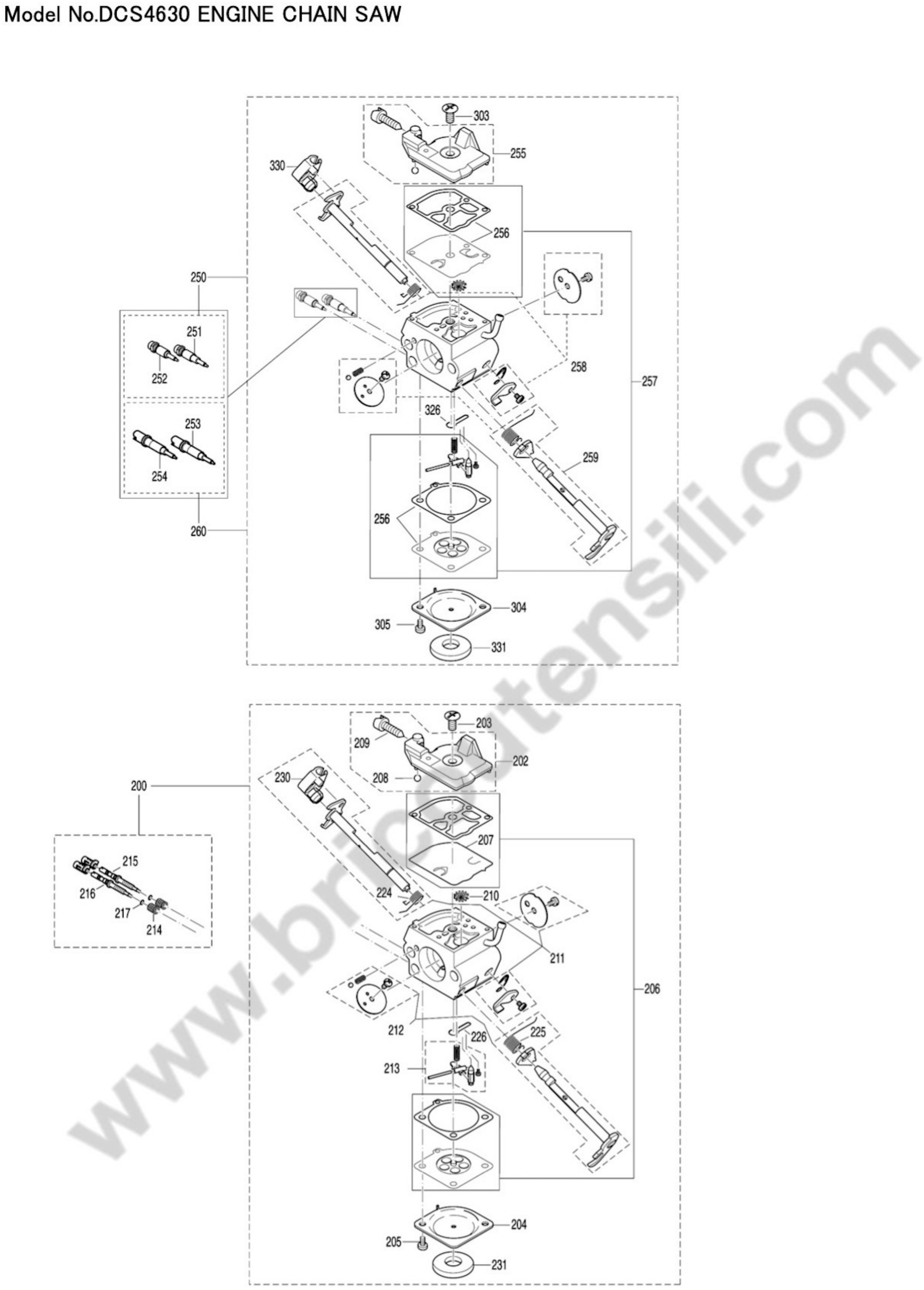

Page 6 View exploded Usually Ships in 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
A44-1	Image coming soon	782025-3 TORX KEY	€2.18
A43-1	Image coming soon	782033-4 UNIVERSAL WRENCH 13/19	€4.23
A45	Image coming soon	783012-5 SCREWDRIVER	€0.00	Not available for order
A46-1	Image coming soon	831340-3 TOOL BAG	€0.12	Not available for order
A43	Image coming soon	941719133 UNIVERSAL KEY 19/13	€5.15
200	Image coming soon	181153100 CARBURETOR	€185.47
202	Image coming soon	181153030 TOP COVER DCS4600S	€34.71
203	Image coming soon	038153360 SCREW DCS4630/5030/5031/4600/5	€4.06
204	Image coming soon	181153040 COVER DIAPHRAGM DCSS4600S	€20.12
205	Image coming soon	ZJ00000014 SCREW (WITH SERRATION)	€2.20
206	Image coming soon	181153020 KIT seal DCS4600S-5000	€37.93
207	Image coming soon	181153050 IRIS DCS4600S-5000	€9.01
208	Image coming soon	038153210 FRICTION BALL DCS4630/5030/31/	€4.06
209	Image coming soon	181153070 SCREW X DCS4600S S-5000	€10.48
210	Image coming soon	036153040 SCREEN X PS 34	€5.43
211	Image coming soon	957153090 THROTTLE VALVE	€42.85
212	Image coming soon	957153080 SHAFT THROTTLE DCS4600S	€47.56
213	Image coming soon	957153070 CONTROL PARTS DCS4630/5030/503	€42.85
214	Image coming soon	028153480 SPRING FOR PS-460/500	€4.06
215	Image coming soon	181153180 SCREW DCS4600S L-5000	€30.02
216	Image coming soon	181153190 SCREW DCS4600S H-5000	€30.02
217	Image coming soon	181153220 WASHER FOR PS-460/500	€4.70
224	Image coming soon	181153110 VALVE SPRING THROTTLE	€4.06
225	Image coming soon	181153160 VALVE SPRING SHAFT ACCEL.	€4.70
226	Image coming soon	181153210 PLATE CARBURETOR DCS4600S	€4.06
230	Image coming soon	038155012 RETAINING CLIP PS4605-5105-5105D	€2.84
231	Image coming soon	965402995 SEAL DCS4600S-5000	€2.84
263-1	Image coming soon	234358-7 TERMINAL SPRING	€1.47
303	Image coming soon	038153360 SCREW DCS4630/5030/5031/4600/5	€4.06
304	Image coming soon	181153040 COVER DIAPHRAGM DCSS4600S	€20.12
305	Image coming soon	ZJ00000014 SCREW (WITH SERRATION)	€2.20
326	Image coming soon	181153210 PLATE CARBURETOR DCS4600S	€4.06
330	Image coming soon	038155012 RETAINING CLIP PS4605-5105-5105D	€2.84
331	Image coming soon	965402995 SEAL DCS4600S-5000	€2.84

Shipping and delivery information will be available shortly.

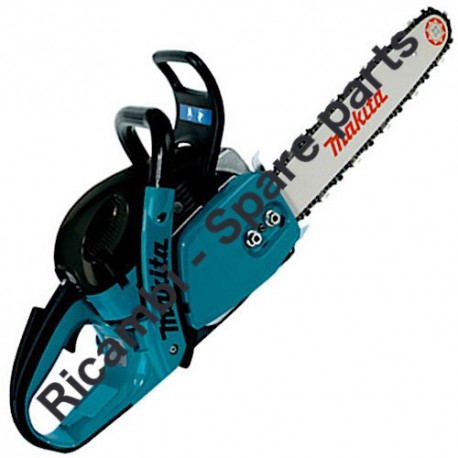

Makita Spare Parts for Chainsaw DCS4630

Makita Motosega DCS4630 Pag.1
#	Part Num.	Description
1	181114605	FUEL TANK ASSEMBLY, BLUE
D10		INCLUDES ITEMS 2-6, 8
2	181117050	OUTER HANDLE SHELLS / HOUSING SET
2-1	450851-5	OUTER HANDLE SHELLS / HOUSING SET
3	181117132	STOP LEVER / CATCH LEVER
4	181117031	TENSION SPRING
5	181117081	THROTTLE LOCKOUT LEVER / ROCKER ARM
6	181117111	RETURN SPRING
8	935930240	STRAIGHT PIN 3X24
8-+1	268233-5	PIN 3
9	181117121	THROTTLE LEVER / TRIGGER
10	957114061	CHOKE VALVE ASSEMBLY
11	913455204	TORX SCREW 5.5X20
11-1	266475-5	HI-LO SELF-TAPPING SCREW 5.5X20
12	181114065	FUEL LINE / FUEL PIPE
13	163499-1	FUEL PICK-UP HEAD / FILTER HEAD
C10	10114020	FILTER KIT FOR HP-450
13-1	10114200	FUEL FILTER ASSEMBLY
15	181114202	FUEL TANK CAP ASSEMBLY
D10		INCLUDES ITEM 16
15-1	168507-3	FUEL TANK CAP ASSEMBLY
D10		INCLUDES ITEM 16
16	213080-9	O-RING / SEALING RING 29.5
17	181114301	VIBRATION DAMPING SPRING ASSEMBLY
18	181114301	VIBRATION DAMPING SPRING ASSEMBLY
19	181310200	TUBULAR FRONT HANDLE
20	913455204	TORX SCREW 5.5X20
20-1	266475-5	HI-LO SELF-TAPPING SCREW 5.5X20
21	913455164	HI-LO SELF-TAPPING SCREW 5.5X16
21-1	266478-9	HI-LO SELF-TAPPING SCREW 5.5X16
22	181114652	MAKITA HANDLE COVER, BLUE
23	908006205	HI-LO HEX SOCKET HEAD BOLT M6X20
23-1	266479-7	HI-LO HEX SOCKET HEAD BOLT M6X20
24	913455204	TORX SCREW 5.5X20
24-1	266475-5	HI-LO SELF-TAPPING SCREW 5.5X16
113	181117094	CABLE RETAINING CLIP / LOCK CLIP
114	181117041	THROTTLE CONTROL CABLE
		Pag.2
26	181118240	AIR FILTER COVER / HOUSING
D10		INCLUDES ITEMS 27, 70
26-1	181118241	AIR FILTER COVER / HOUSING
D10		INCLUDES ITEMS 27, 70
26-2	181118242	AIR FILTER COVER / HOUSING
D10		INCLUDES ITEMS 27, 70
27	181118060	SUMMER / WINTER ANTI-ICING SHUTTER PLATE
28	181173090	NYLON MESH AIR FILTER ELEMENT
28A_	181173240	FINE NYLON MESH AIR FILTER ELEMENT
28B_	181173190	FLEECE / FELT AIR FILTER ELEMENT
29	325593-9	RETAINING CLIP
30	181171011	AIR INTAKE DUCT / INTAKE MANIFOLD
31	908505555	HI-LO HEX SOCKET HEAD BOLT M5X55
31-1	266480-2	HI-LO HEX SOCKET HEAD BOLT M5X55
32	181155020	ENGINE KILL SWITCH LEVER / STOP SWITCH
32-1	181155070	ENGINE KILL SWITCH LEVER / STOP SWITCH
33	970311550	GROUND WIRE / EARTH WIRE
33-1	970311580	GROUND WIRE / EARTH WIRE
34	913455164	HI-LO SELF-TAPPING SCREW 5.5X16
34-1	266478-9	HI-LO SELF-TAPPING SCREW 5.5X16
36	181131680	CARBURETOR BOTTOM HOUSING, BLUE
37	908805205	HI-LO HEX SOCKET HEAD BOLT M5X20
37-1	266472-1	TORX SOCKET HEAD BOLT M5X20
40	181171160	INTAKE MANIFOLD SET
D10		INCLUDES ITEMS 41, 42, 44, 63
41	181131090	OIL-RESISTANT HOSE / FUEL HOSE
42	181131040	INTAKE BOOT / MANIFOLD DCS6400S
42-1	181131041	SUCTION HOSE / INTAKE HOSE
44	181131070	SPRING RING / RETAINING RING
44-1	233971-8	SPRING RING / RETAINING RING
45	913455164	HI-LO SELF-TAPPING SCREW 5.5X16
45-1	266478-9	HI-LO SELF-TAPPING SCREW 5.5X16
46	181155060	CONTACT SPRING
47	181155030	ADJUSTMENT GUIDE / CABLE GUIDE
47-1	181155080	ADJUSTMENT GUIDE / CABLE GUIDE
48	913455164	HI-LO SELF-TAPPING SCREW 5.5X16
48-1	266478-9	HI-LO SELF-TAPPING SCREW 5.5X16
49	928405000	SPRING WASHER 5
49-1	267821-5	SPRING WASHER 5
50	980115961	LABEL / DECAL
50-1	816917-5	INDICATING LABEL / INSTRUCTION DECAL
53	181174102	EXHAUST MUFFLER ASSEMBLY
57	181174062	HEAT DEFLECTOR PLATE / THERMAL INSULATION PLATE
58	181174050	MUFFLER EXHAUST GASKET DCS4600S-5000
59	908005205	HI-LO COUNTERSUNK BOLT M5X20
59-1	266476-3	HI-LO COUNTERSUNK BOLT M5X20
60	181174091	MUFFLER COVER / SHIELD
61	909005105	HI-LO COUNTERSUNK BOLT M5X10
61-1	266612-1	HI-LO COUNTERSUNK BOLT M5X10
62	908805205	HI-LO COUNTERSUNK BOLT M5X20
62-1	266472-1	TORX COUNTERSUNK BOLT M5X20
63	346413-4	BUSHING 17
70	181118070	RUBBER CUSHION PLUG / DAMPING PLUG
112	181131140	RUBBER BUSHING / GROMMET
		Pag.3
65	178130215	CYLINDER AND PISTON ASSEMBLY WITH DECOMPRESSION VALVE
D10		INCLUDES ITEMS 66, 74
66	180132063	PISTON ASSEMBLY (INCL. PISTON RINGS AND WRIST PIN)
D10		INCLUDES ITEMS 67-69
67	180132080	PISTON RINGS Ø 43MM
68	181132090	PISTON PIN / WRIST PIN
69	181132050	CIRCLIP / RETAINING RING 10
69-1	181132050	CIRCLIP / RETAINING RING 10
70-1	424173-9	RUBBER BUFFER / CUSHION PLUG
72	908805235	HI-LO COUNTERSUNK BOLT M5X23
72-1	266473-9	HI-LO COUNTERSUNK BOLT M5X23
73	181114401	VIBRATION DAMPING SPRING ASSEMBLY
74	181131133	CYLINDER BASE GASKET
74-1	181131134	CYLINDER BASE GASKET
75	181120100	CRANKSHAFT ASSEMBLY
75-1	185120200	CRANKSHAFT ASSEMBLY
75-2	143395-9	CRANKSHAFT ASSEMBLY
76	962210103	NEEDLE BEARING CAGE 10X13X12.5
77	211154-0	RADIAL BALL BEARING 6202
78	960123159	RADIAL BALL BEARING 6203 C3
C10	962900065	CRANKSHAFT OIL SEAL
78-1	211250-4	RADIAL BALL BEARING 1514
79	962900156	CRANKSHAFT OIL SEAL
79-1	213141-5	OIL SEAL 12
80	181111655	CRANKCASE HALF, LEFT (BLUE)
D10		INCLUDES ITEM 77
81	181111642	CRANKCASE HALF, RIGHT (BLUE)
D10		INCLUDES ITEM 78
82	181111061	CRANKCASE GASKET FOR PS-460/500
83	170114100	OIL TANK CAP ASSEMBLY
D10		INCLUDES ITEM 84
83-1	168508-1	OIL TANK CAP ASSEMBLY A3600F
D10		INCLUDES ITEM 84
84	963225030	O-RING / SEALING RING
84-1	213355-6	O-RING / SEALING RING 25
85	181118050	R-CLIP / STEEL HAIRPIN COTTER PIN
86	908006205	HI-LO HEX SOCKET HEAD BOLT M6X20
86-1	266479-7	HI-LO HEX SOCKET HEAD BOLT M6X20
87	908805205	HI-LO COUNTERSUNK BOLT M5X20
87-1	266472-1	TORX COUNTERSUNK BOLT M5X20
88	181111230	RUBBER BUFFER / SILENTBLOCK
89	936430160	DOWEL PIN / STRAIGHT PIN 3X16
89-1	258038-1	LOCKING PIN
90	181111230	RUBBER BUFFER / SILENTBLOCK
91	908805205	HI-LO COUNTERSUNK BOLT M5X20
91-1	266472-1	TORX COUNTERSUNK BOLT M5X20
92	908005205	HI-LO COUNTERSUNK BOLT M5X20
92-1	266476-3	HI-LO COUNTERSUNK BOLT M5X20
93	181111050	CHAIN CATCHER DCS4600S-5000
93-1	181111051	CHAIN CATCHER
94	908006205	HI-LO COUNTERSUNK BOLT M6X20
94-1	266479-7	HI-LO COUNTERSUNK BOLT M6X20
95	905808210	GUIDE BAR COLLAR BOLT M8X21
96	181250011	SPIKE BAR / BARK SPIKE
97	908805205	HI-LO COUNTERSUNK BOLT M5X20
97-1	266472-1	TORX COUNTERSUNK BOLT M5X20
98	10245030	TANK BREATHER VALVE / VENT VALVE
98-1	168504-9	BREATHER VALVE PS32CTLC
100	181213300	CHAIN TENSIONER ASSEMBLY
D10		INCLUDES ITEMS 101-106
101	181213230	TENSIONING SCREW
101-1	227743-1	HELICAL PINION GEAR 11
102	181213240	TENSIONING SLIDE / PIN
102-1	181213241	TENSIONING SLIDE / PIN
103	181213250	ADJUSTING SCREW
103-1	227744-9	HELICAL GEAR 18
104	452667-4	TENSIONER GEAR COVER PLATE
105	181213260	TENSIONING SCREW BEARING BUSH
106	963207020	TENSIONING RING / SNAP RING
107	908705125	HI-LO HEX SOCKET HEAD BOLT M5X12
107-1	266484-4	HI-LO HEX SOCKET HEAD BOLT M5X12
		Pag.4
115	181160660	RECOIL STARTER ASSEMBLY, BLUE
D10		INCLUDES ITEMS 116, 118-120, 122-127
116	181112621	STARTER HOUSING, BLUE
117	980115500	MODEL LABEL DCS4630
118	908805205	HI-LO HEX SOCKET HEAD BOLT M5X20
119	1161020	STARTER HANDLE KNOB
120	108164020	STARTER ROPE Ø 3.5 MM (LENGTH = 0.98 M)
122	928405000	SPRING WASHER 5
123	181162150	STARTER ROPE REEL / DRUM
124	181163020	RECOIL REWIND SPRING IN CASING
125	924605510	FLAT WASHER 5.5/18X1.6
126	913455204	HI-LO SELF-TAPPING SCREW 5.5X20
127	181118120	AIR BAFFLE PLATE / AIR GUIDE PLATE
128	181143210	IGNITION COIL ASSEMBLY / ARMATURE
D10		INCLUDES ITEMS 129, 131, 132
128-1	181143212	IGNITION COIL ASSEMBLY
D10		INCLUDES ITEMS 129, 131, 132
128-2	181143213	IGNITION COIL ASSEMBLY
D10		INCLUDES ITEMS 129, 131, 132
128-3	181143214	IGNITION COIL ASSEMBLY
D10		INCLUDES ITEMS 129, 131, 132
129	181147050	HIGH TENSION IGNITION LEAD / CABLE
130	195143031	INSULATING WASHER
130-1	451462-9	INSULATING WASHER
131	970502110	INSULATING CONDUIT TUBE 6 (LENGTH = 1M)
131-1	970502120	INSULATING CONDUIT TUBE
132	957604260	SPARK PLUG CAP & TERMINAL ASSEMBLY
D10		INCLUDES ITEM 263
133	168648-5	SPARK PLUG (NGK BPMR7A)
134	908805205	HI-LO HEX SOCKET HEAD BOLT M5X20
134-1	266472-1	TORX SOCKET HEAD BOLT M5X20
135	920208024	FINE THREAD HEX NUT M8X1
135-1	264107-8	HEX NUT M8
136	926208001	SPRING LOCK WASHER 8
136-1	267822-3	SPRING LOCK WASHER 8
137	181141104	FLYWHEEL ASSEMBLY / ROTOR
D10		INCLUDES ITEM 138
138	181166050	STARTER PAWL RATCHET SET (2 PCS)
182	181160670	RECOIL STARTER ASSEMBLY, BLUE
D10		INCLUDES ITEMS 183-192, 264
182-1	123562-2	COMPLETE RECOIL STARTER ASSEMBLY, BLUE (INCL. ITEMS 183-192, 264)
D10		STARTER HOUSING, BLUE
183	181112660	AIR BAFFLE PLATE / AIR GUIDE PLATE
184	181118120	AIR BAFFLE PLATE / AIR GUIDE PLATE
184-1	456685-4	STARTER HANDLE KNOB
185	181164010	STARTER HANDLE KNOB
185-1	452458-3	HI-LO HEX SOCKET HEAD BOLT M5X20
186	266942-0	COMPLETE RECOIL REWIND SPRING
187	140587-1	ROPE REEL / DRUM
188	181162020	ROPE REEL / DRUM
188-1	452224-8	EASY START SPRING
189	234193-3	STARTER PULLEY / WHEEL
190	181163090	EASY START DRIVER
190-1	452227-2	STEPPED SELF-TAPPING SCREW 5X16.5
191	181163095	SCREW
191-1	266616-3	STARTER ROPE Ø 3.5 MM (LENGTH = 0.98 M)
192	108164020	COMPLETE FLYWHEEL
194	143331-5	INCLUDES ITEM 195
D10		COMPLETE FLYWHEEL
194-1	158867-1	INCLUDES ITEM 195
D10		STARTER PAWL RATCHET SET (2 PCS EACH)
195	181166100	COMPLETE STARTER PAWL / DOG
264	928405000	SPRING WASHER 5
264-1	267821-5	SPRING WASHER 5
		Pag.5
140	181245251	COMPLETE OIL PUMP ASSEMBLY
D10		INCLUDES ITEM 150
143	181245120	OIL LINE / PIPE
143-1	424178-9	OIL TUBE
145	144274-4	COMPLETE OIL TUBE ASSEMBLY
D10		INCLUDES ITEMS 146, 147
146	231975-4	SPRING
147	452666-6	NIPPLE / FITTING
147-1	452666-6	NIPPLE / FITTING
149	908705125	HI-LO HEX SOCKET HEAD BOLT M5X12
149-1	266484-4	HI-LO HEX SOCKET HEAD BOLT M5X12
150	181245090	PUMP CONTROL / DRIVE
150-1	450956-1	WORM GEAR DCS4600S-5000
151	267389-1	FLAT WASHER 12
152	181180300	CLUTCH ASSEMBLY
D10		INCLUDES ITEM 153
152-1	127443-2	CLUTCH ASSEMBLY
D10		INCLUDES ITEM 153
153	232352-3	TENSION SPRING 6
153-1	232352-3	TENSION SPRING 6
154	181224090	FLAT WASHER 10
155	181213011	BRAKE BAND
155-1	346029-5	BRAKE BAND
156	181223200	COMPLETE CLUTCH DRUM
D10		INCLUDES ITEM 157
156-1	144765-5	COMPLETE CLUTCH DRUM
D10		INCLUDES ITEM 157
157	962300009	NEEDLE BEARING
157-1	212082-2	NEEDLE BEARING 10X12
158A	181224040	RIM SPROCKET .325" SM7-7
158B	26224010	RIM SPROCKET 3/8" SM7-7
159	181224081	WASHER 29
159-1	267820-7	WASHER 29
160	927408000	E-RING / RETAINING RING E-8
160-1	259045-7	E-RING / RETAINING RING E-8
161	927304000	E-RING / RETAINING RING E-4
161-1	257934-0	E-RING / RETAINING RING E-4
162	185213100	COMPLETE BREAK LINK PLATE
163	181213023	TENSION SPRING
163-1	231870-8	TENSION SPRING 10
164	181213170	COMPLETE HAND GUARD GUIDE
164-1	450926-0	CATCH HOUSING / BOX
165	181213371	SPONGE / FOAM FOR PS-460/500
167	181213161	COMPLETE HAND GUARD
D10		INCLUDES ITEM 168
167-1	181213162	COMPLETE HAND GUARD
167-2	181213163	COMPLETE HAND GUARD
168	810449-4	CAUTION / WARNING LABEL
169	181213310	SPACER
170	181213320	BUSHING
170-1	325604-0	BUSHING
171	908805205	HI-LO COUNTERSUNK BOLT M5X20
171-1	266472-1	TORX COUNTERSUNK BOLT M5X20
174	181213400	SPONGE INSERT FOR PS
175	957213600	COMPLETE SPROCKET COVER, BLUE
D10		INCLUDES ITEM 177
176	923208004	HEX FLANGE NUT M8 (BAR NUT)
176-1	252145-2	HEX COLLAR NUT M8
177	957213220	CHIP GUARD / DEFLECTOR FOR PS-460/500
178	181213191	SPROCKET COVER DCS4600S-5000
179	908105126	HI-LO FLAT HEAD BOLT S. M5X12
179-1	266477-1	SCREW M5X12 FOR UH4520-5520-7020
		Pag.6
200	181153100	INCLUDES ITEMS 202-206, 210-217, 226, 231
D10		217,226,231
202	181153030	PUMP COVER
D10		INCLUDES ITEMS 208, 209
203	38153360	SCREW
204	181153040	DIAPHRAGM COVER
205	ZJ00000014	SCREW (WITH SERRATION)
206	181153020	DIAPHRAGM / GASKET SET
D10		INCLUDES ITEM 207
207	181153050	TEFLON PUMP DIAPHRAGM
208	38153210	LOCKING BALL
209	181153070	IDLE STOP SCREW
210	36153040	SCREEN / MESH
211	957153090	THROTTLE SHAFT KIT
D10		INCLUDES ITEMS 224, 230
212	957153080	CHOKE SHAFT KIT
D10		INCLUDES ITEMS 225
213	957153070	CONTROL PARTS
214	28153480	SPRING
215	181153180	IDLE ADJUSTMENT SCREW
216	181153190	MAIN ADJUSTMENT SCREW
217	181153220	WASHER
224	181153110	SPRING
225	181153160	SPRING
226	181153210	WELCH PLUG
230	38155012	RETAINING CLIP / E-CLIP
231	965402995	GASKET
250	181153301	CARBURETOR (REGULATED EMISSIONS MARKET)
D10		INCLUDES ITEMS 251, 252, 255, 257-259, 303-305, 326, 330, 331
D20		L IDLE MIXTURE ADJUSTMENT SCREW (DD)
251	181153261	H MAIN MIXTURE ADJUSTMENT SCREW (DD)
252	181153271	PUMP COVER
255	181153031	DIAPHRAGMS AND GASKETS
256	181153021	REBUILD KIT
257	181153560	INCLUDES ITEM 256
D10		THROTTLE SHAFT KIT
258	181153570	CHOKE SHAFT KIT
259	181153580	PLUG
263	965604180	PLUG CAP SPRING
263-1	234358-7	TERMINAL SPRING
303	38153360	SCREW
304	181153040	DIAPHRAGM COVER
305	ZJ00000014	SCREW (WITH SERRATION)
326	181153210	WELCH PLUG
330	38155012	RETAINING CLIP
331	965402995	GASKET
A41	957004011	COMPLETE TOOL KIT
D10		INCLUDES ITEMS A43-A46
A42	944500795	CYLINDER FINS CLEANER
A43	941719133	UNIVERSAL COMBINATION WRENCH 13/19
A43-1	782033-4	UNIVERSAL COMBINATION WRENCH 13/19
A44	940827000	TORX L-WRENCH T27
A44-1	782025-3	TORX L-WRENCH 27
A45	783012-5	SCREWDRIVER
A46	950004002	PLASTIC POUCH / BAG
A46-1	831340-3	TOOL BAG / POUCH

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita DCS4630

Available 6 Items

Data sheet

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
Machine Type: Chain Saw
MORE INFO:: [email protected]

Specific References

Condition New

Download

Makita DCS4630 Parts Diagram

Download (1.34MB)

Covcer Pinion Carter for Chainsaws Dolmar PS4600S-5000

Makita SKU: 181213191

Sprocket Cover for Chainsaws Dolmar PS4600S-5000

Sprocket Cover for Chainsaws Dolmar PS4600S-5000 Genuine parts Dolmar, Sprocket Cover for Chainsaws Dolmar PS4600S-5000 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45 Part for the following products: - PS460/45 -...

AVAILABLE €14.24

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Makita Chain Saw DCS4630 Parts

Makita Spare Parts for Chainsaw DCS4630

Makita Chain Saw DCS4630 Parts

Makita Spare Parts for Chainsaw DCS4630

Makita Spare Parts for Chainsaw DCS4630

Data sheet

Specific References

Download

Makita DCS4630 Parts Diagram

You might also like
