Makita

Makita Trimmer EH760 Parts

SKU: Makita EH760
€25.82
VAT included

Makita Spare Parts for Hedge Trimmer EH760

We have the original Spares MAKITA Spare Parts for Hedge Trimmer EH760 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Hedge Trimmer EH760. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Trimmer EH760 Parts
  • Makita Trimmer EH760 Parts
  • Makita Trimmer EH760 Parts Diagram
  • Makita Trimmer EH760 Parts Diagram - 1
  • Makita Trimmer EH760 Parts Diagram - 2
  • Makita Trimmer EH760 Parts Diagram - -3
Makita

Makita Trimmer EH760 Parts

SKU: Makita EH760 Condition: New
€25.82
VAT included

Makita Spare Parts for Hedge Trimmer EH760

We have the original Spares MAKITA Spare Parts for Hedge Trimmer EH760 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Hedge Trimmer EH760. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 150 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
150 spare parts

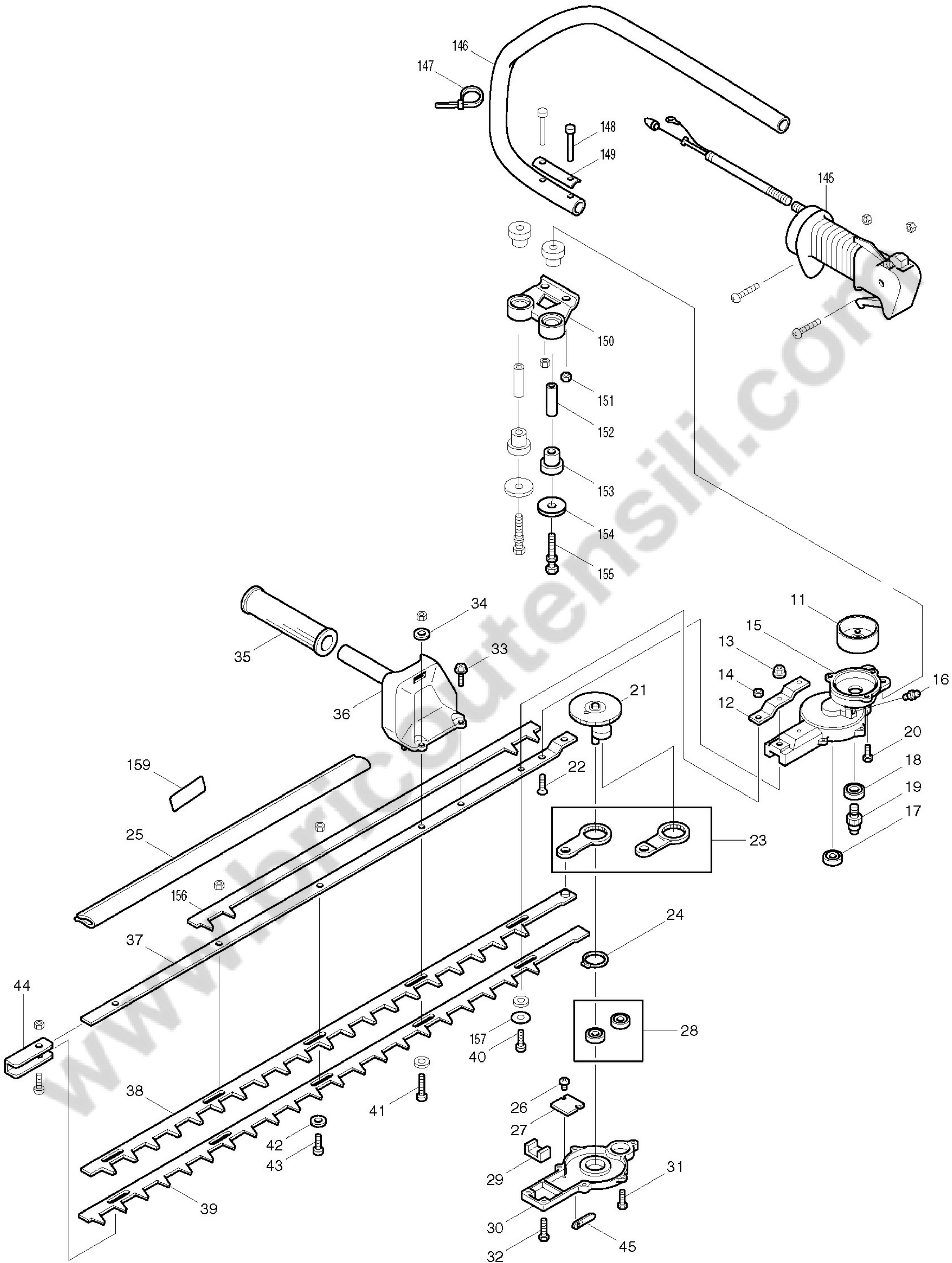

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
11
 photo_cameraImage coming soon 1361410000 DRUM CPL., EH561 HT2256D-HT2276E €25.05
12
 photo_cameraImage coming soon 0301080000 REINFORCING PLATE €13.06
13
 photo_cameraImage coming soon 162050000K NUT M5 X HT2256D-HT2276E €1.43
14
 photo_cameraImage coming soon 164060000K HEX NUT M6 HT2256D €2.76
15
 photo_cameraImage coming soon 326100002A UPPER CASING €94.80
16
 photo_cameraImage coming soon 034000110R COVER FOR EH760 HT2276E €36.80
16
 photo_cameraImage coming soon 055001000R GREASING NIPPLE M6 €4.56
17
 photo_cameraImage coming soon 034000120R COVER TO EH760 HT2276E €36.80
17
 photo_cameraImage coming soon 351006080K BALL BEARING 608Z HT2256 €36.80
18
 photo_cameraImage coming soon 034000130R LEVER X EH760 HT2276E €17.13
18
 photo_cameraImage coming soon 354060010K BALL BEARING HT2256D €33.68
19
 photo_cameraImage coming soon 034000140R LEVER X EH760 HT2276E €8.74
19
 photo_cameraImage coming soon 1361420000 PINION GEAR HT2256D- €78.04
20
 photo_cameraImage coming soon 034000150R KEY X EH760 HT2276E €11.39
20
 photo_cameraImage coming soon 054060150K HEX. BOLT M6X15 €2.14
21
 photo_cameraImage coming soon 1360030000 CRANK GEAR, EH561 HT2256D - €225.46
21
 photo_cameraImage coming soon 6415011060 CLAMP X EH760 HT2276E €8.74
22
 photo_cameraImage coming soon 011050200K SCREW M5X20 HT2276E €2.14
22
 photo_cameraImage coming soon 200541005H CABLE SET FOR EH760 HT2276E €87.61
23
 photo_cameraImage coming soon 6415011110 SPRING X EH760 HT2276E €4.56
23
 Conrod for Hedge Trimmer Dolmar HT2256D XOC0000018 Conrod for Hedge Trimmer Dolmar HT2256D €51.26
24
 photo_cameraImage coming soon 283026000K RETAINING RING STW-26 €2.76
24
 photo_cameraImage coming soon 6415011120 SPRING X EH760 HT2276E €7.79
25
 photo_cameraImage coming soon 028109009A HEDGE CUTTER BLADE COVER €16.66
25
 photo_cameraImage coming soon 6415011130 SCREW FOR EH760 HT2276E €2.14
26
 photo_cameraImage coming soon 010030050K PAN HEAD SCREW M3X5 €1.43
26
 photo_cameraImage coming soon 6415011140 NUT X EH760 HT2276E €2.14
27
 photo_cameraImage coming soon 0301100000 CONNECTING ROD HT2256D-HT2276E €10.18
27
 photo_cameraImage coming soon 6415011150 SCREW FOR EH760 HT2276E €2.14
28
 photo_cameraImage coming soon 351006080K BALL BEARING 608Z HT2256 €36.80
28
 photo_cameraImage coming soon 6415011160 NUT X EH760 HT2276E €1.43
29
 photo_cameraImage coming soon 1181010000 FELT €10.18
29
 photo_cameraImage coming soon 6415011210 CLOSING SCREW X EH760 HT2276E €1.43
30
 photo_cameraImage coming soon 1181040000 CASE (LOWER) €29.13
31
 photo_cameraImage coming soon 054050160K HEX. BOLT M5X16 €2.14
32
 photo_cameraImage coming soon 054050200K HEX. BOLT M5X20 €2.14
33
 photo_cameraImage coming soon 055060202K BOLT M5X20 X HT2276E €3.23
34
 photo_cameraImage coming soon 207060130K WASHER HT2276E €1.43
35
 photo_cameraImage coming soon 0083450000 HANDLE X HT2276E €19.53
36
 photo_cameraImage coming soon 1361900000 RH HANDLE HT2276E €41.57
37
 photo_cameraImage coming soon 1361160000 GUIDE PLATE HT2276E €143.95
38
 photo_cameraImage coming soon 6018505200 UPPER BLADE HT2276E/EH760 €91.52
39
 photo_cameraImage coming soon 6018505301 LOWER BLADE HT2276E/EH760 €91.52
40
 photo_cameraImage coming soon 0082480000 BLADE SLIDING SCREW(L=22) €3.23
41
 photo_cameraImage coming soon 0082490000 BLADE SCREW (L=29) HT2276E €4.56
42
 photo_cameraImage coming soon 0082500000 WASHER X BLADE SCREW HT2256D- €1.43
43
 photo_cameraImage coming soon 0082470000 BLADE SLIDING SCREW(L=19) €2.52
44
 photo_cameraImage coming soon 0271450000 HT2276E SUPPORT €11.39
45
 photo_cameraImage coming soon 0566079970 CLAMP X RBC520 €2.14
101
 photo_cameraImage coming soon 034001300R KNOB COMPL. EH620 €105.84
102
 photo_cameraImage coming soon 1361490000 LEFT HANDLE HT2276E €63.40
103
 photo_cameraImage coming soon 035002100R SPRING X HT2276E €1.43
104
 photo_cameraImage coming soon 040050301K M5X30 BOLT HT2276E €2.76
105
 photo_cameraImage coming soon 1361030000 HANDLE LOCK HT2276E €10.18
106
 photo_cameraImage coming soon 1361000000 HANDLE LOCK HT2276E €19.53
107
 photo_cameraImage coming soon 150050000K M5 NUT X HT2276E €1.43
108
 photo_cameraImage coming soon 1361010000 PIN X HT2276E €8.74
109
 photo_cameraImage coming soon 1361020000 ANTI-VIBRATION X HT2276E €10.18
110
 photo_cameraImage coming soon 1361040000 RUBBER WASHER X HT2276E €5.28
111
 photo_cameraImage coming soon 054060350K M6X35 BOLT HT2276E €2.76
112
 photo_cameraImage coming soon 1361910000 BLADE PROTECTION X HT €11.86
113
 photo_cameraImage coming soon 229060000K SPRING WASHER X HT2256D €2.14

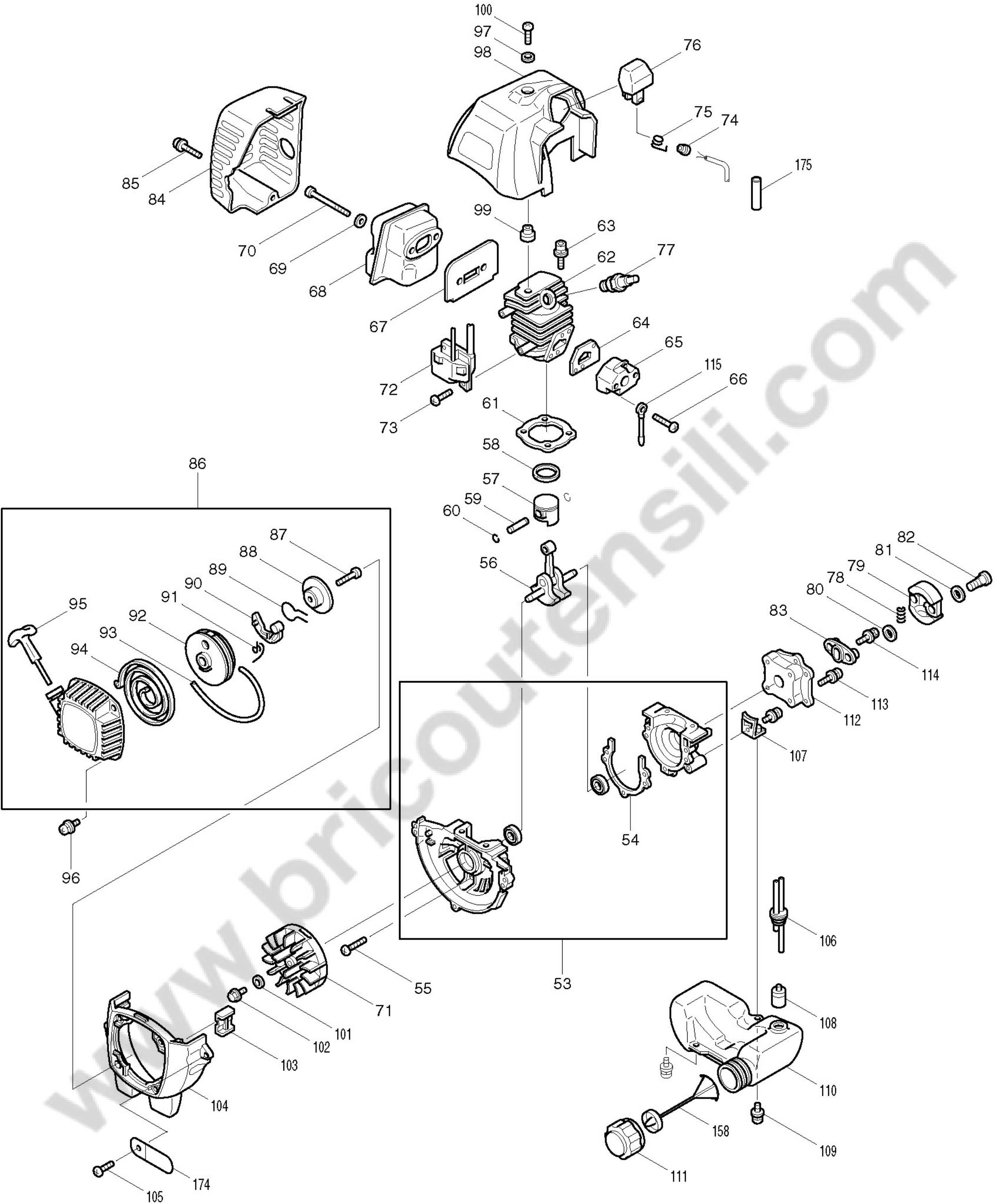

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
53
 photo_cameraImage coming soon 5251003000 ENGINE CRANKCASE CPL X HT2256D €87.61
54
 photo_cameraImage coming soon 424447-8 HOUSING GASKET RBC2510 €2.14
55
 photo_cameraImage coming soon 0140059500 SCREW M5x25 X RBC225-255 €1.43
56
 photo_cameraImage coming soon 5252002002 CRANKSHAFT ASS'Y €87.61
57
 photo_cameraImage coming soon 5212500700 PISTON X RBC221-225 €14.76
58
 photo_cameraImage coming soon 5982500000 PISTON RING X RBC221-225 €3.95
59
 photo_cameraImage coming soon 5212500801 PIN X RBC221-225 €2.76
60
 photo_cameraImage coming soon 233976-8-4 CIRCLIP EBH252L RING (4pcs) €6.01
61
 photo_cameraImage coming soon 442171-1 CYLINDER GASKET RBC2510 €2.76
63
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
64
 photo_cameraImage coming soon 5253500200 INSULATOR GASKET X HT2256D €2.14
65
 photo_cameraImage coming soon 141056-5 INSULATOR COMPLETE €6.81
66
 photo_cameraImage coming soon 0140059500 SCREW M5x25 X RBC225-255 €1.43
67
 photo_cameraImage coming soon 5253500102 MUFFLER GASKET X HT2256D €3.23
68
 photo_cameraImage coming soon 5253010001 EXHAUST MUFFLER €87.61
69
 photo_cameraImage coming soon 0031005000 WASHER X RBC230 / 410 / RBK410 €5.26
70
 photo_cameraImage coming soon 0119059660 BOLT X RBC350-RBC420 €2.76
71
 photo_cameraImage coming soon 5257001010 MAGNETO FLYWHEEL €36.80
72
 photo_cameraImage coming soon 5257001020 IGNITION COIL €159.53
73
 photo_cameraImage coming soon 0140049920 SCREW M4X20 X RBC225-255 €1.43
74
 photo_cameraImage coming soon 5257500300 RUBBER X HT2256D-HT2276E €2.76
75
 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U 324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U €1.62
76
 photo_cameraImage coming soon 5237503301 SPARK PLUG CAP XRBC225-255 €25.05
77
 photo_cameraImage coming soon 0650149721-10 SPARK PLUG X RBK250 €154.28
78
 photo_cameraImage coming soon 5238500500 CLUTCH SPRING X RBC225-255 €2.76
79
 photo_cameraImage coming soon 6252500801 CLUTCH GEAR X RBC225-255 €8.74
80
 photo_cameraImage coming soon 267429-5 WASHER 6 €1.54
81
 photo_cameraImage coming soon 267817-6 WASHER 8 EBH252L €1.46
82
 photo_cameraImage coming soon 266457-7 SCREW M6FOR25 EBH252L €2.76
83
 photo_cameraImage coming soon 6202500000 HOLDER X HT2256D-HT2276E €19.53
84
 photo_cameraImage coming soon 5253500500 MUFFLER COVER X HT2256D €14.76
85
 photo_cameraImage coming soon 0043705160 SCREW ASS Y €1.43
86
 photo_cameraImage coming soon 5255001000 REWIND STARTER ASS Y €22.16
87
 photo_cameraImage coming soon 5255001020 SET SCREW €4.56
88
 photo_cameraImage coming soon 5505001030 FRICTION PLATE €7.79
89
 photo_cameraImage coming soon 5105015050 CLUTCH SPRING X RBC 310/520 €7.79
90
 photo_cameraImage coming soon 5105015020 RATCHET RBC 310 / RBC520 €8.74
91
 photo_cameraImage coming soon 5105015060 RETURN SPRING X RBC310 / RBC520 €3.23
92
 photo_cameraImage coming soon 5025001010 REEL X RBC 310 €13.06
93
 photo_cameraImage coming soon 5235024022 STARTER ROPE RBK250-RBC225-2 €17.13
94
 photo_cameraImage coming soon 232257-7 SPRING SPIRAL EBH341U €17.13
95
 photo_cameraImage coming soon 5225004020 STARTER KNOB HT2256D €13.66
96
 photo_cameraImage coming soon 911218-7 HEAD SCREW CILIND. M5x14 €1.54
97
 photo_cameraImage coming soon 0200070010 WASHER X HT2256D-HT2276E €2.14
98
 photo_cameraImage coming soon 5255500301 CYLINDER COVER EH561 €8.50
99
 photo_cameraImage coming soon 5503503001 SPACER X-HT2256D HT2276E €3.95
100
 photo_cameraImage coming soon 0140059490 SCREW X HT2256D-HT2276E €1.43
101
 photo_cameraImage coming soon 0031206000 WASHER G.24 / 35-RBC225-255 €1.43
101
 photo_cameraImage coming soon 034001300R KNOB COMPL. EH620 €105.84
102
 photo_cameraImage coming soon 0011306160 BOLT X RBC230 / 260/225/255 €1.43
102
 photo_cameraImage coming soon 1361490000 LEFT HANDLE HT2276E €63.40
103
 photo_cameraImage coming soon 035002100R SPRING X HT2276E €1.43
103
 photo_cameraImage coming soon 5215500300 BAFFLE PLATE €2.76
104
 photo_cameraImage coming soon 040050301K M5X30 BOLT HT2276E €2.76
104
 photo_cameraImage coming soon 5255500001 BLOWER HOUSING €41.57
105
 photo_cameraImage coming soon 0043505160 SCREW ASS Y €1.43
105
 photo_cameraImage coming soon 1361030000 HANDLE LOCK HT2276E €10.18
106
 photo_cameraImage coming soon 1361000000 HANDLE LOCK HT2276E €19.53
106
 photo_cameraImage coming soon 5256012001 TUBE CPL. HT2256D-HT2276E €6.81
107
 photo_cameraImage coming soon 150050000K M5 NUT X HT2276E €1.43
107
 photo_cameraImage coming soon 5256002000 TANK PLATE CPL HT2256D €6.81
108
 photo_cameraImage coming soon 1361010000 PIN X HT2276E €8.74
108
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
109
 photo_cameraImage coming soon 0043705160 SCREW ASS Y €1.43
109
 photo_cameraImage coming soon 1361020000 ANTI-VIBRATION X HT2276E €10.18
110
 photo_cameraImage coming soon 1361040000 RUBBER WASHER X HT2276E €5.28
110
 photo_cameraImage coming soon 5256025000 TANK CPL X HT2256D-HT2276 €15.00
111
 photo_cameraImage coming soon 054060350K M6X35 BOLT HT2276E €2.76
111
 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
112
 photo_cameraImage coming soon 1181240000 SPACER X HT2256D-HT2276E €33.68
112
 photo_cameraImage coming soon 1361910000 BLADE PROTECTION X HT €11.86
113
 photo_cameraImage coming soon 0140059450 SCREW M5X18 X RBK250-RBC225 / 25 €2.14
113
 photo_cameraImage coming soon 229060000K SPRING WASHER X HT2256D €2.14
114
 photo_cameraImage coming soon 6202006000 BOLT FOR RBC310 €2.14
115
 photo_cameraImage coming soon 6165500200 WHIRE X HT2276E €3.46
116
 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
116
 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31
116
 photo_cameraImage coming soon 5256007000 CARBURETOR X HT2256D-HT2276E €179.92
116N
 photo_cameraImage coming soon 5256032000 CARBURETOR €63.40
117
 photo_cameraImage coming soon 5253020010 AIR CLEANER COVER RBC201 €13.06
118
 Air Filter Element for Brushcutter Makita RBC201 5203004010 Air Filter Element for Brushcutter Makita RBC201 €3.95
119
 photo_cameraImage coming soon 0043305650 SCREW ASS'Y XHT2256D-HT2276E €2.76
120
 photo_cameraImage coming soon 5253003020 AIR CLEANER HOUSING RBC201 €10.18
121
 photo_cameraImage coming soon 5256501100 RING X HT2256D-HT2276E €2.14
122
 photo_cameraImage coming soon 5256501200 GASKET X HT2256D-HT2276E €2.14
123
 photo_cameraImage coming soon 5256500100 CABLE SUPPORT HT2256D-HT2276E €4.56
124
 photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
125
 photo_cameraImage coming soon 266581-6 SCREW M3X8 EBH341U €2.18
126
 photo_cameraImage coming soon 5256032010 THROTTLE VALVE ASS'Y RBC221/25   X RBL250- €36.80
127
 photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
128
 photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €6.10
129
 photo_cameraImage coming soon 5026004010 NOZZLE X HT2256D-HT2276E €14.76
130
 photo_cameraImage coming soon 5246001030 PUMP GASKET RBC260-230-310- €6.11
131
 photo_cameraImage coming soon WJ00009599 PUMP DIAPHRAGM DCS230T €13.50
132
 photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28
133
 photo_cameraImage coming soon 5256007010 PUMP BODY ASS Y €70.85
134
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
135
 photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €27.72
136
 photo_cameraImage coming soon 5236046060 CPL AIR FILTER BODY RBC350 €33.70
137
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
138
 photo_cameraImage coming soon 5236046050 PUMP COVER FOR RBC350-RBC42 €13.66
139
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
140
 Carburator Gasket for Brushcutter Makita RBC310 442177-9 Carburator Gasket for Brushcutter Makita RBC310 €1.51
141
 photo_cameraImage coming soon 5216008010 CABLE ADJUST SCREW X RBC260 310 €5.43
142
 photo_cameraImage coming soon 5316005450 NUT RBC260 / 310 €2.85
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
16
 photo_cameraImage coming soon 034000110R COVER FOR EH760 HT2276E €36.80
17
 photo_cameraImage coming soon 034000120R COVER TO EH760 HT2276E €36.80
18
 photo_cameraImage coming soon 034000130R LEVER X EH760 HT2276E €17.13
19
 photo_cameraImage coming soon 034000140R LEVER X EH760 HT2276E €8.74
20
 photo_cameraImage coming soon 034000150R KEY X EH760 HT2276E €11.39
21
 photo_cameraImage coming soon 6415011060 CLAMP X EH760 HT2276E €8.74
22
 photo_cameraImage coming soon 200541005H CABLE SET FOR EH760 HT2276E €87.61
23
 photo_cameraImage coming soon 6415011110 SPRING X EH760 HT2276E €4.56
24
 photo_cameraImage coming soon 6415011120 SPRING X EH760 HT2276E €7.79
25
 photo_cameraImage coming soon 6415011130 SCREW FOR EH760 HT2276E €2.14
26
 photo_cameraImage coming soon 6415011140 NUT X EH760 HT2276E €2.14
27
 photo_cameraImage coming soon 6415011150 SCREW FOR EH760 HT2276E €2.14
28
 photo_cameraImage coming soon 6415011160 NUT X EH760 HT2276E €1.43
29
 photo_cameraImage coming soon 6415011210 CLOSING SCREW X EH760 HT2276E €1.43

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Hedge Trimmer EH760

Fix Your Hedge Trimmer EH760. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Trimmer and the respective parts of the code.
Makita EH760
Hedge Trimmer EH760 Parts
# Part Num. Description
Pag.1
11 1361410000 DRUM CPL HT2256D-HT2276E
12 0301080000 REINFORCEMENT PLATE HT2256D-
13 162050000K NUT M5 X HT2256D-HT2276E
14 164060000K HEX NUT M6 HT2256D
15 326100002A UPPER CASING
16 055001000R NUT M6 X HT2256D-HT2276E
17 351006080K BALL BEARING 608Z HT2256
18 354060010K BALL BEARING HT2256D
19 1361420000 PINION GEAR HT2256D-
20 054060150K BOLT M6X15 X HT2256D-HT2276
21 1360030000 CONNECTING ROD GEAR HT2256D -
22 011050200K SCREW M5X20 HT2276E
23 XOC0000018 CONNECTING ROD HTR5600
24 283026000K RETAINING RING HT2256D -
25 028109009A HEDGE CUTTER BLADE COVER
26 010030050K SCREW M3X5 X HT2256D-HT2276E
27 0301100000 CONNECTING ROD PLATE HT2256D-HT2276E
28 351006080K BALL BEARING 608Z HT2256
29 1181010000 FELT X HT2256D-HT2276E
30 1181040000 LOWER CASE HT2256D
31 054050160K BOLT M5X16 X HT2256D-HT2276
32 054050200K BOLT M5X20 X HT2256D-HT2276
33 055060202K BOLT M5X20 X HT2276E
34 207060130K WASHER HT2276E
35 0083450000 HANDLE X HT2276E
36 1361900000 RH HANDLE HT2276E
37 1361160000 GUIDE PLATE HT2276E
38 6018505200 UPPER BLADE HT2276E/EH760
39 6018505301 LOWER BLADE HT2276E/EH760
40 0082480000 BLADE SCREW X HT2256D-HT2276E
41 0082490000 BLADE SCREW (L=29) HT2276E
42 0082500000 WASHER X BLADE SCREW HT2256D-
43 0082470000 BLADE SCREW X HT2256D-HT2276E
44 0271450000 HT2276E SUPPORT
45 0566079970 CLAMP X RBC520
101 034001300R KNOB COMPL. EH620
102 1361490000 LEFT HANDLE HT2276E
103 035002100R SPRING X HT2276E
104 040050301K M5X30 BOLT HT2276E
105 1361030000 HANDLE LOCK HT2276E
106 1361000000 HANDLE LOCK HT2276E
107 150050000K M5 NUT X HT2276E
108 1361010000 PIN X HT2276E
109 1361020000 ANTI-VIBRATION X HT2276E
110 1361040000 RUBBER WASHER X HT2276E
111 054060350K M6X35 BOLT HT2276E
112 1361910000 BLADE PROTECTION X HT
113 229060000K SPRING WASHER X HT2256D
Pag.2
53 5251003000 CRANKCASE CPL X HT2256D
54 424447-8 CASE GASKET RBC2510
55 0140059500 SCREW M5X25 X RBC225-255
56 5252002002 ECCENTRIC SHAFT
57 5212500700 PISTON X RBC221-225
58 5982500000 PISTON RING X RBC221-225
59 5212500801 PIN X RBC221-225
60 233976-8-4 PIN RING EBH252L (4pcs)
61 442171-1 CYLINDER GASKET RBC2510
63 0119059730 BOLT X RBC 260/230/225/255
64 5253500200 INSULATING GASKET X HT2256D
65 141056-5 INSULATOR
66 0140059500 SCREW M5X25 X RBC225-255
67 5253500102 EXHAUST GASKET X HT2256D
68 5253010001 MUFFLER X HT2256D-HT2276E
69 0031005000 WASHER X RBC230/410/RBK410
70 0119059660 BOLT X RBC350-RBC420 -
71 5257001010 POLE WHEEL X HT2256D
72 5257001020 COIL X HT2256D-HT2276E
73 0140049920 SCREW M4X20 X RBC225-255
74 5257500300 RUBBER X HT2256D-HT2276E
75 324891-8 SPRING SPARK PLUG CAP EBH341
76 5237503301 SPRING CAP XRBC225-255
77 0650149721-10 SPRING X RBK250 (pack of 10)
78 5238500500 CLUTCH SPRING X RBC225-255
79 6252500801 CLUTCH SHOES X RBC225-255
80 267429-5 WASHER 6
81 267817-6 WASHER 8 EBH252L
82 266457-7 SCREW M6X25 EBH252L
83 6202500000 SUPPORT X HT2256D-HT2276E
84 5253500500 MUFFLER CAP X HT2256D
85 0043705160 SCREW COMPLETE X HT2256D-HT2276E
86 5255001000 STARTER COMPLETE HT2256D
87 5255001020 SCREW X HT2256D-HT2276E
88 5505001030 CLUTCH PLATE X RBC 310/RBC520
89 5105015050 CLUTCH SPRING X RBC 310/520
90 5105015020 STARTER PAWL X RBC 310/RBC520
91 5105015060 RETURN SPRING X RBC310/RBC520
92 5025001010 STARTER SPOOL X RBC 310
93 5235024022 STARTER ROPE X RBK250-RBC225-2
94 232257-7 SPIRAL SPRING EBH341U
95 5225004020 STARTER KNOB HT2256D
96 911218-7 CYLINDER HEAD SCREW M5X14
97 0200070010 WASHER X HT2256D-HT2276E
98 5255500301 CYLINDER COVER EH561
99 5503503001 SPACER X HT2256D-HT2276E
100 0140059490 SCREW X HT2256D-HT2276E
101 0031206000 WASHER G.24/35-RBC225-255
102 0011306160 BOLT X RBC230/260/225/255
103 5215500300 DEFLECTOR PLATE X HT2256D
104 5255500001 POLAR WHEEL HOUSING HT2256D
105 0043505160 SCREW COMPLETE X HT2556D-HT2276E
106 5256012001 TUBE COMPLETE HT2256D-HT2276E
107 5256002000 TANK PLATE COMPLETE HT2256D
108 163447-0 FUEL FILTER X DCS230T
109 0043705160 SCREW COMPLETE X HT2256D-HT2276E
110 5256025000 TANK COMPLETE X HT2256D-HT2276
111 452920-8 TANK CAP
112 1181240000 SPACER X HT2256D-HT2276E
113 0140059450 SCREW M5X18 X RBK250-RBC225/25
114 6202006000 BOLT X RBC310
115 6165500200 GROUND CABLE X HT2276E
116 140436-2 DISK EBH341U
Pag.3
116 5256007000 CARBURETOR X HT2256D-HT2276E
116N 5256032000 CARBURETOR X HT2256D-HT2276E
117 5253020010 FILTER COVER RBC201
118 5203004010 AIR FILTER X HT2256D
119 0043305650 SCREW CPL XHT2256D-HT2276E
120 5253003020 FILTER HOUSING COMPL. RBC201
121 5256501100 RING X HT2256D-HT2276E
122 5256501200 GASKET X HT2256D-HT2276E
123 5256500100 CABLE SUPPORT HT2256D-HT2276E
124 5236018040 ACC. CABLE XRBC230-260-310-225-
125 266581-6 SCREW M3X8 EBH341U
126 5256032010 CARBURETOR VALVE X RBL250-
127 5316005120 RING X RBC 260/230/310/225/2
128 5246001010 GASKET X RBC 260/230/310/
129 5026004010 NOZZLE X HT2256D-HT2276E
130 5246001030 GASKET PUMP RBC260-230-310-
131 WJ00009599 DIAPHRAGM PUMP X DCS230T
132 5016004010 CONNECTOR X RBC 260/230/310/225
133 5256007010 COMPLETE PUMP BODY X HT2256D
134 442154-1 GASKET DIAPHRAGM EBH341U
135 168574-8 COMPLETE DIAPHRAGM EBH341U
136 5236046060 COMPLETE AIR FILTER BODY RBC350
137 424314-7 PRIMING PUMP EBH341
138 5236046050 PUMP COVER FOR RBC350-RBC42
139 266582-4 SCREW 3X24 EBH341U
140 442177-9 GASKET
141 5216008010 SCREW CABLE REGULATOR ACC.XRBC260 310
142 5316005450 NUT REGULATOR STOP RBC260/310
Pag.4
16 034000110R COVER FOR EH760 HT2276E
17 034000120R COVER TO EH760 HT2276E
18 034000130R LEVER X EH760 HT2276E
19 034000140R LEVER X EH760 HT2276E
20 034000150R KEY X EH760 HT2276E
21 6415011060 CLAMP X EH760 HT2276E
22 200541005H CABLE SET FOR EH760 HT2276E
23 6415011110 SPRING X EH760 HT2276E
24 6415011120 SPRING X EH760 HT2276E
25 6415011130 SCREW FOR EH760 HT2276E
26 6415011140 NUT X EH760 HT2276E
27 6415011150 SCREW FOR EH760 HT2276E
28 6415011160 NUT X EH760 HT2276E
29 6415011210 CLOSING SCREW X EH760 HT2276E
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EH760
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita EH760 Parts Diagram

Makita EH760 Parts Diagram

Download (1.72MB)

You might also like

Gasoline Primer Pump for Chainsaw Makita DCS230T
Makita SKU: 168398-2
Gasoline Primer Pump for Chainsaw Makita DCS230T
Gasoline Primer Pump for Chainsaw Makita DCS230T Genuine parts for Makita, Gasoline Primer Pump for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA...
AVAILABLE €6.24
Details
Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA 25CM -...
AVAILABLE €4.49
Details
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Details
Primer Bulb for Blower Makita BHX2501
Makita SKU: 424314-7
Primer Bulb for Blower Makita BHX2501
Primer Bulb for Blower Makita BHX2501 Genuine replacement part Makita, Primer Bulb for Brushcutters, Hedge Trimmers, Blowers, Engine Pump, Mist Blowers. Part for the following...
AVAILABLE €6.90
Details
Gear Case for Hedgetrimmer Makita EH5000W
Makita SKU: 141033-7
Gear Case for Hedgetrimmer Makita EH5000W
Gear Case for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Gear Case for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: -  EH5000W -...
on 7/10 Business Days Approx €65.20
Details
Connect Rod for Hedgetrimmer Makita EH5000W
Makita SKU: 346251-4
Connect Rod for Hedgetrimmer Makita EH5000W
Connect Rod for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Connect Rod for Hedgetrimmers EH5000W - EH6000W - EH7500W, EH7500S, EN4950H. Part for the following products: - 196256-2 - ACCEESORY HEDGETRIMMER 53.5CM 135...
Last items in stock €9.89
Details
Blade 60 cm for Hedgetrimmer Makita EH5000W
Makita SKU: 725169-6
Blade 60 cm for Hedgetrimmer Makita EH5000W
Blade 60 cm for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Blade 60 cm for Hedgetrimmers EH5000W - Dolmar HT2350D. Part for the following products: - EH5000W - HEDGETRIMMER 22,2CC 50CM MAKITA - HT2350D - HEDGETRIMMER...
on 7/10 Business Days Approx €84.48
Details
Gear 43 for Hedge Trimmer Makita EH5000W
Makita SKU: 227248-1
Gear 43 for Hedge Trimmer Makita EH5000W
Gear 43 for Hedge Trimmer Makita EH5000W Genuine replacement part Makita, Gear 43 for Hedge Trimmers EH5000W - EH6000W - Dolmar HT2350D - HT2360D. Part for the following products: - 126293-2 - HEDGE TRIMMER X MH246.4D - 196256-2 -...
AVAILABLE €28.89
Details
Piston for Brushcutter Dolmar MS26C
Makita SKU: 318858-6
Piston for Brushcutter Dolmar MS26C
Piston for Brushcutter Dolmar MS26C Genuine replacement part Dolmar, Piston for Brushcutters MS26C - MS-26U - Makita DBC260L - DBC260U. Part for the following products: -  MS26C...
Last items in stock €13.46
Details
Blade for Hedgetrimmer Makita EH6000W
Makita SKU: 725170-1
Blade for Hedgetrimmer Makita EH6000W
Blade for Hedgetrimmer Makita EH6000W Genuine replacement part Makita, Blade 72 cm for Hedgetrimmers EH6000W - Dolmar HT2360D. Part for the following products: -  EH6000W - HEDGETRIMMER 22,2CC 60CM MAKITA -  HT2360D - HEDGETRIMMER...
Last items in stock €88.04
Details
Air Filter Element for Brushcutter Makita RBC201
Makita SKU: 5203004010
Air Filter Element for Brushcutter Makita RBC201
Air Filter Element for Brushcutter Makita RBC201 Genuine spare part Makita, Air Filter Element for Brushcutters RBC201 - Hedge Trimmer HT2256D - HT2556D. Part for the following products: -  RBC201 - BRUSHCUTTER 20CC MAKITA -  HT2256D...
on 7/10 Business Days Approx €3.95
Details
Gear Case Cover for Hedgetrimmer Makita EH5000W
Makita SKU: 318610-2
Gear Case Cover for Hedgetrimmer Makita EH5000W
Gear Case Cover for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Gear Case Cover for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: -  EH5000W - HEDGETRIMMER 22,2CC 50CM MAKITA -  EH6000W...
Last items in stock €18.48
Details
Oil Seal 10 for Brushcutter Dolmar MS335.4C
Makita SKU: 213769-9
Oil Seal 10 for Brushcutter Dolmar MS335.4C
Oil Seal 10 for Brushcutter Dolmar MS335.4C Genuine replacement part Dolmar, Oil Seal 10 for Brushcutters MS335.4C - MS335.4U - MS-4300.4R - MS-430.4U. Part for the following products: -  MS335.4C - BRUSHCUTTER 33,5cc 4T -  MS335.4U...
on 7/10 Business Days Approx €3.20
Details
Clutch Drum for Hedgetrimmer Makita EH5000W
Makita SKU: 168567-5
Clutch Drum for Hedgetrimmer Makita EH5000W
Clutch Drum for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Clutch Drum for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: -  EH5000W -...
Usually Ships in: 7/10 Business Days Approx. €17.67
Details
Clutch Ass'y for Hedgetrimmer Makita EH5000W
Makita SKU: 141150-3
Clutch Ass'y for Hedgetrimmer Makita EH5000W
Clutch Ass'y for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Clutch Ass'y for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: -  EH5000W -...
Last items in stock €37.08
Details
Conrod for Hedge Trimmer Dolmar HT2256D
Makita SKU: XOC0000018
Conrod for Hedge Trimmer Dolmar HT2256D
Conrod for Hedge Trimmer Dolmar HT2256D Genuine replacement part Dolmar, Conrod for Hedge Trimmers HT2256D - HT2556D - EH561. Part for the following products: -  HT2256D - HEDGE TRIMMER 56CM...
on 7/10 Business Days Approx. €51.26
Details
Compression Spring 15 for Hedgetrimmer Makita EH5000W
Makita SKU: 234202-8
Compression Spring 15 for Hedgetrimmer Makita EH5000W
Compression Spring 15 for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Compression Spring 15 for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: - ...
on 7/10 Business Days Approx €4.58
Details
Comments (0)
