Makita

Makita Electric Chain Saw UC4550A Parts

SKU: Makita UC4550A
€1.47
VAT included

Makita Spare Parts for Electric Chain Saw UC4550A

Makita original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Electric Chain Saw UC4550A.

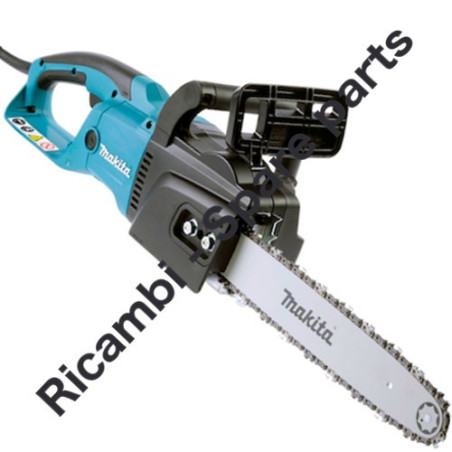

Makita Electric Chain Saw UC4550A
  • Makita Electric Chain Saw UC4550A
  • Makita Electric Chain Saw UC4550A Parts Diagram
Makita

Makita Electric Chain Saw UC4550A Parts

SKU: Makita UC4550A Condition: New
€1.47
VAT included

Makita Spare Parts for Electric Chain Saw UC4550A

Makita original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Electric Chain Saw UC4550A.
settings 78 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
78 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

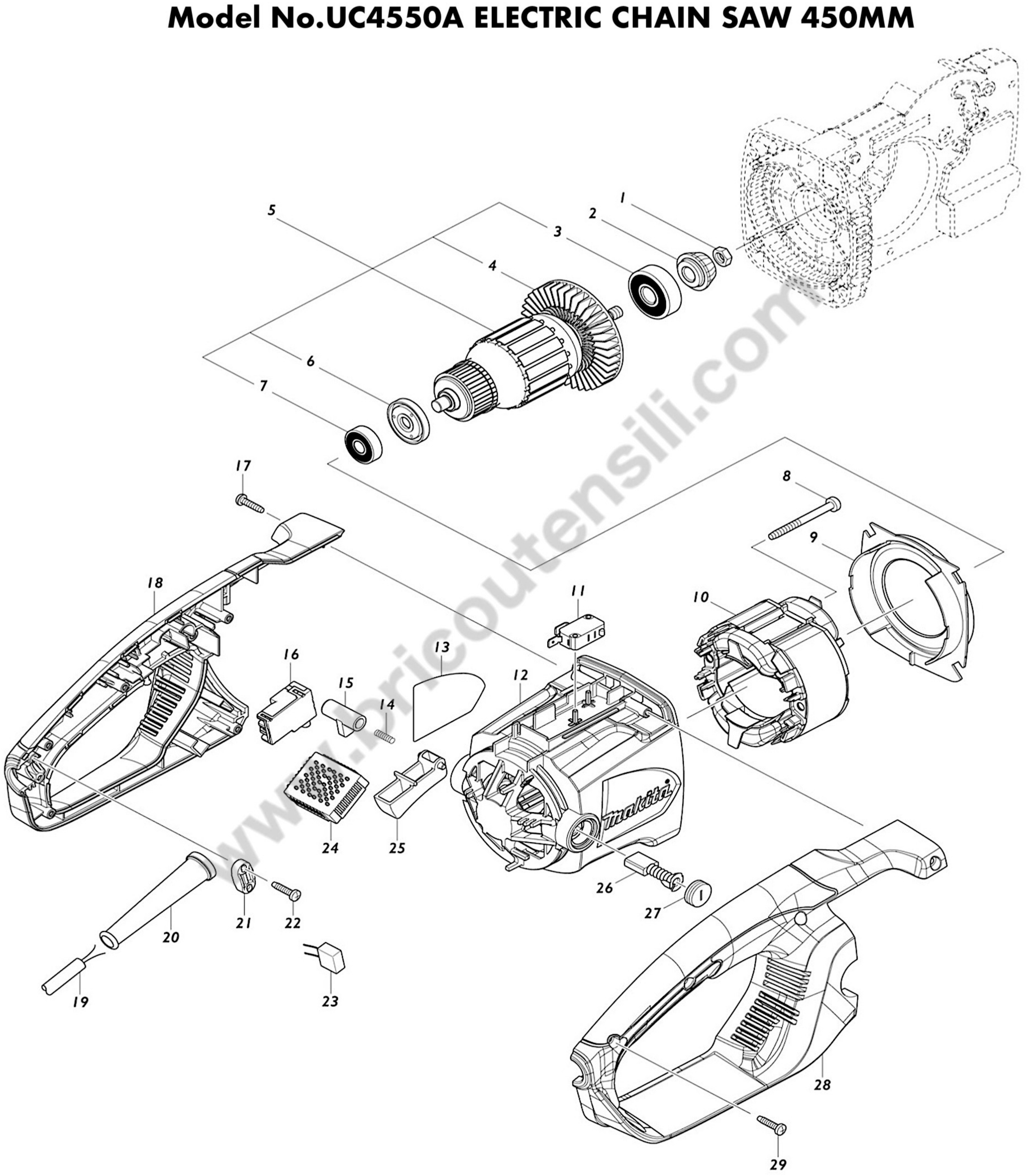

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A01
 photo_cameraImage coming soon 158024-1 CABLE CLAMP UH3000 €3.43
A03
 photo_cameraImage coming soon 419242-9 CHAIN COVER €4.83
A03-1
 photo_cameraImage coming soon 419242-9 CHAIN COVER €4.83
C10
 photo_cameraImage coming soon 643536-2 BRUSH HOLDER 6.5X13.5 €3.31
C10
 photo_cameraImage coming soon 654020-2 RING TERMINAL 94 €1.40
C20
 photo_cameraImage coming soon 654501-6 CONNECTOR P-1.25 €1.40
A05
 photo_cameraImage coming soon 782023-7 WRENCH 13-16 €3.37
1
 photo_cameraImage coming soon 931403-6 HEX NUT M8 €1.40
2
 photo_cameraImage coming soon 227626-5 GEAR 12 €8.50
3
 photo_cameraImage coming soon 211111-8 BEARING 6301 X UC €5.67
4
 photo_cameraImage coming soon 240003-4 FAN X 2702 €5.13
5
 photo_cameraImage coming soon 517904-4 ARMATURE €56.02
6
 photo_cameraImage coming soon 681666-1 INSULATING WASHER UC3530A-4030 €1.47
7
 photo_cameraImage coming soon 210084-2 BEARING 629ZZ €4.85
8
 photo_cameraImage coming soon 266095-5 SCREW 5x55 HR5001C €1.47
9
 photo_cameraImage coming soon 419410-4 BAFFLE UC3530A-4030A €1.47
10-10
 photo_cameraImage coming soon 636394-3 STATOR €44.84
011
 Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A 650577-1 Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A €2.97
012
 photo_cameraImage coming soon 142348-5 HOUSING MOTOR €18.98
14
 photo_cameraImage coming soon 233173-6 SPRING FOR COMPR.4 UC3020A €1.47
15
 photo_cameraImage coming soon 416178-3 RESET BUTTON X UC3020A €1.47
16
 photo_cameraImage coming soon 650717-1 SWITCH TGC30B €11.07
17
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
18
 photo_cameraImage coming soon 187901-0 REAR HANDLE €16.65
20
 Cord Guard JN1601 for Angle Grinder Makita 9015B 682540-6 Cord Guard JN1601 for Angle Grinder Makita 9015B €2.72
21
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
22
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
24
 Controller 240V for Electric ChainsawS Makita UC3530A - UC4030A 631719-6 Controller 240V for Electric ChainsawS Makita UC3530A - UC4030A €54.59
25
 photo_cameraImage coming soon 419411-2 LEVER SWITCH UC3530A-4030 €1.47
27-1
 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A 643650-4 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A €2.43
28
 photo_cameraImage coming soon 187901-0 REAR HANDLE €16.65
29
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
30
 photo_cameraImage coming soon 142282-9 TANK CAP CPL €5.13
31
 photo_cameraImage coming soon 454822-4 COVER GEAR BOX €5.13
32
 Oil Tank Gasket for Electric Chainsaws Makita UC3530A - UC4030A 421959-2 Oil Tank Gasket for Electric Chainsaws Makita UC3530A - UC4030A €1.32
33
 photo_cameraImage coming soon 454826-6 OIL TANK €4.87
34
 photo_cameraImage coming soon 424611-1 DELIVERY PIPE €2.08
35
 photo_cameraImage coming soon 424610-3 HOSE €1.40
36
 photo_cameraImage coming soon 231975-4 SPRING TUBE OIL X DCS230T €1.47
37
 photo_cameraImage coming soon 416274-7 PLUG OIL PIPE X DCS230T €1.47
38
 photo_cameraImage coming soon 454825-8 AUCTION CHAIN ​​BRAKE €1.40
39
 photo_cameraImage coming soon 233174-4 SPRING LOCK. X UC €1.54
40
 photo_cameraImage coming soon 142341-9 HAND GUARD €8.50
41
 photo_cameraImage coming soon 158044-5 RETAINING SPRING BRAKE X UC €6.61
42
 photo_cameraImage coming soon 234005-0 SPRING UC3530A-4030A €1.47
43
 photo_cameraImage coming soon 213017-6 RING 6 AN621 €1.79
44
 photo_cameraImage coming soon 454821-6 GEAR BOX €15.36
45
 photo_cameraImage coming soon 266041-8 PT SCREW 5x25 €1.24
46
 photo_cameraImage coming soon 210028-2 BEARING 606ZZ €1.92
47
 photo_cameraImage coming soon 961006-2 RETAINING RING S10 €1.32
48
 photo_cameraImage coming soon 221427-3 WORM €6.70
49-2
 Oil Pump for Electric Chainsaw Makita UC3041A 142156-4 Oil Pump for Electric Chainsaw Makita UC3041A €24.95
49-1
 Oil Pump for Electric Chainsaw Makita UC3041A 142156-4 Oil Pump for Electric Chainsaw Makita UC3041A €24.95
50
 photo_cameraImage coming soon 424612-9 RUBBER €1.32
51
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
52
 photo_cameraImage coming soon 227627-3 GEAR 37 €11.07
53
 photo_cameraImage coming soon 326373-6 POST €6.63
54
 photo_cameraImage coming soon 210107-6 BEARING 6001ZZ MT690 €2.69
55
 photo_cameraImage coming soon 454823-2 THE HANDLE €8.73
56
 photo_cameraImage coming soon 266041-8 PT SCREW 5x25 €1.24
57
 photo_cameraImage coming soon 345651-5 HOOK FOR UC3020A €2.30
58
 photo_cameraImage coming soon 266041-8 PT SCREW 5x25 €1.24
60
 photo_cameraImage coming soon 266044-2 SCREW PT.5X60 €6.04
61
 photo_cameraImage coming soon 267195-4 WASHER 4 X DCS230T €1.32
62
 photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
63
 photo_cameraImage coming soon 168426-3 BRAKE DRUM UC3530A-4030A €10.48
64-1
 Clutch Drum for Electric Chainsaw Dolmar ES2140A 123886-6 Clutch Drum for Electric Chainsaw Dolmar ES2140A €28.06
65
 Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.41
66
 photo_cameraImage coming soon 259033-4 LOCKWASHER X UC €1.47
67
 Chain Tensioner Set CPL EA3200S for Chainsaw Dolmar PS32C/35 195763-2 Chain Tensioner Set CPL EA3200S for Chainsaw Dolmar PS32C/35 €16.50
68
 photo_cameraImage coming soon 452668-2 TENSIONER PLATE EA3200S €1.43
69
 photo_cameraImage coming soon 346300-7 SLEIGH €2.12
70
 photo_cameraImage coming soon 213594-8 RING 7 €1.40
71
 photo_cameraImage coming soon 227744-9 GEAR 18 €20.12
72
 photo_cameraImage coming soon 227743-1 GEAR 11 €22.84
73
 photo_cameraImage coming soon 452667-4 COVER €9.01
74
 photo_cameraImage coming soon 266166-8 TRILOBULAR SCREW M3XM8 X 6908DW €1.32
75
 Guide Plate for Chainsaw Dolmar PS32C/35 346518-0 Guide Plate for Chainsaw Dolmar PS32C/35 €6.23
76
 photo_cameraImage coming soon 266427-6 SCREW 4X12 MT923 €1.32
79
 photo_cameraImage coming soon 142168-7 FLANGE NUT COMPLETE €7.62
79-2
 photo_cameraImage coming soon 144689-5 FLANGE NUT COMPLETE 144689-5 €5.13
79-1
 photo_cameraImage coming soon 162492-2 FLANGE NUT COMPLETE €5.13
80
 photo_cameraImage coming soon 941001-8 FLAT WASHER 3 €1.40
81
 photo_cameraImage coming soon 324685-1 HOSE CLAMP UC3020A €2.08
82
 photo_cameraImage coming soon 645105-5 NOISE SUPPRESSOR/CONDENSOR 64 €5.13

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Electric Chain Saw UC4550A

Makita original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Electric Chain Saw UC4550A.

In the following table, look for the model of the Electric Saws and the respective parts of the code.
Makita UC4550A

MAKITA UC4550A ELECTRIC CHAIN SAW PARTS
# Part Num. Description
1 931403-6 HEX. NUT M8
2 227626-5 SPIRAL BEVEL GEAR 12
3 211111-8 BALL BEARING 6301LLB
4 240003-4 FAN 80
5 517904-4 ARMATURE ASS'Y 240V
5 INC. 3,4,6,7
6 681666-1 INSULATION WASHER
7 210084-2 BALL BEARING 629ZZ
7-1 210330-3 BALL BEARING 629ZZ
8 266095-5 TAPPING SCREW 5X55
9 419410-4 BAFFLE PLATE
10-10 636394-3 FIELD 240V
10-2 520156-8 FIELD ASS'Y 240V
C10 654020-2 RING TERMINAL
C20 654501-6 CONNECTOR P-1.25
C30 654207-6 RECEPTACLE
011 650577-1 SWITCH SD-006-BB2AA-AA
012 142348-5 MOTOR HOUSING COMPLETE
C10 643536-2 BRUSH HOLDER 6.5X13.5
13 815F94-6 UC4550A NAME PLATE
14 233173-6 COMPRESSION SPRING 4
15 416178-3 LOCK-OFF BUTTON
15-1 413B17-0 LOCK OFF BUTTON
16 650717-1 SWITCH TGC30B
17 265995-6 TAPPING SCREW 4X18
18 187901-0 HANDLE SET
C10 802G51-9 CAUTION LABEL
18 INC. 28
19 665894-6 POWER SUPPLY CORD 1.0-2-0.5
20 682540-6 CORD GUARD 9.3-90
21 687124-5 STRAIN RELIEF
22 265995-6 TAPPING SCREW 4X18
24 631719-6 CONTROLLER
24-1 620M13-9 CONTROLLER
25 419411-2 SWITCH LEVER
26 181047-4 CARBON BRUSH CB-154
27-1 643650-4 BRUSH HOLDER CAP 6.5-13.5
28 187901-0 HANDLE SET
C10 802G51-9 CAUTION LABEL
28 INC. 18
29 265995-6 TAPPING SCREW 4X18
30 142282-9 TANK CAP COMPLETE
31 454822-4 GEAR HOUSING COVER
32 421959-2 SPONGE SEAL
33 454826-6 OIL TANK
34 424611-1 CONNECTOR B
35 424610-3 CONNECTOR A
36 231975-4 SPRING
37 416274-7 CAP
38 454825-8 ROD
39 233174-4 COMPRESSION SPRING 6
40 142341-9 FRONT HAND GUARD COMPLETE
C10 802K54-7 INDICATION LABEL
41 158044-5 LINK PLATE COMPLETE
42 234005-0 COMPRESSION SPRING 9
43 213017-6 O RING 6
44 454821-6 GEAR HOUSING
45 266041-8 TAPPING SCREW 5X25
46 210028-2 BALL BEARING 606ZZ
47 961006-2 RETAINING RING S-10
48 221427-3 WORM GEAR
49-1 142156-4 OIL PUMP COMPLETE
49-2 142156-4 OIL PUMP COMPLETE
50 424612-9 GROMMET
51 265995-6 TAPPING SCREW 4X18
52 227627-3 SPIRAL BEVEL GEAR 37
53 326373-6 SPINDLE
54 210107-6 BALL BEARING 6001ZZ
55 454823-2 FRONT HANDLE
56 266041-8 TAPPING SCREW 5X25
57 345651-5 SPIKE BUMPER
58 266041-8 TAPPING SCREW 5X25
59 319092-1 BEARING HOUSING
60 266044-2 TAPPING SCREW 5X60
61 267195-4 FLAT WASHER 4
62 266026-4 TAPPING SCREW BIND CT 4X12
63 168426-3 BRAKE BAND
64-1 123886-6 BRAKE DRUM ASSEMBLY
65 253215-0 FLAT WASHER 8
66 259033-4 RETAINING RING E TYPE 6
67 195763-2 CHAIN TENSIONER SET
67 INC. 68-73
68 452668-2 CLAMP SCREW BEDDING
69 346300-7 TENSION SLIDE
70 213594-8 O RING 7
71 227744-9 HELICAL GEAR 18
72 227743-1 HELICAL GEAR 11
73 452667-4 GEAR COVER PROFESSIONAL
74 266166-8 TAPPING SCREW CT 3X8
75 346518-0 GUIDE PLATE
76 266427-6 TAPPING SCREW 4X12
77 142343-5 SPROCKET COVER COMPLETE
78 454790-1 COVER
79 142168-7 FLANGE NUT COMPLETE
79-1 162492-2 FLANGE NUT COMPLETE
79-2 144689-5 FLANGE NUT COMPLETE
80 941001-8 FLAT WASHER 3
81 324685-1 HOSE CLAMP
82 645105-5 NOISE SUPPRESSOR
A01 158024-1 HOOK COMPLETE
A02 165390-9 GUIDE BAR 18
A02-1 165390-9 GUIDE BAR 18
A03 419242-9 CHAIN COVER
A03-1 419242-9 CHAIN COVER
A04 196214-8 SAW CHAIN 18 SET
A04-1 196214-8 SAW CHAIN 18 SET
A04-2 191H13-1 SAW CHAIN 18 SET
A05 782023-7 WRENCH 13-16
E01 805011-8 SOUND 103DB LABEL
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita UC4550A
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita UC4550A Parts Diagram

Makita UC4550A Parts Diagram

Download (508.5KB)

You might also like

Oil Pump for Electric Chainsaw Makita UC3041A
Makita SKU: 142156-4
Oil Pump for Electric Chainsaw Makita UC3041A
Oil Pump for Electric Chainsaw Makita UC3041A Genuine parts Makita, Oil Pump for Electric Chainsaws UC3041A - UC3541A - UC3551A - UC4051A - ES2136TLC - ES2141TLC - DUC252Z - DUC353Z. Parts for the following products: - ES2136TLC -...
AVAILABLE €24.95
Details
Tensioner Screw for Chainsaw Makita UC3551A
Makita SKU: 326372-8
Tensioner Screw for Chainsaw Makita UC3551A
Tensioner Screw for Chainsaw Makita UC3551A Genuine parts Makita, Tensioner Screw for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3726 - Chain Saw 18VX2...
AVAILABLE €2.39
Details
Tensioner Screw Gear for Chainsaw Makita UC3551A
Makita SKU: 227496-2
Tensioner Screw Gear for Chainsaw Makita UC3551A
Makita UC3551A Spiral Bevel Gear Genuine parts Makita, Tensioner Screw Spiral Bevel Gear for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3625LGE - CHAINSAW 25CM...
Usually Ships in: 7/10 Business Days Approx. €6.00
Details
Tensioner Screw Pin for Chainsaw Makita UC3551A
Makita SKU: 326310-0
Tensioner Screw Pin for Chainsaw Makita UC3551A
Tensioner Screw Pin for Chainsaw Makita UC3551A Genuine parts Makita, Tensioner Screw Pin for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3726 - Chain Saw 18VX2 DOLMAR...
on 7/10 Business Days Approx €1.32
Details
Tension Slide for Electric Chainsaw Makita UC3041A
Makita SKU: 346859-4
Tension Slide for Electric Chainsaw Makita UC3041A
Tension Slide for Electric Chainsaw Makita UC3041A Genuine part Makita, Tensioner Screw Pin for Chainsaws UC3041A - UC3541A - UC4041A - Dolmar ES34TLC - ES39TLC. Part for the following products: -...
Usually Ships in: 7/10 Business Days Approx. €3.03
Details
Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A
Makita SKU: 643650-4
Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A
Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A Genuine parts Makita, Carbon Brush Holder Cover for Electric Chainsaws UC3041A - UC3030A - UC3530A - UC3551A - UC4030A - UC4051A - DOLMAR ES2135A  - ES2136TLC - ES2140A -...
AVAILABLE €2.43
Details
Tensioner Screw for Chainsaw Makita UC3020A
Makita SKU: 324620-9
Tensioner Screw for Chainsaw Makita UC3020A
Makita UC3020A Adjust Screw Genuine part Makita, Adjust Screw for Chainsaws UC3020A - UC3030A - UC3041A - UC3520A - UC3541A - UC4020A - UC4030A - UC4041A. Part for the following products: - AS3625LGE - CHAINSAW 25CM 36V DOLMAR -...
Usually Ships in: 7/10 Business Days Approx. €2.39
Details
Carbon Brushes Set for Electric Chainsaw Makita UC3041A
Makita SKU: 191906-4
Carbon Brushes Set for Electric Chainsaw Makita UC3041A
Carbon Brushes Set for Electric Chainsaw Makita UC3041A Genuine part Makita, Carbon Brushes Set for Electric Chainsaws UC3041A - UC3541A - UC3551A - UC3520A - UC4020A - UC4041A - DOLMAR ES33A - ES34TLC - ES38A Parts for the following...
AVAILABLE €9.16
Details
Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A
Makita SKU: 650577-1
Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A
Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A Genuine part Makita, Micro Switch SD-006-BB2AA-AA for Electric Chainsaws UC3030A - UC3530A - UC4030A - UC4051A. Part for the following products: - ES2135A - ELECTRIC...
AVAILABLE €2.97
Details
Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30
Makita SKU: 442040661
Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30
Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30 Genuine part Makita, Sprocket Nose Bar 40CM 16" SP.1,3MM for Chainsaw DCS330S/30 - DCS330S/40. Part for the following products: -  DCS330S/30 - CHAINSAW CM30 KW1,3 33CC -...
on 7/10 Business Days Approx €36.37
Details
Cord Guard JN1601 for Angle Grinder Makita 9015B
Makita SKU: 682540-6
Cord Guard JN1601 for Angle Grinder Makita 9015B
Cord Guard JN1601 for Angle Grinder Makita 9015B Original part MAKITA at the best price, Buy Rubber Cord Guard for Angle Grinder Makita 9015B - Circular Saw Makita 5017RKB. Parts for the following products: -  1806B PLANER 1200W 170mm...
on 7/10 Business Days Approx €2.72
Details
Flat Washer 8 for Rotary Hammer Makita HR4003C
Makita SKU: 253215-0
Flat Washer 8 for Rotary Hammer Makita HR4003C
Flat Washer 8 for Rotary Hammer Makita HR4003C Discount prices on Makita Spare Parts,  Flat Washer 8  for Rotary Hammer Makita HR4003C - Rotary Demolition Hammer Makita HR5212C. Parts for the following products: -  Rotary Hammer...
on 7/10 Business Days Approx €1.41
Details
Comments (0)
