Makita Spare parts for Cordless Chain Saw BUC122

Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chain Saw BUC122.
Makita Cordless Chain Saw BUC122 Parts
  • Makita Cordless Chain Saw BUC122 Parts
  • Makita Cordless Chain Saw BUC122 Parts Diagram
Makita

Makita Cordless Chain Saw BUC122 Parts

SKU: Makita BUC122 Condition: New
€19.23
VAT included

Makita Spare parts for Cordless Chain Saw BUC122

Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chain Saw BUC122.
settings 62 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
62 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

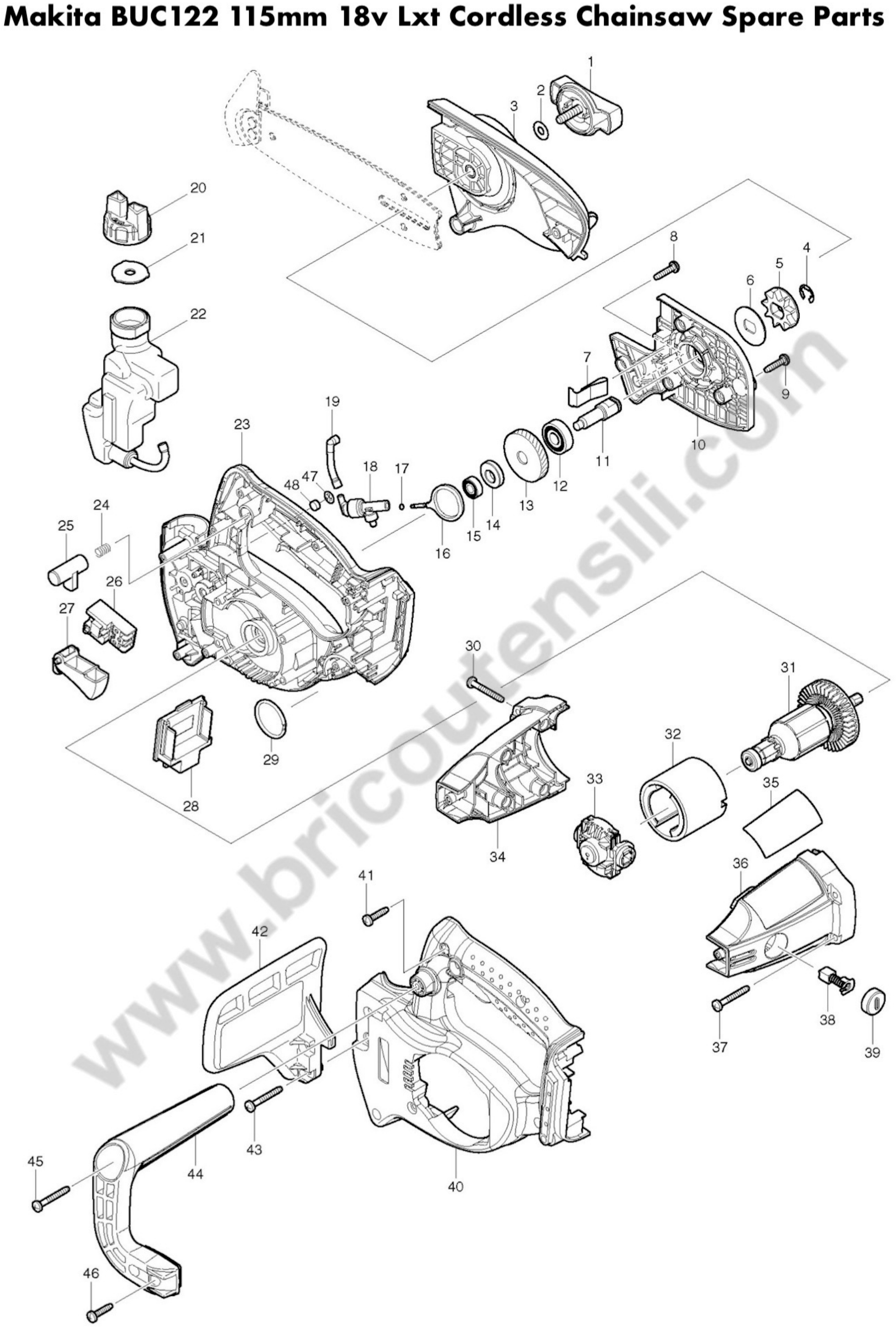

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A01
 photo_cameraImage coming soon 158476-6 GUIDE BAR COMPLETE €31.48
A01-1
 photo_cameraImage coming soon 158476-6 GUIDE BAR COMPLETE €31.48
C10
 photo_cameraImage coming soon 163455-1 LATCH €2.69
A03
 photo_cameraImage coming soon 182229-1 OIL SUPPLY 100CC €3.13
A10-1
 photo_cameraImage coming soon 191G95-7 191G95-7 €26.19
A05-3
 photo_cameraImage coming soon 194204-5 BATTERY BL1830 SET €251.72
A05
 photo_cameraImage coming soon 194204-5 BATTERY BL1830 SET €251.72
A05-2
 photo_cameraImage coming soon 194204-5 BATTERY BL1830 SET €251.72
A05-1
 photo_cameraImage coming soon 194204-5 BATTERY BL1830 SET €251.72
F06
 photo_cameraImage coming soon 197944-4 SPIKE BUMPER SET(EU) €9.52
A02
 photo_cameraImage coming soon 416311-7 GUIDE BAR CASE €6.04
E01
 photo_cameraImage coming soon 620098-7 REGULATOR €28.31
E01-1
 photo_cameraImage coming soon 620265-4 620265-4 €28.31
E02
 photo_cameraImage coming soon 688172-7 FILTER LINE €1.40
A04
 photo_cameraImage coming soon 744003-1 FILE 4 €7.95
A10
 Makita BUC121-122 Chainsaw Chain 791284-8 Makita BUC121-122 Chainsaw Chain €20.50
A08
 photo_cameraImage coming soon 824820-6 PLASTIC CARRYING CASE €65.41
1
 Chain Tensioner Knob for Cordless Chainsaw DUC122RFE 158472-4 Chain Tensioner Knob for Cordless Chainsaw DUC122RFE €19.22
2
 photo_cameraImage coming soon 267004-7 FLAT WASHER 6 X4301SV €1.93
3
 photo_cameraImage coming soon 158471-6 SPROCKET COVER COMPLETE €16.76
4
 photo_cameraImage coming soon 961014-3 RETAINING RING E-8 €1.46
5
 photo_cameraImage coming soon 221527-9 PINION 9D X BUC121R €2.69
6-1
 photo_cameraImage coming soon 253442-9 LOCK WASHER 12 €1.40
6
 photo_cameraImage coming soon 267732-4 WASHER 12 €1.93
7
 photo_cameraImage coming soon 232238-1 SPRING PLATE X BUC121R €4.43
8
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
9
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
10-1
 photo_cameraImage coming soon 450213-7 BEARING CASE BUC121R €9.03
10
 photo_cameraImage coming soon 450213-7 BEARING CASE BUC121R €9.03
11
 Spindle for Battery Saw Dolmar AS1812LGE 323806-2 Spindle for Battery Saw Dolmar AS1812LGE €18.18
12
 Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW 211051-0 Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW €11.19
13
 Helical Gear 50 for Battery Saw Dolmar AS1812LGE 226673-3 Helical Gear 50 for Battery Saw Dolmar AS1812LGE €10.34
14
 photo_cameraImage coming soon 450436-7 CAM FOR BUC121R €3.22
15
 Bearing 696ZZ FOR Angle Grinder Makita GA4530 210033-9 Bearing 696ZZ FOR Angle Grinder Makita GA4530 €3.35
16
 Oil Pump Crank for Battery Saw Dolmar AS1812LGE 450435-9 Oil Pump Crank for Battery Saw Dolmar AS1812LGE €7.39
17
 photo_cameraImage coming soon 213993-4 RING 1.5 X BUC121R €1.93
18
 Oil Pump for Battery Saw Dolmar AS1812LGE 158571-2 Oil Pump for Battery Saw Dolmar AS1812LGE €19.59
19
 Oil Pump Connector Hose for Battery Saw Dolmar AS1812LGE 421615-4 Oil Pump Connector Hose for Battery Saw Dolmar AS1812LGE €2.20
20-2
 photo_cameraImage coming soon 140L59-8 TANK CAP COMPLETE €7.58
20-1
 Complete Oil Tank Cap for Cordless Chainsaws Makita DUC252Z-DUC122RFE 158810-0 Complete Oil Tank Cap for Cordless Chainsaws Makita DUC252Z-DUC122RFE €8.54
20
 photo_cameraImage coming soon 450288-6 TANK CAP €4.43
21
 photo_cameraImage coming soon 423373-8 PACKING €1.40
22
 photo_cameraImage coming soon 158634-4 OIL TANK X BUC121R €19.22
23-2
 photo_cameraImage coming soon 187237-7 HANDLE €75.83
23-1
 photo_cameraImage coming soon 187237-7 HANDLE €75.83
23-3
 photo_cameraImage coming soon 187238-5 HANDLE SET €125.91
23
 photo_cameraImage coming soon 188472-0 HANDLE SET €68.84
24
 photo_cameraImage coming soon 231470-4 SPRING 6 X 6811DW €1.93
25
 photo_cameraImage coming soon 416178-3 RESET BUTTON X UC3020A €1.47
26
 photo_cameraImage coming soon 651956-6 SWITCH TG72BD X 5621RDW €18.98
27
 photo_cameraImage coming soon 450212-9 LEVER SWITCH. X BUC121R €3.13
28
 photo_cameraImage coming soon 643812-4 TERMINAL, BTD140 €5.13
28-1
 photo_cameraImage coming soon 643859-8 TERMINAL €5.94
28-2
 photo_cameraImage coming soon 644808-8 X-TERMINAL BLS713 BHP451 €6.27
28-3
 photo_cameraImage coming soon 644809-6 TERMINAL X BLS713-BHP451 €6.11
29
 photo_cameraImage coming soon 257264-9 RING 30 X BUC121R €1.93
30
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
31
 Armature DC 18V for Battery Saw Dolmar AS1812LGE 619225-1 Armature DC 18V for Battery Saw Dolmar AS1812LGE €33.22
32
 photo_cameraImage coming soon 638138-7 STATOR PERMANENT MAGNET €13.29
33
 photo_cameraImage coming soon 638608-6 HOLDER BRUSHES BUC121R €4.43
34
 photo_cameraImage coming soon 188468-1 HOUSING MOTOR X BUC121R €16.76
35
 photo_cameraImage coming soon 864638-3 BUC122 NAME PLATE €1.40
36
 photo_cameraImage coming soon 188468-1 HOUSING MOTOR X BUC121R €16.76
37
 photo_cameraImage coming soon 266050-7 SCREW 4X30 PT €3.76
38
 Carbon Brushes CB-430 for Cordless Angle Grinders Makita BGA450-452RFE 191971-3 Carbon Brushes CB-430 for Cordless Angle Grinders Makita BGA450-452RFE €8.23
39
 photo_cameraImage coming soon 643954-4 BRUSH HOLDER CAP €2.08
40-2
 photo_cameraImage coming soon 187237-7 HANDLE €75.83
40-1
 photo_cameraImage coming soon 187237-7 HANDLE €75.83
40-3
 photo_cameraImage coming soon 187238-5 HANDLE SET €125.91
40
 photo_cameraImage coming soon 188472-0 HANDLE SET €68.84
41
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
42
 photo_cameraImage coming soon 158474-0 SAFE HANDES X BUC121R €11.61
43
 photo_cameraImage coming soon 266050-7 SCREW 4X30 PT €3.76
44
 photo_cameraImage coming soon 450217-9 FRONT HANDLE BUC121R €6.63
45
 photo_cameraImage coming soon 266050-7 SCREW 4X30 PT €3.76
46
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
47
 photo_cameraImage coming soon 259041-5 RING FOR 8 UC3020A €1.93
48
 photo_cameraImage coming soon 443125-1 FILTER UC3020A €1.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare parts for Cordless Chain Saw BUC122

Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chain Saw BUC122.

In the following table, look for the model of the Cordless Chain Saw and the respective parts of the code.
Makita BUC122

MAKITA BUC122 CORDLESS CHAIN SAW 115MM PARTS
# Part Num. Description
1 158472-4 KNOB 60 COMPLETE
C10 816905-2 INDICATION LABEL
2 267004-7 FLAT WASHER 6
3 158471-6 SPROCKET COVER COMPLETE
4 961014-3 STOP RING E-8
5 221527-9 SPROCKET 9
6 267732-4 LOCK WASHER 12
6-1 253442-9 LOCK WASHER 12
7 232238-1 LEAF SPRING
8 265995-6 TAPPING SCREW 4X18
9 265995-6 TAPPING SCREW 4X18
10 450213-7 BEARING HOUSING
10-1 450213-7 BEARING HOUSING
11 323806-2 SPINDLE
12 211051-0 BALL BEARING 609LLB
13 226673-3 HELICAL GEAR 50
14 450436-7 CAM
15 210033-9 BALL BEARING 696ZZ
16 450435-9 CRANK
17 213993-4 O-RING 1.5
18 158571-2 OIL PUMP COMPLETE
19 421615-4 CONNECTOR
20 450288-6 TANK CAP
20-1 158810-0 TANK CAP COMPLETE
20-2 140L59-8 TANK CAP COMPLETE
21 423373-8 PACKING
22 158634-4 OIL TANK COMPLETE
23 188472-0 HANDLE SET
D10 INC. 40
23-1 187237-7 HANDLE SET
D10 INC. 40
23-2 187237-7 HANDLE SET
D10 INC. 40
23-3 187238-5 HANDLE SET
D10 INC. 40
24 231470-4 COMPRESSION SPRING 6
25 416178-3 LOCK-OFF BUTTON
26 651956-6 SWITCH TG72BD
27 450212-9 SWITCH LEVER
28 643812-4 TERMINAL
28-1 643859-8 TERMINAL
28-2 644808-8 TERMINAL
28-3 644809-6 TERMINAL
29 257264-9 RING 30
29-1 257363-7 RING 30
30 265995-6 TAPPING SCREW 4X18
31 619225-1 ARMATURE
32 638138-7 YOKE UNIT
33 638608-6 ENDBELL COMPLETE
34 188468-1 MOTOR HOUSING SET
D10 INC. 36
35 864638-3 BUC122 NAME PLATE
36 188468-1 MOTOR HOUSING SET
D10 INC. 34
37 266050-7 TAPPING SCREW 4X30
38 191971-3 CARBON BRUSH CB-430
39 643954-4 BRUSH HOLDER CAP
40 188472-0 HANDLE SET
D10 INC. 23
40-1 187237-7 HANDLE SET
D10 INC. 23
40-2 187237-7 HANDLE SET
D10 INC. 23
40-3 187238-5 HANDLE SET
D10 INC. 23
41 265995-6 TAPPING SCREW 4X18
42 158474-0 FRONT HAND GUARD COMPLETE
C10 810376-5 CAUTION LABEL
43 266050-7 TAPPING SCREW 4X30
44 450217-9 FRONT HANDLE
45 266050-7 TAPPING SCREW 4X30
46 265995-6 TAPPING SCREW 4X18
47 259041-5 PUSH NUT 8
48 443125-1 FILTER
A01 158476-6 GUIDE BAR 4.5 COMPLETE
C10 168450-6 GUIDE BAR 4.5
A01-1 158476-6 GUIDE BAR 4.5 COMPLETE
C10 168450-6 GUIDE BAR 4.5
A02 416311-7 GUIDE BAR CASE
A03 182229-1 OIL SUPPLY 100CC
A03-1 199897-3 OIL VESSEL SET
A04 744003-1 FILE 4
A05 194204-5 BATTERY BL1830 SET
A05-1 194204-5 BATTERY BL1830 SET
A05-2 194204-5 BATTERY BL1830 SET
A05-3 194204-5 BATTERY BL1830 SET
A05-4 197600-6 BATTERY BL1830B SET
A05-5 197600-6 BATTERY BL1830B SET
A06 450128-8 BATTERY COVER
A07 ***DC18RA DC18RA FAST CHARGER
A07-1 ***DC18RC DC18RC FAST CHARGER
A08 824820-6 PLASTIC CARRYING CASE
C10 163455-1 LATCH
C20 419360-3 HANDLE
A08-1 141494-1 PLASTIC CARRYING CASE
C10 163455-1 LATCH
C20 419360-3 HANDLE
A09 806572-1 BUC122RFE PLASTIC CASE LABEL
A10 791284-8 Chainsaw Chain 1/4″, 1,3 mm, 6″/15 cm
A10-1 191G95-7 191G95-7
E01 620098-7 620098-7
E01-1 620265-4 620265-4
E01-2 620G84-0 620G84-0
E02 688172-7 688172-7
E03 810111-1 810111-1
E03-1 817D83-5 817D83-5
E04 817D83-5 817D83-5
F06 197944-4 197944-4
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita BUC122
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita BUC122 Parts Diagram

Makita BUC122 Parts Diagram

Download (369.67KB)

You might also like

Piston Pin for Stonecutter Makita HK0500
Makita SKU: 256123-4
Piston Pin for Stonecutter Makita HK0500
Piston Pin for Stonecutter Makita HK0500 Genuine spare Makita, Piston Pin for Stonecutter HK0500 - for Cordless Chain Saw DUC252Z Chain Brake Control. FOR THE FOLLOWING ITEMS: - Stonecutter HK0500 - Cordless Chain Saw DUC252Z - Code:...
AVAILABLE €6.71
Details
Bearing 696ZZ FOR Angle Grinder Makita GA4530
Makita SKU: 210033-9
Bearing 696ZZ FOR Angle Grinder Makita GA4530
Bearing 696ZZ FOR Angle Grinder Makita GA4530 Genuine part Makita, Bearing 696ZZ for Angle Grinders GA4530 - 9554HN - 9554NB - 9555NB - 9557HN - 9558HN - Band Saw 2107FK. Parts for the following products: - 2107FK - BAND SAW - 9554HN...
AVAILABLE €3.35
Details
Bearing 629DD FOR Angle Grinder Makita GA4530
Makita SKU: 211092-6
Bearing 629DD FOR Angle Grinder Makita GA4530
Bearing 629DD FOR Angle Grinder Makita GA4530 Genuine part Makita, Ball Bearing 629DD for Angle Grinders GA4530 - GA4530R - GA4534 - GA5034 - GA9000 - 9541-9542. Parts for the following products: - GA4530 - ANGLE GRINDER 115MM -...
AVAILABLE €9.01
Details
Oil Pump for Electric Chainsaw Makita UC3041A
Makita SKU: 142156-4
Oil Pump for Electric Chainsaw Makita UC3041A
Oil Pump for Electric Chainsaw Makita UC3041A Genuine parts Makita, Oil Pump for Electric Chainsaws UC3041A - UC3541A - UC3551A - UC4051A - ES2136TLC - ES2141TLC - DUC252Z - DUC353Z. Parts for the following products: - ES2136TLC -...
AVAILABLE €23.90
Details
Tensioner Screw for Chainsaw Makita UC3551A
Makita SKU: 326372-8
Tensioner Screw for Chainsaw Makita UC3551A
Tensioner Screw for Chainsaw Makita UC3551A Genuine parts Makita, Tensioner Screw for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3726 - Chain Saw 18VX2...
AVAILABLE €2.39
Details
Tensioner Screw Gear for Chainsaw Makita UC3551A
Makita SKU: 227496-2
Tensioner Screw Gear for Chainsaw Makita UC3551A
Makita UC3551A Spiral Bevel Gear Genuine parts Makita, Tensioner Screw Spiral Bevel Gear for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3625LGE - CHAINSAW 25CM...
Usually Ships in: 7/10 Business Days Approx. €7.99
Details
Tensioner Screw Pin for Chainsaw Makita UC3551A
Makita SKU: 326310-0
Tensioner Screw Pin for Chainsaw Makita UC3551A
Tensioner Screw Pin for Chainsaw Makita UC3551A Genuine parts Makita, Tensioner Screw Pin for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3726 - Chain Saw 18VX2 DOLMAR...
on 7/10 Business Days Approx €2.39
Details
Armature Nut M6 for Angle Grinder Makita 9554NB
Valex s.p.a. SKU: 252186-8
Armature Nut M6 for Angle Grinder Makita 9554NB
Armature Nut M6 for Angle Grinder Makita 9554NB Original spare part Makita, Armature Nut M6 for Angle Grinders 9554HN - 9554HNG - 9554NB - 9555NB Part for the following products:...
AVAILABLE €1.47
Details
Ball Bearing 607 ZZ for Impact Drill Maktek MT601
Black & Decker SKU: 210062-2
Ball Bearing 607 ZZ for Impact Drill Maktek MT601
Ball Bearing 607 ZZ for Impact Drill Maktek MT601 Genuine part Makita, Ball Bearing 607 ZZ for Impact Drill Maktek MT601 Part for the following products: - AS3625LGE - CHAINSAW 25CM 36V DOLMAR - AS3726 - CHAINSAW 18VX2 DOLMAR -...
AVAILABLE €4.41
Details
Oil Pump for Battery Saw Dolmar AS1812LGE
Makita SKU: 158571-2
Oil Pump for Battery Saw Dolmar AS1812LGE
Oil Pump for Battery Saw Dolmar AS1812LGE Genuine replacement part Dolmar, Oil Pump for Battery Saws AS1812LGE - Makita DUC122RFE. Part for the following products: -  AS1812LGE - BATTERY SAW DOLMAR 115MM 18V - BUC121RFE - BATTERY SAW...
AVAILABLE €19.59
Details
Oil Pump Crank for Battery Saw Dolmar AS1812LGE
Makita SKU: 450435-9
Oil Pump Crank for Battery Saw Dolmar AS1812LGE
Oil Pump Crank for Battery Saw Dolmar AS1812LGE Genuine replacement part Dolmar, Oil Pump Crank for Battery Saws AS1812LGE - Makita DUC122RFE. Part for the following products: -  AS1812LGE - BATTERY SAW DOLMAR 115MM 18V - BUC121RFE -...
AVAILABLE €7.39
Details
Helical Gear 50 for Battery Saw Dolmar AS1812LGE
Makita SKU: 226673-3
Helical Gear 50 for Battery Saw Dolmar AS1812LGE
Helical Gear 50 for Battery Saw Dolmar AS1812LGE Genuine replacement part Dolmar, Helical Gear 50 for Battery Saws AS1812LGE - Makita DUC122RFE. Part for the following products: -  AS1812LGE -...
Last items in stock €10.34
Details
Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW
Makita SKU: 211051-0
Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW
Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW Genuine replacement part Makita, Ball Bearing 609 2RS for Pruning Scissor 24V 4604DW. Part for the following products: -  4604DW - PRUNING SCISSOR 24V MAKITA - Code : 211051-0
on 7/10 Business Days Approx €11.19
Details
Sprocket Nose Bar 25CM for Chainsaw Makita DCS232T
Makita SKU: 168408-5
Guide Bar 25CM for Chainsaw Makita DCS232T
Guide Bar 25CM for Chainsaw Makita DCS232T Genuine part Makita, Guide Bar 25 cm (10") 3/8"- 0.50MM for Chainsaw DCS232T - DUC252. Part for the following products: -  Chainsaw DCS232T -  Battery Chainsaw DUC252 - Code : 168408-5
Last items in stock €28.70
Details
Makita BUC121-122 Chainsaw Chain
Makita SKU: 791284-8
Makita BUC121-122 Chainsaw Chain
Makita BUC121-122 Chainsaw Chain Original part Makita, Chainsaw Chain 1/4″, 1,3 mm, 6″/15 cm per Mod. UC120D. Product Description: - Bar Length: 160 mm - Chain Pitch: 1/4" - Chain Bar Thickness: 1.3 mm -...
Usually Ships in: 7/10 Business Days Approx. €20.50
Details
Comments (0)
