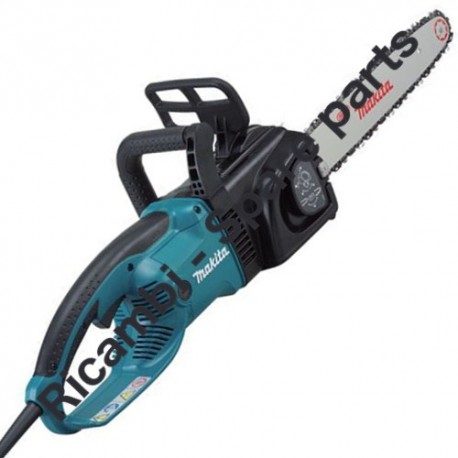

Makita Spare Parts for Electric Chainsaw UC3530A
Fix Your Electric Chainsaw UC3530A. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

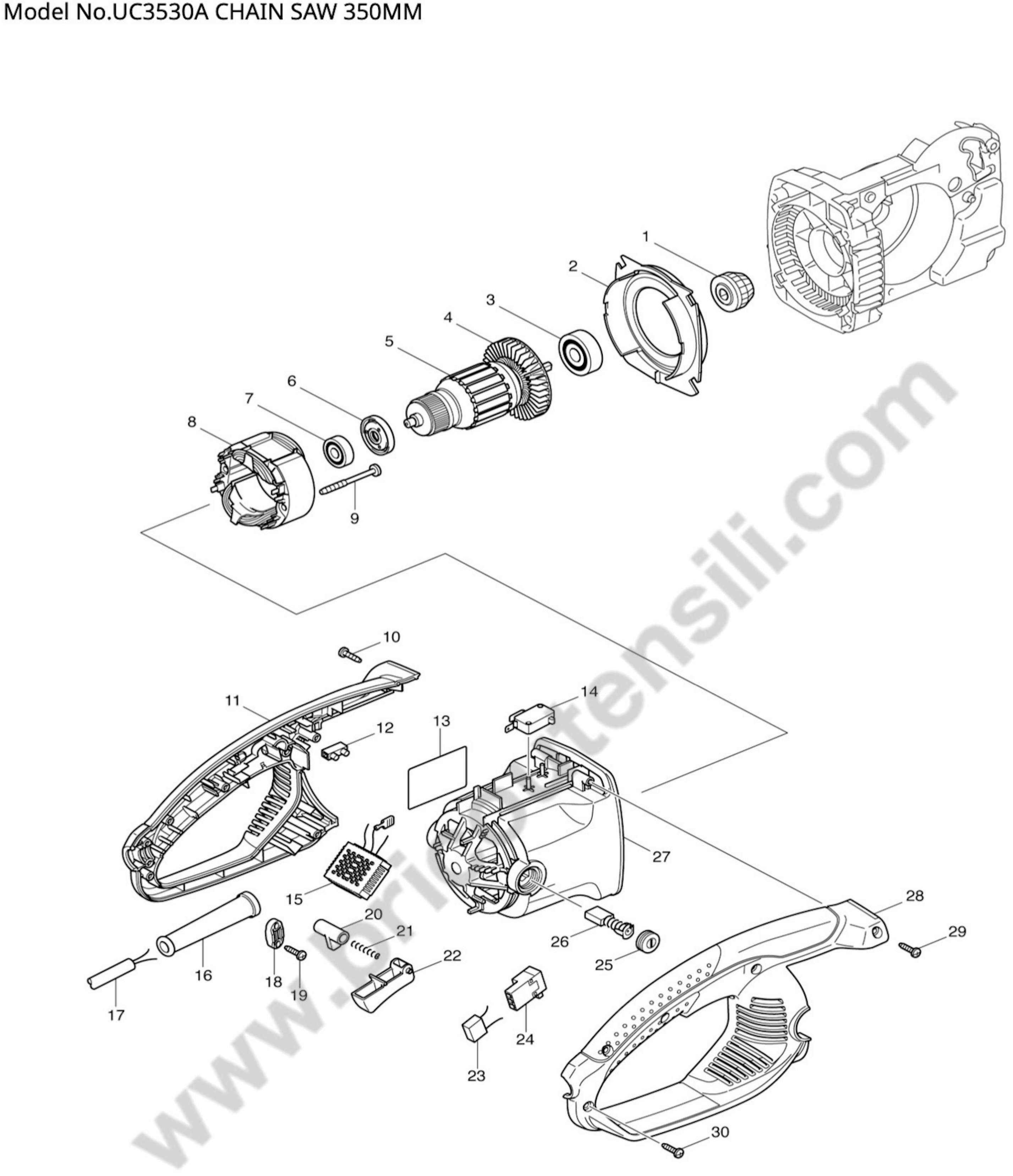

In the following table, look for the model of the Electric Saws and the respective parts of the code.
| Electric Chainsaws UC3530A |
| # |
Part Num. |
Description |
| 1 |
226743-8 |
STRAIGHT BEVEL GEAR 14 |
| 2 |
419410-4 |
BAFFLE PLATE |
| 3 |
211111-8 |
BALL BEARING 6301LLB |
| 4 |
240001-8 |
FAN 80 |
| 5 |
616969-4 |
ARMATURE 240V |
| 6 |
681666-1 |
INSULATION WASHER |
| 6-1 |
681666-1 |
INSULATION WASHER |
| 7 |
211057-8 |
BALL BEARING 629ZZ |
| 8 |
639530-0 |
FIELD 240V |
| 9 |
266095-5 |
TAPPING SCREW 5X55 |
| 10 |
265995-6 |
TAPPING SCREW 4X18 |
| 11 |
188818-0 |
HANDLE SET |
| C10 |
810198-3 |
CAUTION LABEL |
| D10 |
|
INC. 28 |
| 12 |
654532-5 |
TERMINAL BLOCK 1P |
| 12-1 |
654475-1 |
TERMINAL BLOCK |
| 13 |
867109-9 |
UC3530A NAME PLATE |
| 14 |
650577-1 |
SWITCH SD-006-BB2AA-AA |
| 15 |
631719-6 |
CONTROLLER |
| 15-1 |
620M13-9 |
CONTROLLER |
| 16 |
682574-9 |
CORD GUARD 10-90 |
| 17 |
665883-1 |
POWER SUPPLY CORD 1.0-2-5.0 |
| 18 |
687124-5 |
STRAIN RELIEF |
| 19 |
265995-6 |
TAPPING SCREW 4X18 |
| 20 |
416178-3 |
LOCK-OFF BUTTON |
| 21 |
233173-6 |
COMPRESSION SPRING 4 |
| 22 |
419411-2 |
SWITCH LEVER |
| 23 |
645239-4 |
NOISE SUPPRESSOR |
| 24 |
651923-1 |
SWITCH TG70B |
| 25 |
643650-4 |
BRUSH HOLDER CAP 6.5-13.5 |
| 25-1 |
643650-4 |
BRUSH HOLDER CAP 6.5-13.5 |
| 26 |
181044-0 |
CARBON BRUSH CB-153 |
| 26-1 |
194985-1 |
CARBON BRUSH SET CB-153 |
| 27 |
154867-9 |
MOTOR HOUSING COMPLETE |
| C10 |
643653-8 |
BRUSH HOLDER 6.5-13.5 |
| C11 |
643536-2 |
BRUSH HOLDER 6.5X13.5 |
| 28 |
188818-0 |
HANDLE SET |
| C10 |
810198-3 |
CAUTION LABEL |
| D10 |
|
INC. 11 |
| 29 |
265995-6 |
TAPPING SCREW 4X18 |
| 30 |
265995-6 |
TAPPING SCREW 4X18 |
| 32 |
154870-0 |
TANK CAP COMPLETE |
| 33 |
419412-0 |
GEAR HOUSING COVER |
| 34 |
140089-7 |
OIL PUMP COMPLETE |
| 34-1 |
142002-1 |
OIL PUMP COMPLETE |
| 35 |
213039-6 |
O RING 6 |
| E02 |
8040V6-2 |
SOUND LABEL |
| E01 |
8039U0-8 |
CAUTION TAG |
| 66 |
191V91-5 |
SPROCKET 7 SET |
| E02 |
8040V6-2 |
SOUND LABEL |
| 36 |
421959-2 |
SPONGE SEAL |
| 37 |
419407-3 |
OIL TANK |
| 38 |
416274-7 |
CAP |
| 39 |
231975-4 |
SPRING |
| 40 |
421958-4 |
OIL TUBE |
| 41 |
419408-1 |
GEAR HOUSING |
| 42 |
419413-8 |
ROD |
| 43 |
233174-4 |
COMPRESSION SPRING 6 |
| 44 |
451130-4 |
FRONT HAND GUARD |
| 45 |
158044-5 |
LINK PLATE COMPLETE |
| 46 |
234005-0 |
COMPRESSION SPRING 9 |
| 47 |
213039-6 |
O RING 6 |
| 48 |
211012-0 |
BALL BEARING 606ZZ |
| 49 |
450230-7 |
CRANK |
| 50 |
417405-1 |
CAM |
| 51 |
259034-2 |
RETAINING RING E TYPE 10 |
| 52 |
266095-5 |
TAPPING SCREW 5X55 |
| 52-1 |
266044-2 |
TAPPING SCREW 5X60 |
| 53 |
266173-1 |
TAPPING SCREW 5X30 |
| 54 |
226741-2 |
STRAIGHT BEVEL GEAR 43 |
| 55 |
324662-3 |
SPINDLE |
| 56 |
211107-9 |
BALL BEARING 6201ZZ |
| 57 |
419409-9 |
FRONT HANDLE |
| 57-1 |
455487-5 |
FRONT HANDLE |
| 58 |
266173-1 |
TAPPING SCREW 5X30 |
| 59 |
921452-1 |
HEX. BOLT M8X30 |
| 60 |
318013-0 |
BEARING HOUSING |
| 63 |
345651-5 |
SPIKE BUMPER |
| 64 |
266173-1 |
TAPPING SCREW 5X30 |
| 65 |
168426-3 |
BRAKE BAND |
| 66 |
267195-4 |
FLAT WASHER 4 |
| 67 |
266026-4 |
TAPPING SCREW BIND CT 4X12 |
| 68 |
125331-7 |
BRAKE DRUM ASSEMBLY |
| 68-1 |
123886-6 |
BRAKE DRUM ASSEMBLY |
| 68-2 |
125331-7 |
BRAKE DRUM ASSEMBLY |
| 69 |
253215-0 |
FLAT WASHER 8 |
| 70 |
259033-4 |
RETAINING RING E TYPE 6 |
| 71 |
266007-8 |
TAPPING SCREW BIND PT 3X10 |
| 72 |
419241-1 |
COVER |
| 73 |
227496-2 |
STRAIGHT BEVEL GEAR 14 |
| 74 |
227495-4 |
STRAIGHT BEVEL GEAR 14 |
| 75 |
154869-5 |
SPROCKET COVER COMPLETE |
| 76 |
419233-0 |
DIAL 40 |
| 77 |
253874-0 |
FLAT WASHER 4 |
| 78 |
915106-0 |
BINDING HEAD SCREW M4X8 |
| 79 |
233033-2 |
COMPRESSION SPRING 4 |
| 80 |
216008-6 |
STEEL BALL 4 |
| 81 |
154763-1 |
LEVER COMPLETE |
| 82 |
951122-8 |
SPRING PIN 4-28 |
| 83 |
419271-2 |
CUP WASHER 20 |
| 83-1 |
453061-3 |
CUP WASHER 20 |
| 84 |
317977-5 |
LEVER HOLDER |
| 85 |
231025-5 |
COMPRESSION SPRING 8 |
| 86 |
252168-0 |
HEX. NUT M8-13 |
| 87 |
324621-7 |
ADJUST PIN |
| 88 |
324620-9 |
ADJUST SCREW |
| 89 |
188858-8 |
SPROCKET COVER SET |
| D10 |
|
INC. 71-88 |
| 89-1 |
187088-8 |
SPROCKET COVER SET |
| D10 |
|
INC. 71-88 |
| 90 |
188859-6 |
LEVER COMPLETE SET |
| D10 |
|
INC. 81-84 |
| 90-1 |
187089-6 |
LEVER COMPLETE SET |
| D10 |
|
INC. 81-84 |
| 91 |
188929-1 |
OIL PUMP COMPLETE SET |
| D10 |
|
INC. 34,35,49 |
| 91-1 |
187573-1 |
OIL PUMP COMPLETE SET |
| D10 |
|
INC. 34,35,49 |
| A01 |
419559-0 |
CHAIN PROTECTION COVER 330 |
| A02 |
158024-1 |
HOOK COMPLETE |
| A03 |
165201-8 |
GUIDE BAR 14 |
| A03-1 |
165201-8 |
GUIDE BAR 14 |
| A03-2 |
165201-8 |
GUIDE BAR 14 |
| A04 |
837010-2 |
OIL ABSORBENT SHEET |
| A05 |
528092652 |
SAW CHAIN 14" |
| A05-1 |
195304-4 |
SAW CHAIN SET |
| A05-2 |
196212-2 |
SAW CHAIN 14 SET |
| A05-3 |
196212-2 |
SAW CHAIN 14 SET |
| A05-4 |
191H11-5 |
SAW CHAIN 14 SET |
| A03 |
165456-5 |
GUIDE BAR 14 |
| A03-1 |
165456-5 |
GUIDE BAR 14 |
| A04 |
195089-2 |
CHAIN EDGER SET |
| A04-1 |
D-70948 |
FILE HOLDER SET 4.0MM(5/32") |
| A06 |
195093-1 |
CHAIN OIL SET |
| A07 |
819393-2 |
MAKITA LOGO LABEL |
| A08 |
823311-4 |
METAL CASE |
| A08-1 |
823320-3 |
METAL CASE |
| A08-2 |
823333-4 |
METAL CASE |
| A09 |
195090-7 |
GLOVES SET |
| A10 |
195091-5 |
SAFETY GOGGLES SET |
