Makita Cordless Chainsaw UC003G Parts

Name: Makita Cordless Chainsaw UC003G Parts
Brand: Makita
SKU: Makita UC003G
Availability: InStock

SKU: Makita UC003G

€5.43

VAT included

Makita Cordless Chainsaw UC003G Spare Parts

Fix Your Cordless Chainsaw UC003G. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee

87 spare parts

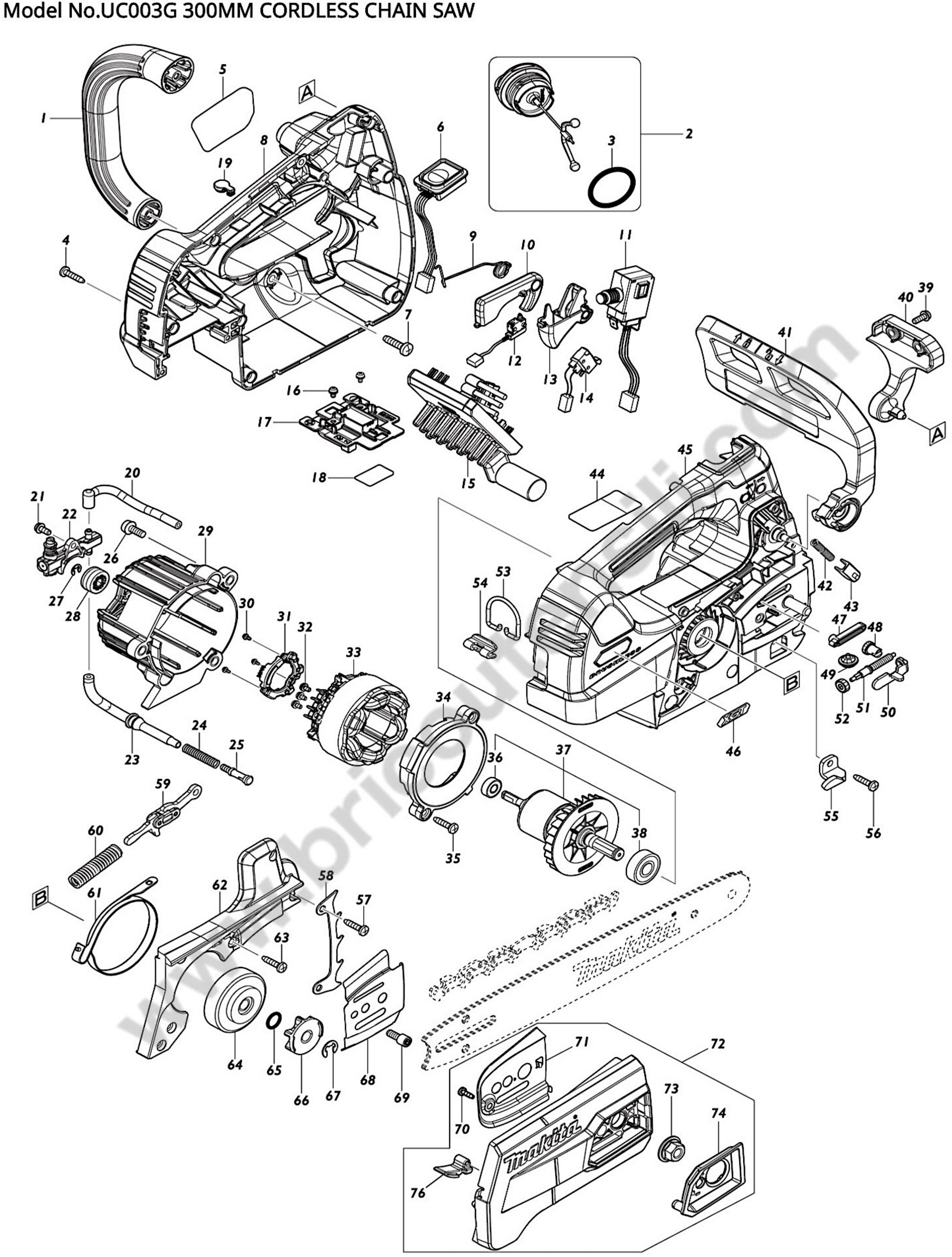

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
A09	Image coming soon	191B36-3 BATTERY BL4025 SET	€228.68
A11	Image coming soon	191C10-7 INTERCHANGEABLE ADAPTER	€71.77
A08	Image coming soon	191E07-8 DC40RA FAST CHARGER DC40RA 40V MAX	€178.44
A01	Image coming soon	191G14-3 GUIDE BAR 10 SET	€22.27
F26	Image coming soon	191G23-2 GUIDE BAR 12 SET	€21.88
A04-1	Image coming soon	191H00-0 CHAIN LOOP 90PX-1,1MM 3/8"40 LINKS	€14.84
F01	Image coming soon	191H01-8 SAW CHAIN 12 SET	€24.63
F02	Image coming soon	191H10-7 SAW CHAIN 12 SET	€17.62
A12	Image coming soon	191J81-6 KIT ENERGY 40VmaxBL4025 2,5Ax2+DC40RA	€531.52
A13	Image coming soon	191J97-1 KIT ENERGY 40VmaxBL4040 4Ax2+DC40RA	€656.34
F03	Image coming soon	191V90-7 SPROCKET 6 SET	€9.89
F05	Image coming soon	195923-6 ROUND FILE 4.5 SET	€25.01
F08	Image coming soon	196740-7 SAW CHAIN SET	€19.33
F09	Image coming soon	198457-8 CHAIN EDGER SET	€24.86
A04	Image coming soon	199075-5 SAW CHAIN SET	€26.80
C10	Image coming soon	263005-3 PIN RUBBER 6	€1.32
A02	Image coming soon	458501-6 GUIDE BAR CASE	€6.78
A02-1	Image coming soon	458501-6 GUIDE BAR CASE	€6.78
D10	Image coming soon	630B63-0 DC40RA (BULK) FAST CHARGER	€147.41
C10	Image coming soon	688131-1 FILTER LINE X MT240	€1.40
C11	Image coming soon	688131-1 FILTER LINE X MT240	€1.40
A05	Image coming soon	782023-7 WRENCH 13-16	€3.37
F05-1	Image coming soon	D-70954 FILE HOLDER SET 4.5MM(11/64")	€11.42
1	Image coming soon	413979-0 FRONT HANDLE	€5.13
2	Image coming soon	122A77-2 TANK CAP ASSEMBLY	€14.34
3	Image coming soon	213080-9 RING 29.5 PS32CTLC	€5.43
4		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
6	Image coming soon	141G07-0 SWITCH CIRCUIT COMPLETE	€18.98
7	Image coming soon	266420-0 SCREW 5PER20 HR2800	€1.44
8	Image coming soon	183U56-5 HOUSING SET	€56.02
9	Image coming soon	232713-7 TORSION SPRING 10	€1.40
10	Image coming soon	413987-1 CATCH LEVER	€2.08
11	Image coming soon	650011-1 SWITCH C3JR-4BM-PAND3	€28.31
12	Image coming soon	632L49-0 SWITCH UNIT	€10.07
13	Image coming soon	459282-5 SWITCH LEVER	€1.30
14	Image coming soon	632L48-2 SWITCH UNIT	€17.02
15	Image coming soon	620F70-5 620265-4	€181.26
16	Image coming soon	652031-1 SCREW M3x6	€1.40
17	Image coming soon	632S63-8 TERMINAL UNIT	€9.89
19	Image coming soon	422467-6 CAP	€1.44
20	Image coming soon	422764-0 OIL TUBE 3-85	€2.69
21	Image coming soon	911113-1 SCREW M4X10 X LS1013	€1.47
22		142156-4 Oil Pump for Electric Chainsaw Makita UC3041A	€24.95
23	Image coming soon	422765-8 OIL TUBE 3-109	€2.69
24	Image coming soon	231975-4 SPRING TUBE OIL X DCS230T	€1.47
25	Image coming soon	452666-6 PLUG OIL PIPE PS32CTLC	€1.32
26	Image coming soon	911218-7 HEAD SCREW CILIND. M5x14	€1.54
27	Image coming soon	961011-9 RETAINING RING E4	€1.44
28	Image coming soon	226884-0 WORM GEAR	€1.44
29	Image coming soon	413904-1 MOTOR HOUSING	€6.63
30	Image coming soon	652093-9 PAN HEAD SCREW M2X5	€1.40
31	Image coming soon	620F73-9 SENSOR UNIT	€35.76
32	Image coming soon	652069-6 M3x6 SCREW	€1.43
33	Image coming soon	629A85-9 STATOR	€28.31
34	Image coming soon	413980-5 BAFFLE PLATE	€2.69
35		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
36	Image coming soon	210026-6 BALL BEARING 696ZZ	€3.83
37	Image coming soon	519710-3 ROTOR ASSY	€61.62
38	Image coming soon	210059-1 BEARING 6000 HR2010	€11.29
39	Image coming soon	911118-1 M4PER12 SCREW	€2.74
40	Image coming soon	413907-5 FRONT HAND GUARD RETAINER	€3.13
41	Image coming soon	141E58-1 FRONT HAND GUARD COMPLETE	€9.89
42	Image coming soon	232714-5 COMPRESSION SPRING 3	€1.40
43	Image coming soon	313212-9 PS32CTLC GUIDE	€1.47
45	Image coming soon	183U56-5 HOUSING SET	€56.02
47	Image coming soon	422466-8 GROMET	€1.44
48	Image coming soon	227620-7 DRIVE GEAR	€2.03
49	Image coming soon	227634-6 STRAIGHT BEVEL GEAR 14	€3.83
50	Image coming soon	347517-5 TENSION SLIDE	€2.14
51	Image coming soon	327317-9 ADJUST SCREW	€2.77
52		227496-2 Tensioner Screw Gear for Chainsaw Makita UC3551A	€6.00
53	Image coming soon	281222-3 HOOK	€1.32
54	Image coming soon	347514-1 HOOK SUPPORT	€1.44
55	Image coming soon	347516-7 CHAIN CATCHER	€1.44
56		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
57		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
58	Image coming soon	346809-9 SPIKE BUMPER EA3700T/PS-3700T	€2.14
59	Image coming soon	141E60-4 LINK PLATE COMPLETE	€6.63
60	Image coming soon	232452-9 COMPRESSION SPRING 7	€1.24
61	Image coming soon	347864-4 BRAKE BAND	€4.43
62	Image coming soon	413981-3 HOUSING R COVER	€3.84
63		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
64	Image coming soon	162979-4 BRAKE DRUM	€9.89
65	Image coming soon	213060-5 O-RING 10	€1.27
66	Image coming soon	191V90-7 SPROCKET 6 SET	€9.89
67	Image coming soon	961013-5 RING RITEGNOXJN3200	€2.03
68	Image coming soon	347533-7 GUIDE PLATE L	€1.44
69	Image coming soon	266905-6 H.L. SOCKET HEAD BOLT M5X12	€1.32
70		266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030	€2.03
71	Image coming soon	347534-5 GUIDE PLATE R	€1.44
72	Image coming soon	136573-8 SPROCKET COVER ASS'Y	€18.98
73	Image coming soon	162494-8 FRANGE NUT COMPLETE	€6.00
74	Image coming soon	413986-3 NUT COVER	€1.92
76	Image coming soon	422310-9 CHIP GUIDE	€1.32
77	Image coming soon	324616-0 TIE X DCS230T - PS220TH	€3.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Cordless Chainsaw UC003G Spare Parts

Fix Your Cordless Chainsaw UC003G. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Cordless Chain Saw and the respective parts of the code.

MAKITA UC003G 300MM CORDLESS CHAIN SAW Spare Parts
#	Part Num.	Description
1	413979-0	FRONT HANDLE
2	122A77-2	TANK CAP ASSEMBLY
D10		INC. 3
3	213080-9	O RING 29.5
4	266326-2	TAPPING SCREW 4X18
5	8041P2-4	UC002G MODEL NO. LABEL
6	141G07-0	SWITCH CIRCUIT COMPLETE
C10	810D46-0	SWITCH LABEL
7	266420-0	TAPPING SCREW 5X20
007-1	265C57-8	TAPPING SCREW 5X20
8	183U56-5	HOUSING SET
C10	263005-3	RUBBER PIN 6
D10		INC. 19,45
008-1	1831C9-5	HOUSING SET
C10	263005-3	RUBBER PIN 6
D10		INC. 19,45
9	232713-7	TORSION SPRING 10
009-1	232867-0	TORSION SPRING 10
10	413987-1	CATCH LEVER
010-1	141V70-3	LOCK OFF LEVER COMPLETE
11	650011-1	SWITCH C3JR-4BM-PAND3
12	632L49-0	SWITCH UNIT
13	459282-5	SWITCH LEVER
14	632L48-2	SWITCH UNIT
15	620F70-5	CONTROLLER
C10	688131-1	LINE FILTER
015-1	620P50-1	CONTROLLER
C11	688131-1	LINE FILTER
16	652031-1	PAN HEAD SCREW M3X6
17	632S63-8	TERMINAL UNIT
18	8110T7-9	UC002G SERIAL NO. LABEL
19	422467-6	CAP
20	422764-0	OIL TUBE 3-85
21	911113-1	PAN HEAD SCREW M4X10 WITH
		WR
22	142156-4	OIL PUMP COMPLETE
23	422765-8	OIL TUBE 3-109
24	231975-4	SPRING
25	452666-6	NIPPLE
26	911218-7	PAN HEAD SCREW M5X14
27	961011-9	STOP RING E-4
28	226884-0	WORM GEAR
29	413904-1	MOTOR HOUSING
30	652093-9	PAN HEAD SCREW M2X5
030-1	652119-7	PAN HEAD SCREW M2X6
31	620F73-9	SENSOR UNIT
32	652069-6	FLAT HEAD SCREW M3X6
33	629A85-9	STATOR
34	413980-5	BAFFLE PLATE
034-1	413V76-4	BAFFLE PLATE
35	266326-2	TAPPING SCREW 4X18
36	210026-6	BALL BEARING 696ZZ
37	519710-3	ROTOR ASSY
D10		INC. 36,38
38	210059-1	BALL BEARING 6000DDW
39	911118-1	PAN HEAD SCREW M4X12
40	413907-5	FRONT HAND GUARD RETAINER
41	141E58-1	FRONT HAND GUARD COMPLETE
C10	8042N8-4	CAUTION LABEL
42	232714-5	COMPRESSION SPRING 3
43	313212-9	HAND GUARD GUIDE
44	8110T4-5	UC002G NAME PLATE
45	183U56-5	HOUSING SET
C10	263005-3	RUBBER PIN 6
D10		INC. 8,19
045-1	1831C9-5	HOUSING SET
C10	263005-3	RUBBER PIN 6
D10		INC. 8,19
46	8012U4-2	XGT LOGO LABEL
47	422466-8	GROMET
48	227620-7	DRIVE GEAR 14
49	227634-6	STRAIGHT BEVEL GEAR 14
50	347517-5	TENSION SLIDE
51	327317-9	ADJUST SCREW
52	227496-2	STRAIGHT BEVEL GEAR 14
53	281222-3	HOOK
54	347514-1	HOOK SUPPORT
054-1	347D19-5	HOOK SUPPORT
55	347516-7	CHAIN CATCHER
56	266326-2	TAPPING SCREW 4X18
57	266326-2	TAPPING SCREW 4X18
58	346809-9	SPIKE BUMPER
59	141E60-4	LINK PLATE COMPLETE
60	232452-9	COMPRESSION SPRING 7
61	347864-4	BRAKE BAND
62	413981-3	HOUSING R COVER
63	266326-2	TAPPING SCREW 4X18
64	162979-4	BRAKE DRUM
65	213060-5	O RING 10
66	191V90-7	SPROCKET 6 SET
67	961013-5	STOP RING E-7
68	347533-7	GUIDE PLATE L
69	266905-6	H.L. SOCKET HEAD BOLT M5X12
70	266007-8	TAPPING SCREW BIND PT 3X10
71	347534-5	GUIDE PLATE R
72	136573-8	SPROCKET COVER ASS'Y
D10		INC. 70,71,73,74,76
73	162494-8	FLANGE NUT COMPLETE
74	413986-3	NUT COVER
76	422310-9	CHIP GUIDE
77	324616-0	HOSE CLAMP
A01	191G14-3	GUIDE BAR 10 SET
A02	458501-6	GUIDE BAR CASE
A02-1	458501-6	GUIDE BAR CASE
A03	199897-3	OIL VESSEL SET
A04	199075-5	SAW CHAIN SET
A04-1	191H00-0	SAW CHAIN 10 SET
A05	782023-7	WRENCH 13-16
A07	412393-7	BATTERY COVER
A07-1	412393-7	BATTERY COVER
A08	191E07-8	DC40RA FAST CHARGER
D10	630B63-0	DC40RA (BULK) FAST CHARGER
A09	191B36-3	BATTERY BL4025 40V MAX 2,5AH
A11	191C10-7	INTERCHANGEABLE ADAPTER
A12	191J81-6	KIT ENERGY 40VmaxBL4025 2,5Ax2+DC40RA
A13	191J97-1	KIT ENERGY 40VmaxBL4040 4Ax2+DC40RA
E01	8039U0-8	CAUTION TAG
E02	8040V6-2	SOUND LABEL
F01	191H01-8	SAW CHAIN 12 SET
F02	191H10-7	SAW CHAIN 12 SET
F03	191V90-7	SPROCKET 6 SET
F04	195093-1	CHAIN OIL SET
F05	195923-6	ROUND FILE 4.5 SET
F05-1	D-70954	FILE HOLDER SET 4.5MM(11/64")
F06	196206-7	SAW CHAIN SET
F08	196740-7	SAW CHAIN SET
F09	198457-8	CHAIN EDGER SET
F09-1	D-70948	FILE HOLDER SET 4.0MM(5/32")
F26	191G23-2	GUIDE BAR 12 SET
E01	8032W7-6	CAUTION TAG

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita UC003G

Available 6 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Makita UC003G Parts Diagram

Download (563.19KB)

Makita SKU: 142156-4

Oil Pump for Electric Chainsaw Makita UC3041A

Oil Pump for Electric Chainsaw Makita UC3041A Genuine parts Makita, Oil Pump for Electric Chainsaws UC3041A - UC3541A - UC3551A - UC4051A - ES2136TLC - ES2141TLC - DUC252Z - DUC353Z. Parts for the following products: - ES2136TLC -...

AVAILABLE €24.95

Details

Makita SKU: 227496-2

Tensioner Screw Gear for Chainsaw Makita UC3551A

Makita UC3551A Spiral Bevel Gear Genuine parts Makita, Tensioner Screw Spiral Bevel Gear for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3625LGE - CHAINSAW 25CM...

Usually Ships in: 7/10 Business Days Approx. €6.00

Details

Makita SKU: 326310-0

Tensioner Screw Pin for Chainsaw Makita UC3551A

Tensioner Screw Pin for Chainsaw Makita UC3551A Genuine parts Makita, Tensioner Screw Pin for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3726 - Chain Saw 18VX2 DOLMAR...

on 7/10 Business Days Approx €1.32

Details

Makita SKU: 142235-8

Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A

Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A Genuine parts Makita, Sprocket Cover Nut Complete for Electric Chaisaws UC3041A - UC3541A - UC4041A - Dolmar ES34TLC - ES39TLC Parts for the following products: - AS3726...

AVAILABLE €10.07

Details

Makita SKU: 266326-2

Strain Relief Screw M4x16 for Angle Grinder Makita GA4530

Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 Genuine part Makita, Strain Relief Special Screw M4x16 for Angle GrinderS GA4530 - GA4530R - GA4534 - GA5034 - Plate Joiner PJ7000. Parts for the following...

AVAILABLE €1.27

Details

Comments (0)

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Makita Cordless Chainsaw UC003G Parts

Makita Cordless Chainsaw UC003G Spare Parts

Makita Cordless Chainsaw UC003G Parts

Makita Cordless Chainsaw UC003G Spare Parts

Makita Cordless Chainsaw UC003G Spare Parts

Data sheet

Specific References

Download

Makita UC003G Parts Diagram

You might also like

Products

News

Notes

Our company
