Makita

Makita Cordless Chainsaw UC015G Parts

SKU: Makita UC015G
€42.85
VAT included

Makita Cordless Chainsaw UC015G Spare Parts

Fix Your Cordless Chainsaw UC015G. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee

Makita Cordless Chainsaw UC015G Parts
  • Makita Cordless Chainsaw UC015G Parts
  • Makita Cordless Chainsaw UC015G Parts Diagram
Makita

Makita Cordless Chainsaw UC015G Parts

SKU: Makita UC015G Condition: New
€42.85
VAT included

Makita Cordless Chainsaw UC015G Spare Parts

Fix Your Cordless Chainsaw UC015G. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee

settings 106 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Electric Chainsaw
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
106 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS

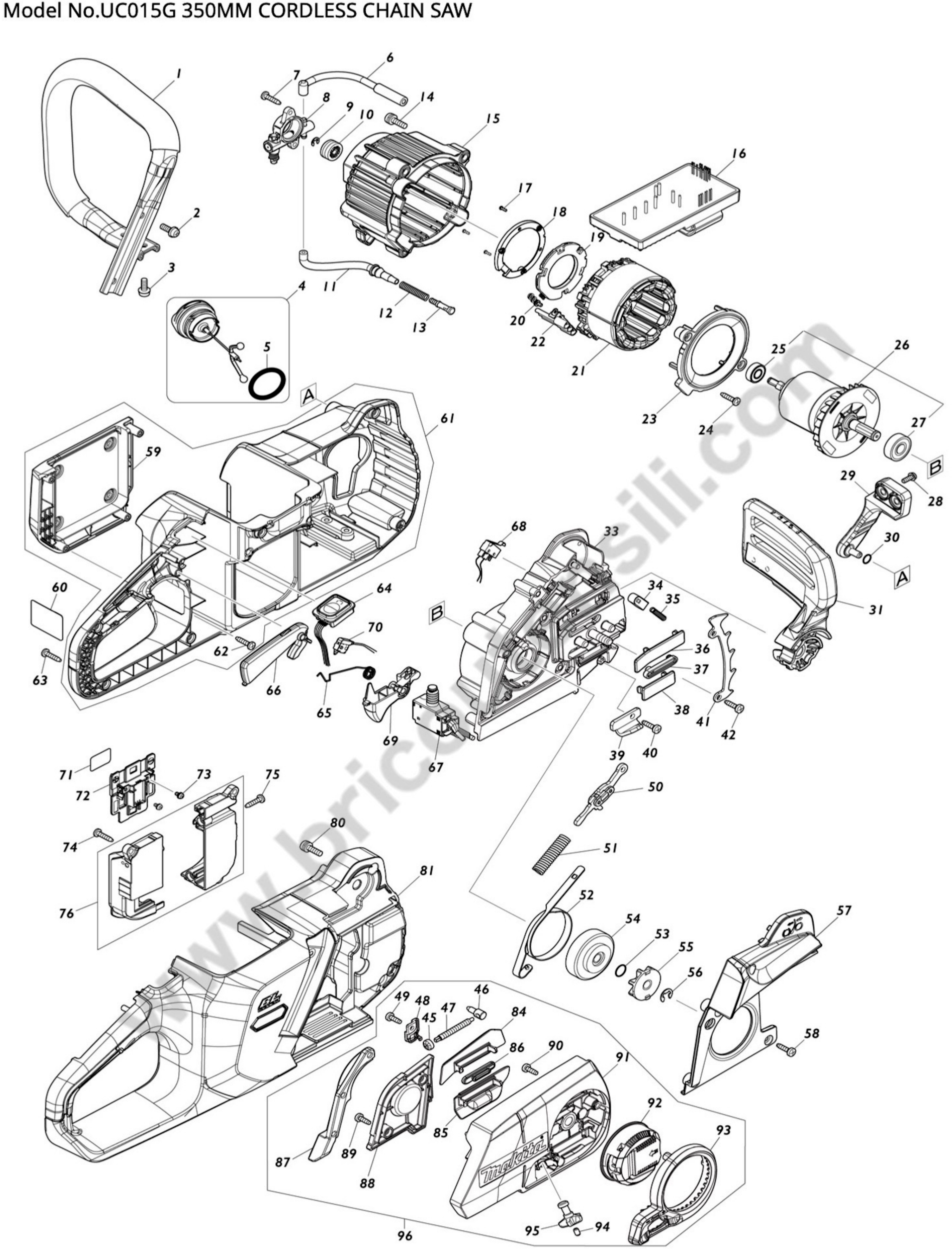

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A08
 photo_cameraImage coming soon ***DC40RA CARICABATTERIA RAPIDO DC40RA €0.12 Not available for order
A09
 photo_cameraImage coming soon 191B36-3 BATTERY BL4025 SET €228.68
F01
 photo_cameraImage coming soon 191G24-0 SET Bar GUIDA 14 €24.06
F02
 photo_cameraImage coming soon 191G25-8 SET Bar GUIDA 16 €25.57
F03
 photo_cameraImage coming soon 191G26-6 SET Bar GUIDA 18 €0.12 Not available for order
F04
 photo_cameraImage coming soon 191H11-5 SAW CHAIN 14 SET €21.06
F05
 photo_cameraImage coming soon 191H12-3 Saw chain 16 set O €31.48
F06
 photo_cameraImage coming soon 191H13-1 SAW CHAIN 18 SET €0.12 Not available for order
A09
 photo_cameraImage coming soon 191L47-8 SET BATTERIA BL4050F €229.28
A01
 photo_cameraImage coming soon 191T87-4 SET Bar GUIDA 14 €28.54
A04
 photo_cameraImage coming soon 191T91-3 GUIDE BAR 14 €43.71
F13
 photo_cameraImage coming soon 191V90-7 SPROCKET 6 SET €9.89
F14
 photo_cameraImage coming soon 191V91-5 SPROCKET 7 SET €22.84
F17
 photo_cameraImage coming soon 195093-1 CHAIN OIL SET €0.12 Not available for order
F18
 photo_cameraImage coming soon 198457-8 CHAIN EDGER SET €24.86
A03
 photo_cameraImage coming soon 199897-3 OIL VESSEL SET €0.12 Not available for order
C10
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.32
C10
 photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €1.32
A07
 photo_cameraImage coming soon 412393-7 BATTERY COVER €0.00 Not available for order
A02-1
 photo_cameraImage coming soon 419288-5 CHAIN COVER FOR 12-14" €4.65
A02
 photo_cameraImage coming soon 419288-5 CHAIN COVER FOR 12-14" €4.65
A05
 photo_cameraImage coming soon 782023-7 WRENCH 13-16 €3.37
C10
 photo_cameraImage coming soon 8025F3-0 XGT LOGO LABEL €0.12 Not available for order
C10
 photo_cameraImage coming soon 8050E6-6 CAUTION LABEL €0.12 Not available for order
E01
 photo_cameraImage coming soon 8050E9-0 SOUND LABEL €0.12 Not available for order
C10
 photo_cameraImage coming soon 810D46-0 SWITCH LABEL €0.12 Not available for order
F18-1
 photo_cameraImage coming soon D-70948 FILE HOLDER SET 4.0MM(5/32") €0.12 Not available for order
1
 photo_cameraImage coming soon 327932-9 FRONT HANDLE €40.40
2
 HEAD SCREW CILIND. M5x14 911218-7 HEAD SCREW CILIND. M5x14 €1.32
3
 HEAD SCREW CILIND. M5x14 911218-7 HEAD SCREW CILIND. M5x14 €1.32
4
 photo_cameraImage coming soon 122A77-2 TANK CAP ASSEMBLY €14.34
5
 photo_cameraImage coming soon 213080-9 RING 29.5 PS32CTLC €5.43
6
 photo_cameraImage coming soon 422835-3 OIL TUBE 3-117 €2.69
7
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.32
8
 photo_cameraImage coming soon 142857-4 OIL PUMP COMPLETE €22.06
9
 photo_cameraImage coming soon 961011-9 RETAINING RING E4 €1.32
10
 photo_cameraImage coming soon 226884-0 WORM GEAR €1.44
11
 photo_cameraImage coming soon 422836-1 OIL TUBE 3-108 €2.69
12
 photo_cameraImage coming soon 231975-4 SPRING TUBE OIL X DCS230T €1.47
13
 PLUG OIL PIPE PS32CTLC 452666-6 PLUG OIL PIPE PS32CTLC €1.32
14
 photo_cameraImage coming soon 911228-4 SCREW M5X18 X JR180D €1.44
15
 photo_cameraImage coming soon 413C89-1 MOTOR HOUSING €21.54
16
 photo_cameraImage coming soon 620H71-5 620265-4 €245.87
16-1
 photo_cameraImage coming soon 620P46-2 620265-4 €0.12 Not available for order
17
 photo_cameraImage coming soon 266490-9 SCREW 2X6 €1.32
18
 photo_cameraImage coming soon 687B69-9 STOPPER €3.13
19
 photo_cameraImage coming soon 620H75-7 CONTROLLER B €21.54
20
 photo_cameraImage coming soon 652031-1 SCREW M3x6 €1.32
21
 photo_cameraImage coming soon 629B00-9 STATOR €92.13
22
 photo_cameraImage coming soon 632T19-7 LEAD UNIT €14.34
23
 photo_cameraImage coming soon 413C90-6 BAFFLE PLATE €3.13
24
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.32
25
 BALL BEARING 698ZZ 210016-9 BALL BEARING 698ZZ €7.58
26-1
 photo_cameraImage coming soon 519732-3 ROTOR ASS'Y €155.03
26
 photo_cameraImage coming soon 519732-3 ROTOR ASS'Y €155.03
27
 photo_cameraImage coming soon 210059-1 BEARING 6000 HR2010 €11.29
28
 photo_cameraImage coming soon 911118-1 M4PER12 SCREW €2.74
29
 photo_cameraImage coming soon 413C92-2 FRONT HAND GUARD RETAINER €3.84
30
 photo_cameraImage coming soon 213594-8 RING 7 €1.40
31
 photo_cameraImage coming soon 141J69-6 FRONT HAND GUARD COMPLETE €11.07
33
 photo_cameraImage coming soon 136612-4 HOUSING BASE ASSEMBLY €92.13
34
 photo_cameraImage coming soon 313398-9 HAND GUARD GUIDE €1.40
35
 photo_cameraImage coming soon 234210-9 SPRING COMPRESSION 6 PS32CTLC €1.47
36
 photo_cameraImage coming soon 413D07-5 GUARD A €2.08
37
 photo_cameraImage coming soon 422834-5 GROMMET A €1.40
38
 photo_cameraImage coming soon 413D08-3 GUARD B €2.08
39
 photo_cameraImage coming soon 347924-2 CHAIN CATCHER €2.08
40
 photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €1.32
41
 photo_cameraImage coming soon 347925-0 SPIKE BUMPER €2.08
42
 photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €1.32
45
 Tensioner Screw Gear for Chainsaw Makita UC3551A 227496-2 Tensioner Screw Gear for Chainsaw Makita UC3551A €5.99
46
 Tensioner Screw Pin for Chainsaw Makita UC3551A 326310-0 Tensioner Screw Pin for Chainsaw Makita UC3551A €1.32
47
 photo_cameraImage coming soon 327958-1 ADJUST SCREW €2.08
48
 photo_cameraImage coming soon 413F29-7 COVER €2.69
49-1
 photo_cameraImage coming soon 265C54-4 H.L. TAPPING SCREW 4X12 €0.12 Not available for order
49
 photo_cameraImage coming soon 266427-6 SCREW 4X12 MT923 €1.32
50
 photo_cameraImage coming soon 141E60-4 LINK PLATE COMPLETE €6.63
51
 photo_cameraImage coming soon 232452-9 COMPRESSION SPRING 7 €1.24
52
 photo_cameraImage coming soon 347922-6 BRAKE BAND COMPLETE €5.94
53
 photo_cameraImage coming soon 213060-5 O-RING 10 €1.27
54
 photo_cameraImage coming soon 162979-4 BRAKE DRUM €9.89
55
 photo_cameraImage coming soon 191V91-5 SPROCKET 7 SET €22.84
56
 RING RITEGNOXJN3200 961013-5 RING RITEGNOXJN3200 €2.03
57
 photo_cameraImage coming soon 413C95-6 BRAKE COVER €4.43
58
 photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €1.32
59
 photo_cameraImage coming soon 413C88-3 BATTERY COVER €8.50
60
 photo_cameraImage coming soon 8117L7-5 UC015G NAME PLATE €0.12 Not available for order
61
 photo_cameraImage coming soon 136689-9 HOUSING L ASSEMBLY €40.40
61-1
 photo_cameraImage coming soon 137024-4 Spare Part 137024-4 €1.40
62
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.32
63
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.32
64
 photo_cameraImage coming soon 620J22-0 SWITCH CIRCUIT COMPLETE €21.54
65
 photo_cameraImage coming soon 232733-1 TORSION SPRING 10 €1.40
65-1
 photo_cameraImage coming soon 232850-7 TORSION SPRING 10 €0.12 Not available for order
66-1
 photo_cameraImage coming soon 141V01-2 LOCK OFF LEVER COMPLETE €2.86
66
 photo_cameraImage coming soon 413C94-8 CATCH LEVER €2.69
67
 photo_cameraImage coming soon 650024-2 SWITCH C3JR-4B-PAND4-1 €35.76
68
 photo_cameraImage coming soon 632T50-3 SWITCH UNIT €18.98
69
 photo_cameraImage coming soon 413C93-0 SWITCH LEVER €2.69
70
 photo_cameraImage coming soon 632L49-0 SWITCH UNIT €10.07
71
 photo_cameraImage coming soon 8117M0-6 UC015G SERIAL NO. LABEL €0.12 Not available for order
72
 photo_cameraImage coming soon 632T07-4 TERMINAL UNIT €11.07
73
 photo_cameraImage coming soon 652031-1 SCREW M3x6 €1.32
74
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.32
75
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.32
76
 photo_cameraImage coming soon 183V16-3 TERMINAL BOX SET €5.13
80
 photo_cameraImage coming soon 911228-4 SCREW M5X18 X JR180D €1.44
81
 photo_cameraImage coming soon 136674-2 HOUSING R ASSEMBLY €56.02
81-1
 photo_cameraImage coming soon 137216-5 HOUSING R ASSEMBLY €0.12 Not available for order
84
 photo_cameraImage coming soon 413F27-1 GUARD C €3.13
85
 photo_cameraImage coming soon 413F28-9 GUARD D €3.13
86
 photo_cameraImage coming soon 422833-7 GROMMET €1.40
87
 photo_cameraImage coming soon 422832-9 CHIP GUIDE €2.08
88
 photo_cameraImage coming soon 413F26-3 INNER COVER €3.84
89-1
 photo_cameraImage coming soon 265C54-4 H.L. TAPPING SCREW 4X12 €0.12 Not available for order
89
 photo_cameraImage coming soon 266427-6 SCREW 4X12 MT923 €1.32
90-1
 photo_cameraImage coming soon 265C54-4 H.L. TAPPING SCREW 4X12 €0.12 Not available for order
90
 photo_cameraImage coming soon 266427-6 SCREW 4X12 MT923 €1.32
91
 photo_cameraImage coming soon 413F24-7 SPROCKET COVER €14.34
92
 Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A 142235-8 Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A €10.07
93
 photo_cameraImage coming soon 413F25-5 NUT COVER €3.84
94
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.32
95
 photo_cameraImage coming soon 142665-3 GEAR €5.16
96
 photo_cameraImage coming soon 183W23-2 SPROCKET COVER SET €40.40

Shipping and delivery information will be available shortly.

Makita Cordless Chainsaw UC015G Spare Parts

Fix Your Cordless Chainsaw UC015G. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Cordless Chain Saw and the respective parts of the code.
Makita UC015G

MAKITA UC015G 350MM CORDLESS CHAIN SAW Spare Parts
# Parts Num. Description
1 327932-9 FRONT HANDLE
2 911218-7 PAN HEAD SCREW M5X14
3 911218-7 PAN HEAD SCREW M5X14
4 122A77-2 TANK CAP ASSEMBLY
D10 INC. 5
5 213080-9 O RING 29.5
6 422835-3 OIL TUBE 3-117
7 266326-2 TAPPING SCREW 4X18
8 142857-4 OIL PUMP COMPLETE
9 961011-9 STOP RING E-4
10 226884-0 WORM GEAR
11 422836-1 OIL TUBE 3-108
12 231975-4 SPRING
13 452666-6 NIPPLE
14 911228-4 PAN HEAD SCREW M5X18
15 413C89-1 MOTOR HOUSING
16 620H71-5 CONTROLLER
16-1 620P46-2 CONTROLLER
17 266490-9 TAPPING SCREW PT 2X6
18 687B69-9 STOPPER
19 620H75-7 CONTROLLER B
20 652031-1 PAN HEAD SCREW M3X6
21 629B00-9 STATOR
22 632T19-7 LEAD UNIT
23 413C90-6 BAFFLE PLATE
24 266326-2 TAPPING SCREW 4X18
25 210016-9 BALL BEARING 698ZZ
26 519732-3 ROTOR ASS'Y
D10 INC. 25,27
26-1 519732-3 ROTOR ASS'Y
D10 INC. 25,27
27 210059-1 BALL BEARING 6000DDW
28 911118-1 PAN HEAD SCREW M4X12
29 413C92-2 FRONT HAND GUARD RETAINER
30 213594-8 O RING 7
31 141J69-6 FRONT HAND GUARD COMPLETE
C10 8050E6-6 CAUTION LABEL
33 136612-4 HOUSING BASE ASSEMBLY
C10 263002-9 RUBBER PIN 4
34 313398-9 HAND GUARD GUIDE
35 234210-9 COMPRESSION SPRING 3
36 413D07-5 GUARD A
37 422834-5 GROMMET A
38 413D08-3 GUARD B
39 347924-2 CHAIN CATCHER
40 266034-5 TAPPING SCREW CT 4X16
41 347925-0 SPIKE BUMPER
42 266034-5 TAPPING SCREW CT 4X16
45 227496-2 STRAIGHT BEVEL GEAR 14
46 326310-0 ADJUST PIN
47 327958-1 ADJUST SCREW
48 413F29-7 COVER
49 266427-6 TAPPING SCREW 4X12
49-1 265C54-4 TAPPING SCREW 4X12
50 141E60-4 LINK PLATE COMPLETE
51 232452-9 COMPRESSION SPRING 7
52 347922-6 BRAKE BAND COMPLETE
53 213060-5 O RING 10
54 162979-4 BRAKE DRUM
55 191V91-5 SPROCKET 7 SET
56 961013-5 STOP RING E-7
57 413C95-6 BRAKE COVER
58 266034-5 TAPPING SCREW CT 4X16
59 413C88-3 BATTERY COVER
60 8117L7-5 UC015G NAME PLATE
61 136689-9 HOUSING L ASSEMBLY
D10 INC. 59,62
61-1 137024-4 HOUSING L ASSEMBLY
D10 INC. 59,62
62 266326-2 TAPPING SCREW 4X18
63 266326-2 TAPPING SCREW 4X18
64 620J22-0 SWITCH CIRCUIT COMPLETE
C10 810D46-0 SWITCH LABEL
65 232733-1 TORSION SPRING 10
65-1 232850-7 TORSION SPRING 10
66 413C94-8 CATCH LEVER
66-1 141V01-2 LOCK OFF LEVER COMPLETE
67 650024-2 SWITCH C3JR-4B-PAND4-1
68 632T50-3 SWITCH UNIT
69 413C93-0 SWITCH LEVER
70 632L49-0 SWITCH UNIT
71 8117M0-6 UC015G SERIAL NO. LABEL
72 632T07-4 TERMINAL UNIT
73 652031-1 PAN HEAD SCREW M3X6
74 266326-2 TAPPING SCREW 4X18
75 266326-2 TAPPING SCREW 4X18
76 183V16-3 TERMINAL BOX SET
C10 263005-3 RUBBER PIN 6
80 911228-4 PAN HEAD SCREW M5X18
81 136674-2 HOUSING R ASSEMBLY
C10 8025F3-0 XGT LOGO LABEL
81-1 137216-5 HOUSING R ASS'Y
C10 8025F3-0 XGT LOGO LABEL
84 413F27-1 GUARD C
85 413F28-9 GUARD D
86 422833-7 GROMMET
87 422832-9 CHIP GUIDE
88 413F26-3 INNER COVER
89 266427-6 TAPPING SCREW 4X12
89-1 265C54-4 TAPPING SCREW 4X12
90 266427-6 TAPPING SCREW 4X12
90-1 265C54-4 TAPPING SCREW 4X12
91 413F24-7 SPROCKET COVER
92 142235-8 NUT COMPLETE
93 413F25-5 NUT COVER
94 263002-9 RUBBER PIN 4
95 142665-3 DRIVE GEAR COMPLETE
96 183W23-2 SPROCKET COVER SET
D10 INC. 45-49,84-95
A01 191T87-4 GUIDE BAR 14 SET
A02 419288-5 CHAIN COVER
A02-1 419288-5 CHAIN COVER
A03 199897-3 OIL VESSEL SET
A04 191T91-3 SAW CHAIN 14 SET
A05 782023-7 WRENCH 13-16
A07 412393-7 BATTERY COVER
A08 ***DC40RA DC40RA FAST CHARGER
D10 COMPO-PARTS
A09 191B36-3 BATTERY BL4025 SET
E01 8050E9-0 SOUND LABEL
F01 191G24-0 GUIDE BAR 14 SET
F02 191G25-8 GUIDE BAR 16 SET
F03 191G26-6 GUIDE BAR 18 SET
F04 191H11-5 SAW CHAIN 14 SET
F05 191H12-3 SAW CHAIN 16 SET
F06 191H13-1 SAW CHAIN 18 SET
F13 191V90-7 SPROCKET 6 SET
F14 191V91-5 SPROCKET 7 SET
F17 195093-1 CHAIN OIL SET
F18 198457-8 CHAIN EDGER SET
F18-1 D-70948 FILE HOLDER SET 4.0MM(5/32")
A09 191L47-8 BATTERY BL4050F SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita UC015G
6 Items

Data sheet

Machine Type
Electric Chainsaw
MORE INFO:
[email protected]
SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS

Specific References

New

Download

Makita UC015G Parts Drawing

Makita UC015G Parts Drawing

Download (490.7KB)

You might also like

Tensioner Screw Gear for Chainsaw Makita UC3551A
Makita SKU: 227496-2
Tensioner Screw Gear for Chainsaw Makita UC3551A
Makita UC3551A Spiral Bevel Gear Genuine parts Makita, Tensioner Screw Spiral Bevel Gear for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3625LGE - CHAINSAW 25CM 36V...
Usually Ships in: 7/10 Business Days Approx. €5.99
Details
Tensioner Screw Pin for Chainsaw Makita UC3551A
Makita SKU: 326310-0
Tensioner Screw Pin for Chainsaw Makita UC3551A
Tensioner Screw Pin for Chainsaw Makita UC3551A Genuine parts Makita, Tensioner Screw Pin for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3726 - Chain Saw 18VX2 DOLMAR...
on 7/10 Business Days Approx €1.32
Details
Comments (0)
No customer reviews for the moment.
