Makita

Makita EA3501S Spare Parts

SKU: Makita EA3501S
€2.82
VAT included

Makita EA3501S Spare Parts

We have the original Spares for MAKITA Chainsaw EA3501S, the diagram, parts list and tool repair that help you need to get your tools running like new again.
Makita EA3501S Spare Parts
  • Makita EA3501S Spare Parts
  • Makita EA3501S Spare Parts - Drawing
  • Makita EA3501S Spare Parts - Drawing 1
  • Makita EA3501S Spare Parts - Drawing 2
  • Makita EA3501S Spare Parts - Drawing 3
  • Makita EA3501S Spare Parts - Drawing 4
Makita

Makita EA3501S Spare Parts

SKU: Makita EA3501S Condition: New
€2.82
VAT included

Makita EA3501S Spare Parts

We have the original Spares for MAKITA Chainsaw EA3501S, the diagram, parts list and tool repair that help you need to get your tools running like new again.
settings 155 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
155 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

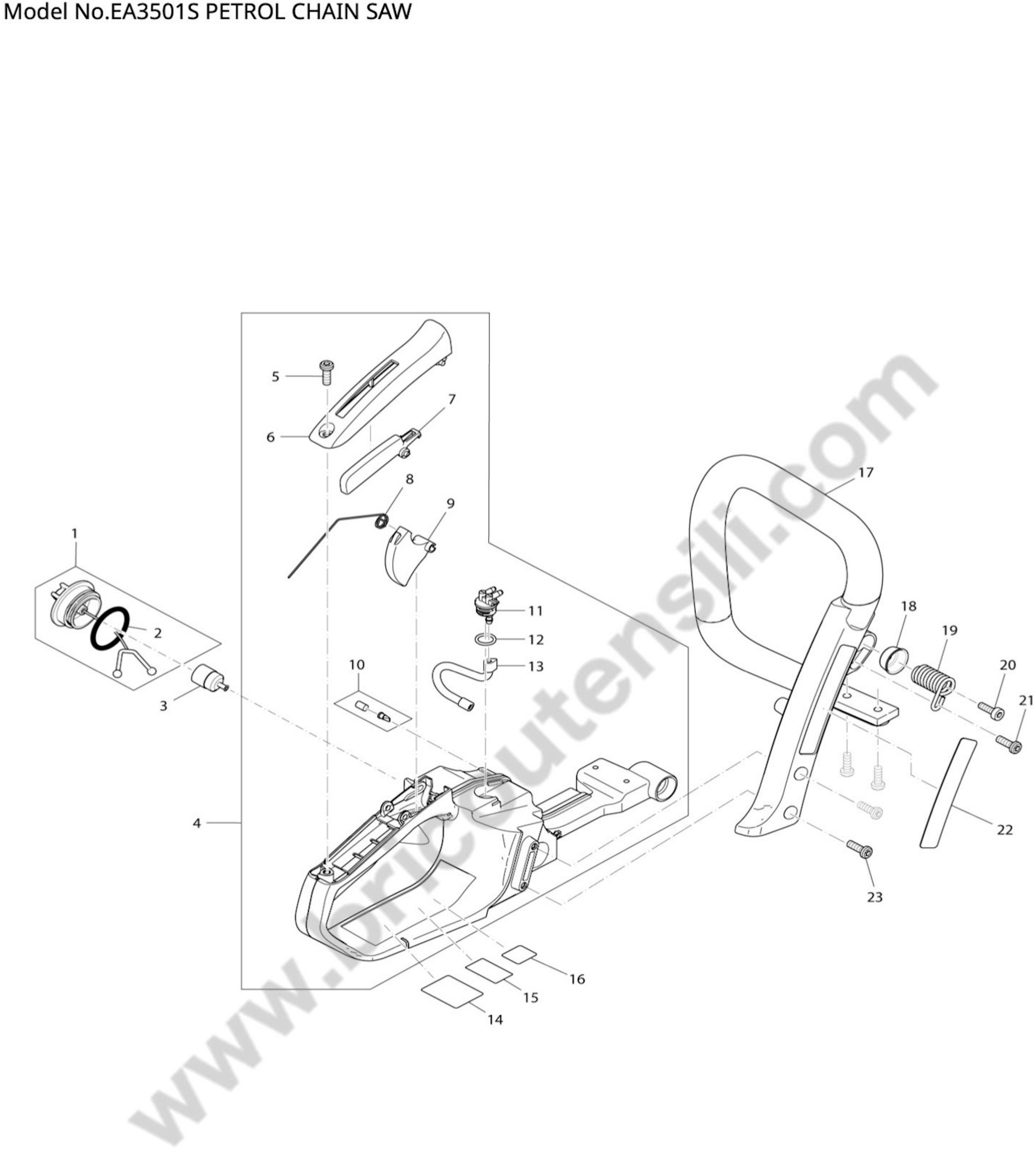

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
C10
 photo_cameraImage coming soon 142417-2 CRANKSHAFT COMPLETE €26.67
A01-1
 photo_cameraImage coming soon 165202-6 SPROCKET NOSE BAR 40CM SP.1,3MM €27.98
A01
 photo_cameraImage coming soon 165202-6 SPROCKET NOSE BAR 40CM SP.1,3MM €27.98
C10
 photo_cameraImage coming soon 319108-2 PISTON 38 €61.02
A02
 photo_cameraImage coming soon 419560-5 CHAIN COVER €2.94
A04
 photo_cameraImage coming soon 782026-1 UNIVERSAL WRENCH €5.16
C04
 photo_cameraImage coming soon ZJ00000003 STRAINER €1.40
C72
 photo_cameraImage coming soon ZJ00000005 PLUNGER KIT €9.89
C10
 photo_cameraImage coming soon ZJ00000006 LEVER €2.69
C12
 photo_cameraImage coming soon ZJ00000007 VALVE, INLET NEEDLE €8.50
C06
 photo_cameraImage coming soon ZJ00000008 Pin €9.80
C14
 photo_cameraImage coming soon ZJ00000009 SCREW (METERING LEVER PIN) €2.08
C18
 photo_cameraImage coming soon ZJ00000013 DIAPHRAGM ASS'Y,METERING €12.69
C58
 photo_cameraImage coming soon ZJ00000014 SCREW (WITH SERRATION) €2.20
C22
 photo_cameraImage coming soon ZJ00000016 GASKET, PUMP €1.40
C26
 photo_cameraImage coming soon ZJ00000020 SCREW (PUMP COVER) €2.08
C52
 photo_cameraImage coming soon ZJ00000023 SCREW €1.24
C20
 photo_cameraImage coming soon ZJ00000029 DIAPHRAGM, PUMP €2.98
C36
 photo_cameraImage coming soon ZJ00000073 SPRING €1.40
C02
 photo_cameraImage coming soon ZJ00000077 NOZZLE ASSEMBLY €9.80
C08
 photo_cameraImage coming soon ZJ00000078 SPRING, METERING LEVER €1.38
1
 photo_cameraImage coming soon 168823-3 TANK CAP PS32CTLC €2.73
2
 photo_cameraImage coming soon 213080-9 RING 29.5 PS32CTLC €5.43
3
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
4
 photo_cameraImage coming soon 195758-5 TANK CPL BLUE EA3201S35A €46.64
5
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
6
 photo_cameraImage coming soon 452021-2 COVER HANDLE PS32CTLC €2.15
7
 photo_cameraImage coming soon 452020-4 RELEASE LEVER PS32CTLC €1.40
8
 photo_cameraImage coming soon 231866-9 SPRING TORSION 10 PS32CTLC €1.43
9
 photo_cameraImage coming soon 452019-9 ACCELERATOR LEVER PS32CTLC €1.40
10
 photo_cameraImage coming soon 195762-4 BREATHER VALVE PS32CTLC €3.84
11
 photo_cameraImage coming soon 452018-1 FITTING CARCBURANTE PS32CTLC €1.43
12
 photo_cameraImage coming soon 213586-7 RING 11.5 PS32CTLC €1.43
13
 Fuel Hose for Chaisaws Makita EA3201S35A 424456-7 Fuel Hose for Chaisaws Makita EA3201S35A €16.31
17
 photo_cameraImage coming soon 452036-9 FRONT HANDLE PS32CTLC €32.07
18
 photo_cameraImage coming soon 346517-2 BELLEVILLE WASHER 6 PS32CTLC €1.40
19
 Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
20
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
21
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
23
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
24
 photo_cameraImage coming soon 452031-9 FILTER COVER PS32CTLC €1.40
25
 Air Cleaner for Chaisaw Makita EA3201S35A 423414-0 Air Cleaner for Chaisaw Makita EA3201S35A €3.87
26
 photo_cameraImage coming soon 452030-1 PS32CTLC FUND €3.35
27
 photo_cameraImage coming soon 266604-0 SCREW M4X40 PS32CTLC €1.40
28
 Damper for Chainsaw Dolmar PS32CTLC 424173-9 Damper for Chainsaw Dolmar PS32CTLC €2.18
29
 Gasoline Primer Pump for Chainsaw Makita DCS230T 168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T €6.24
30
 photo_cameraImage coming soon 422067-2 PIPE 2,5X55 PS32CTLC €2.15
31
 photo_cameraImage coming soon 422065-6 PIPE 2,5X55 PS32CTLC €3.17
32
 photo_cameraImage coming soon 422068-0 PIPE 3x70 PS32CTLC €1.40
33
 photo_cameraImage coming soon 422066-4 PIPE 2,5X72 PS32CTLC €2.08
34
 photo_cameraImage coming soon 318634-8 FLANGE PS32CTLC €2.15
35
 photo_cameraImage coming soon 346413-4 SOCKET 17 PS32CTLC €1.47
36
 photo_cameraImage coming soon 454874-5 INTERMEDIATE FLANGE €3.20
38
 photo_cameraImage coming soon 233971-8 CIRCLIP PS32CTLC €2.20
39
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
40
 photo_cameraImage coming soon 264044-6 PLATE M5 PS32CTLC €1.40
41
 Carburetor for Chainsaw Makita EA3500S40B 168829-1 Carburetor for Chainsaw Makita EA3500S40B €67.90
42
 photo_cameraImage coming soon 266421-8 SCREW 3PER10 HR2800 €1.40
43
 photo_cameraImage coming soon 346290-4 PS32CTLC CONTACT €1.40
44
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
45
 photo_cameraImage coming soon 454875-3 HOOD €16.98
46
 photo_cameraImage coming soon 266607-4 SCREW M5X20 PS32CTLC €1.43
47
 photo_cameraImage coming soon 325938-1 FITTING THE PS32CTLC €2.08
48
 photo_cameraImage coming soon 346764-5 COOLING PLATE €1.43
50
 photo_cameraImage coming soon 346304-9 SEAL MUFFLER PS32CTLC €1.43
51
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
52
 photo_cameraImage coming soon 168830-6 MUFFLER COMPLETE €49.72
53
 photo_cameraImage coming soon 346823-5 SPARK ARRESTER SCREEN €2.07
54
 photo_cameraImage coming soon 266480-2 SCREW €1.47
55
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
56-1
 photo_cameraImage coming soon 143323-4 CYLINDER €77.36
57-1
 Piston Set for Chainsaw Makita EA3500S40B 197479-5 Piston Set for Chainsaw Makita EA3500S40B €22.63
57
 photo_cameraImage coming soon 319108-2 PISTON 38 €61.02
58
 photo_cameraImage coming soon 257366-1 PISTON RING Ø 38 €4.51
59
 photo_cameraImage coming soon 326395-6 PISTON PIN €2.07
60
 photo_cameraImage coming soon 234323-6 RING SPRING 9 €5.89
61
 photo_cameraImage coming soon 213141-5 SEAL €6.29
62-1
 photo_cameraImage coming soon 211341-1 BEARING 6201 PS32CTLC €3.92
62
 photo_cameraImage coming soon 211494-6 BALL BEARING 6201 €7.51
63
 photo_cameraImage coming soon 212093-7 NEEDLE BEARING €7.29
64
 photo_cameraImage coming soon 142417-2 CRANKSHAFT COMPLETE €26.67
65-1
 photo_cameraImage coming soon 211341-1 BEARING 6201 PS32CTLC €3.92
65
 photo_cameraImage coming soon 211494-6 BALL BEARING 6201 €7.51
66
 photo_cameraImage coming soon 213141-5 SEAL €6.29
69
 photo_cameraImage coming soon 168823-3 TANK CAP PS32CTLC €2.73
70
 photo_cameraImage coming soon 213080-9 RING 29.5 PS32CTLC €5.43
72
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
73
 Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
75
 photo_cameraImage coming soon 452025-4 LEVER AIR PS32CTLC €1.40
76
 photo_cameraImage coming soon 452022-0 LEVERAGE PS32CTLC €1.47
77
 photo_cameraImage coming soon 266608-2 SCREW 5x40 PS32CTLC €1.40
79
 Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
80
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
81
 Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
82
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
83
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
84
 Venting Valve for Chainsaw Dolmar PS32CTLC 168504-9 Venting Valve for Chainsaw Dolmar PS32CTLC €3.70
85
 photo_cameraImage coming soon 346301-5 HARPOON PS32CTLC €2.12
86
 photo_cameraImage coming soon 326210-4 SPRING €1.38
87
 photo_cameraImage coming soon 444042-8 INSULATION TUBE PS32TCLC €1.43
88
 photo_cameraImage coming soon 424522-0 HOOD CANDLE €2.82
89
 photo_cameraImage coming soon 168401-9 SPARK PLUG BHX2501/PS32  - NGKBPMR8Y - BPMR7A €10.75
90
 photo_cameraImage coming soon 452670-5 INSULATING WASHER PS32CTLC €1.40
91
 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A 126270-4 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A €55.00
91-1
 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A 126270-4 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A €55.00
92
 photo_cameraImage coming soon 266631-7 SCREW M5X20 PS32CTLC €1.40
93
 photo_cameraImage coming soon 168601-1 CABLES PS32CTLC €3.92
94
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
96-1
 photo_cameraImage coming soon 161328-2 STARTER ASS'Y BLUE EA3201S35A €39.02
96
 photo_cameraImage coming soon 168608-7 STARTING CPL BLUE EA3201S35A €40.59
97
 photo_cameraImage coming soon 453783-5 GRIP STARTING PS32CTLC €3.92
98
 photo_cameraImage coming soon 267847-7 WASHER QUADRA 4 PS32CTLC €1.40
99
 photo_cameraImage coming soon 444038-9 ROPE START PS32CTLC €2.08
101
 photo_cameraImage coming soon 453785-1 REEL START PS32CTLC €5.52
101-1
 photo_cameraImage coming soon 455919-2 CABLE DRUM CPL. €6.06
102
 photo_cameraImage coming soon 234253-1 SPRING TORSION 20 PS32CTLC €2.69
103
 Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A 453786-9 Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A €4.63
104
 photo_cameraImage coming soon 266777-9 SCREW 5X1 PS32CTLC €1.40
105
 photo_cameraImage coming soon 452026-2 BAFFLE PS32CTLC €3.35
106
 photo_cameraImage coming soon 264053-5 NUT M8X1 PS32CTLC €1.40
107
 photo_cameraImage coming soon 267822-3 WASHER 8 PS32CTLC €1.47
108
 photo_cameraImage coming soon 140480-9 FLYWHEEL PS32CTLC €27.55
109
 Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A 195761-6 Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A €2.84
110
 Hand Guard for Petrol Chainsaw Makita EA3200S35A 452032-7 Hand Guard for Petrol Chainsaw Makita EA3200S35A €6.26
111
 photo_cameraImage coming soon 810449-4 LABEL €1.47
112
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
113
 photo_cameraImage coming soon 253715-0 ROND.P.6 6510PBL / LVR / 43SB €1.50
114
 photo_cameraImage coming soon 313212-9 PS32CTLC GUIDE €1.47
115
 photo_cameraImage coming soon 234210-9 SPRING COMPRESSION 6 PS32CTLC €1.47
116
 photo_cameraImage coming soon 231868-5 SPRING TENSION 10 PS32CTLC €2.08
117
 photo_cameraImage coming soon 163500-2 LEVERAGE PS32CTLC €21.54
118
 photo_cameraImage coming soon 325947-0 SOCKET 6 €1.40
119
 photo_cameraImage coming soon 346299-6 SPACER PS32CTLC €1.40
120
 photo_cameraImage coming soon 961011-9 RETAINING RING E4 €1.44
121
 photo_cameraImage coming soon 452033-5 PS32CTLC COVER €2.15
121-1
 photo_cameraImage coming soon 458425-6 BRAKE COVER €2.67
122
 photo_cameraImage coming soon 266421-8 SCREW 3PER10 HR2800 €1.40
123
 Worm Screw for Chainsaw Makita EA3201S35A 452035-1 Worm Screw for Chainsaw Makita EA3201S35A €5.30
124
 photo_cameraImage coming soon 168645-1 SUCTION HOSE PS32CTLC €6.06
125
 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A 234207-8 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A €1.32
126-1
 photo_cameraImage coming soon 452666-6 PLUG OIL PIPE PS32CTLC €1.32
126
 photo_cameraImage coming soon 452666-6 PLUG OIL PIPE PS32CTLC €1.32
127
 photo_cameraImage coming soon 424342-2 PIPE PS32CTLC €5.30
130
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
131
 photo_cameraImage coming soon 267430-0 WASHER 10 PS32CTLC €1.40
132
 photo_cameraImage coming soon 267431-8 WASHER 10 PS32CTLC €1.40
133
 photo_cameraImage coming soon 168607-9 CLUTCH PS32C-EA3201S €8.50
134
 photo_cameraImage coming soon 231873-2 SPRING TENSION 5 PS32CTLC €1.40
135
 photo_cameraImage coming soon 140484-1 CLUTCH DRUM ASSY PS32C New Cod. 140A30-6 €19.38
135-1
 photo_cameraImage coming soon 140A30-6 CLUTCH DRUM €36.47
135-2
 Clutch Drum Ass'y for Chainsaw Makita EA3200S 140M30-8 Clutch Drum Ass'y for Chainsaw Makita EA3200S €16.90
136
 photo_cameraImage coming soon 267833-8 WASHER 8 PS32CTLC €1.44
137
 photo_cameraImage coming soon 259033-4 LOCKWASHER X UC €1.47
138
 photo_cameraImage coming soon 346298-8 SPRING BRAKE PS32CTLC €4.81
138-1
 photo_cameraImage coming soon 347363-6 BRAKE BAND €3.84
148
 Guide Plate for Chainsaw Dolmar PS32C/35 346518-0 Guide Plate for Chainsaw Dolmar PS32C/35 €6.23
152
 Makita Starter Spring for EA3200S35A 195955-3 Makita Starter Spring for EA3200S35A €11.07
153
 photo_cameraImage coming soon 266960-8 SCREW X DCS6401 €1.43
154
 photo_cameraImage coming soon 266880-6 H.L. SOCKET HEAD BOLT M5X25 €2.08
155
 photo_cameraImage coming soon 346760-3 CYLINDER GASKET €2.73
156
 photo_cameraImage coming soon 346761-1 CRANKCASE GASKET €1.38
157
 photo_cameraImage coming soon 951063-8 ELASTIC PIN 3-16 LC1230 €1.39
158
 photo_cameraImage coming soon 424618-7 PLUG €1.43
159
 photo_cameraImage coming soon 424631-5 SOCKET RUBBER €1.43
160-2
 photo_cameraImage coming soon 191A48-0 CLUTCH DRUM SET €18.79
160-1
 photo_cameraImage coming soon 199033-1 CLUTCH DRUM SET €41.19
161
 Sprocket Guard for Chainsaw Makita EA3201S35A 142783-7 Sprocket Guard for Chainsaw Makita EA3201S35A €34.42
162
 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 €2.03
163
 photo_cameraImage coming soon 346309-9 GUIDE PLATE EA3201S35B/PS32TL €1.49
163-1
 photo_cameraImage coming soon 346309-9 GUIDE PLATE EA3201S35B/PS32TL €1.49
164
 Cover for Chainsaw Makita EA3201S35A 417403-5 Cover for Chainsaw Makita EA3201S35A €1.62
165
 photo_cameraImage coming soon 324068-5 ADJUST PIN EA3201S35B/PS32TLC €2.01
166
 Helical mm 8 Chain Tensioner for Chainsaw Dolmar PS220TH 226534-7 Helical mm 8 Chain Tensioner for Chainsaw Dolmar PS220TH €16.15
167
 photo_cameraImage coming soon 226681-4 HELICAL GEAR 17 EA3201S35B €4.05
168
 photo_cameraImage coming soon 233033-2 COMPRESSION SPRING 4 UC4020A €1.47
169
 photo_cameraImage coming soon 216008-6 BALL 4 €1.47
170
 photo_cameraImage coming soon 419233-0 DIAL 40 UC4020A/3520/3530A/403 €1.47
171
 photo_cameraImage coming soon 253874-0 FLAT WASHER 4 €2.74
172
 photo_cameraImage coming soon 915106-0 BINDING HD SCREW M4 UC4020A €1.47
173
 photo_cameraImage coming soon 267858-2 STOP WASHER €1.38
174
 photo_cameraImage coming soon 264099-1 NUT M8X13 PS32CTLC €1.38
175
 photo_cameraImage coming soon 231025-5 COMPRESION SPRING 8 X 8411DW €1.50
176
 photo_cameraImage coming soon 195764-0 WING GRIP SET PS32TLC/EA3201S3 €13.51
176-1
 photo_cameraImage coming soon 195764-0 WING GRIP SET PS32TLC/EA3201S3 €13.51
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

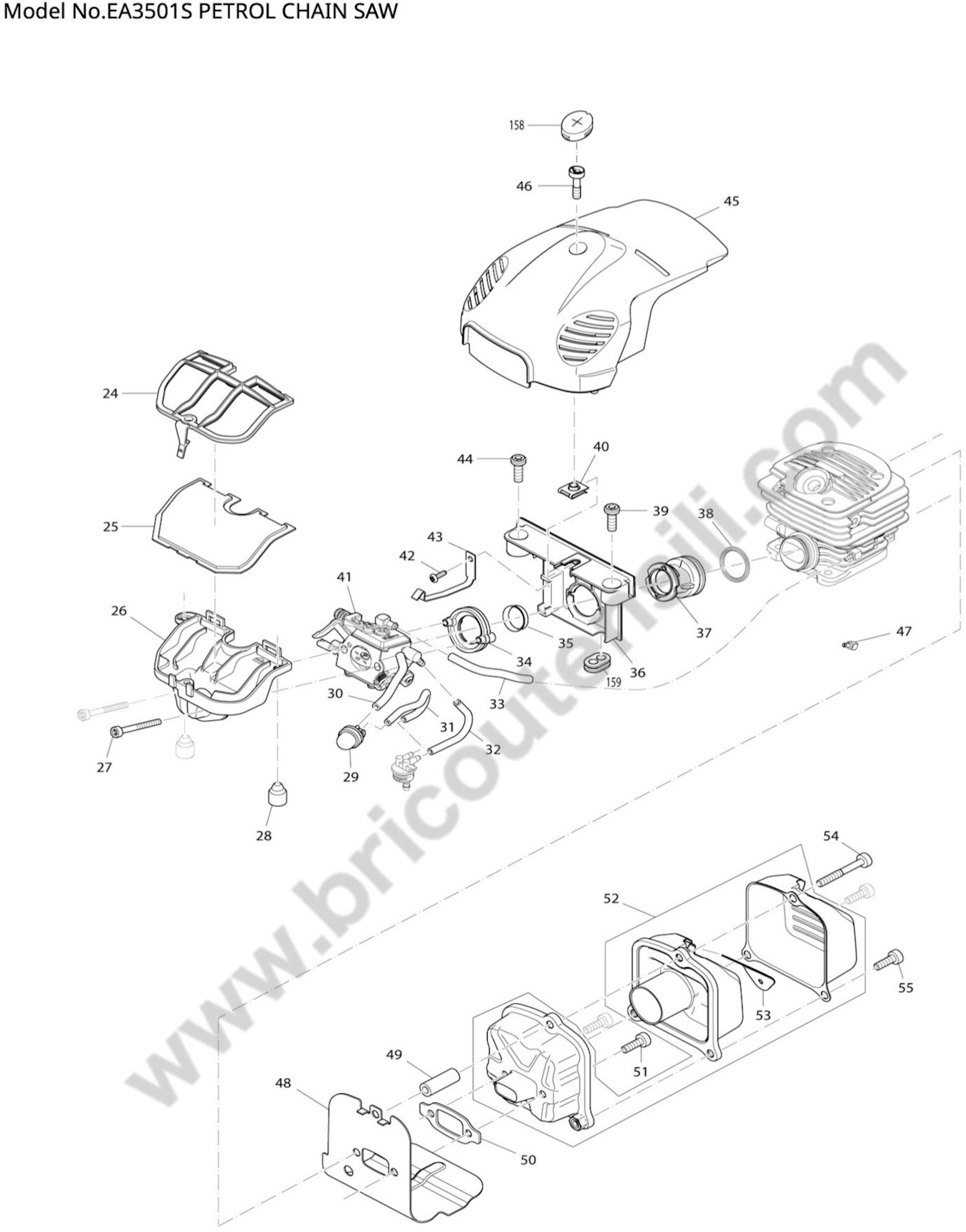

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
24
 photo_cameraImage coming soon 452031-9 FILTER COVER PS32CTLC €1.40
25
 Air Cleaner for Chaisaw Makita EA3201S35A 423414-0 Air Cleaner for Chaisaw Makita EA3201S35A €3.87
26
 photo_cameraImage coming soon 452030-1 PS32CTLC FUND €3.35
27
 photo_cameraImage coming soon 266604-0 SCREW M4X40 PS32CTLC €1.40
28
 Damper for Chainsaw Dolmar PS32CTLC 424173-9 Damper for Chainsaw Dolmar PS32CTLC €2.18
29
 Gasoline Primer Pump for Chainsaw Makita DCS230T 168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T €6.24
30
 photo_cameraImage coming soon 422067-2 PIPE 2,5X55 PS32CTLC €2.15
36
 photo_cameraImage coming soon 454874-5 INTERMEDIATE FLANGE €3.20
40
 photo_cameraImage coming soon 264044-6 PLATE M5 PS32CTLC €1.40
41
 Carburetor for Chainsaw Makita EA3500S40B 168829-1 Carburetor for Chainsaw Makita EA3500S40B €67.90
42
 photo_cameraImage coming soon 266421-8 SCREW 3PER10 HR2800 €1.40
43
 photo_cameraImage coming soon 346290-4 PS32CTLC CONTACT €1.40
45
 photo_cameraImage coming soon 454875-3 HOOD €16.98
46
 photo_cameraImage coming soon 266607-4 SCREW M5X20 PS32CTLC €1.43
47
 photo_cameraImage coming soon 325938-1 FITTING THE PS32CTLC €2.08
48
 photo_cameraImage coming soon 346764-5 COOLING PLATE €1.43
50
 photo_cameraImage coming soon 346304-9 SEAL MUFFLER PS32CTLC €1.43
52
 photo_cameraImage coming soon 168830-6 MUFFLER COMPLETE €49.72
53
 photo_cameraImage coming soon 346823-5 SPARK ARRESTER SCREEN €2.07
54
 photo_cameraImage coming soon 266480-2 SCREW €1.47
158
 photo_cameraImage coming soon 424618-7 PLUG €1.43
159
 photo_cameraImage coming soon 424631-5 SOCKET RUBBER €1.43
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

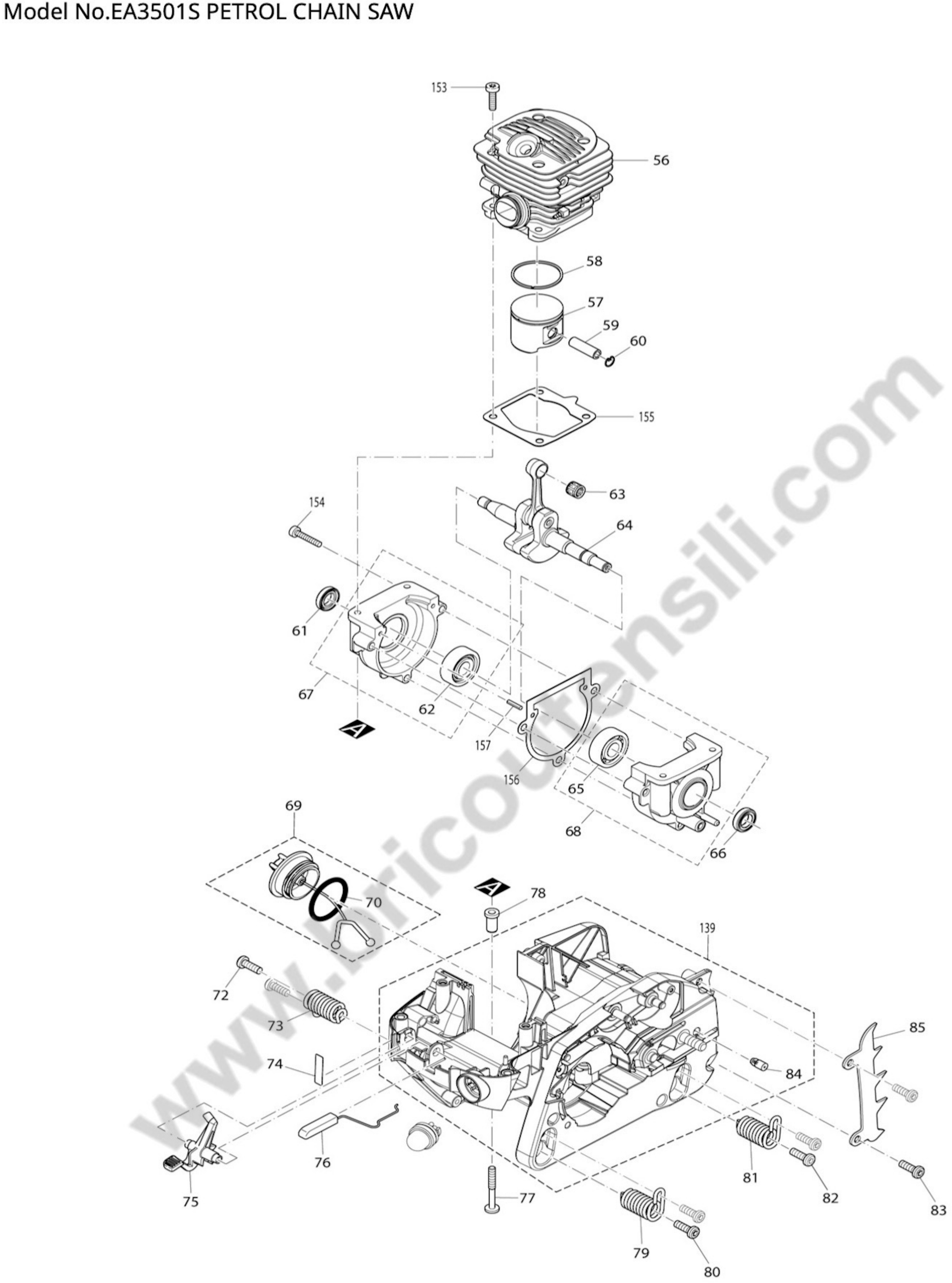

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
57
 photo_cameraImage coming soon 319108-2 PISTON 38 €61.02
58
 photo_cameraImage coming soon 257366-1 PISTON RING Ø 38 €4.51
59
 photo_cameraImage coming soon 326395-6 PISTON PIN €2.07
60
 photo_cameraImage coming soon 234323-6 RING SPRING 9 €5.89
61
 photo_cameraImage coming soon 213141-5 SEAL €6.29
62
 photo_cameraImage coming soon 211494-6 BALL BEARING 6201 €7.51
63
 photo_cameraImage coming soon 212093-7 NEEDLE BEARING €7.29
64
 photo_cameraImage coming soon 142417-2 CRANKSHAFT COMPLETE €26.67
75
 photo_cameraImage coming soon 452025-4 LEVER AIR PS32CTLC €1.40
76
 photo_cameraImage coming soon 452022-0 LEVERAGE PS32CTLC €1.47
77
 photo_cameraImage coming soon 266608-2 SCREW 5x40 PS32CTLC €1.40
84
 Venting Valve for Chainsaw Dolmar PS32CTLC 168504-9 Venting Valve for Chainsaw Dolmar PS32CTLC €3.70
85
 photo_cameraImage coming soon 346301-5 HARPOON PS32CTLC €2.12
153
 photo_cameraImage coming soon 266960-8 SCREW X DCS6401 €1.43
154
 photo_cameraImage coming soon 266880-6 H.L. SOCKET HEAD BOLT M5X25 €2.08
155
 photo_cameraImage coming soon 346760-3 CYLINDER GASKET €2.73
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

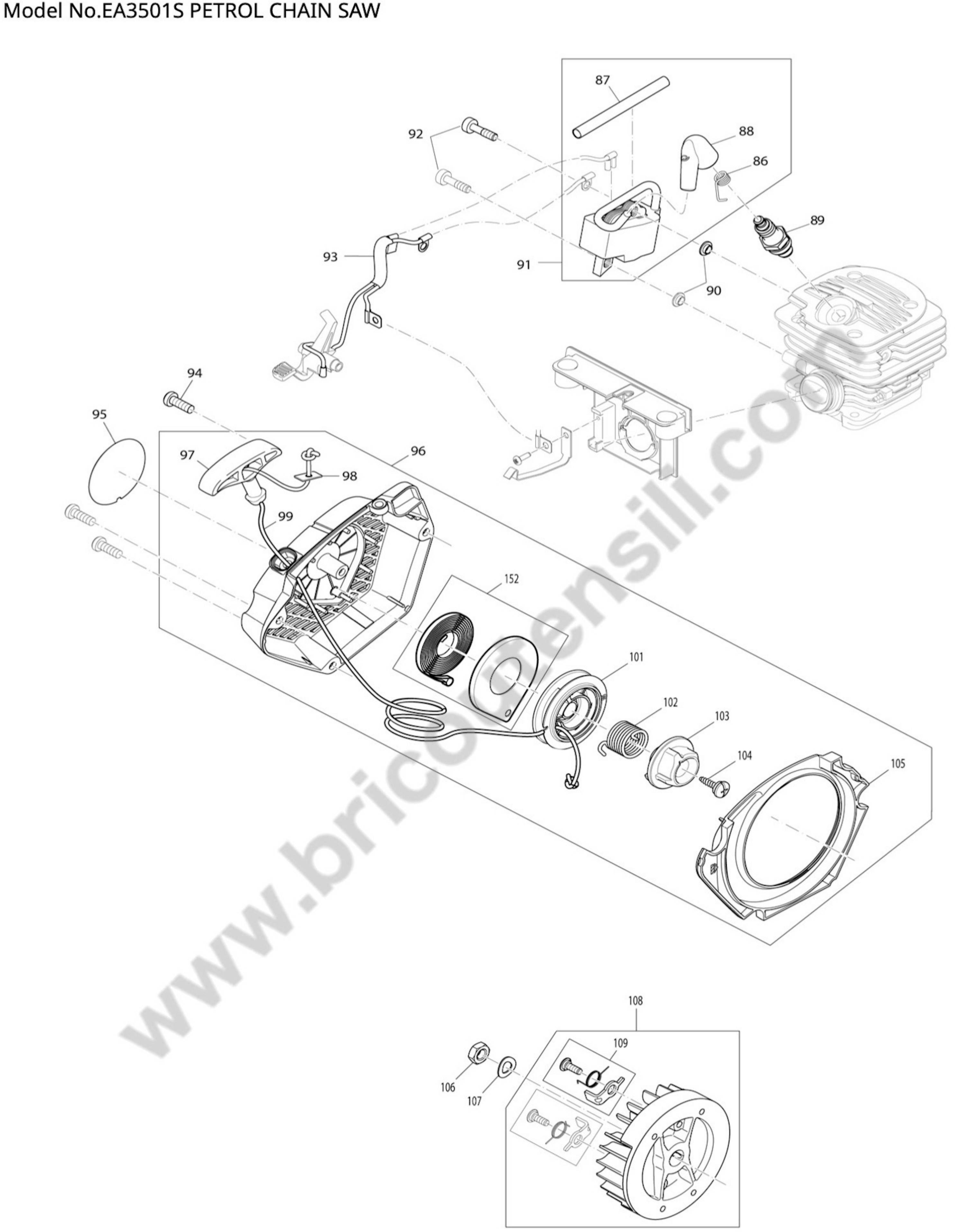

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
86
 photo_cameraImage coming soon 326210-4 SPRING €1.38
87
 photo_cameraImage coming soon 444042-8 INSULATION TUBE PS32TCLC €1.43
88
 photo_cameraImage coming soon 424522-0 HOOD CANDLE €2.82
89
 photo_cameraImage coming soon 168401-9 SPARK PLUG BHX2501/PS32  - NGKBPMR8Y - BPMR7A €10.75
90
 photo_cameraImage coming soon 452670-5 INSULATING WASHER PS32CTLC €1.40
91
 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A 126270-4 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A €55.00
92
 photo_cameraImage coming soon 266631-7 SCREW M5X20 PS32CTLC €1.40
93
 photo_cameraImage coming soon 168601-1 CABLES PS32CTLC €3.92
96
 photo_cameraImage coming soon 168608-7 STARTING CPL BLUE EA3201S35A €40.59
97
 photo_cameraImage coming soon 453783-5 GRIP STARTING PS32CTLC €3.92
98
 photo_cameraImage coming soon 267847-7 WASHER QUADRA 4 PS32CTLC €1.40
99
 photo_cameraImage coming soon 444038-9 ROPE START PS32CTLC €2.08
101
 photo_cameraImage coming soon 453785-1 REEL START PS32CTLC €5.52
102
 photo_cameraImage coming soon 234253-1 SPRING TORSION 20 PS32CTLC €2.69
103
 Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A 453786-9 Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A €4.63
104
 photo_cameraImage coming soon 266777-9 SCREW 5X1 PS32CTLC €1.40
105
 photo_cameraImage coming soon 452026-2 BAFFLE PS32CTLC €3.35
106
 photo_cameraImage coming soon 264053-5 NUT M8X1 PS32CTLC €1.40
107
 photo_cameraImage coming soon 267822-3 WASHER 8 PS32CTLC €1.47
108
 photo_cameraImage coming soon 140480-9 FLYWHEEL PS32CTLC €27.55
109
 Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A 195761-6 Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A €2.84
152
 Makita Starter Spring for EA3200S35A 195955-3 Makita Starter Spring for EA3200S35A €11.07
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

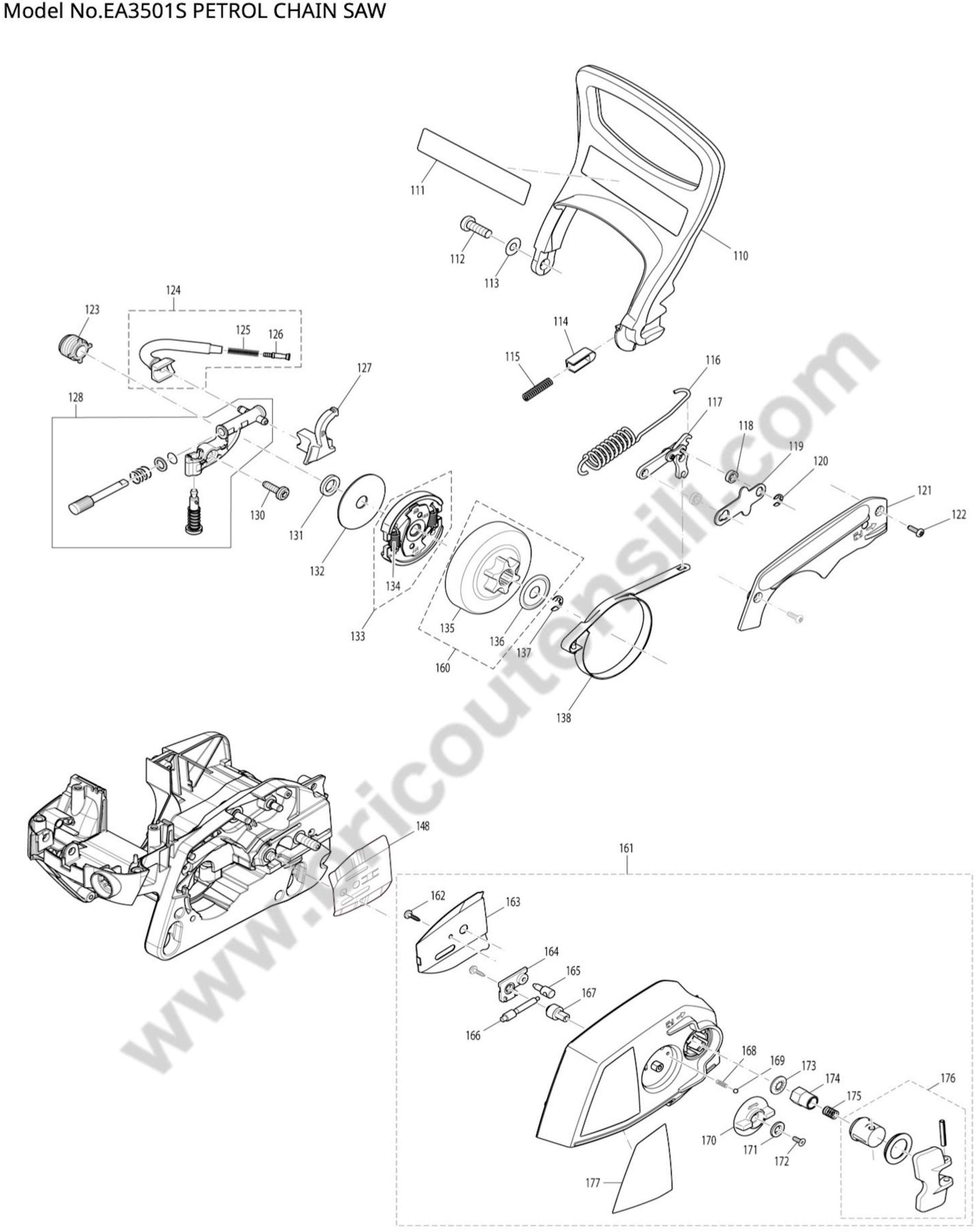

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
110
 Hand Guard for Petrol Chainsaw Makita EA3200S35A 452032-7 Hand Guard for Petrol Chainsaw Makita EA3200S35A €6.26
111
 photo_cameraImage coming soon 810449-4 LABEL €1.47
113
 photo_cameraImage coming soon 253715-0 ROND.P.6 6510PBL / LVR / 43SB €1.50
114
 photo_cameraImage coming soon 313212-9 PS32CTLC GUIDE €1.47
115
 photo_cameraImage coming soon 234210-9 SPRING COMPRESSION 6 PS32CTLC €1.47
116
 photo_cameraImage coming soon 231868-5 SPRING TENSION 10 PS32CTLC €2.08
117
 photo_cameraImage coming soon 163500-2 LEVERAGE PS32CTLC €21.54
121
 photo_cameraImage coming soon 452033-5 PS32CTLC COVER €2.15
123
 Worm Screw for Chainsaw Makita EA3201S35A 452035-1 Worm Screw for Chainsaw Makita EA3201S35A €5.30
124
 photo_cameraImage coming soon 168645-1 SUCTION HOSE PS32CTLC €6.06
125
 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A 234207-8 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A €1.32
126
 photo_cameraImage coming soon 452666-6 PLUG OIL PIPE PS32CTLC €1.32
127
 photo_cameraImage coming soon 424342-2 PIPE PS32CTLC €5.30
131
 photo_cameraImage coming soon 267430-0 WASHER 10 PS32CTLC €1.40
132
 photo_cameraImage coming soon 267431-8 WASHER 10 PS32CTLC €1.40
133
 photo_cameraImage coming soon 168607-9 CLUTCH PS32C-EA3201S €8.50
134
 photo_cameraImage coming soon 231873-2 SPRING TENSION 5 PS32CTLC €1.40
135
 photo_cameraImage coming soon 140484-1 CLUTCH DRUM ASSY PS32C New Cod. 140A30-6 €19.38
138
 photo_cameraImage coming soon 346298-8 SPRING BRAKE PS32CTLC €4.81
161
 Sprocket Guard for Chainsaw Makita EA3201S35A 142783-7 Sprocket Guard for Chainsaw Makita EA3201S35A €34.42
162
 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 €2.03
163
 photo_cameraImage coming soon 346309-9 GUIDE PLATE EA3201S35B/PS32TL €1.49
164
 Cover for Chainsaw Makita EA3201S35A 417403-5 Cover for Chainsaw Makita EA3201S35A €1.62
165
 photo_cameraImage coming soon 324068-5 ADJUST PIN EA3201S35B/PS32TLC €2.01
166
 Helical mm 8 Chain Tensioner for Chainsaw Dolmar PS220TH 226534-7 Helical mm 8 Chain Tensioner for Chainsaw Dolmar PS220TH €16.15
167
 photo_cameraImage coming soon 226681-4 HELICAL GEAR 17 EA3201S35B €4.05
168
 photo_cameraImage coming soon 233033-2 COMPRESSION SPRING 4 UC4020A €1.47
169
 photo_cameraImage coming soon 216008-6 BALL 4 €1.47
170
 photo_cameraImage coming soon 419233-0 DIAL 40 UC4020A/3520/3530A/403 €1.47
171
 photo_cameraImage coming soon 253874-0 FLAT WASHER 4 €2.74
172
 photo_cameraImage coming soon 915106-0 BINDING HD SCREW M4 UC4020A €1.47
173
 photo_cameraImage coming soon 267858-2 STOP WASHER €1.38
174
 photo_cameraImage coming soon 264099-1 NUT M8X13 PS32CTLC €1.38
175
 photo_cameraImage coming soon 231025-5 COMPRESION SPRING 8 X 8411DW €1.50
176
 photo_cameraImage coming soon 195764-0 WING GRIP SET PS32TLC/EA3201S3 €13.51

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita EA3501S Spare Parts

We have the original Spares for MAKITA Chainsaw EA3501S, the diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of Petrol Chainsaw and the respective parts of the code.
Makita EA3501S

MAKITA EA3501S PETROL CHAIN SAW Parts List
# Part Num. Description
1 168823-3 TANK CAP COMPLETE
2 213080-9 O RING 29.5
3 163447-0 FUEL FILTER
4 195758-5 TANK ASSEMBLY A BLUE
5 266651-1 H.L. TAPPING SCREW 5.5X16
6 452021-2 GRIP SHELL
7 452020-4 CATCH LEVER
8 231866-9 TORSION SPRING 10
9 452019-9 THROTTLE LEVER
10 195762-4 AIR VALVE SET
11 452018-1 FUEL NIPPLE
12 213586-7 O RING 11.5
13 424456-7 FUEL LINE
14 850C76-3 EA3501S NAME PLATE
15 802K43-2 GAS EMISSION APPROVAL LABEL
16 802K41-6 SOUND 113DB LABEL
17 452036-9 TUBULAR HANDLE
18 346517-2 CUP WASHER 6
19 234189-4 COMPRESSION SPRING 12
20 266605-8 H.L. SOCKET HEAD BOLT M5X16
21 266651-1 H.L. TAPPING SCREW 5.5X16
22 891898-4 MAKITA LOGO LABEL
23 266651-1 H.L. TAPPING SCREW 5.5X16
24 452031-9 AIR FILTER COVER
25 423414-0 AIR FILTER EA3201S35B
26 452030-1 INTAKE MANIFOLD
27 266604-0 H.L. SOCKET HEAD BOLT M4X40
28 424173-9 DAMPING PLUG
29 168398-2 PRIMER PUMP.
30 422067-2 TUBE 2.5-55
31 422065-6 TUBE 2.5-112
32 422068-0 TUBE 3-70
33 422066-4 TUBE 2.5-72
34 318634-8 FLANGE RING
35 346413-4 BUSH 17
36 454874-5 INTERMEDIATE FLANGE
37 424617-9 INTAKE HOSE
38 233971-8 RING SPRING
39 266651-1 H.L. TAPPING SCREW 5.5X16
40 264044-6 SNAP NUT M5
41 168829-1 CARBURETOR
C02 Zj00000077 NOZZLE ASSEMBLY
C04 Zj00000003 STRAINER
C06 Zj00000008 PIN
C08 Zj00000078 SPRING, METERING LEVER
C10 Zj00000006 LEVER
C12 Zj00000007 VALVE, INLET NEEDLE
C14 Zj00000009 SCREW (METERING LEVER PIN)
C16 Zj00000079 METERING CHAMBER GASKET.
C18 Zj00000013 DIAPHRAGM ASS'Y,METERING
C20 Zj00000029 DIAPHRAGM, PUMP
C22 Zj00000016 GASKET, PUMP
C24 Zj00000004 COVER KIT,PUMP
C26 Zj00000020 SCREW (PUMP COVER)
C28 Zj00000026 SCREW,IDLE MIXTURE
C30 ZJ00000027 SCREW,MAIN MIXTURE
C32 Zj00000035 RETAINER
C34 Zj00000037 STRAINER
C36 ZJ00000073 SPRING
C38 ZJ00000015 THROTTLE SHAFT ASSY
C40 Zj00000012 SHAFT ASSY,CHOKE
C42 Zj00000080 THROTTLE VALVE
C44 Zj00000001 SCREW
C46 Zj00000036 PLUG,ACC POCKET
C48 ZJ00000034 SPRING,THROTTLE RETURN
C50 Zj00000022 LEVER,THROTTLE
C52 Zj00000023 SCREW
C54 Zj00000021 COLLAR
C56 Zj00000028 COVER,METERING
C58 Zj00000014 SCREW (WITH SERRATION)
C60 Zj00000033 WASHER
C62 Zj00000031 LEVER, CHOKE
c64 Zj00000025 LEVER, CHOKE
C66 ZJ00000040 SPRING, THROTTLE RETURN
C68 Zj00000017 E-RING
C70 Zj00000024 VALVE,CHOKE
C72 Zj00000005 PLUNGER KIT
C74 Zj00000032 SPRING,CHOKE RETURN
C76 Zj00000081 REBUILT KIT
C78 Zj00000082 GASKET&DIAPHRAGM KIT
C80 Zj00000083 THROTTLE KIT
C82 Zj00000084 CHOKE KIT
42 266421-8 TAPPING SCREW 3X10
43 346290-4 CONTACT SPRING
44 266651-1 H.L. TAPPING SCREW 5.5X16
45 454875-3 HOOD
46 266607-4 H.L. SOCKET HEAD BOLT M5X20
47 325938-1 ANGULAR NIPPLE
48 346764-5 COOLING PLATE
49 326390-6 CONNECTING LINK
50 346304-9 GASKET
51 266605-8 H.L. SOCKET HEAD BOLT M5X16
52 168830-6 MUFFLER COMPLETE
53 346823-5 SPARK ARRESTER
54 266480-2 H.L. SOCKET HEAD BOLT M5X55
55 266605-8 H.L. SOCKET HEAD BOLT M5X16
56 319073-5 CYLINDER 38
56-1 143323-4 CYLINDER COMPLETE
57 319108-2 PISTON 38
57-1 197479-5 PISTON SET
C10 319108-2 PISTON 38
58 257366-1 PISTON RING 38
59 326395-6 PISTON PIN
60 234323-6 RING SPRING 9
61 213141-5 OIL SEAL 12
62 211494-6 BALL BEARING 6201
62-1 211341-1 BALL BEARING 6201
63 212093-7 NEEDLE CAGE 912
64 142417-2 CRANKSHAFT COMPLETE
64-2 127075-5 CRANKCASE ASSEMBLY
C10 142417-2 CRANKSHAFT COMPLETE
D10 INC. 61,6 6-68,154,156,157
65 211494-6 BALL BEARING 6201
65-1 211341-1 BALL BEARING 6201
66 213141-5 OIL SEAL 12
67 126380-7 CRANKCASE MS ASSEMBLY
67-1 144357-0 CRANKCASE MS ASSEMBLY
68 126381-5 CRANKCASE KS ASSEMBLY
68-1 144356-2 CRANKCASE KS ASSEMBLY
69 168823-3 TANK CAP COMPLETE
70 213080-9 O RING 29.5
72 266651-1 H.L. TAPPING SCREW 5.5X16
73 234189-4 COMPRESSION SPRING 12
74 816917-5 INDICATION LABEL
75 452025-4 CHOKE LEVER
76 452022-0 THROTTLE LINKAGE
77 266608-2 H.L.TAPPING SCREW 5X40
78 326402-5 BUSH 6
79 234189-4 COMPRESSION SPRING 12
80 266651-1 H.L. TAPPING SCREW 5.5X16
81 234189-4 COMPRESSION SPRING 12
82 266651-1 H.L. TAPPING SCREW 5.5X16
83 266651-1 H.L. TAPPING SCREW 5.5X16
84 168504-9 VENT VALVE
85 346301-5 SPIKE BAR
86 326210-4 TERMINAL SPRING
87 444042-8 ISOLATING TUBE 6-80
88 424522-0 PLUG CAP
89 168401-9 SPARK PLUG
90 452670-5 ISOLATING WASHER
91 126270-4 IGNITION COIL ASSEMBLY
91-1 126270-4 IGNITION COIL ASSEMBLY
92 266631-7 H.L. SOCKET HEAD BOLT M5X20
93 168601-1 CABLE HARNESS
94 266651-1 H.L. TAPPING SCREW 5.5X16
95 804V48-4 EA3501S MODEL NO. LABEL
96 168608-7 STARTER COMPLETE BLUE
96-1 161328-2 STARTER COMPLETE BLUE
97 453783-5 STARTER GRIP
98 267847-7 SQUARE WASHER 4
99 444038-9 STARTER ROPE
101 453785-1 REEL
101-1 455919-2 REEL
102 234253-1 TORSION SPRING 20
103 453786-9 CAM PLATE PS32
104 266777-9 TAPPING SCREW 5X12
105 452026-2 AIR GUIDE PLATE
106 264053-5 HEX. NUT M8X1
107 267822-3 SPRING WASHER 8
108 140480-9 FLYWHEEL COMPLETE
109 195761-6 RATCHET SET PS32
110 452032-7 HAND GUARD PS32
111 810449-4 CAUTION LABEL
111-1 818L12-9 CAUTION LABEL
112 266651-1 H.L. TAPPING SCREW 5.5X16
113 253715-0 FLAT WASHER 6
114 313212-9 HAND GUARD GUIDE
115 234210-9 COMPRESSION SPRING 3
116 231868-5 TENSION SPRING 10
117 163500-2 LINK PLATE COMPLETE
118 325947-0 BUSH 6
119 346299-6 SPACER SHEET METAL
120 961011-9 STOP RING E-4
121 452033-5 BRAKE COVER
121-1 458425-6 BRAKE COVER
122 266421-8 TAPPING SCREW 3X10
123 452035-1 PUMP DRIVE
124 168645-1 OIL SUCTION LINE COMPLETE
125 234207-8 COMPRESSION SPRING 6 - PS32
126 452666-6 NIPPLE
126-1 452666-6 NIPPLE
127 424342-2 OIL PRESSURE LINE
128 161346-0 OIL PUMP
130 266605-8 H.L. SOCKET HEAD BOLT M5X16
131 267430-0 FLAT WASHER 10
132 267431-8 FLAT WASHER 10
133 168607-9 CLUTCH COMPLETE
134 231873-2 TENSION SPRING 5
135 140484-1 CLUTCH DRUM ASSEMBLY
135-1 140A30-6 CLUTCH DRUM ASSEMBLY
135-2 140M30-8 CLUTCH DRUM COMPLETE
136 267833-8 CUP WASHER &
137 259033-4 RETAINING RING E TYPE 6
138 346298-8 BRAKE BAND
138-1 347363-6 BRAKE BAND
139 143551-1 ENGINE HOUSING TLC COMP. BL
148 346518-0 GUIDE PLATE
152 195955-3 REWIND SPRING SET
153 266960-8 H.L. SOCKET HEAD BOLT M5X20
154 266880-6 H.L. SOCKET HEAD BOLT M5X25
155 346760-3 CYLINDER BASE GASKET
156 346761-1 CRANKCASE GASKET
157 951063-8 SPRING PIN 3-16
158 424618-7 PLUG
159 424631-5 SLEEVE
160 197441-0 CLUTCH DRUM SET
160-1 199033-1 CLUTCH DRUM SET
160-2 191A48-0 CLUTCH DRUM SET
161 142783-7 SPROCKET GUARD TLC COMP. BLUE
162 266007-8 TAPPING SCREW BIND PT 3X10.
163 346309-9 GUIDE PLATE
163-1 346309-9 GUIDE PLATE
164 417403-5 COVER EA3201S35B/PS32TLC
165 324068-5 ADJUST PIN
166 226534-7 HELICAL GEAR 8
167 226681-4 HELICAL GEAR 17
168 233033-2 COMPRESSION SPRING 4
169 216008-6 STEEL BALL 4
170 419233-0 DIAL 40
171 253874-0 FLAT WASHER 4
172 915106-0 BINDING HEAD SCREW M4X8
173 267858-2 LOCK WASHER 8
174 264099-1 HEX.NUT M8-13
175 231025-5 COMPRESSION SPRING 8
176 195764-0 WING GRIP SET
176-1 195764-0 WING GRIP SET
177 892502-8 INDICATION LABEL
A01 165202-6 GUIDE BAR 16
A01-1 165202-6 GUIDE BAR 16
A02 419560-5 CHAIN PROTECTION COVER 430
A03 196208-3 SAW CHAIN SET
A04 782026-1 UNIVERSAL WRENCH 13/16
A05 783012-5 SCREWDRIVER
FO4 196206-7 SAW CHAIN SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EA3501S
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita EA3501S Drawing

Makita EA3501S Drawing

Download (1.1MB)

You might also like

Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A
Makita SKU: 453786-9
Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A
Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A Genuine replacement part Makita, Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the...
on 7/10 Business Days Approx. €4.63
Details
Guide Plate for Chainsaw Dolmar PS32C/35
Makita SKU: 346518-0
Guide Plate for Chainsaw Dolmar PS32C/35
Guide Plate for Chainsaw Dolmar PS32C/35 Genuine parts Dolmar, Guide Plate for Chainsaw PS32C/35 - Chainsaw 33CC 35CM-1,1MM - PS35C/40 - Chainsaw 35CC 40CM - Makita EA3200S40B - EA3201S35A -EA3500S40B Part for the following products:...
AVAILABLE €6.23
Details
Fuel Hose for Chaisaws Makita EA3201S35A
Makita SKU: 424456-7
Fuel Hose for Chaisaws Makita EA3201S35A
Fuel Hose for Chaisaws Makita EA3201S35A Genuine parts Makita, Fuel Hose for Chaisaws Makita EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC Parts for the following products: - EA3200S35A - CHAISAW 33CC 35CM MAKITA -...
AVAILABLE €16.31
Details
Air Cleaner for Chaisaw Makita EA3201S35A
Makita SKU: 423414-0
Air Cleaner for Chaisaw Makita EA3201S35A
Air Cleaner for Chaisaw Makita EA3201S35A Genuine parts Makita, Air Cleaner for Chaisaws Makita EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC Parts for the following products: - EA3200S35A - CHAISAW 33CC 35CM...
AVAILABLE €3.87
Details
Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Makita SKU: WJ00092225
Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC Genuine part Dolmar, Upper Carburator Cover Gasket for Chainsaws Dolmar PS32CTLC - PS32C/35 - Makita  EA3200S40B - EA3201S35A Part for the following products: - PS32C/35 -...
AVAILABLE €3.87
Details
Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Makita SKU: WJ00092192
Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC Genuine parts Dolmar, Lower Carburator Cover Gasket for Chainsaws PS32CTLC - PS222TH - PS220THC - PS221TH - PS221THC - PS222TH - PS222THC Part for the following products: -...
AVAILABLE €5.97
Details
Gasoline Primer Pump for Chainsaw Makita DCS230T
Makita SKU: 168398-2
Gasoline Primer Pump for Chainsaw Makita DCS230T
Gasoline Primer Pump for Chainsaw Makita DCS230T Genuine parts for Makita, Gasoline Primer Pump for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA...
AVAILABLE €6.24
Details
Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following...
Last items in stock €4.49
Details
Makita Label for Chainsaw Makita DCS230T
Makita SKU: 810075-9
Makita Label for Chainsaw Makita DCS230T
Makita Label for Chainsaw Makita DCS230T Genuine parts for Makita, Makita Label for Chainsaws DCS230T - EA3200S35A - EA3201S35A Part for the following products: - Chainsaw Makita DCS230T -...
AVAILABLE €2.84
Details
Venting Valve for Chainsaw Dolmar PS32CTLC
Makita SKU: 168504-9
Venting Valve for Chainsaw Dolmar PS32CTLC
Venting Valve for Chainsaw Dolmar PS32CTLC Genuine part Dolmar, Venting Valve for Chainsaws Dolmar PS32CTLC - PS32C/35 - PS3400TH - PS350C - PS420C - PS460 - PS4605...
on 7/10 Business Days Approx €3.70
Details
Worm Screw for Chainsaw Makita EA3201S35A
Makita SKU: 452035-1
Worm Screw for Chainsaw Makita EA3201S35A
Worm Screw for Chainsaw Makita EA3201S35A Genuine part Makita, Worm Screw for Chainsaws Makita EA3201S35A - EA3200S40B - EA3500S40B - Dollmar PS32C/35 - PS32CTLC - PS35C/40. Part for the following products: - EA3201S35A - CHAINSAW...
Usually Ships in: 7/10 Business Days Approx. €5.30
Details
Clutch Drum Ass'y for Chainsaw Makita EA3200S
Makita SKU: 140M30-8
Clutch Drum Ass'y for Chainsaw Makita EA3200S
Clutch Drum Ass'y for Chainsaw Makita EA3200S Genuine replacement part Makita, Clutch Drum Ass'y for Chainsaws EA3200S - EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35...
Usually Ships in: 7/10 Business Days Approx. €16.90
Details
Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A
Makita SKU: 195761-6
Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A
Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A Genuine replacement part Makita, Starter Pawl PS32CTLC for Chainsaws Makita EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the following products: - EA3200S40B...
AVAILABLE €2.84
Details
Damper for Chainsaw Dolmar PS32CTLC
Makita SKU: 424173-9
Damper for Chainsaw Dolmar PS32CTLC
Damper for Chainsaw Dolmar PS32CTLC Genuine replacement part VALEX, Damper for Chainsaws PS32CTLC - PS32C/35 - PS35C/40. Part for the following products: - PS32C/35 - CHAINSAW 33CC 35CM-1,1MM...
on 7/10 Business Days Approx. €2.18
Details
Cover for Chainsaw Makita EA3201S35A
Makita SKU: 417403-5
Cover for Chainsaw Makita EA3201S35A
Cover for Chainsaw Makita EA3201S35A Genuine replacement part Makita, Cover for Chainsaw Makita EA3201S - EA3201S35A - Dolmar PS32CTLC. Parts for the following products: -  EA3201S - MOTOSEGA 33CC 35CM MAKITA -  EA3201S35A - Chainsaw...
Last items in stock €1.62
Details
Sprocket Guard for Chainsaw Makita EA3201S35A
Makita SKU: 142783-7
Sprocket Guard for Chainsaw Makita EA3201S35A
Sprocket Guard for Chainsaw Makita EA3201S35A Genuine replacement part Makita, Sprocket Guard TLC Comp. Blue for Chainsaw Makita EA3201S35A. Parts for the following products: -  EA3201S35A - Chainsaw 33CC 35CM MAKITA - Code: 142783-7
Usually Ships in: 7/10 Business Days Approx. €34.42
Details
Piston Set for Chainsaw Makita EA3500S40B
Makita SKU: 197479-5
Piston Set for Chainsaw Makita EA3500S40B
Piston Set for Chainsaw Makita EA3500S40B Genuine parts for Makita, Piston Set for Chainsaws EA3500S40B - Dolmar PS35C/40. Part for the following products: -  EA3500S40B - CHAINSAW 35CC 40CM...
on 7/10 Business Days Approx. €22.63
Details
Cover-Metering Diaphragm for Chainsaw Makita DCS230T
Makita SKU: WJ00021158
Cover-Metering Diaphragm for Chainsaw Makita DCS230T
Cover-Metering Diaphragm for Chainsaw Makita DCS230T Genuine part Makita, Cover-Metering Diaphragm for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: -  DCS231T - CHAINSAW...
on 7/10 Business Days Approx €3.04
Details
Hand Guard for Petrol Chainsaw Makita EA3200S35A
Makita SKU: 452032-7
Hand Guard for Petrol Chainsaw Makita EA3200S35A
Hand Guard for Petrol Chainsaw Makita EA3200S35A Genuine spare part Makita, Hand Guard for Petrol Chainsaw Makita EA3200S35A - EA3500S35B - EA3201S35A - Dolmar PS32C/40. Part for the following products: -  Chainsaw Makita EA3200S35A...
Last items in stock €6.26
Details
Carburetor for Chainsaw Makita EA3500S40B
Makita SKU: 168829-1
Carburetor for Chainsaw Makita EA3500S40B
Carburetor for Chainsaw Makita EA3500S40B Genuine parts for Makita, Carburetor for Chainsaws EA3500S40B - Dolmar PS35C/40. Part for the following products: -  EA3500S40B - CHAINSAW 35CC 40CM MAKITA -  PS35C/40 - CHAINSAW 35CC 40CM...
Last items in stock €67.90
Details
Sprocket Bar 14” 35cm 043” for Electric Chainsaws Makita
Makita SKU: 165246-6
Sprocket Bar 14” 35cm 043” for Electric Chainsaws Makita
Sprocket Bar 14” 35cm 043” for Electric Chainsaws Makita Genuine part Makita, Sprocket Bar 14” 35cm with 3/8” pitch, .043” gauge chain for Electric - Petrol Chainsaws. Part for the following products: - ELECTRIC CHAINSAW MAKITA...
on 7/10 Business Days Approx €29.60
Details
Makita EA3201S Cylinder + Piston Kit
Makita SKU: 195759-3
Makita EA3201S Cylinder + Piston Kit
Makita EA3201S Cylinder + Piston Kit Genuine replacement part Makita, Cylinder + Piston Kit for Chainsaw Makita  EA3201S - EA3200S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the following products:...
on 7/10 Business Days Approx €96.97
Details
Comments (0)
