Makita UH6580 Hedge Trimmer Parts

SKU: Makita UH6580
€8.90
VAT included

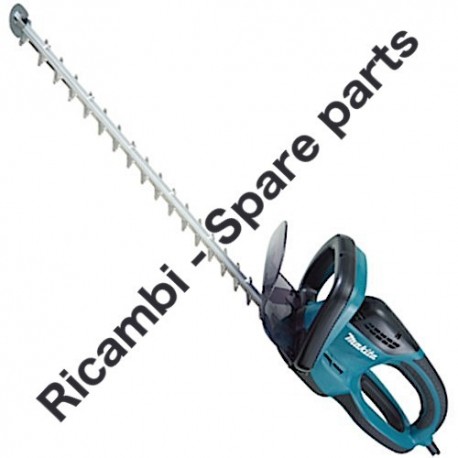

Makita UH6580 Corded Hedge Trimmer Spare Parts

Makita genuine spare parts or replacement parts for to repair Makita UH6580 240v Corded Hedge Trimmer.
Makita UH6580 Corded Hedge Trimmer Parts
  • Makita UH6580 Corded Hedge Trimmer Parts
  • Makita UH6580 Corded Hedge Trimmer Parts - Drawing
Makita

Makita UH6580 Hedge Trimmer Parts

SKU: Makita UH6580 Condition: New
€8.90
VAT included

Makita UH6580 Corded Hedge Trimmer Spare Parts

Makita genuine spare parts or replacement parts for to repair Makita UH6580 240v Corded Hedge Trimmer.
settings 56 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

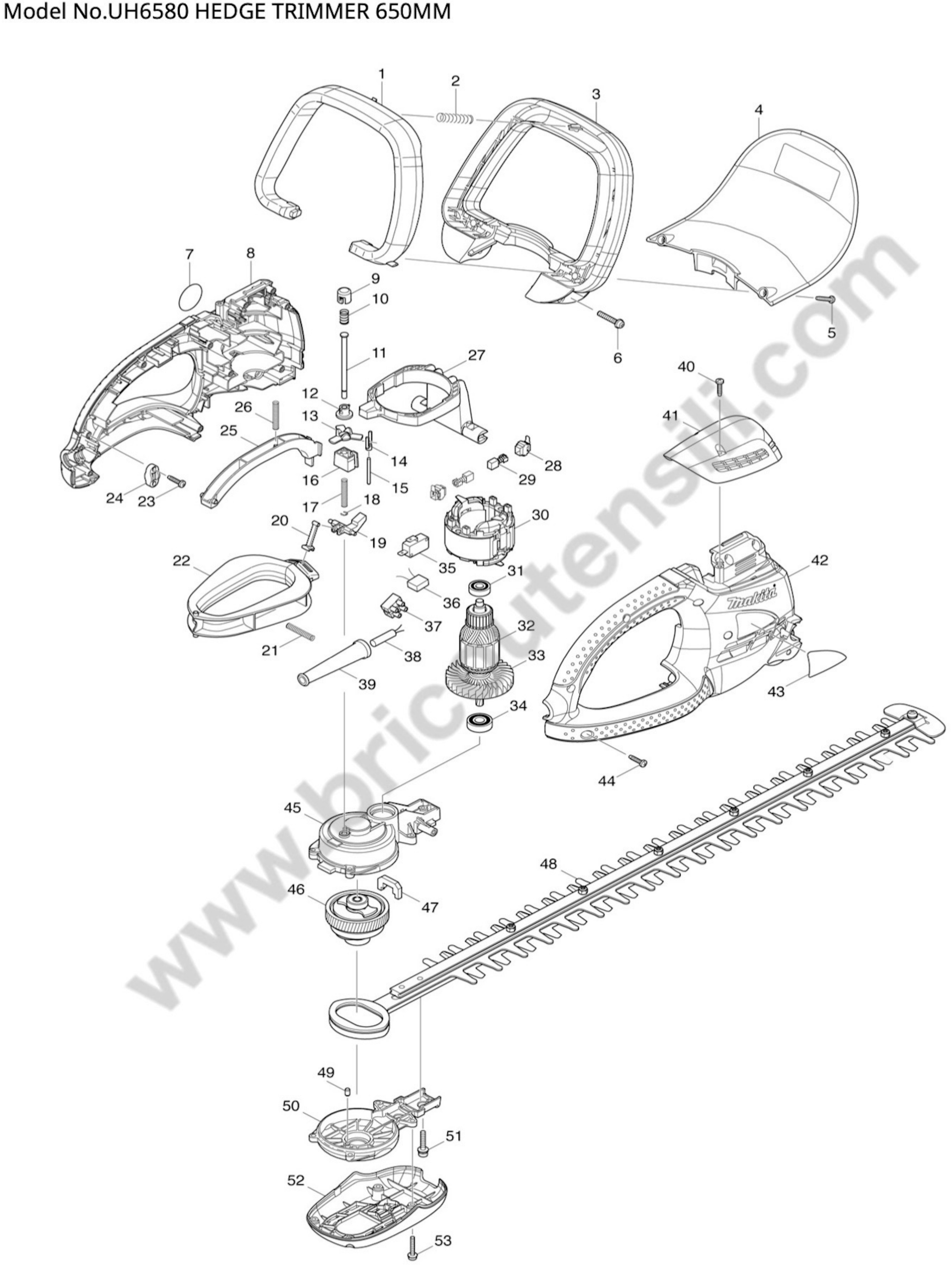

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A02
 photo_cameraImage coming soon 158024-1 CABLE CLAMP UH3000 €3.43
A1
 photo_cameraImage coming soon 194677-2 CORD HOLDER COMPLETE SET €3.54
F04
 photo_cameraImage coming soon 194679-8 ARM BAND COMPLETE SET €11.54
C30
 photo_cameraImage coming soon 265181-9 +TRUSS HEAD SCREW M5X20 €1.38
C40
 photo_cameraImage coming soon 345205-8 BRANCH CATCHER €1.38
A03
 photo_cameraImage coming soon 450490-1 BLADE COVER €4.23
C10
 photo_cameraImage coming soon 654069-2 RECEPTACLE €1.38
C50
 photo_cameraImage coming soon 911208-0 PAN HEAD SCREW M5X10 €2.67
1
 photo_cameraImage coming soon 450444-8 LEVER SWITCH B X UH5570 €8.40
2
 photo_cameraImage coming soon 233157-4 SPRING COMP. 9 X UH5570 €1.38
3
 photo_cameraImage coming soon 450442-2 FRONT HANDLE UH5570 €14.17
4-1
 photo_cameraImage coming soon 141J42-6 PROTECTOR COMPLETE €5.53
4
 Hand Guard for Hedge Trimmer Makita UH5570 158629-7 Hand Guard for Hedge Trimmer Makita UH5570 €8.90
5
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
6
 photo_cameraImage coming soon 911253-5 SCREW M 5 X 30 X JR3030T €1.42
8
 photo_cameraImage coming soon 188569-5 HOUSING MOT. X UH6580 €49.64
9
 photo_cameraImage coming soon 417740-7 CAP X UH5570 €1.38
10
 photo_cameraImage coming soon 233288-9 SPRING COMPRESSION 8 X RP1100C €1.38
11
 photo_cameraImage coming soon 268077-3 PIN 5 X UH5570 €8.40
12
 photo_cameraImage coming soon 417727-9 HOLDER CAP X UH5570 €1.38
13
 photo_cameraImage coming soon 417736-8 ROCKER X UH5570 €1.38
14
 photo_cameraImage coming soon 417735-0 CAP X UH5570 €1.38
15
 photo_cameraImage coming soon 268078-1 PIN 3 X UH6580 €1.38
16
 photo_cameraImage coming soon 417781-3 HOLDER PIN X UH5570 €2.07
17
 photo_cameraImage coming soon 233156-6 SPRING COMP. 5 X UH5570 €1.38
18
 photo_cameraImage coming soon 257934-0 RETAINING RING E-4 X UH6580 €1.47
19
 photo_cameraImage coming soon 417737-6 LEVERAGE UH5570 €1.38
20
 photo_cameraImage coming soon 417739-2 ROD X UH5570 €1.38
21
 photo_cameraImage coming soon 233156-6 SPRING COMP. 5 X UH5570 €1.38
22
 photo_cameraImage coming soon 417731-8 LEVER SWITCH. C X UH5570 €4.39
23
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.32
24
 photo_cameraImage coming soon 687063-9 CABLE TIE X 4304T €3.18
25
 photo_cameraImage coming soon 450443-0 LEVER SWITCH. A X UH5570 €3.10
26
 photo_cameraImage coming soon 233156-6 SPRING COMP. 5 X UH5570 €1.38
27
 photo_cameraImage coming soon 417738-4 LEVER X UH6580 €5.08
28
 photo_cameraImage coming soon 643936-6 BRUSH 8450 €5.40
29
 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
30
 photo_cameraImage coming soon 594578-8 STATOR FOR UH6580 €32.35
30-1
 photo_cameraImage coming soon 599126-8 FIELD ASSY 220-240V €32.35
31
 photo_cameraImage coming soon 211032-4 BEARING X 1902 €5.87
32
 photo_cameraImage coming soon 516499-4 ARMATURE FOR UH6580 €49.64
33
 photo_cameraImage coming soon 241858-0 FAN 70 X 5704R €11.59
34
 photo_cameraImage coming soon 211062-5 BEARING 6000 X9524NB €7.81
35
 photo_cameraImage coming soon 650522-6 SWITCH X UH6580 €4.39
35-1
 photo_cameraImage coming soon 650593-3 SWITCH €3.80
36-1
 photo_cameraImage coming soon 645105-5 NOISE SUPPRESSOR/CONDENSOR 64 €5.13
36
 photo_cameraImage coming soon 645185-1 CAPACITOR SP6000K €1.38
37
 photo_cameraImage coming soon 654531-7 CLAMP X 420S €5.13
39
 photo_cameraImage coming soon 682503-2 SLEEVE PROTECTING_COVER X HM1500 €2.69
40
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.32
41
 photo_cameraImage coming soon 450445-6 COVER SUP. X UH6580 €3.80
42
 photo_cameraImage coming soon 188569-5 HOUSING MOT. X UH6580 €49.64
44
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.32
45
 photo_cameraImage coming soon 318257-2 BOX ING. X UH6580 €24.06
46
 photo_cameraImage coming soon 135217-7 GEAR X UH6580 €173.12
47
 photo_cameraImage coming soon 443142-1 Dust Cap UH5570 €1.38
49
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.32
50
 photo_cameraImage coming soon 318265-3 COVER SCAT.INGR. UH6580 €14.17
51
 photo_cameraImage coming soon 265182-7 SCREW M5x25 X UH5570 €1.38
52
 photo_cameraImage coming soon 450440-6 COVER LOWER. UH5570 €7.50
53
 photo_cameraImage coming soon 911148-2 PAN HEAD SCREW M4X25 €1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita UH6580 Corded Hedge Trimmer Spare Parts

Makita genuine spare parts or replacement parts for to repair Makita UH6580 240v Corded Hedge Trimmer.

In the following table, look for the model of the Trimmer and the respective parts of the code.
Makita Electric Hedge Trimmer UH6580

MAKITA UH6580 - HEDGE TRIMMER 650MM 670w
# Part Num. Description
1 450444-8 SWITCH LEVER B
2 233157-4 COMPRESSION SPRING 9
3 450442-2 FRONT GRIP
4 158629-7 PROTECTOR COMPLETE X UH5570
4-1 141J42-6 PROTECTOR COMPLETE
4-2 1410D7-6 PROTECTOR COMPLETE
C10 8074L2-3 CAUTION LABEL
5 265995-6 TAPPING SCREW 4X18
6 911253-5 PAN HEAD SCREW M5X30
8 188569-5 HOUSING SET
9 417740-7 INSULATION CAP
10 233288-9 COMPRESSION SPRING 8
11 268077-3 PIN 5
12 417727-9 CAP HOLDER
13 417736-8 LIFTER
14 417735-0 PUSHER CAP
15 268078-1 PIN 3
16 417781-3 PIN HOLDER
17 233156-6 COMPRESSION SPRING 5
18 257934-0 STOP RING E-4
19 417737-6 LINK
20 417739-2 ROD
21 233156-6 COMPRESSION SPRING 5
22 417731-8 SWITCH LEVER C
23 265995-6 TAPPING SCREW 4X18
24 687063-9 CORD CLAMP
25 450443-0 SWITCH LEVER A
26 233156-6 COMPRESSION SPRING 5
27 417738-4 LEVER
28 643936-6 BRUSH HOLDER
29 191962-4 CARBON BRUSH CB-419
30 594578-8 FIELD ASS'Y 220-240V
C10 654069-2 RECEPTACLE
30-1 599126-8 FIELD ASSY 220-240V
C10 654069-2 RECEPTACLE
31 211032-4 BALL BEARING 608ZZ
32 516499-4 ARMATURE ASS'Y 220-240V
33 241858-0 FAN 70
34 211062-5 BALL BEARING 60ZZ
35 650522-6 SWITCH
35-1 650593-3 SWITCH
36 645185-1 NOISE SUPPRESSOR
36-1 645105-5 NOISE SUPPRESSOR
37 654531-7 TERMINAL BLOCK 2P
38 666246-4 POWER SUPPLY CORD 1.5-2-0.3
39 682503-2 CORD GUARD 8-90
40 265995-6 TAPPING SCREW 4X18
41 450445-6 TOP COVER
42 188569-5 HOUSING SET
43 865786-1 UH6580 NAME PLATE
44 265995-6 TAPPING SCREW 4X18
45 318257-2 GEAR HOUSING
46 135217-7 GEAR ASS'Y
47 443142-1 DUST GUARD
48 194673-0 SHEAR BLADE ASS'Y SET
C10 252184-2 HEX.LOCK NUT M5-8
C20 257717-8 SLEEVE 5
C30 265181-9 +TRUSS HEAD SCREW M5X20
C40 345205-8 BRANCH CATCHER
C50 911208-0 PAN HEAD SCREW M5X10
C60 188605-7 OIL VESSEL SET
49 263002-9 RUBBER PIN 4
50 318265-3 GEAR HOUSING COVER
51 265182-7 + PAN HEAD SCREW M5X25
52 450440-6 UNDER COVER
53 911148-2 PAN HEAD SCREW M4X25
A1 194677-2 CORD HOLDER COMPLETE SET
A2 158024-1 HOOK COMPLETE
A3 450490-1 BLADE COVER
F4 194679-8 ARM BAND COMPLETE SET
F5 194681-1 CHIP RECEIVER ASS'Y SET
