Makita

Makita DUC302 Spare Parts

SKU: Makita DUC302
€20.07
VAT included

Makita Cordless Chainsaw DUC302 Spare Parts

Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chainsaw DUC302.
Makita DUC302 Spare Parts
  • Makita DUC302 Spare Parts
  • Makita DUC302 Spare Parts - Drawing
Makita

Makita DUC302 Spare Parts

SKU: Makita DUC302 Condition: New
€20.07
VAT included

Makita Cordless Chainsaw DUC302 Spare Parts

Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chainsaw DUC302.
settings 80 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
80 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

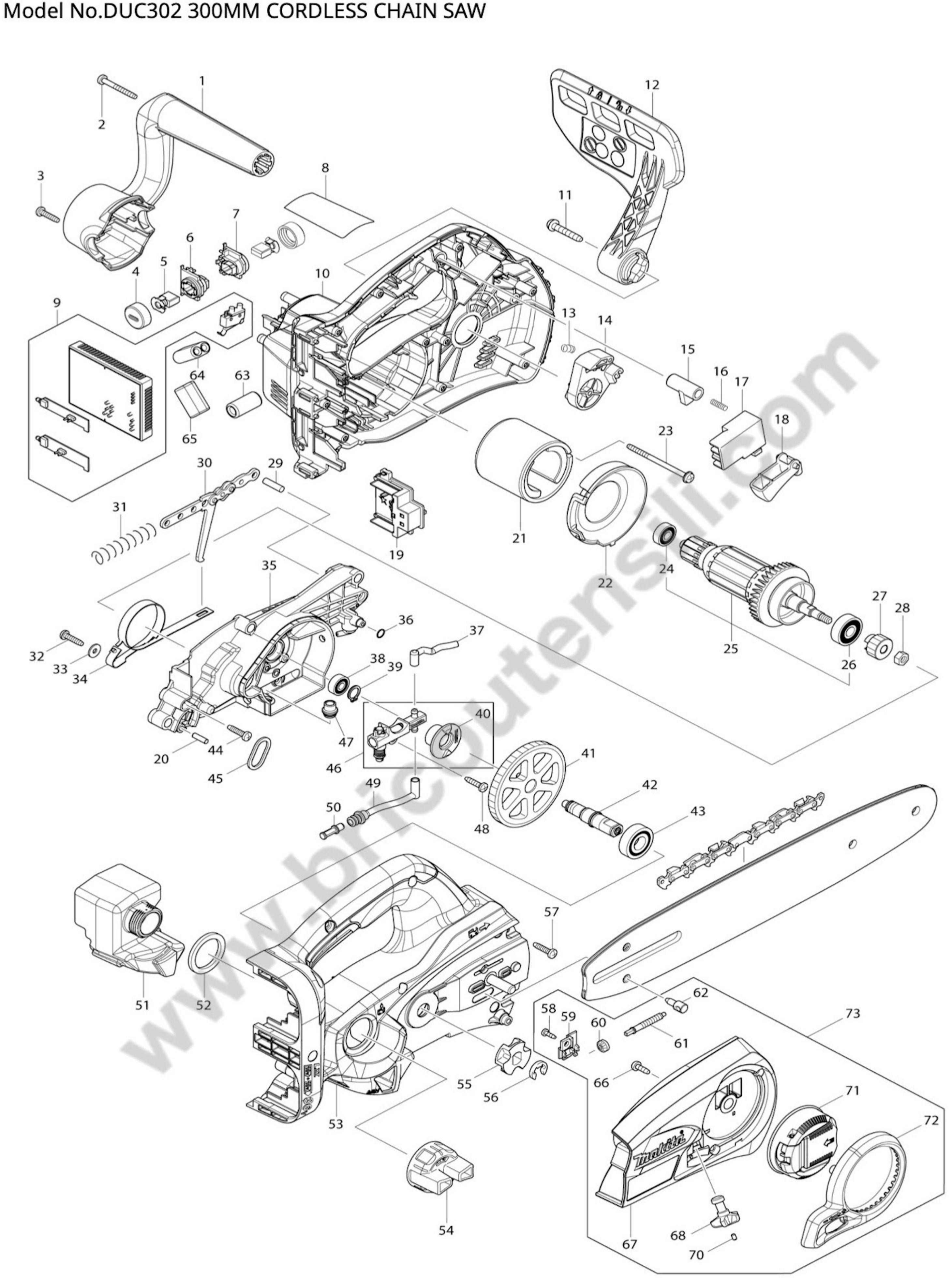

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A01
 photo_cameraImage coming soon 165245-8 SPROCKET NOSE BAR 3/8" .043" 30CM 12" 1,1 ES-31A €20.61
A01-1
 photo_cameraImage coming soon 165245-8 SPROCKET NOSE BAR 3/8" .043" 30CM 12" 1,1 ES-31A €20.61
F05-1
 photo_cameraImage coming soon 191H01-8 SAW CHAIN 12 SET €24.63
A03-1
 photo_cameraImage coming soon 191H01-8 SAW CHAIN 12 SET €24.63
F05
 photo_cameraImage coming soon 196740-7 SAW CHAIN SET €19.33
A03
 photo_cameraImage coming soon 196740-7 SAW CHAIN SET €19.33
F11
 photo_cameraImage coming soon 197944-4 SPIKE BUMPER SET(EU) €9.52
C10
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
C10
 photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €2.49
C20
 photo_cameraImage coming soon 414377-1 NOZZLE €2.08
A02
 photo_cameraImage coming soon 419288-5 CHAIN COVER FOR 12-14" €4.65
001
 photo_cameraImage coming soon 451972-6 FRONT HANDLE X BUC250 €18.98
002
 photo_cameraImage coming soon 266053-1 PT SCREW 4X35 JN1601 10PK €1.44
003
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
004-1
 photo_cameraImage coming soon 643829-7 PLUG BRUSH HOLDER BSS611R €1.40
004
 photo_cameraImage coming soon 643941-3 PLUG BRUSH X 5621RDW €4.43
005
 photo_cameraImage coming soon 194928-3 CHARCOALS CB-442 €4.43
006-1
 photo_cameraImage coming soon 643538-8 BRUSH HOLDER €2.48
006
 photo_cameraImage coming soon 644514-5 BRUSH HOLDER POST. €3.82
007
 photo_cameraImage coming soon 644513-7 BRUSH HOLDER ANT. €3.82
009
 photo_cameraImage coming soon 620275-1 REGULATOR €174.37
010
 photo_cameraImage coming soon 187882-8 HOUSING MOTOR €131.93
011
 photo_cameraImage coming soon 266173-1 SCREW PT 5X30 €1.47
012
 photo_cameraImage coming soon 142836-2 SAFE HANDS €18.93
013
 photo_cameraImage coming soon 231298-0 SPRING COMPRES.X HM 1500 €1.47
014
 photo_cameraImage coming soon 451973-4 SUPPORT X PARAMANO BUC250 €8.50
015
 photo_cameraImage coming soon 416178-3 RESET BUTTON X UC3020A €1.47
016
 photo_cameraImage coming soon 233173-6 SPRING FOR COMPR.4 UC3020A €1.47
017
 photo_cameraImage coming soon 650730-9 SWITCH TG72BD-6 €22.12
018
 photo_cameraImage coming soon 450212-9 LEVER SWITCH. X BUC121R €3.13
019
 photo_cameraImage coming soon 644808-8 X-TERMINAL BLS713 BHP451 €6.27
020
 photo_cameraImage coming soon 256184-4 PIN 4 €1.40
021
 photo_cameraImage coming soon 638571-3 STATOR MAGNET PERMAN.BSS61 €12.69
022
 photo_cameraImage coming soon 451970-0 DEFLETTORE X BUC250 €5.13
023
 photo_cameraImage coming soon 266292-3 SCREW 4 X 65 X BJR240 €2.08
024
 Ball Bearing 607 ZZ for Impact Drill Maktek MT601 210062-2 Ball Bearing 607 ZZ for Impact Drill Maktek MT601 €4.41
025
 photo_cameraImage coming soon 519268-2 ARMATURE 36V X BUC250 €68.84
026
 Bearing 629DD FOR Angle Grinder Makita GA4530 211092-6 Bearing 629DD FOR Angle Grinder Makita GA4530 €9.01
027
 photo_cameraImage coming soon 227252-0 GEAR 16 X BUC250 €18.98
028
 Armature Nut M6 for Angle Grinder Makita 9554NB 252186-8 Armature Nut M6 for Angle Grinder Makita 9554NB €1.47
029
 Piston Pin for Stonecutter Makita HK0500 256123-4 Piston Pin for Stonecutter Makita HK0500 €6.71
030
 photo_cameraImage coming soon 158047-9 Linkage CHAIN ​​BRAKE €4.68
031
 photo_cameraImage coming soon 233175-2 SPRING COMPRESSION 9 €2.20
032-1
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
032
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
033
 photo_cameraImage coming soon 267195-4 WASHER 4 X DCS230T €1.47
034
 photo_cameraImage coming soon 168321-7 BRAKE BAND €4.43
035
 photo_cameraImage coming soon 142573-8 Bearing housing €24.28
036
 photo_cameraImage coming soon 213039-6 RING 6 X AN901 €1.47
037
 photo_cameraImage coming soon 422058-3 OIL PIPE FITTING X BUC250 €2.69
038
 photo_cameraImage coming soon 210028-2 BEARING 606ZZ €2.08
039
 photo_cameraImage coming soon 961006-2 RETAINING RING S10 €2.17
040
 photo_cameraImage coming soon 221427-3 WORM €7.00
041
 photo_cameraImage coming soon 227251-2 GEAR 73 X BUC250 €11.07
042
 photo_cameraImage coming soon 326417-2 POST €3.82
043
 photo_cameraImage coming soon 210109-2 BEARING 6001DDW X BSS611R €2.69
043-1
 photo_cameraImage coming soon 210163-6 BALL BEARING 6001DDW €2.69
044
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
045
 photo_cameraImage coming soon 310593-2 HOOK €2.68
046-1
 Oil Pump for Electric Chainsaw Makita UC3041A 142156-4 Oil Pump for Electric Chainsaw Makita UC3041A €23.90
046-2
 Oil Pump for Electric Chainsaw Makita UC3041A 142156-4 Oil Pump for Electric Chainsaw Makita UC3041A €23.90
047
 photo_cameraImage coming soon 424629-2 CABLE €2.68
048
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
049
 photo_cameraImage coming soon 422057-5 OIL PIPE X BUC250 €3.13
049-1
 photo_cameraImage coming soon 422313-3 Connector AS3625 Buc250Rd €3.13
050
 photo_cameraImage coming soon 450437-5 FILTER X BUC250R €11.71
051
 photo_cameraImage coming soon 455121-7 OIL TANK €16.61
052
 photo_cameraImage coming soon 424326-0 SPONGE FOR BUC250 €1.40
053
 photo_cameraImage coming soon 187882-8 HOUSING MOTOR €131.93
054-1
 photo_cameraImage coming soon 140L60-3 Housing Set Buc250Rd €6.61
054
 Complete Oil Tank Cap for Cordless Chainsaws Makita DUC252Z-DUC122RFE 158810-0 Complete Oil Tank Cap for Cordless Chainsaws Makita DUC252Z-DUC122RFE €8.54
055
 photo_cameraImage coming soon 221526-1 PINION 3/8 " €4.05
056
 photo_cameraImage coming soon 961014-3 RETAINING RING E-8 €1.46
057
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
058
 photo_cameraImage coming soon 266020-6 SCREW M4 X 12 €1.46
059
 photo_cameraImage coming soon 454818-5 PROTECTION €1.40
060
 Tensioner Screw Gear for Chainsaw Makita UC3551A 227496-2 Tensioner Screw Gear for Chainsaw Makita UC3551A €7.99
061
 Tensioner Screw for Chainsaw Makita UC3551A 326372-8 Tensioner Screw for Chainsaw Makita UC3551A €2.39
062
 Tensioner Screw Pin for Chainsaw Makita UC3551A 326310-0 Tensioner Screw Pin for Chainsaw Makita UC3551A €2.39
063
 photo_cameraImage coming soon 688161-2 FILTER LINE €1.40
064
 photo_cameraImage coming soon 688172-7 FILTER LINE €1.40
065
 photo_cameraImage coming soon 688172-7 FILTER LINE €1.40
066
 photo_cameraImage coming soon 266020-6 SCREW M4 X 12 €1.46
067
 photo_cameraImage coming soon 142571-2 COVER PINION €12.66
068
 photo_cameraImage coming soon 142665-3 GEAR €5.13
070
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
071
 Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A 142235-8 Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A €15.38
072
 photo_cameraImage coming soon 454819-3 PROTECTION €1.40
073
 photo_cameraImage coming soon 196779-0 COVER PINION €55.87
074
 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A 234207-8 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A €1.48
075
 photo_cameraImage coming soon 452666-6 PLUG OIL PIPE PS32CTLC €1.47
075-1
 photo_cameraImage coming soon 452666-6 PLUG OIL PIPE PS32CTLC €1.47

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Cordless Chainsaw DUC302 Spare Parts

Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chainsaw DUC302.

In the following table, look for the model of the Cordless Chain Saw and the respective parts of the code.
Makita DUC302

Makita DUC302 300MM CORDLESS CHAINSAW
# Part Num. Description
001 451972-6 FRONT HANDLE
002 266053-1 TAPPING SCREW 4X35
003 265995-6 TAPPING SCREW 4X18
004 643941-3 BRUSH HOLDER CAP
004-1 643829-7 HOLDER CAP
005 194928-3 CARBON BRUSH CB-442
006 644514-5 BRUSH HOLDER
006-1 643538-8 BRUSH HOLDER
007 644513-7 BRUSH HOLDER
007-1 643537-0 BRUSH HOLDER
008 815R34-6 DUC302 NAME PLATE
009 620275-1 CONTROLLER
009-1 620G61-2 CONTROLLER
010 187882-8 HOUSING SET
C10 263005-3 RUBBER PIN 6
D10 INC. 53
011 266173-1 TAPPING SCREW 5X30
012 142836-2 FRONT HAND GUARD COMPLETE
C10 804P18-7 CAUTION LABEL
013 231298-0 COMPRESSION SPRING 6
014 451973-4 HAND GUARD SUPPORT
015 416178-3 LOCK-OFF BUTTON
015-1 413908-3 LOCK OFF BUTTON
016 233173-6 COMPRESSION SPRING 4
017 650730-9 SWITCH TG72BD-6
018 450212-9 SWITCH LEVER
019 644808-8 TERMINAL
020 256184-4 PIN 4
021 638571-3 YOKE UNIT
022 451970-0 BAFFLE PLATE
023 266292-3 TAPPING SCREW 4X65
024 210062-2 BALL BEARING 607ZZ
025 519268-2 ARMATURE ASS'Y 36V
D10 INC. 24,26
026 211092-6 BALL BEARING 629DDW
027 227252-0 SPUR GEAR 16
028 252186-8 HEX. NUT M6
029 256123-4 PIN 5
030 158047-9 LINK PLATE COMPLETE
031 233175-2 COMPRESSION SPRING 9
032 265995-6 TAPPING SCREW 4X18
032-1 265620-9 TAPPING SCREW FLANGE 4X18
033 267195-4 FLAT WASHER 4
034 168321-7 BRAKE BAND
035 142573-8 BEARING HOUSING COMPLETE
C10 263002-9 RUBBER PIN 4
C20 414377-1 NOZZLE
036 213039-6 O RING 6
037 422058-3 CONNECTOR
038 210028-2 BALL BEARING 606ZZ
039 961006-2 RETAINING RING S-10
040 221427-3 WORM GEAR
041 227251-2 SPUR GEAR 73
042 326417-2 SPINDLE
043 210109-2 BALL BEARING 6001DDW
043-1 210163-6 BALL BEARING 6001DDW
044 265995-6 TAPPING SCREW 4X18
045 310593-2 HANGER
046-1 142156-4 OIL PUMP COMPLETE
046-2 142156-4 OIL PUMP COMPLETE
047 424629-2 GROMMET
048 265995-6 TAPPING SCREW 4X18
049 422057-5 CONNECTOR
049-1 422313-3 CONNECTOR
050 450437-5 FILTER
051 455121-7 OIL TANK
052 424326-0 SPONGE SHEET
053 187882-8 HOUSING SET
C10 263005-3 RUBBER PIN 6
D10 INC. 10
054 158810-0 TANK CAP COMPLETE
054-1 140L60-3 TANK CAP COMPLETE
055 221526-1 SPROCKET
056 961014-3 STOP RING E-8
057 265995-6 TAPPING SCREW 4X18
058 266020-6 TAPPING SCREW 4X12
059 454818-5 COVER
060 227496-2 STRAIGHT BEVEL GEAR 14
061 326372-8 ADJUST SCREW
062 326310-0 ADJUST PIN
063 688161-2 LINE FILTER
064 688172-7 LINE FILTER
065 688172-7 LINE FILTER
066 266020-6 TAPPING SCREW 4X12
067 142571-2 SPROCKET COVER COMPLETE
068 142665-3 DRIVE GEAR COMPLETE
070 263002-9 RUBBER PIN 4
071 142235-8 NUT COMPLETE
072 454819-3 NUT COVER
073 196779-0 SPROCKET COVER SET
D10 INC. 58-62,66-68,70-72
074 234207-8 COMPRESSION SPRING 6
075 452666-6 NIPPLE
075-1 452666-6 NIPPLE
A01 165245-8 GUIDE BAR 12
A01-1 165245-8 GUIDE BAR 12
A02 419288-5 CHAIN COVER
A03 196740-7 SAW CHAIN SET
A03-1 191H01-8 SAW CHAIN 12 SET
A06 197820-2 SPIKE BUMPER SET
E01 891805-7 SOUND 98DB LABEL
E04 817D83-5 CAUTION TAG
E04-1 8039U0-8 CAUTION TAG
F04-3 197606-4 BATTERY BL1830B SET (2PIECES)
F05 196740-7 SAW CHAIN SET
F05-1 191H01-8 SAW CHAIN 12 SET
F11 197944-4 SPIKE BUMPER SET(EU)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita DUC302
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita DUC302 Drawing

Makita DUC302 Drawing

Download (423.1KB)

You might also like

Piston Pin for Stonecutter Makita HK0500
Makita SKU: 256123-4
Piston Pin for Stonecutter Makita HK0500
Piston Pin for Stonecutter Makita HK0500 Genuine spare Makita, Piston Pin for Stonecutter HK0500 - for Cordless Chain Saw DUC252Z Chain Brake Control. FOR THE FOLLOWING ITEMS: - Stonecutter HK0500 - Cordless Chain Saw DUC252Z - Code:...
AVAILABLE €6.71
Details
Bearing 629DD FOR Angle Grinder Makita GA4530
Makita SKU: 211092-6
Bearing 629DD FOR Angle Grinder Makita GA4530
Bearing 629DD FOR Angle Grinder Makita GA4530 Genuine part Makita, Ball Bearing 629DD for Angle Grinders GA4530 - GA4530R - GA4534 - GA5034 - GA9000 - 9541-9542. Parts for the following products: - GA4530 - ANGLE GRINDER 115MM -...
AVAILABLE €9.01
Details
Oil Pump for Electric Chainsaw Makita UC3041A
Makita SKU: 142156-4
Oil Pump for Electric Chainsaw Makita UC3041A
Oil Pump for Electric Chainsaw Makita UC3041A Genuine parts Makita, Oil Pump for Electric Chainsaws UC3041A - UC3541A - UC3551A - UC4051A - ES2136TLC - ES2141TLC - DUC252Z - DUC353Z. Parts for the following products: - ES2136TLC -...
AVAILABLE €23.90
Details
Tensioner Screw for Chainsaw Makita UC3551A
Makita SKU: 326372-8
Tensioner Screw for Chainsaw Makita UC3551A
Tensioner Screw for Chainsaw Makita UC3551A Genuine parts Makita, Tensioner Screw for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3726 - Chain Saw 18VX2...
AVAILABLE €2.39
Details
Tensioner Screw Gear for Chainsaw Makita UC3551A
Makita SKU: 227496-2
Tensioner Screw Gear for Chainsaw Makita UC3551A
Makita UC3551A Spiral Bevel Gear Genuine parts Makita, Tensioner Screw Spiral Bevel Gear for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3625LGE - CHAINSAW 25CM...
Usually Ships in: 7/10 Business Days Approx. €7.99
Details
Tensioner Screw Pin for Chainsaw Makita UC3551A
Makita SKU: 326310-0
Tensioner Screw Pin for Chainsaw Makita UC3551A
Tensioner Screw Pin for Chainsaw Makita UC3551A Genuine parts Makita, Tensioner Screw Pin for Chainsaws UC3551A - UC4051A - ES2141TLC - ES2136TLC - DUC252Z - AS3726. Parts for the following products: - AS3726 - Chain Saw 18VX2 DOLMAR...
on 7/10 Business Days Approx €2.39
Details
Armature Nut M6 for Angle Grinder Makita 9554NB
Valex s.p.a. SKU: 252186-8
Armature Nut M6 for Angle Grinder Makita 9554NB
Armature Nut M6 for Angle Grinder Makita 9554NB Original spare part Makita, Armature Nut M6 for Angle Grinders 9554HN - 9554HNG - 9554NB - 9555NB Part for the following products:...
AVAILABLE €1.47
Details
Ball Bearing 607 ZZ for Impact Drill Maktek MT601
Black & Decker SKU: 210062-2
Ball Bearing 607 ZZ for Impact Drill Maktek MT601
Ball Bearing 607 ZZ for Impact Drill Maktek MT601 Genuine part Makita, Ball Bearing 607 ZZ for Impact Drill Maktek MT601 Part for the following products: - AS3625LGE - CHAINSAW 25CM 36V DOLMAR - AS3726 - CHAINSAW 18VX2 DOLMAR -...
AVAILABLE €4.41
Details
Pt Screw M4X18 for Rotary Hammer Makita HR4000C
Makita SKU: 265995-6
Pt Screw M4X18 for Rotary Hammer Makita HR4000C
Pt Screw M4X18 for Rotary Hammer Makita HR4000C Fantastic prices on Makita Spare Parts , Buy now Pt Screw M4X18 for Rotary Hammer Makita HR4000C - Router Makita 3612C - Orbital Sander Makita BO5031. Parts for the...
Last items in stock €1.46
Details
Comments (0)
