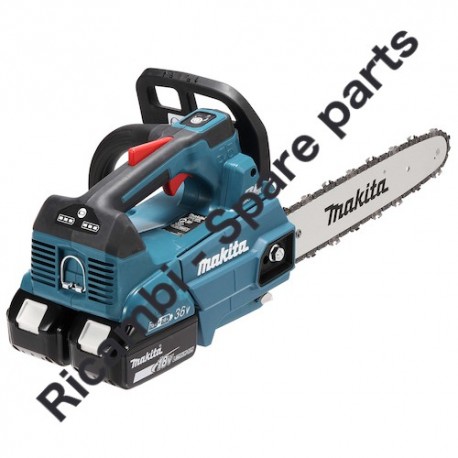

Makita Cordless Chainsaw DUC306 Spare Parts

SKU: Makita DUC306
€7.02
VAT included

Makita Cordless Chainsaw DUC306 Spare Parts

Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chainsaw DUC306.
Makita Cordless Chainsaw DUC306 Spare Parts
  • Makita Cordless Chainsaw DUC306 Spare Parts
  • Makita Cordless Chainsaw DUC306 Spare Parts - Drawing
Makita

Makita Cordless Chainsaw DUC306 Spare Parts

SKU: Makita DUC306 Condition: New
€7.02
VAT included

Makita Cordless Chainsaw DUC306 Spare Parts

Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chainsaw DUC306.
settings 62 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
62 spare parts

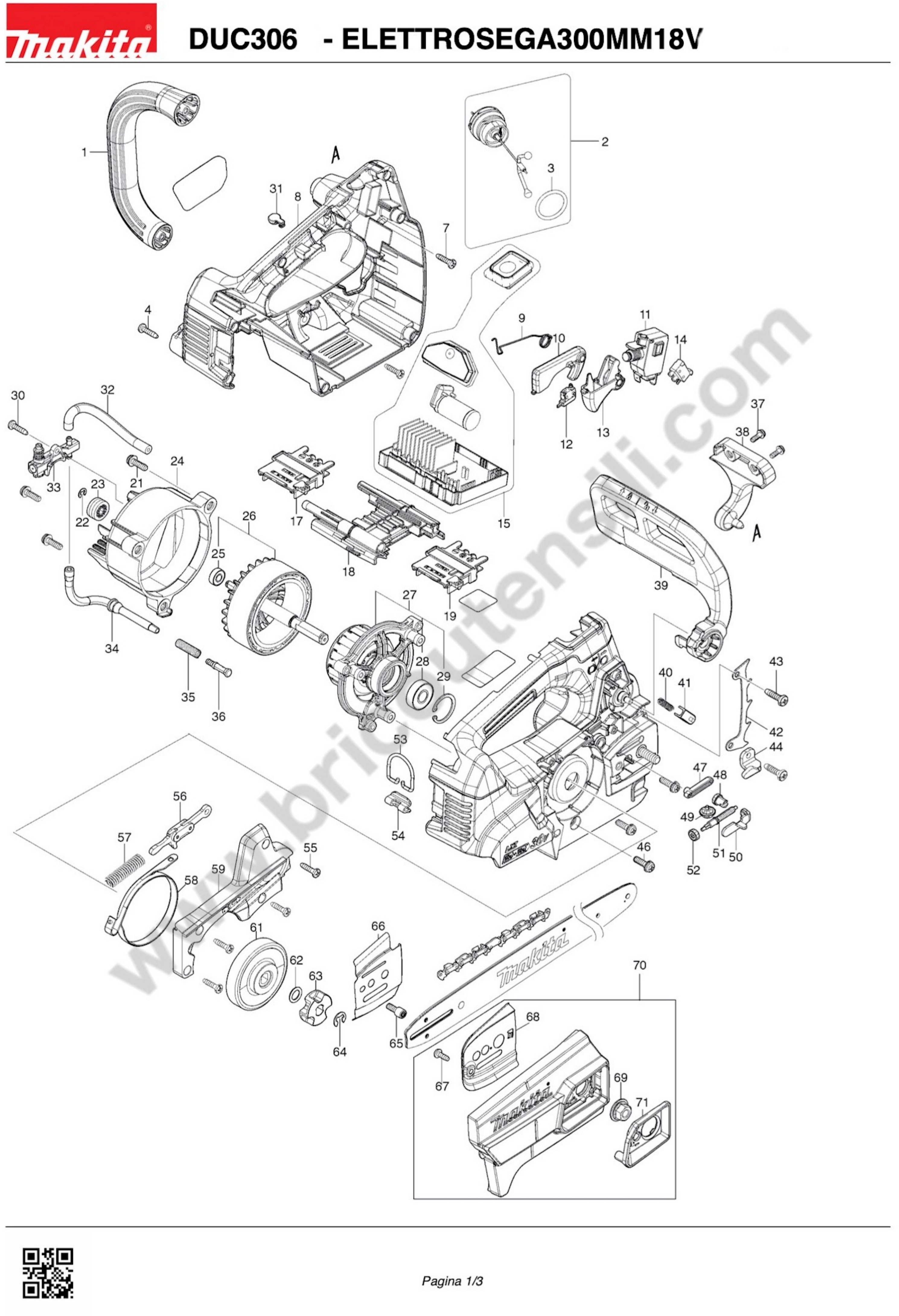

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 459275-2 FRONT HANDLE €6.82
2
 photo_cameraImage coming soon 126832-8 TANK CAP ASSEMBLY €22.18
3
 photo_cameraImage coming soon 213355-6 O-RING 25 EA3601F/DUC353 €1.50
4
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
8
 photo_cameraImage coming soon 183N15-7 MOTOR HOUSING €57.70
9
 photo_cameraImage coming soon 232509-6 TORSION SPRING 10 €1.44
10
 photo_cameraImage coming soon 459268-9 CATCH LEVER €1.44
11
 photo_cameraImage coming soon 651365-9 SWITCH C3JW-6BM-P €29.04
12
 photo_cameraImage coming soon 632L49-0 SWITCH UNIT €10.07
13
 photo_cameraImage coming soon 459267-1 SWITCH LEVER €1.44
14
 photo_cameraImage coming soon 632L48-2 SWITCH UNIT €17.02
15
 photo_cameraImage coming soon 140K82-7 CONTROLLER COMPLETE €323.79
17
 photo_cameraImage coming soon 643874-2 TERMINAL €5.16
18
 photo_cameraImage coming soon 140V36-0 CENTER CASE COMPLETE €3.95
19
 photo_cameraImage coming soon 643874-2 TERMINAL €5.16
21
 photo_cameraImage coming soon 911228-4 SCREW M5X18 X JR180D €1.44
22
 photo_cameraImage coming soon 961011-9 RETAINING RING E4 €1.44
23
 photo_cameraImage coming soon 226884-0 WORM GEAR €1.44
24
 photo_cameraImage coming soon 459276-0 MOTOR HOUSING €6.82
25
 photo_cameraImage coming soon 210026-6 BALL BEARING 696ZZ €3.83
26
 photo_cameraImage coming soon 519576-1 ROTOR ASS'Y €180.06
27
 photo_cameraImage coming soon 529420-4 STATOR ASS'Y €70.90
28
 photo_cameraImage coming soon 210059-1 BEARING 6000 HR2010 €11.29
29
 Retaining Ring R26 for Angle Grinder and Milling Machines Makita 962105-3 Retaining Ring R26 for Angle Grinder and Milling Machines Makita €1.32
30
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
31
 photo_cameraImage coming soon 422467-6 CAP €1.44
32
 photo_cameraImage coming soon 422451-1 OIL TUBE 3-100 €2.15
33
 Oil Pump for Electric Chainsaw Makita UC3041A 142156-4 Oil Pump for Electric Chainsaw Makita UC3041A €24.95
34
 photo_cameraImage coming soon 422452-9 OIL TUBE 3-130 €2.77
35
 photo_cameraImage coming soon 231975-4 SPRING TUBE OIL X DCS230T €1.47
36
 photo_cameraImage coming soon 452666-6 PLUG OIL PIPE PS32CTLC €1.32
37
 photo_cameraImage coming soon 911118-1 M4PER12 SCREW €2.74
38
 photo_cameraImage coming soon 459270-2 FRONT HAND GUARD RETAINER €2.45
39
 photo_cameraImage coming soon 140K79-6 FRONT HAND GUARD COMPLETE €11.40
40
 photo_cameraImage coming soon 234210-9 SPRING COMPRESSION 6 PS32CTLC €1.47
41
 photo_cameraImage coming soon 313212-9 PS32CTLC GUIDE €1.47
42
 photo_cameraImage coming soon 346809-9 SPIKE BUMPER EA3700T/PS-3700T €2.14
43
 photo_cameraImage coming soon 266420-0 SCREW 5PER20 HR2800 €1.44
44
 photo_cameraImage coming soon 347516-7 CHAIN CATCHER €1.44
45
 photo_cameraImage coming soon 183N15-7 MOTOR HOUSING €57.70
45
 photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €1.32
45
 photo_cameraImage coming soon 424170-5 VALVE €2.77
46
 photo_cameraImage coming soon 911228-4 SCREW M5X18 X JR180D €1.44
47
 photo_cameraImage coming soon 422466-8 GROMET €1.44
48
 photo_cameraImage coming soon 227620-7 DRIVE GEAR €2.03
49
 photo_cameraImage coming soon 227634-6 STRAIGHT BEVEL GEAR 14 €3.83
50
 photo_cameraImage coming soon 347517-5 TENSION SLIDE €2.14
51
 photo_cameraImage coming soon 327317-9 ADJUST SCREW €2.77
52
 Tensioner Screw Gear for Chainsaw Makita UC3551A 227496-2 Tensioner Screw Gear for Chainsaw Makita UC3551A €6.00
53
 photo_cameraImage coming soon 281222-3 HOOK €1.32
54
 photo_cameraImage coming soon 347514-1 HOOK SUPPORT €1.44
55
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
56
 photo_cameraImage coming soon 140A74-6 LINK PLATE COMPLETE €3.83
57
 photo_cameraImage coming soon 232599-9 COMPRESSION SPRING 7 €1.32
58
 photo_cameraImage coming soon 347515-9 BRAKE BAND COMPLETE €6.11
59
 photo_cameraImage coming soon 459273-6 HOUSING R COVER €3.95
61
 photo_cameraImage coming soon 162638-0 BRAKE DRUM COMPLETE €14.77
62
 photo_cameraImage coming soon 213060-5 O-RING 10 €1.27
63
 photo_cameraImage coming soon 221464-7 SPROCKET 6 €2.65
64
 photo_cameraImage coming soon 961013-5 RING RITEGNOXJN3200 €2.03
65
 photo_cameraImage coming soon 266905-6 H.L. SOCKET HEAD BOLT M5X12 €1.32
66
 photo_cameraImage coming soon 347533-7 GUIDE PLATE L €1.44
67
 photo_cameraImage coming soon 266427-6 SCREW 4X12 MT923 €1.32
68
 photo_cameraImage coming soon 347534-5 GUIDE PLATE R €1.44
69
 photo_cameraImage coming soon 162494-8 FRANGE NUT COMPLETE €6.00
70
 photo_cameraImage coming soon 136138-6 SPROCKET COVER ASS'Y €19.54
71
 photo_cameraImage coming soon 459278-6 NUT COVER €1.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Cordless Chainsaw DUC306 Spare Parts

Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chainsaw DUC306.

In the following table, look for the model of the Cordless Chain Saw and the respective parts of the code.
Makita DUC306

MAKITA DUC306 300MM CORDLESS CHAIN SAW Spare Parts
# Part Num. Description
E01 817D83-5 LABEL/CAUTION
1 459275-2 FRONT HANDLE
2 126832-8 TANK CAP ASSEMBLY
3 213355-6 O-RING 25 EA3601F/DUC353
4 265620-9 VITE 4X18
5 819S63-7 MODEL NO. LABEL DUC306
6 856A24-8 NAME PLATE DUC306
8 183N15-7 MOTOR HOUSING
9 232509-6 TORSION SPRING 10
10 459268-9 CATCH LEVER
11 651365-9 SWITCH C3JW-6BM-P DUC254
12 632L49-0 SWITCH UNIT DUC254
13 459267-1 SWITCH LEVER
14 632L48-2 SWITCH UNIT DUC254
15 140K82-7 CONTROLLER COMPLETE
17 643874-2 TERMINAL
18 140V36-0 CENTER CASE COMPLETE
19 643874-2 TERMINAL DTM52
21 911228-4 VITE M5X18 X JR180D
22 961011-9 EXT E-RING JIS E-4 EA3201
23 226884-0 WORM GEAR
24 459276-0 MOTOR HOUSING
25 210026-6 BALL BEARING 696ZZ BUC121/122
26 519576-1 ROTOR ASS'Y
27 529420-4 STATOR ASS'Y
28 210059-1 BALL BEARING 6000DDW 2RDCM
29 962105-3 INTERNAL RETAINING RING-26/51
30 265620-9 TAPPING SCREW M4X18 EBH253/EB3
31 422467-6 CAP
32 422451-1 OIL TUBE 3-100
33 142156-4 OIL PUMP COMP DUC302/EA3601
34 422452-9 OIL TUBE 3-130
35 231975-4 SPRING DSC230/EA2140/PS220/UC3
36 452666-6 NIPPLE EA3601F EA3500/01/PS32
37 911118-1 PAN HEAD SCREW M4X12 VC3211M
38 459270-2 FRONT HAND GUARD RETAINER
39 140K79-6 FRONT HAND GUARD COMPLETE
40 234210-9 COMPRESSION SPRING 6 EA36/ PS
41 313212-9 HAND GUARD GUIDE PS32/EA3601F
42 346809-9 SPIKE BUMPER EA3700T/PS-3700T
43 266420-0 TAPPING SCREW 5X20 HR2811FT
44 347516-7 CHAIN CATCHER
45 183N15-7 HOUSING SET
45 424170-5 VALVE EK7301
45 263005-3 RUBBER PIN 6 DUR/DHR/DTW/DG
46 911228-4 PAN HD SCREW M5X18 W/WASHER
47 422466-8 GROMET
48 227620-7 DRIVE GEAR DUC254
49 227634-6 STRAIGHT BEVEL GEAR 14 EA3700
50 347517-5 TENSION SLIDE
51 327317-9 ADJUST SCREW
52 227496-2 SPIRAL BEVEL GEAR 14 UC4020A
53 281222-3 HOOK EA3700T/PS3700TH
54 347514-1 HOOK SUPPORT
55 265620-9 TAPPING SCREW M4X18
56 140A74-6 LINK PLATE COMPLETE DUC254
57 232599-9 COMPRESSION SPRING 7
58 347515-9 BRAKE BAND COMPLETE
59 459273-6 HOUSING R COVER
61 162638-0 BRAKE DRUM COMPLETE
62 213060-5 O RING 10 DUC353
63 221464-7 SPROCKET 6 XCU03
64 961013-5 EXT E-RING JIS JE-7 VC3211M
65 266905-6 H.L. SOCKET HEAD BOLT M5X12
66 347533-7 GUIDE PLATE L
67 266427-6 TAPPING SCREW 4X12 ER2650LH
68 347534-5 GUIDE PLATE R
69 162494-8 FLANGE NUT COMPLETE DUC254
70 136138-6 SPROCKET COVER ASS'Y
71 459278-6 NUT COVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
