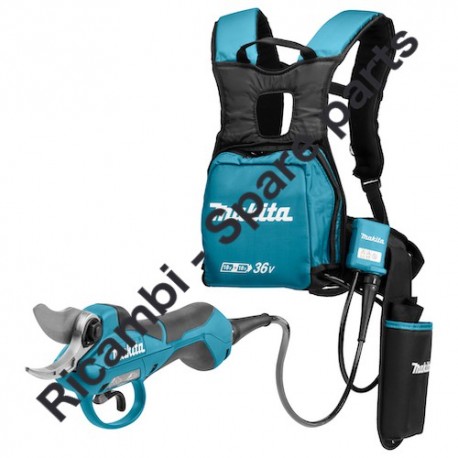

Makita Pruning Shear DUP362PT2 Spare Parts

SKU: Makita DUP362PT2
€1.47
VAT included

Makita Pruning Shear DUP362PT2 Spare Parts

Makita original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Pruning Shear DUP362PT2.
Makita Pruning Shear DUP362PT2 Spare Parts
  • Makita Pruning Shear DUP362PT2 Spare Parts
  • Makita Pruning Shear DUP362PT2 Spare Parts - Drawing
  • Makita Pruning Shear DUP362PT2 Spare Parts - Drawing 1
Makita

Makita Pruning Shear DUP362PT2 Spare Parts

SKU: Makita DUP362PT2 Condition: New
€1.47
VAT included

Makita Pruning Shear DUP362PT2 Spare Parts

Makita original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Pruning Shear DUP362PT2.
settings 55 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
55 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A03
 photo_cameraImage coming soon 161379-5 HOLSTER €15.22
A04
 photo_cameraImage coming soon 166062-9 ELASTICO REGGICAVO 4604DW €7.16
A05
 photo_cameraImage coming soon 182470-6 OIL SUPPLY €2.97
A06
 Connection Cable for Pruning Scissor Dolmar AR-3733XE3 661445-3 Connection Cable for Pruning Scissor Dolmar AR-3733XE3 €155.06
A08
 photo_cameraImage coming soon 782212-4 SOCKET WRENCH 13 €4.12
1
 photo_cameraImage coming soon 251490-2 SCREW M5X14 €1.36
3
 photo_cameraImage coming soon 456209-6 UPPER CASING X DUP361Z €31.77
5
 photo_cameraImage coming soon 251474-0 SCREW M8 €10.75
6
 photo_cameraImage coming soon 199168-8 SHEAR BLADE U SET €97.58
7
 photo_cameraImage coming soon 199169-6 SHEAR BLADE L SET €145.67
8
 photo_cameraImage coming soon 213034-6 RING 3 X DA3010F €1.36
9
 photo_cameraImage coming soon 346940-1 BLOCK PLATE X DUP361Z €2.03
10
 photo_cameraImage coming soon 266557-3 SCREW HS M3X8 X DUP361Z €1.36
11
 photo_cameraImage coming soon 264118-3 NUT M8 €3.73
12
 photo_cameraImage coming soon 266786-8 SCREW 2X10 BHP459 €1.36
13
 photo_cameraImage coming soon 456218-5 COVER B X DUP361Z €3.04
14
 photo_cameraImage coming soon 961011-9 RETAINING RING E4 €1.44
15
 Connecting Rod for Pruning Scissor Dolmar AR-3733XE3 347165-0 Connecting Rod for Pruning Scissor Dolmar AR-3733XE3 €8.00
16
 photo_cameraImage coming soon 256568-6 PIN 5 €3.73
17
 photo_cameraImage coming soon 251484-7 SCREW M3X4 €5.76
18
 photo_cameraImage coming soon 456215-1 LEVER X DUP361Z €2.62
19
 photo_cameraImage coming soon 216031-1 BALL 2.3 AT450H €1.47
20
 photo_cameraImage coming soon 233491-2 SPRING COMPRESSION 2 X AT450H €1.36
21
 Magnet for Pruning Scissor Dolmar AR-3733XE3 688189-0 Magnet for Pruning Scissor Dolmar AR-3733XE3 €8.72
22
 photo_cameraImage coming soon 266999-1 SCREW M3X4 €1.36
23
 photo_cameraImage coming soon 231397-8 SPRING COMPRESSION 4 €4.09
24
 Switch Lever for Pruning Scissor Dolmar AR-3733XE3 123536-3 Switch Lever for Pruning Scissor Dolmar AR-3733XE3 €21.00
25
 photo_cameraImage coming soon 456217-7 COVER X DUP361Z €3.04
26
 photo_cameraImage coming soon 127142-6 BALL SCREW ASSEMBLY €916.55
27
 photo_cameraImage coming soon 912012-0 SCREW M3X10 €1.36
28
 photo_cameraImage coming soon 226866-2 INTERNAL GEAR 49 €4.30
29
 photo_cameraImage coming soon 226865-4 SPUR GEAR 19 €2.03
30
 photo_cameraImage coming soon 253810-6 WASHER 12 €2.21
31
 photo_cameraImage coming soon 652066-2 PAN HD SCREW M3X8 6313DW €1.36
32
 photo_cameraImage coming soon 319349-0 HOLDER HOLDER DUP361Z €13.93
33
 photo_cameraImage coming soon 629397-4 DC MOTOR €697.77
34
 photo_cameraImage coming soon 620459-1 CABLE CONNECTION X DUP361Z €169.73
35
 photo_cameraImage coming soon 456211-9 LOWER CASING X DUP361Z €12.33
36
 photo_cameraImage coming soon 911028-2 SCREW 3 X 16 X 4604D €1.36
37
 photo_cameraImage coming soon 143935-3 FRONT CASING X DUP361Z €13.93
38
 photo_cameraImage coming soon 266980-2 SCREW M3X16 X DUP361Z €1.36
41
 photo_cameraImage coming soon 183B69-2 CONTROL CASING X DUP361Z €27.49
42
 photo_cameraImage coming soon 232267-4 SPRING PLATE X DUP361Z €1.36
43
 photo_cameraImage coming soon 687053-2 CLAMP cable tie €2.21
44
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
45
 photo_cameraImage coming soon 643523-1 BATTERY TERMINAL €6.63
46
 photo_cameraImage coming soon 620461-4 UNIT X DUP361Z €43.55
47
 photo_cameraImage coming soon 620458-3 REGULATOR X DUP361Z €238.71
49
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
50
 photo_cameraImage coming soon 183B76-5 DUP361Z SWITCH HOUSING €13.93
51
 photo_cameraImage coming soon 699086-5 POWER CABLE DUP361Z €109.81
52
 photo_cameraImage coming soon 687053-2 CLAMP cable tie €2.21
53
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
54
 photo_cameraImage coming soon 651536-8 SWITCH 1941.1451 X DUP361Z €9.61
55
 photo_cameraImage coming soon 620460-6 CIRCUIT DUB361Z €10.75
57
 photo_cameraImage coming soon 266130-9 SCREW 3X16 X 6203/13 / 6313DW €1.46
58
 photo_cameraImage coming soon 266786-8 SCREW 2X10 BHP459 €1.36
60
 photo_cameraImage coming soon 630999-1 HOLDER BATTERY €610.77
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
41
 photo_cameraImage coming soon 183B69-2 CONTROL CASING X DUP361Z €27.49
42
 photo_cameraImage coming soon 232267-4 SPRING PLATE X DUP361Z €1.36
43
 photo_cameraImage coming soon 687053-2 CLAMP cable tie €2.21
44
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
45
 photo_cameraImage coming soon 643523-1 BATTERY TERMINAL €6.63
46
 photo_cameraImage coming soon 620461-4 UNIT X DUP361Z €43.55
47
 photo_cameraImage coming soon 620458-3 REGULATOR X DUP361Z €238.71
50
 photo_cameraImage coming soon 183B76-5 DUP361Z SWITCH HOUSING €13.93
51
 photo_cameraImage coming soon 699086-5 POWER CABLE DUP361Z €109.81
54
 photo_cameraImage coming soon 651536-8 SWITCH 1941.1451 X DUP361Z €9.61
55
 photo_cameraImage coming soon 620460-6 CIRCUIT DUB361Z €10.75
57
 photo_cameraImage coming soon 266130-9 SCREW 3X16 X 6203/13 / 6313DW €1.46
60
 photo_cameraImage coming soon 630999-1 HOLDER BATTERY €610.77

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Pruning Shear DUP362PT2 Spare Parts

Makita original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Pruning Shear DUP362PT2.

In the following table, look for the model of the Prining Scissor and the respective parts of the code.
Pruning Shear DUP362PT2

Makita DUP362PT2 BATTERY POWERED PRUNING SHEAR
# Parts No. Description
1 251490-2 H.S.H.BOLT M5X14 WITH WR
3 456209-6 UPPER HOUSING
5 251474-0 SHOULDER SCREW M8
6 199168-8 SHEAR BLADE U SET
7 199169-6 SHEAR BLADE L SET
8 213034-6 O RING 3
9 346940-1 LOCK PLATE
10 266557-3 H.S.BUTTON HEAD BOLT M3X8
11 264118-3 HEX. NUT M8
12 266786-8 + PAN HEAD TAPPING SCREW 2X10
13 456218-5 BALL NUT COVER B
14 961011-9 STOP RING E-4
15 347165-0 LINK ARM
16 256568-6 FLAT FILLISTER HD.PIN 5
17 251484-7 + FLAT HEAD SCREW M3X4
18 456215-1 LEVER
19 216031-1 STEEL BALL 2.3
20 233491-2 COMPRESSION SPRING 2
21 688189-0 MAGNET
22 266999-1 H.S.SET SCREW(FLAT POINT)M3X4
23 231397-8 COMPRESSION SPRING 4
24 123536-3 TRIGGER ASS'Y
25 456217-7 BALL NUT COVER A
26 127142-6 BALL SCREW ASSEMBLY
27 912012-0 C.H.SCREW M3X10
28 226866-2 INTERNAL GEAR 49
29 226865-4 SPUR GEAR 19
30 253810-6 FLAT WASHER 12
31 911006-2 PAN HEAD SCREW M3X8
32 319349-0 MOTOR HOLDER
33 629397-4 DC MOTOR
34 620459-1 SUB CONTROLLER
35 456211-9 LOWER HOUSING
36 911028-2 PAN HEAD SCREW M3X16
37 143935-3 FRONT HOUSING COMPLETE
38 266980-2 HEX.S.BUTTON HEAD SCREW M3X16
41 183B69-2 CONTROLLER HOUSING SET
42 232267-4 LEAF SPRING
43 687053-2 STRAIN RELIEF
44 265995-6 TAPPING SCREW 4X1
45 643899-6 TERMINAL
46 620461-4 RF UNIT
47 620458-3 CONTROLLER
49 265995-6 TAPPING SCREW 4X18
50 183B76-5 SWITCH HOUSING SET
51 699086-5 POWER SUPPLY CORD UNIT
52 687053-2 STRAIN RELIEF
53 265995-6 TAPPING SCREW 4X18
54 651536-8 SWITCH 1941. 1451
55 620460-6 LED CIRCUIT
57 266429-2 TAPPING SCREW 3X16
58 266786-8 + PAN HEAD TAPPING SCREW 2X10
60 630999-1 CONTROLLER
A01 154511-8 CORD HOLDER COMPLETE
A02 161603-6 HARNESS
A03 161379-5 HOLSTER
A04 166062-9 ARM BAND
A05 182470-6 OIL SUPPLY
A06 661445-3 CONNECTION CORD
A07 794530-8 DIAMOND FILE 140
A08 782212-4 SOCKET WRENCH 13
A09 783021-4 HEX. WRENCH 1.5
A10 783202-0 HEX. WRENCH 4
A11 783214-3 HEX.SOCKET SCREW KEY 2
A12 831284-7 TOOL BAG
