Makita DLM432 Cordless Lawn Mower Spare Parts

SKU: Makita DLM432
€7.02
VAT included

Makita DLM432 Cordless Lawn Mower Spare Parts

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower DLM432.
Makita DLM432 Cordless Lawn Mower Spare Parts
  • Makita DLM432 Cordless Lawn Mower Spare Parts
  • Makita DLM432 Cordless Lawn Mower Spare Parts - Drawing
  • Makita DLM432 Cordless Lawn Mower Spare Parts - Drawing 1
  • Makita DLM432 Cordless Lawn Mower Spare Parts - Drawing 2
  • Makita DLM432 Cordless Lawn Mower Spare Parts - Drawing 3
Makita

Makita DLM432 Cordless Lawn Mower Spare Parts

SKU: Makita DLM432 Condition: New
€7.02
VAT included

Makita DLM432 Cordless Lawn Mower Spare Parts

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower DLM432.
settings 80 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
80 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

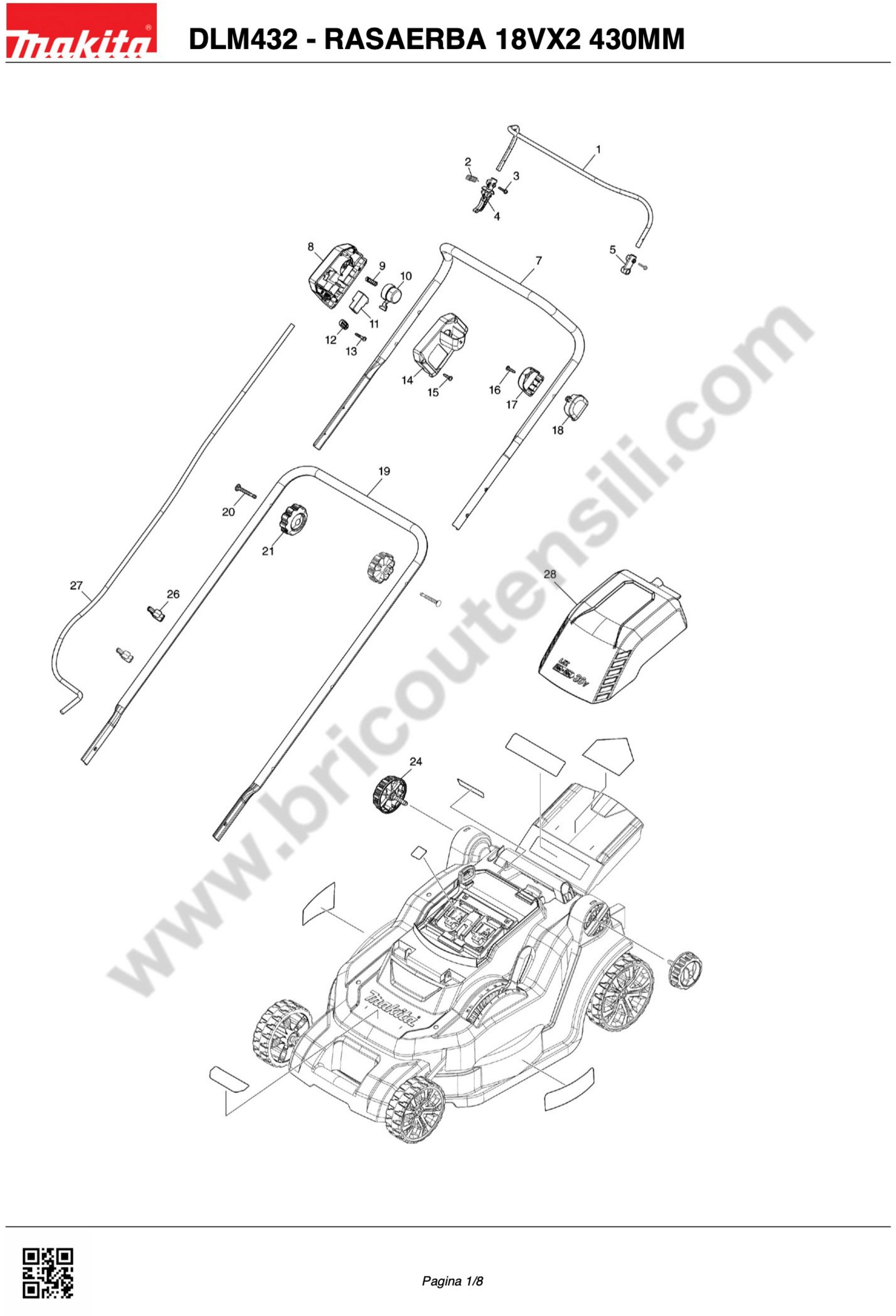

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 326636-0 SWITCH LEVER €6.82
2
 photo_cameraImage coming soon 231876-6 TENSION SPRING 9 €1.44
3
 photo_cameraImage coming soon 911536-3 SCREW M4X20 €2.86
4
 photo_cameraImage coming soon 455075-8 LEVER €1.44
5
 photo_cameraImage coming soon 455078-2 ARM €1.44
7
 photo_cameraImage coming soon 143510-5 UPPER PIPE COMPLETE €25.07
8
 photo_cameraImage coming soon 459804-1 SWITCH BOX €3.22
9
 photo_cameraImage coming soon 233068-3 COMPRESSION SPRING 6 €1.44
10
 photo_cameraImage coming soon 455074-0 SWITCH BUTTON €1.44
11
 photo_cameraImage coming soon 650730-9 SWITCH TG72BD-6 €22.12
12
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
13
 photo_cameraImage coming soon 265999-8 4X25 SCREW €1.47
14
 photo_cameraImage coming soon 140N15-0 SWITCH BOX COVER COMPLETE K €4.56
15
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
16
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
17
 photo_cameraImage coming soon 456352-1 SWITCH LEVER CASE COVER €2.77
18
 photo_cameraImage coming soon 456351-3 SWITCH LEVER CASE €2.77
19
 photo_cameraImage coming soon 326635-2 LOWER PIPE €25.07
20
 photo_cameraImage coming soon 265A14-4 CUP H. SQUARE NECK BOLT M6X50 €1.44
21
 photo_cameraImage coming soon 264070-5 THUMB NUT M6 €2.77
24
 photo_cameraImage coming soon 266729-0 THUMB SCREW M8X35 €3.95
26
 photo_cameraImage coming soon 459809-1 HOLDER €1.44
27
 photo_cameraImage coming soon 660393-3 POWER SUPPLY CORD €5.28
28
 photo_cameraImage coming soon 140N21-5 BATTERY COVER COMPLETE E €17.15
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

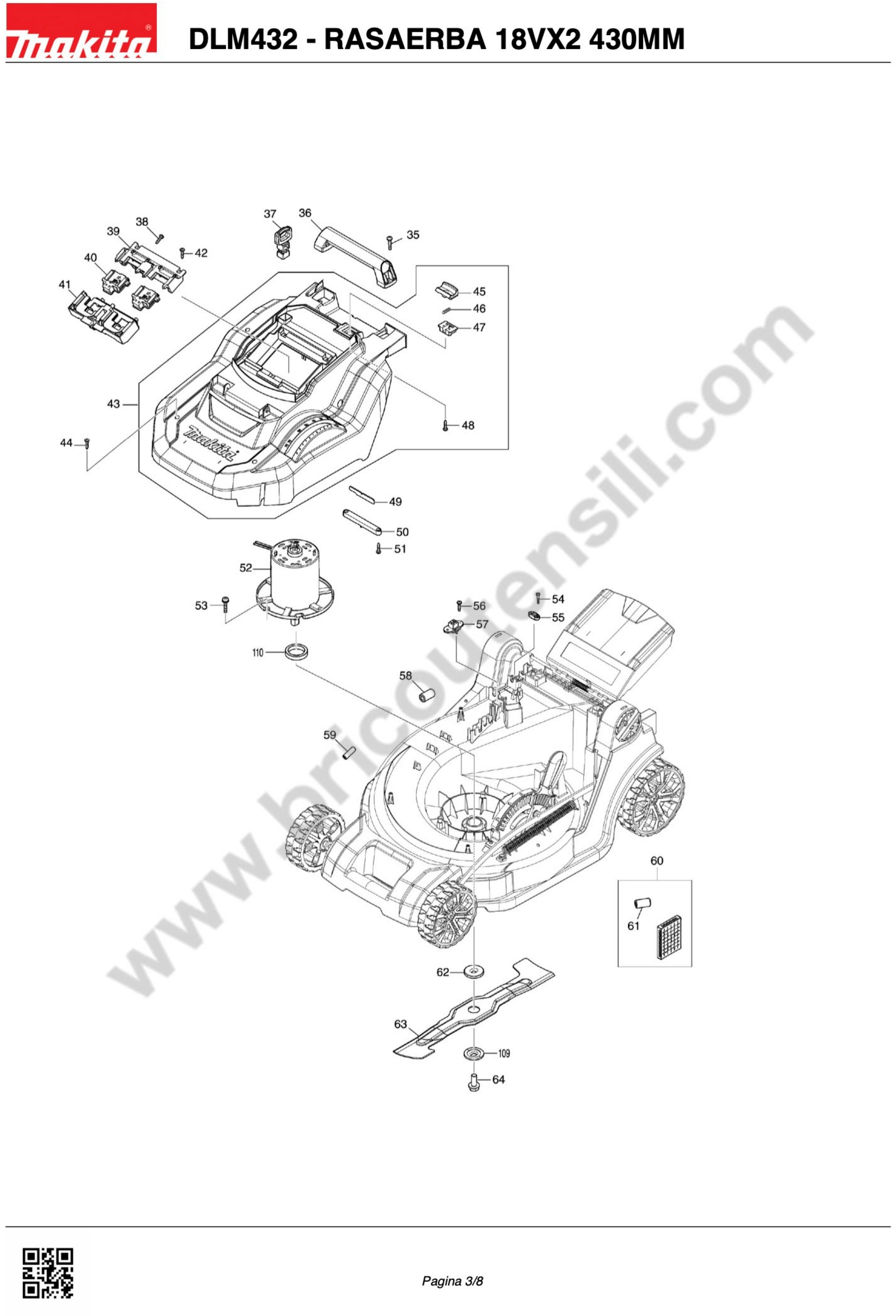

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
35
 photo_cameraImage coming soon 266459-3 SCREW 5x25 PC5000C €1.44
36
 photo_cameraImage coming soon 273675-0 GRIP A €6.11
37
 photo_cameraImage coming soon 643890-4 KEY €3.95
38
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
39
 photo_cameraImage coming soon 183N35-1 TERMINAL HOUSING SET €5.28
40
 photo_cameraImage coming soon 644809-6 TERMINAL X BLS713-BHP451 €6.11
41
 photo_cameraImage coming soon 183N35-1 TERMINAL HOUSING SET €5.28
42
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
43
 photo_cameraImage coming soon 127387-6 COWLING M ASSEMBLY €22.18
44
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
45
 photo_cameraImage coming soon 453250-0 LOCK LEVER €2.15
46
 photo_cameraImage coming soon 233173-6 SPRING FOR COMPR.4 UC3020A €1.47
47
 photo_cameraImage coming soon 453251-8 LOCK LEVER SUPPORT €2.15
48
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
49
 photo_cameraImage coming soon 620B91-3 LED CIRCUIT €7.80
50
 photo_cameraImage coming soon 455070-8 LED COVER €1.44
51
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
52
 photo_cameraImage coming soon 629A18-4 DC MOTOR €144.08
53
 photo_cameraImage coming soon 265672-0 PAN HEAD SCREW M6X35 WITH WR + €1.44
54
 photo_cameraImage coming soon 265999-8 4X25 SCREW €1.47
55
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
56
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
57
 photo_cameraImage coming soon 638946-6 LEAD UNIT €5.28
58
 photo_cameraImage coming soon 688162-0 FILTER LINE €2.77
59
 photo_cameraImage coming soon 688165-4 FILTER LINE X AH3655 €1.44
60
 photo_cameraImage coming soon 632P19-3 CONTROLLER UNIT €116.49
61
 photo_cameraImage coming soon 688162-0 FILTER LINE €2.77
62
 photo_cameraImage coming soon 224444-2 INNER FLANGE 40 €5.28
63
 photo_cameraImage coming soon 191D43-8 BLADE 430 SET €20.55
64
 photo_cameraImage coming soon 266731-3 HEX. BOLT M10X25 €2.15
109
 photo_cameraImage coming soon 224445-0 OUTER FLANGE 40 €6.11
110
 photo_cameraImage coming soon 688238-3 LINE FILTER €3.95
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

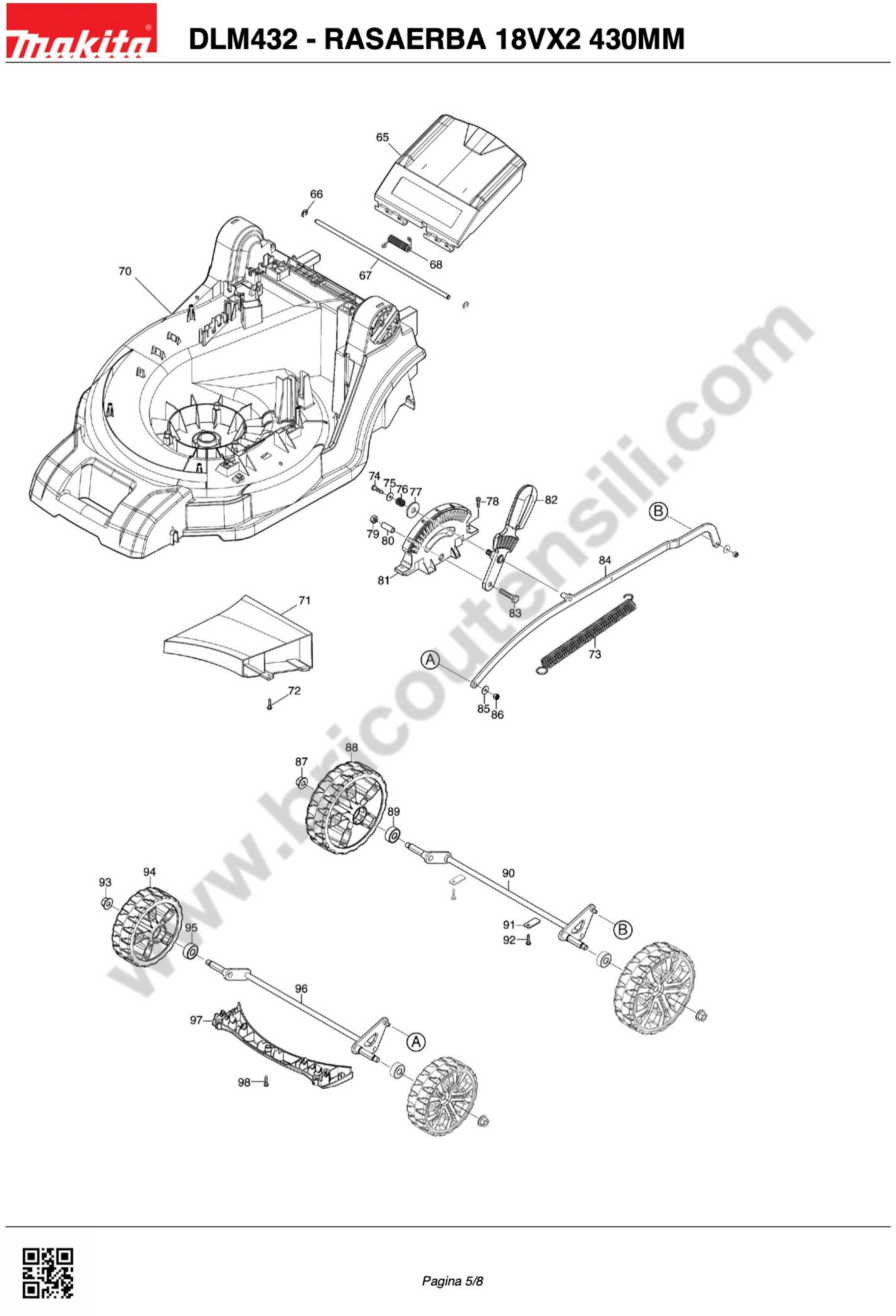

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
65
 photo_cameraImage coming soon 140S15-0 REAR FLAP COMPLETE €6.82
66
 photo_cameraImage coming soon LC961018-5 EXT E-RING JIS JE-5 €1.44
67
 photo_cameraImage coming soon 259067-7 ROD 6 €3.22
68
 photo_cameraImage coming soon LC233597-6 TORSION SPRING 8 €1.44
70
 photo_cameraImage coming soon 459780-9 DECK €78.10
71
 photo_cameraImage coming soon 412272-9 UNDER COVER €4.56
72
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
73
 photo_cameraImage coming soon LC231875-8 TENSION SPRING 16 €2.15
74
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
75
 photo_cameraImage coming soon LC267102A7 FLAT WASHER 4 €1.44
76
 photo_cameraImage coming soon LC231297-2 COMPRESSION SPRING 9 €1.44
77
 photo_cameraImage coming soon LC253808A3 FLAT WASHER 9 €1.44
78
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
79
 photo_cameraImage coming soon 252273-3 HEX FULL NUT M6 LF1000/DST111 €2.13
80
 photo_cameraImage coming soon LC257670A8 SLEEVE 6 €1.44
81
 photo_cameraImage coming soon 453255-0 ADJUST PLATE €8.75
82
 photo_cameraImage coming soon 459099-6 CHANGE LEVER €5.52
83
 photo_cameraImage coming soon LC921352-5 HEX.BOLT M6X30 €1.44
84
 photo_cameraImage coming soon 346543-1 CONNECTING ROD €25.07
85
 photo_cameraImage coming soon LC941101-4 FLAT WASHER 5 €1.44
86
 photo_cameraImage coming soon 252286-4 HEX. LOCK NUT M5-8 €1.44
87
 photo_cameraImage coming soon LC252145-2 COLLARED HEX. NUT M8 €1.44
88
 photo_cameraImage coming soon 459101-5 REAR WHEEL €19.54
90
 photo_cameraImage coming soon 165669-8 REAR SHAFT €25.07
91
 photo_cameraImage coming soon LC346545-7 PLATE €1.44
92
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
93
 photo_cameraImage coming soon LC252145-2 COLLARED HEX. NUT M8 €1.44
94
 photo_cameraImage coming soon 459100-7 FRONT WHEEL €19.54
96
 Makita DLM432 Front Shaft 165668-0 Makita DLM432 Front Shaft €20.13
97
 photo_cameraImage coming soon 456353-9 FRONT COVER €7.80
98
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

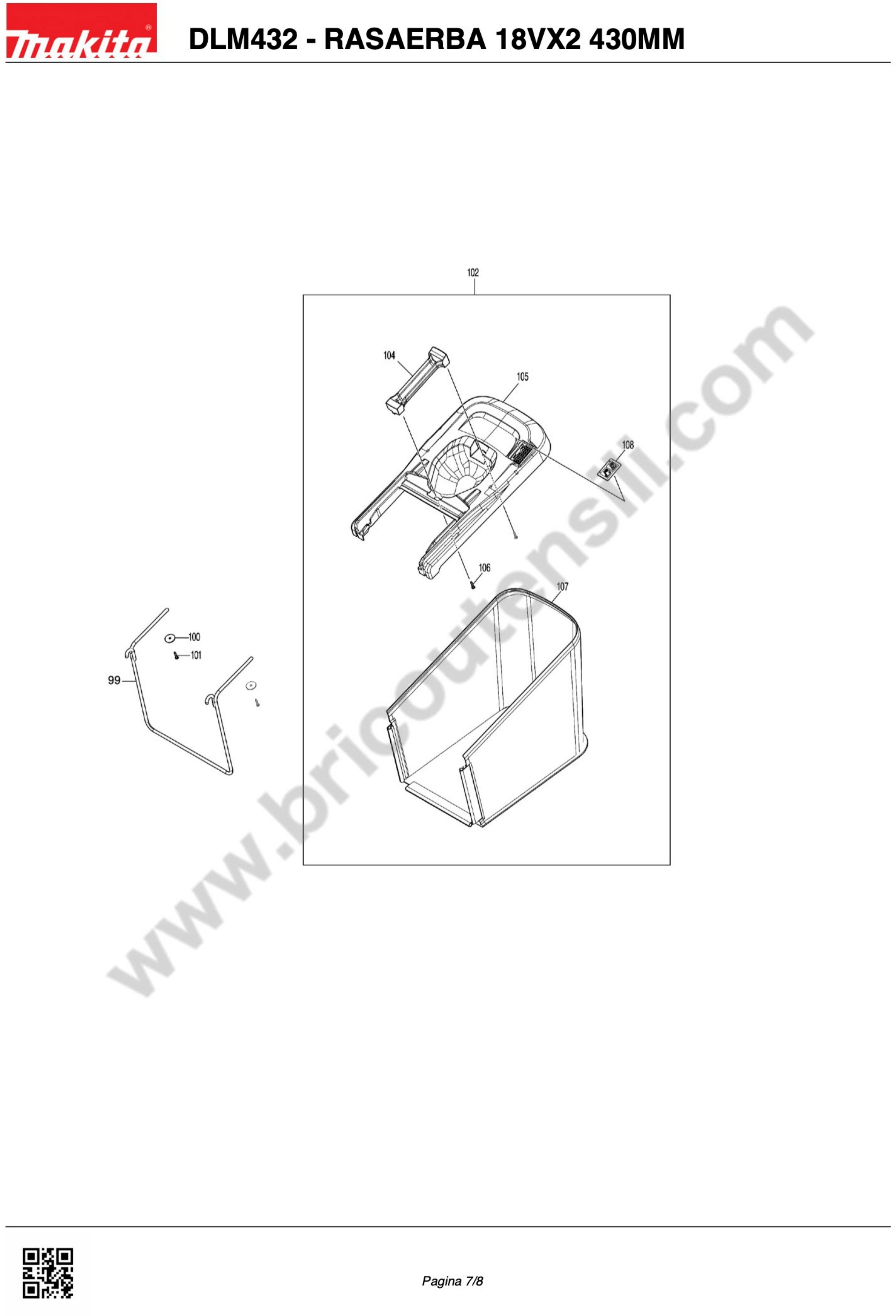

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A02B
 photo_cameraImage coming soon 196933-6 DC18RD TWO-PORT FAST CHARGER €301.05
A03B
 photo_cameraImage coming soon 197280-8 BATTERY BL1840B SET €251.58
A02B
 photo_cameraImage coming soon 197629-2 KITENERGY18VBL1850B5Ax2+DC18RD €634.14
A04B
 photo_cameraImage coming soon 197720-6 KITENERGY18VBL1830 3Ax4+DC18RD €566.01
99
 photo_cameraImage coming soon 327409-4 REAR BAG ROD €13.07
100
 photo_cameraImage coming soon 267438-4 FLAT WASHER 5 €1.44
101
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
102
 photo_cameraImage coming soon 127386-8 REAR BAG ASSEMBLY M €51.71
104
 photo_cameraImage coming soon 273676-8 GRIP B €3.22
106
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
107
 photo_cameraImage coming soon 162680-1 REAR BAG €25.07
108
 photo_cameraImage coming soon 459806-7 INDICATOR M €1.44
109
 photo_cameraImage coming soon 224445-0 OUTER FLANGE 40 €6.11
110
 photo_cameraImage coming soon 688238-3 LINE FILTER €3.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita DLM432 Cordless Lawn Mower Spare Parts

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower DLM432.

In the following table, look for the model of Lawn Mower and the respective parts of the code.
Makita DLM432
Makita DLM432 430MM CORDLESS LAWN MOWER Spare Parts Pag.1
# Part Num. Description
1 326636-0 SWITCH LEVER
2 231876-6 TENSION SPRING 9
3 911536-3 P.H.SCREW M4X20 WITH WR
4 455075-8 LEVER
5 455078-2 ARM
7 143510-5 UPPER PIPE COMPLETE
8 459804-1 SWITCH BOX
9 233068-3 COMPRESSION SPRING 6
10 455074-0 SWITCH BUTTON
11 650730-9 SWITCH TG72BD-6
12 687124-5 STRAIN RELIEF
13 265999-8 TAPPING SCREW 4X25
14 140N15-0 SWITCH BOX COVER COMPLETE K
15 265620-9 TAPPING SCREW 4X18
16 265620-9 TAPPING SCREW 4X18
17 456352-1 SWITCH LEVER CASE COVER
18 456351-3 SWITCH LEVER CASE
19 326635-2 LOWER PIPE
20 265A14-4 CUP H. SQUARE NECK BOLT M6X50
21 264070-5 THUMB NUT M6
24 266729-0 THUMB SCREW M8X35
26 459809-1 HOLDER
27 660393-3 POWER SUPPLY CORD
28 140N21-5 BATTERY COVER COMPLETE E
Makita DLM432 430MM CORDLESS LAWN MOWER Pag.2
35 266459-3 TAPPING SCREW 5X25
36 273675-0 GRIP A
37 643890-4 KEY
38 265620-9 TAPPING SCREW 4X18
39 183N35-1 TERMINAL HOUSING SET
40 644809-6 TERMINAL
41 183N35-1 TERMINAL HOUSING SET
42 265620-9 TAPPING SCREW 4X18
43 127387-6 COWLING M ASSEMBLY
44 265620-9 TAPPING SCREW 4X18
45 453250-0 LOCK LEVER
46 233173-6 COMPRESSION SPRING 4
47 453251-8 LOCK LEVER SUPPORT
48 265620-9 TAPPING SCREW 4X18
49 620B91-3 LED CIRCUIT
50 455070-8 LED COVER
51 265620-9 TAPPING SCREW 4X18
52 629A18-4 DC MOTOR
53 265672-0 PAN HEAD SCREW M6X35 WITH WR +
54 265999-8 TAPPING SCREW 4X25
55 687124-5 STRAIN RELIEF
56 265620-9 TAPPING SCREW 4X18
57 638946-6 LEAD UNIT
58 688162-0 FILTER LINE
59 688165-4 LINE FILTER X AH3655
60 632P19-3 CONTROLLER UNIT
61 688162-0 FILTER LINE
62 224444-2 INNER FLANGE 40
63 191D43-8 BLADE 430 SET
64 266731-3 HEX. BOLT M10X25
Makita DLM432 430MM CORDLESS LAWN MOWER Pag.3
65 140S15-0 REAR FLAP COMPLETE
66 LC961018-5 STOP RING (EXT) E-5
67 259067-7 ROD 6
68 LC233597-6 TORSION SPRING 8
70 459780-9 DECK
71 412272-9 UNDER COVER
72 265620-9 TAPPING SCREW 4X18
73 LC231875-8 TENSION SPRING 16
74 265620-9 TAPPING SCREW 4X18
75 LC267102A7 FLAT WASHER 4
76 LC231297-2 COMPRESSION SPRING 9
77 LC253808A3 FLAT WASHER 9
78 265620-9 TAPPING SCREW 4X18
79 252273-3 HEX. NUT M6
80 LC257670A8 SLEEVE 6
81 453255-0 ADJUST PLATE
82 459099-6 CHANGE LEVER
83 LC921352-5 HEX.BOLT M6X30
84 346543-1 CONNECTING ROD
85 LC941101-4 FLAT WASHER 5
86 252286-4 HEX. LOCK NUT M5-8
87 LC252145-2 COLLARED HEX. NUT M8
88 459101-5 REAR WHEEL
89 LC210070-3 BALL BEARING 6200ZZ
90 165669-8 REAR SHAFT
91 LC346545-7 PLATE
92 265620-9 TAPPING SCREW 4X18
93 LC252145-2 COLLARED HEX. NUT M8
94 459100-7 FRONT WHEEL
95 LC210070-3 BALL BEARING 6200ZZ
96 165668-0 FRONT SHAFT
97 456353-9 FRONT COVER
98 265620-9 TAPPING SCREW 4X18
Makita DLM432 430MM CORDLESS LAWN MOWER Pag.4
99 327409-4 REAR BAG ROD
100 267438-4 FLAT WASHER 5
101 265620-9 TAPPING SCREW 4X18
102 127386-8 REAR BAG ASSEMBLY M
104 273676-8 GRIP B
105 459807-5 REAR BAG COVER
106 265620-9 TAPPING SCREW 4X18
107 162680-1 REAR BAG
108 459806-7 INDICATOR M
109 224445-0 OUTER FLANGE 40
110 688238-3 LINE FILTER
A01 782210-8 SOCKET WRENCH 17
A02B 196933-6 DC18RD TWO PORT FAST CHARGER
A02B 197629-2 KITENERGY18VBL1850B5Ax2+DC18RD
A03B 197280-8 BATTERY BL1850B SET
A04B 197720-6 KITENERGY18VBL1830 3Ax4+DC18RD
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita DLM432
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita DLM432 Drawing

Makita DLM432 Drawing

Download (940.83KB)

You might also like

Makita DLM432 Front Shaft
Makita SKU: 165668-0
Makita DLM432 Front Shaft
Makita Front Shaft for Battery Lawnmower DLM432 Original Makita spare part, Front Shaft for Electric Lawnmower DLM432. Spare part compatible with the following products: - Makita Battery Lawn Mower DLM432 - Part Number: 165668-0
Usually Ships in: 7/10 Business Days Approx. €20.13
Details
Comments (0)
