Makita Parts for Engine Bruschcutter RBC525

SKU: Makita RBC525
€24.65
VAT included

Makita Spare Parts for Engine Bruschcutter RBC525

Makita original spare parts for to replace broken parts for to fix Engine Bruschcutter RBC525.

Fix Your Bruschcutter. All Spares can be supplied at low and discounted price. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Parts for Engine Bruschcutter RBC525
  • Makita Parts for Engine Bruschcutter RBC525
  • Makita Parts for Engine Bruschcutter RBC525 - Drawing
  • Makita Parts for Engine Bruschcutter RBC525 - Drawing 1
  • Makita Parts for Engine Bruschcutter RBC525 - Drawing 2
  • Makita Parts for Engine Bruschcutter RBC525 - Drawing 3
Makita

Makita Parts for Engine Bruschcutter RBC525

SKU: Makita RBC525 Condition: New
€24.65
VAT included

Makita Spare Parts for Engine Bruschcutter RBC525

Makita original spare parts for to replace broken parts for to fix Engine Bruschcutter RBC525.

Fix Your Bruschcutter. All Spares can be supplied at low and discounted price. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 161 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
161 spare parts

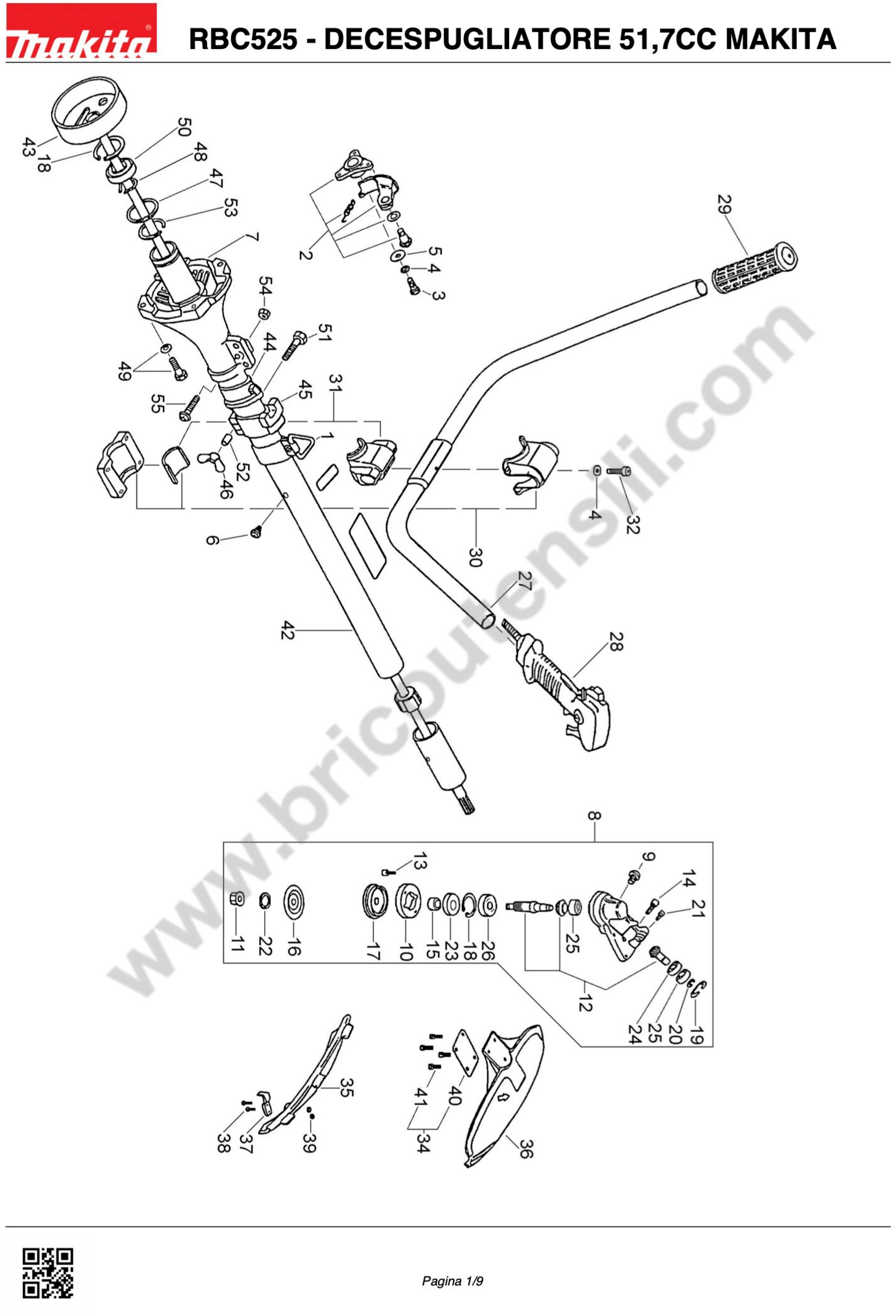

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6407006001 BAND ASSY RBC350/420E/525E €21.50
2
 photo_cameraImage coming soon 6412001001 COMPLETE CLUTCH RBK350 €65.24
3
 photo_cameraImage coming soon 6202500400 BOLT X RBC 410 / RBK410 €8.37
4
 photo_cameraImage coming soon 0032006000 ELASTIC WASHER X RBC / RBK410-G2400R €1.54
5
 photo_cameraImage coming soon 267429-5 WASHER 6 €1.54
6
 photo_cameraImage coming soon 6301500700 OIL BOLT RBC525 €1.86
8
 photo_cameraImage coming soon 6453011000 GEAR CASE ASSY RBC525 €396.00
9
 photo_cameraImage coming soon 6453011110 OIL BOLT RBC525 €1.86
10
 photo_cameraImage coming soon 6453011050 GUARD RBC525 €6.70
11
 photo_cameraImage coming soon 6453011060 NUT RBC525 €2.78
12
 photo_cameraImage coming soon 6453012000 CUTTER SHAFT SET RBC525 €136.84
13
 photo_cameraImage coming soon 6453011120 SOCKET HEAD BOLT M5X10 RBC525 €2.39
14
 photo_cameraImage coming soon 6453011130 SOCKET HEAD BOLT M5X15 RBC525 €2.39
15
 photo_cameraImage coming soon 6453011020 SPACER RBC525 €6.70
16
 photo_cameraImage coming soon 6453011040 CLAMP WASHER RBC525 €35.68
17
 photo_cameraImage coming soon 6453011030 RECEIVE WASHER RBC525 €66.95
18
 photo_cameraImage coming soon 0031435000 INTERNAL LOCK X RBC410 / 520 / RBK410 €3.23
19
 photo_cameraImage coming soon 0031428000 INNER SNAPRING X RBC410/520 €2.77
20
 Outer Snap Ring for Brushcutter Makita RBC221 0031512000 Outer Snap Ring for Brushcutter Makita RBC221 €2.00
21
 photo_cameraImage coming soon 266680-4 Socket Head Bolt M6X20 Rbc525 RBC525 €1.86
22
 photo_cameraImage coming soon 0203109990 SPRING WASHER M10 RBC525 €1.25
23
 photo_cameraImage coming soon 0440209910 OIL SEAL RBC525 €5.86
24
 photo_cameraImage coming soon 0600129920 BEARING MS5250 €12.34
25
 photo_cameraImage coming soon 0600129980 BALL BEARING 6001ZZ €21.54
26
 photo_cameraImage coming soon 0600159880 BALL BEARING 6202C3 X PB500R €8.74
27
 photo_cameraImage coming soon 6454500300 HANDLE RBC525 €75.16
28
 photo_cameraImage coming soon 6455004000 CONTROL LEVER ASSY RBC525 €123.48
29
 photo_cameraImage coming soon 6414501400 LEFT GRIP RBC520 €7.79
30
 photo_cameraImage coming soon 6454007000 HANDLE HOLDER ASSY RBC525 €75.16
31
 photo_cameraImage coming soon 6404018000 DAMPER ASSY RBC520 €33.68
32
 photo_cameraImage coming soon 0119069950 BOLT AND WASHER Em4340L RCB525 €1.86
34
 photo_cameraImage coming soon 6458006000 BOLT AND NUT SET RBC525 €11.22
35
 photo_cameraImage coming soon 6458005030 COVER RBC525 €16.77
36
 photo_cameraImage coming soon 6458005010 GUARD RBC525 €54.39
37
 photo_cameraImage coming soon 6458005040 BLADE RBC525 €25.00
38
 photo_cameraImage coming soon 6458005050 BOLT ASSY RBC525 €1.25
39
 photo_cameraImage coming soon 6458005060 NUT RBC525 €1.25
40
 photo_cameraImage coming soon 6458005020 FIXING PLATE RBC525 €3.40
41
 photo_cameraImage coming soon 6453011130 SOCKET HEAD BOLT M5X15 RBC525 €2.39
42
 photo_cameraImage coming soon 6401008002 SHAFT PIPE CPL X RBC525 €243.76
43
 photo_cameraImage coming soon 6401033000 SHAFT ASSY RBC525 €154.31
44
 photo_cameraImage coming soon 6411502101 CLAMP X RBC350-420 €23.25
45
 photo_cameraImage coming soon 318732-8 CLAMP X RBC525 €20.57
46
 photo_cameraImage coming soon 6411501300 KNOB X RBC350-RBC420 €8.11
47
 photo_cameraImage coming soon 6301501600 WASHER X RBC520 €3.23
48
 photo_cameraImage coming soon 0031517000 EXTERNAL LOCK X RBC 410 RBK410 €1.43
49
 photo_cameraImage coming soon 266668-4 Hex Socket Hd Bolt M6X18 Rbc4 €1.86
50
 photo_cameraImage coming soon 0600179850 BALL BEARING 6003DD X RBC / K 410 €18.98
51
 photo_cameraImage coming soon 0016706500 BOLT X RBC350-420 €2.00
52
 photo_cameraImage coming soon 0230069970 SPACER X RBC350-420 €4.23
54
 photo_cameraImage coming soon 0022706000 NUT M6 X PB500R €1.43
55
 photo_cameraImage coming soon 266667-6 Bolt M6X45 Rbc410/420E/525E RBC525 €1.25

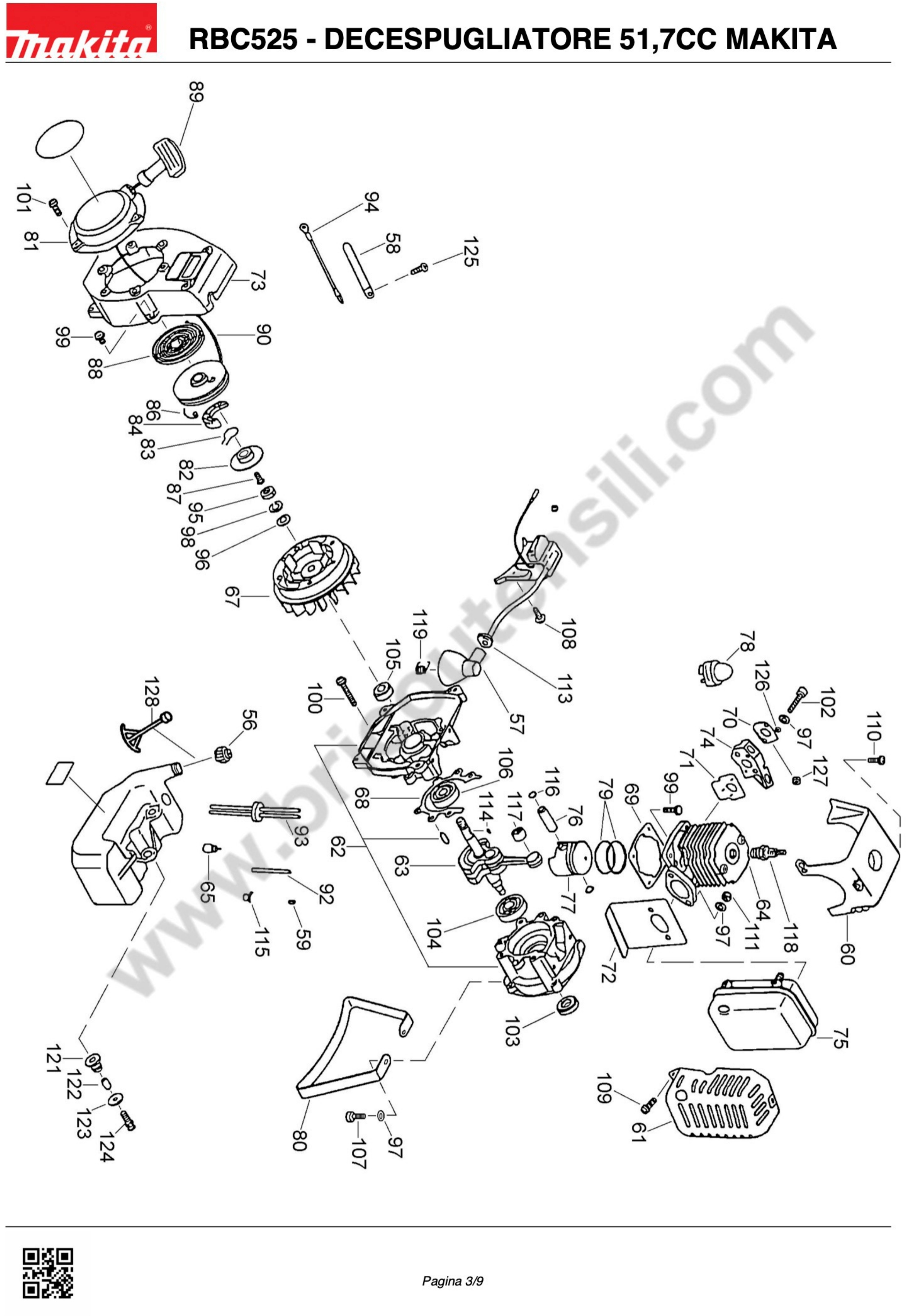

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
56
 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
57
 photo_cameraImage coming soon 5237503100 CAP PLUG RBC230 €14.71
58
 photo_cameraImage coming soon 0566059980 CLAMP X RBC525 €3.95
59
 photo_cameraImage coming soon 5806113050 CLIP RBC525 €2.78
60
 photo_cameraImage coming soon 5505008000 CYLINDER COVER CPL RBC525 €60.77
61
 photo_cameraImage coming soon 5503503900 MUFFLER COVER RBC525 €44.33
62
 photo_cameraImage coming soon 5501003001 CRANKCASE ASSY RBC525 RBC525 €277.48
63
 photo_cameraImage coming soon 5502005000 CRANKSHAFT CPL RBC525 €277.48
64
 photo_cameraImage coming soon 5501502500 CYLINDER X RBC525 €123.48
65
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
67
 photo_cameraImage coming soon 5507001010 FLYWHEEL RBC525 €199.10
68
 photo_cameraImage coming soon 5501500200 GASKET X RBC 520 €2.76
69
 photo_cameraImage coming soon 5501500400 GASKET X RBC520 €2.14
70
 photo_cameraImage coming soon 5503500501 GASKET MS5250 €1.43
71
 photo_cameraImage coming soon 5503504000 INSULATER GASKET X RBC525 €1.86
72
 photo_cameraImage coming soon 5503504200 MUFFLER GASKET X RBC525 €16.77
73
 photo_cameraImage coming soon 5505500001 BLOWER HOUSING RBC525 €66.95
74
 photo_cameraImage coming soon 5503504101 INSULATER RBC525 €21.50
75
 photo_cameraImage coming soon 5503016001 EXHAUST MUFFLER RBC525 €136.84
76
 photo_cameraImage coming soon 5602501100 PISTON PIN RBC520 €7.69
77
 photo_cameraImage coming soon 5502500400 PISTON X RBC520 €29.13
78
 Gasoline Primer Pump for Chainsaw Makita DCS230T 168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T €6.24
79
 photo_cameraImage coming soon 5602500900 PISTON RING X RBC520 €3.95
80
 photo_cameraImage coming soon 6455500100 STAND RBC520 €17.13
81
 photo_cameraImage coming soon 5505001000 REWIND STARTER RBC520 €33.68
82
 photo_cameraImage coming soon 5505001030 FRICTION PLATE €7.79
83
 photo_cameraImage coming soon 5105015050 CLUTCH SPRING X RBC 310/520 €7.79
84
 photo_cameraImage coming soon 5105015020 RATCHET RBC 310 / RBC520 €8.74
86
 photo_cameraImage coming soon 5105015060 RETURN SPRING X RBC310 / RBC520 €3.23
87
 photo_cameraImage coming soon 5105015110 SCREW X RBC260 / 230/520 €2.76
88
 photo_cameraImage coming soon 5505001020 SPIRAL SPRING X RBC520 €19.53
89
 photo_cameraImage coming soon 5305002110 STARTER KNOB X RBC260 / RBK41 €7.79
90
 photo_cameraImage coming soon 5505001050 STARTER ROPE RBC 520 €10.18
92
 photo_cameraImage coming soon 5506501700 TUBE X RBC525 €2.78
93
 photo_cameraImage coming soon 5506010000 TUBE ASSY RBC525 €7.51
94
 photo_cameraImage coming soon 6828011000 WIRE COMPLETE RBC525 €7.51
95
 photo_cameraImage coming soon 0022810000 NUT M10 XRBC520 €1.43
96
 photo_cameraImage coming soon 0031010000 WASHER X RBC520 / G.5500R €1.43
97
 photo_cameraImage coming soon 0032006000 ELASTIC WASHER X RBC / RBK410-G2400R €1.54
98
 photo_cameraImage coming soon 0032010000 SPRINGWASHER M10 G5501R/ RBC520 / G.5500R €1.43
99
 photo_cameraImage coming soon 0043506200 SCREW & WASHERASSY G5500/5501 RBC520-G5500R €1.43
101
 photo_cameraImage coming soon 0043706140 SCREW 5X14 X RBC520 €1.43
102
 photo_cameraImage coming soon 0119069850 SOCKET HEAD BOLT M6X25 RBC525 €1.86
103
 photo_cameraImage coming soon 0440179930 OIL SEAL X PB500R €5.20
104
 photo_cameraImage coming soon 0600179830 BALL BEARING 6203C3 X PB500R-RBC €23.94
105
 photo_cameraImage coming soon 213546-9 OIL SEAL X PB500R-RBC525 €5.90
106
 photo_cameraImage coming soon 0600159880 BALL BEARING 6202C3 X PB500R €8.74
107
 photo_cameraImage coming soon 0119069970 HEX SOCKET HEAD BOLT M6x12 RB RBC520 €1.43
108
 photo_cameraImage coming soon 0119059870 BOLT X RBC230 €2.89
109
 photo_cameraImage coming soon 0043705140 PAN HEAD SCREW M5X14 RBC 410 / RBK 410 €1.38
110
 photo_cameraImage coming soon 0043705200 PAN HEAD SCREW M5X20 RBC410 / RBK 410 M5X20 €1.43
111
 photo_cameraImage coming soon 0170069960 NUT €2.14
113
 photo_cameraImage coming soon 0241059970 GROMMET RBC525 €1.25
114
 photo_cameraImage coming soon 0323049950 WOODRUFF KEY €2.72
115
 photo_cameraImage coming soon 0561059990 HOSE CLAMP XRBC230-310 / 520 €1.89
116
 photo_cameraImage coming soon 233995-4 RING PISTON PIN €1.43
117
 photo_cameraImage coming soon 0610129961 NEEDLE ROLLER BEARING X RBC520 €11.39
118
 photo_cameraImage coming soon 0650149721-10 SPARK PLUG X RBK250 €154.28
119
 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U 324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U €1.62
121
 photo_cameraImage coming soon 5506500200 DAMPER RBC520 €2.14
122
 photo_cameraImage coming soon 0230069760 SPACER X RBC525 €2.39
123
 photo_cameraImage coming soon 0031206000 WASHER G.24 / 35-RBC225-255 €1.43
124
 photo_cameraImage coming soon 0043506250 SCREW AND WASHER ASSY RBC520-G5500 €1.43
125
 photo_cameraImage coming soon 0043504100 SCREW CPL G.2400R/5500R-3500R €1.25
126
 photo_cameraImage coming soon 0031006000 WASHER X RBC 410 / RBK410 G2400-5 €1.43
127
 photo_cameraImage coming soon 0022705000 NUT M5 X RBC230 / 310 / RBK410 €1.44
128
 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31

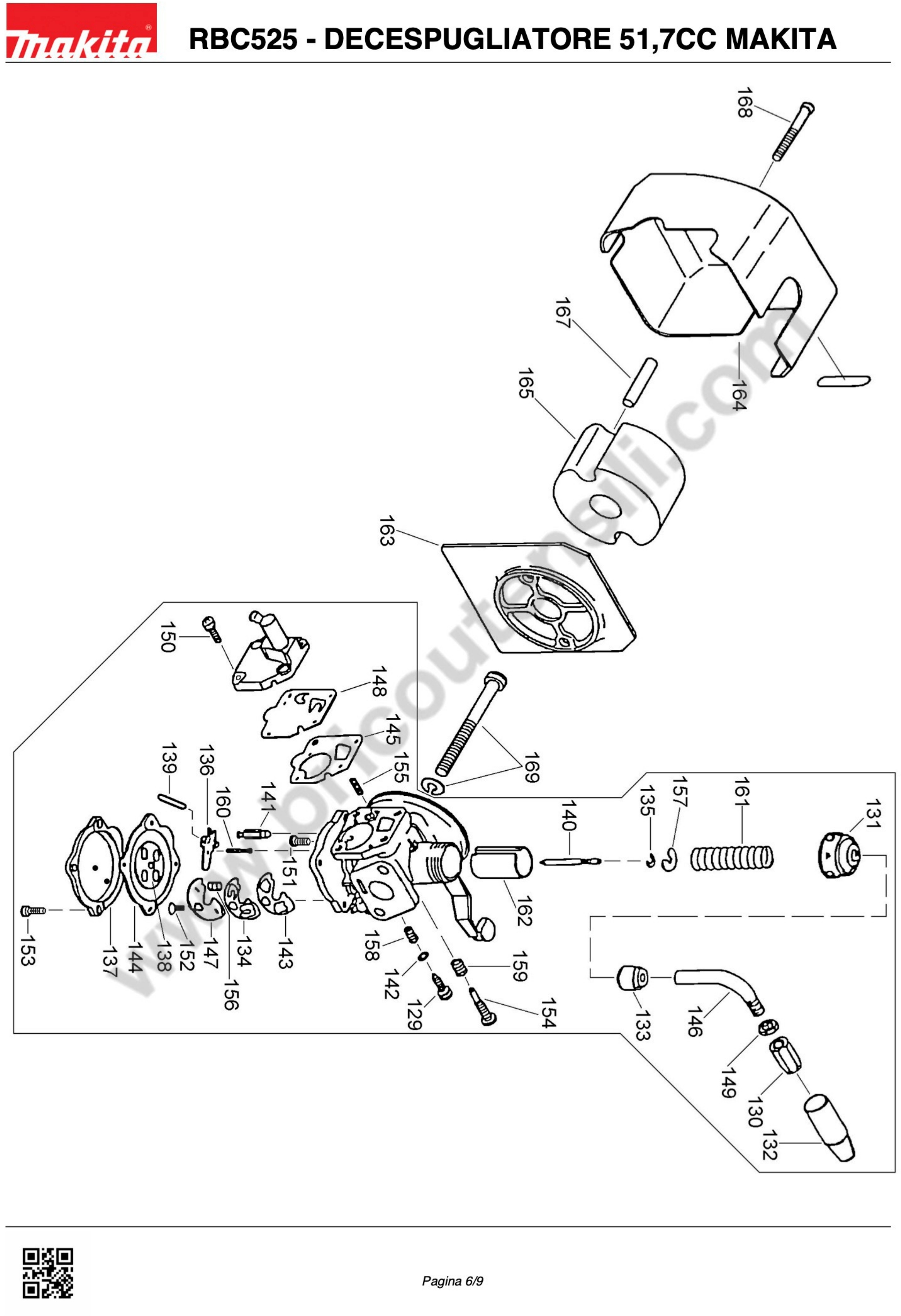

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
129
 photo_cameraImage coming soon 5506009040 MAIN ADJUST SCREW RBC525 €16.77
130
 photo_cameraImage coming soon 5426003030 ADJUSTER RBC525 €11.22
131
 photo_cameraImage coming soon 5426003010 CAP BODY RBC525 €31.58
132
 photo_cameraImage coming soon 5246004150 RUBBER PROTECTION X RBC525 €7.45
133
 photo_cameraImage coming soon 5246004010 RUBBER CAP RBC525 €4.54
134
 photo_cameraImage coming soon 5426003130 CHECK VALVE RBC525 RBC525 €14.71
135
 photo_cameraImage coming soon 5106048050 JET NEEDLE CLIP RBC525 €2.78
136
 photo_cameraImage coming soon 5106043150 CONTROL LEVER X RBC520 €3.95
137
 photo_cameraImage coming soon 5506001120 DIAPHRAGM COVER RBC525 RBC 520 €5.28
138
 photo_cameraImage coming soon 5426003050 DIAPHRAGM ASSY RBC525 €11.22
139
 photo_cameraImage coming soon 5106043130 HINGE PIN RBC525 RBC520 €2.14
140
 photo_cameraImage coming soon 5506009010 NEEDLE JET RBC525 €28.90
141
 photo_cameraImage coming soon 5426003220 NEEDLE VALVE RBC525 €9.79
142
 photo_cameraImage coming soon 5106042060 O RING RBC525 RBC520 €1.43
143
 photo_cameraImage coming soon 5246005222 PACKING RBC525 €9.79
144
 photo_cameraImage coming soon 5506001040 DIAPHRAGM PACKING RBC525 RBC520 €3.23
145
 photo_cameraImage coming soon 5106042310 PUMP PACKING RBC525 RBC520 €2.76
146
 photo_cameraImage coming soon 5246004320 ADJUSTER PIPE RBC525 €16.77
147
 photo_cameraImage coming soon 5426003140 PLATE X RBC525 €16.77
148
 photo_cameraImage coming soon 5426003060 PUMP DIAPHRAGM X RBC525 €4.54
149
 photo_cameraImage coming soon 5426003020 ROCK NUT RBC525 €4.54
150
 photo_cameraImage coming soon 5106041220 SCREW M3X10 X RBC525 €1.25
151
 photo_cameraImage coming soon 5106043360 SCREW M3X6 X RBC525 €1.25
152
 photo_cameraImage coming soon 5426003150 SCREW M3X5 X RBC525 €2.39
153
 photo_cameraImage coming soon 5426003160 SCREW M3X8 X RBC525 €1.86
154
 photo_cameraImage coming soon 5106048230 STOP SCREW X RBC520 €10.18
155
 photo_cameraImage coming soon 5106042150 SPRING RBC525 €1.25
156
 photo_cameraImage coming soon 5426003210 SPRING X RBC525 €3.40
157
 photo_cameraImage coming soon 5506001060 SPRING RECEIVE RBC525 €1.86
158
 photo_cameraImage coming soon 5106042120 ADJUST SPRING RBC520 €2.14
159
 photo_cameraImage coming soon 5106048240 ADJUST SCREW SPRING RBC525 RBC520 €2.14
160
 photo_cameraImage coming soon 5426003230 NEEDLE SPRING VALVE RBC525 €5.25
161
 photo_cameraImage coming soon 5506009020 THROTTLE SPRING RBC525 €2.39
162
 photo_cameraImage coming soon 5506001050 THROTTLE VALVE ASSY RBC525 €35.68
163
 photo_cameraImage coming soon 5503500400 LEAD HOLDER RBC525 €4.54
164
 photo_cameraImage coming soon 5503500300 AIR CLEANER COVER RBC525 €8.74
165
 photo_cameraImage coming soon 5103502700 SPONGE ELEMENT X RBC520 €5.28
167
 photo_cameraImage coming soon 0230049980 SPACER RBC525 RBC 520 €1.43
168
 photo_cameraImage coming soon 0043104300 SCREW M4X30 X RBC520 €1.43

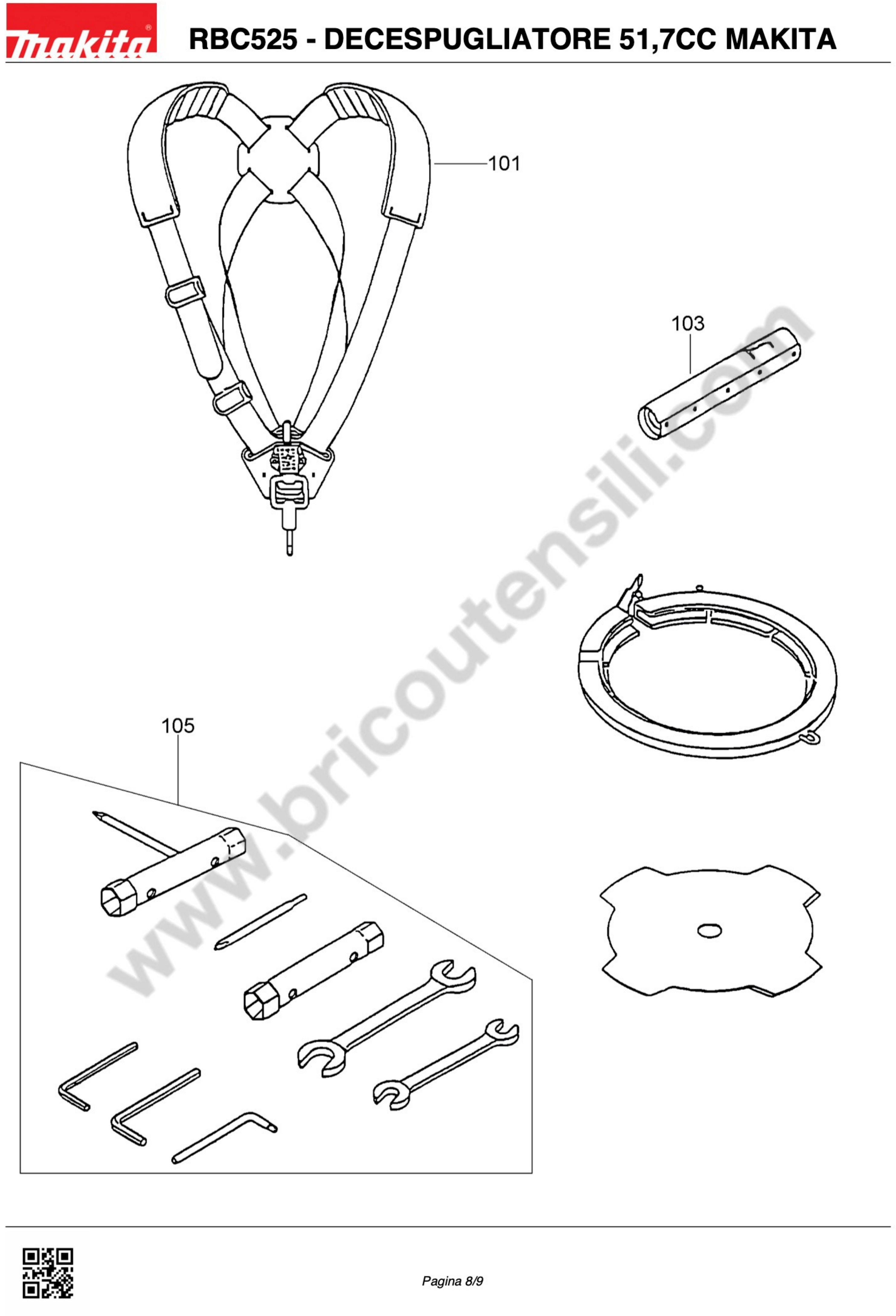

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
101
 photo_cameraImage coming soon 6417015003 HARNESS CPL FOR RBC420E €81.27
103
 photo_cameraImage coming soon 168676-0 GUARD RBC260/310/225/25 €16.17
105
 photo_cameraImage coming soon 6459020001 TOOL SET MS5250 €28.66
501
 photo_cameraImage coming soon 6418500700 CUTTER COVER RBC230/260/310 €10.89
502
 photo_cameraImage coming soon B-01884 STAR BLADE 255-4T €11.78
503
 photo_cameraImage coming soon B-14124 STAR BLADE 255X4TX25.4 €17.74

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Engine Bruschcutter RBC525

Fix Your Engine Bruschcutter RBC525. All Spares can be supplied at low and discounted price. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
Engine Bruschcutter RBC525

RBC525 Petrol String Brush Cutter Spare Parts Pag.1
Pos. Codice Description
1 6407006001 Band Assy Rbc350/420E/525E
2 6412001001 CLUTCH ASSY RBK350
3 6202500400 Bolt M6X14 Rbc410/420E/525E
4 0032006000 SPRING WASHER M6 RBC/RBK410-G2400R
5 267429-5 WASHER 6
6 6301500700 OIL BOLT RBC525
7 6351500000 CLUTCH CASE RBC525
8 6453011000 CLUTCH CASE ASSY RBC525
9 6453011110 OIL BOLT RBC525
10 6453011050 GUARD RBC525
11 6453011060 NUT RBC525
12 6453012000 CUTTER SHAFT SET RBC525
13 6453011120 Socket Head Bolt M5X10 Rbc525
14 6453011130 Socket Head Bolt M5X15 Rbc525
15 6453011020 SPACER RBC525
16 6453011040 CLAMP WASHER RBC525
17 6453011030 RECIEVE WASHER RBC525
18 0031435000 Inner Snap Ring Rbc410/Rbc420 RBC410/520/RBK410
19 0031428000 INNER SNAPRING RBC410/520
20 0031512000 OUTER SNAPRING RBC260/520RBK410
21 266680-4 Socket Head Bolt M6X20 Rbc525 RBC525
22 0203109990 SPRING WASHER RBC525
23 0440209910 OIL SEAL RBC525
24 0600129920 BALL BEARING 6001 C3 MS5250
25 0600129980 BALL BEARING 6001ZZ
26 0600159880 BALL BEARING 6202C3 PB500R
27 6454500300 HANDLE RBC525
28 6455004000 CONTROL LEVER ASSY RBC525
29 6414501400 LEFT GRIP RBC520
30 6454007000 HANDLE HOLDER ASSY RBC525
31 6404018000 DAMPER ASSY RBC520
32 0119069950 BOLT AND WASHER Em4340L RCB525
34 6458006000 BOLT AND NUT SET RBC525 BOLTS
35 6458005030 COVER RBC525
36 6458005010 GUARD RBC525
37 6458005040 WIRE CUTTER BLADE RBC525
38 6458005050 BOLT ASSY RBC525
39 6458005060 NUT RBC525
40 6458005020 FIXING PLATE RBC525
41 6453011130 Socket Head Bolt M5X15 Rbc525
42 6401008002 SHAFT PIPE COMP. RBC525
43 6401033000 INNER SHAFT ASSY RBC525
44 6411502101 STOPPER RBC350-420
45 318732-8 STOPPER RBC525
46 6411501300 WING NUT RBC350-RBC420
47 6301501600 WASHER RBC520
48 0031517000 OUTER SNAP RING RBC 410 RBK410
49 266668-4 Hex Socket Hd Bolt M6X18 Rbc4
50 0600179850 BALL BEARING 6003DD RBC/K 410
51 0016706500 BOLT RBC350-420
52 0230069970 SPACER RBC350-420
54 0022706000 NUT M6 PB500R
55 266667-6 Bolt M6X45 Rbc410/420E/525E RBC525
RBC525 Petrol String Brush Cutter Spare Parts Pag.2
56 452920-8 FUEL TANK CAP
57 5237503100 CAP PLUG RBC230
58 0566059980 CLAMP RBC525
59 5806113050 CLIP RBC525
60 5505008000 CYLINDER COVER CPL RBC525
61 5503503900 MUFFLER COVER RBC525
62 5501003001 CRANKCASE ASSY RBC525
63 5502005000 CRANKSHAFT CPL RBC525
64 5501502500 CYLINDER RBC525
65 163447-0 FUEL FILTER DCS230T
67 5507001010 FLYWHEEL RBC520
68 5501500200 GASKET RBC 520
69 5501500400 GASKET RBC520
70 5503500501 GASKET MS5250
71 5503504000 INSULATER GASKET RBC525
72 5503504200 MUFFLER GASKET RBC525
73 5505500001 BLOWER HOUSING RBC525
74 5503504101 INSULATER RBC525
75 5503016001 EXHAUST MUFFLER RBC525
76 5602501100 PISTON PIN RBC520
77 5502500400 PISTON RBC520
78 168398-2 PRIMER PUMP DCS230T
79 5602500900 PISTON RING RBC520
80 6455500100 STAND RBC520
81 5505001000 REWIND STARTER RBC520
82 5505001030 FRICTION PLATE RBC 310/RBC520
83 5105015050 FRICTION SPRING RBC 310/520
84 5105015020 RATCHET RBC 310/RBC520
86 5105015060 SPRING RETURN RBC310/RBC520
87 5105015110 SCREW RBC260/230/520
88 5505001020 SPIRAL SPRING RBC520
89 5305002110 STARTER KNOB RBC260/RBK41
90 5505001050 STARTER ROPE RBC 520
91 5506501603 FUEL TANK
92 5506501700 TUBE RBC525
93 5506010000 TUBE ASSY RBC525
94 6828011000 WIRE COMPLETE RBC525
95 0022810000 NUT M10 RBC520
96 0031010000 WASHER M10 RBC520/G.5500R
97 0032006000 SPRING WASHER M6 RBC/RBK410-G2400R
98 0032010000 SPRING WASHER M10 RBC520/G.5500R
99 0043506200 SCREW AND WASHER ASSY RBC520-G5500R
100 265A19-4 SCREW M6X40
101 0043706140 SCREW 5X14 RBC520
102 0119069850 BOLT AND WASHER M6X25 RBC525
103 0440179930 OIL SEAL PB500R
104 0600179830 BALL BEARING 6203C3 PB500R-RBC
105 213546-9 OIL SEAL PB500R-RBC525
106 0600159880 BALL BEARING 6202C3 PB500R
107 0119069970 Hex Socket Head Bolt M6X12 Rb RBC520
108 0119059870 Socket Head Bolt M5X18 Ptr2500Rbc3101
109 0043705140 Pan Head Screw M5X14 RBC 410/RBK 410
110 0043705200 Pan Head Screw M5X20 Rbc410/RBK 410 M520
111 0170069960 NUT RBC520
113 0241059970 GROMMET RBC525
114 0323049950 Woodruff Key Rbc525/Bbx7600 RBC525
115 0561059990 HOSE CLAMP BC230-310/520
116 233995-4 CLIP RBC525
117 0610129961 NEEDLE ROLLER BEARING RBC520
118 0650149721-10 SPAK PLUG RBK250
119 324891-8 SPARK PLUG CAP SPRING EBH341
121 5506500200 DAMPER RBC520
122 0230069760 SPACER RBC525
123 0031206000 WASHER G.24/35-RBC225-255
124 0043506250 SCREW AND WASHER RBC520-G5500
125 0043504100 SCREW CPL G.2400R/5500R-3500R
126 0031006000 WASHER RBC 410 /RBK410 G2400-5
127 0022705000 NUT M5 RBC230/310/RBK410
128 140436-2 STRAP COMPLETE EBH341U
RBC525 Petrol String Brush Cutter Spare Parts Pag.3
129 5506009040 MAIN ADJUST SCREW RBC525 ADJUSTMENT
130 5426003030 ADJUSTER RBC525
131 5426003010 CAP BODY RBC525
132 5246004150 CAP RBC525
133 5246004010 RUBBER CAP RBC525
134 5426003130 CHECK VALVE RBC525
135 5106048050 JET NEEDLE CLIP RBC525
136 5106043150 CONTROL LEVER RBC520
137 5506001120 DIAPHRAGM COVER RBC525   RBC 520
138 5426003050 DIAPHRAGM ASSY RBC525
139 5106043130 HINGE PIN RBC525 RBC520
140 5506009010 NEEDLE JET RBC525
141 5426003220 NEEDLE VALVE RBC525
142 5106042060 O-RING RBC520
143 5246005222 PACKING RBC525
144 5506001040 DIAPHRAGM PACKING RBC525 RBC520
145 5106042310 PUMP PACKING RBC525   RBC520
146 5246004320 ADJUSTER PIPE RBC525
147 5426003140 PLATE RBC525
148 5426003060 PUMP DIAPHRAGM RBC525
149 5426003020 ROCK NUT RBC525
150 5106041220 SCREW M3X10 RBC525
151 5106043360 SCREW M3X6 RBC525
152 5426003150 SCREW M3X5 RBC525
153 5426003160 SCREW M3X8 RBC525
154 5106048230 STOP SCREW RBC520
155 5106042150 SPRING RBC525
156 5426003210 SPRING RBC525
157 5506001060 SPRING RECIEVE RBC525
158 5106042120 ADJUST SPRING RBC520
159 5106048240 ADJUST SCREW RBC520
160 5426003230 NEEDLE SPRING VALVE RBC525
161 5506009020 THROTTLE SPRING RBC525
162 5506001050 THROTTLE VALVE ASSY RBC525
163 5503500400 LEAD HOLDER RBC525
164 5503500300 AIRCLEANER COVER RBC525
165 5103502700 ELEMENT RBC520
167 0230049980 SPACER RBC 520
168 0043104300 SCREW M4X30 RBC520
169 0043505450 SCREW ASSY RBC525
RBC525 Petrol String Brush Cutter Spare Parts Pag.4
101 6417015003 BAND ASSY MS3200/RBC280/420E
103 168676-0 GUARD RBC260/310/225/25
105 6459020001 TOOL SET MS5250
501 6418500700 CUTTER COVER RBC230/260/310
502 B-01884 Star Blade 255mm x 25.4mm 4 Teeth
503 B-14124 STAR BLADE 255X4TX25.4
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBC525
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita RBC525 Drawing

Makita RBC525 Drawing

Download (1.03MB)

You might also like

Carburator Hose Grommet for Brushcutter Dolmar MS-27C
Makita SKU: DA00000118
Carburator Hose Grommet for Brushcutter Dolmar MS-27C
Carburator Hose Grommet for Brushcutter Dolmar MS-27C Genuine parts Dolmar, Carburator Hose Grommet for Brushcutter MS-27C - Makita EM2600L Part for the following products: -  MS-27C - BRUSHCUTTER 25,7CC DOLMAR -  EM2600L -...
AVAILABLE €2.37
Details
3 Teeth Blade for Brushcutter Makita RBC310
Makita SKU: P-47385
3 Teeth Blade for Brushcutter Makita RBC310
3 Teeth Blade for Brushcutter Makita RBC310 Genuine spare part Makita, 3 Teeth Blade (255X1.4X25.4)MM for Brushcutters RBC2501 - RBC2511 - RBC3200 - RBC3210 - Dolmar MS254C - MS254U - MS3201C - MS3201U Part for the following products:...
AVAILABLE €14.78
Details
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Details
Fuel Hose for Brushcutter Makita RBC421
Makita SKU: 168766-9
Fuel Hose for Brushcutter Makita RBC421
Fuel Hose for Brushcutter Makita RBC421 Genuine replacement part Makita, Fuel Hose for Brushcutters RBC421 - RBC421L - MS3500 - MS3510 - MS4200 - MS4200E. Part for the following products: - MS3500 - BRUSHCUTTER 34,4CC DOLMAR - MS3510...
AVAILABLE €5.95
Details
Electronic Coil for Brushcutter Makita RBC421
Makita SKU: 168587-9
Electronic Coil for Brushcutter Makita RBC421
Electronic Coil for Brushcutter Makita RBC421 Genuine replacement part Makita, Electronic Coil for Brushcutters RBC350 - RBC351 - RBC410 - RBC420 - RBC421 - RBC421L - MS3500...
Last items in stock €24.50
Details
Piston for Brushcutter Makita RBC410 Sale
Makita SKU: 318631-4
Piston for Brushcutter Makita RBC410
Piston for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC - RBC420 -...
Out-of-Stock €28.32
Details
Cylinder for Brushcutter Makita RBC410
Makita SKU: 318630-6
Cylinder for Brushcutter Makita RBC410
Cylinder for Brushcutter Makita RBC410 Genuine replacement part Makita, Cylinder for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - DECESPUGLIATORE 40,2CC -...
Last items in stock €66.15
Details
Piston Ring for Brushcutter Makita RBC410 Sale
Makita SKU: 257309-3
Piston Ring for Brushcutter Makita RBC410
Piston Ring for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Ring for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC -...
Last items in stock €5.15
Details
Piston Pin for Brushcutter Makita RBC410 Sale
Makita SKU: 257797-4
Piston Pin for Brushcutter Makita RBC410
Piston Pin for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Pin for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC -...
AVAILABLE €3.65
Details
Piston Pin Circlip for Brushcutter Makita RBC410
Makita SKU: 233983-1
Piston Pin Circlip for Brushcutter Makita RBC410
Piston Pin Circlip for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Pin Circlip for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 -...
AVAILABLE €1.55
Details
Cylinder Gasket for Brushcutter Makita RBC410
Makita SKU: 442156-7
Cylinder Gasket for Brushcutter Makita RBC410
Cylinder Gasket for Brushcutter Makita RBC410 Genuine replacement part Makita, Cylinder Gasket for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 -...
Last items in stock €3.48
Details
Clutch Ass'y for Brushcutter Dolmar MS4210
Makita SKU: 140897-6
Clutch Ass'y for Brushcutter Dolmar MS4210
Clutch Ass'y for Brushcutter Dolmar MS4210 Genuine replacement part Dolmar, Clutch Ass'y for Brushcutters MS3500 - MS3510 - MS4200 - MS4210 - MS4211 - MS5250E. Part for the following products: -  MS4200 - BRUSHCUTTER 40,2CC DOLMAR -...
on 10 Business Days Approx €110.29
Details
Screw Ass'y M5x40 for Brushcutter Dolmar MS22C
Makita SKU: 0140059380
Screw Ass'y M5x40 for Brushcutter Dolmar MS22C
Screw Ass'y M5x40 for Brushcutter Dolmar MS22C Genuine replacement part Dolmar, Screw Ass'y M5x40 for Brushcutters MS22C - Makita RBC2110 - DBC260L Part for the following products: -  MS22C -...
Usually Ships in: 7/10 Business Days Approx. €1.46
Details
Comments (0)
