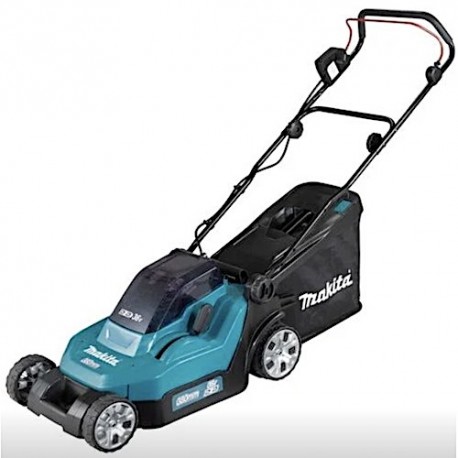

Makita Spare Parts for Lawn Mower ELM4120

SKU: Makita ELM4120
€43.46
VAT included

Makita Spare Parts for Lawn Mower ELM4120

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Lawn Mower ELM4120.

Makita Spare Parts for Lawn Mower ELM4120
  • Makita Spare Parts for Lawn Mower ELM4120
  • Makita Spare Parts for Lawn Mower ELM4120 - Drawing
  • Makita Spare Parts for Lawn Mower ELM4120 - Drawing 1
  • Makita Spare Parts for Lawn Mower ELM4120 - Drawing 2
Makita

Makita Spare Parts for Lawn Mower ELM4120

SKU: Makita ELM4120 Condition: New
€43.46
VAT included

Makita Spare Parts for Lawn Mower ELM4120

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Lawn Mower ELM4120.

settings 96 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
96 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon YA00001157 UPPER HANDLE BAR ASSY €43.46
2
 photo_cameraImage coming soon YA00001182 SPONGE GRIP €4.30
3
 photo_cameraImage coming soon YA00001158 SWITCH LEVER €7.35
4
 photo_cameraImage coming soon YA00000765 SWITCH BOX RIGHT €2.69
5
 photo_cameraImage coming soon YA00000766 SWITCH LINK BUTTON €1.40
6
 photo_cameraImage coming soon YA00000767 COMPRESSION SPRING 16.8 €1.40
7
 photo_cameraImage coming soon YA00000768 SWITCH LEVER END CAP RIGHT €2.09
8
 photo_cameraImage coming soon 652024721 SELF DRILLING SCREW 3.5X10 €1.40
9
 photo_cameraImage coming soon YA00000769 SWITCH TORSION SPRING 21 €1.40
10
 photo_cameraImage coming soon YA00000778 SELF TAPPING SCREW ST4X16 €1.40
11
 photo_cameraImage coming soon YA00000780 CORD CLAMP €1.40
12
 photo_cameraImage coming soon YA00000914 POWER SUPPLY CORD ASSY €7.58
15
 photo_cameraImage coming soon YA00000773 POWER SUPPLY CORD ASSY (EURO) €18.98
16
 photo_cameraImage coming soon YA00000781 INDICATOR LENZ €1.40
17
 photo_cameraImage coming soon YA00000772 SWITCH €4.43
19
 photo_cameraImage coming soon YA00000782 SWITCH BOX LEFT €2.69
21
 photo_cameraImage coming soon 652023795 SPRING BOX RIGHT €3.13
23
 photo_cameraImage coming soon 652023794 SWITCH LEVER END LEFT €1.40
24
 photo_cameraImage coming soon YA00000737 TORSION SPRING €2.09
25
 photo_cameraImage coming soon 652023793 SPRING BOX LEFT €3.13
27
 photo_cameraImage coming soon YA00000785 SELF TAPPING SCREW ST4X25 €1.40
28
 photo_cameraImage coming soon YA00000921 CABLE CLIP €1.40
29
 photo_cameraImage coming soon YA00000923 TENSI0N LEVER ASSY €5.75
30
 photo_cameraImage coming soon YA00000922 LOWER HANDLE €18.39
31
 photo_cameraImage coming soon YA00000802 HEX.FRANGE CAP NUT M6 €1.40
32
 photo_cameraImage coming soon YA00000803 M8 KNOB €2.09
33
 photo_cameraImage coming soon YA00000420 WASHER €1.40
34
 photo_cameraImage coming soon YA00000924 ANGLE ADJUSTMENT JOINT UPPER €3.04
35
 photo_cameraImage coming soon YA00000806 SELF TAPPING SCREW ST5X20 €1.40
36
 photo_cameraImage coming soon YA00000875 ANGLE ADJUSTMENT JOINT LOWER R €3.04
37
 photo_cameraImage coming soon YA00000807 HEX BOLT M8X65 €1.36
38
 photo_cameraImage coming soon YA00000876 ANGLE ADJUSTMENT JOINT LOWER L €3.04
40
 photo_cameraImage coming soon YA00000939 REAR FLAP BULE €8.23
41
 photo_cameraImage coming soon YA00000938 REAR FLAP HINGE ROD €2.02
42
 photo_cameraImage coming soon YA00000831 REAR FLAP TORSION SPRING 7.7 €1.36
43
 photo_cameraImage coming soon YA00000821 SELF TAPPING SCREW ST4X16 €1.36
44
 photo_cameraImage coming soon YA00000941 TOP COVER €7.35
45
 photo_cameraImage coming soon YA00000848 HIGHT ADJUST GRIP €3.72
46
 photo_cameraImage coming soon YA00000849 PAN HEAD SCREW M4X10 €1.36
47
 photo_cameraImage coming soon YA00000398 SCREW M5x14 €1.38
48
 photo_cameraImage coming soon YA00000942 HEIGHT ADJUSTER STOP PLATE €3.04
49
 photo_cameraImage coming soon YA00000943 STOP PLATE RUBBER SHEET €3.04
50
 photo_cameraImage coming soon YA00000837 NYLON INSERT HEX LOCK NUT M5 €1.36
51
 photo_cameraImage coming soon YA00000944 HOUSING ASSY BULE €34.66
52
 photo_cameraImage coming soon YA00000946 SPONGE CUSHION €1.36
53
 photo_cameraImage coming soon YA00000948 SPONGE CUSHION €1.36
54
 photo_cameraImage coming soon YA00000947 SPONGE CUSHION €2.61
57
 photo_cameraImage coming soon YA00000820 SELF TAPPING SCREW ST5X16 €1.40
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon YA00000780 CORD CLAMP €1.40
photo_cameraImage coming soon YA00000806 SELF TAPPING SCREW ST5X20 €1.40
photo_cameraImage coming soon YA00000820 SELF TAPPING SCREW ST5X16 €1.40
photo_cameraImage coming soon YA00000821 SELF TAPPING SCREW ST4X16 €1.36
58
 Makita Motor Assy 230V for ELM4120 YA00001176 Makita Motor Assy 230V for ELM4120 €155.06
59
 photo_cameraImage coming soon YA00000813 SELF TAPPING SCREW ST4X10 €1.40
60
 photo_cameraImage coming soon YA00000814 CARBON BRUSH 2PICS SET €7.58
61
 photo_cameraImage coming soon YA00001174 CABLE TIE €1.40
62
 photo_cameraImage coming soon YA00001173 HEAT SHRINKABLE TUBE €1.40
63
 photo_cameraImage coming soon YA00001181 LEAD WIRE SET €7.58
64
 Motor Flame & Pulley Ass'y for Lawnmower Makita ELM4120 YA00001178 Motor Flame & Pulley Ass'y for Lawnmower Makita ELM4120 €25.89
66
 Belt for Lawnmower Makita ELM4120 YA00001180 Belt for Lawnmower Makita ELM4120 €10.82
68
 photo_cameraImage coming soon YA00001179 BELT COVER €12.31
72
 photo_cameraImage coming soon YA00000930 DECK €49.07
73
 photo_cameraImage coming soon YA00000931 SPONGE CUSHION €1.36
74
 photo_cameraImage coming soon YA00000883 SPONGE CUSHION €1.36
75
 photo_cameraImage coming soon YA00000885 SPONGE CUSHION €1.36
77
 photo_cameraImage coming soon YA00000932 GRASS INTAKE UNDER PLATE €2.02
79
 photo_cameraImage coming soon YA00000933 UNDER BRACE RIGHT €3.72
81
 photo_cameraImage coming soon YA00000934 AIR INTAKE BOARD RIGHT €1.36
83
 photo_cameraImage coming soon YA00000950 UNDER BRACE LEFT €4.30
85
 photo_cameraImage coming soon YA00000951 AIR INTAKE BOARD LEFT €3.04
87
 photo_cameraImage coming soon YA00000910 SPEASER RING 16 €1.36
88
 photo_cameraImage coming soon YA00000935 BLADE SUPPORT €2.61
89
 Makita ELM4120 Blade 41 YA00000747 Makita ELM4120 Blade 41 €21.69
90
 photo_cameraImage coming soon YA00000891 CLAMP WASHER 8 €1.40
91
 photo_cameraImage coming soon YA00000827 HEX. BOLT M8X25 €5.75
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon YA00000420 WASHER €1.40
photo_cameraImage coming soon YA00000820 SELF TAPPING SCREW ST5X16 €1.40
92
 photo_cameraImage coming soon YA00000925 WHEEL CAP 7INCH €5.94
93
 photo_cameraImage coming soon 652023843 NYLON INSERT HEX. LOCK NUT M8 €1.40
95
 photo_cameraImage coming soon YA00000926 WHEEL 8INCH €14.92
96
 photo_cameraImage coming soon YA00000927 REAR AXLE €16.14
97
 photo_cameraImage coming soon YA00000811 AXLE RETAINER €1.36
99
 photo_cameraImage coming soon YA00000843 STEPPED HEX BOLT M6X16 €1.36
101
 photo_cameraImage coming soon YA00000845 WASHER 5 €1.36
102
 photo_cameraImage coming soon YA00000903 TENSION SPRING 11 €2.02
103
 photo_cameraImage coming soon YA00000627 NUT M6 €1.43
104
 photo_cameraImage coming soon YA00000949 CONNECTING ROD €13.90
105
 photo_cameraImage coming soon YA00000906 HIGHT ADJUST LEVER €3.04
106
 photo_cameraImage coming soon YA00000907 TORSION SPRING 8 €1.36
107
 photo_cameraImage coming soon YA00000851 RPIN7 €1.40
108
 photo_cameraImage coming soon YA00000952 WHEEL CAP 5INCH €5.75
111
 photo_cameraImage coming soon YA00000953 WHEEL 6INCH €7.35
112
 photo_cameraImage coming soon YA00000954 FRONT AXLE €12.69
113
 photo_cameraImage coming soon YA00000909 AXLE RETAINER WASHER €1.36
117
 photo_cameraImage coming soon YA00000915 GRASS BOX ASSY(MAKITA) €73.50
118
 photo_cameraImage coming soon YA00000917 GRASS CATCH SIDE CLOSS SET MAK €39.17
119
 photo_cameraImage coming soon YA00000791 GRASS CATCHER INDICATOR BLUE €1.40
120
 photo_cameraImage coming soon YA00000919 GRASS CATCHER UPPER BORAD €18.39
121
 photo_cameraImage coming soon YA00000795 GRIP €2.09
122
 photo_cameraImage coming soon YA00000794 SELF TAPPING SCREW ST4X14 €1.40
123
 photo_cameraImage coming soon YA00000920 GRASS CATCHER FRAME €9.59
124
 photo_cameraImage coming soon YA00000796 WASHER 4 €1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Lawn Mower ELM4120

Distribution and Sale at attractive prices of MAKITA

 Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Lawn Mower ELM4120.

In the following table, look for the model of Lawn Mower and the respective parts of the code.
Makita ELM4120

ELM4120 410MM ELECTRIC LAWN MOWER Spare Parts pag.1
# Part Num. Description
1 YA00001157 UPPER HANDLE BAR ASSY
2 YA00001182 SPONGE GRIP
3 YA00001158 SWITCH LEVER
4 YA00000765 SWITCH BOX RIGHT
5 YA00000766 SWITCH LINK BUTTON
6 YA00000767 COMPRESSION SPRING 16.8
7 YA00000768 SWITCH LEVER END CAP RIGHT
8 652024721 SELF DRILLING SCREW 3.5X10
9 YA00000769 SWITCH TORSION SPRING 21
10 YA00000778 SELF TAPPING SCREW ST4X16
11 YA00000780 CORD CLAMP
12 YA00000914 POWER SUPPLY CORD ASSY
13 YA00000778 SELF TAPPING SCREW ST4X16
14 YA00000780 CORD CLAMP
15 YA00000773 POWER SUPPLY CORD ASSY (EURO)
16 YA00000781 INDICATOR LENZ
17 YA00000772 SWITCH
18 652023811 CABLE HANGER
19 YA00000782 SWITCH BOX LEFT
20 YA00000778 SELF TAPPING SCREW ST4X16
21 652023795 SPRING BOX RIGHT
22 652024721 SELF DRILLING SCREW 3.5X10
23 652023794 SWITCH LEVER END LEFT
24 YA00000737 TORSION SPRING
25 652023793 SPRING BOX LEFT
26 YA00000778 SELF TAPPING SCREW ST4X16
27 YA00000785 SELF TAPPING SCREW ST4X25
28 YA00000921 CABLE CLIP
29 YA00000923 TENSI0N LEVER ASSY
30 YA00000922 LOWER HANDLE
31 YA00000802 HEX.FRANGE CAP NUT M6
32 YA00000803 M8 KNOB
33 YA00000420 WASHER
34 YA00000924 ANGLE ADJUSTMENT JOINT UPPER
35 YA00000806 SELF TAPPING SCREW ST5X20
36 YA00000875 ANGLE ADJUSTMENT JOINT LOWER R
37 YA00000807 HEX BOLT M8X65
38 YA00000876 ANGLE ADJUSTMENT JOINT LOWER L
40 YA00000939 REAR FLAP BULE
41 YA00000938 REAR FLAP HINGE ROD
42 YA00000831 REAR FLAP TORSION SPRING 7.7
43 YA00000821 SELF TAPPING SCREW ST4X16
44 YA00000941 TOP COVER
45 YA00000848 HIGHT ADJUST GRIP
46 YA00000849 PAN HEAD SCREW M4X10
47 YA00000398 SUNK SCREW 5*14
48 YA00000942 HEIGHT ADJUSTER STOP PLATE
49 YA00000943 STOP PLATE RUBBER SHEET
50 YA00000837 NYLON INSERT HEX LOCK NUT M5
51 YA00000944 HOUSING ASSY BULE
52 YA00000946 SPONGE CUSHION
53 YA00000948 SPONGE CUSHION
54 YA00000947 SPONGE CUSHION
55 YA00000821 SELF TAPPING SCREW ST4X16
56 YA00000821 SELF TAPPING SCREW ST4X16
57 YA00000820 SELF TAPPING SCREW ST5X16
ELM4120 410MM ELECTRIC LAWN MOWER Spare Parts pag.2
58 YA00001176 MOTOR ASSY (230V)
59 YA00000813 SELF TAPPING SCREW ST4X10
60 YA00000814 CARBON BRUSH 2PICS SET
61 YA00001174 CABLE TIE
62 YA00001173 HEAT SHRINKABLE TUBE
63 YA00001181 LEAD WIRE SET
64 YA00001178 MOTOR FLAME & PULLEY ASSY
65 YA00000806 SELF TAPPING SCREW ST5X20
66 YA00001180 BELT
67 YA00000806 SELF TAPPING SCREW ST5X20
68 YA00001179 BELT COVER
69 YA00000806 SELF TAPPING SCREW ST5X20
70 YA00000821 SELF TAPPING SCREW ST4X16
71 YA00000780 CORD CLAMP
72 YA00000930 DECK
73 YA00000931 SPONGE CUSHION
74 YA00000883 SPONGE CUSHION
75 YA00000885 SPONGE CUSHION
76 YA00000806 SELF TAPPING SCREW ST5X20
77 YA00000932 GRASS INTAKE UNDER PLATE
78 YA00000820 SELF TAPPING SCREW ST5X16
79 YA00000933 UNDER BRACE RIGHT
80 YA00000820 SELF TAPPING SCREW ST5X16
81 YA00000934 AIR INTAKE BOARD RIGHT
82 YA00000820 SELF TAPPING SCREW ST5X16
83 YA00000950 UNDER BRACE LEFT
84 YA00000820 SELF TAPPING SCREW ST5X16
85 YA00000951 AIR INTAKE BOARD LEFT
86 YA00000820 SELF TAPPING SCREW ST5X16
87 YA00000910 SPEASER RING 16
88 YA00000935 BLADE SUPPORT
89 YA00000747 BLADE 41
90 YA00000891 CLAMP WASHER 8
91 YA00000827 HEX. BOLT M8X25
ELM4120 410MM ELECTRIC LAWN MOWER Spare Parts pag.3
92 YA00000925 WHEEL CAP 7INCH
93 652023843 NYLON INSERT HEX. LOCK NUT M8
94 YA00000420 WASHER
95 YA00000926 WHEEL 8INCH
96 YA00000927 REAR AXLE
97 YA00000811 AXLE RETAINER
98 YA00000820 SELF TAPPING SCREW ST5X16
99 YA00000843 STEPPED HEX BOLT M6X16
100 YA00000820 SELF TAPPING SCREW ST5X16
101 YA00000845 WASHER 5
102 YA00000903 TENSION SPRING 11
103 YA00000627 SELF-LOCKING NUTS M6
104 YA00000949 CONNECTING ROD
105 YA00000906 HIGHT ADJUST LEVER
106 YA00000907 TORSION SPRING 8
107 YA00000851 RPIN7
108 YA00000952 WHEEL CAP 5INCH
109 652023843 NYLON INSERT HEX. LOCK NUT M8
110 YA00000420 WASHER
111 YA00000953 WHEEL 6INCH
112 YA00000954 FRONT AXLE
113 YA00000909 AXLE RETAINER WASHER
114 YA00000820 SELF TAPPING SCREW ST5X16
115 YA00000627 SELF-LOCKING NUTS M6
116 YA00000843 STEPPED HEX BOLT M6X16
117 YA00000915 GRASS BOX ASSY(MAKITA)
118 YA00000917 GRASS CATCH SIDE CLOSS SET MAK
119 YA00000791 GRASS CATCHER INDICATOR BLUE
120 YA00000919 GRASS CATCHER UPPER BORAD
121 YA00000795 GRIP
122 YA00000794 SELF TAPPING SCREW ST4X14
123 YA00000920 GRASS CATCHER FRAME
124 YA00000796 WASHER 4
125 YA00000794 SELF TAPPING SCREW ST4X14
126 YA00000798 SPANNER 10-13
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita ELM4120
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita ELM4120

Drawing Makita ELM4120

Download (829.99KB)

You might also like

Motor Flame & Pulley Ass'y for Lawnmower Makita ELM4120
Makita SKU: YA00001178
Motor Flame & Pulley Ass'y for Lawnmower Makita ELM4120
Motor Flame & Pulley Ass'y for Lawnmower Makita ELM4120 Genuine spare part Makita, Motor Flame & Pulley Ass'y for Lawnmower ELM4120. Part for the following products: - ELM3720 - LAWNMOWER 1400W 37CM MAKITA -  ELM4120 -...
Usually Ships in: 7/10 Business Days Approx €25.89
Details
Belt for Lawnmower Makita ELM4120
Makita SKU: YA00001180
Belt for Lawnmower Makita ELM4120
Belt for Lawnmower Makita ELM4120 Genuine spare part Makita, Belt PJ483 - 190J for Lawnmower ELM4120. Part for the following products: -  ELM4120 - LAWNMOWER 1600W 41CM MAKITA - ELM3720 - LAWNMOWER 1400W 370mm - ELM4120 - LAWNMOWER...
on 7/10 Business Days Approx. €10.82
Details
Makita ELM4120 Blade
Makita SKU: YA00000747
Makita ELM4120 Blade 41
Makita ELM4120 Blade 41 Genuine spare part Makita, Cutting Blade for Lawnmower ELM4120. Part for the following products:TA -  ELM4120 - LAWNMOWER 1600W 41CM MAKITA - EM410 - LAWNMOWER 1600W 41CM DOLMAR...
Last items in stock €21.69
Details
Makita Motor Assy 230V for ELM4120
Makita SKU: YA00001176
Makita Motor Assy 230V for ELM4120
Makita Motor Ass'y 230V for ELM4120 Genuine spare part Makita, Motor Ass'y 230V for Lawnmower ELM4120. Part for the following products:TA - EM410    410MM ELECTRIC LAWN MOWER - EM371    370MM ELECTRIC LAWN...
Usually Ships in: 7/10 Business Days Approx. €155.06
Details
Comments (0)
