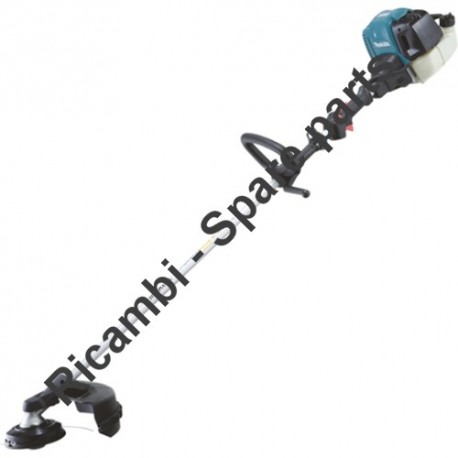

Makita Spare Parts for Brusch Cutter EM4350LH

Name: Makita Spare Parts for Brusch Cutter EM4350LH
Brand: Makita
SKU: Makita EM4350LH
Availability: InStock

SKU: Makita EM4350LH

€1.46

VAT included

Makita Spare Parts for Brusch Cutter EM4350LH

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Brusch Cutter EM4350LH.

186 spare parts

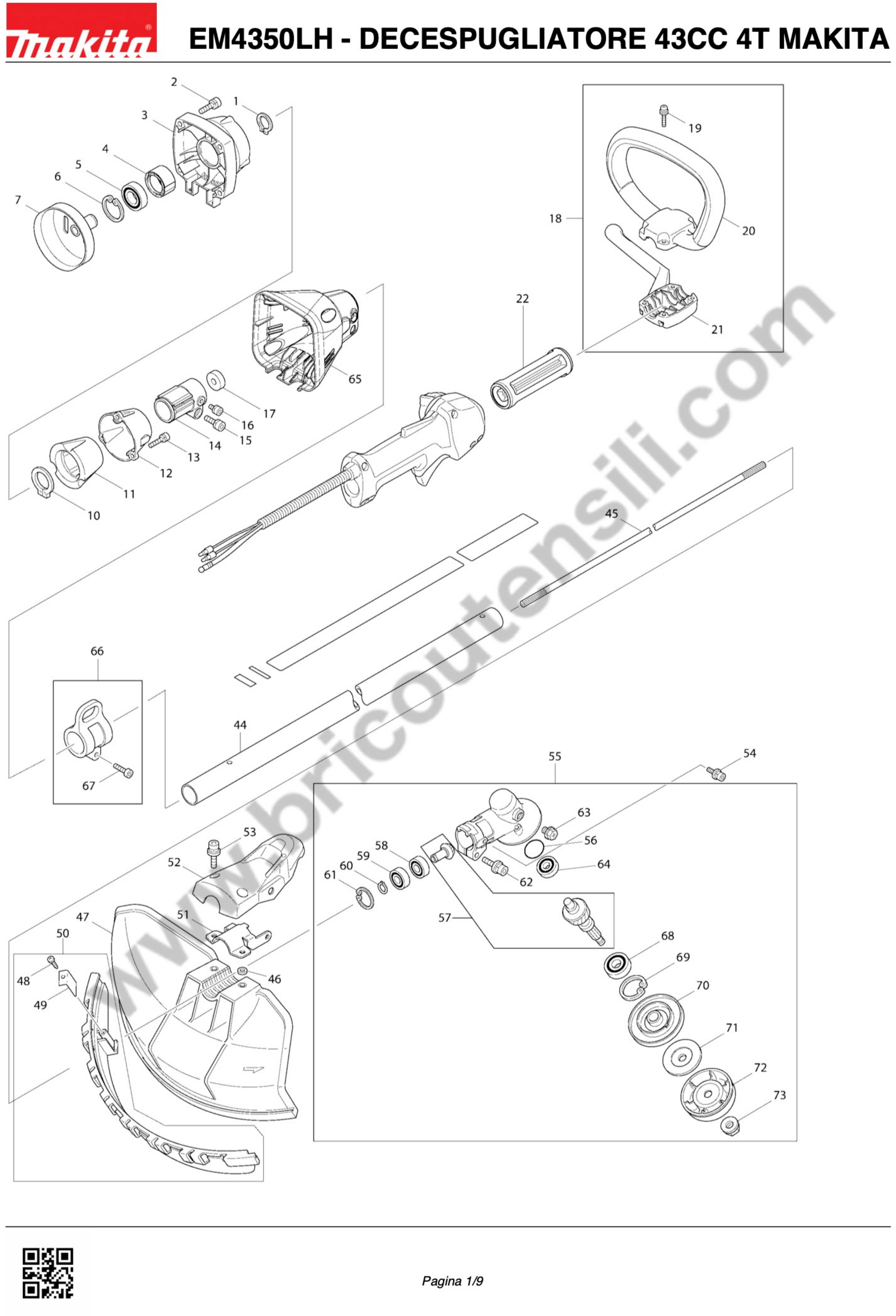

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1		961057-5 Makita Power Tools Ext DIN471 Circlip-17	€1.47
2	Image coming soon	922331-6 BOLT ESAG. CUT. 6x20	€1.53
3	Image coming soon	318421-5 CLUTCH CASE EBH341U	€18.98
4	Image coming soon	451157-4 SPACER EBH341U	€2.08
5	Image coming soon	210138-5 BEARING 6003LLU	€9.89
6	Image coming soon	962153-2 RETAINING RING R35	€2.08
7	Image coming soon	168742-3 CLUTCH DRUM X EM4350UH	€32.73
10	Image coming soon	961151-3 RETAINING RING S-32 EBH341U	€1.40
11	Image coming soon	424204-4 DAMPER EBH341U	€5.94
12	Image coming soon	318453-2 PIPE RETAINER EBH341U	€6.63
13		922231-0 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH	€1.35
14	Image coming soon	318454-0 PIPE BRACKET EBH341U	€11.07
16	Image coming soon	922201-9 CAP HD SCREW M5X8 JR3020 5PK	€1.44
17	Image coming soon	443146-3 FELT RING EBH341U	€1.44
18	Image coming soon	195251-9 HANDLE CPL MS335.4C	€20.81
19	Image coming soon	911253-5 SCREW M 5 X 30 X JR3030T	€1.42
20	Image coming soon	451596-8 GRIP 28 MS335.4C	€12.27
21	Image coming soon	451597-6 GRIP BASE 28 MS335.4C	€3.72
22	Image coming soon	451600-3 SPACER 28 MS335.4C	€13.84
44	Image coming soon	140042-3 SHAFT PIPE COMP EBH341U	€68.84
45	Image coming soon	325675-7 SHAFT EBH341U	€21.97
46	Image coming soon	413143-3 WASHER MS335.4C	€1.44
47	Image coming soon	452259-9 PROTECTOR EBH341U	€17.14
48		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.47
49	Image coming soon	347050-7 BLADE	€1.40
50	Image coming soon	135753-3 LOWER PROTECTION	€12.69
51	Image coming soon	346072-4 PROTECTOR CLAMP EBH341U	€2.77
52	Image coming soon	451090-0 PROTECTOR COVER EBH341U	€6.11
53	Image coming soon	266280-0 HEX SOCKET HEAD BOLT M6X30 /EM4350	€1.42
54	Image coming soon	266865-2 SCREW M5X14	€1.44
55		123835-3 Gear Case Ass'y for Brushcutter Dolmar MS335.4C	€79.05
56		213459-4 Gasket 32 for Hex Collar Power Scrapers Makita HK1800 - HK1810	€1.43
57		183K07-8 Makita Cutter Shaft Set 183K07-8	€96.59
58	Image coming soon	210059-1 BEARING 6000 HR2010	€12.89
59	Image coming soon	211062-5 BEARING 6000 X9524NB	€7.81
60	Image coming soon	961006-2 RETAINING RING S10	€2.17
61		962105-3 Retaining Ring R26 for Angle Grinder and Milling Machines Makita	€1.47
62	Image coming soon	922353-6 SCREW M6x30 HM1202C	€1.46
63	Image coming soon	265590-2 HEX BOLT M8x10 EBH253L/EBH341U	€1.44
64	Image coming soon	210081-8 BALL BEARING 629ZZ EBH341U	€4.56
65	Image coming soon	453883-1 CLUTCH COVER EM435	€24.35
66	Image coming soon	125558-9 HOOK EBH341U	€7.58
67	Image coming soon	266698-5 SCREW M5X20	€1.40
68	Image coming soon	210116-5 BALL BEARING 6201LLU EBH341U	€8.75
69		962151-6 Retaining Ring R32 for Powertools Makita	€1.43
70		332114-0 Lower Flange for Brushcutter Dolmar MS-4300.4R	€10.70
71	Image coming soon	346355-2 CLAMP WASHER EBH253L/EBH341U	€13.89
72	Image coming soon	168526-9 CUP EBH253L/EBH341U/BBC231URD	€6.83
73	Image coming soon	264025-0 HEX NUT M10-17 EBH251U.BBC231	€3.22

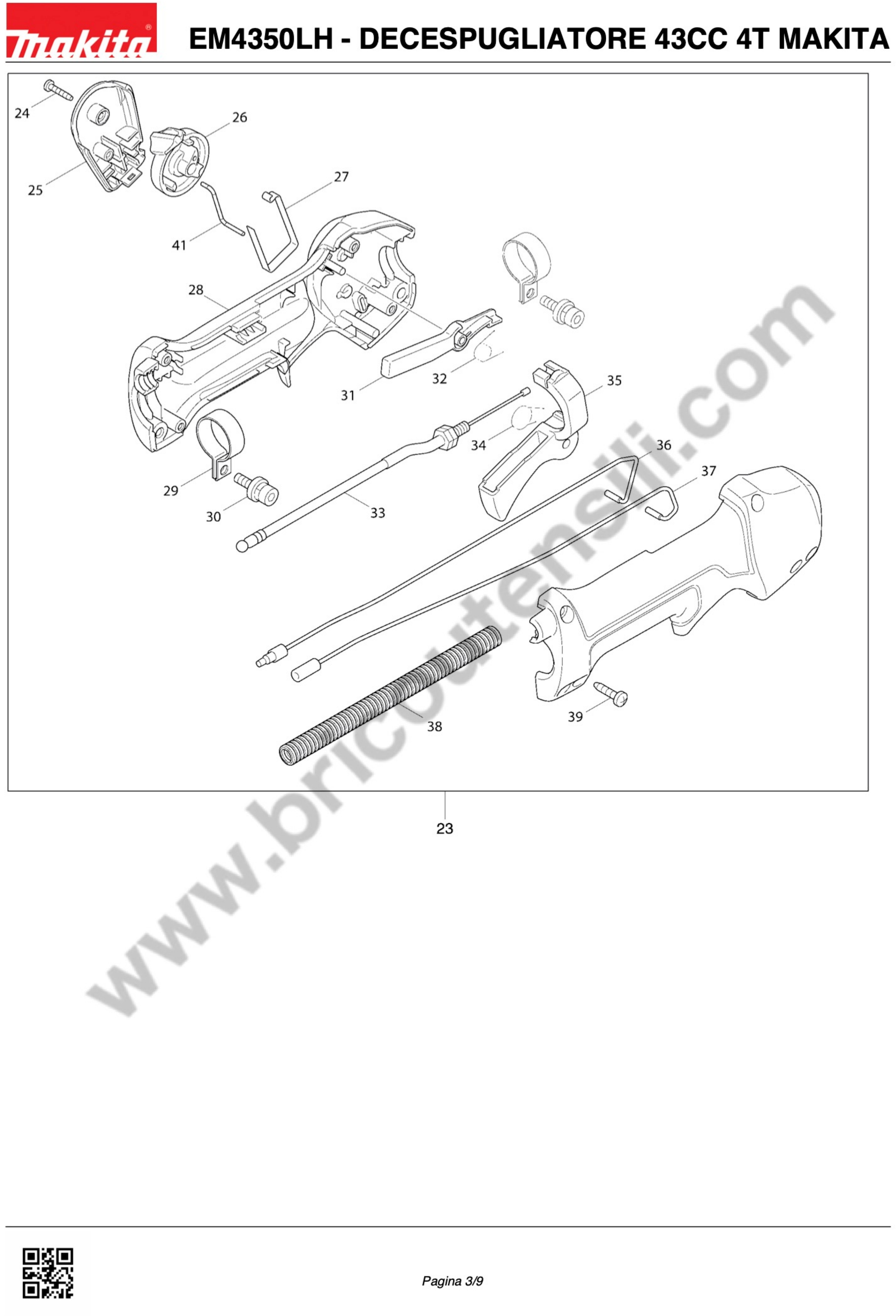

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.47
23	Image coming soon	126164-3 CONTROL LEVER ASSY EM4350LH	€69.05
24	Image coming soon	266130-9 SCREW 3X16 X 6203/13 / 6313DW	€1.46
25	Image coming soon	451595-0 SWITCH COVER MS335.4C	€2.18
26	Image coming soon	451594-2 SWITCH LEVER MS335.4C	€2.18
27	Image coming soon	232251-9 LEAF SPRING EBH341U/EM2651LH	€1.46
29	Image coming soon	346249-1 CLAMP 28 MS335.4C	€2.03
30	Image coming soon	922218-2 SCREW M5x14 EBH341U	€1.53
31	Image coming soon	451593-4 BLOCK LEVER MS335.4C	€2.18
32	Image coming soon	233541-3 TORSION SPRING 7 EBH341U	€2.18
33	Image coming soon	168741-5 CONTROL CABLE X EM4350LH	€4.68
34	Image coming soon	233540-5 SPRING TWIST 11 EBH341U	€1.46
35	Image coming soon	451592-6 THROTTLE LEVER MS335.4C P04	€3.28
38	Image coming soon	453708-9 HOSE EM4350LH	€1.91

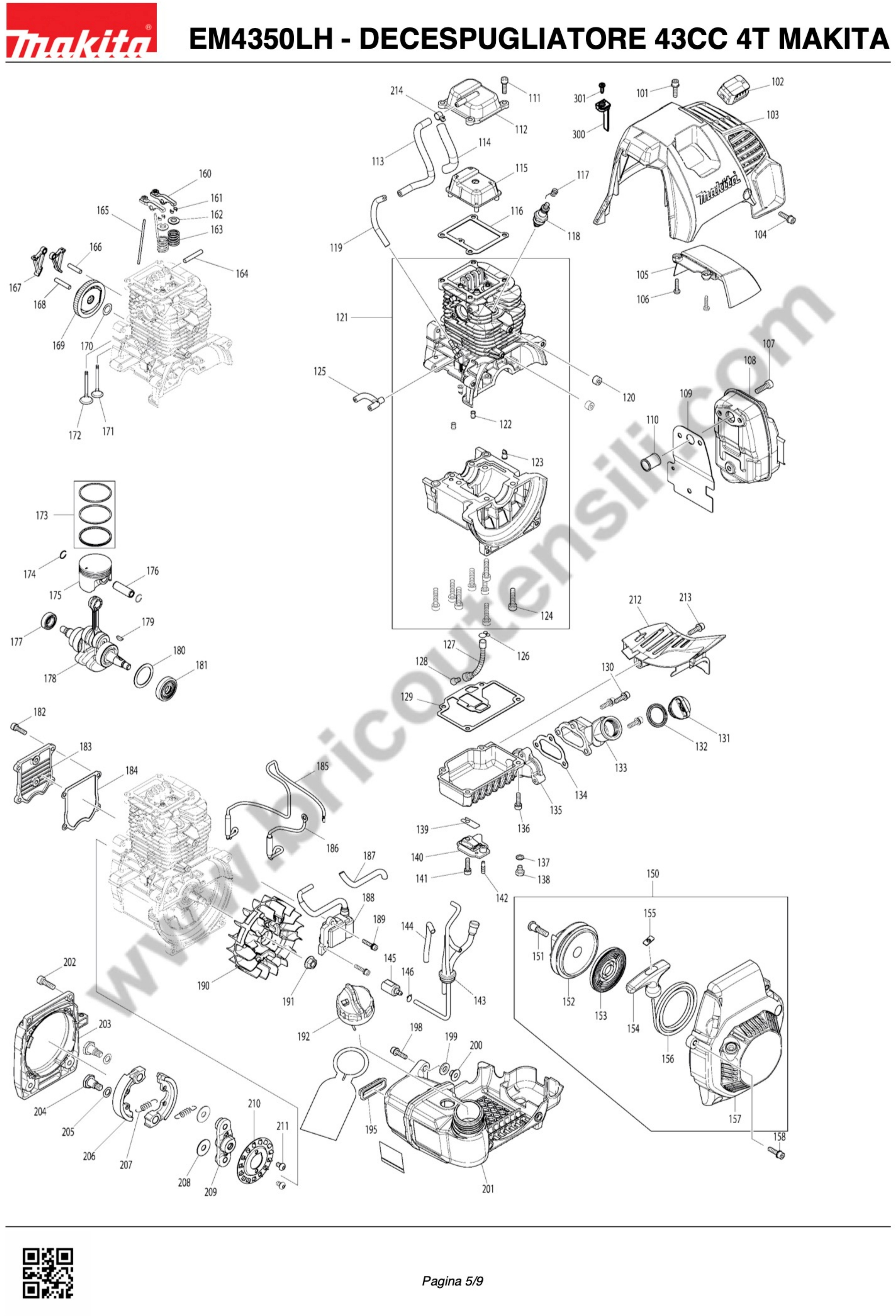

Page 3 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
101		922233-6 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T	€1.44
102	Image coming soon	424302-4 SPARK CAP EH7500S	€3.22
103	Image coming soon	455103-9 CYLINER COVER BLUE EM4350/4351 - See the CT22-2	€22.26
105	Image coming soon	453536-2 MUFFLER COVER X EM4351UH	€6.11
106		265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C	€1.46
107	Image coming soon	922332-4 SCREW M6X20 X SC161	€1.44
108	Image coming soon	168715-6 MUFFLER X EM4351UH	€17.14
109	Image coming soon	346574-0 GASKET FOR EXHAUST EM4351UH	€2.14
110	Image coming soon	331987-8 SPACER X EM4351UH	€2.14
111	Image coming soon	922226-3 SCREW M 5 X 18 X 4341FCT	€3.76
112	Image coming soon	318850-2 HEAD COVER EM4351UH	€10.18
113	Image coming soon	422091-5 TUBE 5-160 EM4351UH	€2.77
114	Image coming soon	454424-6 HOSE X EM4351UH	€1.44
115	Image coming soon	453529-9 COVER INT. HEAD EM4351UH	€2.77
116	Image coming soon	162335-8 HEAD GASKET EM4351UH	€3.22
117		324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U	€1.62
118	Image coming soon	650109950 SPARK PLUG CMR6A X MS251.A	€9.79
119	Image coming soon	422090-7 TUBE 3-85 X EM4351UH	€2.14
120	Image coming soon	452049-0 SPACER EX2650LH	€1.44
121	Image coming soon	135659-5 CYLINDER X EM4351UH	€199.26
122	Image coming soon	424200-2 SPACKER EM2651LH/EBH251L/341U	€1.46
123	Image coming soon	424201-0 CONTROL VALVE EBH341U	€3.28
124	Image coming soon	922342-1 SCREW M6X25 EX2650LH	€1.44
125	Image coming soon	422099-9 BREATHER TUBE EX2650LH	€3.22
126	Image coming soon	282020-8 HOSE CLAMP EM2651LH/EBH251L/	€1.44
127	Image coming soon	424301-6 OIL TUBE EX2650LH	€4.56
128	Image coming soon	325666-8 OIL WEIGHT EM2651LH/EBH253L	€2.14
129		162337-4 Oil Case Gasket for Brushcutter Dolmar MS-4300.4R	€4.46
130	Image coming soon	266760-6 SCREW M5X18	€1.44
131	Image coming soon	452047-4 OIL TANK CAP BHX2501	€2.14
132	Image coming soon	424343-0 GASKET X BHX2501	€1.44
133	Image coming soon	453538-8 OIL TUBE X EM4351UH	€4.56
134	Image coming soon	162338-2 GASKET EM4351UH	€2.14
135	Image coming soon	318854-4 OIL CUP EM4351UH	€22.18
137	Image coming soon	346305-7 GASKET EX2650LH	€1.44
138	Image coming soon	266611-3 SCREW M6X8 EX2650LH	€1.44
139	Image coming soon	346398-4 PLATE X EM4351UH	€2.14
140	Image coming soon	318851-0 CHECK PLATE X EM4351UH	€4.56
142	Image coming soon	325665-0 FITTING EX2650LH	€1.44
143	Image coming soon	168724-5 COMPLETE TUBE EM4351UH	€29.16
144	Image coming soon	454426-2 TUBE 6-80 X EM4351UH	€1.44
145	Image coming soon	163518-3 FUEL FILTER EX2650LH	€5.28
150		126119-8 Starter Complete for Brushcutter Dolmar MS-430.4U	€34.30
151	Image coming soon	SG00000013 SCREW M6x20	€2.14
152	Image coming soon	452288-2 STARTER PULLEY EM4351UH	€11.89
153	Image coming soon	SG00000014 STARTER SPRING EM4351UH	€19.54
154	Image coming soon	424361-8 STARTER HANDLE EM4351UH	€5.28
155	Image coming soon	424360-0 STOP ROPE EM4351UH	€2.14
156	Image coming soon	444027-4 STARTER ROPE EM4351UH	€5.28
157	Image coming soon	453534-6 CARTER STARTER X EM4351UH	€33.33
160	Image coming soon	126116-4 ROCKER X EM4351UH	€5.28
161	Image coming soon	331990-9 CUP X EM4351UH	€1.44
162	Image coming soon	331991-7 LOCKING X EM4351UH	€2.14
163	Image coming soon	234238-7 COMPRESSION SPRING 11	€2.77
164	Image coming soon	256200-2 PIN 5 PER 2704	€1.46
165	Image coming soon	256866-8 ROD 2.5 EBH341U	€1.44
166	Image coming soon	268238-5 PIN 5 EBH341U	€1.44
167	Image coming soon	313236-5 CAM X EM4351UH ROCKER	€2.77
168	Image coming soon	256186-0 PIN 5 MS43 / EM43	€1.44
169	Image coming soon	126571-0 CAM GEAR	€33.70
170	Image coming soon	261127-3 TEFLON WASHER 10 X PW5000CH	€1.44
171	Image coming soon	326575-4 MUFFLER VALVE X EM4351UH	€10.18
172	Image coming soon	326157-2 INTAKE VALVE EM4351UH	€6.11
173	Image coming soon	196667-1 PISTON RINGS	€33.70
174		233983-1 Piston Pin Circlip for Brushcutter Makita RBC410	€1.55
175		197455-9 Piston Set for Brushcutter Dolmar MS-4300.4R	€20.54
176	Image coming soon	268285-6 PISTON PIN EM4351UH	€3.22
177	Image coming soon	213685-5 OIL SEAL 12 X EM4351UH	€11.40
178		126121-1 Crankshaft Ass'y for Brushcutter Dolmar MS-4300.4R	€62.99
179	Image coming soon	254040-2 WOODRUFF KEY 3 EM2651LH/EBH341	€4.02
180		267425-3 Flat Washer 26 for Petrol Brushcutter Dolmar MS335.4C - MS-4300.4R	€1.60
181		213537-0 Oil Seal 12 for Brushcutter Dolmar MS335.4C	€5.29
182	Image coming soon	266086-6 SCREW M5X16 WITH BRAKES THREADS	€1.44
183	Image coming soon	318856-0 SIDE COVER EM4351UH	€3.22
184	Image coming soon	162334-0 COMPLETE GASKET. X EM4351UH	€2.14
185	Image coming soon	638974-1 WIRE EM4351UH	€2.14
186	Image coming soon	638975-9 WIRE X EM4351UH	€2.14
187	Image coming soon	444021-6 GROMMET EX2650LH	€1.44
188		168714-8 Makita EM4351UH Ignition Coil	€59.71
189	Image coming soon	266602-4 SCREW M4X20 EX2650LH	€1.44
190	Image coming soon	126122-9 FLYWHEEL X EM4351UH	€36.83
191	Image coming soon	264039-9 FLANGED NUT EX2650LH	€1.44
192	Image coming soon	127112-5 FUEL TANK CAP	€19.54
195	Image coming soon	424081-4 GROMMET X DBC260U	€1.44
199	Image coming soon	261152-4 WASHER 8	€1.44
200	Image coming soon	331988-6 SPACER X EM4351UH	€2.14
201		168875-4 Dolmar MS-430.4U Fuel Tank	€37.93
203	Image coming soon	318852-8 ENGINE BASE EM4350/4351 EM4351UH	€19.54
204	Image coming soon	266597-1 SCREW M8	€3.95
205	Image coming soon	267832-0 WAVY WASHER 10 EBH341U	€1.44
206	Image coming soon	313238-1 CLUTCH ARM X EM4351UH	€7.81
207	Image coming soon	232290-9 TENSION SPRING 5 X EM4351UH	€3.95
208	Image coming soon	267428-7 WASHER 8	€3.22
209	Image coming soon	313239-9 CLUTCH SPRING X EM4351UH	€11.40
210	Image coming soon	346576-6 FLYWHEEL PLATE X EM4351UH	€2.14
211	Image coming soon	266461-6 SCREW M5X8 X AT450H	€1.44
212	Image coming soon	453530-4 MUFFLER PROTECTION EM4351UH	€4.56
214	Image coming soon	345918-1 CLAMP EBH341U	€1.46
300	Image coming soon	455102-1 PLATE	€2.14
301	Image coming soon	266385-6 SCREW 4x14 GA9020	€1.44

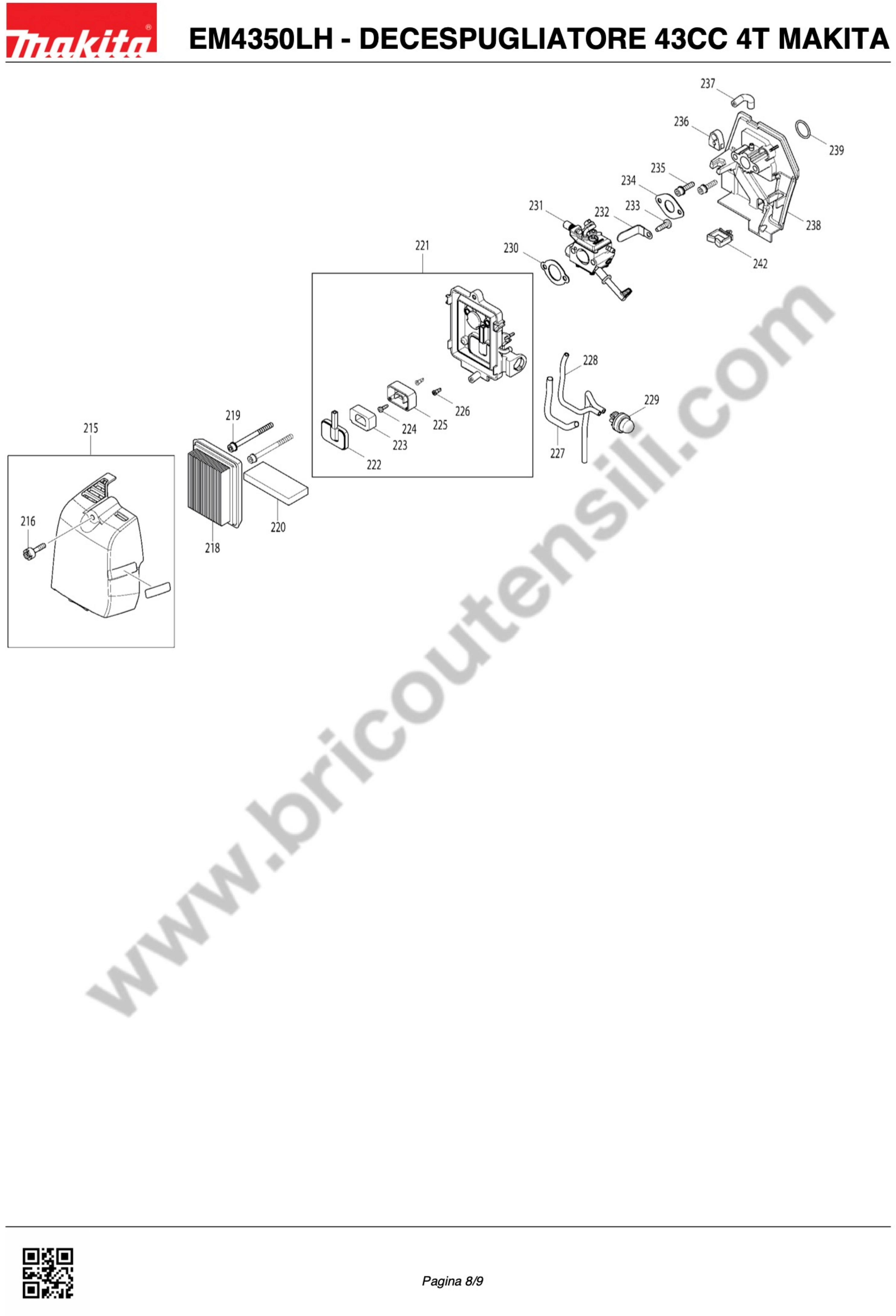

Page 4 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
		922233-6 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T	€1.44
215	Image coming soon	126523-1 AIR FILTER COVER EM4350RH	€11.40
216	Image coming soon	266743-6 SCREW M5X20	€2.14
218	Image coming soon	442181-8 AIR FILTER EM4351UH	€17.14
219	Image coming soon	266601-6 SCREW M5X60	€2.14
220	Image coming soon	443196-8 AIR FILTER X EM4350RH	€1.44
221	Image coming soon	123994-3 FILTER PLATE	€33.70
222	Image coming soon	162346-3 SEPARATOR EX2650LH	€11.40
223	Image coming soon	352020-3 SEPARATOR EX2650LH	€6.11
224		266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030	€2.07
225	Image coming soon	453865-3 SEPARATOR BOX EX2650LH	€3.95
226	Image coming soon	424316-3 VALVE EBH341U	€5.38
227	Image coming soon	454425-4 TUBE 6-100 X EM4351UH	€1.44
228	Image coming soon	422074-5 PIPE 3-120 X EM4351UH	€2.14
229		168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T	€6.24
230	Image coming soon	442196-5 CARBURETOR GASKET EM4351P01	€1.44
231		123301-0 Carburetor Walbro for Brushcutter Dolmar MS-430.4U	€111.50
232	Image coming soon	345963-6 CLAMP EBH253L/EBH341U	€1.44
233	Image coming soon	266388-0 SCREW 5X16 FOR UC3020A	€1.44
234	Image coming soon	442197-3 CARBURETOR GASKET EM4351P01	€1.44
236	Image coming soon	424489-2 RUBBER X EM4351UH	€1.44
237	Image coming soon	422080-0 PIPE 3-35 X EM4351UH	€1.44
238	Image coming soon	142736-6 INSULATING PLATE	€17.14
239	Image coming soon	213642-3 RING 18 X EM4351UH	€1.44
242	Image coming soon	451825-9 CLAMP EX2650LH	€1.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Brusch Cutter EM4350LH

We are MAKITA original spare parts Worldwide Dealers

at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Brusch Cutter EM4350LH.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.

Petrol Brushcutter EM4350LH 43CC 4T MAKITA pag.1
#	Part Num.	Description
1	961057-5	RETAINING RING S17
2	922331-6	CAP HD SCREW M6X20 HM1800/181
3	318421-5	CLUTCH case EBH341U
4	451157-4	SPACER EBH341U
5	210138-5	BALL BEARING 6003LLU
6	962153-2	RETAINING RING R-35 HP1631/41
7	168742-3	CLUTCH DRUM X EM4350UH
10	961151-3	RETAINING RING S-32 EBH341U
11	424204-4	DAMPER EBH341U
12	318453-2	PIPE RETAINER EBH341U
13	922231-0	HEX. SOCKET HEAD BOLT M5X20
14	318454-0	PIPE BRACKET EBH341U
15	922331-6	CAP HD SCREW M6X20 HM1800/181
16	922201-9	HEX. SOCKET HEAD BOLT M5X8
17	443146-3	FELT RING 8 EBH341U
18	195251-9	LOOP HANDLE SET MS335.4C
19	911253-5	PA HD SCREW M 5 X 30 W/CP WASHER JR3030T
20	451596-8	LOOP HANDLE 28 MS335.4C
21	451597-6	HANDLE CLAMP 28 MS335.4C
22	451600-3	SPACER 28 MS335.4C
44	140042-3	SHAFT PIPE COMP EBH341U
45	325675-7	SHAFT EBH341U
46	413143-3	WASHER MS335.4C
47	452259-9	PROTECTOR EBH341U
48	266326-2	TAPPING SCREW M4X18 EBH253/EB3 MT601
49	347050-7	CUTTER
50	135753-3	PROTECTOR EXTENSION ASSY EM251
51	346072-4	PROTECTOR CLAMP EBH341U
52	451090-0	PROTECTOR COVEREBH341U
53	266280-0	HEX SOCKET HD BOLT M6X25
54	266865-2	H.S.H.Bolt M5X14 With Wr Em4350/4351Uh
55	123835-3	Gear Case Assy Ebh341U
56	213459-4	O Ring 32 Da4031/4157Kb/5903R 2400B HR3850B
57	183K07-8	Cutter Shaft set
58	210059-1	BALL BEARING 6000 HR2010
59	211062-5	BALL BEARING 6000 X9524NB
60	961006-2	RETAINING RING S10
61	962105-3	RETAINING RING R26
62	922353-6	Cap Hd Screw M6X30 W. Captive Washers HM1202C
63	265590-2	Hex Bolt M8X10 Ebh253L/Ebh341U EBH341U
64	210081-8	BALL BEARING 629ZZ EBH341U
65	453883-1	Clutch Case Cover Em4350Uh EM435
66	125558-9	Hanger Assy EBH341U
67	266698-5	Hex. Socket Head Bolt M5X20
68	210116-5	BALL BEARING 6201LLU EBH341U
69	962151-6	RETAINING RING R32
70	332114-0	Recieve Washer Ebh341U EM4350RH
71	346355-2	Clamp Washer
72	168526-9	Cup Ebh253L/Ebh341U
73	264025-0	NUT M10-17 EBH341U
Petrol Brushcutter EM4350LH 43CC 4T MAKITA pag.2
23	126164-3	CONTROL LEVER ASSY EM4350LH
24	266130-9	SCREW 3X16 X 6203/13 / 6313DW
25	451595-0	SWITCH COVER MS335.4C
26	451594-2	SWITCH LEVER MS335.4C
27	232251-9	LEAF SPRING EBH341U
28	187574-9	LEVER CASE SET EM4350LH
29	346249-1	PIPE CLAMP 28 MS335.4C
30	922218-2	H.S.H.BOLT M5X14 WITH WR EBH341U
31	451593-4	LOCK LEVER MS335.4C
32	233541-3	TORSION SPRING 7 EBH341U
33	168741-5	CONTROL CABLE X EM4350LH
34	233540-5	TORSION SPRING 11 EBH341U
35	451592-6	THROTTLE LEVER MS335.4C
36	638985-6	WIRE EM4350LH
37	638986-4	WIRE EM4350LH
38	453708-9	HOSE EM4350LH
39	266326-2	TAPPING SCREW 4X18 MT601
41	325907-2	LOCK PIN X EM4350LH
Petrol Brushcutter EM4350LH 43CC 4T MAKITA pag.3
101	922233-6	HEX SOCKET HEAD BOLT M5X20 DCS230T
102	424302-4	PLUG CAP EH7500S
103	455103-9	CYLINER COVER BLUE EM4350/4351 - See the CT22-2
104	922233-6	HEX SOCKET HEAD BOLT M5X20 DCS230T
105	453536-2	MUFFLER COVER X EM4351UH
106	265995-6	TAPPING SCREW 4X18
107	922332-4	H S HD BOLT M6X20/1219&L SC161
108	168715-6	MUFFLER X EM4351UH
109	346574-0	MUFFLER GASKET EM4351UH
110	331987-8	SPACER X EM4351UH
111	922226-3	HEX SOCKET HD BOLT M5X18 EBH2 4341FCT
112	318850-2	ROCKER COVER OUTER EM4350/435 EM4351UH
113	422091-5	TUBE 5-160 EM4351UH
114	454424-6	CORRUGATE TUBE EM4350/4351 EM4351UH
115	453529-9	ROCKER COVER INNER EM4350/435 EM4351UH
116	162335-8	ROCKER COVER GASKET EM4350/43 EM4351UH
117	324891-8	PLUG CAP SPRING ER2650LH/BHX2 EBH341
118	650109950	SPARK PLUG CMR6A X MS251.A
119	422090-7	TUBE 3-85 X EM4351UH
120	452049-0	SPACER EM2651/ER2650/EN4951 EX2650LH
121	135659-5	CYLINDER X EM4351UH - SEE the CT25-2
122	424200-2	SPACER EBH341U
123	424201-0	CHECK VALVE ER2650LH/EBH251L EBH341U
124	922342-1	CAP HD SCREW M6X25 CS246.4 EX2650LH
125	422099-9	PIPE ER2650LH/EY2650H/EN4951S EX2650LH
126	282020-8	HOSE CLAMP ER26/EM26/EA3601 EBH341U
127	424301-6	OIL TUBE EX2650LH
128	325666-8	OIL WEIGHT ER2650LH/EBH253L EBH341U
129	162337-4	OIL CASE GASKET EM4350/4351 EM4351U
130	266760-6	SOCKET HEAD BOLT M5X45
131	452047-4	OIL CAP ER2650/EM2651/EN4951 BHX2501
132	424343-0	GASKET ER2650LH/EM2651LH/BHX2 BHX2501
133	453538-8	OIL PIPE EM4350/4351 EM4351UH
134	162338-2	OIL PIPE GASKET EM4350/4351 EM4351UH
135	318854-4	OIL CASE EM4350/4351 EM4351UH
136	922226-3	HEX SOCKET HD BOLT M5X18 EBH2 - 4341FCT
137	346305-7	GASKET EX2650LH
138	266611-3	HEX BOLT M6X8 EM2651LH/ER2650 EX2650LH
139	346398-4	LEAD BULB EK7650H EB5300TH EM4351UH
140	318851-0	RETAINER PLATE EM4350/4351 EM4351UH
141	922226-3	HEX SOCKET HD BOLT M5X18 EBH2 4341FCT
142	325665-0	JOINT PIPE ER2650LH/EM2651LH EX2650LH
143	168724-5	TUBE COMP EM4350/4351UH EM4351UH
144	454426-2	SPIRAL TUBE 6-80 EM4350/4351 EM4351UH
145	163518-3	FUEL FILTER EX2650LH
146	282020-8	HOSE CLAMP EBH341U
150	126119-8	STARTER COMP EM4350/4351UH EM4351UH
151	SG00000013	SCREW M6x20
152	452288-2	STARTER REEL EM4351UH
153	SG00000014	STARTER SPRING EM4351UH
154	424361-8	STARTER KNOB EM4351UH
155	424360-0	ROPE STOPPER EM4351UH
156	444027-4	STARTER ROPE EM4351UH
157	453534-6	STARTER COMP EM4350/4351UH EM4351UH
158	922233-6	HEX SOCKET HD BOLT M5X20 EM43 DCS230T
160	126116-4	ROCKER ARM EM4350/4351UH EM4351UH
161	331990-9	COTTER EM4350/4351UH EM4351UH
162	331991-7	RETAINER EM4350/4351UH EM4351UH
163	234238-7	COMPRESSION SPRING 11
164	256200-2	PIN 5 FOR 2704
165	256866-8	PIN 2.5 EBH341U
166	268238-5	PIN 5 EBH341U
167	313236-5	CAM LIFTER EM4350/4351 EM4351UH
168	256186-0	PIN 5 MS43 / EM43
169	126571-0	CAM GEAR
170	261127-3	TEFLON WASHER 10 X PW5000CH
171	326575-4	EXHAUST VALVE X EM4351UH - SEE CT25-2
172	326157-2	INTAKE VALVE EM4351UH
173	196667-1	PISTON RINGS
174	233983-1	CIRCLIP EBH341
175	197455-9	PISTON SET
176	268285-6	PISTON PIN EM4351UH
177	213685-5	OIL SEAL 12 X EM4351UH
178	126121-1	CRANKSHAFT X EM4351UH
179	254040-2	WOODRUFF KEY 3 EBH341U
180	267425-3	FLAT WASHER 26 EBH341U
181	213537-0	OIL SEAL 12 EBH341U
182	266086-6	HEX BOLT M5X16 JR3020/DA4031 JR3020
183	318856-0	CAM GEAR COVER EM4350/4351 EM4351UH
184	162334-0	CAM GEAR GASKET EM4350/4351 EM4351UH
185	638974-1	LEAD UNIT EM4350/4351 EM4351UH
186	638975-9	LEAD UNIT EM4350/4351 EM4351UH
187	444021-6	TUBE EX2650LH
188	168714-8	IGNITION COIL EM4351UH
189	266602-4	HEX SOCKET HD BOLT M4X20 EX2650LH
190	126122-9	FLYWHEEL X EM4351UH
191	264039-9	FLANGED NUT EX2650LH
192	127112-5	FUEL TANK CAP
195	424081-4	BUFFER RUBBER DBC260U
198	922233-6	HEX SOCKET HD BOLT M5X20 EM43 DCS230T
199	261152-4	RUBBER WASHER 8 EM4350/4351
200	331988-6	SPACER EM4351UH
201	168875-4	FUEL TANK EM4351UH
202	922332-4	H S HD BOLT M6X20/1219&L SC161
203	318852-8	ENGINE BASE EM4350/4351 EM4351UH
204	266597-1	SHOULDER HEX. BOLT M8
205	267832-0	WAVE WASHER 10 EBH341U
206	313238-1	CLUTCH SHOE EM4350/4351 EM4351UH
207	232290-9	TENSION SPRING 5 EM4351UH
208	267428-7	FLAT WASHER 8 EM4350/4351UH
209	313239-9	CLUTCH BASE EM4350/4351 EM4351UH
210	346576-6	FAN PLATE EM4350/4351 EM4351UH
211	266461-6	H.S.BUTTON HEAD SCREW M5X8 AT450H
212	453530-4	MUFFLER PLATE EM4350/4351 EM4351UH
213	922233-6	HEX SOCKET HD BOLT M5X20 EM43 DCS230T
214	345918-1	HOSE CLAMP ER2550/2650/EM2511 EBH341U
300	455102-1	PLATE - SEE CT22-2
301	266385-6	SCREW 4X14 FOR GA9020 - SEE CT22-2
Petrol Brushcutter EM4350LH 43CC 4T MAKITA pag.4
215	126523-1	CLEANER COVER ASSEMBLY EM4350RH P13 - See the CT22-2
216	266743-6	HEX.SOCKET HEAD BOLT M5X20 - SEE CT31-2
218	442181-8	AIR CLEANER ELEMENT EM4351UH
219	266601-6	HEX. SOCKET HEAD BOLT M5X60
220	443196-8	AIR CLEANER ELEMENT EM4350RH - SEE CT31-2
221	123994-3	FILTER PLATE - Look at the CT31-2
222	162346-3	SEPARATOR PLATE ER2650/EN4951 EX2650LH
223	352020-3	SEPARATOR MESH ER2650/EN4951 EX2650LH
224	266007-8	PT SCREW 3X10 TRILOBULAR/MS248 HP2030
225	453865-3	SEPARATOR CASE ER2650/EN4951 EX2650LH
226	424316-3	CHECK VALVE ER2550/EBH251L EBH341U
227	454425-4	SPIRAL TUBE 6-100 EM4350/4351 EM4351UH
228	422074-5	TUBE 3-120 EK7650H EM4351UH
229	168398-2	PRIMER PUMP DCS230T/EA32/EA36 DCS230T
230	442196-5	CARBURETOR GASKET EM4351P01
231	123301-0	CARBURETOR X EM4351UH
232	345963-6	CLAMP ER2550/EBH253L/EBH341U
233	266388-0	TAPPING SCREW 5X16 UC4020A/35 UC3020A
234	442197-3	CARBURETOR GASKET EM4351P01
235	922233-6	HEX SOCKET HD BOLT M5X20 EM43 DCS230T
236	424489-2	GROMMET EM4350/4351 EM4351UH
237	422080-0	TUBE 3-35 X EM4351UH
238	142736-6	INSULATOR PLATE - SEE CT22-2
239	213642-3	O RING 18 EM4350/4351 EM4351UH
242	451825-9	CLAMP ER2650/EM2651/EN4951 EX2650LH

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita EM4350LH

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Drawing Makita EM4350LH

Download (1.3MB)

Technical Info CT22-2

Download (456.75KB)

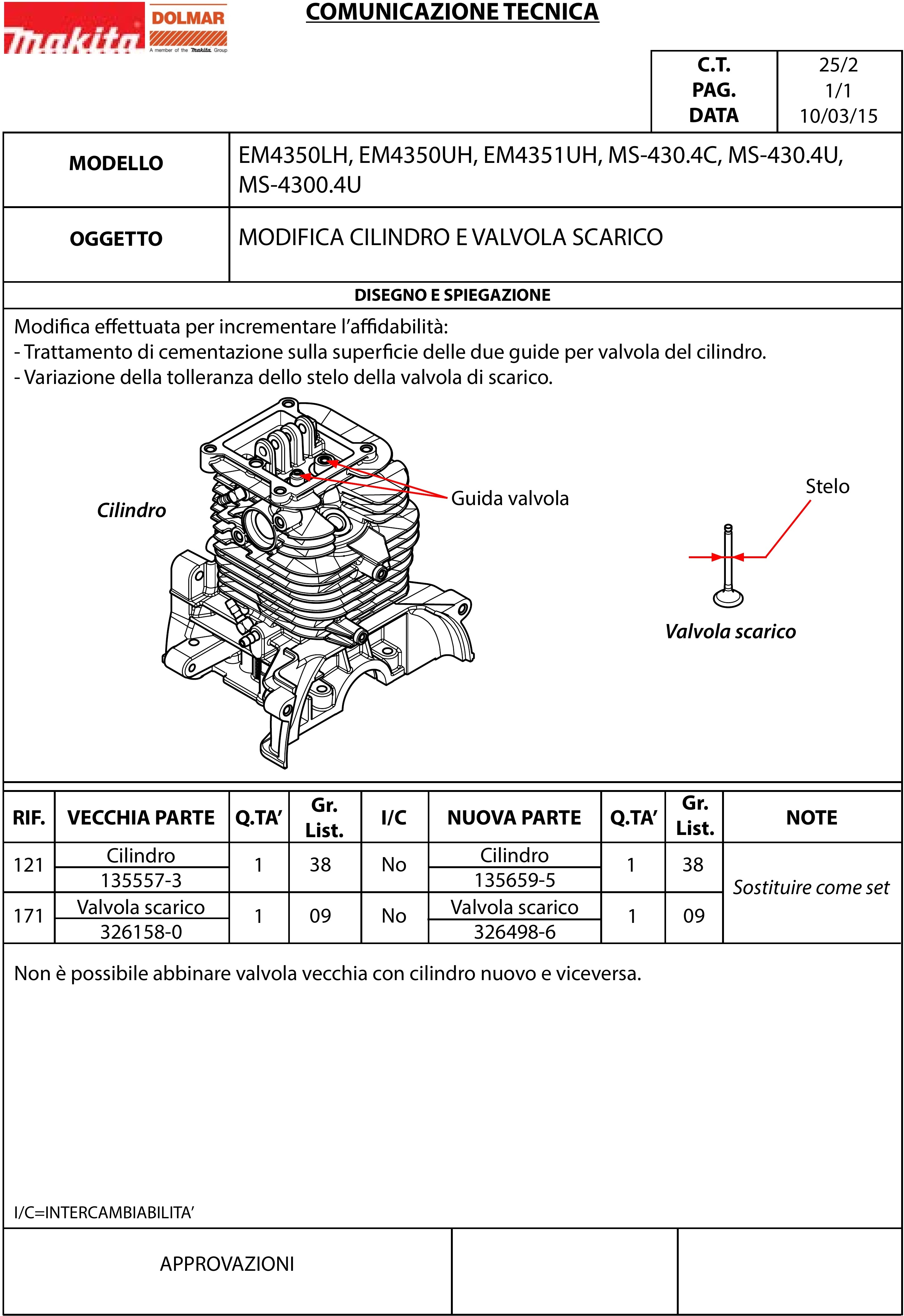

Technical Info CT25-2

Download (152.9KB)

Technical Info CT31-2

Download (193.99KB)

Makita SKU: 168398-2

Gasoline Primer Pump for Chainsaw Makita DCS230T

Gasoline Primer Pump for Chainsaw Makita DCS230T Genuine parts for Makita, Gasoline Primer Pump for Chainsaws DCS230T - DCS230TC -DCS231T - DCS231TC - DCS232TC Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA...

AVAILABLE €6.24

Cart (0)

Subcategories

Subcategories

Subcategories

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Makita Spare Parts for Brusch Cutter EM4350LH

Makita Spare Parts for Brusch Cutter EM4350LH

Makita Spare Parts for Brusch Cutter EM4350LH

Makita Spare Parts for Brusch Cutter EM4350LH

Makita Spare Parts for Brusch Cutter EM4350LH

Data sheet

Specific References

Download

You might also like
