Makita Spare Parts for Hedge Trimmer EH561

Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Hedge Trimmer EH561.
Makita Spare Parts for Trimmer EH561
  • Makita Spare Parts for Trimmer EH561
  • Makita Spare Parts for Trimmer EH561
  • Makita Spare Parts for Trimmer EH561
  • Makita Spare Parts for Trimmer EH561
Makita

Makita Spare Parts for Trimmer EH561

SKU: Makita EH561 Condition: New
€59.26
VAT included

Makita Spare Parts for Hedge Trimmer EH561

Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Hedge Trimmer EH561.
settings 133 Spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Hedge Trimmer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
133 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

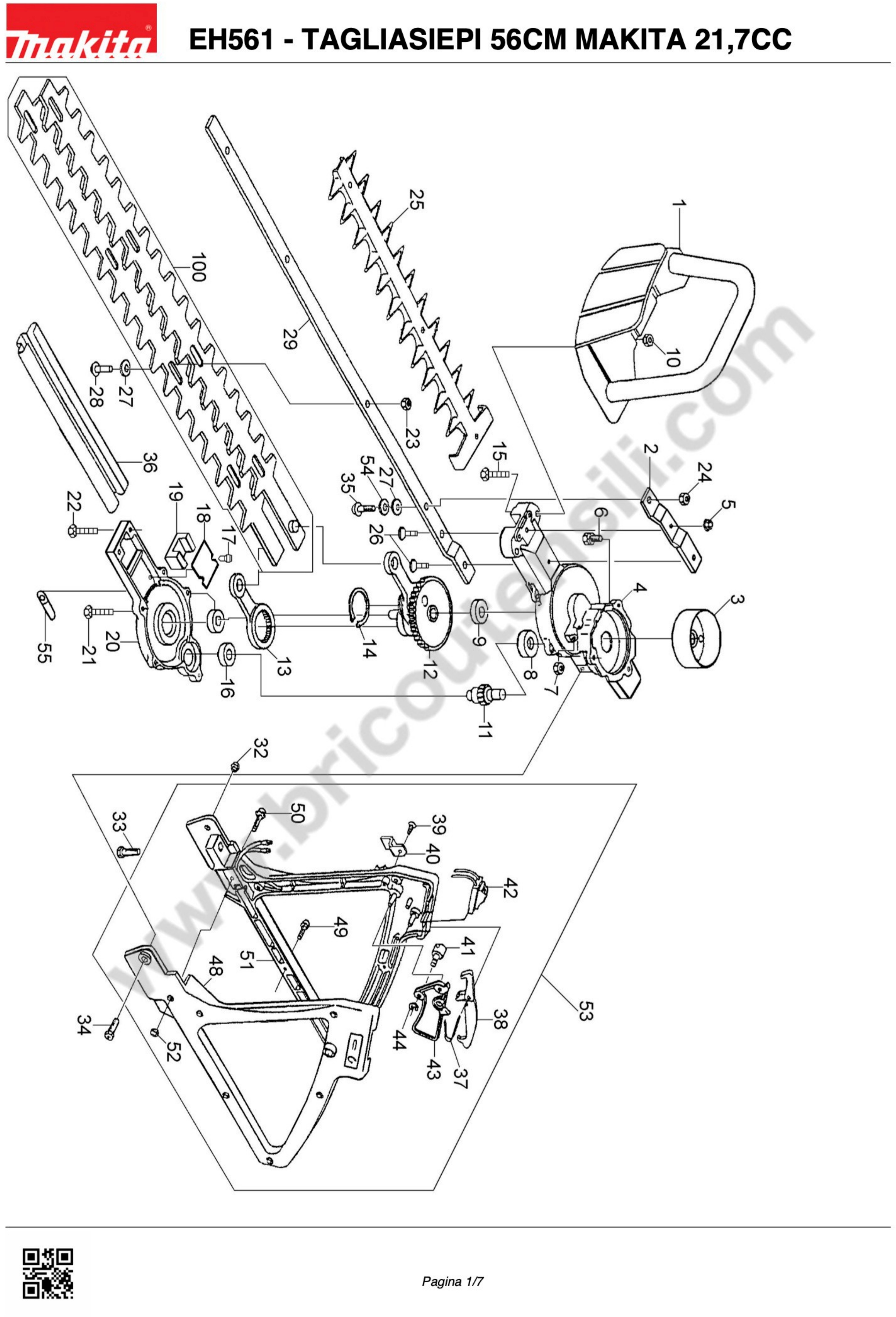

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1181550000 FRONT HANDLE HT2256D €54.24
2
 photo_cameraImage coming soon 0301080000 REINFORCING PLATE €13.06
3
 photo_cameraImage coming soon 1361410000 DRUM CPL., EH561 HT2256D-HT2276E €25.05 Not available for order
4
 photo_cameraImage coming soon 1181410000 CASE (UPPER) €97.62
5
 photo_cameraImage coming soon 162050000K NUT M5 X HT2256D-HT2276E €1.43 Not available for order
6
 photo_cameraImage coming soon 054060150K HEX. BOLT M6X15 €2.14
7
 photo_cameraImage coming soon 055001000R GREASING NIPPLE M6 €4.56
8
 photo_cameraImage coming soon 354060010K BALL BEARING HT2256D €33.68
9
 photo_cameraImage coming soon 351006080K BALL BEARING 608Z HT2256 €36.80
11
 photo_cameraImage coming soon 1361420000 PINION GEAR HT2256D- €78.04 Not available for order
12
 photo_cameraImage coming soon 1360030000 CRANK GEAR, EH561 HT2256D - €225.46 Not available for order
13
 Conrod for Hedge Trimmer Dolmar HT2256D XOC0000018 Conrod for Hedge Trimmer Dolmar HT2256D €51.26 Not available for order
14
 photo_cameraImage coming soon 283026000K RETAINING RING STW-26 €2.76
15
 photo_cameraImage coming soon 055060350K HEX. BOLT M6X35 €2.10
17
 photo_cameraImage coming soon 010030050K PAN HEAD SCREW M3X5 €1.43
18
 photo_cameraImage coming soon 0301100000 CONNECTING ROD HT2256D-HT2276E €10.18 Not available for order
19
 photo_cameraImage coming soon 1181010000 FELT €10.18
20
 photo_cameraImage coming soon 1181040000 CASE (LOWER) €29.13
21
 photo_cameraImage coming soon 054050160K HEX. BOLT M5X16 €2.14
22
 photo_cameraImage coming soon 054050200K HEX. BOLT M5X20 €2.14
23
 photo_cameraImage coming soon 164060000K HEX NUT M6 HT2256D €2.76 Not available for order
25
 photo_cameraImage coming soon 1181520000 BLADE GUARD (W) €14.74
26
 photo_cameraImage coming soon 031050200K FLAT HEAD SCREW M5X20 HT2256D €1.64
27
 photo_cameraImage coming soon 0082500000 WASHER X BLADE SCREW HT2256D- €1.43 Not available for order
28
 photo_cameraImage coming soon 0082470000 BLADE SLIDING SCREW(L=19) €2.52
29
 photo_cameraImage coming soon 1181260000 GUIDE BLADE X HT2256D €75.83 Not available for order
33
 photo_cameraImage coming soon 055060400K HEX. BOLT M6X40 €2.10
34
 photo_cameraImage coming soon 055060500K HEX. BOLT M6X50 €2.10
35
 photo_cameraImage coming soon 0082480000 BLADE SLIDING SCREW(L=22) €3.23
36
 photo_cameraImage coming soon 028002039A BLADE COVER €20.34
37
 photo_cameraImage coming soon 1181540000 LEAF SPRING €7.69
38
 photo_cameraImage coming soon XOC0000033 SPRING €5.13 Not available for order
40
 photo_cameraImage coming soon 1181210000 CABLE HOLDER, EH561 HT2256D €2.69 Not available for order
41
 photo_cameraImage coming soon 1181110000 PIN X HT2256D €14.34 Not available for order
42
 photo_cameraImage coming soon 005044004A SLIDE SWITCH €21.97
43
 photo_cameraImage coming soon 1181150000 LEVER €4.63
48
 photo_cameraImage coming soon 1181500000 LEFT REAR HANDLE (L), EH561 HT2256D €18.98 Not available for order
50
 photo_cameraImage coming soon 017040300K PAN HEAD SCREW M4X30 €1.64
51
 photo_cameraImage coming soon 1181490000 RIGHT REAR HANDLE (R), EH561 HT2256D €24.35 Not available for order
53
 photo_cameraImage coming soon 126493-4 REAR HANDLE X EH561 €56.02 Not available for order
54
 photo_cameraImage coming soon 229060000K SPRING WASHER X HT2256D €2.14 Not available for order
55
 photo_cameraImage coming soon 0566079970 CLAMP X RBC520 €2.14 Not available for order
100
 photo_cameraImage coming soon 6018505400/KIT CUTTING BLADE SET -   HT2256D-HTR5600 €106.04
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

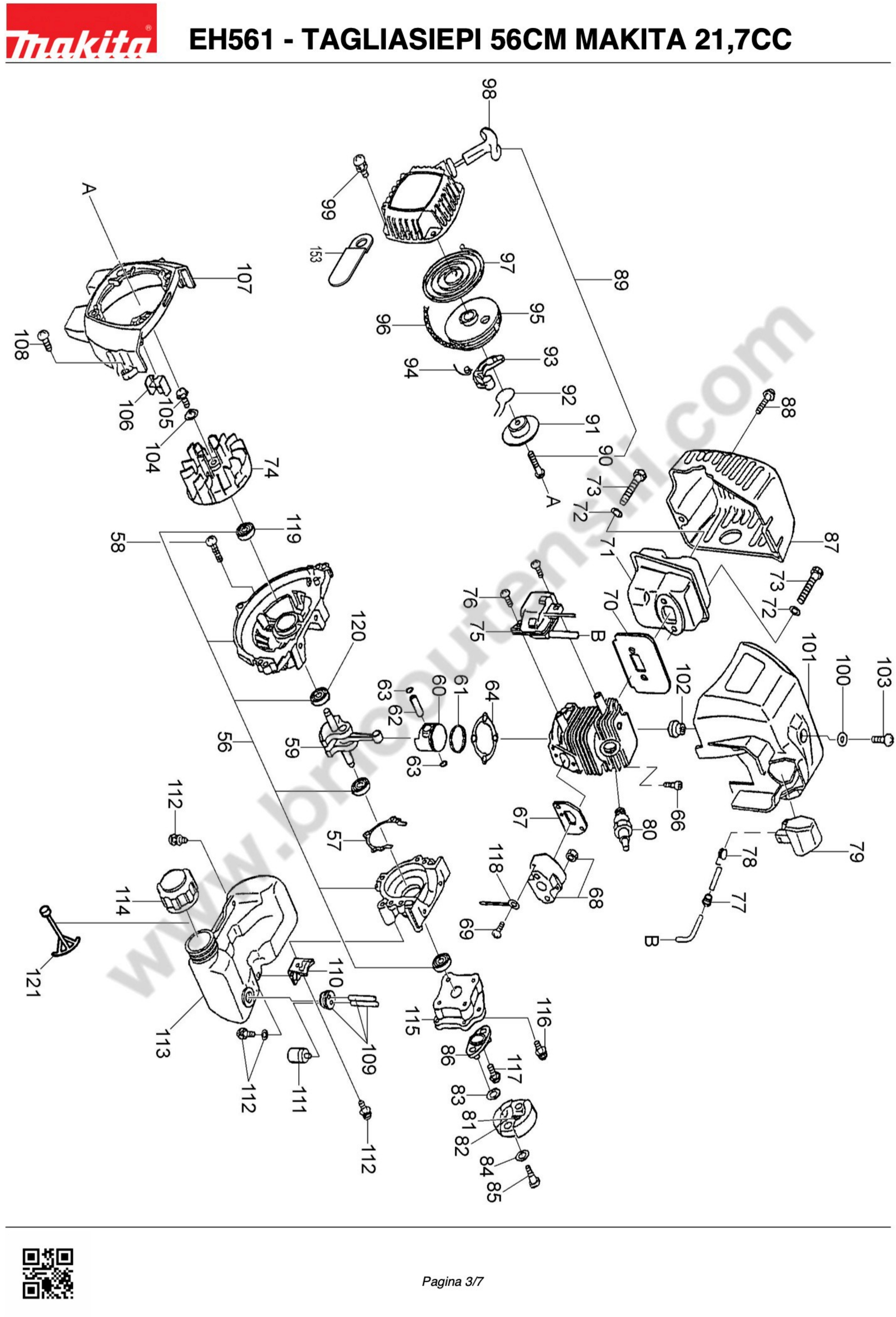

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
56
 photo_cameraImage coming soon 5251003000 ENGINE CRANKCASE CPL X HT2256D €87.61 Not available for order
57
 photo_cameraImage coming soon 424447-8 HOUSING GASKET RBC2510 €2.14 Not available for order
58
 photo_cameraImage coming soon 0140059500 SCREW M5x25 X RBC225-255 €1.43
59
 photo_cameraImage coming soon 5252002002 CRANKSHAFT ASS'Y €87.61
60
 photo_cameraImage coming soon 5212500700 PISTON X RBC221-225 €14.76
61
 photo_cameraImage coming soon 5982500000 PISTON RING X RBC221-225 €3.95
62
 photo_cameraImage coming soon 5212500801 PIN X RBC221-225 €2.76
63
 photo_cameraImage coming soon 233976-8-4 CIRCLIP EBH252L RING (4pcs) €6.01
64
 photo_cameraImage coming soon 442171-1 CYLINDER GASKET RBC2510 €2.76 Not available for order
66
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15 Not available for order
67
 photo_cameraImage coming soon 5253500200 INSULATOR GASKET X HT2256D €2.14 Not available for order
68
 photo_cameraImage coming soon 141056-5 INSULATOR COMPLETE €6.81 Not available for order
70
 photo_cameraImage coming soon 5253500102 MUFFLER GASKET X HT2256D €3.23 Not available for order
71
 photo_cameraImage coming soon 5253010001 EXHAUST MUFFLER €87.61
72
 photo_cameraImage coming soon 0031005000 WASHER X RBC230 / 410 / RBK410 €5.26
73
 photo_cameraImage coming soon 0119059660 BOLT X RBC350-RBC420 €2.76
74
 photo_cameraImage coming soon 5257001010 MAGNETO FLYWHEEL €36.80
75
 photo_cameraImage coming soon 5257001020 IGNITION COIL €159.53
76
 photo_cameraImage coming soon 0140049920 SCREW M4X20 X RBC225-255 €1.32 Not available for order
77
 photo_cameraImage coming soon 5257500300 RUBBER X HT2256D-HT2276E €2.65 Not available for order
78
 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U 324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U €1.32 Not available for order
79
 photo_cameraImage coming soon 5237503301 SPARK PLUG CAP XRBC225-255 €25.05 Not available for order
81
 photo_cameraImage coming soon 5238500500 CLUTCH SPRING X RBC225-255 €2.76 Not available for order
82
 photo_cameraImage coming soon 6252500801 CLUTCH GEAR X RBC225-255 €8.74 Not available for order
83
 photo_cameraImage coming soon 267429-5 WASHER 6 €1.32 Not available for order
84
 photo_cameraImage coming soon 267817-6 WASHER 8 EBH252L €1.46 Not available for order
85
 photo_cameraImage coming soon 266457-7 SCREW M6FOR25 EBH252L €2.76
86
 photo_cameraImage coming soon 6202500000 HOLDER X HT2256D-HT2276E €19.53 Not available for order
87
 photo_cameraImage coming soon 5253500500 MUFFLER COVER X HT2256D €14.76 Not available for order
88
 photo_cameraImage coming soon 0043705160 SCREW ASS Y €1.43
89
 photo_cameraImage coming soon 5255001000 REWIND STARTER ASS Y €22.16
90
 photo_cameraImage coming soon 5255001020 SET SCREW €4.56
91
 photo_cameraImage coming soon 5505001030 FRICTION PLATE €7.79
92
 photo_cameraImage coming soon 5105015050 CLUTCH SPRING X RBC 310/520 €7.79
93
 photo_cameraImage coming soon 5105015020 RATCHET RBC 310 / RBC520 €8.74
94
 photo_cameraImage coming soon 5105015060 RETURN SPRING X RBC310 / RBC520 €3.23
95
 photo_cameraImage coming soon 5025001010 REEL X RBC 310 €13.06
96
 photo_cameraImage coming soon 5235024022 STARTER ROPE RBK250-RBC225-2 €17.13
97
 photo_cameraImage coming soon 232257-7 SPRING SPIRAL EBH341U €17.02
98
 photo_cameraImage coming soon 5225004020 STARTER KNOB HT2256D €13.66 Not available for order
99
 photo_cameraImage coming soon 911218-7 HEAD SCREW CILIND. M5x14 €1.32
100
 photo_cameraImage coming soon 0200070010 WASHER X HT2256D-HT2276E €2.14 Not available for order
101
 photo_cameraImage coming soon 5255500301 CYLINDER COVER EH561 €8.50 Not available for order
102
 photo_cameraImage coming soon 5503503001 SPACER X-HT2256D HT2276E €3.95 Not available for order
103
 photo_cameraImage coming soon 0140059490 SCREW X HT2256D-HT2276E €1.43
104
 photo_cameraImage coming soon 0031206000 WASHER G.24 / 35-RBC225-255 €1.32 Not available for order
105
 photo_cameraImage coming soon 0011306160 BOLT X RBC230 / 260/225/255 €1.32
106
 photo_cameraImage coming soon 5215500300 BAFFLE PLATE €2.76
107
 photo_cameraImage coming soon 5255500001 BLOWER HOUSING €41.57
108
 photo_cameraImage coming soon 0043505160 SCREW ASS Y €1.43
109
 photo_cameraImage coming soon 5256012001 TUBE CPL. HT2256D-HT2276E €6.81 Not available for order
110
 photo_cameraImage coming soon 5256002000 TANK PLATE CPL HT2256D €6.81 Not available for order
111
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €3.83
113
 photo_cameraImage coming soon 5256025000 TANK CPL X HT2256D-HT2276 €15.00 Not available for order
114
 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20 Not available for order
115
 photo_cameraImage coming soon 1181240000 SPACER X HT2256D-HT2276E €33.68 Not available for order
116
 photo_cameraImage coming soon 0140059450 SCREW M5X18 X RBK250-RBC225 / 25 €2.14
117
 photo_cameraImage coming soon 6202006000 BOLT FOR RBC310 €2.14 Not available for order
118
 photo_cameraImage coming soon 5607005000 COMPLETE CABLE X RBC350-RBC420-HT225 €6.11 Not available for order
119
 photo_cameraImage coming soon 213628-7 OIL SEAL RBC2510 €2.08
120
 photo_cameraImage coming soon 0600129920 BEARING MS5250 €12.34
121
 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31 Not available for order
153
 photo_cameraImage coming soon 0566059980 CLAMP X RBC525 €3.83 Not available for order
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

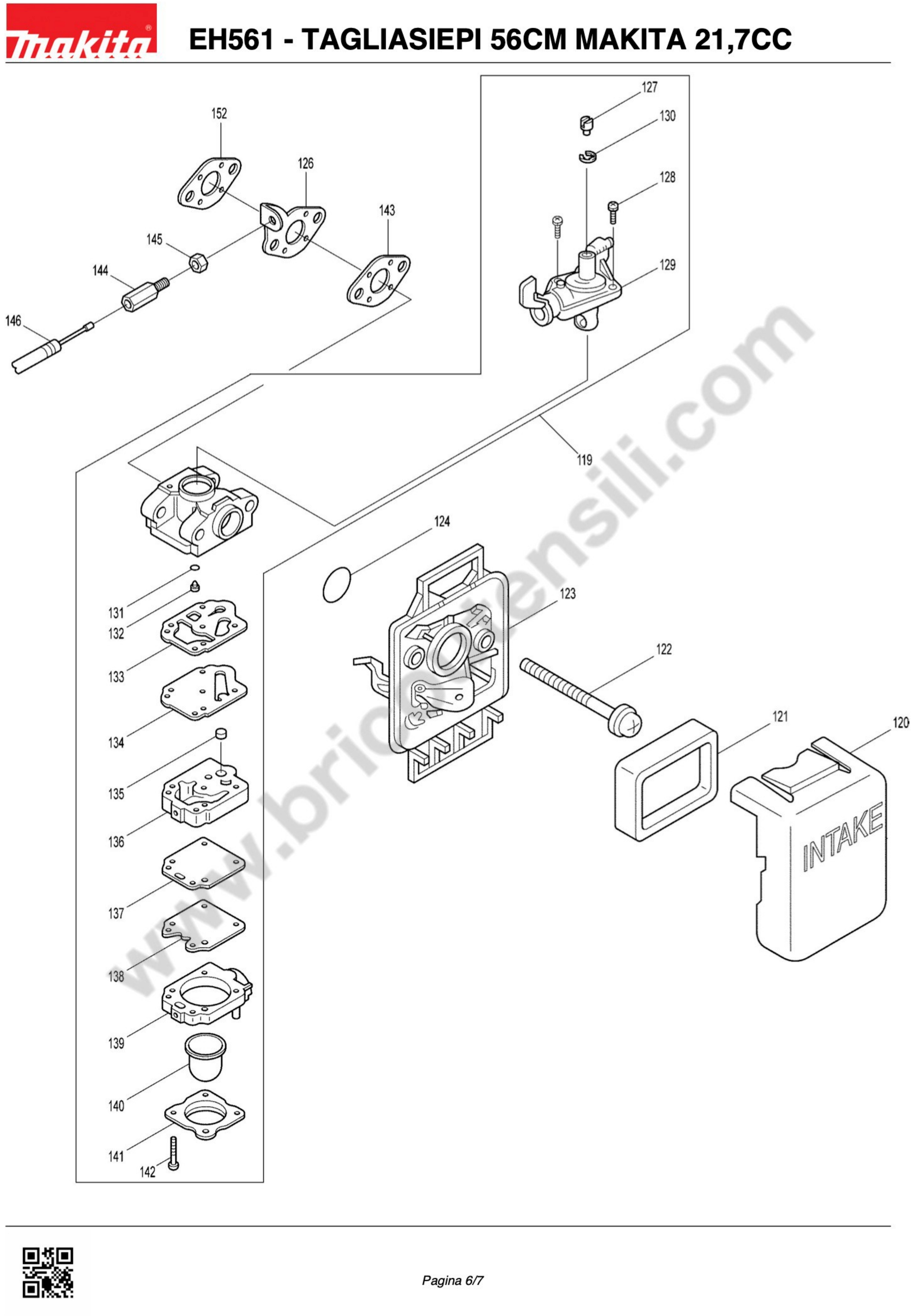

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
119
 photo_cameraImage coming soon 5256032000 CARBURETOR €63.40
120
 photo_cameraImage coming soon 5253020010 AIR CLEANER COVER RBC201 €13.06 Not available for order
121
 Air Filter Element for Brushcutter Makita RBC201 5203004010 Air Filter Element for Brushcutter Makita RBC201 €3.95 Not available for order
122
 photo_cameraImage coming soon 0043305650 SCREW ASS'Y XHT2256D-HT2276E €2.76 Not available for order
123
 photo_cameraImage coming soon 5253003020 AIR CLEANER HOUSING RBC201 €10.18 Not available for order
124
 photo_cameraImage coming soon 5236061000 O-RING RBC201 €2.69 Not available for order
126
 photo_cameraImage coming soon 5256501900 CABLE SUPPORT EH620 €3.13 Not available for order
127
 photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €11.27 Not available for order
128
 photo_cameraImage coming soon 266581-6 SCREW M3X8 EBH341U €2.03 Not available for order
129
 photo_cameraImage coming soon 5256032010 THROTTLE VALVE ASS'Y RBC221/25   X RBL250- €36.80
130
 photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €4.44 Not available for order
131
 photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €4.44 Not available for order
132
 photo_cameraImage coming soon 5026004010 NOZZLE X HT2256D-HT2276E €14.76 Not available for order
133
 photo_cameraImage coming soon 5246001030 PUMP GASKET RBC260-230-310- €6.11 Not available for order
134
 photo_cameraImage coming soon WJ00009599 PUMP DIAPHRAGM DCS230T €5.16 Not available for order
135
 photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €3.83 Not available for order
136
 photo_cameraImage coming soon 5256007010 PUMP BODY ASS Y €70.85 Not available for order
137
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.44 Not available for order
138
 photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €24.94 Not available for order
139
 photo_cameraImage coming soon 5236046060 CPL AIR FILTER BODY RBC350 €33.70 Not available for order
140
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €5.99 Not available for order
141
 photo_cameraImage coming soon 5236046050 PUMP COVER FOR RBC350-RBC42 €10.07 Not available for order
142
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.03 Not available for order
143
 Carburator Gasket for Brushcutter Makita RBC310 442177-9 Carburator Gasket for Brushcutter Makita RBC310 €1.51
144
 photo_cameraImage coming soon 5316020020 SCREW FOR CABLE RBC321 €5.13 Not available for order
145
 photo_cameraImage coming soon 5316005450 NUT RBC260 / 310 €2.85
146
 photo_cameraImage coming soon 0630029830 CONTROL CABLE X EH561 €6.63 Not available for order

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Hedge Trimmer EH561

Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Hedge Trimmer EH561.

In the following table, look for the model of the Trimmer and the respective parts of the code.
Makita EH5000W

EH561 - HEDGE TRIMMER 56CM MAKITA 21,7CC pag.1
# Part Num. Description
1 1181550000 FRONT HANDLE HT2256D
2 0301080000 REINFORCING PLATE HT2256D-
3 1361410000 DRUM CPL HT2256D-HT2276E
4 1181410000 UPPER CASE HT2256D
5 162050000K FLANGE NUT M5 X HT2256D-HT2276E
6 054060150K HEX BOLT M6X15 X HT2256D-HT2276
7 055001000R GREASING NIPPLE M6 X HT2256D-HT2276E
8 354060010K BALL BEARING HT2256D
9 351006080K BALL BEARING 608Z HT2256
10 150060000K HEX NUT M6 X HT2256D
11 1361420000 PINION GEAR HT2256D-
12 1360030000 GEAR CRANK ASSY HT2256D -
13 XOC0000018 CONNECTING ROD HTR5600
14 283026000K RETAINING RING HT2256D -
15 055060350K HEX. BOLT M6X35 HT2256D
16 351006080K BALL BEARING 608Z HT2256
17 010030050K PAN HD SCREW M3X5 X HT2256D-HT2276E
18 0301100000 ROD SLIDING PLATE HT2256D-HT2276E
19 1181010000 FELT X HT2256D-HT2276E
20 1181040000 LOWER CASE HT2256D
21 054050160K HEX. BOLT M5X16 X HT2256D-HT2276
22 054050200K HEX. BOLT M5X20 X HT2256D-HT2276
23 164060000K HEX NUT M6 HT2256D
24 164060000K HEX NUT M6 HT2256D
25 1181520000 BLADE GUARD X HT2256D
26 031050200K FLAT HEAD SCREW M5X20 HT2256D
27 0082500000 BLADE SLIDING WASHER HT2256D-
28 0082470000 BLADE SLIDING SCREW HT2256D-HT2276E
29 1181260000 BLADE SUPPORT BAR X HT2256D
32 150060000K HEX NUT M6 X HT2256D
33 055060400K HEX. BOLT M6X40 X HT2256D
34 055060500K HEX. BOLT M6X50 X HT2256D
35 0082480000 BLADE SLIDING SCREW HT2256D-HT2276E
36 028002039A BLADE COVER
37 1181540000 LEAF SPRING HT2256D
38 XOC0000033 STOPPER
39 112040100K TAPPING SCREW M4X10 HT2256D
40 1181210000 CABLE HOLDER HT2256D
41 1181110000 WIRE END HT2256D
42 005044004A SLIDE SWITCH HT2256D
43 1181150000 LEVER X HT2256D
44 280002500K RETAINING RING ETW 2.5 HT2256D
48 1181500000 REAR HANDLE HT2256D
49 017040160K PAN HD SCREW M6X16 X HT2256D
50 017040300K PAN HD SCREW M6X30 X HT2256D
51 1181490000 REAR HANDLE RH HT2256D
52 150040000K HEX NUT M4 X HT2256D
53 126493-4 HANDLE PIN EH561
54 229060000K WAVE WASHER X HT2256D
55 0566079970 CLAMP RBC520
100 6018505400/KIT BLADE ASSY HT2256D-HTR5600
EH561 - HEDGE TRIMMER 56CM MAKITA 21,7CC pag.2
56 5251003000 CRANKCASE ASSY HT2256D
57 424447-8 CRANKCASE GASKET RBC2510
58 0140059500 SCREW M5X25 X RBC225-255
59 5252002002 CRANKSHAFT COMPLETE
60 5212500700 PISTON X RBC221-225
61 5982500000 PISTON RING RBC221-225
62 5212500801 PISTON PIN RBC221-225
63 233976-8-4 CLIP EBH252L (4pcs)
64 442171-1 CYLINDER GASKET RBC2510
66 0119059730 HEX. BOLT RBC 260/230/225/255
67 5253500200 INSULATOR GASKET HT2256D
68 141056-5 INSULATOR
69 0140059500 SCREW M5X25 X RBC225-255
70 5253500102 MUFFLER GASKET HT2256D
71 5253010001 EXAUST MUFFLER HT2256D-HT2276E
72 0031005000 WASHER M5 RBC230 / 410 / RBK410
73 0119059660 SOCKET HEAD BOLT RBC350-RBC420 -
74 5257001010 MAGNETO FLYWHEEL HT2256D
75 5257001020 IGNITION COIL HT2256D-HT2276E
76 0140049920 SCREW M4X20 X RBC225-255
77 5257500300 GROMMET HT2256D-HT2276E
78 324891-8 PLUG CAP SPRING EBH341
79 5237503301 PLUG CAP XRBC225-255
80 0650149721 SPARK PLUG RBK250
81 5238500500 CLUTCH SPRING RBC225-255
82 6252500801 CLUTCH SHOE RBC225-255
83 267429-5 WASHER 6
84 267817-6 WASHER 8 EBH252L
85 266457-7 SHOULDER HEX BOLT M6X25 EBH252L
86 6202500000 HOLDER HT2256D-HT2276E
87 5253500500 MUFFLER COVER X HT2256D
88 0043705160 SET SCREW HT2256D-HT2276E
89 5255001000 RECOIL STARTER HT2256D
90 5255001020 SET SCREW HT2256D-HT2276E
91 5505001030 FRICTION PLATE RBC 310 / RBC520
92 5105015050 FRICTION SPRING RBC 310/520
93 5105015020 STARTER RATCHET RBC 310 / RBC520
94 5105015060 SPRING RETURN X RBC310 / RBC520
95 5025001010 REEL RBC 310
96 5235024022 STARTER ROPE RBK250-RBC225-2
97 232257-7 SPIRAL SPRING EBH341U
98 5225004020 STARTER KNOB HT2256D
99 911218-7 SCREW ASSY M5X14
100 0200070010 WASHER X HT2256D-HT2276E
101 5255500301 CYLINDER COVER EH561
102 5503503001 SPACER X HT2256D-HT2276E
103 0140059490 SCREW X HT2256D-HT2276E
104 0031206000 WASHER G.24 / 35-RBC225-255
105 0011306160 BOLT ASSY RBC230 / 260/225/255
106 5215500300 BAFFLE PLATE HT2256D
107 5255500001 BLOWER HOUSING HT2256D
108 0043505160 SCREW ASSY HT2556D-HT2276E
109 5256012001 TUBE CPL. HT2256D-HT2276E
110 5256002000 TANK PLATE CPL HT2256D
111 163447-0 FUEL FILTER DCS230T
112 0043705160 SCREW ASSY HT2256D-HT2276E
113 5256025000 FUEL TANK CPL HT2256D-HT2276
114 452920-8 FUEL TANK CAP
115 1181240000 SPACER HT2256D-HT2276E
116 0140059450 SCREW M5X18 X RBK250-RBC225 / 25
117 6202006000 BOLT X RBC310
118 5607005000 WIRE CPL. RBC350-RBC420-HT225
119 213628-7 OIL SEAL RBC2510
120 0600129920 BALL BEARING MS5250
121 140436-2 STRAP UNIT EBH341U
153 0566059980 CLAMP RBC525
EH561 - HEDGE TRIMMER 56CM MAKITA 21,7CC pag.3
119 5256032000 CARBURETOR X HT2256D-HT2276E
120 5253020010 AIR CLEANER RBC201
121 5203004010 AIR FILTER ELEMENT HT2256D
122 0043305650 SCREW ASSY   HT2256D-HT2276E
123 5253003020 AIR CLEANER HOUSING RBC201
124 5236061000 O-RING RBC201
126 5256501900 CABLE BRACKET EH620
127 5236018040 SWIVEL RBC230-260-310-225-
128 266581-6 SCREW M3X8 EBH341U
129 5256032010 THROTTLE VALVE ASSY RBL250-
130 5316005120 STOP RING E3 RBC 260/230/310/225/2
131 5246001010 O-RING RBC 260/230/310
132 5026004010 JET HT2256D-HT2276E
133 5246001030 PUMP GASKET RBC260-230-310-
134 WJ00009599 PUMP DIAPHRAGM X DCS230T
135 5016004010 INLET SCREEN RBC 260/230/310/225
136 5256007010 PUMP BODY ASSY HT2256D
137 442154-1 METERING DIAPHRAGM GASKET EBH341U
138 168574-8 METERING DIAPHRAGM ASSY EBH341U
139 5236046060 AIR PURGE BODY ASSY. RBC350
140 424314-7 PRIMER PUMP BULB EBH341
141 5236046050 PUMP COVER X RBC350-RBC42
142 266582-4 TAPPING SCREW 3X24 EBH341U
143 442177-9 SPACER GASKET
144 5316020020 CABLE ADJUST SCREW RBC321
145 5316005450 CABLE ADJUST NUT M6 RBC260 / 310
146 0630029830 CONTROL CABLE EH561
152 442177-9 SPACER GASKET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EH561
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
Machine Type
Hedge Trimmer
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita EH561

Drawing Makita EH561

Download (927.9KB)

You might also like

Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA 25CM -...
AVAILABLE €3.83
Details
Piston Pin Circlip for Brushcutter Makita RBC310
Makita SKU: 233976-8
Piston Pin Circlip for Brushcutter Makita RBC310
Piston Pin Circlip for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Pin Circlip for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...
Out-of-Stock €6.01
Details
Carburator Gasket for Brushcutter Makita RBC310
Makita SKU: 442177-9
Carburator Gasket for Brushcutter Makita RBC310
Carburator Gasket for Brushcutter Makita RBC310 Genuine spare part Makita, Carburator Gasket for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C - RBC3200 Part for the following products: -  RBC310...
AVAILABLE €1.51
Details
Primer Bulb for Blower Makita BHX2501
Makita SKU: 424314-7
Primer Bulb for Blower Makita BHX2501
Primer Bulb for Blower Makita BHX2501 Genuine replacement part Makita, Primer Bulb for Brushcutters, Hedge Trimmers, Blowers, Engine Pump, Mist Blowers. Part for the following...
Out-of-Stock €5.99
Details
Conrod for Hedge Trimmer Dolmar HT2256D
Makita SKU: XOC0000018
Conrod for Hedge Trimmer Dolmar HT2256D
Conrod for Hedge Trimmer Dolmar HT2256D Genuine replacement part Dolmar, Conrod for Hedge Trimmers HT2256D - HT2556D - EH561. Part for the following products: -  HT2256D - HEDGE TRIMMER 56CM...
Out-of-Stock €51.26
Details
Comments (0)
No customer reviews for the moment.
