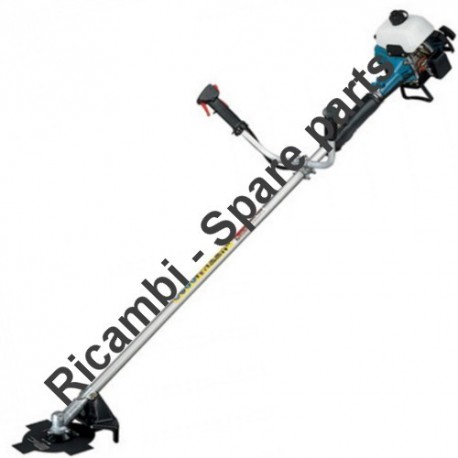

Makita

Makita Spare Parts for BruschCutter RBC410

SKU: Makita RBC410
€7.50
VAT included

Makita Spare Parts for BruschCutter RBC410

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Bruschcutter RBC410.
Makita Spare Parts for BruschCutter RBC410
  • Makita Spare Parts for BruschCutter RBC410
  • Makita Spare Parts for BruschCutter RBC410
  • Makita Spare Parts for BruschCutter RBC410
  • Makita Spare Parts for BruschCutter RBC410
  • Makita Spare Parts for BruschCutter RBC410
Makita

Makita Spare Parts for BruschCutter RBC410

SKU: Makita RBC410 Condition: New
€7.50
VAT included

Makita Spare Parts for BruschCutter RBC410

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Bruschcutter RBC410.
settings 133 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
133 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

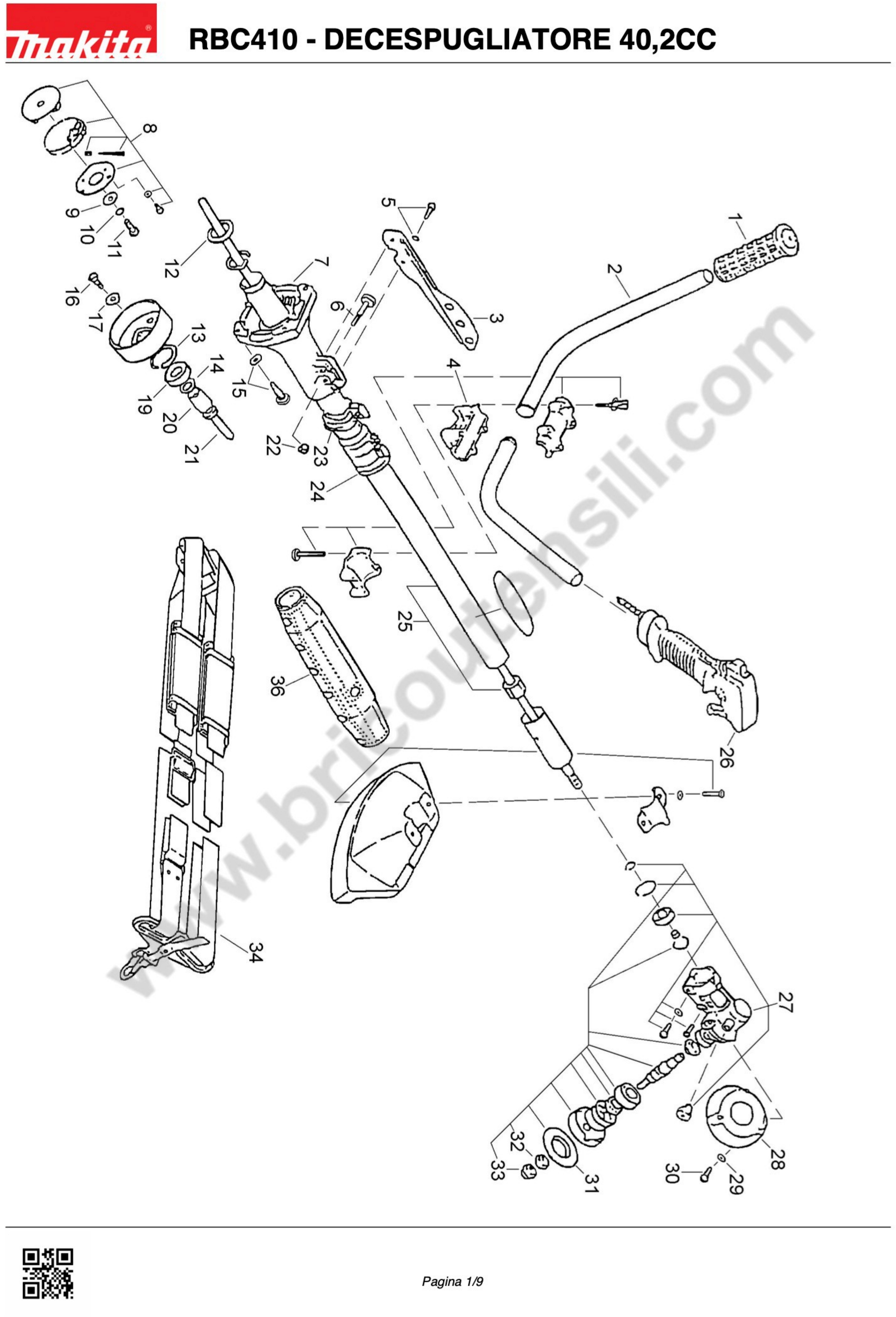

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6404502400 GRIP X RBC 410 €8.37
2
 Makita RBC310 Handlebar 6414500600 Makita RBC310 Handlebar €34.41
3
 photo_cameraImage coming soon 6417500200 HANGER BRACKET RBC 410 €15.11
4
 photo_cameraImage coming soon 6414005001 HANDLEGRIP SUPPORT RBC351 €61.61
5
 photo_cameraImage coming soon 0011806280 BOLT COMPL. RBC410 €1.28
6
 photo_cameraImage coming soon 0016706450 BOLT RBC 410 €1.28
7
 photo_cameraImage coming soon 6411502600 CLUTCH HOUSING X RBC 410 €187.94
8
 Clutch Ass'y for Brushcutter Dolmar MS4210 140897-6 Clutch Ass'y for Brushcutter Dolmar MS4210 €110.29
9
 photo_cameraImage coming soon 267429-5 WASHER 6 €1.54
10
 photo_cameraImage coming soon 0032006000 ELASTIC WASHER X RBC / RBK410-G2400R €1.54
11
 photo_cameraImage coming soon 6202500400 BOLT X RBC 410 / RBK410 €8.37
12
 photo_cameraImage coming soon 6301501600 WASHER X RBC520 €3.23
13
 photo_cameraImage coming soon 0031435000 INTERNAL LOCK X RBC410 / 520 / RBK410 €3.23
14
 photo_cameraImage coming soon 0031517000 EXTERNAL LOCK X RBC 410 RBK410 €1.43
15
 photo_cameraImage coming soon 0119069910 COMPLETE BOLT X RBC 410 €2.03
19
 photo_cameraImage coming soon 0600179850 BALL BEARING 6003DD X RBC / K 410 €18.98
20
 photo_cameraImage coming soon 424403-8 RUBBER X RBC 410 €5.14
21
 photo_cameraImage coming soon 6411009001 SHAFT COMPLETE RBC 410 €175.38
22
 photo_cameraImage coming soon 0021806000 NUT M6 X RBC 410 / RBC520 €1.43
23
 photo_cameraImage coming soon 140629-1 STOPPER COMPLETE RBC410 RBC520 €3.95
24
 photo_cameraImage coming soon 6411502200 CLAMP RBC 410 €6.88
25
 photo_cameraImage coming soon 6411001000 SHAFT PIPE COMPLETE RBC 410 €284.98
27
 photo_cameraImage coming soon 6353001000 GEAR BOX X RBC 410 BOX €200.41
28
 photo_cameraImage coming soon 412099-7 PROTECTION X DECESP. €3.95
29
 photo_cameraImage coming soon 0031005000 WASHER X RBC230 / 410 / RBK410 €5.26
30
 photo_cameraImage coming soon 0119059900 BOLT M5X12 X RBC225-255 €2.08
31
 photo_cameraImage coming soon 346441-9 EXTERNAL FLANGE €22.16
32
 photo_cameraImage coming soon 264058-5 NUT X RBC 410 / RBC520 €4.62
33
 photo_cameraImage coming soon 6308503300 NUT X RBC 410 / RBC520 €6.81
34
 photo_cameraImage coming soon 6407003003 BELT X RBC350-RBC420 €62.99
36
 photo_cameraImage coming soon 6357500000 CUSHION MS252U RBC 410 €45.52
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

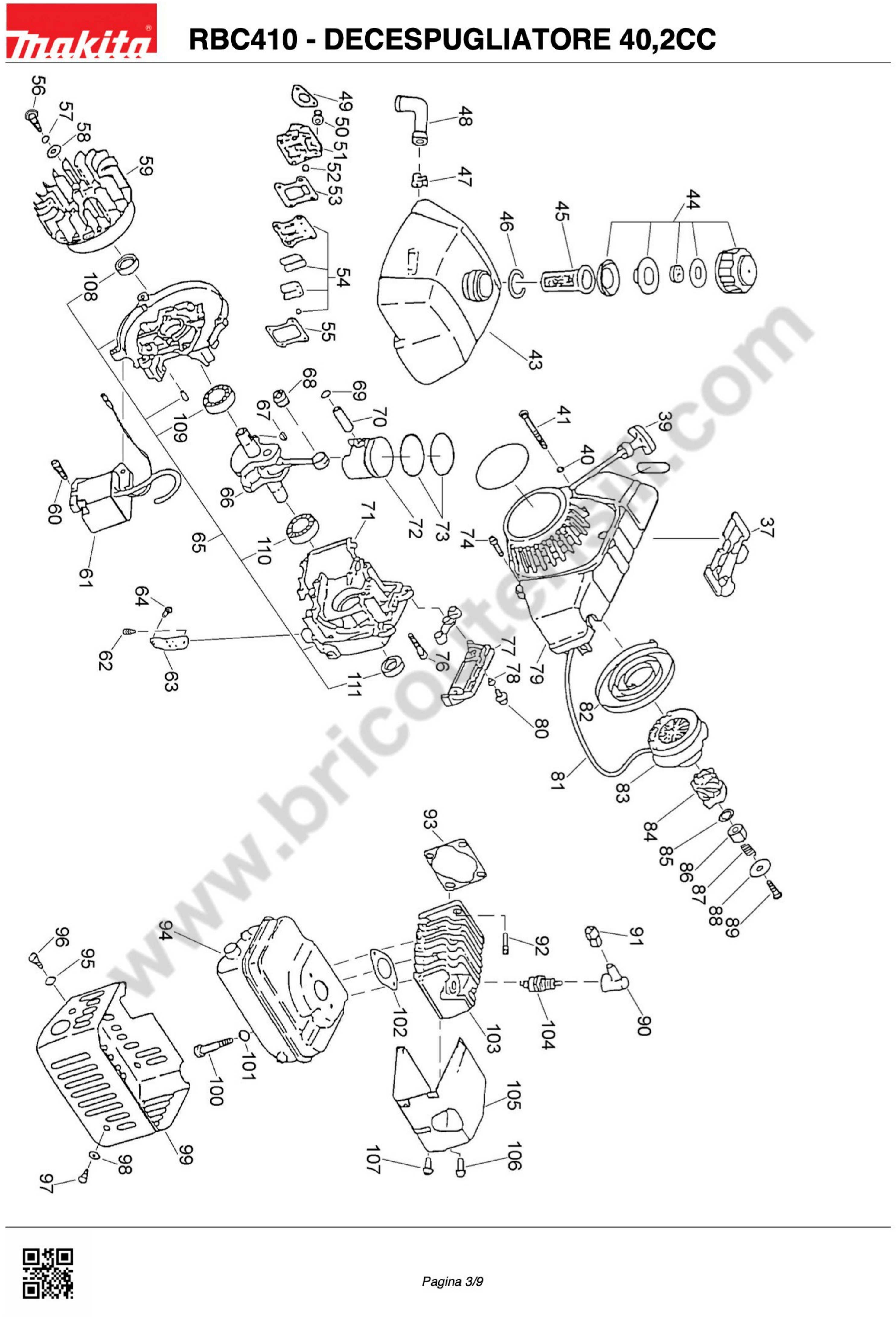

Esploso pagina 2
Pos. Item Price Buy
37
 photo_cameraImage coming soon 5416501900 GROMMET X RBC410 / RBK 410 €4.52
39
 photo_cameraImage coming soon 5305002110 STARTER KNOB X RBC260 / RBK41 €7.79
41
 photo_cameraImage coming soon 0119059810 BOLT M5X50 XRBC / RBK410 €2.12
43
 Fuel Tank for Brushcutter Makita RBK350 5416501201 Fuel Tank for Brushcutter Makita RBK350 €20.65
44
 photo_cameraImage coming soon 125799-7 FUEL TANK CAP ASS'Y RBC 410 RBK 410 €5.24
45
 photo_cameraImage coming soon 0641279990 FILTER X RBC 410 / RBK 410 €2.99
46
 photo_cameraImage coming soon 5516500500 GASKET X RBC 410 / RBK 410 €2.12
47
 photo_cameraImage coming soon 0561139982 HOSE CLAMP X RBC 410 / RBK 410 €2.32
48
 Fuel Tube for Brushcutter Makita RBK350 422060-6 Fuel Tube for Brushcutter Makita RBK350 €6.44
49
 photo_cameraImage coming soon 5416501300 GASKET X RBC410 / RBK 410 €1.46
50
 photo_cameraImage coming soon 0043705200 PAN HEAD SCREW M5X20 RBC410 / RBK 410 M5X20 €1.43
51
 photo_cameraImage coming soon 5413501100 ISOLATOR X RBC 410 / RBK410 €10.35
52
 photo_cameraImage coming soon 0021705000 NUT M5 X RBC415 €1.54
53
 photo_cameraImage coming soon 5413501200 ISOLATOR GASKET X RBC410 / RBK410 €2.81
54
 photo_cameraImage coming soon 125796-3 COMPLETE VALVE X RBC410 / RBK410 €17.39
55
 photo_cameraImage coming soon 442160-6 BRACKET GASKET €2.14
56
 photo_cameraImage coming soon 0016706160 BOLT M6X16 X RBC / RBK 410 €1.43
58
 photo_cameraImage coming soon 0200069920 WASHER M6 X RBC310 / 410 / RBK410 €2.77
59
 photo_cameraImage coming soon 5417001010 POLAR WHEEL X RBC / RBK 410 €179.92
60
 photo_cameraImage coming soon 0119059790 BOLT X RBC / RBK 410 M5X22 €2.14
61
 Electronic Coil for Brushcutter Makita RBC421 168587-9 Electronic Coil for Brushcutter Makita RBC421 €24.50
62
 photo_cameraImage coming soon 266674-9 HEX. BOLT M6X12 RBC / RBK 410 M6X12 €1.28
63
 photo_cameraImage coming soon 5413504300 MUFFLER BRACKET X RBC / RBK 410 €5.24
64
 photo_cameraImage coming soon 0011405100 BOLT ASS'Y M5X20 X RBC / RBK 410 €1.43
65
 photo_cameraImage coming soon 5411005000 ENGINE HOUSING ASSY RBC / RBK €281.77
66
 photo_cameraImage coming soon 5412001000 CRANK SHAFT ASSY X RBC / RBK 410 €225.46
67
 photo_cameraImage coming soon 0053203101 WOODRUFF RBC / RBK 410 €2.15
68
 photo_cameraImage coming soon 212085-6 ROLLER CAGE 1014 €6.81
69
 Piston Pin Circlip for Brushcutter Makita RBC410 233983-1 Piston Pin Circlip for Brushcutter Makita RBC410 €1.55
70
 Piston Pin for Brushcutter Makita RBC410 257797-4 Piston Pin for Brushcutter Makita RBC410 €3.65
71
 photo_cameraImage coming soon 5411501200 CRANK CASE GASKET X RBC410 / RBK 410 €3.23
72
 Piston for Brushcutter Makita RBC410 318631-4 Piston for Brushcutter Makita RBC410 €28.32 Not available for order
73
 Piston Ring for Brushcutter Makita RBC410 257309-3 Piston Ring for Brushcutter Makita RBC410 €5.15
76
 photo_cameraImage coming soon 0119059940 BOLT X RBC 410 / RBK 410 €2.14
77
 photo_cameraImage coming soon 5416057000 SHANK PROTECTION €3.95
78
 photo_cameraImage coming soon 0230059990 COMPASS X RBC260 / 410 / RBK 410 €1.43
79
 photo_cameraImage coming soon 5415050000 STARTER/REWIND ASSY RBC420E X RBC420E €159.53
80
 photo_cameraImage coming soon 0043405140 PAN HEAD SCREW M5X14 RBC410 €1.54
81
 photo_cameraImage coming soon 5415001140 STARTER CABLE X RBC 260/410 / RBK 410 €8.74
82
 photo_cameraImage coming soon 233993-8 SPIRAL SPRING X RBC 410 / RBK410 €7.79
83
 photo_cameraImage coming soon 452766-2 RBC RBK RBK 410 €5.28
84
 photo_cameraImage coming soon 452767-0 STARTER BRACKET RBC / RBK 410 €3.23
85
 photo_cameraImage coming soon 5415001220 WASHER ELASTASTICAX RBC RBK 410 €2.14
86
 photo_cameraImage coming soon 452768-8 STARTER GUIDE X RBC 410 / RBK41 €2.14
87
 photo_cameraImage coming soon 5415001050 RETURN SPRING X RBC / RBK 410 €1.43
88
 photo_cameraImage coming soon 5415001060 WASHER X RBC / RBK 410 €1.43
89
 photo_cameraImage coming soon 5245001010 SCREW X RBC RBK 410 €2.76
90
 photo_cameraImage coming soon 0655009940 PLUG CAP X RBC410 / RBK410RBC520 €3.23
91
 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U 324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U €1.62
92
 photo_cameraImage coming soon 0119069990 BOLT X RBC 410 / RBK 410 €181.44
93
 Cylinder Gasket for Brushcutter Makita RBC410 442156-7 Cylinder Gasket for Brushcutter Makita RBC410 €3.48
94
 photo_cameraImage coming soon 168650-8 EXHAUST MUFFLER RBC410 / RBK 410 €62.42
96
 photo_cameraImage coming soon 0016505100 BOLT M5X10 X RBC RBK 410 €1.43
99
 photo_cameraImage coming soon 346541-5 MUFFLER COVER RBC 410 / RBK41 €33.39
100
 photo_cameraImage coming soon 0119069860 HEX SOCKET HEAD BOLT M6X55 RB RBC 410 / RBK 410 €2.73
101
 photo_cameraImage coming soon 0031006000 WASHER X RBC 410 / RBK410 G2400-5 €1.43
102
 photo_cameraImage coming soon 5323500200 MUFFLER GASKET X RBC RBK / 410 €5.28
103
 Cylinder for Brushcutter Makita RBC410 318630-6 Cylinder for Brushcutter Makita RBC410 €66.15
104
 photo_cameraImage coming soon 054001-10 SPARK PLUG NGK - BPM7A (10PZ) €54.43
105
 photo_cameraImage coming soon 5415504600 CYLINDER CASE X RBC 410 / RBK €25.05
107
 photo_cameraImage coming soon 0043705140 PAN HEAD SCREW M5X14 RBC 410 / RBK 410 €1.38
108
 photo_cameraImage coming soon 213546-9 OIL SEAL X PB500R-RBC525 €5.90
109
 photo_cameraImage coming soon 0600159880 BALL BEARING 6202C3 X PB500R €8.74
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

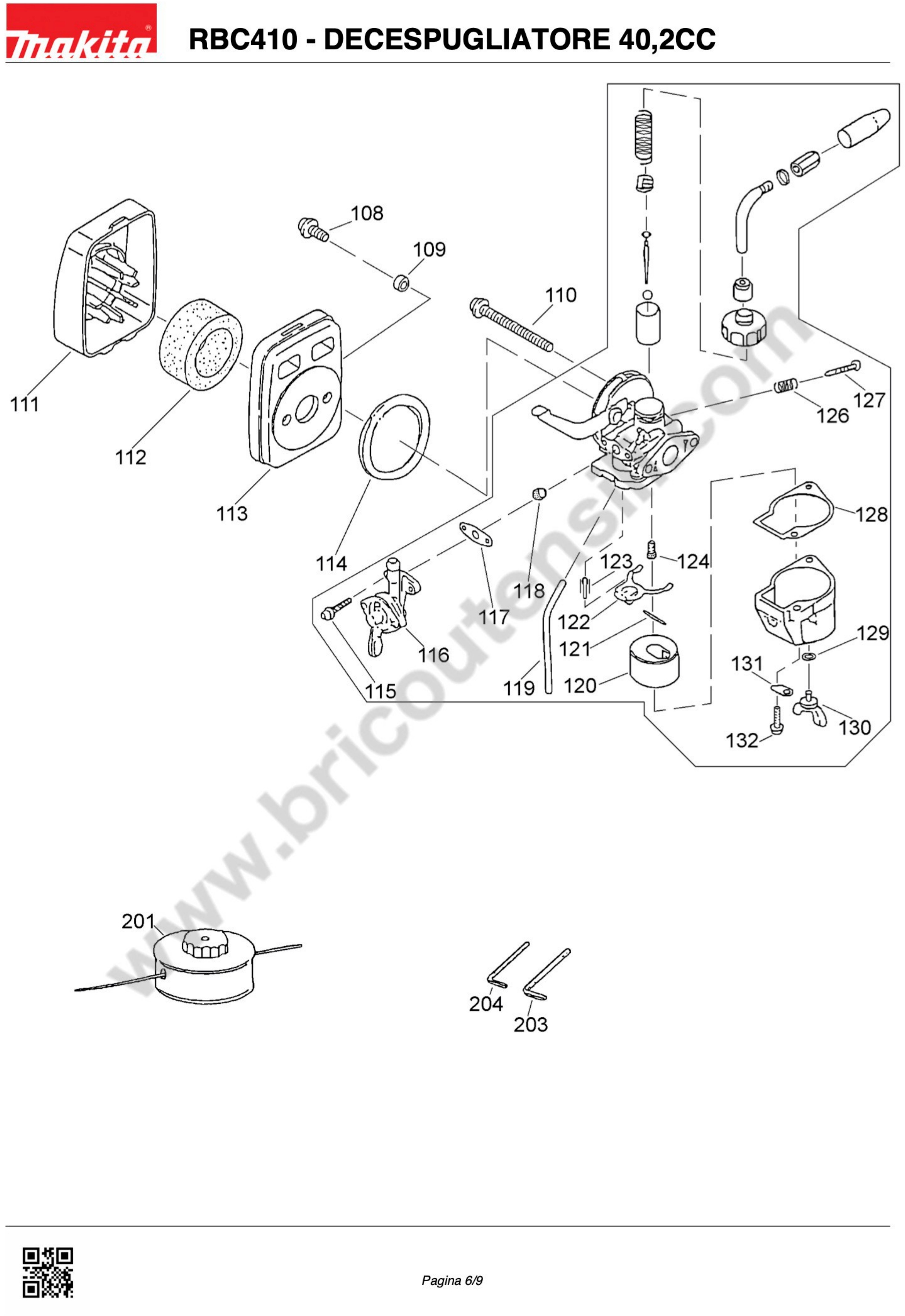

Esploso pagina 3
Pos. Item Price Buy
110
 photo_cameraImage coming soon 0043605580 PAN HEAD SCREW M5X58 RBC RBK 410 €2.32
111
 photo_cameraImage coming soon 5413503502 FILTER COVER X RBC410 / RBK410 €8.88
112
 photo_cameraImage coming soon 5413500900 FILTER ELEMENT X RBC RBK 410 €3.95
113
 photo_cameraImage coming soon 5413503900 FILTER HOUSING X RBC 410 / RBK 410 €3.28
114
 photo_cameraImage coming soon 5413503100 GASKET X RBC RBK 410 €3.28
115
 photo_cameraImage coming soon 8046001530 SCREW X RBC RBK 410 €2.18
116
 photo_cameraImage coming soon 140633-0 TAP X RBC RBK 410 €25.05
117
 photo_cameraImage coming soon 442163-0 GASKET €4.01
118
 photo_cameraImage coming soon 5306009050 FILTER X RBC RBK 410 €7.73
119
 photo_cameraImage coming soon 5416016040 HOSE X RBC RBK 410 €4.01
120
 photo_cameraImage coming soon 5306009020 FLOAT X RBC 410 / RBK 410 €22.50
121
 photo_cameraImage coming soon 5306009160 PIN WITH FLOATING SUPPORT X RBC / RBK 410 €2.18
122
 photo_cameraImage coming soon 346350-2 FLOATING SUPPORT €11.55
123
 photo_cameraImage coming soon 163519-1 COMPLETE PIN X RBC RBK 410 €9.56
124
 photo_cameraImage coming soon 5306018020 MAIN JET X RBC RBK 410 €13.26
126
 photo_cameraImage coming soon 5416001110 SPRING X RBC RBK 410 €6.20
127
 photo_cameraImage coming soon 5416001060 ADJUSTING SCREW X RBC RBK 410 €5.34
128
 photo_cameraImage coming soon 442162-2 GASKET X RBC RBK 410 €5.34
129
 photo_cameraImage coming soon 5306002410 GASKET X RBC RBK 410 €2.81
130
 photo_cameraImage coming soon 5306002240 SCREW X RBC RBK 410 €10.35
131
 photo_cameraImage coming soon 5416016030 PLATE X RBC 410 €6.20
132
 photo_cameraImage coming soon 5306009510 SCREW X RBC RBK 410 €2.18
201
 photo_cameraImage coming soon B-01965 MANUAL HEAD M10X1.0F €41.03
203
 photo_cameraImage coming soon 783232-1 HEX. WRENCH RBC350-RBC420 €2.77
204
 photo_cameraImage coming soon 783223-2 WRENCH 4 RBC350-RBC420 €2.77
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

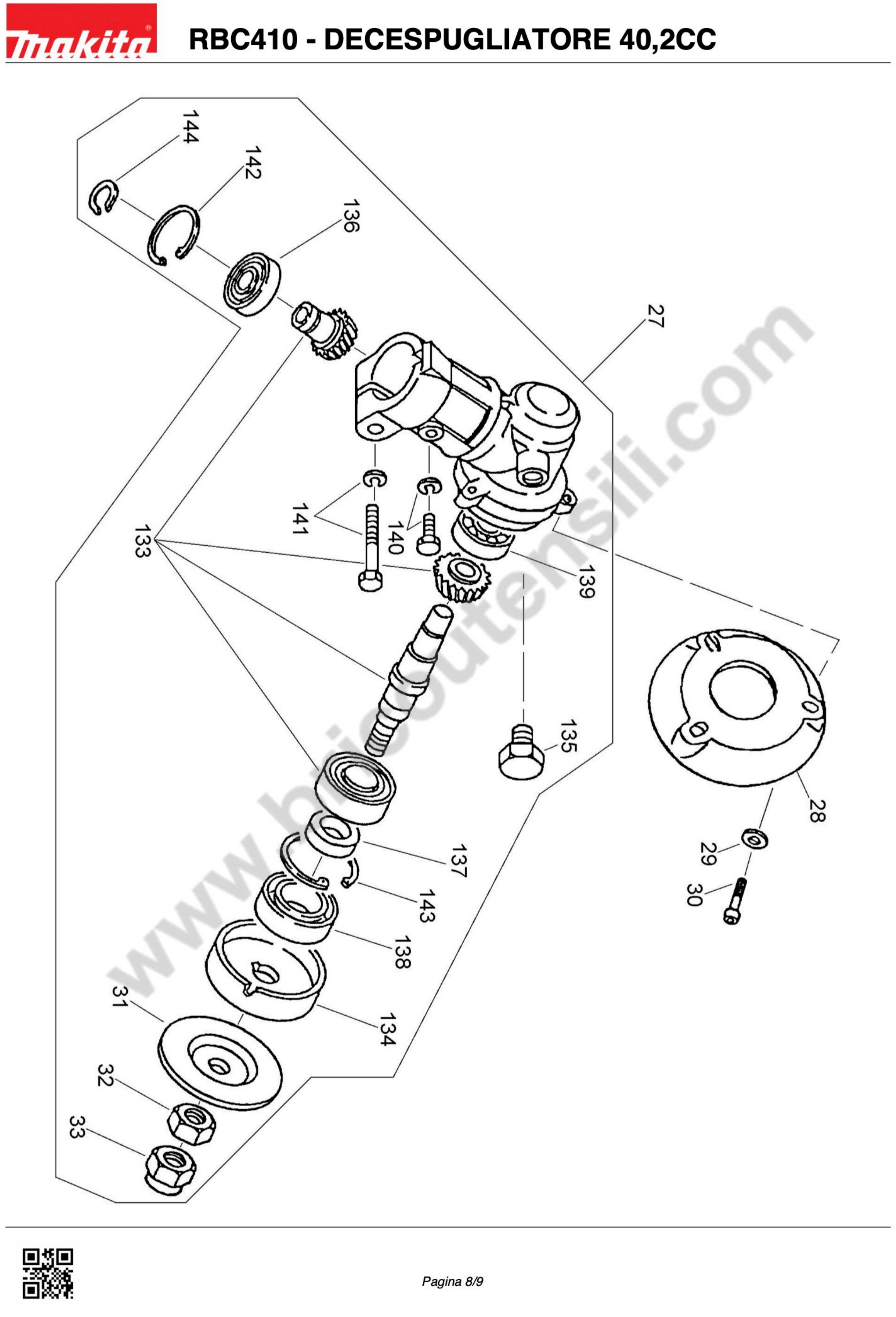

Esploso pagina 4
Pos. Item Price Buy
133
 photo_cameraImage coming soon 6413003000 SPINDLE X RBC410 €92.13
134
 photo_cameraImage coming soon 326053-4 UPPER FLANGE X RBC410 €14.34
135
 photo_cameraImage coming soon 266671-5 OIL CAP €3.23
136
 photo_cameraImage coming soon 0600129980 BALL BEARING 6001ZZ €21.54
137
 photo_cameraImage coming soon 6413500500 SPACER X RBC410 €5.94
138
 photo_cameraImage coming soon 6413500400 OIL GASKET X RBC410 €3.84
139
 photo_cameraImage coming soon 6253500200 BALL BEARING 627 €19.54
140
 photo_cameraImage coming soon 0011306140 BOLT WITH WASHER X RBC410 €1.40
141
 photo_cameraImage coming soon 0011306320 BOLT WITH WASHER X RBC410 €2.08
142
 photo_cameraImage coming soon 0031428000 INNER SNAPRING X RBC410/520 €2.77
143
 photo_cameraImage coming soon 0031432000 INTERNAL LOCK X RBC260 / 310/410 €2.77
144
 Outer Snap Ring for Brushcutter Makita RBC221 0031512000 Outer Snap Ring for Brushcutter Makita RBC221 €2.00
500
 photo_cameraImage coming soon 6418500700 CUTTER COVER RBC230/260/310 €10.89
501
 photo_cameraImage coming soon 6419038001 SERVICE KEYS RBC420E €19.72

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for BruschCutter RBC410

We are MAKITA original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Bruschcutter RBC410.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
Makita RBC420

RBC410 - BRUSH CUTTER 40,2CC PARTS Pag.1
Rif. Code Description
1 6404502400 GRIP RBC 410
2 6414500600 HANDLEBAR 22 RBC 310
3 6417500200 HANGER BRACKET RBC 410
4 6414005001 HANDLE HOLDER ASS'Y RBC351
5 0011806280 BOLT COMPL. RBC410
6 0016706450 BOLT RBC 410
7 6411502600 CLUTCH CASE RBC 410
8 140897-6 CLUTCH (MS4211)
9 267429-5 WASHER 6
10 0032006000 SPRING WASHER RBC / RBK410-G2400R
11 6202500400 BOLT RBC 410 / RBK410
12 6301501600 WASHER RBC520
13 0031435000 IINNER SNAP RING RBC410 / 520 / RBK410
14 0031517000 OUTER SNAP RING RBC 410 RBK410
15 0119069910 HEX. SOCKET HEAD BOLT M6X18 RBC 410
16 6202500400 BOLT RBC 410 / RBK410
17 267429-5 WASHER 6
19 0600179850 BALL BEARING 6003DD RBC / K 410
20 424403-8 DAMPER RBC 410
21 6411009001 SHAFT COMPLETE RBC 410
22 0021806000 NUT RBC 410 / RBC520
23 140629-1 STOPPER COMPLETE RBC410 RBC520
24 6411502200 CLAMP RBC 410
25 6411001000 SHAFT PIPE COMPLETE RBC 410
27 6353001000 GEAR CASE ASS'Y RBC 410
28 412099-7 BRUSHCUTTER GUARD
29 0031005000 WASHER RBC230 / 410 / RBK410
30 0119059900 BOLT M5X12 RBC225-255
31 346441-9 CLAMP WASHER
32 264058-5 NUT RBC 410 / RBC520
33 6308503300 NUT RBC 410 / RBC520
34 6407003003 BAND ASS'Y RBC350-RBC420
36 6357500000 CUSHION MS252U RBC 410
RBC410 - BRUSH CUTTER 40,2CC Pag.2
37 5416501900 DAMPER(U) RBC410 / RBK 410
39 5305002110 STARTING KNOB RBC260 / RBK41
40 0031005000 WASHER RBC230 / 410 / RBK410
41 0119059810 SOCKET HEAD BOLT M5X50 XRBC / RBK410
43 5416501201 FUEL TANK RBK420G
44 125799-7 FUEL TANK CAP ASS'Y RBC 410 RBK 410
45 0641279990 FILTER RBC 410 / RBK 410
46 5516500500 GASKET RBC 410 / RBK 410
47 0561139982 HOSE CLAMP RBC 410 / RBK 410
48 422060-6 FUEL TUBE RBC 410 / RBK410
49 5416501300 CARBURETOR GASKET RBC410 / RBK 410
50 0043705200 SOCKET HEAD BOLT M5X20 RBC 410 / RBK 410 M5X20
51 5413501100 INSULATOR RBC 410 / RBK410
52 0021705000 NUT M5 RBC415
53 5413501200 INSULATOR GASKET RBC410 / RBK410
54 125796-3 VALVE REED ASS'Y RBC410 / RBK410
55 442160-6 BRACKET GASKET
56 0016706160 BOLT ASS'Y M6X16 RBC / RBK 410
57 0032006000 SPRING WASHER RBC / RBK410-G2400R
58 0200069920 WASHER M6 RBC310 / 410 / RBK410
59 5417001010 FLYWHEEL RBC / RBK 410
60 0119059790 HEX. SOCKET HEAD BOLT M5X22 RBC / RBK 410 M5X22
61 168587-9 IGNITION COIL
62 266674-9 HEX. BOLT M6X12 RBC / RBK 410 M6X12
63 5413504300 MUFFLER BRACKET RBC / RBK 410
64 0011405100 BOLT M5X20 RBC / RBK 410
65 5411005000 CRANK CASE ASSY RBC / RBK
66 5412001000 CRANK SHAFT COMPLETE RBC / RBK 410
67 0053203101 WOODRUFF KEY RBC / RBK 410
68 212085-6 Needle Roller Bearing 1014
69 233983-1 CLIP EBH341
70 257797-4 PISTON PIN
71 5411501200 CRANKCASE GASKET RBC410 / RBK 410
72 318631-4 PISTON RBC410 / RBK410
73 257309-3 PISTON RING RBC410 / RBK4
74 0119059790 HEX. SOCKET HEAD BOLT M5X22 RBC / RBK 410 M5X22
76 0119059940 Hex. Socket Head Bolt M5x25 RBC 410 / RBK 410
77 5416057000 FUEL TANK BRACKET ASS'Y
78 0230059990 SPACER RBC260 / 410 / RBK 410
79 5415050000 REWIND STARTER ASS'Y RBC420E
80 0043405140 PAN HEAD SCREW M5X14 RBC 410 / RBK 410
81 5415001140 STARTER ROPE RBC 260/410 / RBK 410
82 233993-8 SPIRAL SPRING RBC 410 / RBK410
83 452766-2 REEL RBC / RBK 410
84 452767-0 RATCHET RBC / RBK 410
85 5415001220 THRUST WASHER RBC RBK 410
86 452768-8 RATCHET GUIDE RBC 410 / RBK41
87 5415001050 FRICTION SPRING RBC / RBK 410
88 5415001060 WASHER RBC / RBK 410
89 5245001010 BIND SCREW RBC RBK 410
90 0655009940 PLUG CAP RBC410 / RBK410RBC520
91 324891-8 PLUG CAP EBH341
92 0119069990 HEX. SOCKET HEAD BOLT M6X18 RBC 410 / RBK 410
93 442156-7 CYLINDER GASKET RBC420E
94 168650-8 EXHAUST MUFFLER RBC410 / RBK 410
95 0031005000 WASHER RBC230 / 410 / RBK410
96 0016505100 BOLT RBC RBK 410
97 0016505100 BOLT RBC RBK 410
98 0031005000 WASHER RBC230 / 410 / RBK410
99 346541-5 MUFFLER COVER RBC 410 / RBK41
100 0119069860 HEX. SOCKET HEAD BOLT M6X60 RBC 410 / RBK 410
101 0031006000 WASHER RBC 410 / RBK410 G2400-5
102 5323500200 MUFFLER GASKET RBK / 410
103 318630-6 CYLINDER RBC 410 / RBK 410
104 054001-10 SPARK PLUG NGK - BPM7A (10PCS)
105 5415504600 CYLINDER COVER RBC 410 / RBK
106 0043705200 PAN HEAD SCREW M5X20 RBC 410 / RBK 410 M5X20
107 0043705140 SCREW M5X14 RBC 410 / RBK 410
108 213546-9 OIL SEAL PB500R-RBC525
109 0600159880 BALL BEARING 6202C3 PB500R
110 0600159880 BALL BEARING 6202C3 PB500R
111 213546-9 OIL SEAL PB500R-RBC525
RBC410 - BRUSH CUTTER 40,2CC Pag.3
108 0043405140 PAN HEAD SCREW M5X14 RBC 410 / RBK 410
109 0230059990 SPACER RBC260 / 410 / RBK 410
110 0043605580 PAN HEAD SCREW M5X58 RBC RBK 410
111 5413503502 AIR CLEANER COVER RBC410 / RBK410
112 5413500900 FILTER ELEMENT RBC RBK 410
113 5413503900 AIR CLEANER CASE RBC 410 / RBK 410
114 5413503100 AIR CLEANER GASKET RBC RBK 410
115 8046001530 PAN HEAD SCREW RBC RBK 410
116 140633-0 COCK BODY ASS'Y RBC RBK 410
117 442163-0 GASKET
118 5306009050 FILTER RBC RBK 410
119 5416016040 HOSE RBC RBK 410
120 5306009020 FLOAT RBC 410 / RBK 410
121 5306009160 STRAIGHT PIN RBC / RBK 410
122 346350-2 FLOATING ARM
123 163519-1 NEEDLE ASS'Y RBC RBK 410
124 5306018020 MAIN JET RBC RBK 410
126 5416001110 CARBURETOR SPRING RBC RBK 410
127 5416001060 ADJUST SCREW RBC RBK 410
128 442162-2 GASKET RBC RBK 410
129 5306002410 GASKET RBC RBK 410
130 5306002240 SCREW RBC RBK 410
131 5416016030 PLATE RBC 410
132 5306009510 PAN HEAD SCREW RBC RBK 410
201 B-01965 HEAD M10X1.0F
203 783232-1 HEX. WRENCH RBC350-RBC420
204 783223-2 HEX. WRENCH RBC350-RBC420
RBC410 - BRUSH CUTTER 40,2CC Pag.4
27 6353001000 GEAR CASE ASS'Y RBC 410
28 412099-7 BRUSHCUTTER GUARD
29 0031005000 WASHER M5 RBC230 / 410 / RBK410
30 0119059900 SOCKET HEAD BOLT M5X12 RBC225-255
31 346441-9 CLAMP WASHER
32 264058-5 NUT RBC 410 / RBC520
33 6308503300 NUT RBC 410 / RBC520
133 6413003000 CUTTER SHAFT SET RBC410
134 326053-4 RECEIVE FLANGE RBC410
135 266671-5 OIL BOLT
136 0600129980 BALL BEARING 6001ZZ
137 6413500500 SPACER RBC410
138 6413500400 OIL GASKET RBC410
139 6253500200 BALL BEARING 627
140 0011306140 BOLT WASHER RBC410
141 0011306320 BOLT WASHER RBC410
142 0031428000 INNER SNAP RING RBC410 / 520
143 0031432000 INER SNAP RINGRBC260 / 310/410
144 0031512000 OUTER SNAP RING RBC260 / 520RBK410
500 6418500700 CUTTER COVER RBC230/260/310
501 6419038001 TOOL RBC420E/MS4200E
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBC410
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita RBC410

Drawing Makita RBC410

Download (1.08MB)

You might also like

Carburator Hose Grommet for Brushcutter Dolmar MS-27C
Makita SKU: DA00000118
Carburator Hose Grommet for Brushcutter Dolmar MS-27C
Carburator Hose Grommet for Brushcutter Dolmar MS-27C Genuine parts Dolmar, Carburator Hose Grommet for Brushcutter MS-27C - Makita EM2600L Part for the following products: -  MS-27C - BRUSHCUTTER 25,7CC DOLMAR -  EM2600L -...
AVAILABLE €2.37
Details
3 Teeth Blade for Brushcutter Makita RBC310
Makita SKU: P-47385
3 Teeth Blade for Brushcutter Makita RBC310
3 Teeth Blade for Brushcutter Makita RBC310 Genuine spare part Makita, 3 Teeth Blade (255X1.4X25.4)MM for Brushcutters RBC2501 - RBC2511 - RBC3200 - RBC3210 - Dolmar MS254C - MS254U - MS3201C - MS3201U Part for the following products:...
AVAILABLE €14.78
Details
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Details
Fuel Hose for Brushcutter Makita RBC421
Makita SKU: 168766-9
Fuel Hose for Brushcutter Makita RBC421
Fuel Hose for Brushcutter Makita RBC421 Genuine replacement part Makita, Fuel Hose for Brushcutters RBC421 - RBC421L - MS3500 - MS3510 - MS4200 - MS4200E. Part for the following products: - MS3500 - BRUSHCUTTER 34,4CC DOLMAR - MS3510...
AVAILABLE €5.95
Details
Electronic Coil for Brushcutter Makita RBC421
Makita SKU: 168587-9
Electronic Coil for Brushcutter Makita RBC421
Electronic Coil for Brushcutter Makita RBC421 Genuine replacement part Makita, Electronic Coil for Brushcutters RBC350 - RBC351 - RBC410 - RBC420 - RBC421 - RBC421L - MS3500...
Last items in stock €24.50
Details
Piston for Brushcutter Makita RBC410 Sale
Makita SKU: 318631-4
Piston for Brushcutter Makita RBC410
Piston for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC - RBC420 -...
Available in 7/10 days €28.32
Details
Cylinder for Brushcutter Makita RBC410
Makita SKU: 318630-6
Cylinder for Brushcutter Makita RBC410
Cylinder for Brushcutter Makita RBC410 Genuine replacement part Makita, Cylinder for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - DECESPUGLIATORE 40,2CC -...
Last items in stock €66.15
Details
Piston Ring for Brushcutter Makita RBC410 Sale
Makita SKU: 257309-3
Piston Ring for Brushcutter Makita RBC410
Piston Ring for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Ring for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC -...
Last items in stock €5.15
Details
Piston Pin for Brushcutter Makita RBC410 Sale
Makita SKU: 257797-4
Piston Pin for Brushcutter Makita RBC410
Piston Pin for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Pin for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC -...
AVAILABLE €3.65
Details
Piston Pin Circlip for Brushcutter Makita RBC410
Makita SKU: 233983-1
Piston Pin Circlip for Brushcutter Makita RBC410
Piston Pin Circlip for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Pin Circlip for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 -...
AVAILABLE €1.55
Details
Cylinder Gasket for Brushcutter Makita RBC410
Makita SKU: 442156-7
Cylinder Gasket for Brushcutter Makita RBC410
Cylinder Gasket for Brushcutter Makita RBC410 Genuine replacement part Makita, Cylinder Gasket for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 -...
Last items in stock €3.48
Details
Gasoline Tank for Brushcutter Makita RBC421
Makita SKU: 454558-5
Gasoline Tank for Brushcutter Makita RBC421
Gasoline Tank for Brushcutter Makita RBC421 Genuine part Makita, Gasoline Tank for Brushcutters RBC421 - RBC201 - RBC420E - RBC420 - RBC351 - RBC350. Part for the following products:...
Last items in stock €15.97
Details
Clutch Ass'y for Brushcutter Dolmar MS4210
Makita SKU: 140897-6
Clutch Ass'y for Brushcutter Dolmar MS4210
Clutch Ass'y for Brushcutter Dolmar MS4210 Genuine replacement part Dolmar, Clutch Ass'y for Brushcutters MS3500 - MS3510 - MS4200 - MS4210 - MS4211 - MS5250E. Part for the following products: -  MS4200 - BRUSHCUTTER 40,2CC DOLMAR -...
Last items in stock €110.29
Details
Fuel Tank for Brushcutter Makita RBK350
Makita SKU: 5416501201
Fuel Tank for Brushcutter Makita RBK350
Fuel Tank for Brushcutter Makita RBK350 Genuine replacement part MAKITA, Fuel Tank  for Brushcutters RBC410 - RBK350 - RBK410 - RBK420. Part for the following products:...
Last items in stock €20.65
Details
Fuel Tube for Brushcutter Makita RBK350
Makita SKU: 422060-6
Fuel Tube for Brushcutter Makita RBK350
Fuel Tube for Brushcutter Makita RBK350 Genuine replacement part MAKITA, Fuel Tube for Brushcutters RBC410 - RBK350 - RBK410 - RBK420. Part for the following products: - ...
on 7/10 Business Days Approx. €6.44
Details
Makita RBC310 Handlebar
Makita SKU: 6414500600
Makita RBC310 Handlebar
Makita RBC310 Handlebar Genuine spare part Makita, Handlebar 22MM for Brushcutters RBC310 - RBC350 - RBC410 - RBC420 - MS4200. Part for the following products: - MS4200 - BRUSHCUTTER DOLMAR - RBC350 -...
Last items in stock €34.41
Details
Comments (0)
