Makita

Makita Spare Parts for Cordless Multi Function BUX360

SKU: Makita BUX360
€3.71
VAT included

Makita Spare Parts for Cordless Multi Function BUX360

MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for BUX360 36 Volt Lxt Li-ion Cordless Multi Function Power Head.
Makita Spare Parts for Cordless Multi Function BUX360
  • Makita Spare Parts for Cordless Multi Function BUX360
  • Makita Spare Parts for Cordless Multi Function BUX360
  • Makita Spare Parts for Cordless Multi Function BUX360
Makita

Makita Spare Parts for Cordless Multi Function BUX360

SKU: Makita BUX360 Condition: New
€3.71
VAT included

Makita Spare Parts for Cordless Multi Function BUX360

MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for BUX360 36 Volt Lxt Li-ion Cordless Multi Function Power Head.
settings 68 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
68 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

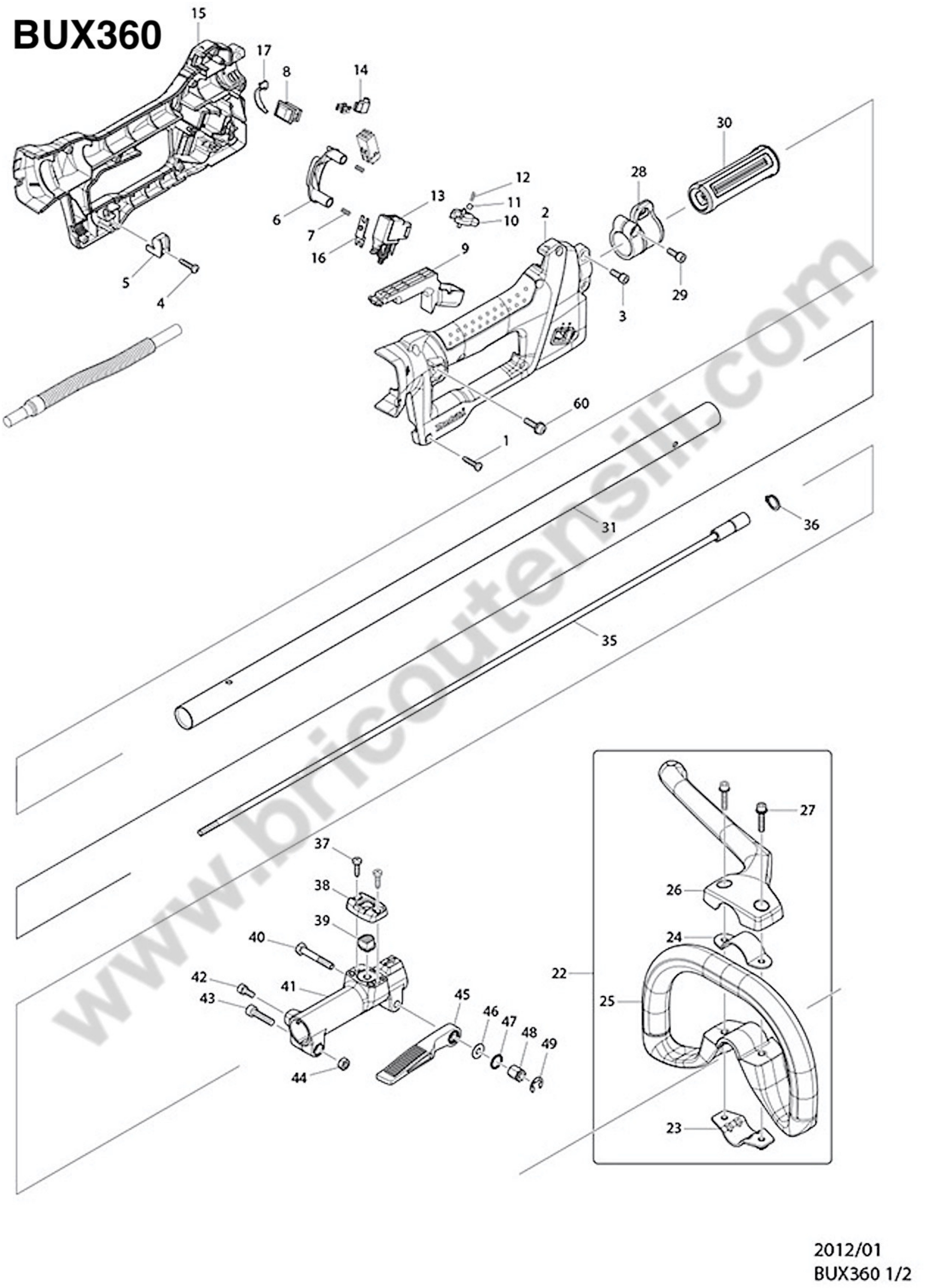

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A01
 Makita Band Assembly 125516-5 Makita Band Assembly €6.50
A04
 photo_cameraImage coming soon 194863-5 DC36RA FAST CHARGER €312.95
A05
 photo_cameraImage coming soon 194873-2 36v 2.6ah Battery BL3626 €490.29
1
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
2
 photo_cameraImage coming soon 188841-5 GRIP SET BC300LD/BUX360 €60.56
3
 photo_cameraImage coming soon 922228-9 SCREW M5X18 EBH341U €1.44
4
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
6
 photo_cameraImage coming soon 451983-1 LOCK OFF BUTTON BC300LD/BUR360 €11.46
8
 photo_cameraImage coming soon 651533-4 SWITCH SLE6A2-33 BBC231U €5.00
9
 photo_cameraImage coming soon 451984-9 SWITCH LEVER BC300LD/BUR360/BU €15.18
10
 photo_cameraImage coming soon 451986-5 INDICATOR BC300LD/BUR360/BUX36 €8.86
11
 photo_cameraImage coming soon 216018-3 STEEL BALL 5 HP2030 €1.40
13
 photo_cameraImage coming soon 650630-3 SWITCH TGR3-3 BC300LD/BUR360/B €13.31
14
 photo_cameraImage coming soon 686015-7 TERMINAL €1.23
15
 photo_cameraImage coming soon 188841-5 GRIP SET BC300LD/BUX360 €60.56
15A
 photo_cameraImage coming soon 188841-5 GRIP SET BC300LD/BUX360 €60.56
16
 photo_cameraImage coming soon 451982-3 LINK PLATE BC300LD/BUR360/BUX3 €6.07
17
 photo_cameraImage coming soon 451985-7 COVER CABLES X BBC300L €11.27
22A
 photo_cameraImage coming soon 195515-1 LOOP HANDLE SET €24.78
22
 photo_cameraImage coming soon 195515-1 LOOP HANDLE SET €24.78
23
 photo_cameraImage coming soon 346467-1 CLAMP 24 ER2650LH/ER2550/BUR36 €2.13
24
 photo_cameraImage coming soon 346468-9 CLAMP 33 BUX360Z €1.42
25
 photo_cameraImage coming soon 452841-4 LOOP HANDLE ER2650LH/ER2550/BU €10.16
26
 photo_cameraImage coming soon 452842-2 CLAMP COVER A €6.75
27
 photo_cameraImage coming soon 922244-1 SCREW M5X25 €2.65
28
 photo_cameraImage coming soon 168478-4 HOOK BBC231U €5.28
29
 photo_cameraImage coming soon 922228-9 SCREW M5X18 EBH341U €1.44
30
 photo_cameraImage coming soon 451601-1 SPACER EBH252L €3.83
31
 photo_cameraImage coming soon 141499-1 SHAFT PIPE B COMPLETE €35.82
35
 photo_cameraImage coming soon 141238-9 SHAFT B CPL EX2650LH CS246.4C €24.78
36
 Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
37
 photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €3.76
38
 photo_cameraImage coming soon 452840-6 COVER FOR UNLOCKING KNOB UX360D €2.13
39
 photo_cameraImage coming soon 452839-1 BLOCK KEY UX360D EX2650L €2.13
40
 photo_cameraImage coming soon 265596-0 SCREW M6X40 UX360D- EX2650LH €1.42
41
 photo_cameraImage coming soon 318750-6 JOINT 24 UX360D EX2650LH €27.89
42
 photo_cameraImage coming soon 922211-6 SCREW 5 X 12 X AN250HC €1.46
43
 photo_cameraImage coming soon 922342-1 SCREW M6X25 EX2650LH €1.44
44
 photo_cameraImage coming soon 931302-2 NUT M6 HR4000C €1.46
45
 photo_cameraImage coming soon 272268-0 LEVER 94 UC360D- EX2650LH €3.19
46
 photo_cameraImage coming soon 253332-6 FLAT WASHER 6 €1.42
47
 photo_cameraImage coming soon 213105-9 SEAL 11 43 / 65SB / HP201N €1.42
48
 photo_cameraImage coming soon 252159-1 HEX NUT XM6 X 5621RDW €3.28
49
 photo_cameraImage coming soon 961014-3 RETAINING RING E-8 €1.46
60
 photo_cameraImage coming soon 911233-1 HEAD SCREW M5X20 3600H €1.32
61
 photo_cameraImage coming soon 451981-5 GEAR BOX COVER BC300LD/BUR360/ €26.15
62
 photo_cameraImage coming soon 424307-4 PIPE RUBBER BBC231U/BBC300L/BU €2.16
63
 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH 922231-0 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH €1.35
64
 photo_cameraImage coming soon 318560-1 PIPE BRACKET BBC231U/BBC300L/ €28.57
65
 photo_cameraImage coming soon 911233-1 HEAD SCREW M5X20 3600H €1.32
66
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.32
67
 photo_cameraImage coming soon 213045-1 RING 6 X AN250HC €1.42
68
 photo_cameraImage coming soon 325811-5 SPINDLE HUB BBC231U/BBC300L/BU €17.02
69
 photo_cameraImage coming soon 211148-5 BALL BEARING 6001LLB X GD0800C €7.78
70
 Hard Washer 12 for Reciprocating Saw Makita JR3070CT 253744-3 Hard Washer 12 for Reciprocating Saw Makita JR3070CT €1.48
71
 photo_cameraImage coming soon 227720-3 HELICAL GEAR 33 BBC231U/300L/B €15.18
72
 Hard Washer 12 for Reciprocating Saw Makita JR3070CT 253744-3 Hard Washer 12 for Reciprocating Saw Makita JR3070CT €1.48
73
 photo_cameraImage coming soon 211150-8 BALL BEARING 6901ZZ/BUR360/BUX €5.16
74
 photo_cameraImage coming soon 318559-6 GEAR BOX BBC231U/BBC300L/BUR36 €40.10
75
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
76
 photo_cameraImage coming soon 266041-8 PT SCREW 5x25 €1.24
77
 photo_cameraImage coming soon 451572-2 STAND €6.81
78
 photo_cameraImage coming soon 911233-1 HEAD SCREW M5X20 3600H €1.32
79
 photo_cameraImage coming soon 699047-5 POWER SUPPLY CORD UNIT BC300LD €15.18
80
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
82
 photo_cameraImage coming soon 251314-2 SCREW M4X12 €1.32
83
 photo_cameraImage coming soon 346194-0 BATTERY GUARD BBC231U/BBC300L €26.15
84
 photo_cameraImage coming soon 188836-8 HOUSING SET BBC231U/BBC300L €35.82
85
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
86
 photo_cameraImage coming soon 188838-4 MOTOR HOUSING SET BBC231U/300L €13.31
87
 photo_cameraImage coming soon 213961-7 O RING 22 HM1111C €1.32
88
 photo_cameraImage coming soon 619254-4 ROTOR BBC231U/BBC300L/BUR360/B €88.92
89
 photo_cameraImage coming soon 629880-1 STATOR BBC231U/BBC300L/BUX360 €67.98
90
 photo_cameraImage coming soon 188838-4 MOTOR HOUSING SET BBC231U/300L €13.31
91
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
93
 photo_cameraImage coming soon 346039-2 SUPPORT PLATE, HR261D €1.40
94
 photo_cameraImage coming soon 188836-8 HOUSING SET BBC231U/BBC300L €35.82
95
 photo_cameraImage coming soon 643849-1 TERMINAL BUB360Z/BBC231/BBC250 €5.13
96
 photo_cameraImage coming soon 631942-3 CONTOLLER BBC231URD/BUR360/BUX €249.92
97
 photo_cameraImage coming soon 631941-5 CONTROLLER COMP BBC231U/300L/B €168.92
98
 photo_cameraImage coming soon 140285-7 INDICATION PLATE CO BBC231/300 €6.81
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

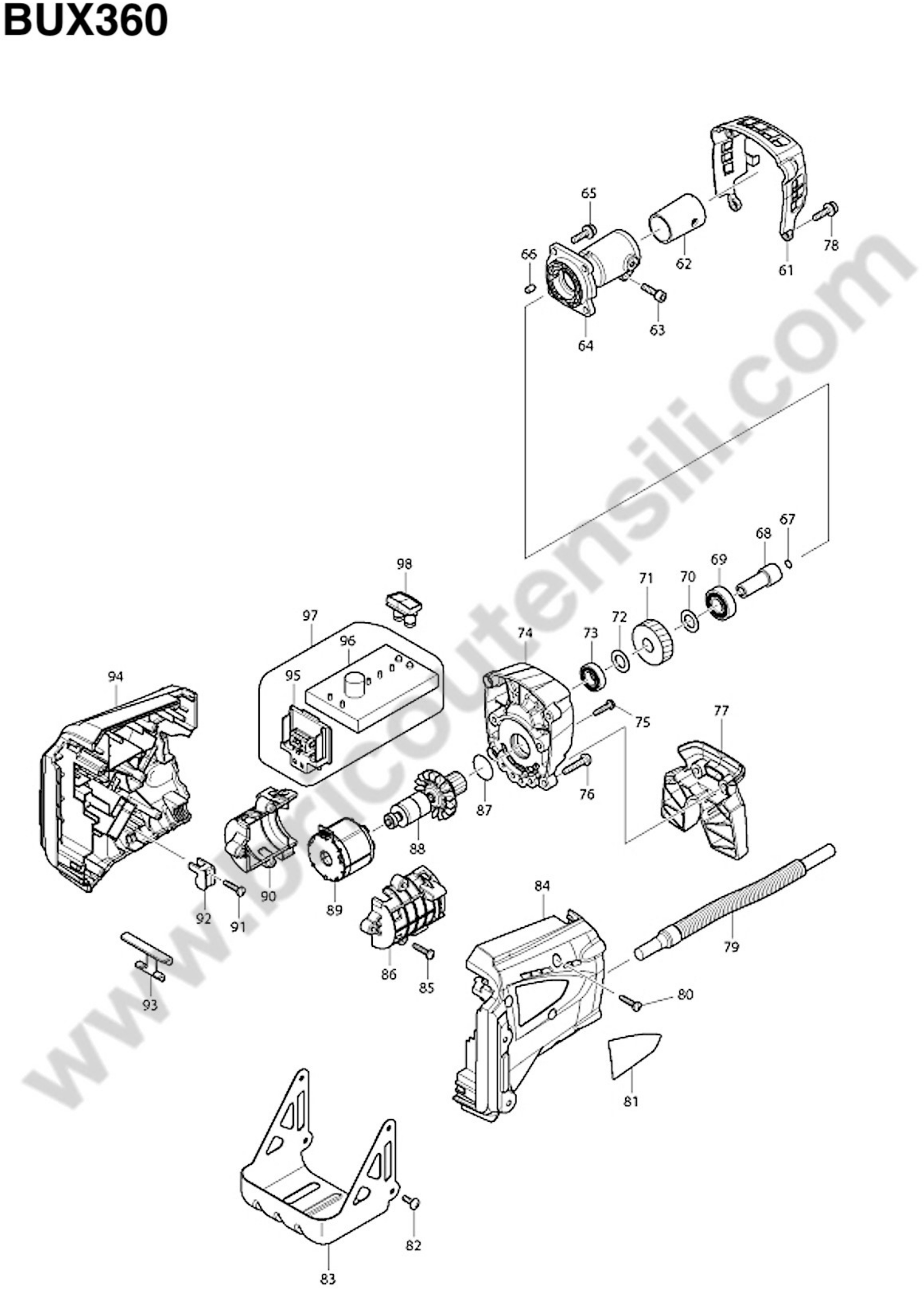

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
61
 photo_cameraImage coming soon 451981-5 GEAR BOX COVER BC300LD/BUR360/ €26.15
62
 photo_cameraImage coming soon 424307-4 PIPE RUBBER BBC231U/BBC300L/BU €2.16
63
 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH 922231-0 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH €1.35
64
 photo_cameraImage coming soon 318560-1 PIPE BRACKET BBC231U/BBC300L/ €28.57
66
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.32
67
 photo_cameraImage coming soon 213045-1 RING 6 X AN250HC €1.42
68
 photo_cameraImage coming soon 325811-5 SPINDLE HUB BBC231U/BBC300L/BU €17.02
69
 photo_cameraImage coming soon 211148-5 BALL BEARING 6001LLB X GD0800C €7.78
70
 Hard Washer 12 for Reciprocating Saw Makita JR3070CT 253744-3 Hard Washer 12 for Reciprocating Saw Makita JR3070CT €1.48
71
 photo_cameraImage coming soon 227720-3 HELICAL GEAR 33 BBC231U/300L/B €15.18
73
 photo_cameraImage coming soon 211150-8 BALL BEARING 6901ZZ/BUR360/BUX €5.16
74
 photo_cameraImage coming soon 318559-6 GEAR BOX BBC231U/BBC300L/BUR36 €40.10
76
 photo_cameraImage coming soon 266041-8 PT SCREW 5x25 €1.24
77
 photo_cameraImage coming soon 451572-2 STAND €6.81
79
 photo_cameraImage coming soon 699047-5 POWER SUPPLY CORD UNIT BC300LD €15.18
82
 photo_cameraImage coming soon 251314-2 SCREW M4X12 €1.32
83
 photo_cameraImage coming soon 346194-0 BATTERY GUARD BBC231U/BBC300L €26.15
84
 photo_cameraImage coming soon 188836-8 HOUSING SET BBC231U/BBC300L €35.82
86
 photo_cameraImage coming soon 188838-4 MOTOR HOUSING SET BBC231U/300L €13.31
87
 photo_cameraImage coming soon 213961-7 O RING 22 HM1111C €1.32
88
 photo_cameraImage coming soon 619254-4 ROTOR BBC231U/BBC300L/BUR360/B €88.92
89
 photo_cameraImage coming soon 629880-1 STATOR BBC231U/BBC300L/BUX360 €67.98
93
 photo_cameraImage coming soon 346039-2 SUPPORT PLATE, HR261D €1.40
95
 photo_cameraImage coming soon 643849-1 TERMINAL BUB360Z/BBC231/BBC250 €5.13
96
 photo_cameraImage coming soon 631942-3 CONTOLLER BBC231URD/BUR360/BUX €249.92
97
 photo_cameraImage coming soon 631941-5 CONTROLLER COMP BBC231U/300L/B €168.92
98
 photo_cameraImage coming soon 140285-7 INDICATION PLATE CO BBC231/300 €6.81

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Cordless Multi Function BUX360

MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for BUX360 36 Volt Lxt Li-ion Cordless Multi Function Power Head.

In the following table, look for the model of Olive Harvester and the respective parts of the code.
Makita EY2650H25H

BUX360 36 Volt Lxt Li-ion Cordless Multi Function Power Head
# Part Num. Description
A01 125516-5 BAND ASSEMBLY
A02 783202-0 HEX. WRENCH 4
A04 194863-5 DC36RA FAST CHARGER
A05 194873-2 36v 2.6ah Battery BL3626
1 265995-6 PT SCREW 4X18 KP0810C*
2 188841-5 GRIP SET BC300LD/BUX360
3 922228-9 HEX BOLT M5X18 EM2651LH/RBH253
4 265995-6 PT SCREW 4X18 KP0810C*
5 687261-5 STRAIN RELIEF BBC231URD
6 451983-1 LOCK OFF BUTTON BC300LD/BUR360
7 233054-4 COMPRESSION SPRING 4 GN900SE/B
8 651533-4 SWITCH SLE6A2-33 BBC231U/300L/
9 451984-9 SWITCH LEVER BC300LD/BUR360/BU
10 451986-5 INDICATOR BC300LD/BUR360/BUX36
11 216018-3 STEEL BALL 5.0 BHR262T/B*
12 233211-4 COMPRESSION SPRING 2
13 650630-3 SWITCH TGR3-3 BC300LD/BUR360/B
14 686015-7 RECEPTACLE SLEEVE BBC231URD
15 188841-5 GRIP SET BC300LD/BUX360
15A 188841-5 GRIP SET BC300LD/BUX360
16 451982-3 LINK PLATE BC300LD/BUR360/BUX3
17 451985-7 LEAD COVER BC300LD/BUR360/BUX3
22 195515-1 LOOP HANDLE SET
22A 195515-1 LOOP HANDLE SET
23 346467-1 CLAMP 24 ER2650LH/ER2550/BUR36
24 346468-9 CLAMP 33 ER2650LH/2550/BUR360/
25 452841-4 LOOP HANDLE ER2650LH/ER2550/BU
26 452842-2 CLAMP COVER A
27 922244-1 H.S.H.BOLT M5X25 WITH WG
28 168478-4 HANGER BBC231U/BBC300L/BUX360
29 922228-9 HEX BOLT M5X18 EM2651LH/RBH253
30 451601-1 SPACER EBH253L/BUX360
31 141499-1 SHAFT PIPE B COMPLETE
31A 898125-0 CAUTION LABEL
35 141238-9 SHAFT B COMPLETE
36 961052-5 EXT DIN 471 CIRCLIP-12
37 266034-5 CT SCREW M4X16
38 452840-6 RELEASE BUTTON COVER
39 452839-1 RELEASE BUTTON
40 265596-0 HEX.BOLT M6X40
41 318750-6 JOINT 24
42 922211-6 HS HEAD BOLT M5X12 EM2651LH
43 922342-1 CAP HD SCREW M6X25 BUX360*
44 931302-2 HEX FULL NUT M6
45 272268-0 LEVER 94
46 253332-6 THIN WASHER 6 6791D
47 213105-9 O RING 11 HR2000/6835DWA/6833
48 252159-1 HEX NUT M6 BPJ140 / BPJ180 / BSS500
49 961014-3 EXT E-RING JIS JE-8
60 911233-1 PAN HD SCREW 5X20 W/CP
61 451981-5 GEAR BOX COVER BC300LD/BUR360/
62 424307-4 PIPE RUBBER BBC231U/BBC300L/BU
63 922231-0 CAP HD SCREW M5X20 HR2010
64 318560-1 PIPE BRACKET BBC231U/BBC300L/
65 911233-1 PAN HD SCREW 5X20 W/CP
66 263002-9 RUBBER PIN 4 GA7050/9050/PC500
67 213045-1 O-RING 6 AN711/BO3710/11/BBC23
68 325811-5 SPINDLE HUB BBC231U/BBC300L/BU
69 211148-5 BALL BEARING 6001ZZ GD0810C
70 253744-3 HARD WASHER 12
71 227720-3 HELICAL GEAR 33 BBC231U/300L/B
72 253744-3 HARD WASHER 12
73 211150-8 BALL BEARING 6901ZZ/BUR360/BUX
74 318559-6 GEAR BOX BBC231U/BBC300L/BUR36
75 265995-6 PT SCREW 4X18 KP0810C*
76 266041-8 PT SCREW 5X25
77 451572-2 STAND
78 911233-1 PAN HD SCREW 5X20 W/CP
79 699047-5 POWER SUPPLY CORD UNIT BC300LD
80 265995-6 PT SCREW 4X18 KP0810C*
81 897184-1 BUX360 NAME PLATE
82 251314-2 Special Machine Screw Pan Head M4X12
83 346194-0 BATTERY GUARD BBC231U/BBC300L
84 188836-8 HOUSING SET BBC231U/BBC300L
85 265995-6 PT SCREW 4X18 KP0810C*
86 188838-4 MOTOR HOUSING SET BBC231U/300L
87 213961-7 O RING 22 HM1111C/BBC231URD
88 619254-4 ROTOR BBC231U/BBC300L/BUR360/B
89 629880-1 STATOR BBC231U/BBC300L/BUX360
90 188838-4 MOTOR HOUSING SET BBC231U/300L
91 265995-6 PT SCREW 4X18 KP0810C*
92 687261-5 STRAIN RELIEF BBC231URD
93 346039-2 SUPPORT PLATE BUH550RD/BUB360Z
94 188836-8 HOUSING SET BBC231U/BBC300L
95 643849-1 TERMINAL BUB360Z/BBC231/BBC250
96 631942-3 CONTOLLER BBC231URD/BUR360/BUX
97 631941-5 CONTROLLER COMP BBC231U/300L/B
98 140285-7 INDICATION PLATE CO BBC231/300
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita BUX360
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita BUX360

Drawing Makita BUX360

Download (428KB)

You might also like

Retaining Ring R32 for Powertools Makita
Makita SKU: 962151-6
Retaining Ring R32 for Powertools Makita
Retaining Ring R32 for Powertools Makita Genuine part Makita, Retaining Ring R32 for Powertools Makita. Parts for the following products: - Angle Grinder115 mm 710w-9554 NB - Angle Grinder115 mm 840w-9557 HN - Angle Grinder115 mm...
AVAILABLE €1.43
Details
Piston Pin Circlip for Brushcutter Makita RBC310
Makita SKU: 233976-8
Piston Pin Circlip for Brushcutter Makita RBC310
Piston Pin Circlip for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Pin Circlip for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...
AVAILABLE €6.01
Details
Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030
Makita SKU: 266007-8
Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030
Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 Original spare part Makita, Tapping Screw Bind M3X10 for Percussion Drills HP2030 - HP2031 - HP2032 - HP2033 Part for the following products: - 9523NB Grinder - 9524NB...
AVAILABLE €2.03
Details
Primer Bulb for Blower Makita BHX2501
Makita SKU: 424314-7
Primer Bulb for Blower Makita BHX2501
Primer Bulb for Blower Makita BHX2501 Genuine replacement part Makita, Primer Bulb for Brushcutters, Hedge Trimmers, Blowers, Engine Pump, Mist Blowers. Part for the following...
AVAILABLE €6.90
Details
Retaining Ring S12 for Power Tools Makita
Makita SKU: 961052-5
Retaining Ring S12 for Power Tools Makita
Retaining Ring S12 for Power Tools Makita Genuine replacement part Makita, Retaining Ring S12 for Power Tools Makita. Part for the following products: - 2012 12" PLANER - 2030 12" PLANER-JOINTER - 2030N 12-1/2" PLANER-JOINTER WITH...
AVAILABLE €1.40
Details
Cam Gear Cover Gasket for Brushcutter Makita EBH341L
Makita SKU: 162274-2
Cam Gear Cover Gasket for Brushcutter Makita EBH341L
Cam Gear Cover Gasket for Brushcutter Makita EBH341L Genuine spare part Makita, Cam Gear Cover Gasket for Brushcutters 4 STOKE EBH341L - EBH341U - Dolmar MS335.4C - MS335.4U. Part for the following products: -  EBH341L - BRUSHCUTTER...
on 7/10 Business Days Approx €2.76
Details
Oil Seal 10 for Brushcutter Dolmar MS335.4C
Makita SKU: 213769-9
Oil Seal 10 for Brushcutter Dolmar MS335.4C
Oil Seal 10 for Brushcutter Dolmar MS335.4C Genuine replacement part Dolmar, Oil Seal 10 for Brushcutters MS335.4C - MS335.4U - MS-4300.4R - MS-430.4U. Part for the following products: -  MS335.4C - BRUSHCUTTER 33,5cc 4T -  MS335.4U...
on 7/10 Business Days Approx €3.20
Details
Comments (0)
