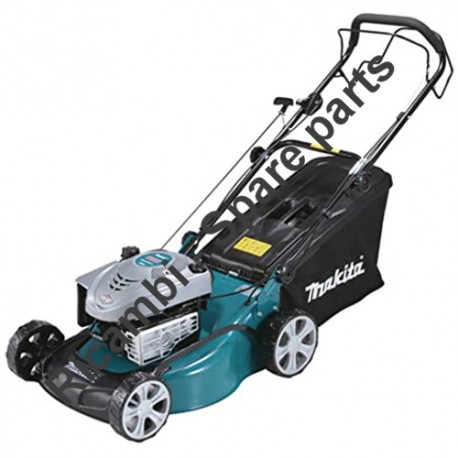

Makita Spare Parts for Lawn Mower PLM4611

SKU: Makita PLM4611
€7.73
VAT included

Makita Spare Parts for Lawn Mower PLM4611

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower PLM4611.

Makita Spare Parts for Lawn Mower PLM4611
  • Makita Spare Parts for Lawn Mower PLM4611
  • Makita Spare Parts for Lawn Mower PLM4611
Makita

Makita Spare Parts for Lawn Mower PLM4611

SKU: Makita PLM4611 Condition: New
€7.73
VAT included

Makita Spare Parts for Lawn Mower PLM4611

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower PLM4611.

settings 96 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
96 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

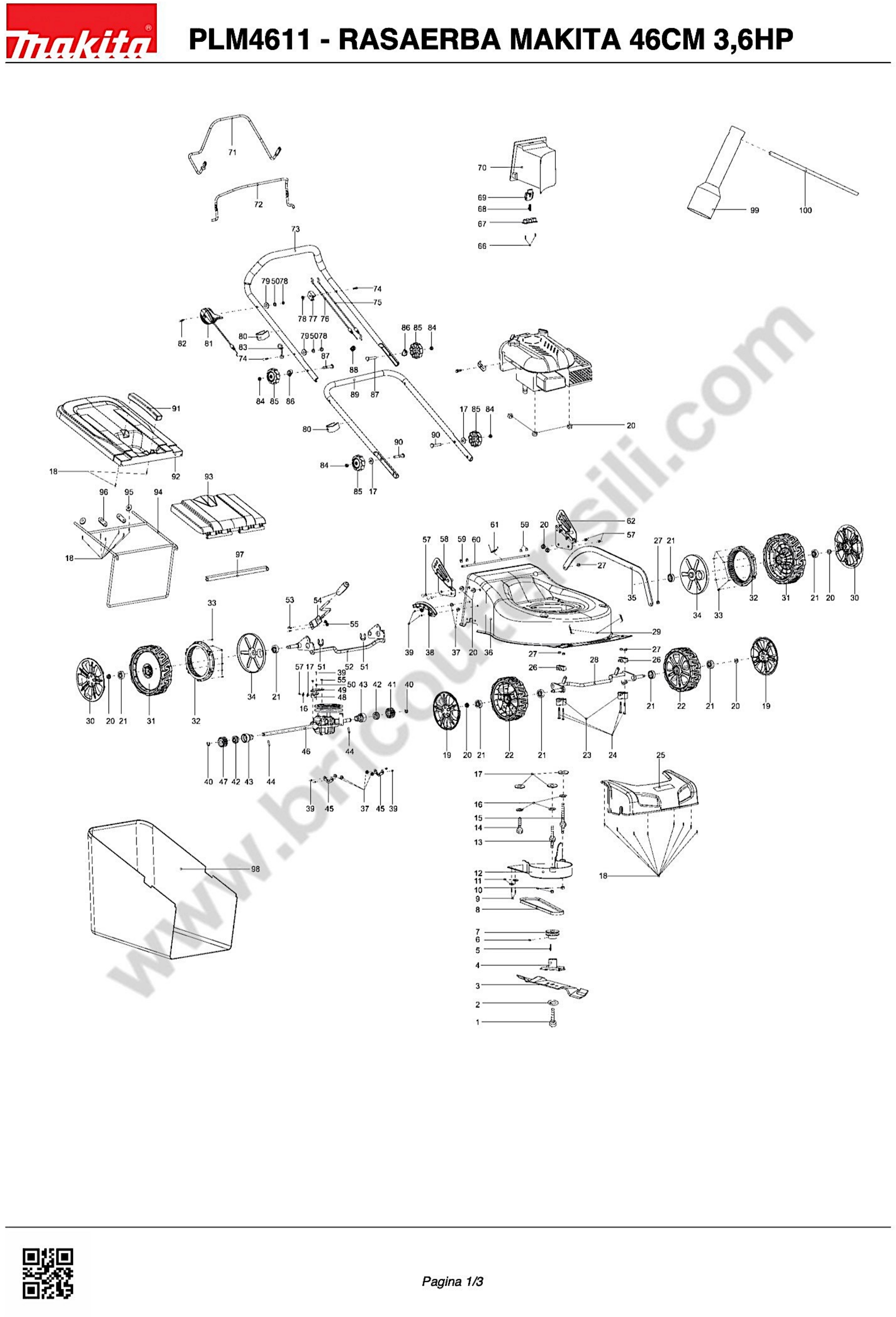

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Blade Tighten Screw for Lawnmover Makita PLM5113 671006062 Blade Tighten Screw for Lawnmover Makita PLM5113 €7.54
2
 photo_cameraImage coming soon 671010730 WASHER D.44,5 / 10,2X2,5 €3.22
3
 Blade for Lawnmower Dolmar PM-46SBC 671014610 Blade for Lawnmower Dolmar PM-46SBC €30.10
4
 Blade Hub for Lawnmover Makita PLM5113 671015252 Blade Hub for Lawnmover Makita PLM5113 €27.21
5
 photo_cameraImage coming soon 671090002 WOODRUF PLM4110-4610-4611 €2.08
6
 photo_cameraImage coming soon 671003005 SCREW M6X10 PLM4110-4610-4611 €2.14
7
 photo_cameraImage coming soon 671004002 PULLEY PLM4110-4610-4611 €22.18
8
 Rubber Belt 762MM for Lawnmower Makita ELM4611 671002043 Rubber Belt 762MM for Lawnmower Makita ELM4611 €19.79
9
 photo_cameraImage coming soon 671001045 SCREW PLM4110-4610-4611 €2.15
10
 photo_cameraImage coming soon 671005008 NUT M8 PLM4110-4610-4611 €2.21
11
 photo_cameraImage coming soon 671002075 WASHER 12/4 €2.21
12
 photo_cameraImage coming soon 671580013 BELT COVER PLM4110-4610-11 €16.65
13
 photo_cameraImage coming soon 671003044 SCREW M8X17X35 PLM4110-4610-11 €2.77
14
 photo_cameraImage coming soon 671006025 SCREW M8x35 PLM4110-4610-4611 €2.06
15
 photo_cameraImage coming soon 671003024 SCREW M8X60X17 PLM4110-4610-11 €7.79
16
 photo_cameraImage coming soon 671008002 SPRING RINGPLM €2.15
17
 photo_cameraImage coming soon 671007007 WASHERELM €1.47
18
 photo_cameraImage coming soon 671001054 SELF-TAPPING SCREWELM €2.15
19
 photo_cameraImage coming soon 671001176 COVER 175 ELM4110 €11.40
20
 photo_cameraImage coming soon 671005028 HEXAGONAL LOCKINGPLM €2.15
21
 photo_cameraImage coming soon 671004012 BEARING 6201Z ELM4110 €13.07
22
 photo_cameraImage coming soon 671020150 WHEEL 175 PLM4110-4610-4611 €21.55
23
 photo_cameraImage coming soon 671418001 BUSH ELM4110 €3.31
24
 photo_cameraImage coming soon 671002028 TRIGGER BOLTPLM €2.21
25
 photo_cameraImage coming soon 671659001 FRONT PANEL PLM4110-4610-4611 €40.44
26
 photo_cameraImage coming soon 671445001 BUSH ELM4110 €2.85
27
 photo_cameraImage coming soon 671005005 LOCKING NUTPLM €2.15
28
 photo_cameraImage coming soon 671001439 FRONT AXLE PLM4110-4610-11 €57.70
29
 photo_cameraImage coming soon 671011125 EXTENSION SPRINGPLM €2.77
30
 photo_cameraImage coming soon 671001177 COVER HUB 200 ELM4110 €11.40
31
 photo_cameraImage coming soon 671020300 REAR WHEEL 200MM €44.86
32
 photo_cameraImage coming soon DA00000602 WHEEL GEAR PLM4110-4610 €8.51
33
 photo_cameraImage coming soon 671001005 SELF-TAPPING SCREWELM €2.15
34
 photo_cameraImage coming soon 671650010 INTERNAL WHEEL COVER €6.57
35
 photo_cameraImage coming soon 671001440 JUNCTION PLM4110-4610-4611 €22.18
36
 photo_cameraImage coming soon 671001218 DECK BLUE PLM4110-4610-4611 €311.13
37
 photo_cameraImage coming soon 671005024 HEXAGONAL LOCKINGPLM €2.15
38
 photo_cameraImage coming soon 671001018 PLATE ADJUSTMENTAL.ELM4110 €5.28
39
 photo_cameraImage coming soon 671002019 TRIGGER BOLTPLM €2.21
40
 photo_cameraImage coming soon 671090020 WASHER PLM4110-4610-4611 €2.06
41
 photo_cameraImage coming soon DA00001090 PINION SX PLM4110-4610-4611 €12.63
42
 photo_cameraImage coming soon DA00001029 CUSHION FOR ELM4611 €5.28
43
 photo_cameraImage coming soon DA00000610 BEARING BOX €7.58
44
 photo_cameraImage coming soon 671090001 5X21,5 PIN €2.06
45
 photo_cameraImage coming soon 671001244 ELM4110 PLATE €2.15
46
 photo_cameraImage coming soon 671502016 TRANSMISSION PLM4110-4610 €142.26
47
 photo_cameraImage coming soon DA00001091 PINION DX PLM4611 €12.63
48
 photo_cameraImage coming soon DA00000915 FIXING PLATE 2 €4.56
49
 photo_cameraImage coming soon 671001460 PLATE PLM4110-4610-4611 €2.14
50
 photo_cameraImage coming soon 671008003 WASHER PLM4110-4610-4611 €2.06
51
 photo_cameraImage coming soon 671009003 WASHER D.19X1.5 PLM4611 €2.06
52
 photo_cameraImage coming soon 671144602 REAR AXLE PLM4110-4610 €85.67
53
 photo_cameraImage coming soon 671002029 TRIGGER BOLTPLM €2.15
54
 photo_cameraImage coming soon DA00001073 HEIGHT ADJUST LEVER €16.65
55
 photo_cameraImage coming soon 671005011 HEXAGONAL LOCKINGPLM €2.21
57
 photo_cameraImage coming soon 671006064 HEXAGON HEAD BOLTPLM €2.15
58
 photo_cameraImage coming soon 671001180 BRACKET HANDLE, RIGHT €25.07
59
 photo_cameraImage coming soon 671009017 BRAKE RING ELM4110 €2.21
60
 photo_cameraImage coming soon 671001518 SUPPORT PLM4110-4610-4611 €7.02
61
 photo_cameraImage coming soon 671011101 ELM4110 SPRING €2.85
62
 photo_cameraImage coming soon 671001179 BRACKET HANDLE, LEFT €25.07
66
 photo_cameraImage coming soon 671001003 SELF-TAPPING SCREWELM €2.15
67
 photo_cameraImage coming soon 671317001 PLATE PLM4110-4610-4611 €2.21
68
 photo_cameraImage coming soon 671011005 SCREW PLM4110-4610-4611 €1.47
69
 photo_cameraImage coming soon 671316004 UTTON PLM4110-4610- €2.21
70
 photo_cameraImage coming soon 671660001 MULCHING PLM4610-PM4600S CAP €18.05
71
 photo_cameraImage coming soon 671001454 LEVER, DRIVING PLM €21.55
72
 photo_cameraImage coming soon 671001448 ENGINE BRAKE LEFT PM4110-4610 €21.55
73
 photo_cameraImage coming soon 671002001 UPPER HANDLE PLM4110-4610-4611 €61.62
74
 photo_cameraImage coming soon 671006011 SCREW M6X35 PLM4110-4610-4611 €2.14
75
 photo_cameraImage coming soon 671001113 MOTOR BRAKE CABLE PLM4611 €44.84
76
 photo_cameraImage coming soon 671001123 CABLE €50.66
77
 photo_cameraImage coming soon 671336001 HOLDER PLM4110-4610-4611 €2.06
78
 photo_cameraImage coming soon 671005016 NUT M6 PLM4110-4610-4611 €2.01
79
 photo_cameraImage coming soon 671007008 WASHER PLM4110-4610-4611 €2.06
80
 photo_cameraImage coming soon 671611001 CABLE SUPPORT €2.14
81
 photo_cameraImage coming soon 671001137 THROTTLE CABLE PLM4110-4610 €20.12
82
 photo_cameraImage coming soon 671006059 SCREW M6x50 PLM4110-4610-4611 €2.14
83
 photo_cameraImage coming soon 671001120 HOOK CABLE HOOK €2.80
84
 photo_cameraImage coming soon 671005023 HEXAGONAL NUT €2.06
85
 photo_cameraImage coming soon 671530010 PLM5600 KNOB €3.11
86
 photo_cameraImage coming soon 671001085 WASHERPLM €2.15
87
 photo_cameraImage coming soon 671006004 FLAT HEAD BOLTPLM €2.77
88
 photo_cameraImage coming soon 671178001 CABLE PLM4110-4610-4611 €2.15
89
 photo_cameraImage coming soon 671001453 LOWER HANDLE PLM4110-4610-4611 €50.44
90
 photo_cameraImage coming soon DA00000880 FLAT HEAD BOLT €2.76
91
 photo_cameraImage coming soon 671454001 HANDLE BAG ELM4410 €5.43
92
 photo_cameraImage coming soon 671467001 COVER BAG PLM4110-4610 €41.61
93
 photo_cameraImage coming soon 671468001 COVER PLM4110-4610-4611 €47.57
94
 photo_cameraImage coming soon 671001443 FRAME BAG PLM4110-4610-4611 €53.25
95
 photo_cameraImage coming soon 671001436 TIGHTEN PRESSING PLAPLM €2.21
96
 photo_cameraImage coming soon 671001203 PRESSING PLATE OFPLM €2.21
97
 photo_cameraImage coming soon 671001353 PLATE PLM4110-4610-4611 €3.31
98
 photo_cameraImage coming soon 671001418 GRASS CATCHER €25.35
99
 photo_cameraImage coming soon 671001078 KEY 21MM PLM4110-4610-4611 €5.13
100
 photo_cameraImage coming soon 671001079 LEVER X KEY 21 PLM4110-4610 €6.57

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Lawn Mower PLM4611

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower PLM4611.

In the following table, look for the model of Lawn Mower and the respective parts of the code.
Makita PLM4611
PLM4611 - LAWNMOWER MAKITA 46CM 3,6HP
# Part Num. Description
1 671006062 BLADE TIGHTEN SCREW PM5100S3
2 671010730 LID SHAPE WASHER D.44.5 / 10.2X2.5
3 671014610 BLADE 460MM FOR PM4602S - PM4602S3
4 671015252 BLADE BOSS PM5100S3
5 671090002 FLAT KEY PLM4110-4610-4611
6 671003005 HEXAGON BOLT M6X10 PLM4110-4610-4611
7 671004002 PULLEY PLM4110-4610-4611
8 671002043 RUBBER BELT 762MM PLM4110-4610
9 671001045 SCREW PLM4110-4610-4611
10 671005008 HEXAGON LOCKING NUT M8 PLM4110-4610-4611
11 671002075 BEARING PRESSING PLATE 12/4
12 671580013 BELT COVER PLM4110-4610-11
13 671003044 SPECIAL SCREW M8X17X35 PLM4110-4610-11
14 671006025 HEXAGON BOLT M8X35 PLM4110-4610-4611
15 671003024 BOLT M8X60X17 PLM4110-4610-11
16 671008002 SPRING RING ELM4110
17 671007007 FLAT WASHER 8 ELM3310-3710
18 671001054 SELF-TAPPING SCREW 5X12 ELM3310-3710
19 671001176 7" 175 MM WHEEL COVER ELM4110
20 671005028 HEXAGONAL LOCKING NUT M8 ELM4110
21 671004012 BALL BEARING 6201Z ELM4110
22 671020150 WHEEL ASSY 7" 175MM PLM4110-4610-4611
23 671418001 FIXED BRACKET ELM4110
24 671002028 TRIGGER BOLT M6*45 ELM4110
25 671659001 FRONT DECORATIVE COVER   PLM4110-4610-4611
26 671445001 BRACKET PRESSING BOARD ELM4110
27 671005005 LOCKING NUT M6 ELM4110
28 671001439 FRONT AXLE PLM4110-4610-11
29 671011125 EXTENSION SPRING OF FRONT WHE ELM4110
30 671001177 WHEEL COVER 200 ELM4110
31 671020300 REAR WHEEL ASSY 200MM
32 DA00000602 WHEEL GEAR PLM4110-4610
33 671001005 SELF-TAPPING SCREW M4X16 ELM3310-3710
34 671650010 Dust-Pro/ Wheel Cover
35 671001440 LINK ROD 528MM PLM4611/4612 PLM4110-4610-4611
36 671001218 DECK BLUE PLM4110-4610-4611
37 671005024 HEXAGONAL LOCKING NUT M6 ELM4110
38 671001018 HEIGHT ADJUSTMENT PLATE ELM4110
39 671002019 TRIGGER SCREW M6X12 ELM4110
40 671090020 SAFETY WASHER PLM4110-4610-4611
41 DA00001090 LEFT OUTPUT GEAR ASSEMBLY PLM4110-4610-4611
42 DA00001029 BALL BEARING FOR ELM4611 new model
43 DA00000610 PLM5121N2 BEARING DLM460
44 671090001 CYLINDRICAL PIN 5X21.5
45 671001244 RING OF AXIS FIXING ELM4110
46 671502016 Gear Box PLM4110-4610
47 DA00001091 RIGHT GEAR PLM4611
48 DA00000915 FIXED BOARD 2
49 671001460 Fixed Board Of Gear Box PLM4110-4610-4611
50 671008003 SPRING WASHE PLM4110-4610-4611
51 671009003 SAFETY WASHER D.19X1.5 PLM4611
52 671144602 REAR AXLE PLM4110-4610
53 671002029 TRUSS HEAD SCREW M5X12 ELM4110
54 DA00001073 HANDLE SET
55 671005011 HEXAGON LOCKING NUT M5 M5 ELM4110
57 671006064 HEXAGON HEAD BOLT M8X6 ELM4110
58 671001180 LEFT SUPPORT BLUE ELM4110
59 671009017 OPEN BLOCK RING ELM4110
60 671001518 WRENCH POLE PLM4110-4610-4611
61 671011101 SPRING ELM4110
62 671001179 RIGHT SUPPORT ELM4110
66 671001003 SCREW 4X12 ELM3310-3710
67 671317001 PRESSING PLATE / LOCK' BUTTON PLM4110-4610-4611
68 671011005 SPRING PLM4110-4610-4611
69 671316004 LOCKING BUTTON OF MULCHING KIT PLM4110-4610-
70 671660001 FRONT AXLE PLATE PLM4610-PM4600S
71 671001454 Driving Pole PLM4110-4610
72 671001448 "lever, Motor Brake" PM4110-4610
73 671002001 HANDLE, UPPER PART   PLM4110-4610-4611
74 671006011 BOLT M6X35 PLM4110-4610-4611
75 671001113 "CONTROL CABLE (MOTOR BRAKE)"   PLM4611
76 671001123 CABLE
77 671336001 FIXED BRACKET PLM4110-4610-4611
78 671005016 HEX. LOCK NUT M6 PLM4110-4610-4611
79 671007008 WASHER PLM4110-4610-4611
80 671611001 CABLE CLAMP
81 671001137 THROTTLE CONTROL BOX ASSY PLM4110-4610
82 671006059 BOLT M6X50 PLM4110-4610-4611
83 671001120 CABLE HOOK
84 671005023 HEX NUT M8
85 671530010 KNOB PLM5600
86 671001085 WASHER ELM4110
87 671006004 FLAT HEAD BOLT M8X52
88 671178001 "CORD PROTECTING SHEATH" PLM4110-4610-4611
89 671001453 LOWER HANDLE BAR PLM4110-4610-4611
90 DA00000880 FLAT HEAD BOLT M8*35 ELM4410
91 671454001 GRASS CATCHER HANDLE ELM4410
92 671467001 GRASS CATCHER COVER PLM4110-4610
93 671468001 REAR COVER BOARD PLM4110-4610-4611
94 671001443 GRASS CATCHER BRACKET PLM4110-4610-4611
95 671001436 PRESSING PLATE ELM4110
96 671001203 PRESSING PLATE ELM4110
97 671001353 PRESSING BAR PLM4110-4610-4611
98 671001418 GRASS CATCHER PLM4610
99 671001078 SPANNER 21 MM PLM4110-4610-4611
100 671001079 SPANNER POLE X SPANNER 21 PLM4110-4610
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita PLM4611
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita PLM4611

Drawing Makita PLM4611

Download (314.4KB)

You might also like

Blade Hub for Lawnmover Makita PLM5113
Makita SKU: 671015252
Blade Hub for Lawnmover Makita PLM5113
Blade Hub for Lawnmover Makita PLM5113 Genuine replacement part Makita, Blade Hub for Lawnmovers PLM5113 - PLM5600 - PLM5113N2 - Dolmar PM411 - PM460. Part for the...
on 7/10 Business Days Approx €27.21
Details
Gear for Lawnmover Makita PLM5113
Makita SKU: 671200010
Gear for Lawnmover Makita PLM5113
Gear for Lawnmover Makita PLM5113 Genuine replacement part Makita, Gear for Lawnmovers PLM5113 - PLM5600 - PLM5113N2 - Dolmar PM411 - PM460. Part for the following products: - PLM4110 - LAWNMOVER MAKITA 41CM 2,8HP - PLM4120N -...
Last items in stock €22.41
Details
Rubber Belt 762MM for Lawnmower Makita ELM4611
Makita SKU: 671002043
Rubber Belt 762MM for Lawnmower Makita ELM4611
Rubber Belt 762MM for Lawnmower Makita ELM4611 Genuine part Makita, Rubber Belt 762MM V10X790 FOR Lawnmower Makita ELM4611 - PLM4611 - PLM4621 - Dolmar PM4600S...
Last items in stock €19.79
Details
Blade Tighten Screw for Lawnmover Makita PLM5113
Makita SKU: 671006062
Blade Tighten Screw for Lawnmover Makita PLM5113
Blade Tighten Screw for Lawnmover Makita PLM5113 Genuine replacement part Makita, Blade Tighten Screw 3/8X1.57" for Lawnmovers PLM5113 - PLM5600 - PLM5113N2 -...
Usually Ships in: 7/10 Business Days Approx. €7.54
Details
Comments (0)
