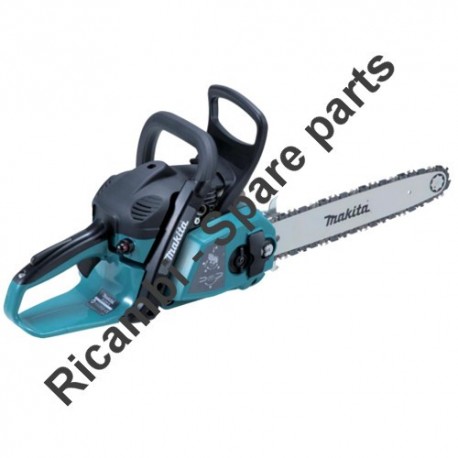

Makita Spare Parts for Chainsaw EA3500S

Name: Makita Spare Parts for Chainsaw EA3500S
Brand: Makita
SKU: Makita EA3500S
Availability: InStock

SKU: Makita EA3500S

€1.43

VAT included

Makita Spare Parts for Chainsaw EA3500S

MAKITA service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Chainsaw EA3500S.

These are an authentic replacement parts sourced directly from the manufacturer.

124 spare parts

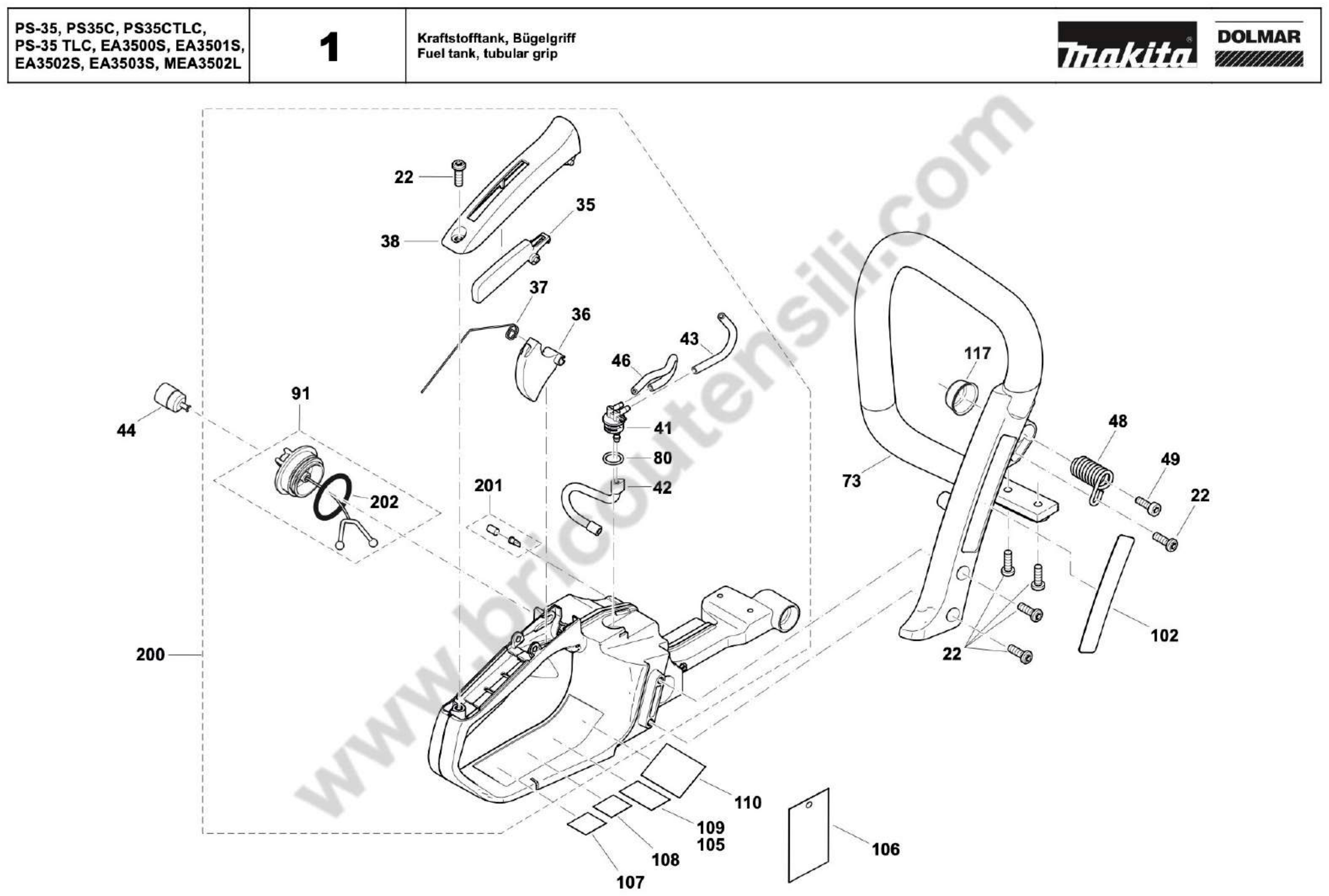

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
22	Image coming soon	913455164 SELF-CUTTING SCREW 5,5X16 DCS4	€1.47
35	Image coming soon	452020-4 RELEASE LEVER PS32CTLC	€1.40
36	Image coming soon	452019-9 ACCELERATOR LEVER PS32CTLC	€1.40
37	Image coming soon	231866-9 SPRING TORSION 10 PS32CTLC	€1.43
38	Image coming soon	452021-2 COVER HANDLE PS32CTLC	€2.15
41	Image coming soon	452018-1 FITTING CARCBURANTE PS32CTLC	€1.43
42		424456-7 Fuel Hose for Chaisaws Makita EA3201S35A	€16.31
43	Image coming soon	965452660 TUBE	€21.54
44		163447-0 Gasoline Filter for Chainsaw Makita DCS230T	€4.49
46	Image coming soon	965452090 Fuel tube PS45	€21.97
48		234189-4 Compression Spring 12 for Chainsaw Makita DCS3501	€1.46
49	Image coming soon	266605-8 SCREW M5X16 PS32CTLC	€1.43
73	Image coming soon	452036-9 FRONT HANDLE PS32CTLC	€32.07
80	Image coming soon	213586-7 RING 11.5 PS32CTLC	€1.43
91	Image coming soon	181114202 TANK CAP DCS4600S / 5000	€10.48
117	Image coming soon	195114160 COVER X SPRING PS350C-420C	€6.76
200	Image coming soon	125114640 TANK COMPLETE	€128.47
201	Image coming soon	170175010 VENT VALVE KSET	€7.58
202	Image coming soon	213080-9 RING 29.5 PS32CTLC	€5.43

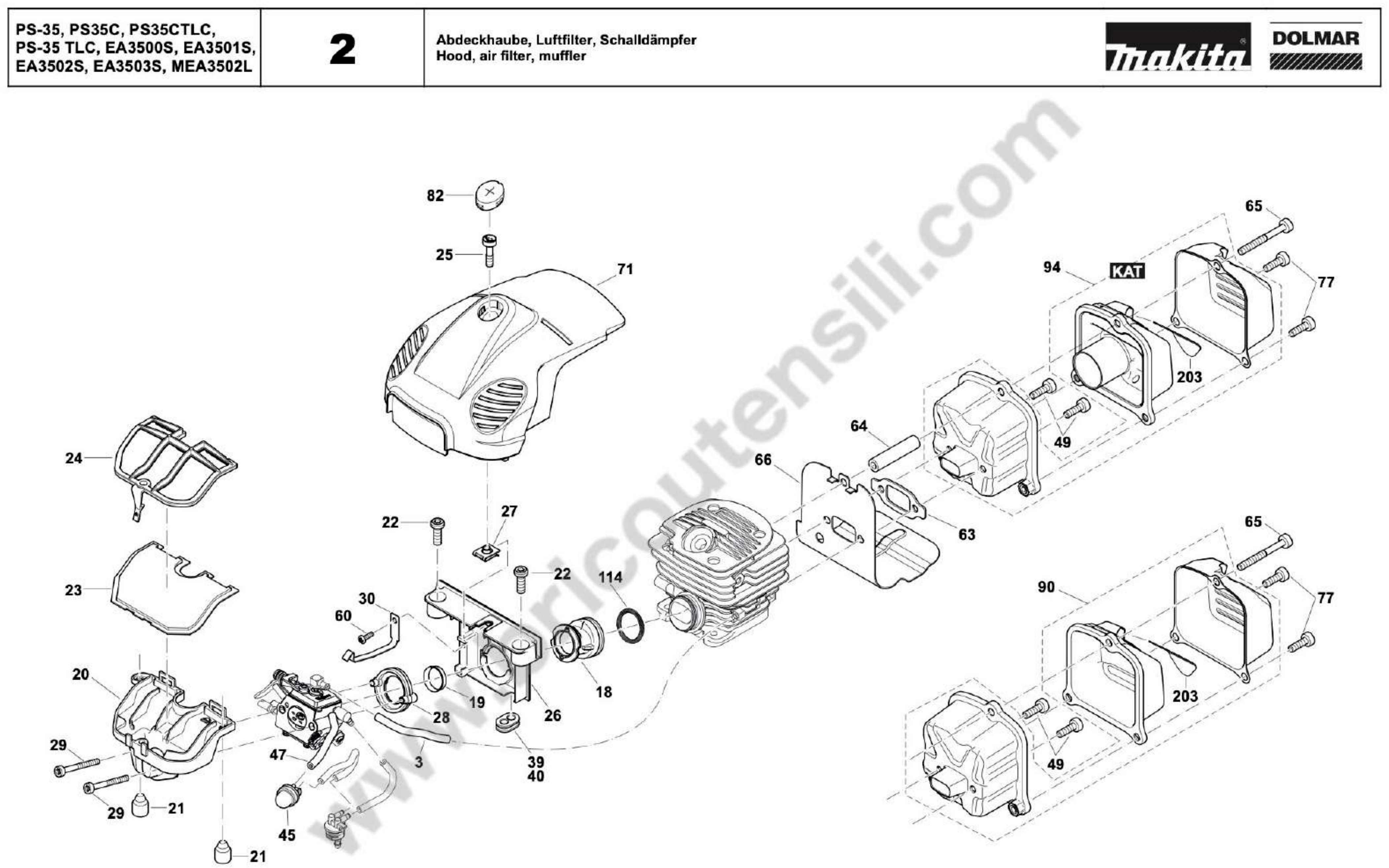

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
18	Image coming soon	125131040 DUCT INTAKE	€9.95
19	Image coming soon	346413-4 SOCKET 17 PS32CTLC	€1.47
20	Image coming soon	452030-1 PS32CTLC FUND	€3.35
21	Image coming soon	181118070 DAMPER PAD DCS4600S	€5.43
26	Image coming soon	454874-5 INTERMEDIATE FLANGE	€3.20
28	Image coming soon	318634-8 FLANGE PS32CTLC	€2.15
29	Image coming soon	908004406 SCREW	€2.60
39	Image coming soon	424631-5 SOCKET RUBBER	€1.43
40	Image coming soon	970502110 INSULATING HOSE M DCS4630/5030	€6.76
45		168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T	€6.24
47	Image coming soon	422067-2 PIPE 2,5X55 PS32CTLC	€2.15
63	Image coming soon	346304-9 SEAL MUFFLER PS32CTLC	€1.43
64	Image coming soon	038174410 CONNECTING LINL L=39,5MM	€3.20
65	Image coming soon	266480-2 SCREW	€1.47
66	Image coming soon	346764-5 COOLING PLATE	€1.43
71	Image coming soon	454875-3 HOOD	€16.98
77	Image coming soon	266612-1 H.L. SOCKET HEAD BOLT M5X10	€1.43
82	Image coming soon	424618-7 PLUG	€1.43
94	Image coming soon	125174100 MUFFLER	€104.92
114	Image coming soon	181131070 RING DCS4600S-5000	€4.06
203	Image coming soon	346823-5 SPARK ARRESTER SCREEN	€2.07

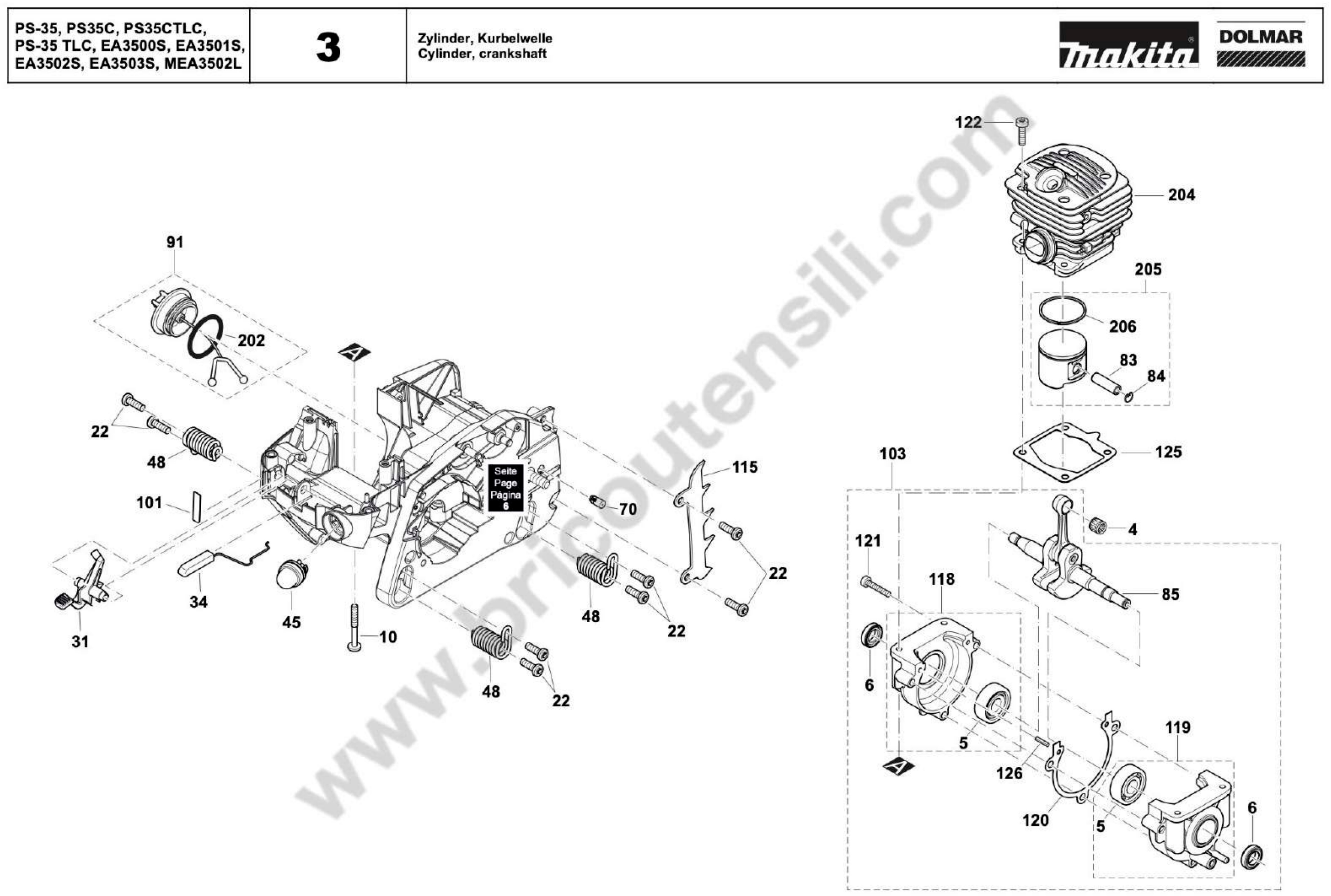

Page 3 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
4	Image coming soon	962210092 CAGE ROLLER	€7.54
5	Image coming soon	211341-1 BEARING 6201 PS32CTLC	€3.92
5	Image coming soon	960102121 BALL BEARING	€8.25
6	Image coming soon	962900156 SEAL 12 / 20X4,5 DCS4600S	€9.01
10	Image coming soon	913350404 SCREW	€2.12
31	Image coming soon	452025-4 LEVER AIR PS32CTLC	€1.40
34	Image coming soon	452022-0 LEVERAGE PS32CTLC	€1.47
70	Image coming soon	010245030 VENT VALVE	€8.03
83	Image coming soon	125132030 PISTON PIN	€10.69
84	Image coming soon	108132050 ELASTIC RING	€1.40
115	Image coming soon	346301-5 HARPOON PS32CTLC	€2.12
120	Image coming soon	125111090 SEAL	€2.60
121	Image coming soon	908405255 SCREW M5x25 (TORX)	€2.12
122	Image coming soon	908405205 SCREW X DCS6401	€2.82
125	Image coming soon	346760-3 CYLINDER GASKET	€2.73
126	Image coming soon	936430160 PIN 3X16 PS350C-420C	€2.20
204	Image coming soon	143323-4 CYLINDER	€77.36
205		197479-5 Piston Set for Chainsaw Makita EA3500S40B	€22.63
206	Image coming soon	257366-1 PISTON RING Ø 38	€4.51

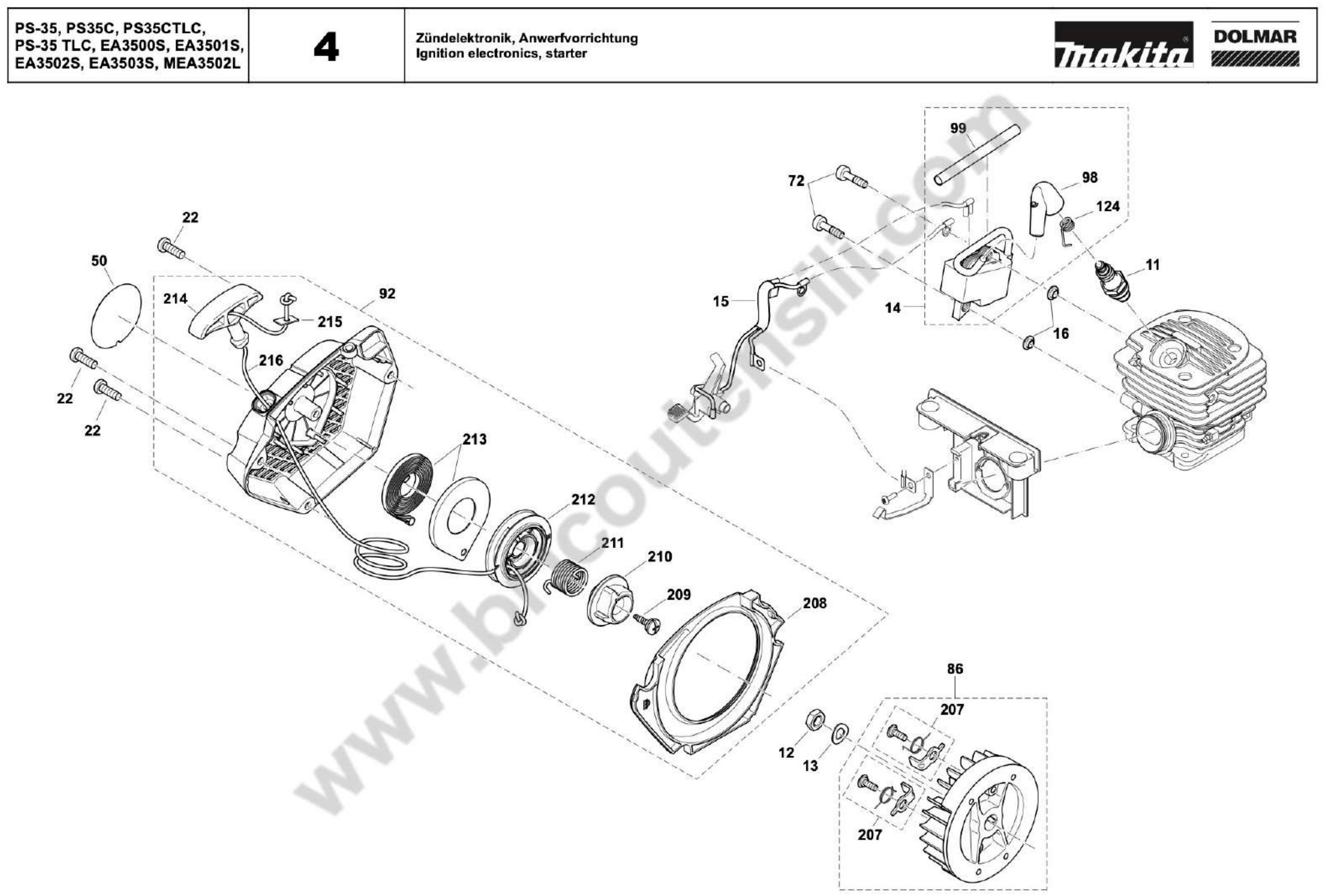

Page 4 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
12	Image coming soon	264022-6 NUT	€1.43
13	Image coming soon	926208001 SPRING WASHER 8	€1.47
14		126270-4 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A	€55.00
16	Image coming soon	452670-5 INSULATING WASHER PS32CTLC	€1.40
72	Image coming soon	908805205 SCREW M5 + WASHER PS6400 / 7300	€34.71
86	Image coming soon	140480-9 FLYWHEEL PS32CTLC	€27.55
92	Image coming soon	168608-7 STARTING CPL BLUE EA3201S35A	€40.59
98	Image coming soon	424522-0 HOOD CANDLE	€2.82
99	Image coming soon	444042-8 INSULATION TUBE PS32TCLC	€1.43
124	Image coming soon	326210-4 SPRING	€1.38
207		195761-6 Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A	€2.84
208	Image coming soon	452026-2 BAFFLE PS32CTLC	€3.35
209	Image coming soon	266777-9 SCREW 5X1 PS32CTLC	€1.40
210	Image coming soon	170160780 STARTER WHEEL	€6.06
211	Image coming soon	195160030 PS350C-420C SPRING	€8.67
212	Image coming soon	455919-2 CABLE DRUM CPL.	€6.06
213		195955-3 Makita Starter Spring for EA3200S35A	€11.07
214	Image coming soon	195160070 HANDLE STARTING PS350C	€11.29
215	Image coming soon	195160080 WASHER PS350C-420C	€2.12
216	Image coming soon	021164010 STARTER ROPE	€5.24
216	Image coming soon	985000150 STARTER ROPE	€90.94

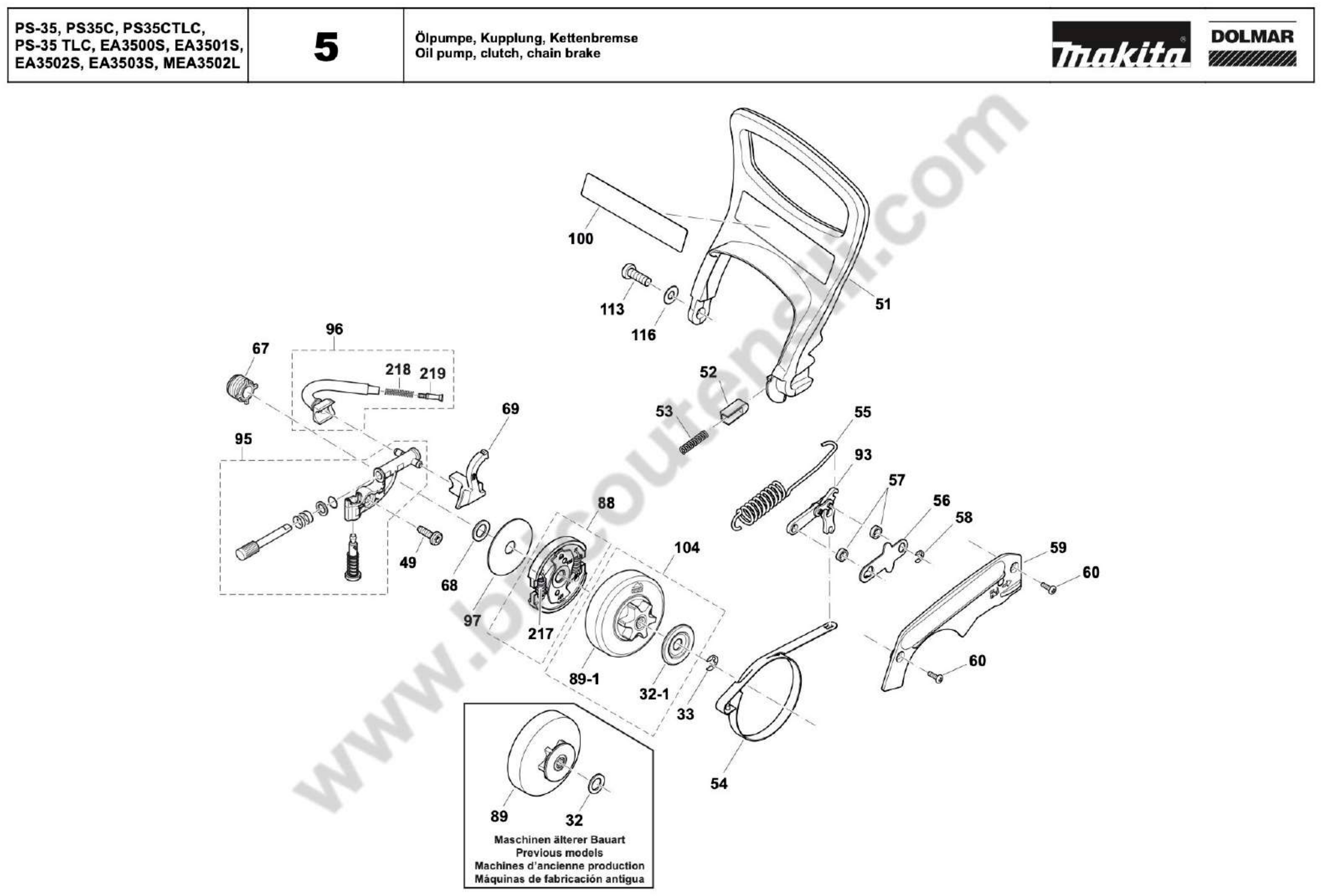

Page 5 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
32-1	Image coming soon	267833-8 WASHER 8 PS32CTLC	€1.44
32	Image coming soon	900006065 WASHER	€1.43
33	Image coming soon	927306000 SAFETY WASHER	€1.43
51		452032-7 Hand Guard for Petrol Chainsaw Makita EA3200S35A	€6.26
52	Image coming soon	313212-9 PS32CTLC GUIDE	€1.47
53	Image coming soon	234210-9 SPRING COMPRESSION 6 PS32CTLC	€1.47
54	Image coming soon	346298-8 SPRING BRAKE PS32CTLC	€4.81
54	Image coming soon	347363-6 BRAKE BAND	€3.84
58	Image coming soon	927304000 E'CLIP DCS4630/5030/5031/DCS46	€1.47
59	Image coming soon	452033-5 PS32CTLC COVER	€2.15
59	Image coming soon	458425-6 BRAKE COVER	€2.67
67		452035-1 Worm Screw for Chainsaw Makita EA3201S35A	€5.30
68	Image coming soon	267430-0 WASHER 10 PS32CTLC	€1.40
88	Image coming soon	165180200 CLUTCH ASSY.	€33.39
89-1	Image coming soon	140A30-6 CLUTCH DRUM	€36.47
93	Image coming soon	181213100 LEVERAGE DCS4600S-5000	€21.75
96	Image coming soon	168645-1 SUCTION HOSE PS32CTLC	€6.06
100	Image coming soon	810449-4 LABEL	€1.47
104	Image coming soon	199033-1 CLUTCH DRUM SET	€41.19
116	Image coming soon	925305000 WASHER ES-31A	€1.43
217	Image coming soon	231873-2 SPRING TENSION 5 PS32CTLC	€1.40
218		234207-8 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A	€1.48
219	Image coming soon	452666-6 PLUG OIL PIPE PS32CTLC	€1.47

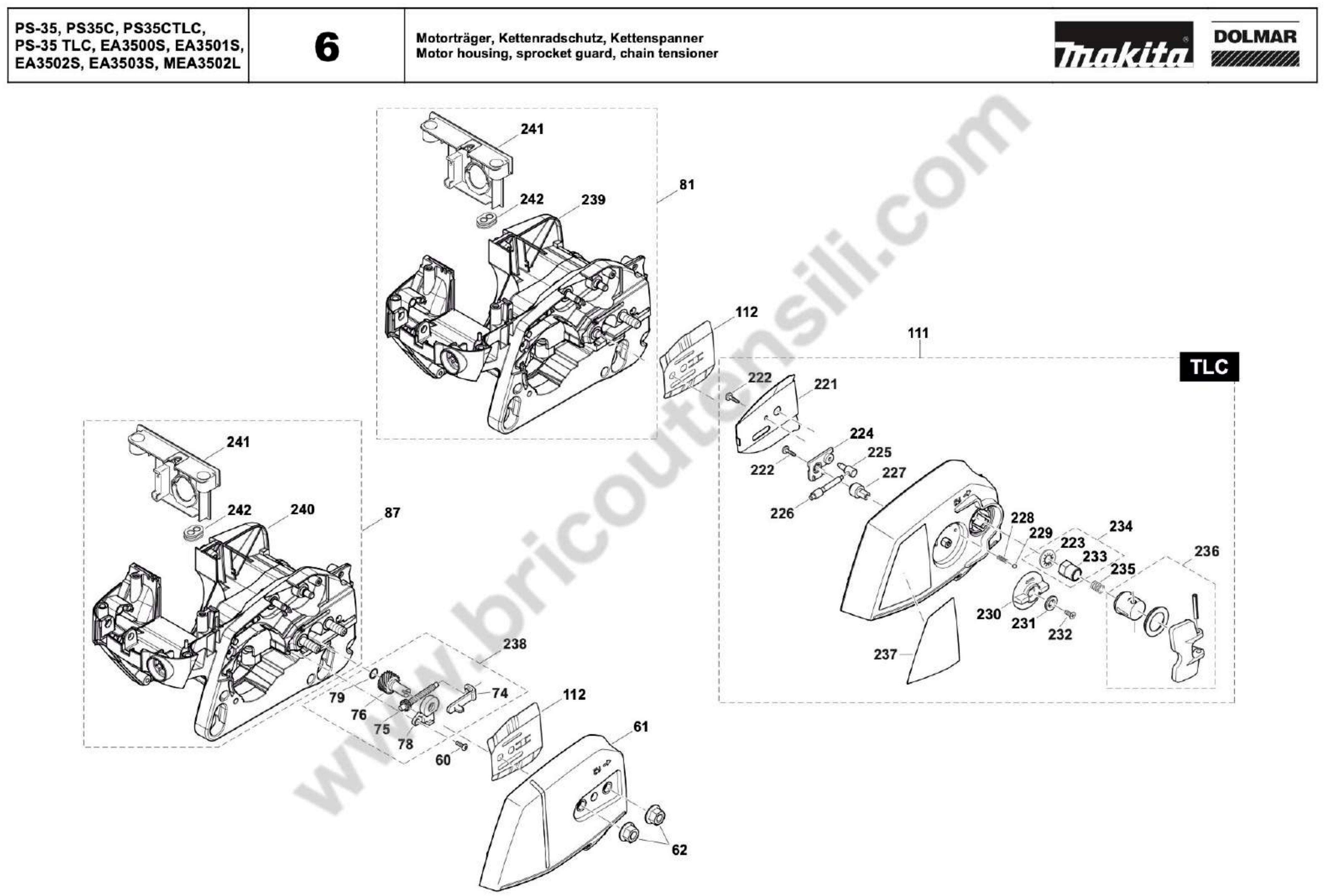

Page 6 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
61	Image coming soon	452044-0 CARTER PINION	€8.40
62	Image coming soon	923208004 NUT	€2.20
74	Image coming soon	346300-7 SLEIGH	€2.12
75	Image coming soon	227743-1 GEAR 11	€22.84
76	Image coming soon	227744-9 GEAR 18	€20.12
78	Image coming soon	452667-4 COVER	€9.01
112	Image coming soon	195213120 PLATE GUIDE EA4300F	€6.06
238	Image coming soon	195213300 CHAIN TIGHTER PS350C-420C	€41.23
240	Image coming soon	125110602 ENGINE HOUSING CPL.	€77.36

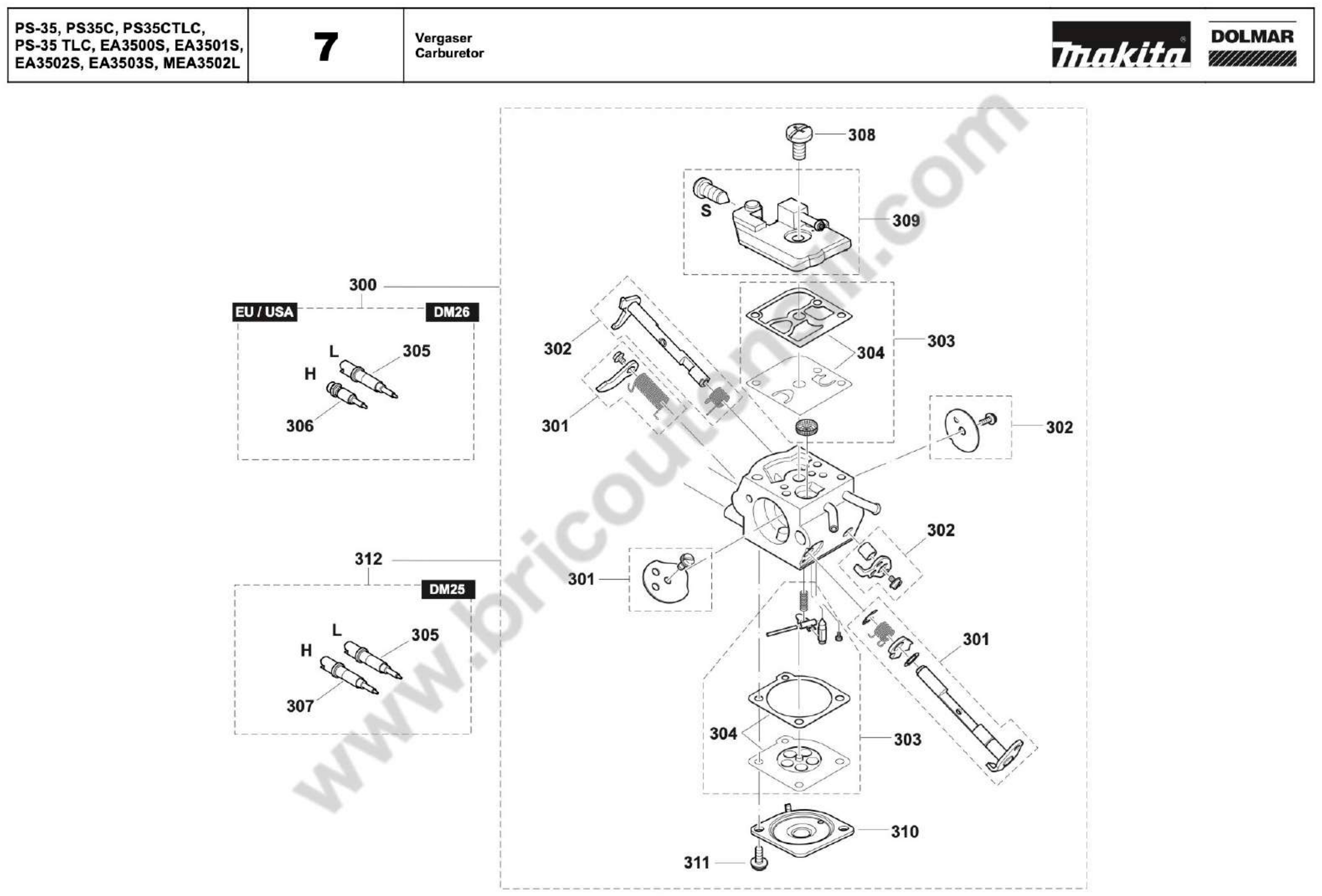

Page 7 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
300		168829-1 Carburetor for Chainsaw Makita EA3500S40B	€67.90
303	Image coming soon	195153510 REPAIR KIT	€45.74
308	Image coming soon	038153360 SCREW DCS4630/5030/5031/4600/5	€4.06
311	Image coming soon	ZJ00000014 SCREW (WITH SERRATION)	€2.20

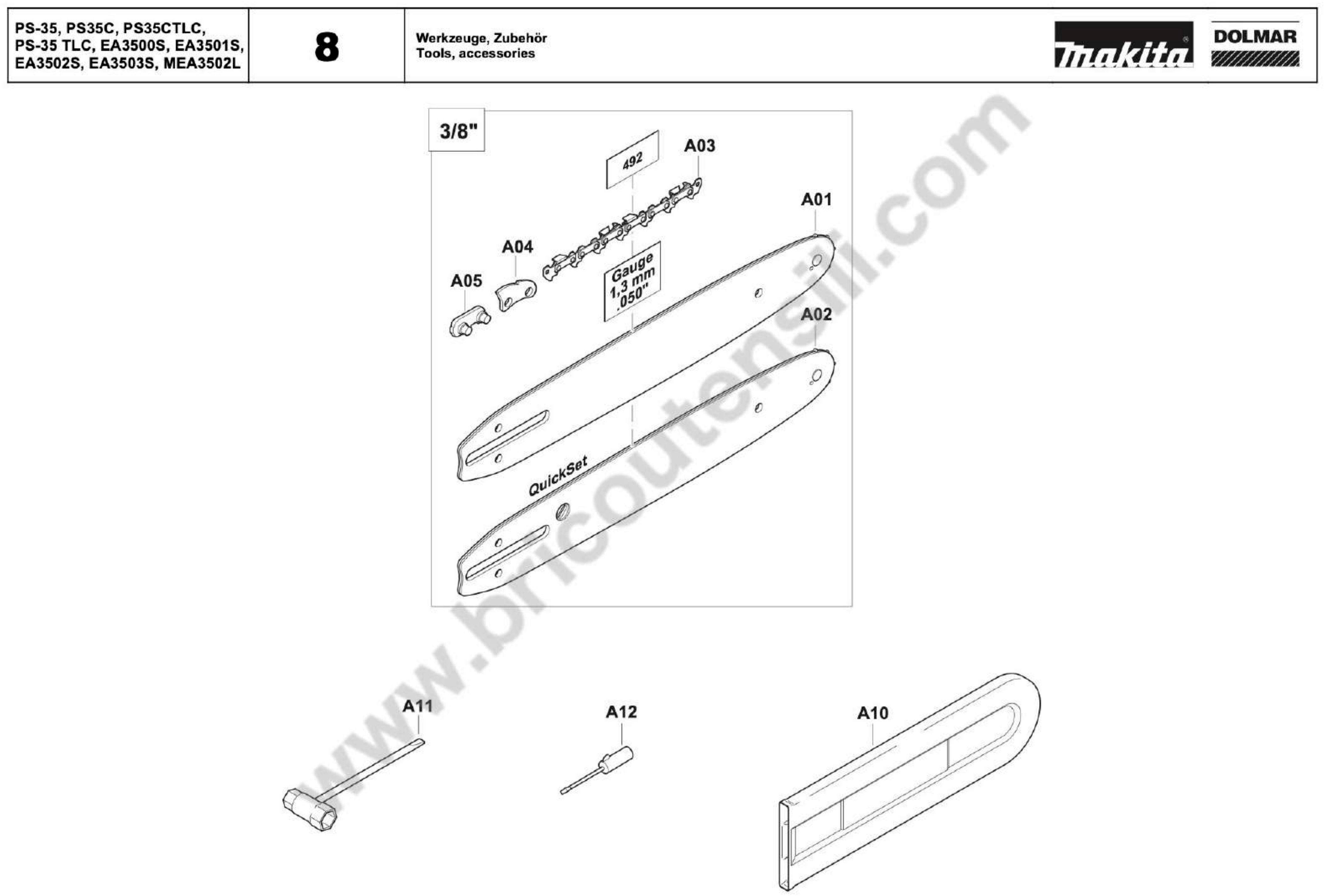

Page 8 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
A01	Image coming soon	165201-8 SPROCKET NOSE BAR	€25.06
A01	Image coming soon	165202-6 SPROCKET NOSE BAR 40CM SP.1,3MM	€27.98
A02	Image coming soon	442030061 SPROCKET NOSE BAR	€33.94
A01	Image coming soon	442030661 BAR 30CM SP.1,3MM	€25.06
A05	Image coming soon	558092010 TIE STRAP WITH RIVETS 3/8" .050"	€1.61
A11	Image coming soon	782026-1 UNIVERSAL WRENCH	€5.16
A10	Image coming soon	952010640 CHAIN BAR COVER 40CM	€11.29
A03	Image coming soon	958492656 SAW CHAIN	€24.29

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Chainsaw EA3500S

MAKITA service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Chainsaw EA3500S.

In the following table, look for the model of Chainsaw and the respective parts of the code.

MAKITA PETROL CHAINSAW EA3500S pag.1
Pos.	Codice	Descrizione
22	913455164	SCREW	5,5X16
35	452020-4	CATCH LEVER
36	452019-9	THROTTLE LEVER
37	231866-9	TORSION SPRING
38	452021-2	GRIP SHELL
41	452018-1	FUEL NIPPLE
42	424456-7	FUEL PIPE
43	965452660	TUBE	5,6x3mmx1m EPA code, red L=75 mm
44	163447-0	FUEL FILTER
44	199469-4	ENGINE MAINTENANCE KIT	PS32, PS32C, PS32CTLC, PS35, PS35C, PS35CTLC INC. 11,23,44
46	965452090	TUBE	2,5/5,5mm x 1000mm L=107 mm
48	234189-4	COMPRESSION SPRING	12
49	266605-8	H.L. SOCKET HEAD BOLT	M5x16
73	452036-9	TUBULAR HANDLE
80	213586-7	O RING	11,5x2
91	181114202	TANK CAP ASSEMBLY	INC. 202
102	891898-4	LABEL	MAKITA LOGO
105	165115620	LABEL, TANK	USA - EVAPORATION MAKITA
106	893389-1	TAG	AIR INDEX, USA
107	125115060	CAUTION LABEL	USA
107	980115277	LABEL	BR
108	980115113	LABEL, SOUND LEVEL	EU, USA
108	980114003	LABEL, SOUND LEVEL	AUS, NZ
109	891905-3	LABEL, EXHAUST EMISSION	EU
110	868744-6	NAME PLATE
117	195114160	CUP WASHER	6
200	125114640	TANK COMPLETE	BLUE INC. 22,35-38,41-43,46,80,91,20
200	165114680	TANK COMPLETE	BLUE, USA (EPA) INC. 41,42,80,91,118,201
200	125114650	TANK COMPLETE	BLUE, USA (EPA) INC. 22,35-38, 41-43,46,80,91,118,201
201	170175010	AIR VALVE CPL.
202	213080-9	O RING	29,3X3,6
MAKITA PETROL CHAINSAW EA3500S pag.2
3	965452090	TUBE	2,5/5,5mm x 1000mm L=72 mm
18	125131040	INTAKE HOSE
19	346413-4	INSERT FOR INTAKE HOSE	17
20	452030-1	INTAKE MANIFOLD
21	181118070	DAMPING PLUG
22	913455164	SCREW	5,5X16
23	125173010	AIR FILTER
23	199465-2	ENGINE MAINTENANCE KIT	EA3200S-EA3203S, EA500S-EA3503S INC. 11,23,44
24	165173020	AIR FILTER COVER
25	266942-0	H.L. SOCKET HEAD BOLT	M5x20
26	454874-5	INTERMEDIATE FLANGE
27	165171020	SNAP NUT	M5
28	318634-8	FLANGE RING
29	908004406	H.L. SOCKET HEAD BOLT	M4X40, 10.9
30	165155010	CONTACT SPRING
39	424631-5	GROMMET
40	970502110	INSULATING HOSE	A6X0,5 L=50 mm
45	168398-2	PRIMER PUMP	PRIMER
47	965452090	TUBE	2,5/5,5mm x 1000mm L=55 mm
47	422067-2	TUBE	2,5/5,5mm x 55mm
49	266605-8	H.L. SOCKET HEAD BOLT	M5x16
60	165888120	TAPPING SCREW	3X10 KS K
63	346304-9	GASKET
64	038174410	CONNECTING LINK	L=39,5mm
65	266480-2	H.L. SOCKET HEAD BOLT	M5x55
66	346764-5	COOLING PLATE
71	454875-3	HOOD
77	266612-1	SCREW	M5x10
82	424618-7	PLUG
94	125174100	MUFFLER CPL.	KAT INC. 203
114	181131070	ANNULAR SPRING
203	346823-5	SPARK ARRESTER SCREEN
MAKITA PETROL CHAINSAW EA3500S pag.3
4	962210092	NEEDLE CAGE	KV9x12x11,5S
5	960102121	BALL BEARING	6201
5	211341-1	BALL BEARING	6201
6	962900156	RADIAL RING	Ø 12/20x5
10	913350404	SCREW	5x40 E-JOT
22	913455164	SCREW	5,5X16
31	452025-4	CHOKE LEVER
34	452022-0	THROTTLE LINKAGE CPL.
45	168398-2	PRIMER PUMP	PRIMER
48	234189-4	COMPRESSION SPRING	12
70	010245030	VENT VALVE
83	125132030	PISTON PIN	8
84	108132050	SPRING RING
85	125120101	CRANKSHAFT ASS'Y
91	181114202	TANK CAP ASSEMBLY	INC. 202
101	816917-5	LABEL	CHOKE-ON-OFF
103	123530-5	REPLACEMENT ENGINE ASSEMBLY	INC. 6,85,118,119,120,121,126
103	127075-5	REPLACEMENT ENGINE ASSEMBLY	INC. 6,85,118,119,120,121,126
115	346301-5	SPIKE BAR
118	125111072	CRANKCASE CPL.	MS
118	144357-0	CRANKCASE MS ASSEMBLY	MS
119	125111082	CRANKCASE CPL.	KS
119	144356-2	CRANKCASE KS ASSEMBLY	KS
120	125111090	CRANK CASE GASKET
121	908405255	SCREW	M5x25
126	936430160	CLAMPING PIN	3x16
122	908405205	H.L. SOCKET HEAD BOLT	M5x20
125	346760-3	GASKET
202	213080-9	O RING	29,3X3,6
204	143323-4	CYLINDER CPL.	D38MM
205	197479-5	PISTON SET	INC. 83,84,206
206	257366-1	PISTON RING	Ø 38
MAKITA PETROL CHAINSAW EA3500S pag.4
11	965603030	SPARK PLUG	NGK CMR6A
11	199465-2	ENGINE MAINTENANCE KIT	EA3200S-EA3203S, EA500S-EA3503S INC. 11,23,44
12	264022-6	HEXAGONAL NUT	M8x1
13	926208001	SPRING WASHER	B8
14	126270-4	IGNITION COIL	INC. 98,99,124
15	165147020	CABLE HARNESS
16	452670-5	ISOLATING WASHER
22	913455164	SCREW	5,5X16
50	125115111	MODEL LABEL	EA3500S
72	908805205	TORX SOCKET HEAD BOLT	M5X20
86	140480-9	FLYWHEEL CPL.	INC. 207
92	168608-7	STARTER ASSY., BLUE	INC. 208-216
98	424522-0	SPARK PLUG CAP
99	444042-8	ISOLATING HOSE	6-80 L=80 mm
124	326210-4	SPRING
207	195761-6	STARTER RATCHET CPL.
208	452026-2	AIR GUIDE PLATE
209	266777-9	TAPPING SCREW	5X12
210	170160780	STARTER WHEEL	EASY START
211	195160030	SPRING
212	455919-2	CABLE DRUM CPL.
213	195955-3	REWIND SPRING	SET
214	195160070	STARTER GRIP
215	195160080	WASHER
216	021164010	STARTER ROPE	ø 3 x 900 mm
216	985000150	STARTER ROPE	ø 3 x 100 m
MAKITA PETROL CHAINSAW EA3500S pag.5
32	900006065	WASHER	ø8/14x1
32-1	267833-8	CUP WASHER	8
33	927306000	SAFETY WASHER
49	266605-8	H.L. SOCKET HEAD BOLT	M5x16
51	452032-7	HAND GUARD
52	313212-9	HAND GUARD GUIDE
53	234210-9	COMPRESSION SPRING	6
54	346298-8	BRAKE BAND
54	347363-6	BRAKE BAND
55	165213120	TENSION SPRING
56	165213130	SPACER SHEET METAL
57	165213140	BUSH
58	927304000	SAFETY WASHER
59	452033-5	CHAIN BRAKE COVER
59	458425-6	BRAKE COVER
60	165888120	TAPPING SCREW	3X10 KS K
67	452035-1	PUMP DRIVE
68	267430-0	FLAT WASHER	10X16X2,5
69	165245120	OIL PRESSURE LINE
88	165180200	CLUTCH ASSY.	INC. 217
89	170223111	CLUTCH DRUM CPL.	3/8" - DISCONTINUED
89-1	140A30-6	CLUTCH DRUM CPL. 3/8"
93	181213100	BRAKING MECHANISM
95	161346-0	OIL PUMP CPL.
96	168645-1	SUCTION LINE OIL CPL.	INC. 218,219
97	165182060	FLAT WASHER	10
100	810449-4	CAUTION LABEL	EU
100	818L12-9	CAUTION LABEL
100	980115897	CAUTION LABEL	US WARNING SPARKS
104	199033-1	CLUTCH DRUM SET	3/8"
113	913455164	SCREW	5,5X16
116	925305000	WASHER	ø5/12x0,5
217	231873-2	TENSION SPRING	5
218	234207-8	COMPRESSION SPRING	6
219	452666-6	NIPPLE
MAKITA PETROL CHAINSAW EA3500S pag.6
60	165888120	TAPPING SCREW	3X10 KS K
61	452044-0	SPROCKET GUARD CPL.	BLUE
62	923208004	HEXAGONAL NUT	M8
74	346300-7	TENSION SLIDE
75	227743-1	TENSIONING SCREW	PROFI
76	227744-9	ADJUST SCREW	PROFI
78	452667-4	TRANSMISSION COVER	PROFI
79	185213410	O-RING	7X2
87	125110620	ENGINE HOUSING CPL., SET	BLUE INC. 26,39,70
112	195213120	GUIDE PLATE
238	195213300	CHAIN TENSIONER CPL.	INC. 74-76,78,79
240	125110602	ENGINE HOUSING CPL.	BLUE
241	454874-5	INTERMEDIATE FLANGE
242	424631-5	GROMMET
MAKITA PETROL CHAINSAW EA3500S pag.7
300	168829-1	CARBURETOR	DM26B, DD - EU, USA (regulated market) INC. 301-303,305,306,308-311
301	125153580	KIT CHOKE SHAFT
302	125153570	KIT THROTTLE SHAFT
303	195153510	REPAIR KIT	INC. 304
304	195153500	SET GASKETS / DIAPHRAGM
305	ZJ00000026	ADJUST SCREW	L
306	195153350	ADJUST SCREW	H, DD - EU, USA (regulated market)
307	ZJ00000039	ADJUST SCREW	H (non regulated market)
308	038153360	SCREW
309	125153220	PUMP COVER CPL.
310	ZJ00000028	DIAPHRAGM COVER
311	ZJ00000014	SCREW
312	125153101	CARBURETOR	DM25B (non regulated market) INC. 301-303,305,307,308-311
MAKITA PETROL CHAINSAW EA3500S pag.8
A01	165202-6	SPROCKET NOSE BAR	3/8" .050" 40cm-16"
A01	165201-8	SPROCKET NOSE BAR	3/8" .050" 35cm-14"
A01	442030661	SPROCKET NOSE BAR	3/8" .050" 30cm-12"
A02	442030061	SPROCKET NOSE BAR	3/8" .050" 30cm-12"
A03	958492656	SAW CHAIN	3/8" .050" 40cm-16"
A03	531492652	SAW CHAIN	3/8" .050" 35cm-14"
A03	531492646	SAW CHAIN	3/8" .050" 30cm-12"
A04	558092000	SAFETY TIE STRAP	3/8" .050"
A05	558092010	TIE STRAP WITH RIVETS	3/8"
A10	952010640	CHAIN PROTECTION	43cm Makita
A10	419559-0	CHAIN PROTECTION	33cm Makita
A11	782026-1	UNIVERSAL WRENCH	SW 13/16
A12	783012-5	SCREWDRIVER

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita EA3500S

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Diagram Makita EA3500S

Download (790.05KB)

Makita SKU: 424456-7

Fuel Hose for Chaisaws Makita EA3201S35A

Fuel Hose for Chaisaws Makita EA3201S35A Genuine parts Makita, Fuel Hose for Chaisaws Makita EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC Parts for the following products: - EA3200S35A - CHAISAW 33CC 35CM MAKITA -...

AVAILABLE €16.31

Details

Makita SKU: 168398-2

Gasoline Primer Pump for Chainsaw Makita DCS230T

Gasoline Primer Pump for Chainsaw Makita DCS230T Genuine parts for Makita, Gasoline Primer Pump for Chainsaws DCS230T - DCS230TC -DCS231T - DCS231TC - DCS232TC Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA...

AVAILABLE €6.24

Details

Makita SKU: 163447-0

Gasoline Filter for Chainsaw Makita DCS230T

Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T - DCS231TC - DCS232TC Part for the following...

Last items in stock €4.49

Details

Makita SKU: 234189-4

Compression Spring 12 for Chainsaw Makita DCS3501

Compression Spring 12 for Chainsaw Makita DCS3501 Genuine part Makita, Compression Spring 12 for Chainsaws DCS3501 - DCS4301 - EA3200S40B - EA3201S35A - EA3500F40B - PS32CTLC...

AVAILABLE €1.46

Details

Makita SKU: 168504-9

Venting Valve for Chainsaw Dolmar PS32CTLC

Venting Valve for Chainsaw Dolmar PS32CTLC Genuine part Dolmar, Venting Valve for Chainsaws Dolmar PS32CTLC - PS32C/35 - PS3400TH - PS350C - PS420C - PS460 - PS4605...

on 7/10 Business Days Approx €3.70

Details

Makita SKU: 452035-1

Worm Screw for Chainsaw Makita EA3201S35A

Worm Screw for Chainsaw Makita EA3201S35A Genuine part Makita, Worm Screw for Chainsaws Makita EA3201S35A - EA3200S40B - EA3500S40B - Dollmar PS32C/35 - PS32CTLC - PS35C/40. Part for the following products: - EA3201S35A - CHAINSAW...

Usually Ships in: 7/10 Business Days Approx. €5.30

Details

Makita SKU: 140M30-8

Clutch Drum Ass'y for Chainsaw Makita EA3200S

Clutch Drum Ass'y for Chainsaw Makita EA3200S Genuine replacement part Makita, Clutch Drum Ass'y for Chainsaws EA3200S - EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35...

Last items in stock €16.90

Details

Makita SKU: 195761-6

Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A

Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A Genuine replacement part Makita, Starter Pawl PS32CTLC for Chainsaws Makita EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the following products: - EA3200S40B...

AVAILABLE €2.84

Details

Makita SKU: 424173-9

Damper for Chainsaw Dolmar PS32CTLC

Damper for Chainsaw Dolmar PS32CTLC Genuine replacement part VALEX, Damper for Chainsaws PS32CTLC - PS32C/35 - PS35C/40. Part for the following products: - PS32C/35 - CHAINSAW 33CC 35CM-1,1MM...

on 7/10 Business Days Approx. €2.18

Details

Makita SKU: 126270-4

Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A

Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A Genuine replacement part Makita, Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC....

on 10 Business Days Approx €55.00

Details

Makita SKU: 232302-8

Circlip for Chainsaw Dolmar PS33/35

Circlip for Chainsaw Dolmar PS33/35 Original replacement part Dolmar, Piston Pin Circlip for Chainsaws PS33/35 - PS35C/40 - PS45/40 - EA3500S40B - DCS330S/30. Part for the following products: - DCS330S/30 - CHAINSAW CM30 KW1,3 33CC...

AVAILABLE €1.41

Details

Makita SKU: 197479-5

Piston Set for Chainsaw Makita EA3500S40B

Piston Set for Chainsaw Makita EA3500S40B Genuine parts for Makita, Piston Set for Chainsaws EA3500S40B - Dolmar PS35C/40. Part for the following products: - EA3500S40B - CHAINSAW 35CC 40CM...

on 7/10 Business Days Approx. €22.63

Details

Makita SKU: 452032-7

Hand Guard for Petrol Chainsaw Makita EA3200S35A

Hand Guard for Petrol Chainsaw Makita EA3200S35A Genuine spare part Makita, Hand Guard for Petrol Chainsaw Makita EA3200S35A - EA3500S35B - EA3201S35A - Dolmar PS32C/40. Part for the following products: - Chainsaw Makita EA3200S35A...

Last items in stock €6.26

Details

Makita SKU: 168829-1

Carburetor for Chainsaw Makita EA3500S40B

Carburetor for Chainsaw Makita EA3500S40B Genuine parts for Makita, Carburetor for Chainsaws EA3500S40B - Dolmar PS35C/40. Part for the following products: - EA3500S40B -...

Last items in stock €67.90

Details

Comments (0)

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Makita Spare Parts for Chainsaw EA3500S

Makita Spare Parts for Chainsaw EA3500S

Makita Spare Parts for Chainsaw EA3500S

Makita Spare Parts for Chainsaw EA3500S

Makita Spare Parts for Chainsaw EA3500S

Data sheet

Specific References

Download

Diagram Makita EA3500S

You might also like

Products

News

Notes

Our company
