Makita Spare Parts for Backpack Bruschcutter RBK410

Name: Makita Spare Parts for Backpack Bruschcutter RBK410
Brand: Makita
SKU: Makita RBK410
Availability: InStock

SKU: Makita RBK410

€52.75

VAT included

Makita Spare Parts for Backpack Bruschcutter RBK410

Makita original spare parts for to replace broken parts for to fix Backpack Bruschcutter RBK410.

Fix Your Backpack Bruschcutter RBK410. All Spares can be supplied. Our Spares are Genuine Parts and Come with a Full Guarantee.

165 spare parts

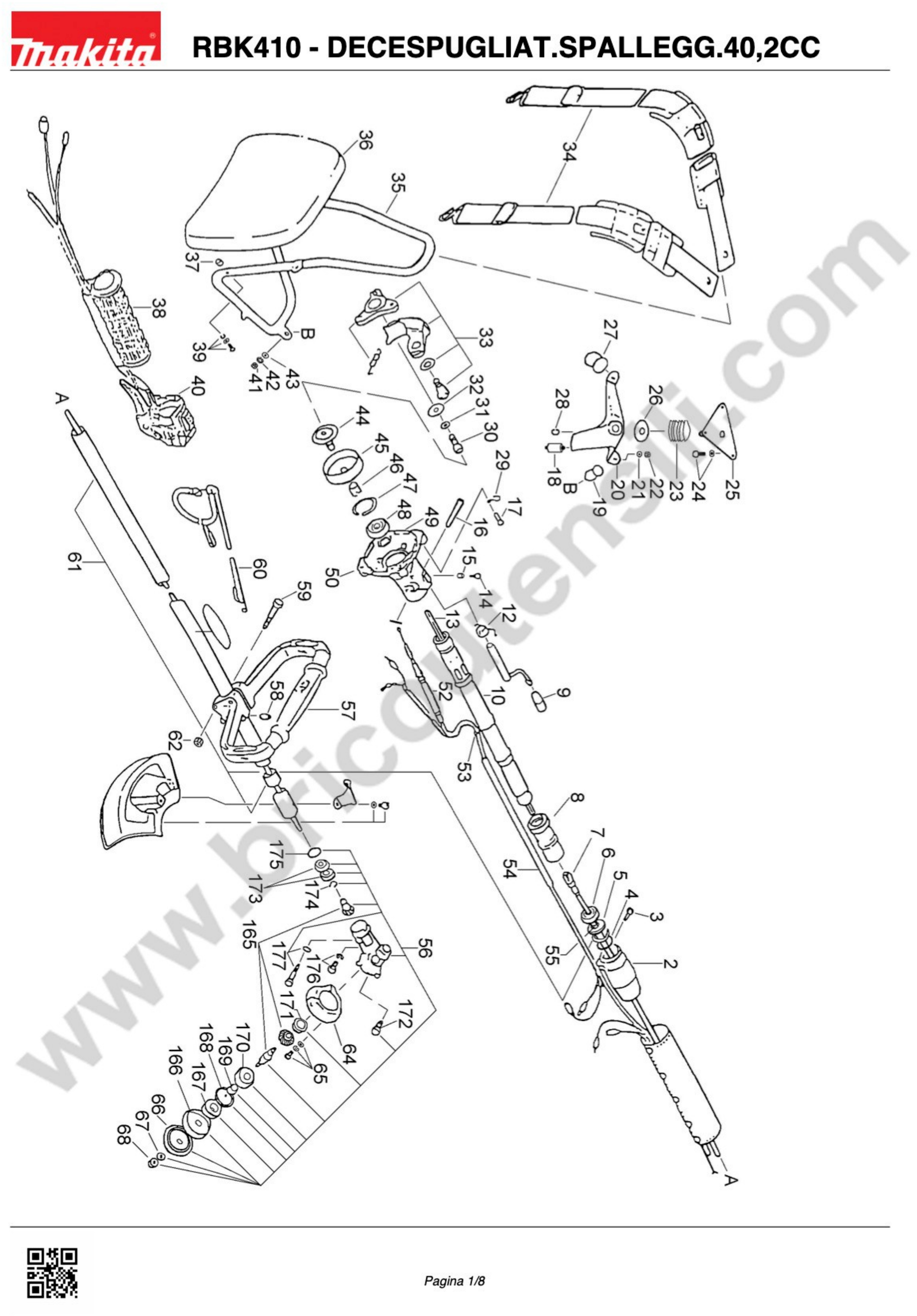

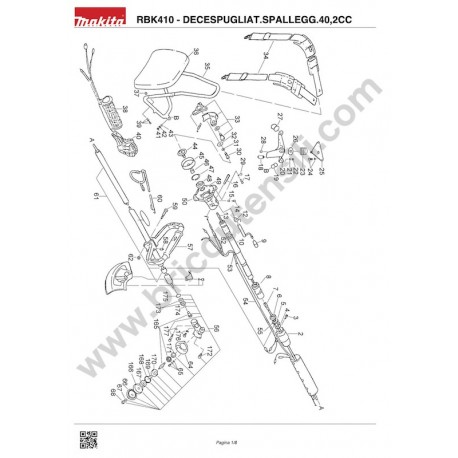

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
2	Image coming soon	6111500300 CASE X RBK 410	€51.22
3	Image coming soon	0043106300 SCREW X RBK 410	€1.43
4	Image coming soon	0062610250 GASKET X RBK 410	€3.20
5	Image coming soon	6111500600 WASHER X RBK 410	€5.24
6	Image coming soon	6101500600 BALL BEARING X RBK410	€16.98
7	Image coming soon	6111012000 SHAFT ASS'Y X RBC 410	€128.47
8	Image coming soon	6111503402 BUSH X RBK 410	€6.06
9	Image coming soon	6985501600 LEVER KNOB X RBK 410	€3.92
10	Image coming soon	6111017000 FLEXIBLE SHAFT ASS'Y X RBK 410	€281.77
12	Image coming soon	6116500200 SPRING X RBK 410	€8.68
13		6111011000 Makita RBK410 Flexible Shaft	€37.57
14	Image coming soon	0043106160 PAN HEAD SCREW M6X16 RBK410	€1.43
15	Image coming soon	6404503500 SPACER X RBK 410	€3.20
16	Image coming soon	0052106340 PIN X RBK 410	€6.06
17	Image coming soon	0011606250 BOLT ASS'YX RBK 410	€1.43
18	Image coming soon	6116500300 DAMPER X RBK 410	€11.29
20	Image coming soon	6116500000 BASE X RBK 410	€57.15
21	Image coming soon	0032006000 ELASTIC WASHER X RBC / RBK410-G2400R	€1.54
22	Image coming soon	0021806000 NUT M6 X RBC 410 / RBC520	€1.43
23	Image coming soon	6116500100 SPRING X RBK 410	€8.68
24	Image coming soon	0011606120 BOLT ASS'Y X RBK 410	€1.43
25	Image coming soon	6116003000 BRACKET COMPLETE X RBK410	€36.48
26	Image coming soon	0031012000 WASHER M12 X RBK 410	€1.43
27	Image coming soon	6116500400 DAMPER X RBK 410	€12.95
28		0031512000 Outer Snap Ring for Brushcutter Makita RBC221	€2.00
29	Image coming soon	6495500000 CLAMP X RBK 410	€5.24
30	Image coming soon	6202500400 BOLT X RBC 410 / RBK410	€8.37
32	Image coming soon	267429-5 WASHER 6	€1.54
33	Image coming soon	6112003001 CLUTCH X RBK 410	€62.86
34	Image coming soon	6117005000 BAND ASS'Y X RBK 410	€51.22
35	Image coming soon	6116001000 FLAME COMPLETE RBK410	€104.93
36	Image coming soon	6116002001 CUSHION CPL X RBK 410	€41.23
37	Image coming soon	0230069962 SPACER X RBK 410	€4.52
38	Image coming soon	6214500400 HANDLE X RBC230 / RBK 410	€17.15
39	Image coming soon	0043605250 PAN HEAD SCREW M5X25 RBK410	€1.43
40	Image coming soon	6255018000 CONTROL LEVERS X RBK410	€29.16
41	Image coming soon	0024306000 CAP NUT X RBK410	€1.43
43	Image coming soon	0031006000 WASHER X RBC 410 / RBK410 G2400-5	€1.43
44	Image coming soon	6112005000 CLUTCH UNIT RBK410	€36.48
45	Image coming soon	6112500700 DRUM X RBK 410	€10.09
46	Image coming soon	6112500600 SPRING X RBK 410	€6.06
47	Image coming soon	0031435000 INTERNAL LOCK X RBC410 / 520 / RBK410	€3.23
48	Image coming soon	0600179850 BALL BEARING 6003DD X RBC / K 410	€18.98
49	Image coming soon	0031517000 EXTERNAL LOCK X RBC 410 RBK410	€1.43
50	Image coming soon	6116502400 CLUTCH CASE RBK 410	€178.37
52	Image coming soon	0630129920 CONTROL CABLE X RBK410	€33.39
53	Image coming soon	6101501000 WIRE CLAMP X RBK410	€12.95
54	Image coming soon	6115502600 WIRE X RBK 410	€33.39
55	Image coming soon	0031510000 OUTER SNAP RING 10 RBK 410	€1.41
56	Image coming soon	6253004001 GEARBOX X RBC310 / RBK410	€241.66
58	Image coming soon	6114500000 PLATE X RBK 410	€2.73
59	Image coming soon	266573-5 HSS HD BOLT M5X33 EBH341U	€1.51
60	Image coming soon	6117003000 BAND COMPLETE X RBK 410	€21.97
61	Image coming soon	6251010000 PIPESHAFT CPL X RBK410	€197.39
62	Image coming soon	0022705000 NUT M5 X RBC230 / 310 / RBK410	€1.44
64	Image coming soon	412099-7 PROTECTION X DECESP.	€3.95
65	Image coming soon	922213-2 HEX BOLT M5X12 EBH253L/341U	€1.51
66		6258500001 Clamp Washer for Brushcutter Makita RBC310	€25.23
67	Image coming soon	0203089990 SPRING WASHER X RBC260 / 230RBK410	€1.44
68	Image coming soon	264018-7 NUT M8 RBC2510	€1.44
165	Image coming soon	6253005000 SHAFT SET X RBC310 / RBK410	€70.90
166		327195-7 Receive Washer for Brushcutter Makita RBC310	€34.41
167	Image coming soon	6253501100 OIL GASKET X RBC310 / K410	€3.95
168	Image coming soon	0031430000 INNER SNAP RING X RBC310 / RBK410	€2.77
169	Image coming soon	6253501300 DISTANCE	€5.28
170	Image coming soon	0600109990 BALL BEARING 6200	€14.77
171	Image coming soon	6253500200 BALL BEARING 627	€19.54
172	Image coming soon	266671-5 OIL CAP	€3.23
173	Image coming soon	210049-4 BEARING 609ZZ EBH252L	€6.29
174	Image coming soon	6253502600 STOP OUTSIDE X RBC310 / RBK410	€2.15
175	Image coming soon	0031424000 INNER SNAP RING X RBC260-230-225	€2.15
176	Image coming soon	0011306120 M6X12 X RBC310 / 520 BOLT	€1.44

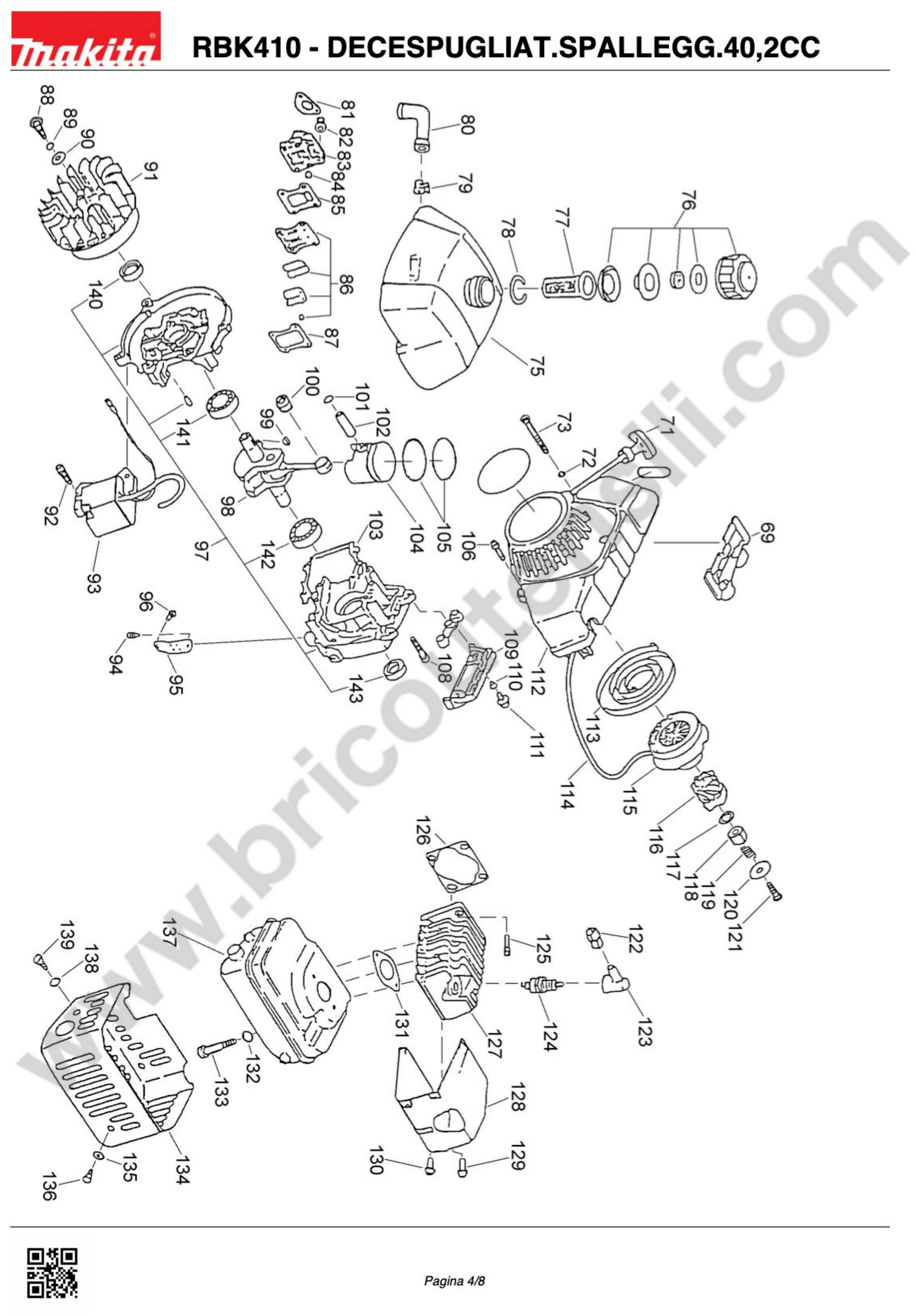

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price	Buy
69	Image coming soon	5416501900 GROMMET X RBC410 / RBK 410	€4.52
71	Image coming soon	5305002110 STARTER KNOB X RBC260 / RBK41	€7.79
72	Image coming soon	0031005000 WASHER X RBC230 / 410 / RBK410	€5.26
73	Image coming soon	0119059810 BOLT M5X50 XRBC / RBK410	€2.12
75		5416501201 Fuel Tank for Brushcutter Makita RBK350	€20.65
76	Image coming soon	125799-7 FUEL TANK CAP ASS'Y RBC 410 RBK 410	€5.24
77	Image coming soon	0641279990 FILTER X RBC 410 / RBK 410	€2.99
78	Image coming soon	5516500500 GASKET X RBC 410 / RBK 410	€2.12
79	Image coming soon	0561139982 HOSE CLAMP X RBC 410 / RBK 410	€2.32
80		422060-6 Fuel Tube for Brushcutter Makita RBK350	€6.44
81	Image coming soon	5416501300 GASKET X RBC410 / RBK 410	€1.46
82	Image coming soon	0043705200 PAN HEAD SCREW M5X20 RBC410 / RBK 410 M5X20	€1.43
83	Image coming soon	5413501100 ISOLATOR X RBC 410 / RBK410	€10.35
84	Image coming soon	0021705000 NUT M5 X RBC415	€1.54
85	Image coming soon	5413501200 ISOLATOR GASKET X RBC410 / RBK410	€2.81
86	Image coming soon	125796-3 COMPLETE VALVE X RBC410 / RBK410	€17.39
87	Image coming soon	442160-6 BRACKET GASKET	€2.14
88	Image coming soon	0016706160 BOLT M6X16 X RBC / RBK 410	€1.43
90	Image coming soon	0200069920 WASHER M6 X RBC310 / 410 / RBK410	€2.77
91	Image coming soon	5417001010 POLAR WHEEL X RBC / RBK 410	€179.92
92	Image coming soon	0119059790 BOLT X RBC / RBK 410 M5X22	€2.14
93		168587-9 Electronic Coil for Brushcutter Makita RBC421	€24.50
94	Image coming soon	0011406120 BOLT X RBC / RBK 410 M6X12	€1.43
95	Image coming soon	5413504300 MUFFLER BRACKET X RBC / RBK 410	€5.24
96	Image coming soon	0011405100 BOLT ASS'Y M5X20 X RBC / RBK 410	€1.43
97	Image coming soon	5411005000 ENGINE HOUSING ASSY RBC / RBK	€281.77
98	Image coming soon	5412001000 CRANK SHAFT ASSY X RBC / RBK 410	€225.46
99	Image coming soon	0053203101 WOODRUFF RBC / RBK 410	€2.15
100	Image coming soon	212085-6 ROLLER CAGE 1014	€6.81
101		233983-1 Piston Pin Circlip for Brushcutter Makita RBC410	€1.55
102		257797-4 Piston Pin for Brushcutter Makita RBC410	€3.65
103	Image coming soon	5411501200 CRANK CASE GASKET X RBC410 / RBK 410	€3.23
104		318631-4 Piston for Brushcutter Makita RBC410	€28.32	Not available for order
105		257309-3 Piston Ring for Brushcutter Makita RBC410	€5.15
108	Image coming soon	0119059940 BOLT X RBC 410 / RBK 410	€2.14
109	Image coming soon	5416057000 SHANK PROTECTION	€3.95
110	Image coming soon	0230059990 COMPASS X RBC260 / 410 / RBK 410	€1.43
111	Image coming soon	0043405140 PAN HEAD SCREW M5X14 RBC410	€1.54
112	Image coming soon	5415032000 STARTER ASSY X RBC / RBK 410	€146.15
113	Image coming soon	233993-8 SPIRAL SPRING X RBC 410 / RBK410	€7.79
114	Image coming soon	5415001140 STARTER CABLE X RBC 260/410 / RBK 410	€8.74
115	Image coming soon	452766-2 RBC RBK RBK 410	€5.28
116	Image coming soon	452767-0 STARTER BRACKET RBC / RBK 410	€3.23
117	Image coming soon	5415001220 WASHER ELASTASTICAX RBC RBK 410	€2.14
118	Image coming soon	452768-8 STARTER GUIDE X RBC 410 / RBK41	€2.14
119	Image coming soon	5415001050 RETURN SPRING X RBC / RBK 410	€1.43
120	Image coming soon	5415001060 WASHER X RBC / RBK 410	€1.43
121	Image coming soon	5245001010 SCREW X RBC RBK 410	€2.76
122		324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U	€1.62
123	Image coming soon	0655009940 PLUG CAP X RBC410 / RBK410RBC520	€3.23
124	Image coming soon	054001-10 SPARK PLUG NGK - BPM7A (10PZ)	€54.43
125	Image coming soon	0119069990 BOLT X RBC 410 / RBK 410	€181.44
126		442156-7 Cylinder Gasket for Brushcutter Makita RBC410	€3.48
127		318630-6 Cylinder for Brushcutter Makita RBC410	€66.15
128	Image coming soon	5415504600 CYLINDER CASE X RBC 410 / RBK	€25.05
130	Image coming soon	0043705140 PAN HEAD SCREW M5X14 RBC 410 / RBK 410	€1.38
131	Image coming soon	5323500200 MUFFLER GASKET X RBC RBK / 410	€5.28
133	Image coming soon	0119069860 HEX SOCKET HEAD BOLT M6X55 RB RBC 410 / RBK 410	€2.73
134	Image coming soon	346541-5 MUFFLER COVER RBC 410 / RBK41	€33.39
136	Image coming soon	0016505100 BOLT M5X10 X RBC RBK 410	€1.43
137	Image coming soon	5413023000 EXHAUST MUFFLER X RBC410 / RBK 410	€70.24
140	Image coming soon	213546-9 OIL SEAL X PB500R-RBC525	€5.90
141	Image coming soon	0600159880 BALL BEARING 6202C3 X PB500R	€8.74

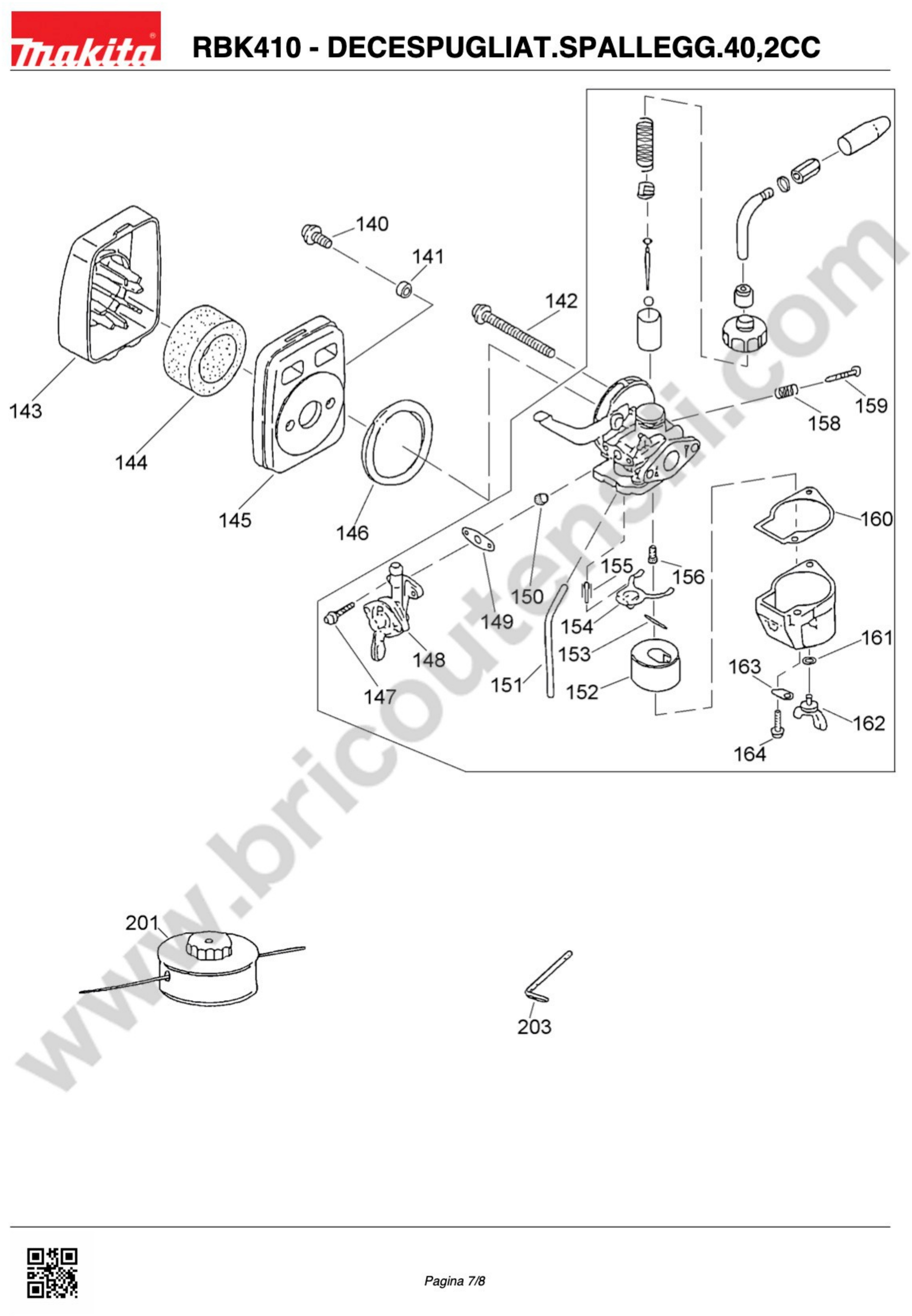

Page 3 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
	Image coming soon	6119006000 TOOL SET RBC221	€20.98
	Image coming soon	6119019000 KIT KEY SERVICE X RBC225-255	€24.76
	Image coming soon	6418500700 CUTTER COVER RBC230/260/310	€10.89
	Image coming soon	6418500701 BLADE COVER MS251.4	€12.95
	Image coming soon	B-01884 STAR BLADE 255-4T	€11.78
	Image coming soon	B-14124 STAR BLADE 255X4TX25.4	€17.74
142	Image coming soon	0043605580 PAN HEAD SCREW M5X58 RBC RBK 410	€2.32
143	Image coming soon	5413503502 FILTER COVER X RBC410 / RBK410	€8.88
144	Image coming soon	5413500900 FILTER ELEMENT X RBC RBK 410	€3.95
145	Image coming soon	5413503900 FILTER HOUSING X RBC 410 / RBK 410	€3.28
146	Image coming soon	5413503100 GASKET X RBC RBK 410	€3.28
147	Image coming soon	8046001530 SCREW X RBC RBK 410	€2.18
148	Image coming soon	140633-0 TAP X RBC RBK 410	€25.05
149	Image coming soon	442163-0 GASKET	€4.01
150	Image coming soon	5306009050 FILTER X RBC RBK 410	€7.73
151	Image coming soon	5416016040 HOSE X RBC RBK 410	€4.01
152	Image coming soon	5306009020 FLOAT X RBC 410 / RBK 410	€22.50
153	Image coming soon	5306009160 PIN WITH FLOATING SUPPORT X RBC / RBK 410	€2.18
154	Image coming soon	346350-2 FLOATING SUPPORT	€11.55
155	Image coming soon	163519-1 COMPLETE PIN X RBC RBK 410	€9.56
156	Image coming soon	5306018020 MAIN JET X RBC RBK 410	€13.26
158	Image coming soon	5416001110 SPRING X RBC RBK 410	€6.20
159	Image coming soon	5416001060 ADJUSTING SCREW X RBC RBK 410	€5.34
160	Image coming soon	442162-2 GASKET X RBC RBK 410	€5.34
161	Image coming soon	5306002410 GASKET X RBC RBK 410	€2.81
162	Image coming soon	5306002240 SCREW X RBC RBK 410	€10.35
163	Image coming soon	5416016030 PLATE X RBC 410	€6.20
164	Image coming soon	5306009510 SCREW X RBC RBK 410	€2.18
201		B-02945 Nylon Cutting Head 4Y for Brushcutter Makita - Dolmar	€46.62
203	Image coming soon	0717049990 WRENCHE	€2.73

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Backpack Bruschcutter RBK410

RBK410 - BACKPACK BRUSHCUTTER 40,2CC pag.1
#	Part NUm.	Description
2	6111500300	CASE X RBK 410
3	0043106300	SCREW X RBK 410
4	0062610250	GASKET X RBK 410
5	6111500600	WASHER X RBK 410
6	6101500600	BALL BEARING X RBK410
7	6111012000	SHAFT ASS'Y X RBC 410
8	6111503402	BUSH X RBK 410
9	6985501600	LEVER KNOB X RBK 410
10	6111017000	FLEXIBLE SHAFT ASS'Y X RBK 410
12	6116500200	SPRING X RBK 410
13	6111011000	FLEXIBLE SHAFT ASS'Y X RBK 410
14	0043106160	PAN HEAD SCREW M6X16 RBK410
15	6404503500	SPACER X RBK 410
16	0052106340	PIN X RBK 410
17	0011606250	BOLT ASS'YX RBK 410
18	6116500300	DAMPER X RBK 410
19	6116500300	DAMPER X RBK 410
20	6116500000	BASE X RBK 410
21	0032006000	SPRING WASHER X RBC / RBK410-G2400R
22	0021806000	NUT M6 X RBC 410 / RBC520
23	6116500100	SPRING X RBK 410
24	0011606120	BOLT ASS'Y X RBK 410
25	6116003000	BRACKET COMPLETE X RBK410
26	0031012000	WASHER M12 X RBK 410
27	6116500400	DAMPER X RBK 410
28	0031512000	OUTER SNAP RING DBC260L/U/RBC RBC260 / 520RBK410
29	6495500000	CLAMP X RBK 410
30	6202500400	BOLT M6X14 X RBC 410 / RBK410
31	0032006000	SPRING WASHER M6 X RBC / RBK410-G2400R
32	267429-5	WASHER M6
33	6112003001	CLUTCH X RBK 410
34	6117005000	BAND ASS'Y X RBK 410
35	6116001000	FLAME COMPLETE RBK410
36	6116002001	CUSHION CPL X RBK 410
37	0230069962	SPACER X RBK 410
38	6214500400	GRIP X RBC230 / RBK 410
39	0043605250	PAN HEAD SCREW M5X25 RBK410
40	6255018000	CONTROL LEVERS X RBK410
41	0024306000	CAP NUT X RBK410
42	0032006000	SPRING WASHER M6 X RBC / RBK410-G2400R
43	0031006000	WASHER X RBC 410 / RBK410 G2400-5
44	6112005000	CLUTCH UNIT RBK410
45	6112500700	DRUM X RBK 410
46	6112500600	SPRING X RBK 410
47	0031435000	INNER SNAP RING RBC410/RBC420
48	0600179850	BALL BEARING 6003DD X RBC / K 410
49	0031517000	OUTER SNAP RING RBC410/RBC420
50	6116502400	CLUTCH CASE RBK 410
52	0630129920	CONTROL CABLE X RBK410
53	6101501000	WIRE CLAMP X RBK410
54	6115502600	WIRE X RBK 410
55	0031510000	OUTER SNAP RING 10 RBK410
56	6253004001	GEAR ASS'Y CASE RBC310 / RBK410
58	6114500000	PLATE X RBK 410
59	266573-5	SCREW M5X33 EBH341U
60	6117003000	BAND COMPLETE X RBK 410
61	6251010000	PIPESHAFT CPL X RBK410
62	0022705000	NUT M5 X RBC230 / 310 / RBK410
64	412099-7	PROTECTION ASS'Y X DECESP.
65	922213-2	SOCKET HEAD BOLT M5X12 EH7500
66	6258500001	CLAMP WASHER RBC310/RBC3101
67	0203089990	SPRING WASHER RBC230/260/310
68	264018-7	NUT M8 RBC2510
165	6253005000	CUTTER SHAFT SET RBC310 / RBK410
166	327195-7	RECEIVE WASHER RBC310/RBC3101
167	6253501100	OIL SEAL X RBC310 / K410
168	0031430000	INNER RING X RBC310 / RBK410
169	6253501300	SPACER
170	0600109990	BALL BEARING 6200
171	6253500200	BALL BEARING 627
172	266671-5	OIL BOLT
173	210049-4	BALL BEARING 609ZZ EBH252L
174	6253502600	OUTER SNAPRING RBC310/MS3200E RBC310 / RBK410
175	0031424000	INNER SNAP RING DBC260L/U/RBC RBC260-230-225-
176	0011306120	BOLT ASS'Y M6X12 X RBC310 / 520
RBK410 - BACKPACK BRUSHCUTTER 40,2CC pag.2
69	5416501900	DAMPER X RBC410 / RBK 410
71	5305002110	STARTER KNOB G1700I - RBC260 / RBK41
72	0031005000	WASHER M5 X RBC230 / 410 / RBK410
73	0119059810	SOCKET HEAD BOLT M5X50 EH561 RBC / RBK410
75	5416501201	FUEL TANK RBK420G
76	125799-7	FUEL TANK CAP ASS'Y RBC 410 RBK 410
77	0641279990	FILTER X RBC 410 / RBK 410
78	5516500500	GASKET X RBC 410 / RBK 410
79	0561139982	HOSE CLAMP X RBC 410 / RBK 410
80	422060-6	FUEL TUBE X RBC 410 / RBK410
81	5416501300	CARBURATOR GASKET X RBC410 / RBK 410
82	0043705200	PAN HEAD SCREW M5X20 RBC410 / RBK 410 M5X20
83	5413501100	INSULATOR X RBC 410 / RBK410
84	0021705000	NUT M5 X RBC415
85	5413501200	INSULATOR GASKET X RBC410 / RBK410
86	125796-3	VALVE REED ASS'Y RBC410 / RBK410
87	442160-6	LEAD VALVE GASKET
88	0016706160	BOLT M6X16 X RBC / RBK 410
89	0032006000	SPRING WASHER M5 RBC / RBK410-G2400R
90	0200069920	WASHER M6 RBC310/320E/420 / 410 / RBK410
91	5417001010	FLYWHEEL RBC / RBK 410
92	0119059790	HEX SOCKET HEAD BOLT M5X22 RB
93	168587-9	IGNITION COIL
94	0011406120	BOLT X RBC / RBK 410 M6X12
95	5413504300	MUFFLER BRACKET X RBC / RBK 410
96	0011405100	BOLT ASS'Y M5X20 X RBC / RBK 410
97	5411005000	CRANK CASE ASS'Y RBC / RBK
98	5412001000	CRANKSHAFT CPL.X RBC / RBK 410
99	0053203101	WOODRUFF KEY RBC / RBK 410
100	212085-6	NEEDLE ROLLER BEARING 1014 - EPH1000
101	233983-1	PISTON CLIP EPH1000/RBC410/420E/EM43 - EBH341
102	257797-4	PISTON PIN RBC410/420E
103	5411501200	CRANK CASE GASKET RBC410/RBC4 RBC410 / RBK 410
104	318631-4	PISTON X RBC410 / RBK410
105	257309-3	PISTON RING RBC410 / RBK4
106	0119059790	HEX SOCKET HEAD BOLT M5X22 RB
108	0119059940	HEX SOCKET HEAD BOLT M5X30 RB RBC 410 / RBK 410
109	5416057000	FUEL TANK BRACKET ASSY RBC
110	0230059990	SPACER X RBC260 / 410 / RBK 410
111	0043405140	PAN HEAD SCREW M5X14 RBC410
112	5415032000	STARTER ASS'Y RBC / RBK 410
113	233993-8	SPIRAL SPRING X RBC 410 / RBK410
114	5415001140	STARTER ROPE X RBC 260/410 / RBK 410
115	452766-2	REEL RBC / RBK 410
116	452767-0	RARCHET RBC / RBK 410
117	5415001220	THRUST WASHER X RBC RBK 410
118	452768-8	RATCHET GUIDE X RBC 410 / RBK41
119	5415001050	FRICTION SPRING X RBC / RBK 410
120	5415001060	WASHER X RBC / RBK 410
121	5245001010	BIND SCREW X RBC RBK 410
122	324891-8	PLUG CAP SPRING EBH341
123	0655009940	PLUG CAP X RBC410 / RBK410RBC520
124	054001-10	SPARK PLUG NGK - BPM7A (10PCS)
125	0119069990	HEX SOCKET HEAD BOLT RBC 410 / RBK 410
126	442156-7	CYLINDER GASKET X RBC420E
127	318630-6	CYLINDER X RBC 410 / RBK 410
128	5415504600	CYLINDER COVER X RBC 410 / RBK
129	0043705200	PAN HEAD SCREW M5X20 RBC 410 / RBK 410 M5X20
130	0043705140	PAN HEAD SCREW M5X14 RBC 410 / RBK 410
131	5323500200	MUFFLER GASKET X RBC RBK / 410
132	0031006000	WASHER X RBC 410 / RBK410 G2400-5
133	0119069860	HEX SOCKET HEAD BOLT M6X55 RB RBC 410 / RBK 410
134	346541-5	MUFFLER COVER RBC 410 / RBK41
135	0031005000	WASHER M5 X RBC230 / 410 / RBK410
136	0016505100	BOLT M5X10 X RBC RBK 410
137	5413023000	EXHAUST MUFFLER X RBC410 / RBK 410
138	0031005000	WASHER M5 X RBC230 / 410 / RBK410
139	0016505100	BOLT M5X10 RBC RBK 410
140	213546-9	OIL SEAL X PB500R-RBC525
141	0600159880	BALL BEARING 6202C3 X PB500R
142	0600159880	BALL BEARING 6202C3 X PB500R
143	213546-9	OIL SEAL X PB500R-RBC525
RBK410 - BACKPACK BRUSHCUTTER 40,2CC pag.3
140	0043405140	PAN HEAD SCREW M5X14 RBC 410 / RBK 410
141	0230059990	SPACER X RBC260 / 410 / RBK 410
142	0043605580	PAN HEAD SCREW M5X58 RBC RBK 410
143	5413503502	AIR CLEANER COVER RBC410 / RBK410
144	5413500900	ELEMENT X RBC RBK 410
145	5413503900	AIR CLEANER CASE RBC 410 / RBK 410
146	5413503100	AIR CLEANER GASKET RBC RBK 410
147	8046001530	PAN HEAD SCREW RBC410 - RBK 410
148	140633-0	COCK BODY ASS'Y RBC RBK 410
149	442163-0	GASKET
150	5306009050	FILTER X RBC RBK 410
151	5416016040	HOSE X RBC RBK 410
152	5306009020	FLOAT X RBC 410 / RBK 410
153	5306009160	STRAIGHT PIN RBC / RBK 410
154	346350-2	FLOAT ARM
155	163519-1	NEEDLE ASS'Y RBC RBK 410
156	5306018020	MAIN JET X RBC RBK 410
158	5416001110	SPRING X RBC RBK 410
159	5416001060	ADJUST SCREW X RBC RBK 410
160	442162-2	GASKET X RBC RBK 410
161	5306002410	O-RING RBC RBK 410
162	5306002240	SCREW X RBC RBK 410
163	5416016030	PLATE X RBC 410
164	5306009510	PAN HEAD SCREW RBC410 - RBK 410
201	B-02945	TAP & GO HEAD M8-M10X1.25F
203	0717049990	HEX WRENCH RBC350-RBC420
	B-01884	STAR BLADE 255-4T
	B-14124	STAR BLADE 255X4TX25.4
	6418500701	CUTTER COVER DBC260U/EM4251
	6418500700	CUTTER COVER RBC230/260/310
	6119006000	TOOL SET RBC221
	6119019000	TOOL KIT

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita RBK410

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Drawing Makita RBK410

Download (645.31KB)

Makita SKU: BB240500

Muffler Gasket for Brushcutter Makita BBC5700

Muffler Gasket for Brushcutter Makita BBC5700 Genuine replacement part Makita, Muffler Gasket for Brushcutters BBC4510 - BBC5700 - BBC5710 - BBK4500 - Dolmar MS4520B - MS4520C. Parts...

AVAILABLE €6.69

Details

Makita SKU: BB752350

Muffler for Brushcutter Makita BBC5700

Muffler for Brushcutter Makita BBC5700 Genuine spare part Makita, Muffler for Brushcutters BBC4510 - BBC5700 - BBC5710 - BBK4500 - BBK5700. Part for the following products:...

Out-of-Stock €44.98

Details

Makita SKU: BB480630

Cylinder Diameter mm 41 for Brushcutter Dolmar MS4520B

Cylinder Diameter mm 41 for Brushcutter Dolmar MS4520B Genuine replacement part Dolmar, Cylinder Diameter mm 41 for Brushcutters N45E - MS4520B - MS4520C - MS4520U - Makita BBC4510...

Last items in stock €137.50

Details

Makita SKU: BB721350

Piston Complete Diameter mm 41 for Brushcutter Dolmar MS4520B

Piston Complete Diameter mm 41 for Brushcutter Dolmar MS4520B Genuine replacement part Dolmar, Piston Complete Diameter mm 41 for Brushcutters N45E - MS4520B - MS4520C - MS4520U -...

Available in 7/10 days €45.99

Details

Makita SKU: BB240270

Cylinder Gasket for Brushcutter Dolmar MS4520B

Cylinder Gasket for Brushcutter Dolmar MS4520B Genuine replacement part Dolmar, Cylinder Gasket Diameter mm 41 for Brushcutters N45E - MS4520B - MS4520C - MS4520U - Makita BBC4510...

Last items in stock €2.20

Details

Makita SKU: BB780060

Clutch Arm for Brushcutter Dolmar MS4520B

Clutch Arm for Brushcutter Dolmar MS4520B Genuine replacement part Dolmar, Clutch Arm for Brushcutters MS4520B - MS5700B - Makita BBK4500 - BBK5700. Part for the following products: - BBK4500 - BACKPACK BRUSHCUTTER 45CC MAKITA -...

AVAILABLE €10.06

Details

Makita SKU: 327195-7

Receive Washer for Brushcutter Makita RBC310

Receive Washer for Brushcutter Makita RBC310 Genuine spare part Makita, Receive Washer for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321. Part for the following products:...

Last items in stock €34.41

Details

Makita SKU: 6258500001

Clamp Washer for Brushcutter Makita RBC310

Clamp Washer for Brushcutter Makita RBC310 Genuine spare part Makita, Clamp Washer for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321. Part for the following products:...

on 7/10 Business Days Approx €25.23

Details

Makita SKU: B-02945

Nylon Cutting Head 4Y for Brushcutter Makita - Dolmar

Nylon Cutting Head 4Y (L.H.) for Brushcutter Makita - Dolmar Genuine Accessory Makita, Nylon Cutting Head 4Y (L.H.) for Brushcutter Makita - Dolmar Parts for the following products: - RBC2110 - BRUSHCUTTER MAKITA...

on 7/10 Business Days Approx €46.62

Details

Makita SKU: 5416501201

Fuel Tank for Brushcutter Makita RBK350

Fuel Tank for Brushcutter Makita RBK350 Genuine replacement part MAKITA, Fuel Tank for Brushcutters RBC410 - RBK350 - RBK410 - RBK420. Part for the following products:...

Last items in stock €20.65

Details

Makita SKU: 422060-6

Fuel Tube for Brushcutter Makita RBK350

Fuel Tube for Brushcutter Makita RBK350 Genuine replacement part MAKITA, Fuel Tube for Brushcutters RBC410 - RBK350 - RBK410 - RBK420. Part for the following products: - ...

on 7/10 Business Days Approx. €6.44

Details

Makita SKU: 6111011000

Makita RBK410 Flexible Shaft

Makita RBK410 Flexible Shaft for Backpack Brushcutter Genuine replacement part Makita, Flexible Drive Shaft for Backpack Brushcutters RBK410. Part for the following products: - RBK410 - BACKPACK BRUSHCUTTER 40,2CC MAKITA...

Last items in stock €37.57

Details

Comments (0)

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Makita Spare Parts for Backpack Bruschcutter RBK410

Makita Spare Parts for Backpack Bruschcutter RBK410

Makita Spare Parts for Backpack Bruschcutter RBK410

Makita Spare Parts for Backpack Bruschcutter RBK410

Makita Spare Parts for Backpack Bruschcutter RBK410

Data sheet

Specific References

Download

Drawing Makita RBK410

You might also like

News

Notes

Products

Our company
