Makita

Makita Spare Parts for Electric Chainsaw DES400

SKU: Makita DES400
€6.76
VAT included

Makita Spare Parts for Electric Chainsaw DES400

We have the original Spares MAKITA for Electric Chainsaw DES400 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Electric Chainsaw DES400. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
Makita Spare Parts for Electric Chainsaws DES400
  • Makita Spare Parts for Electric Chainsaws DES400
  • Makita Spare Parts for Electric Chainsaws DES400
  • Makita Spare Parts for Electric Chainsaws DES400
  • Makita Spare Parts for Electric Chainsaws DES400
  • Makita Spare Parts for Electric Chainsaws DES400
Makita

Makita Spare Parts for Electric Chainsaw DES400

SKU: Makita DES400 Condition: New
€6.76
VAT included

Makita Spare Parts for Electric Chainsaw DES400

We have the original Spares MAKITA for Electric Chainsaw DES400 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Electric Chainsaw DES400. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
settings 45 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
41 spare parts
Esploso pagina 1
Pos. Item Price Buy
9
 photo_cameraImage coming soon 165202-6 SPROCKET NOSE BAR 40CM SP.1,3MM €27.98
10
 photo_cameraImage coming soon 511492756 CHAINLOOP 3/8"-56 LINK sp.1,3 .0.50 €22.86
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 205117600 PROTECTIVE COVER FOR TUBE DES €5.32
2
 photo_cameraImage coming soon 205111671 CASE CLUTCH SIDE CPL. €67.98
3
 photo_cameraImage coming soon 962300011 NEEDLE BUSH 13 / 19X12 €9.12
4
 photo_cameraImage coming soon 021232010 BOLT DES300/350/400 €2.16
5
 Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S 913455204 Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S €2.15
6
 photo_cameraImage coming soon 266687-0 SCREW 5,5X45 €1.39
10
 photo_cameraImage coming soon 389213081 SCREW €3.84
11
 photo_cameraImage coming soon 001213042 PIN TENSIONER X PS 34 €5.13
15
 photo_cameraImage coming soon 205250011 SPIKE BAR €6.16
16
 photo_cameraImage coming soon 913455304 SCREW M5X30 (TORX) €2.09
20
 Clutch Drum 3/8" for Chainsaw Makita DCS330S/30 028223100 Clutch Drum 3/8" for Chainsaw Makita DCS330S/30 €25.42
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 203111601 MOTOR CASE DES300/350/400 €28.57
2
 photo_cameraImage coming soon 205118020 AIR DIAPHRAGME DES300/350/400 €2.53
3
 photo_cameraImage coming soon 203118011 GUIDE PLATE DCS34/PS34 €2.53
5
 photo_cameraImage coming soon 970108929 MOTOR UPLNY DES300 - DES400 €174.92
8
 photo_cameraImage coming soon 957113840 CARBON BRUSH SET X DES €32.28
9
 photo_cameraImage coming soon 905105605 FILLISTER HEAD SCREW(TORX) M5X 60 €2.16
15
 photo_cameraImage coming soon 205111680 ENGINE CASE SIDE CPL €73.56
19
 photo_cameraImage coming soon 965451308 PLUG DES300/350/400 €1.69
21
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
22
 photo_cameraImage coming soon 203228002 GEAR WHEEL WITH SHAFT CPL DES3 €40.10
26
 photo_cameraImage coming soon 975001161 Push Button DES300/350/400 €11.46
27
 photo_cameraImage coming soon 970109870 Capacitor Des300/350/400 €11.46
35
 photo_cameraImage coming soon 970102110 COMPLETE CABLE X DES380 €19.17
36
 photo_cameraImage coming soon 204152010 CORD GUARD C33:C47DES / UH4520-5520- €1.69
38
 photo_cameraImage coming soon 915135130 FILLISTER HEAD SCREW (TORX) 3 €1.69
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
1
 Oil Pump for Electric Chainsaw Makita UC3500A 021245007 Oil Pump for Electric Chainsaw Makita UC3500A €38.40
2
 photo_cameraImage coming soon 957245270 OIL PUMP PARTS KIT X DES €9.12
3
 photo_cameraImage coming soon 203245002 HOLDER OIL PUMP X DES €2.78
4
 photo_cameraImage coming soon 915735100 SCREW X DCS3400TH €3.13
5
 photo_cameraImage coming soon 205245050 CONNECTING ROD DES300/350/400 €4.77
6
 photo_cameraImage coming soon 205245070 DRIVE SHAFT X DES €2.16
13
 photo_cameraImage coming soon 963228030 O-RING 28X3 DES300/350/400 €2.69
15
 photo_cameraImage coming soon 965452382 FUEL TUBE 1mt Diam. 3/5 €12.56
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 205310010 TUBULAR HANDLE DES300/350/400 €15.18
2
 photo_cameraImage coming soon 205213030 SPRING FOR HAND GUARD DES300 €3.09
3
 photo_cameraImage coming soon 205213200 HAND GUARD CPL DES300/350/400 €40.10
6
 Brake Band for Chainsaw Makita DCS34/35 028213502 Brake Band for Chainsaw Makita DCS34/35 €12.27
8
 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Electric Chainsaw DES400

Fix Your Electric Chainsaw DES400. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Electric Saws and the respective parts of the code.

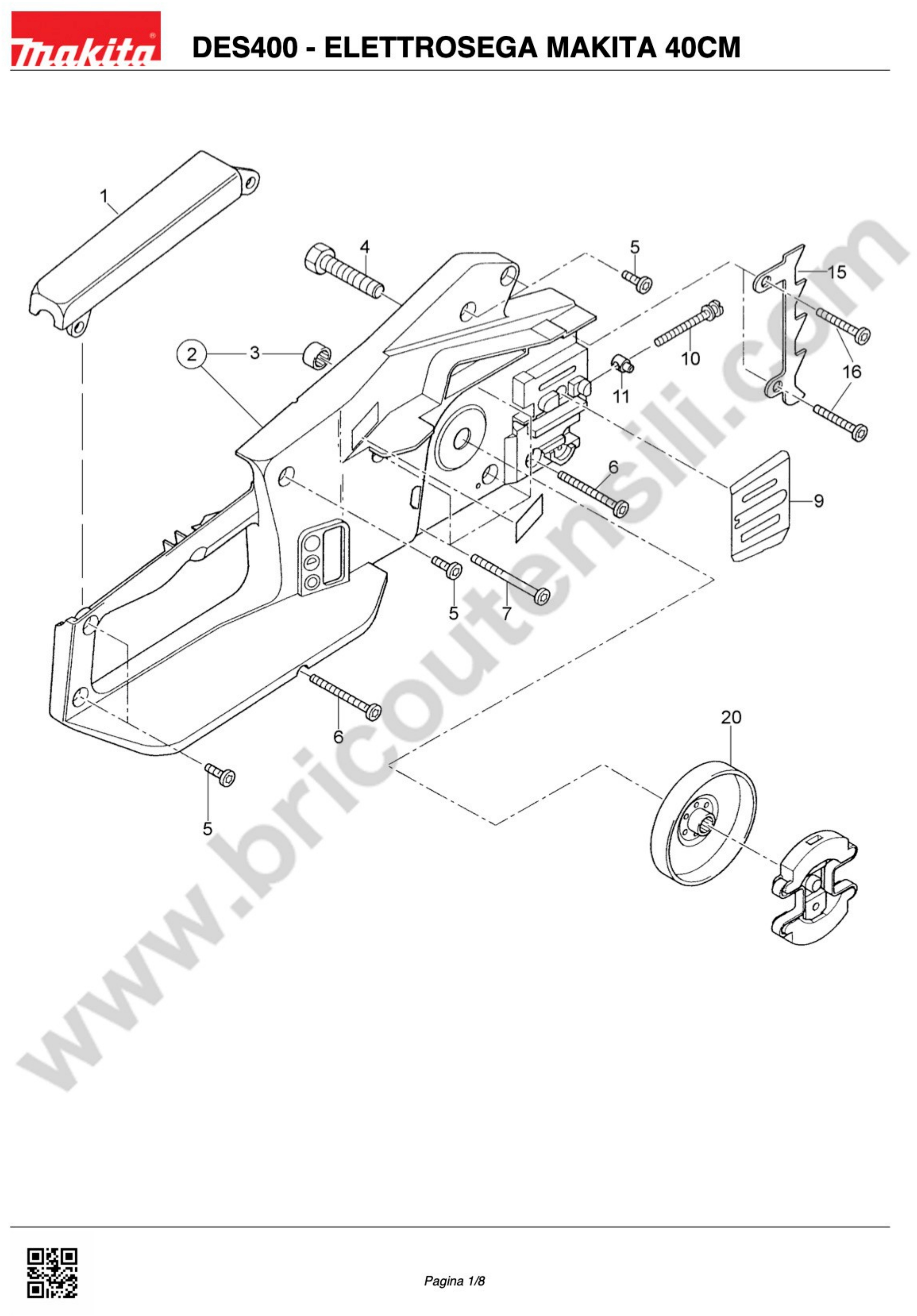

DES400 - ELECTRIC CHAINSAW MAKITA 40CM pag.1
# Part Num. Description
1 205117600 PROTECTIVE COVER FOR TUBE DES
2 205111671 CASE CLUTCH SIDE CPL.
3 962300011 NEEDLE BUSH 13/19X12 DCS330S/3
4 021232010 BOLT DES300/350/400
5 913455204 FILLISTER (TORX) SCREW 5,5X2
6 266687-0 TAPPING SCREW 5,5X45
9 203111040 GUIDE PLATE DES300/350/400
10 389213081 STRAINING SCREW
11 001213042 PIN CHAIN TENSIONER X PS 34
15 205250011 SPIKE BAR
16 913455304 FILLISTER SCREW 5,5X30 KST.
20 028223100 CLUTCH DRUM CPL 3/8"

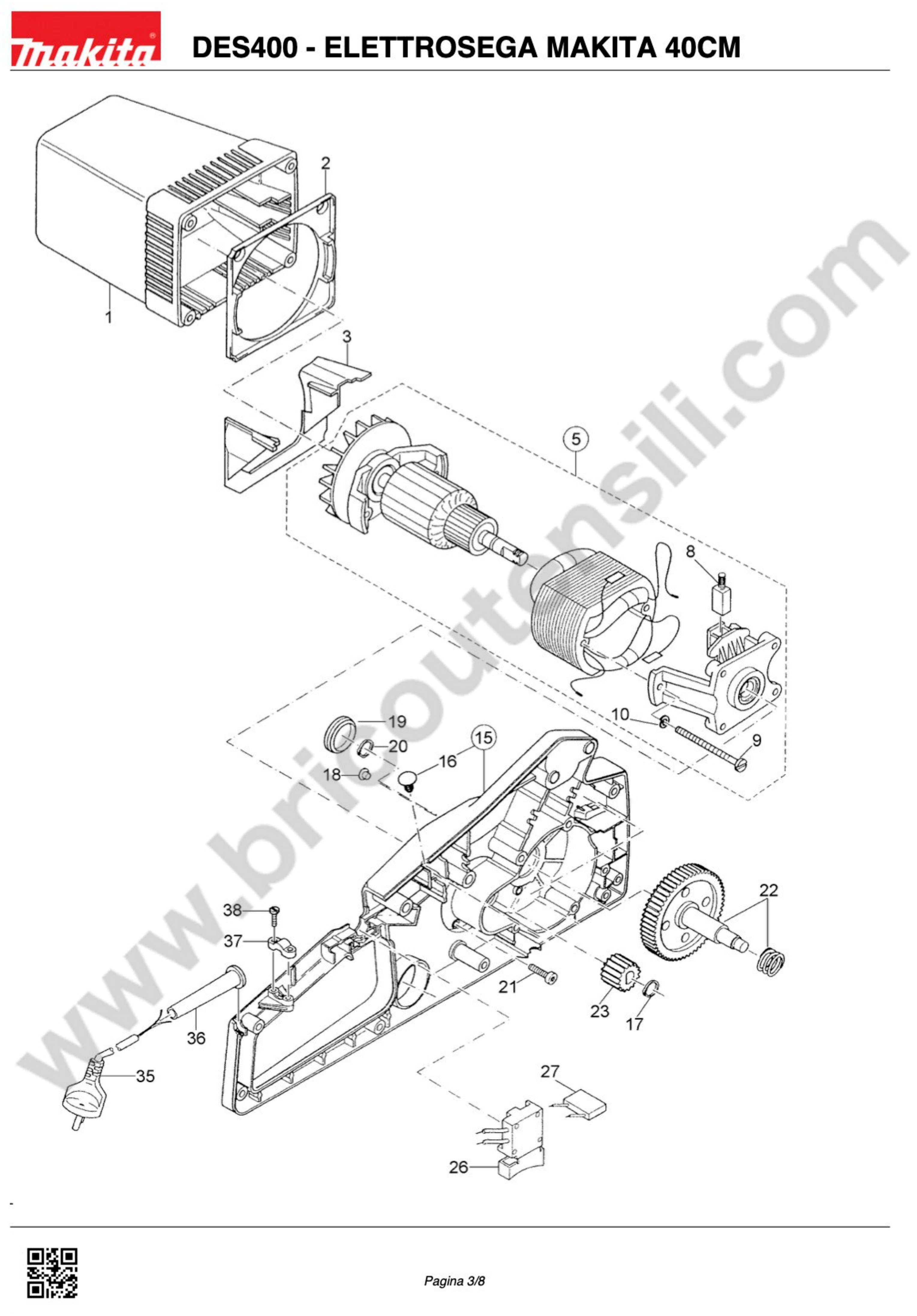

DES400 - ELECTRIC CHAINSAW MAKITA 40CM pag.2
1 203111601 MOTOR CASE DES300/350/400
2 205118020 AIR DIAPHRAGME DES300/350/400
3 203118011 GUIDE PLATE DCS34/PS34
5 970108929 MOTOR UPLNY DES300 - DES400
8 957113840 CARBON BRUSH SET X DES
9 905105605 FILLISTER HEAD SCREW(TORX) M5X 60
10 926105001 SPRING RING 5 DCS430/520/4300I/
15 205111680 ENGINE CASE SIDE CPL
17 929110100 SNAP RING 10X1 DES300/350/400
18 965451301 PLUG DES300/350/400
19 965451308 PLUG DES300/350/400
21 266605-8 SOCKET HEAD BOLT M5X16, EA3201S
22 203228002 GEAR WHEEL WITH SHAFT CPL DES3
26 975001161 Push Button DES300/350/400
27 970109870 Capacitor Des300/350/400
35 970102110 Cable With Plug Uc3/35/4000a
36 204152010 BREAK PROTECTION DES300/350/4
38 915135130 FILLISTER HEAD SCREW (TORX) 3

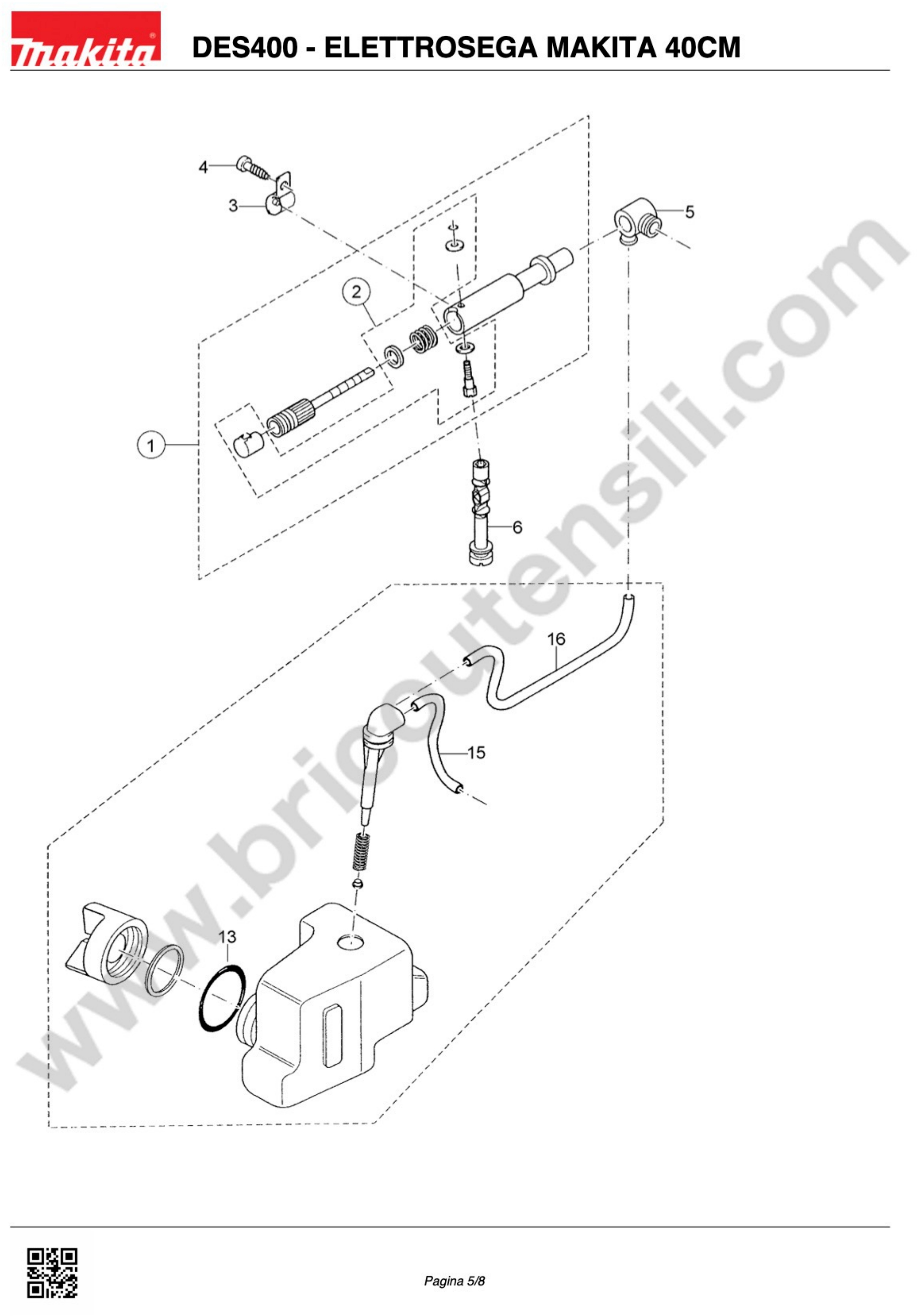

DES400 - ELECTRIC CHAINSAW MAKITA 40CM pag.3
1 021245007 OIL PUMP ASS'Y
2 957245270 OIL PUMP PARTS ASSY
3 203245002 HOLDER/OIL PUMP DES300/350
4 915735100 SCREW UC3010A - DCS3400TH
5 205245050 CONNECTING ROD DES300/350/400
6 205245070 DRIVE SHAFT X DES
13 963228030 O-ring 28x3 Des300/350/400
15 965452382 HOSE 1mt Diam. 3/5
16 965452382 HOSE 1mt Diam. 3/5

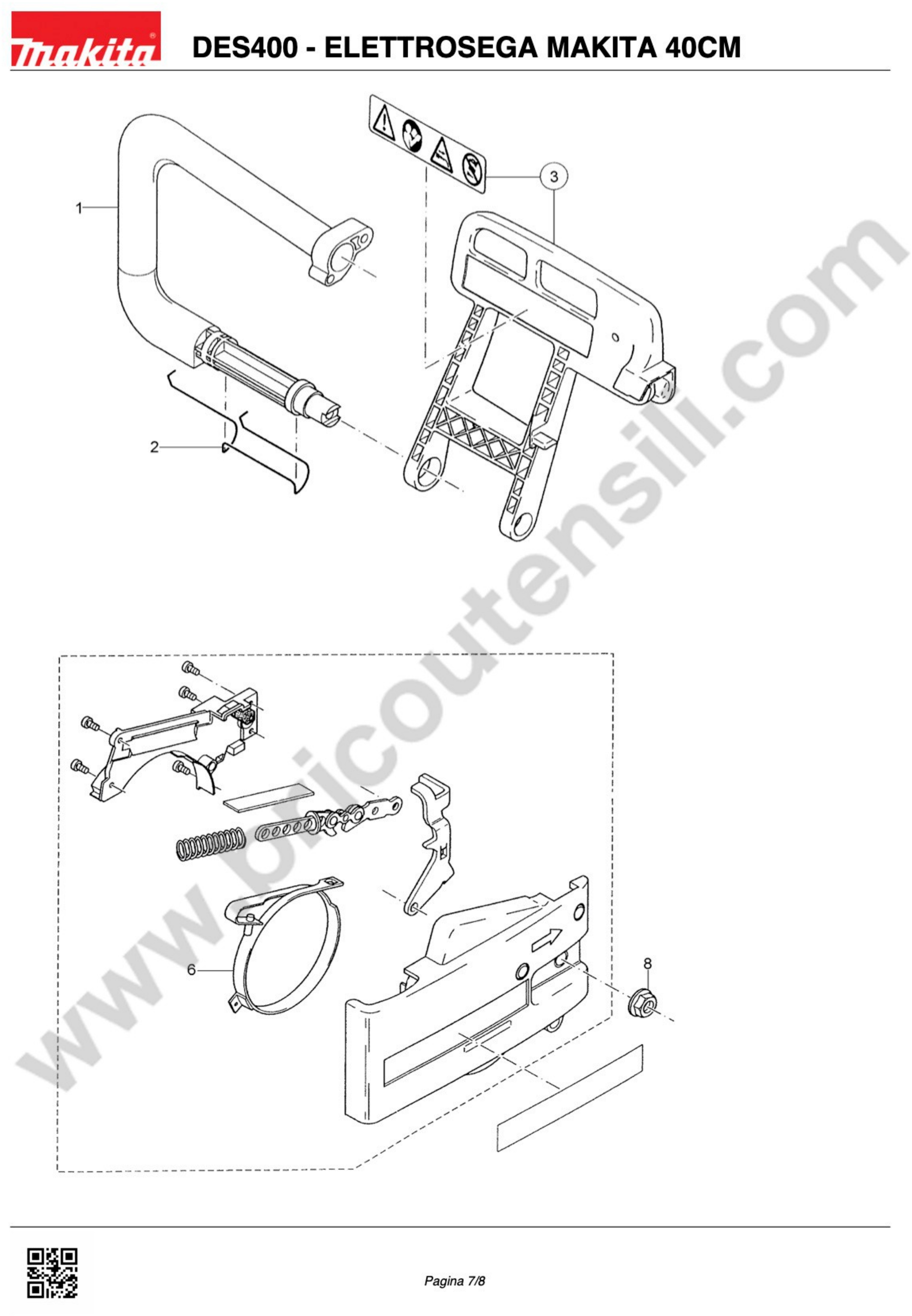

DES400 - ELETTROSEGA MAKITA 40CM pag.4
1 205310010 TUBULAR HANDLE DES300/350/400
2 205213030 SPRING FOR HAND GUARD DES300
3 205213200 HAND GUARD CPL DES300/350/400
6 028213502 BRAKE BAND
8 264055-1 COLLARED HEX. NUT M8 PS32
9 165202-6 SPROCKET NOSE BAR 40CM SP.1,3MM
10 511492756 CHAIN EXTRA GUARD MAGLIE 56
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita DES400
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita DES400

Diagram Makita DES400

Download (698.09KB)
