Makita Spare Parts for Cordless Chain Saw DUC353Z

SKU: Makita DUC353Z
€178.37
VAT included

Makita Spare Parts for Cordless Chain Saw DUC353Z

We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Chain Saw DUC353Z.
Makita Spare Parts for Cordless Chain Saw DUC353Z
  • Makita Spare Parts for Cordless Chain Saw DUC353Z
  • Makita Spare Parts for Cordless Chain Saw DUC353Z - Drawing
Makita

Makita Spare Parts for Cordless Chain Saw DUC353Z

SKU: Makita DUC353Z Condition: New
€178.37
VAT included

Makita Spare Parts for Cordless Chain Saw DUC353Z

We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Chain Saw DUC353Z.
settings 54 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
54 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

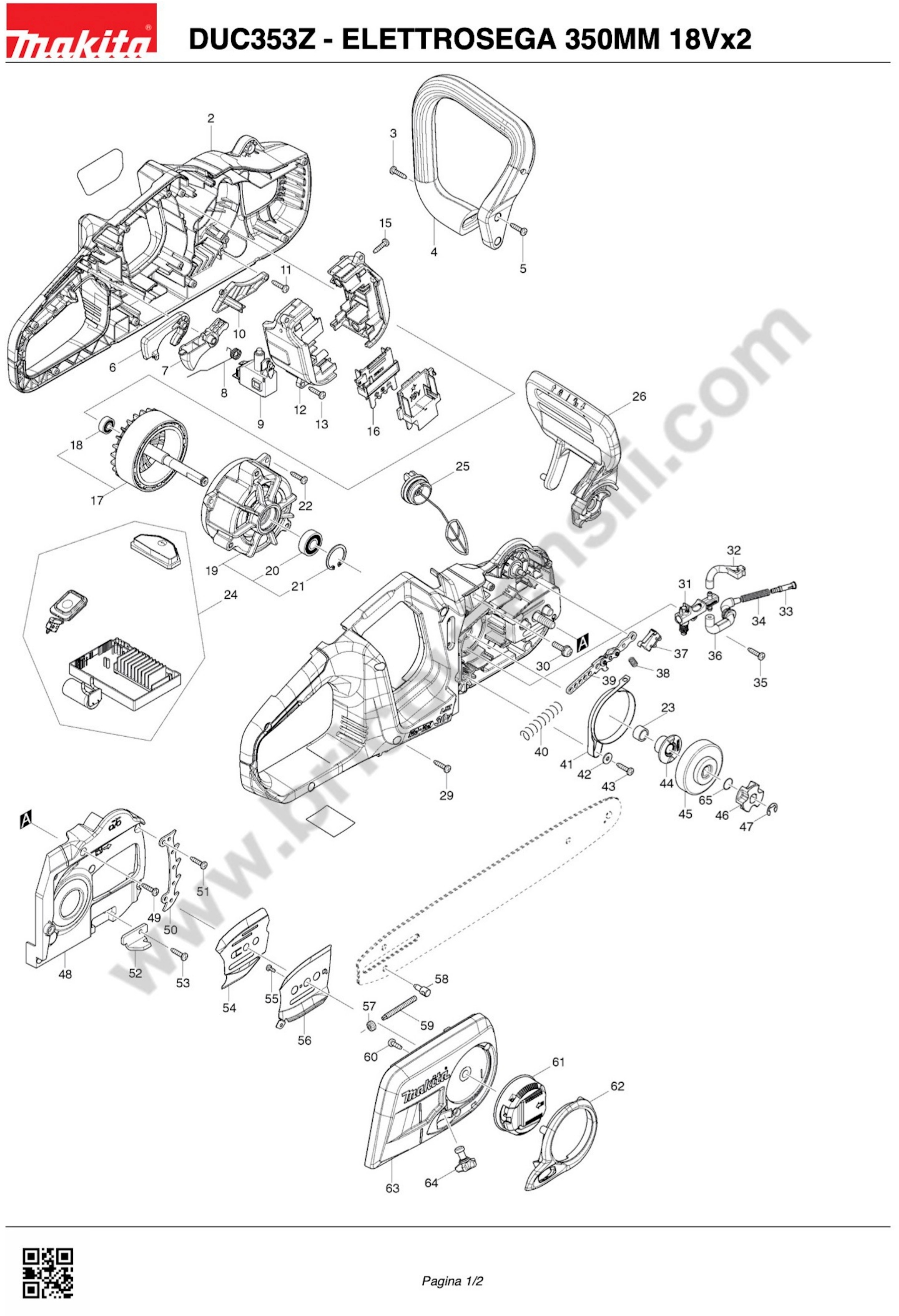

Esploso pagina 1
Pos. Item Price Buy
A02
 Sprocket Bar 14” 35cm 043” for Electric Chainsaws Makita 165246-6 Sprocket Bar 14” 35cm 043” for Electric Chainsaws Makita €29.60
A01
 photo_cameraImage coming soon 182229-1 OIL SUPPLY 100CC €3.13
A03
 photo_cameraImage coming soon 419288-5 CHAIN COVER FOR 12-14" €4.65
A04
 photo_cameraImage coming soon 511291752 CHAIN BAR 35 CM €32.12
2
 photo_cameraImage coming soon 183F61-2 HOUSING SET DUC353 €163.25
3
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
4
 photo_cameraImage coming soon 457007-1 FRONT HANDLE €17.74
6
 photo_cameraImage coming soon 457013-6 CATCH LEVER DUC353 €2.51
7
 photo_cameraImage coming soon 457006-3 SWITCH LEVER DUC353 €2.51
8
 photo_cameraImage coming soon 232318-3 TORSION SPRING 10 DUC353 €3.60
9
 photo_cameraImage coming soon 650781-2 SWITCH C3JW-6B-P DUC353 €26.44
10
 photo_cameraImage coming soon 457010-2 HOUSING L COVER DUC353 €2.51
12
 photo_cameraImage coming soon 183F15-9 TERMINAL BOX SET DUC353 €9.24
16
 photo_cameraImage coming soon 643874-2 TERMINAL €5.43
17
 photo_cameraImage coming soon 519411-3 ROTOR ASSY DUC353 €140.24
18
 photo_cameraImage coming soon 210137-7 BEARING 606ZZ €1.43
19
 photo_cameraImage coming soon 592H45-5 STATOR ASSY DUC353 €163.63
20
 photo_cameraImage coming soon 210059-1 BEARING 6000 HR2010 €12.89
21
 Retaining Ring R26 for Angle Grinder and Milling Machines Makita 962105-3 Retaining Ring R26 for Angle Grinder and Milling Machines Makita €1.47
23
 photo_cameraImage coming soon 257402-3 SLEEVE 10 DUC353 €1.32
24
 photo_cameraImage coming soon 144254-0 CONTROLLER DUC353 €227.96
25
 photo_cameraImage coming soon 168508-1 TANK CAP A3600F €4.06
26
 photo_cameraImage coming soon 458418-3 FRONT HAND GUARD DUC353 €11.86
30
 photo_cameraImage coming soon 911233-1 HEAD SCREW M5X20 3600H €1.46
31
 Oil Pump for Electric Chainsaw Makita UC3041A 142156-4 Oil Pump for Electric Chainsaw Makita UC3041A €23.90
32
 Connector (B) for Battery Chainsaw Makita DUC353Z 424904-6 Connector (B) for Battery Chainsaw Makita DUC353Z €6.17
33
 photo_cameraImage coming soon 452666-6 PLUG OIL PIPE PS32CTLC €1.47
34
 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A 234207-8 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A €1.48
36
 photo_cameraImage coming soon 424903-8 CONNECTOR A DUC353 €6.20
37
 photo_cameraImage coming soon 632H47-0 SWITCH UNIT €17.74
38
 photo_cameraImage coming soon 231298-0 SPRING COMPRES.X HM 1500 €1.47
39
 Link Plate Complete for Chainsaw Makita DCS230T 163448-8 Link Plate Complete for Chainsaw Makita DCS230T €6.76
40
 photo_cameraImage coming soon 232319-1 COMPRESSION SPRING 9 €2.94
41
 Brake Band for Chainsaw Makita DCS230T 345454-7 Brake Band for Chainsaw Makita DCS230T €12.27
42
 photo_cameraImage coming soon 267195-4 WASHER 4 X DCS230T €1.47
44
 photo_cameraImage coming soon 221427-3 WORM €7.00
45
 photo_cameraImage coming soon 161526-8 BRAKE DRUM COMPLETE €57.54
46
 photo_cameraImage coming soon 221464-7 SPROCKET 6 €2.85
47
 photo_cameraImage coming soon 961013-5 RING RITEGNOXJN3200 €2.20
48
 Housing Right Cover for Cordless Chainsaw Makita DUC353Z 457004-7 Housing Right Cover for Cordless Chainsaw Makita DUC353Z €12.95
50
 photo_cameraImage coming soon 347078-5 SPIKE BUMPER €6.20
52
 photo_cameraImage coming soon 347079-3 CHAIN CATCHER €4.80
54
 photo_cameraImage coming soon 346694-0 GUIDE PLATE ES A3600F €2.08
55
 photo_cameraImage coming soon 266166-8 TRILOBULAR SCREW M3XM8 X 6908DW €1.40
56
 photo_cameraImage coming soon 346699-0 GUIDE PLATE CS EA3600F €2.69
57
 Tensioner Screw Gear for Chainsaw Makita UC3551A 227496-2 Tensioner Screw Gear for Chainsaw Makita UC3551A €7.99
58
 Tensioner Screw Pin for Chainsaw Makita UC3551A 326310-0 Tensioner Screw Pin for Chainsaw Makita UC3551A €2.39
59
 photo_cameraImage coming soon 326312-6 ADJUST SCREW €2.08
60
 photo_cameraImage coming soon 266427-6 SCREW 4X12 MT923 €1.46
61
 Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A 142235-8 Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A €15.38
62
 photo_cameraImage coming soon 454519-5 NUT COVER €2.08
63
 photo_cameraImage coming soon 457000-5 SPROCKET COVER €10.35
64
 photo_cameraImage coming soon 142288-7 WHEEL COMPLETE €3.13
65
 photo_cameraImage coming soon 213060-5 O-RING 10 €1.47

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Cordless Chain Saw DUC353Z

We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Chain Saw DUC353Z.

In the following table, look for the model of the Cordless Chain Saw and the respective parts of the code.
Makita DUC353Z

Makita DUC353Z Cordless Chain Saw Spare Parts
# Part Num. Description
2 183F61-2 HOUSING SET DUC353
3 266326-2 SCREW 4X18 X MT601
4 457007-1 FRONT HANDLE
5 266326-2 SCREW 4X18 X MT601
6 457013-6 CATCH LEVER DUC353
7 457006-3 SWITCH LEVER DUC353
8 232318-3 TORSION SPRING 10 DUC353
9 650781-2 SWITCH C3JW-6B-P DUC353
10 457010-2 HOUSING L COVER DUC353
11 266326-2 SCREW 4X18 X MT601
12 183F15-9 TERMINAL BOX SET DUC353
13 266326-2 SCREW 4X18 X MT601
15 266326-2 SCREW 4X18 X MT601
16 643874-2 TERMINAL
17 519411-3 ROTOR ASSY DUC353
18 210137-7 BALL BEARING 606ZZ
19 592H45-5 STATOR ASSY DUC353
20 210059-1 BALL BEARING 6000 HR2010
21 962105-3 RETAINING RING R26
22 266326-2 SCREW 4X18 X MT601
23 257402-3 SLEEVE 10 DUC353
24 144254-0 CONTROLLER DUC353
25 168508-1 TANK CAP ASS'Y A3600F
26 458418-3 FRONT HAND GUARD DUC353
29 266326-2 SCREW 4X18 X MT601
30 911233-1 HEAD SCREW M5X20 3600H
31 142156-4 OIL PUMP
32 424904-6 CONNECTOR B DUC353
33 452666-6 NIPPLE PS32CTLC
34 234207-8 COMPRESSION SPRING 6 PS32CTLC
35 266326-2 TAPPING SCREW 4X18 X MT601
36 424903-8 CONNECTOR A DUC353
37 632H47-0 SWITCH UNIT
38 231298-0 COMPRESSION SPRING 6 HM 1500
39 163448-8 LINKPLATE COMP DCS230T
40 232319-1 COMPRESSION SPRING 9
41 345454-7 RAKE BAND DCS230T
42 267195-4 FLAT WASHER 4 UC3530A/DCS230T
43 266326-2 TAPPING SCREW M4X18 BHR2 X MT601
44 221427-3 WORM GEAR
45 161526-8 BRAKE DRUM COMPLETE
46 221464-7 SPROCKET 6 3/8 "
47 961013-5 EXT E-RING JIS JE-7 X JN3200
48 457004-7 HOUSING R COVER
49 266326-2 TAPPING SCREW M4X18 BHR2 X MT601
50 347078-5 SPIKE BUMPER
51 266326-2 TAPPING SCREW M4X18 BHR2 X MT601
52 347079-3 CHAIN CATCHER
53 266326-2 TAPPING SCREW M4X18 BHR2 X MT601
54 346694-0 GUIDE PLATE ES A3600F
55 266166-8 TRILOBULAR SCREW M3XM8 X 6908DW
56 346699-0 GUIDE PLATE CS EA3600F
57 227496-2 SPIRAL BEVEL GEAR 14 UC4020A FOR UC3020A
58 326310-0 ADJUST PIN
59 326312-6 ADJUST SCREW
60 266427-6 TAPPING SCREW 4X12 ER2650LH MT923
61 142235-8 SPROCKET COVER NUT COMPLETE
62 454519-5 NUT COVER
63 457000-5 SPROCKET COVER
64 142288-7 WHEEL COMPLETE
65 213060-5 O-RING 10
A01 182229-1 OIL SUPPLY 100CC
A02 165246-6 SPROCKET BAR 14" 35CM 3/8" .43G 1,1MM
A03 419288-5 CHAIN COVER FOR 12-14"
A04 511291752 3/8" CHAIN 14" EXTRAGUARD 52 Link
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita DUC353Z
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita DUC353Z Drawing

Makita DUC353Z Drawing

Download (398.8KB)
