Makita Spare parts for Cordless Chain Saw DUC254
Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chain Saw DUC254 - 254C.
In the following table, look for the model of the Cordless Chain Saw and the respective parts of the code.

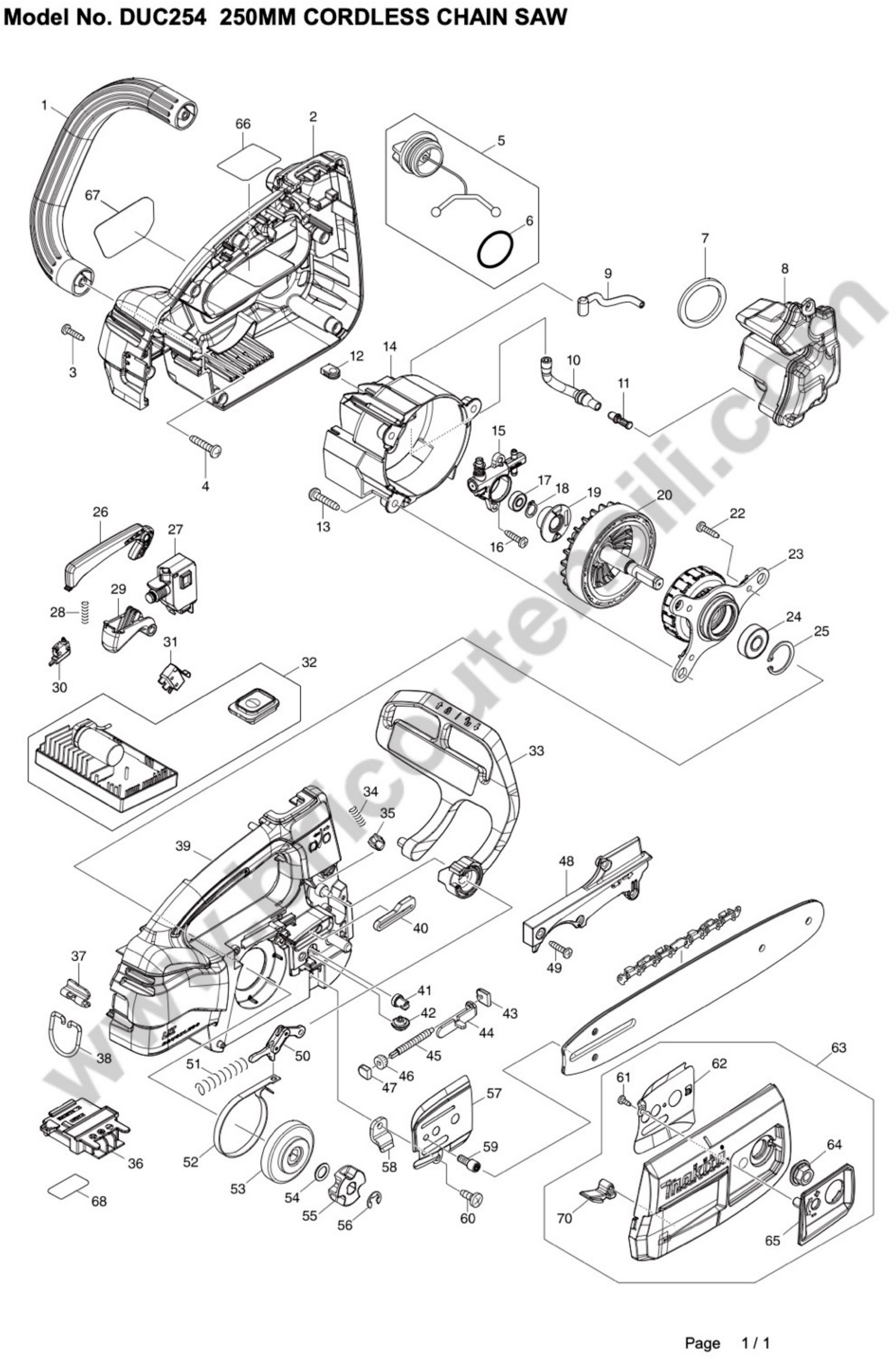

DUC254 - 254C 250MM CORDLESS CHAIN SAW Pag.1
|
| # |
Part Num. |
Description |
| 001 |
458490-5 |
SIDE HANDLE |
| 002 |
183J27-6 |
HOUSING SET |
| C10 |
263005-3 |
RUBBER PIN 6 |
| 003 |
266326-2 |
TAPPING SCREW 4X18 |
| 004 |
266041-8 |
TAPPING SCREW 5X25 |
| 005 |
168508-1 |
TANK CAP COMPLETE |
| 006 |
213355-6 |
O-RING 25 |
| 007 |
421959-2 |
SPONGE SEAL |
| 008 |
140A75-4 |
OIL TANK COMPLETE |
| 009 |
422271-3 |
CONNECTOR A |
| 010 |
422272-1 |
CONNECTOR B |
| 011 |
450437-5 |
FILTER |
| 012 |
424612-9 |
GROMMET |
| 013 |
266041-8 |
TAPPING SCREW 5X25 |
| 014 |
458489-0 |
MOTOR HOUSING |
| 015 |
142857-4 |
OIL PUMP COMPLETE |
| 016 |
266326-2 |
TAPPING SCREW 4X18 |
| 017 |
210026-6 |
BALL BEARING 696ZZ |
| 018 |
961006-2 |
RETAINING RING S-10 |
| 019 |
221428-1 |
WORM GEAR |
| 020 |
619518-6 |
ROTOR |
| 022 |
266326-2 |
TAPPING SCREW 4X18 |
| 023 |
629378-8 |
STATOR COMPLETE |
| 024 |
210059-1 |
BALL BEARING 6000DDW |
| 025 |
962105-3 |
RETAINING RING R-26 |
| 026 |
458497-1 |
CATCH LEVER |
| 027 |
651365-9 |
SWITCH C3JW-6BM-P |
| 028 |
233476-8 |
COMPRESSION SPRING 4 |
| 029 |
458495-5 |
SWITCH LEVER |
| 030 |
632L49-0 |
SWITCH UNIT |
| 031 |
632L48-2 |
SWITCH UNIT |
| 032 |
141J61-2 |
CONTROLLER COMPLETE |
| C10 |
810D46-0 |
SWITCH LABEL |
| 033 |
140A71-2 |
FRONT HAND GUARD COMPLETE |
| C10 |
816U30-5 |
CAUTION LABEL |
| 034 |
232453-7 |
COMPRESSION SPRING 3 |
| 035 |
310879-4 |
HAND GUARD GUIDE |
| 036 |
643874-2 |
TERMINAL |
| 037 |
347377-5 |
HOOK SUPPORT |
| 038 |
281222-3 |
HOOK |
| 039 |
183J27-6 |
HOUSING SET |
| C10 |
263005-3 |
RUBBER PIN 6 |
| 040 |
422270-5 |
GROMET |
| 041 |
227620-7 |
DRIVE GEAR |
| 042 |
227634-6 |
STRAIGHT BEVEL GEAR 14 |
| 043 |
455241-7 |
CLAMP SCREW |
| 044 |
347376-7 |
TENSION SLIDE |
| 045 |
327120-8 |
ADJUST SCREW |
| 046 |
227496-2 |
STRAIGHT BEVEL GEAR 14 |
| 047 |
455242-5 |
CLAMP SCREW |
| 048 |
458491-3 |
HOUSING R COVER |
| 049 |
266326-2 |
TAPPING SCREW 4X18 |
| 050 |
140A74-6 |
LINK PLATE COMPLETE |
| 051 |
232452-9 |
COMPRESSION SPRING 7 |
| 052 |
347372-5 |
BRAKE BAND |
| 053 |
161871-1 |
BRAKE DRUM COMPLETE |
| 054 |
213060-5 |
O RING 10 |
| 055 |
221464-7 |
SPROCKET 6 |
| 055 |
198259-2 |
SPROCKET 9 1/4" - CARVING |
| 056 |
961013-5 |
STOP RING E-7 |
| 057 |
347567-0 |
GUIDE PLATE L |
| 058 |
347373-3 |
CHAIN CATCHER |
| 059 |
266905-6 |
H.L. SOCKET HEAD BOLT M5X12 |
| 060 |
266388-0 |
TAPPING SCREW 5X16 |
| 061 |
266007-8 |
TAPPING SCREW BIND PT 3X10 |
| 062 |
347375-9 |
GUIDE PLATE R |
| 063 |
136010-2 |
SPROCKET COVER ASS'Y |
| 063-1 |
136010-2 |
SPROCKET COVER ASS'Y |
| 063-2 |
136036-4 |
SPROCKET COVER ASS'Y |
| 064 |
162494-8 |
FRANGE NUT COMPLETE |
| 064-1 |
162494-8 |
FLANGE NUT COMPLETE |
| 065 |
458499-7 |
NUT COVER |
| 066 |
854G31-1 |
DUC254 NAME PLATE |
| 067 |
816U21-6 |
DUC254 MODEL NO. LABEL |
| 068 |
854G38-7 |
DUC254 SERIAL NO. LABE |
| 070 |
422310-9 |
CHIP GUIDE |
| 071 |
458493-9 |
SPROCKET COVER |
| Accessories Pag.2 |
| A01 |
161846-0 |
GUIDE BAR 10 |
| A02 |
458501-6 |
GUIDE BAR CASE |
| A03 |
199075-5 |
SAW CHAIN SET |
| A04 |
782023-7 |
WRENCH 13-16 |
| A09 |
831304-7 |
ACCESSORY BAG |
| A10 |
191G22-4 |
SPROCKET NOSE BAR 3/8" X 1,3MM X 25CM |
| A11 |
191H00-0 |
CHAIN LOOP 90PX-1,1MM 3/8"40 LINKS |
| A12 |
168407-7 |
CARVING BAR 25CM SP.1,3MM |
| A13 |
512466060 |
MICRO CHISEL CAHIN LINKS 60 15,60 |
