Makita

Makita Spare Parts for Chainsaw EA4300F

SKU: Makita EA4300F Condition: New
€8.93
VAT included

Makita Spare Parts for Chainsaw EA4300F

We have the original Spares MAKITA for Chainsaw EA4300F the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Chainsaw EA4300F. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 210 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
143 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

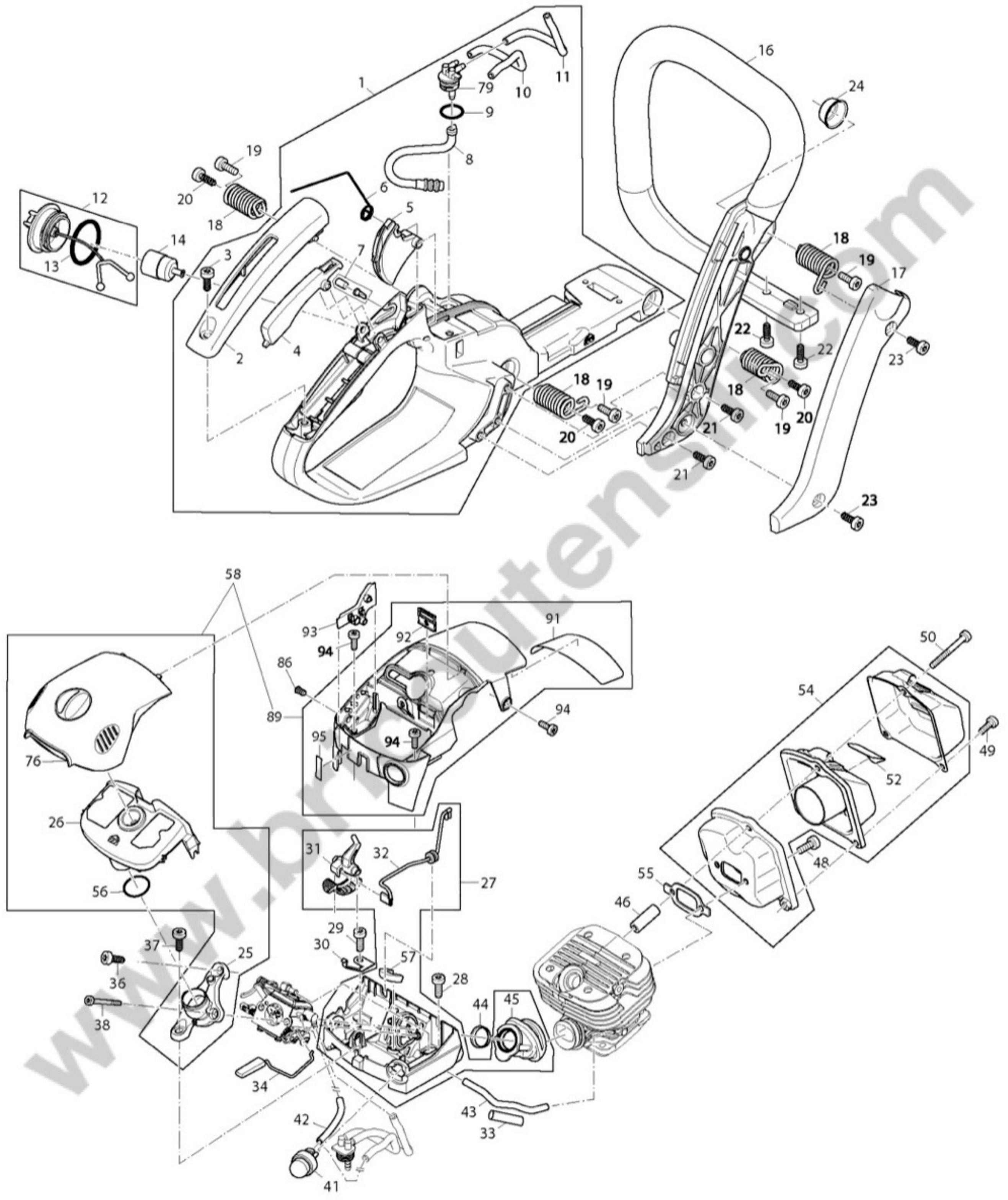

Esploso pagina 1

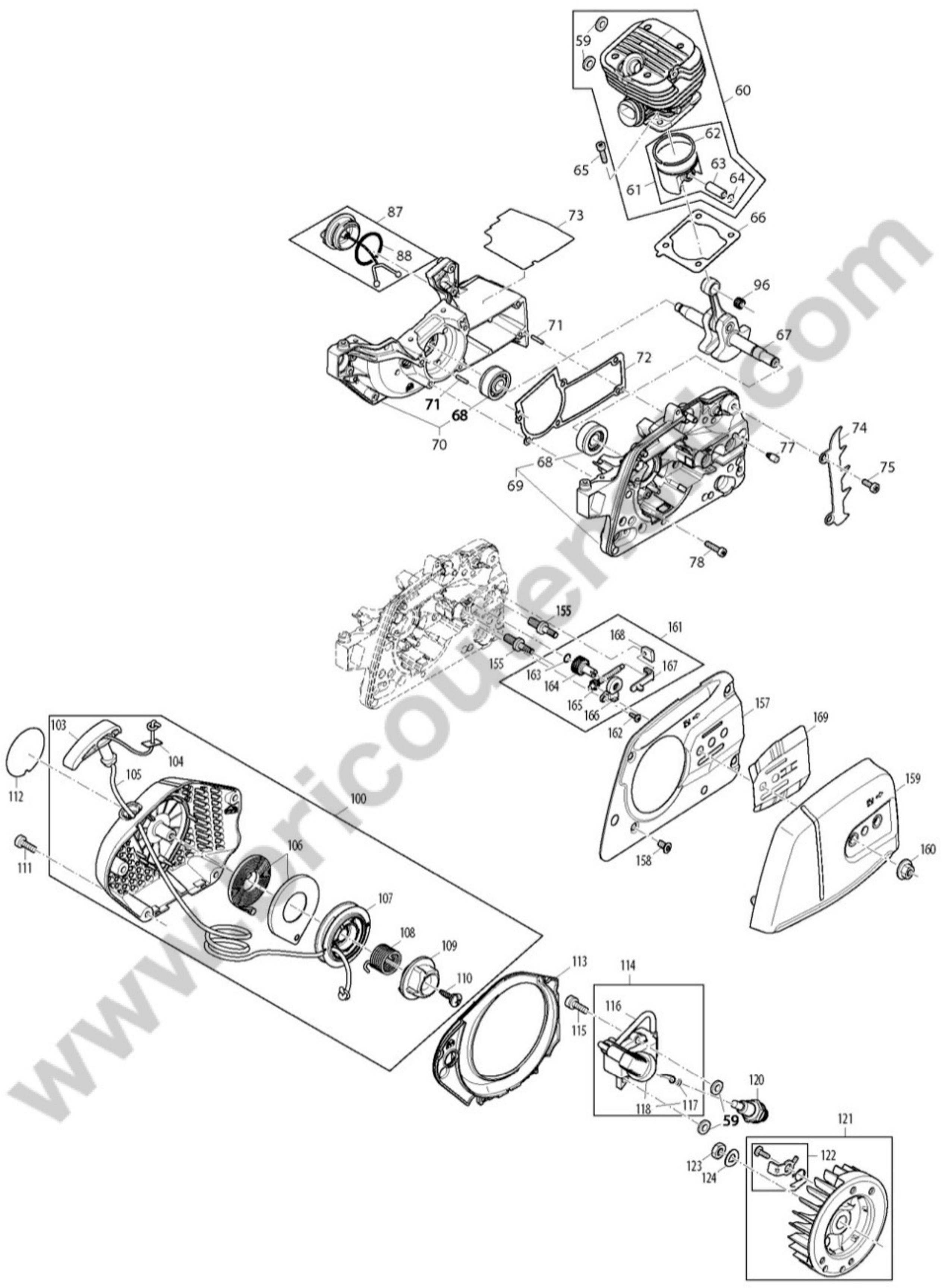

Esploso pagina 2

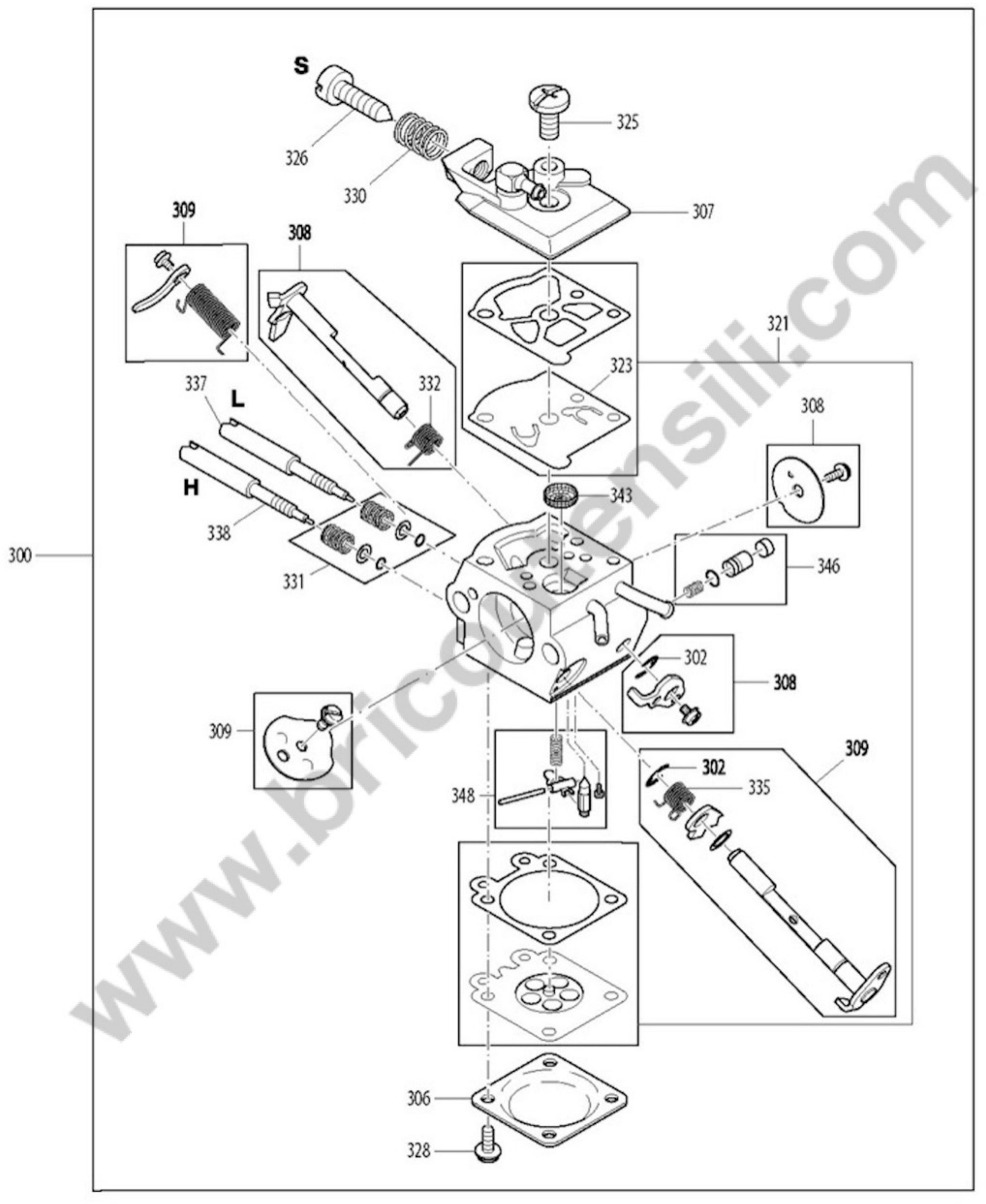

Esploso pagina 3

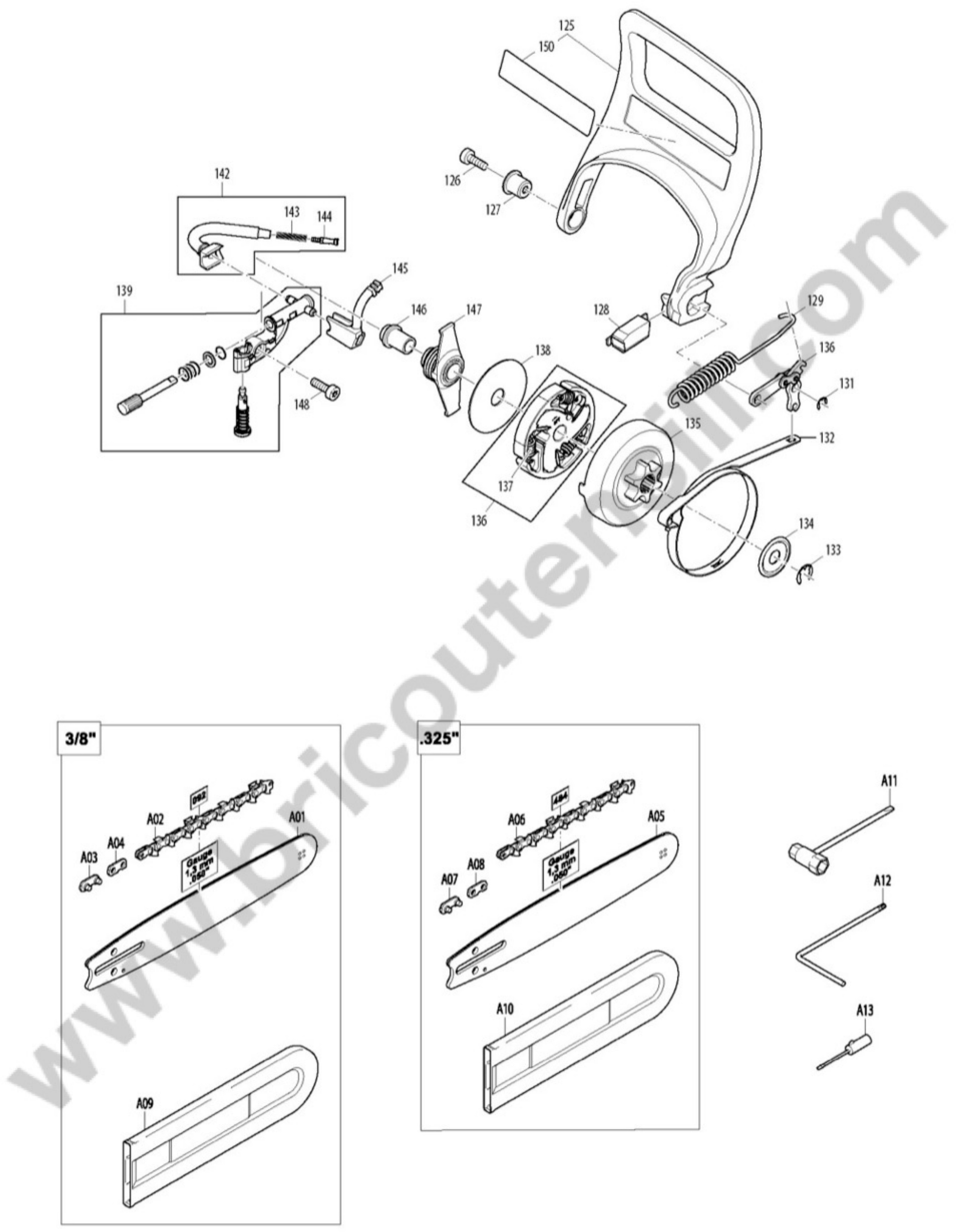

Esploso pagina 4
1 / 4
Pos. Item Price Buy
A02A
 photo_cameraImage coming soon 419560-5 CHAIN COVER €2.94
A06
 photo_cameraImage coming soon 532484064 CHAIN 325 "38CM DCS3501-4301 €22.88
A12
 photo_cameraImage coming soon 782025-3 TORX KEY €2.18
A11
 photo_cameraImage coming soon 782026-1 UNIVERSAL WRENCH €5.16
A02F
 photo_cameraImage coming soon 952020640 COVER PROTECTION CHAIN 38-45CM €8.90
C56
 photo_cameraImage coming soon ZJ00000005 PLUNGER KIT €9.89
C44
 photo_cameraImage coming soon ZJ00000014 SCREW (WITH SERRATION) €2.20
C14
 photo_cameraImage coming soon ZJ00000020 SCREW (PUMP COVER) €2.08
C38
 photo_cameraImage coming soon ZJ00000023 SCREW €1.24
C22
 photo_cameraImage coming soon ZJ00000073 SPRING €1.40
C10
 photo_cameraImage coming soon ZJ00000077 NOZZLE ASSEMBLY €9.80
001
 photo_cameraImage coming soon 195114642 TANK BLUE CPL DCS3501-4301 €162.12
002
 photo_cameraImage coming soon 456143-0 HANDLE COVER POST.PS350C €8.18
003
 photo_cameraImage coming soon 266478-9 SCREW 5,5X16 (TORX) €1.47
004
 photo_cameraImage coming soon 456142-2 RELEASE LEVER PS350C-420C €4.95
005
 photo_cameraImage coming soon 456141-4 THROTTLE LEVER €5.20
006
 photo_cameraImage coming soon 231866-9 SPRING TORSION 10 PS32CTLC €1.43
007
 photo_cameraImage coming soon 195762-4 BREATHER VALVE PS32CTLC €3.84
008
 Fuel Hose for Chaisaws Makita EA3201S35A 424456-7 Fuel Hose for Chaisaws Makita EA3201S35A €16.31
009
 photo_cameraImage coming soon 213586-7 RING 11.5 PS32CTLC €1.43
012
 photo_cameraImage coming soon 168823-3 TANK CAP PS32CTLC €2.73
013
 photo_cameraImage coming soon 213080-9 RING 29.5 PS32CTLC €5.43
014
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
016
 photo_cameraImage coming soon 456140-6 TUBULAR HANDLE €66.16
018
 Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
019
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
024
 photo_cameraImage coming soon 346517-2 BELLEVILLE WASHER 6 PS32CTLC €1.40
025
 photo_cameraImage coming soon 456135-9 BLOCK CONNECTION PS350C €10.65
025-1
 photo_cameraImage coming soon 459832-6 INTAKE MANIFOLD €9.67
026
 photo_cameraImage coming soon 123452-9 AIR FILTER NYLON PS350C-420C €27.23
030
 photo_cameraImage coming soon 346926-5 CONTACT PLATE PS350C €3.02
032
 photo_cameraImage coming soon 632F41-0 SHORT-CIRCUIT CABLE €9.67
034
 photo_cameraImage coming soon 143330-7 THROTTLE LINKAGE €6.62
038
 photo_cameraImage coming soon 251478-2 H.L. SOCKET HEAD BOLT M4X40 €2.35
038-1A
 photo_cameraImage coming soon 266604-0 SCREW M4X40 PS32CTLC €1.40
041
 Gasoline Primer Pump for Chainsaw Makita DCS230T 168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T €6.24
044
 photo_cameraImage coming soon 346413-4 SOCKET 17 PS32CTLC €1.47
045
 photo_cameraImage coming soon 424753-1 SUCTION HOSE PS350C €27.23
046-1A
 photo_cameraImage coming soon 325939-9 PS32CTLC SOCKET €1.40
046
 photo_cameraImage coming soon 326675-0 CONNECTING LINK €1.83
049
 photo_cameraImage coming soon 266612-1 H.L. SOCKET HEAD BOLT M5X10 €1.43
050-1A
 photo_cameraImage coming soon 266606-6 SCREW M5X40 PS32CTLC €1.40
052
 photo_cameraImage coming soon 352027-9 SPARK ARRESTER SCREEN €5.20
055
 photo_cameraImage coming soon 346304-9 SEAL MUFFLER PS32CTLC €1.43
056
 photo_cameraImage coming soon 213085-9 RING PS350C PS420C €1.36
057
 photo_cameraImage coming soon 424752-3 PACKING RING €3.88
059
 photo_cameraImage coming soon 451462-9 INSULATING WASHER €2.84
060A
 photo_cameraImage coming soon 319338-5 CYLINDER 42 €134.53
061
 Piston Cpl. for Chainsaw Makita EA4300F 143332-3 Piston Cpl. for Chainsaw Makita EA4300F €22.63
062
 photo_cameraImage coming soon 257383-1 PISTON RING D.42 PS420SC €23.41
063
 photo_cameraImage coming soon 268339-9 PISTON PIN 9 €21.25
064
 Circlip for Chainsaw Dolmar PS33/35 232302-8 Circlip for Chainsaw Dolmar PS33/35 €1.41
065
 photo_cameraImage coming soon 266960-8 SCREW X DCS6401 €1.43
066
 photo_cameraImage coming soon 346925-7 GASKET PS350C-420C €4.26
067
 photo_cameraImage coming soon 140H65-9 CRANKSHAFT COMPLETE €48.88
068-1
 photo_cameraImage coming soon 211341-1 BEARING 6201 PS32CTLC €3.92
068
 photo_cameraImage coming soon 211494-6 BALL BEARING 6201 €7.51
069-1
 photo_cameraImage coming soon 144393-6 CRANKCASE CS COMPLETE BLUE €168.78
071
 photo_cameraImage coming soon 258038-1 CLAMPING PIN €1.47
071-1
 photo_cameraImage coming soon 951063-8 ELASTIC PIN 3-16 LC1230 €1.39
073
 photo_cameraImage coming soon 346928-1 PROTECTIVE FILM PS350C €4.95
074
 photo_cameraImage coming soon 346301-5 HARPOON PS32CTLC €2.12
076
 photo_cameraImage coming soon 456159-5 HOOD €6.38
077
 Venting Valve for Chainsaw Dolmar PS32CTLC 168504-9 Venting Valve for Chainsaw Dolmar PS32CTLC €3.70
079
 photo_cameraImage coming soon 452018-1 FITTING CARCBURANTE PS32CTLC €1.43
080
 photo_cameraImage coming soon 219024-7 DEEP GROOVE BALL BEARING €28.57
089
 photo_cameraImage coming soon 161368-0 HOOD COMPLETE BLACK €43.81
091
 photo_cameraImage coming soon 346929-9 PROTECTION FILM HOOD €3.88
096
 photo_cameraImage coming soon 212093-7 NEEDLE BEARING €7.29
100
 photo_cameraImage coming soon 161365-6 STARTING CPL BLU DCS3501 €88.60
113
 photo_cameraImage coming soon 456137-5 DEFLECTOR PS350C-420C €8.18
114
 Electronic Coil for Chainsaw Makita DCS4301/38 161357-5 Electronic Coil for Chainsaw Makita DCS4301/38 €77.43
115A
 photo_cameraImage coming soon 266472-1 SCREW €2.20
116
 photo_cameraImage coming soon 444042-8 INSULATION TUBE PS32TCLC €1.43
117
 photo_cameraImage coming soon 234358-7 TERMINAL SPRING €1.47
120
 photo_cameraImage coming soon 168599-2 SPARK PLUG NGK CMR7A-5 €9.89
121
 photo_cameraImage coming soon 143331-5 FLYWHEEL COMPLETE €30.02
123
 photo_cameraImage coming soon 264022-6 NUT €1.43
124
 photo_cameraImage coming soon 267822-3 WASHER 8 PS32CTLC €1.47
127
 photo_cameraImage coming soon 326596-6 BUSH €8.64
128
 photo_cameraImage coming soon 450926-0 STOPPER CASE €20.12
129
 photo_cameraImage coming soon 231870-8 TENSION SPRING 10 €1.47
130
 photo_cameraImage coming soon 163500-2 LEVERAGE PS32CTLC €21.54
131
 photo_cameraImage coming soon 257934-0 RETAINING RING E-4 X UH6580 €1.47
131-1A
 photo_cameraImage coming soon 961011-9 RETAINING RING E4 €1.44
132
 photo_cameraImage coming soon 346029-5 BRAKE BAND SPRING €20.12
133
 photo_cameraImage coming soon 259045-7 DISC X DCS6401 €1.47
134
 Washer 29 for Chainsaw Dolmar PS6100/45 267820-7 Washer 29 for Chainsaw Dolmar PS6100/45 €7.53 Not available for order
135
 photo_cameraImage coming soon 158927-9 CLUTCH DRUM COMPLETE €37.93
136
 photo_cameraImage coming soon 123454-5 CLUTCH ASSEMBLY €39.13
136-1A
 Clutch Ass'y for Chainsaw Dolmar PS350C/40 123857-3 Clutch Ass'y for Chainsaw Dolmar PS350C/40 €26.65
136-2
 photo_cameraImage coming soon 127443-2 CLUTCH ASSEMBLY €25.82
137
 photo_cameraImage coming soon 231896-0 TENSION SPRING €2.35
137-1A
 photo_cameraImage coming soon 232352-3 TENSION SPRING €2.84
138
 photo_cameraImage coming soon 267389-1 FLAT WASHER 12 PS350C / 4200 €4.06
142
 photo_cameraImage coming soon 168645-1 SUCTION HOSE PS32CTLC €6.06
143
 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A 234207-8 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A €1.48
144
 photo_cameraImage coming soon 452666-6 PLUG OIL PIPE PS32CTLC €1.47
145
 photo_cameraImage coming soon 424178-9 PRESSURE LINE DCS4600S €20.12
146
 photo_cameraImage coming soon 325604-0 BUSHING DCS4600S-5000 €18.98
147
 Worm Screw for Chainsaw Dolmar PS4600S-5000 450956-1 Worm Screw for Chainsaw Dolmar PS4600S-5000 €18.99
150
 Makita Label for Chainsaw Makita DCS230T 810075-9 Makita Label for Chainsaw Makita DCS230T €2.84
155
 photo_cameraImage coming soon 266978-9 STUD M8 PS350C-420C €5.94
157
 photo_cameraImage coming soon 346927-3 SPROCKET COVER PS350C-420C €9.52
158
 Torx C.S. Head Screw M5X12 for Chainsaw Makita DCS4301/38 266477-1 Torx C.S. Head Screw M5X12 for Chainsaw Makita DCS4301/38 €2.12
159
 photo_cameraImage coming soon 161440-8 SPROCKET GUARD CPL. MAKITA €24.71
159-1A
 photo_cameraImage coming soon 161791-9 SPROKET GUARD BLUE CPL €12.21
160
 Hex Nut M 8 Collared for Chainsaw Makita DCS230T 252145-2 Hex Nut M 8 Collared for Chainsaw Makita DCS230T €1.40
160-1A
 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48
162-1
 photo_cameraImage coming soon 266484-4 H.L SOCKET HEAD BOLT M5X12 €1.47
163
 photo_cameraImage coming soon 213082-5 O-RING 7 €1.24
163-1A
 photo_cameraImage coming soon 213594-8 RING 7 €1.40
164
 photo_cameraImage coming soon 226693-7 PINION DCS4600S-500 €18.81
164-1A
 photo_cameraImage coming soon 227744-9 GEAR 18 €20.12
165-1A
 photo_cameraImage coming soon 227743-1 GEAR 11 €22.84
166
 photo_cameraImage coming soon 452667-4 COVER €9.01
167A
 photo_cameraImage coming soon 346300-7 SLEIGH €2.12
167-1A
 photo_cameraImage coming soon 347252-5 TENSION SLIDE €1.83
168
 photo_cameraImage coming soon 450929-4 GUIDE PLATE €2.35
168-1A
 photo_cameraImage coming soon 452668-2 TENSIONER PLATE EA3200S €1.43
169
 Guide Plate for Chainsaw Dolmar PS32C/35 346518-0 Guide Plate for Chainsaw Dolmar PS32C/35 €6.23
170
 photo_cameraImage coming soon 313212-9 PS32CTLC GUIDE €1.47
172
 photo_cameraImage coming soon 213141-5 SEAL €6.29
177
 photo_cameraImage coming soon 266626-0 H.L. TAPPING SCREW 5X12 €1.40
179
 photo_cameraImage coming soon 325938-1 FITTING THE PS32CTLC €2.08
180
 photo_cameraImage coming soon 266977-1 THUMB SCREW €4.50
300
 Dolmar Chainsaw PS350C Carburetor 161371-1 Dolmar Chainsaw PS350C Carburetor €61.00
301A
 photo_cameraImage coming soon ZJ00000003 STRAINER €1.40
302A
 photo_cameraImage coming soon ZJ00000008 Pin €9.80
303A
 photo_cameraImage coming soon ZJ00000078 SPRING, METERING LEVER €1.38
304A
 photo_cameraImage coming soon ZJ00000006 LEVER €2.69
305A
 photo_cameraImage coming soon ZJ00000007 VALVE, INLET NEEDLE €8.50
306A
 photo_cameraImage coming soon ZJ00000009 SCREW (METERING LEVER PIN) €2.08
308A
 photo_cameraImage coming soon ZJ00000013 DIAPHRAGM ASS'Y,METERING €12.69
309A
 photo_cameraImage coming soon ZJ00000029 DIAPHRAGM, PUMP €2.98
310A
 photo_cameraImage coming soon ZJ00000016 GASKET, PUMP €1.40
1001
 photo_cameraImage coming soon 444045141 SPOOL BAR 325"45CM €44.81
1002
 photo_cameraImage coming soon 444038141 SPOOL BAR 325 "38CM €34.23
1003
 Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30 442040661 Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30 €36.37
1004
 photo_cameraImage coming soon 512484772 CHAIN 45CM 0,325" 1,3mm 95VPX €31.52
1005
 photo_cameraImage coming soon 558092010 TIE STRAP WITH RIVETS 3/8" .050" €1.61
1007
 photo_cameraImage coming soon 510084020 JERSEY WITH RIVETS PS-540 325 " €2.08
1008
 photo_cameraImage coming soon 510084040 JERSEY 325 "X 43 PS €1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Chainsaw EA4300F

Fix Your Chainsaw EA4300F. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of Chainsaw and the respective parts of the code.
Makita EA4300F

EA4300F PETROL CHAIN SAW
# Part Num. Description
001 195114642 FUEL TANK WELDED BLUE
002 456143-0 GRIP OUTER SHELL
003 266478-9 H.L.TAPPING SCREW 5.5X16
004 456142-2 CATCH LEVER
005 456141-4 THROTTLE LEVER
006 231866-9 TORSION SPRING 10
007 195762-4 AIR VALVE SET
008 424456-7 FUEL LINE
009 213586-7 O RING 11.5
010 424756-5 TUBE 2.5-118
011 424757-3 TUBE 3.0-93
012 168823-3 TANK CAP COMPLETE
013 213080-9 O RING 29.5
014 163447-0 FUEL FILTER
015 852C42-6 EA4300F NAME PLATE
016 456140-6 TUBULAR HANDLE
017 456151-1 SIDE COVER MAKITA BLUE
018 234189-4 COMPRESSION SPRING 12
019 266605-8 H.L. SOCKET HEAD BOLT M5X16
020 266478-9 H.L.TAPPING SCREW 5.5X16
021 266478-9 H.L.TAPPING SCREW 5.5X16
022 266478-9 H.L.TAPPING SCREW 5.5X16
023 266478-9 H.L.TAPPING SCREW 5.5X16
024 346517-2 CUP WASHER 6
025 456135-9 INTAKE MANIFOLD
025-1 459832-6 INTAKE MANIFOLD
026 123452-9 AIR FILTER CPL.NYLON
027 456169-2 CARBURETOR BOTTOM
028 266605-8 H.L. SOCKET HEAD BOLT M5X16
029 266605-8 H.L. SOCKET HEAD BOLT M5X16
030 346926-5 CONTACT SPRING
030-1A 347357-1 CONTACT SPRING
031 456139-1 CHOKE LEVER
032 632F41-0 SHORT-CIRCUIT CABLE
033 424759-9 ISOLATING TUBE 6-30
034 143330-7 THROTTLE LINKAGE
036 266478-9 H.L.TAPPING SCREW 5.5X16
037 266478-9 H.L.TAPPING SCREW 5.5X16
038 251478-2 H.L. SOCKET HEAD BOLT M4X40
038-1A 266604-0 H.L. SOCKET HEAD BOLT M4X40
041 168398-2 PRIMER PUMP
042 424754-9 TUBE 2.5-55
043 424755-7 TUBE 2.5-93
044 346413-4 BUSH 17
045 424753-1 INTAKE HOSE
046 326675-0 CONNECTING LINK
046-1A 325939-9 CONNECTING LINK
048 266605-8 H.L. SOCKET HEAD BOLT M5X16
049 266612-1 H.L. SOCKET HEAD BOLT M5X10
050 266943-8 H.L. SOCKET HEAD BOLT M5X40
050-1A 266606-6 H.L. SOCKET HEAD BOLT M5X40
052 352027-9 SPARK ARRESTER SCREEN
054 161363-0 MUFFLER COMPLETE
055 346304-9 GASKET
056 213085-9 O-RING 20
057 424752-3 PACKING RING
059 451462-9 ISOLATING WASHER
060A 319338-5 CYLINDER D=42
060-1A 144710-0 CYLINDER COMPLETE
060-2 140L37-8 CYLINDER COMPLETE
061 143332-3 PISTON 42 CPL.
062 257383-1 PISTON RING 42
063 268339-9 PISTON PIN 9
064 232302-8 CIRCLIP 9
065 266960-8 H.L. SOCKET HEAD BOLT M5X20
066 346925-7 CYLINDER BASE GASKET
067 140H65-9 CRANKSHAFT COMPLETE
068 211494-6 BALL BEARING 6201
068-1 211341-1 BALL BEARING 6201
069 143333-1 CRANKCASE CS COMPLETE BLUE
069-1 144393-6 CRANKCASE CS COMPLETE BLUE
070 143337-3 CRANKCASE MS COMPLETE BLUE
070-1 144394-4 CRANKCASE MS COMPLETE BLUE
071 258038-1 CLAMPING PIN
071-1 951063-8 SPRING PIN 3-16
072 346924-9 CRANK CASE GASKET
073 346928-1 HEAT PROTECTION FOIL
074 346301-5 SPIKE BAR
075 266605-8 H.L. SOCKET HEAD BOLT M5X16
076 456159-5 HOOD
077 168504-9 VENT VALVE
078 266960-8 H.L. SOCKET HEAD BOLT M5X20
079 452018-1 FUEL NIPPLE
080 219024-7 DEEP GROOVE BALL BEARING
087 168823-3 TANK CAP COMPLETE
088 213080-9 O RING 29.5
089 161368-0 HOOD COMPLETE BLACK
091 346929-9 PROTECTION FILM HOOD
092 456157-9 SHUTTER PLATE
093 456138-3 GUIDE
094 266605-8 H.L. SOCKET HEAD BOLT M5X16
095 816917-5 INDICATION LABEL
096 212093-7 NEEDLE CAGE 912
100 161365-6 STARTER COMPLETE BLUE
111 266605-8 H.L. SOCKET HEAD BOLT M5X16
112 809A28-9 EA4300F MODEL NO. LABEL
113 456137-5 AIR GUIDE PLATE
114 161357-5 IGNITION COIL COMPLETE
115A 266472-1 TORX SOCKET HEAD BOLT M5X20
116 444042-8 ISOLATING TUBE 6-80
117 234358-7 TERMINAL SPRING
118 424750-7 PLUG CAP
120 168599-2 SPARK PLUG NGK CMR7A-5
121 143331-5 FLYWHEEL COMPLETE
122 346916-8 RATCHET
123 264022-6 HEX. NUT M8X1
124 267822-3 SPRING WASHER 8
125 456136-7 HAND PROTECTION
126 266605-8 H.L. SOCKET HEAD BOLT M5X16
127 326596-6 BUSH
128 450926-0 STOPPER CASE
129 231870-8 TENSION SPRING 10
130 163500-2 LINK PLATE COMPLETE
131 257934-0 STOP RING E-4
131-1A 961011-9 STOP RING E-4
132 346029-5 BRAKE BAND
133 259045-7 STOP RING E-8
134 267820-7 WASHER 29
135 158927-9 CLUTCH DRUM COMPLETE
136 123454-5 CLUTCH ASSEMBLY
136-1A 123857-3 CLUTCH ASSEMBLY
136-2 127443-2 CLUTCH ASSEMBLY
137 231896-0 TENSION SPRING
137-1A 232352-3 TENSION SPRING
138 267389-1 FLAT WASHER 12
138-1 253454-2 FLAT WASHER 12
139 161346-0 OIL PUMP COMPLETE
142 168645-1 OIL SUCTION LINE COMPLETE
143 234207-8 COMPRESSION SPRING 6
144 452666-6 NIPPLE
145 424178-9 OIL TUBE
146 325604-0 BUSH
147 450956-1 WORM SCREW PUMP DRIVE
148 266605-8 H.L. SOCKET HEAD BOLT M5X16
150 810075-9 CAUTION LABEL
150-1 817T83-1 CAUTION LABEL
150-2 818L12-9 CAUTION LABEL
155 266978-9 BOLT
157 346927-3 CHAIN BRAKE COVER
158 266477-1 H.L. C.S. HEAD SCREW M5X12
159 161440-8 SPROCKET GUARD CPL. MAKITA
159-1A 161791-9 SPROCKET GUARD CPL. MAKITA
160 252145-2 COLLARED HEX NUT M8
160-1A 264055-1 COLLARED HEX. NUT M8
162 251480-5 TAPPING SCREW ST3.5X9.5
162-1 266484-4 H.L SOCKET HEAD BOLT M5X12
163 213082-5 O-RING 7
163-1A 213594-8 O RING 7
164 226693-7 HELICAL GEAR 18
164-1A 227744-9 HELICAL GEAR 18
165 226692-9 HELICAL GEAR 11
165-1A 227743-1 HELICAL GEAR 11
166 452667-4 GEAR COVER PROFESSIONAL
167A 346300-7 TENSION SLIDE
167-1A 347252-5 TENSION SLIDE
168 450929-4 GUIDE PLATE
168-1A 452668-2 CLAMP SCREW BEDDING
169 346518-0 GUIDE PLATE
170 313212-9 HAND GUARD GUIDE
171 234093-7 COMPRESSION SPRING 3
172 213141-5 OIL SEAL 12
173 802K41-6 SOUND 113DB LABEL
173-1 807U97-4 SOUND 115DB LABEL
177 266626-0 H.L. TAPPING SCREW 5X12
178 232303-6 TORSION SPRING 13
179 325938-1 ANGULAR NIPPLE
180 266977-1 THUMB SCREW
300 161371-1 CARBURETOR DM23B
C10 ZJ00000077 NOZZLE ASSEMBLY
C12 ZJ00000097 PUMP COVER KIT
C14 ZJ00000020 SCREW (PUMP COVER)
C16 ZJ00000026 SCREW,IDLE MIXTURE
C18 ZJ00000027 SCREW,MAIN MIXTURE
C20 ZJ00000037 STRAINER
C22 ZJ00000073 SPRING
C24 ZJ00000015 THROTTLE SHAFT ASSY
C26 ZJ00000012 SHAFT ASSY,CHOKE
C28 ZJ00000030 VALVE,THROTTLE
C30 ZJ00000001 SCREW
C32 ZJ00000036 PLUG,ACC POCKET
C34 ZJ00000098 THROTTLE LEVER SCREEN
C36 ZJ00000022 LEVER,THROTTLE
C38 ZJ00000023 SCREW
C40 ZJ00000021 COLLAR
C42 ZJ00000028 COVER,METERING
C44 ZJ00000014 SCREW (WITH SERRATION)
C46 ZJ00000033 WASHER
C48 ZJ00000031 LEVER,CHOKE
C50 ZJ00000099 CHOKE LEVER
C52 ZJ00000017 E-RING
C54 ZJ00000024 VALVE,CHOKE
C56 ZJ00000005 PLUNGER KIT
C58 ZJ00000032 SPRING,CHOKE RETURN
C60 ZJ00000040 SPRING,THROTTLE RETURN
301A ZJ00000003 STRAINER
302A ZJ00000008 PIN
303A ZJ00000078 SPRING, METERING LEVER
304A ZJ00000006 LEVER
305A ZJ00000007 VALVE, INLET NEEDLE
306A ZJ00000009 SCREW (METERING LEVER PIN)
307A ZJ00000079 METERING CHAMBER GASKET
308A ZJ00000013 DIAPHRAGM ASS'Y,METERING
309A ZJ00000029 DIAPHRAGM, PUMP
310A ZJ00000016 GASKET, PUMP
311A ZJ00000081 REBUILT KIT
312A ZJ00000082 GASKET&DIAPHRAGM KIT
313 347438-1 COOLING PLATE
314 183M69-8 NYLON FILTER SET BLACK
314-1 183M92-3 NYLON FILTER SET BLACK
A01A 161420-4 GUIDE BAR 15
A02A 419560-5 CHAIN PROTECTION COVER 430
A02F 952020640 CHAIN PROTECTION 38-45CM
A03 197324-4 TOOL KIT
A12 782025-3 TORX WRENCH
A11 782026-1 UNIVERSAL WRENCH 13/16
A13 783012-5 SCREWDRIVER
C40 831340-3 TOOL BAG
A06 532484064 SAW CHAIN .325.050"ML L64 MC M
A04F 532484056 SAW CHAIN .325.050"ML L56 MC M
1001 444045141 SPROCKET NOSE BAR
1002 444038141 SPROCKET NOSE BAR 15"
1003 442040661 SPROCKET NOSE BAR 16"
1004 512484772 SAW CHAIN
1005 558092010 TIE STRIP WITH RIVETS UH4520/P
1006 558092000 SAFETY TIE STRAP UH4520/5520/P
1007 510084020 TIE STRAP WITH RIVETS
1008 510084040 TIE STRAP
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EA4300F
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita EA4300F

Diagram Makita EA4300F

Download (814.15KB)

You might also like

Set Diaphram Gasket for Chainsaws Dolmar PS350C-420C
Makita SKU: 957151220
Set Diaphram Gasket for Chainsaws Dolmar PS350C-420C
Set Diaphram Gasket for Chainsaws Dolmar PS350C-420C Genuine parts Dolmar, Set Diaphram Gasket for Chainsaws Dolmar PS420SC/38 - PS420SC/45 Part for the following products: - Chainsaw Dolmar PS420SC/38 - Chainsaw Dolmar PS420SC/45 -...
Last items in stock €40.61
Details
Worm Screw for Chainsaw Dolmar PS4600S-5000
Makita SKU: 450956-1
Worm Screw for Chainsaw Dolmar PS4600S-5000
Worm Screw for Chainsaw Dolmar PS4600S-5000 Genuine part Dolmar, Worm Screw for Chainsaw Dolmar PS4600S-5000 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45 Part for the following products: - DCS3501/40 -...
Last items in stock €18.99
Details
Guide Plate for Chainsaw Dolmar PS32C/35
Makita SKU: 346518-0
Guide Plate for Chainsaw Dolmar PS32C/35
Guide Plate for Chainsaw Dolmar PS32C/35 Genuine parts Dolmar, Guide Plate for Chainsaw PS32C/35 - Chainsaw 33CC 35CM-1,1MM - PS35C/40 - Chainsaw 35CC 40CM - Makita EA3200S40B - EA3201S35A -EA3500S40B Part for the following products:...
AVAILABLE €6.23
Details
Fuel Hose for Chaisaws Makita EA3201S35A
Makita SKU: 424456-7
Fuel Hose for Chaisaws Makita EA3201S35A
Fuel Hose for Chaisaws Makita EA3201S35A Genuine parts Makita, Fuel Hose for Chaisaws Makita EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC Parts for the following products: - EA3200S35A - CHAISAW 33CC 35CM MAKITA -...
AVAILABLE €16.31
Details
Gasoline Primer Pump for Chainsaw Makita DCS230T
Makita SKU: 168398-2
Gasoline Primer Pump for Chainsaw Makita DCS230T
Gasoline Primer Pump for Chainsaw Makita DCS230T Genuine parts for Makita, Gasoline Primer Pump for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA...
AVAILABLE €6.24
Details
Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following...
Last items in stock €4.49
Details
Intake Manifold for Chainsaw Dolmar PS420SC
Makita SKU: 195131040
Intake Manifold for Chainsaw Dolmar PS420SC
Intake Manifold for Chainsaw Dolmar PS420SC Genuine parts Dolmar, Intake Manifold for Chainsaws Dolmar PS350C/40 - PS350SC/40 - PS420C/38 - PS420C/45 - PS420SC/38 - PS420SC/45 Part for the following products: - DCS3501/40 - CHAINSAW...
Last items in stock €29.38
Details
Makita Label for Chainsaw Makita DCS230T
Makita SKU: 810075-9
Makita Label for Chainsaw Makita DCS230T
Makita Label for Chainsaw Makita DCS230T Genuine parts for Makita, Makita Label for Chainsaws DCS230T - EA3200S35A - EA3201S35A Part for the following products: - Chainsaw Makita DCS230T -...
AVAILABLE €2.84
Details
Venting Valve for Chainsaw Dolmar PS32CTLC
Makita SKU: 168504-9
Venting Valve for Chainsaw Dolmar PS32CTLC
Venting Valve for Chainsaw Dolmar PS32CTLC Genuine part Dolmar, Venting Valve for Chainsaws Dolmar PS32CTLC - PS32C/35 - PS3400TH - PS350C - PS420C - PS460 - PS4605...
on 7/10 Business Days Approx €3.70
Details
Hex Nut M 8 Collared for Chainsaw Makita DCS230T
Makita SKU: 252145-2
Hex Nut M 8 Collared for Chainsaw Makita DCS230T
Hex Nut M 8 Collared for Chainsaw Makita DCS230T Genuine part Makita, Hex Nut M 8 Collared for Chainsaws DCS230T - DCS230TC - DCS231T - DCS231TC - DCS232TC - Dolmar PS220TH. Part for the following products: - DCS230T - CHAINSAW 22,2cc...
AVAILABLE €1.40
Details
Clutch Ass'y for Chainsaw Dolmar PS350C/40
Makita SKU: 123857-3
Clutch Ass'y for Chainsaw Dolmar PS350C/40
Clutch Ass'y for Chainsaw Dolmar PS350C/40 Genuine replacement part Dolmar, Clutch Ass'y for Chainsaws PS350C/40 - PS350SC/40 - PS420C/38 - PS420C/45 - PS420SC/38. Part for the following products: - PS350C/40 - CHAINSAW 40CM 34,7cc...
Last items in stock €26.65
Details
Circlip for Chainsaw Dolmar PS33/35
Makita SKU: 232302-8
Circlip for Chainsaw Dolmar PS33/35
Circlip for Chainsaw Dolmar PS33/35 Original replacement part Dolmar, Piston Pin Circlip for Chainsaws PS33/35 - PS35C/40 - PS45/40 - EA3500S40B - DCS330S/30. Part for the following products: -  DCS330S/30 - CHAINSAW CM30 KW1,3 33CC...
AVAILABLE €1.41
Details
Electronic Coil for Chainsaw Makita DCS4301/38
Makita SKU: 161357-5
Electronic Coil for Chainsaw Makita DCS4301/38
Electronic Coil for Chainsaw Makita DCS4301/38 Genuine replacement part Makita, Electronic Coil for Chainsaws Makita DCS3501/40 - DCS4301/38 - DCS4301/45 - EA3500F40B. Part for the following products: -  DCS4301/38 - CHAINSAW 38CM...
Last items in stock €77.43
Details
Torx C.S. Head Screw M5X12 for Chainsaw Makita DCS4301/38
Makita SKU: 266477-1
Torx C.S. Head Screw M5X12 for Chainsaw Makita DCS4301/38
Torx C.S. Head Screw M5X12 for Chainsaw Makita DCS4301/38 Genuine replacement part Makita, Torx C.S. Head Screw M5X12 for Chainsaws DCS4301/38 - DCS4301/45 - EA4300F - DCS460/45.  Part for the following products: -  DCS4301/38 -...
Last items in stock €2.12
Details
Piston Cpl. for Chainsaw Makita EA4300F
Makita SKU: 143332-3
Piston Cpl. for Chainsaw Makita EA4300F
Piston Cpl. for Chainsaw Makita EA4300F Genuine replacement part Makita, Piston 42MM CPL. for Chainsaw Makita  EA4300F. Parts for the following products: -  EA4300F - CHAINSAW MAKITA -...
Last items in stock €22.63
Details
Makita Chainsaw EA4300F Carburetor
Makita SKU: 161371-1
Dolmar Chainsaw PS350C Carburetor
Dolmar Chainsaw PS350C Carburetor Genuine replacement part Makita Dolmar, Carburetor for Chainsaw PS350C/40 - PS420C/38 - PS420C/45 Catalized. Part for the following products: -  Chainsaw Dolmar PS350C/40 -  Chainsaw...
Last items in stock €61.00
Details
Comments (0)
